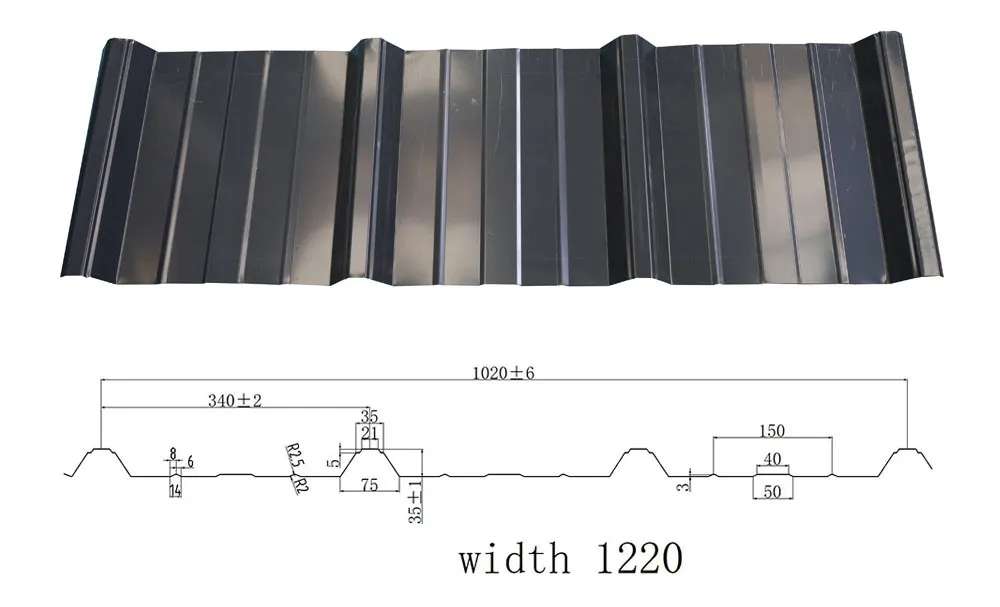

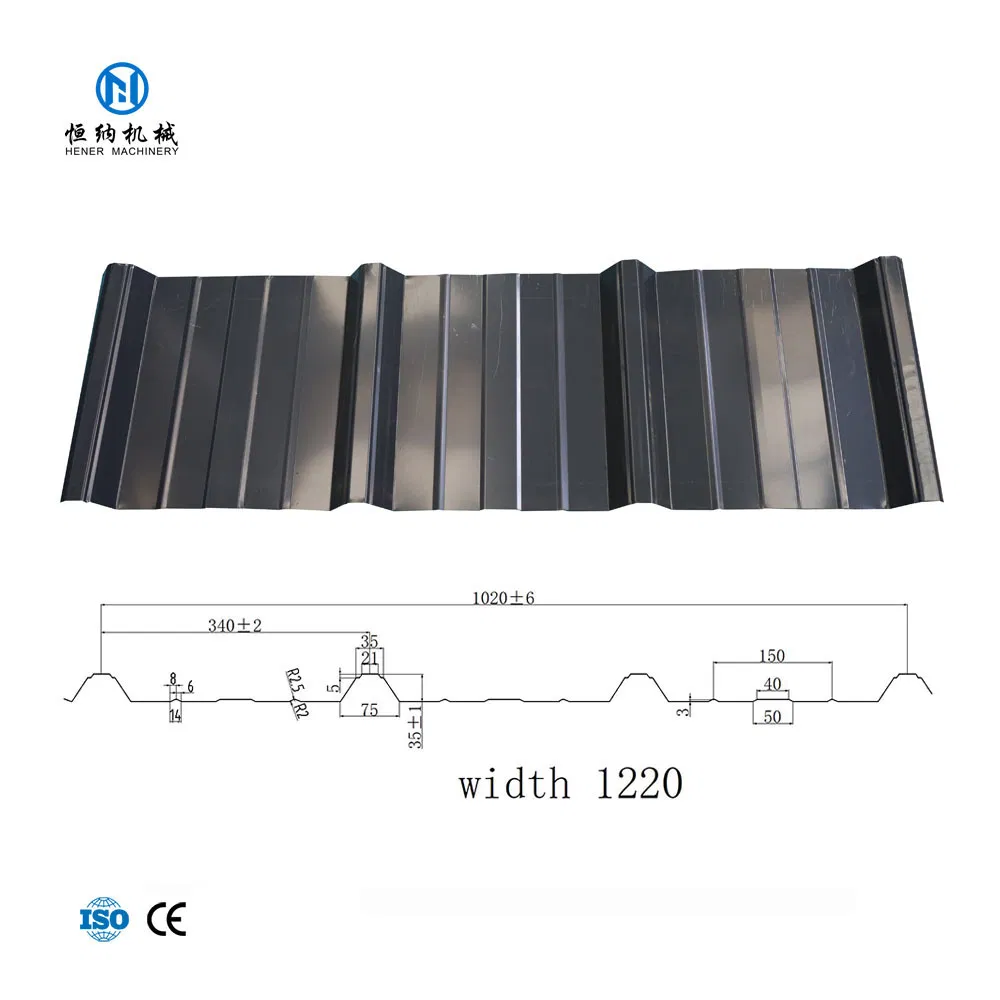

Roofing sheet has many different shapes, usually different countries have its own popular design, we can customize the machine as demand.

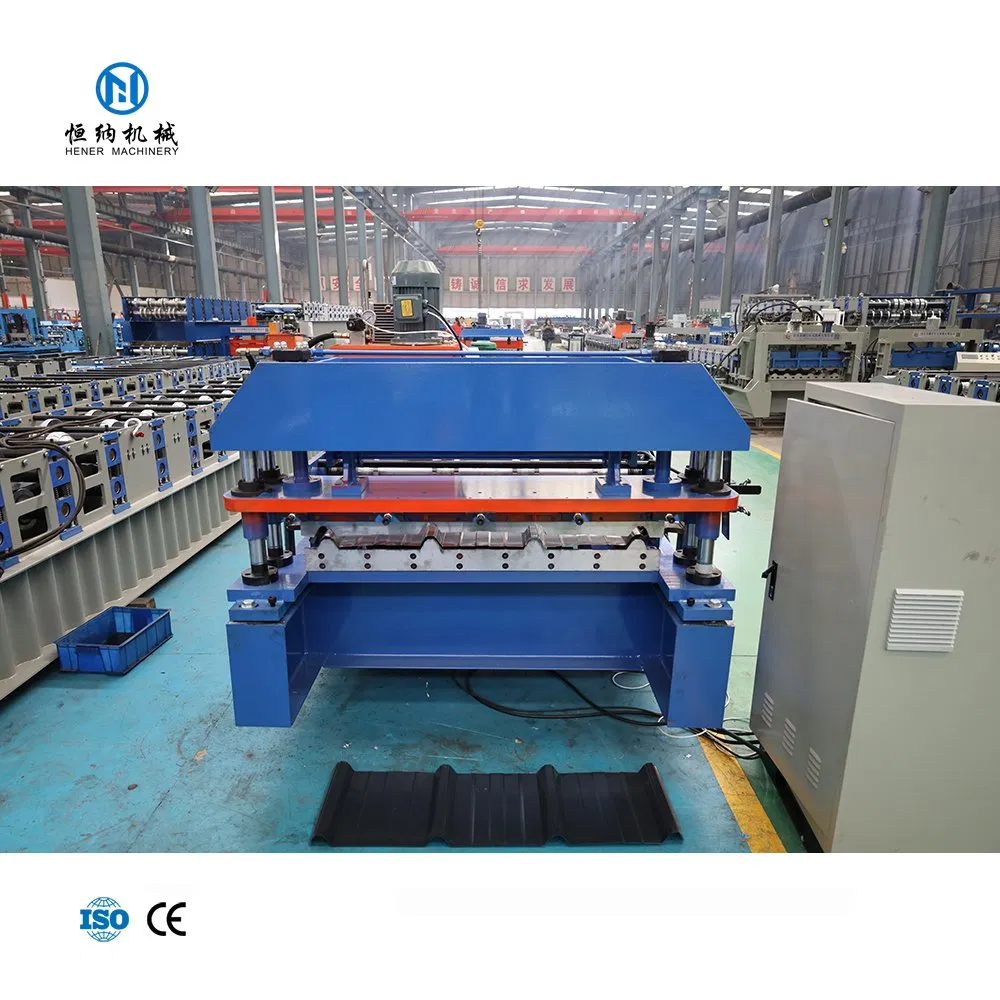

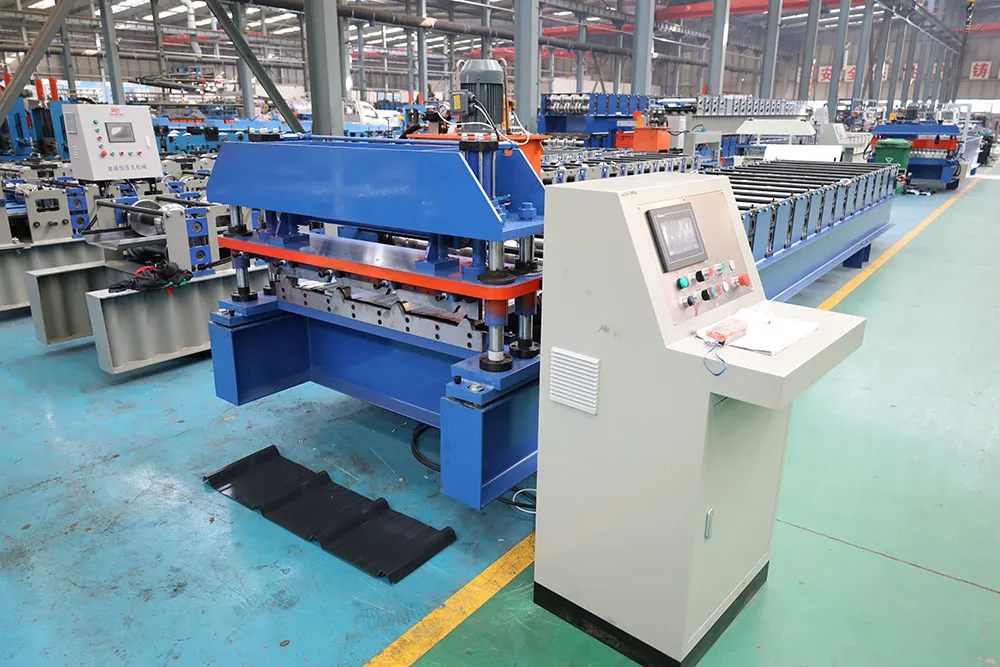

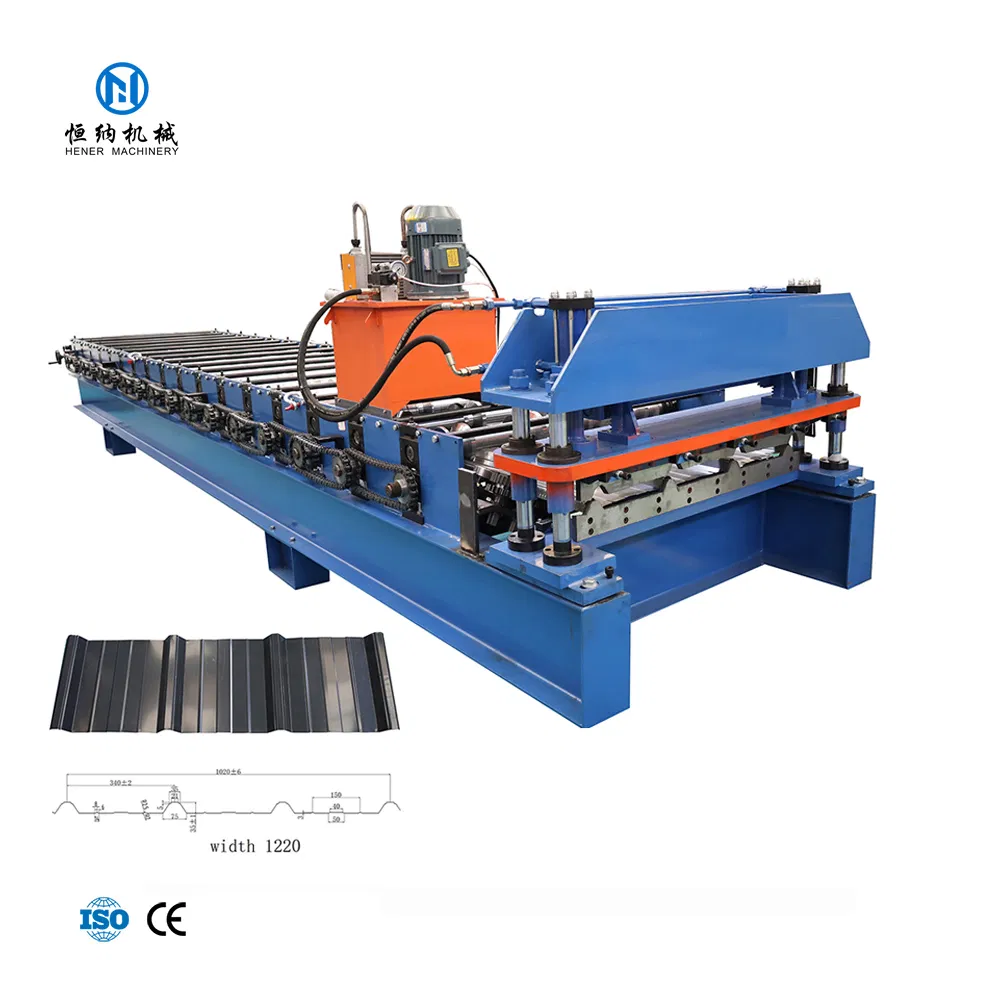

| OEM ODM High Quality Steel Tile Roll Forming Machine | |
|---|---|
| Raw Material | PPGI, PPGL |
| Material Thickness | 0.3 - 0.8mm (31-21 Gauge) |
| Diameter of Shafts | Φ75mm |
| Material of Shafts | 45# Steel Thermal Refining |
| Material of Rollers | High Grade 45# Forged Steel, Chromed Treatment (0.05mm) |
| Forming Speed | About 15m/min |
| Work Power | 9.5 kw |
| Cutting Blade Material | Cr12Mov, Life exceeding 1 million cuts |

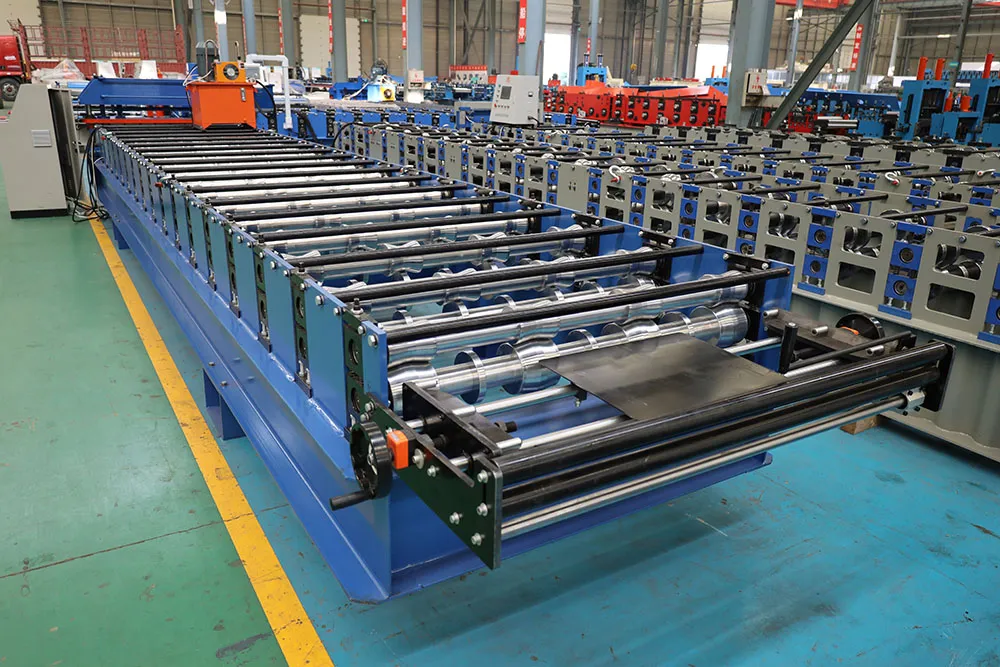

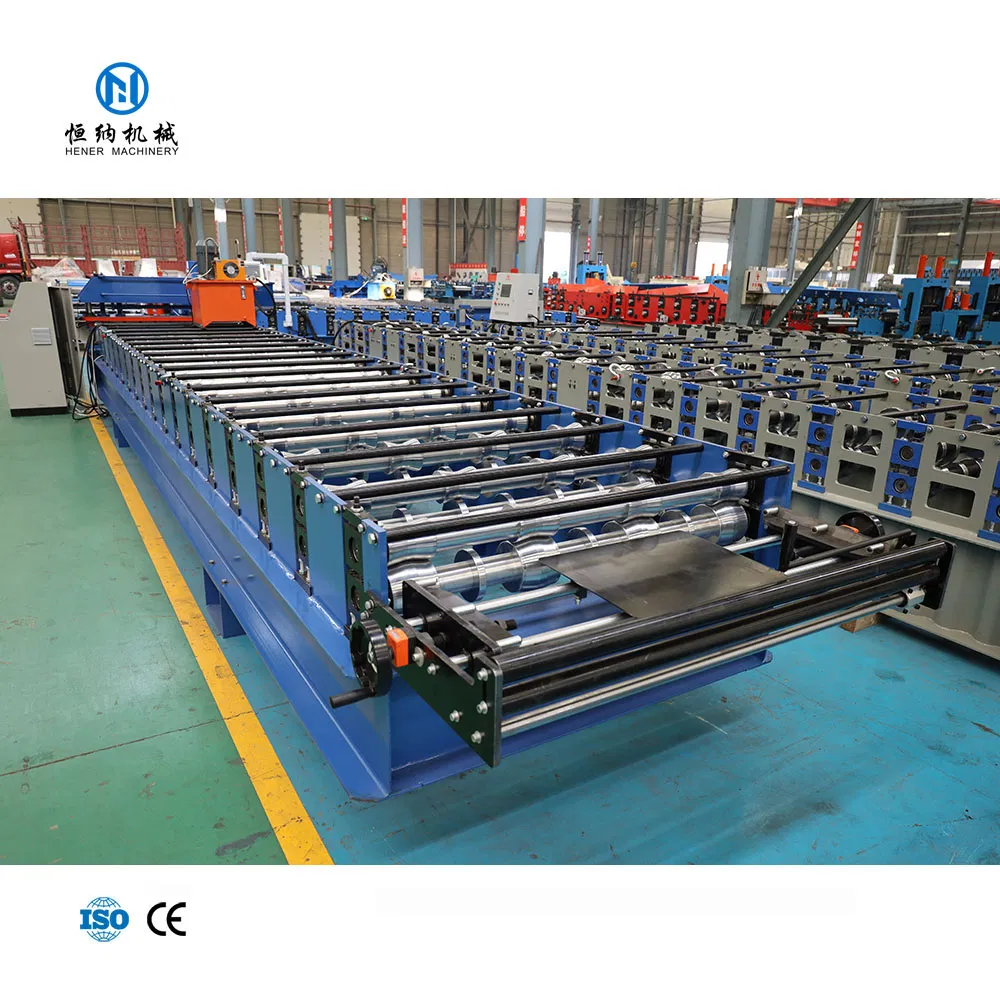

1. Dual rollers reduce friction and avoid material scratches.
2. Stainless touch rollers ensure smooth material entry.
3. Hand wheel included for accurate width adjustment.
4. Integrated broach for convenient material cutting.

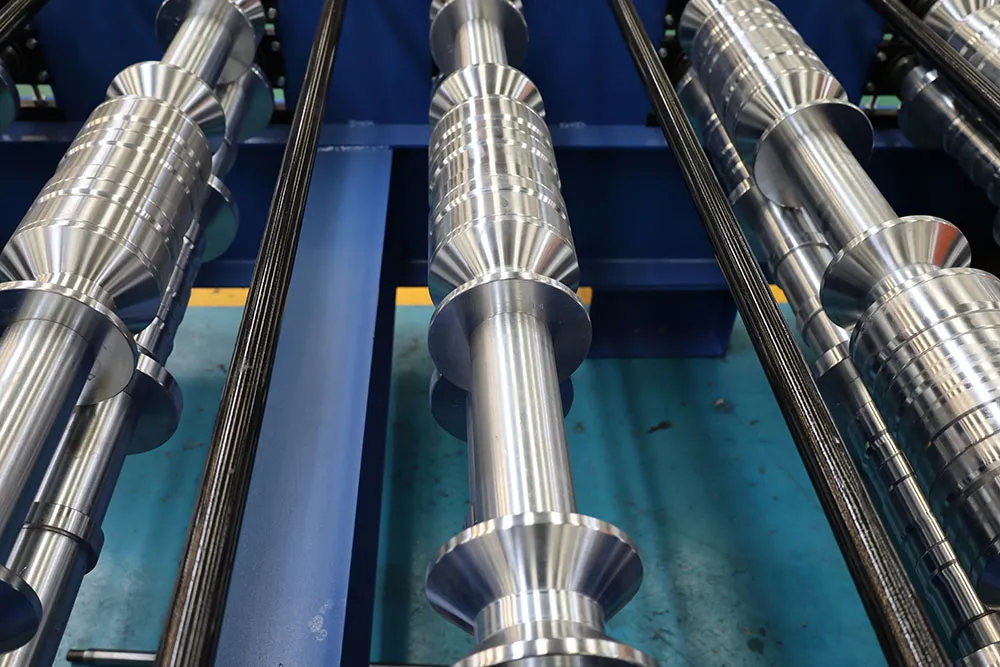

1. Frame: 350H heavy-duty steel.
2. Stations: 18 forming rows.
3. Material: 45# steel with quenched treatment.
4. Added diagonal bracing for maximum stability during high-speed operation.

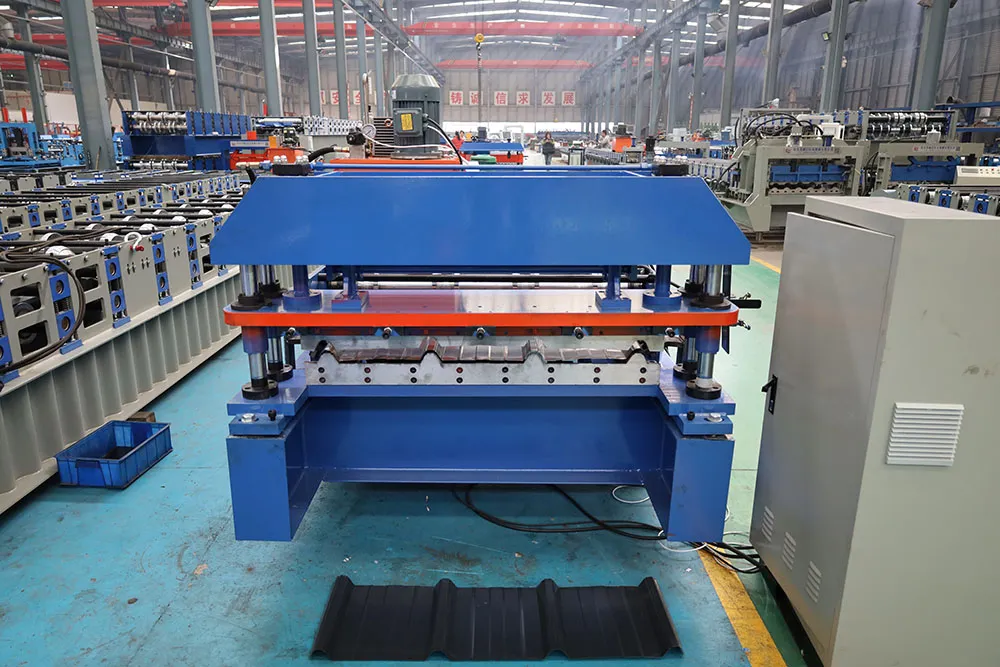

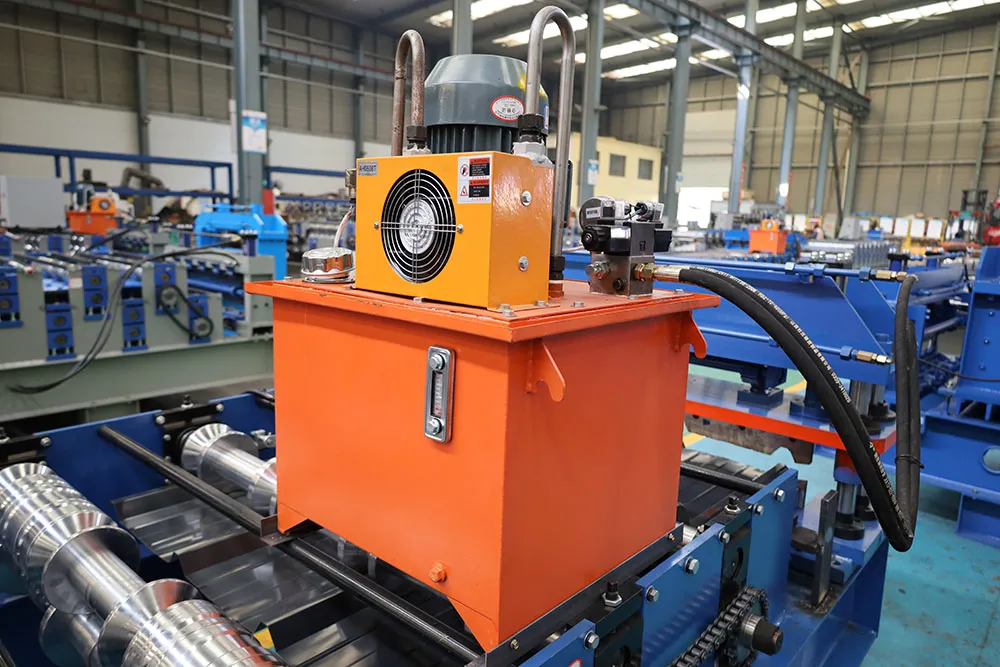

1. Dual oil cylinder system for superior stability.
2. GB-Cr12 heat-treated cutter with energy accumulator.
3. High precision: Tolerance within ±2mm per 10 meters.
4. Low noise and safe working environment.

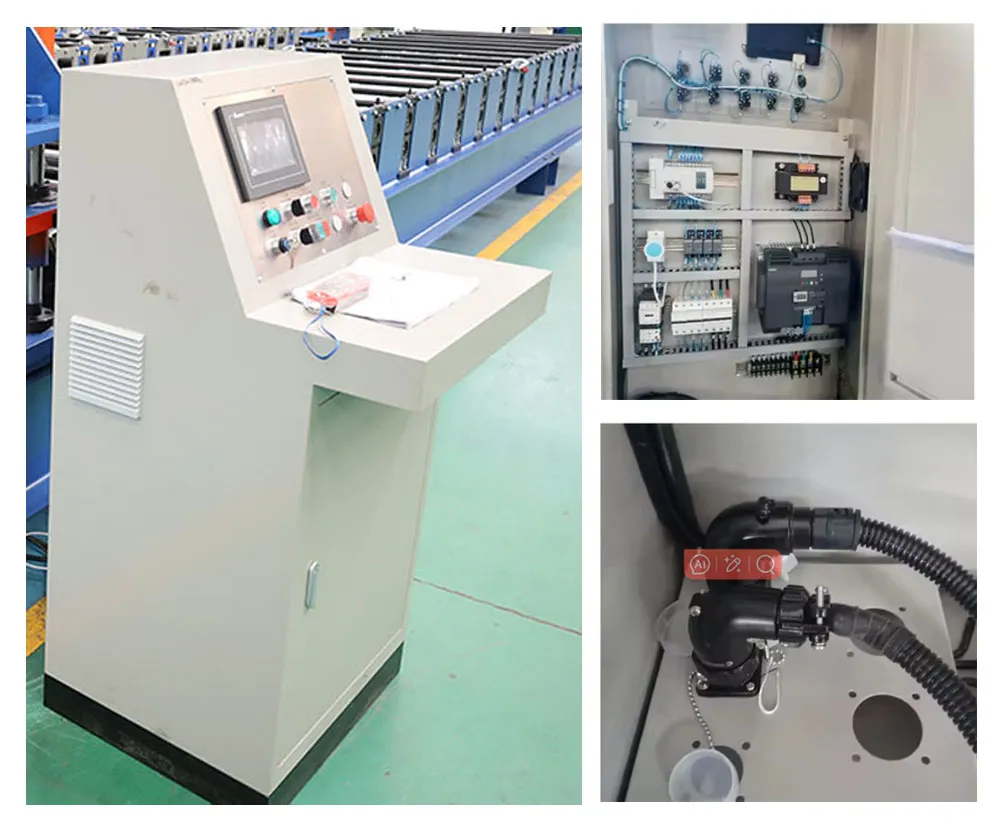

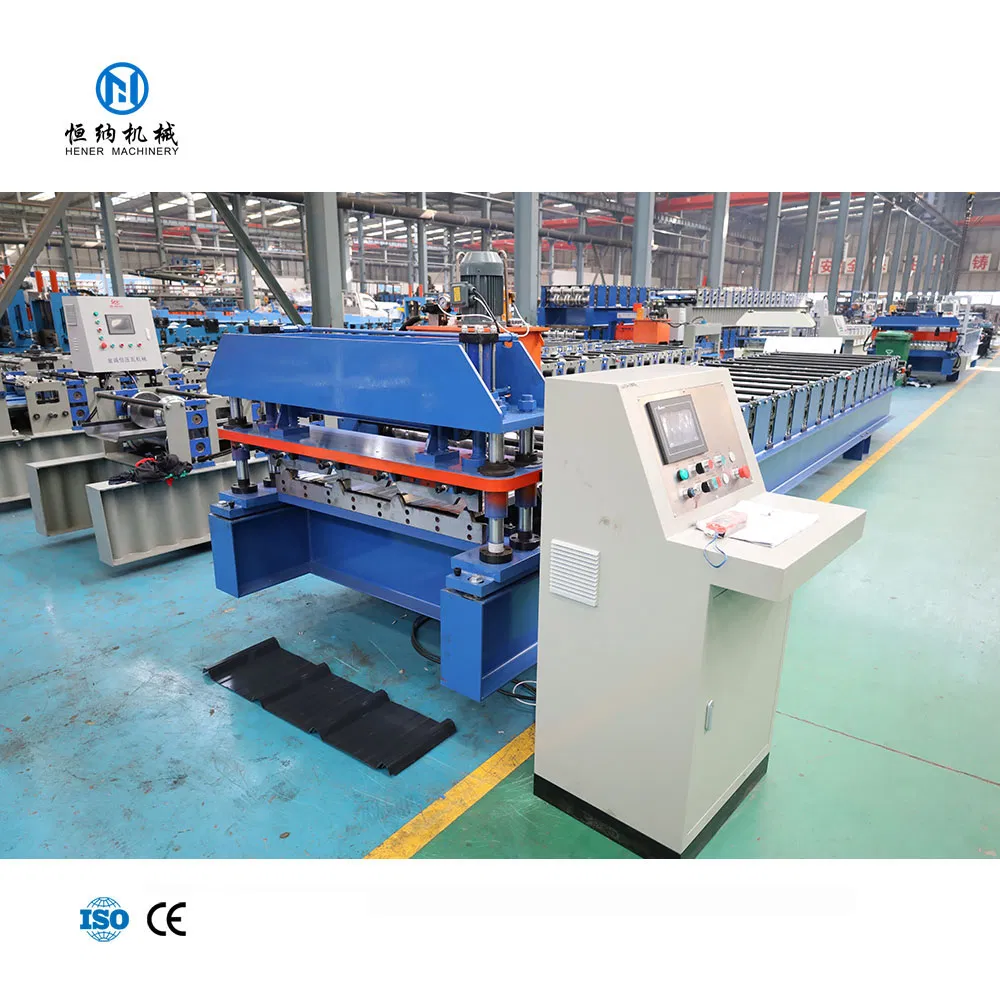

1. Delta (Taiwan) PLC with touch screen and transducer.
2. Omron Encoder for precision.
3. Multi-language support (English/Chinese).
4. Easy order setting for product length and quantity; includes aviation plugs for easy setup.
