Product Description

📊 Basic Information
Model NO.
CIP470AP-4K-DNA2
Application
Financial Services System
Screen Type
Infrared
Touch Type
Digital / Vandal Proof
Certifications
CE, FCC
Interface
USB (Plug and Play)
Touch Points
2, 4, 6, 10 Points
Glass
4mm Tempered Glass
Color
Black Frame
Origin
China
🔍 Product Description

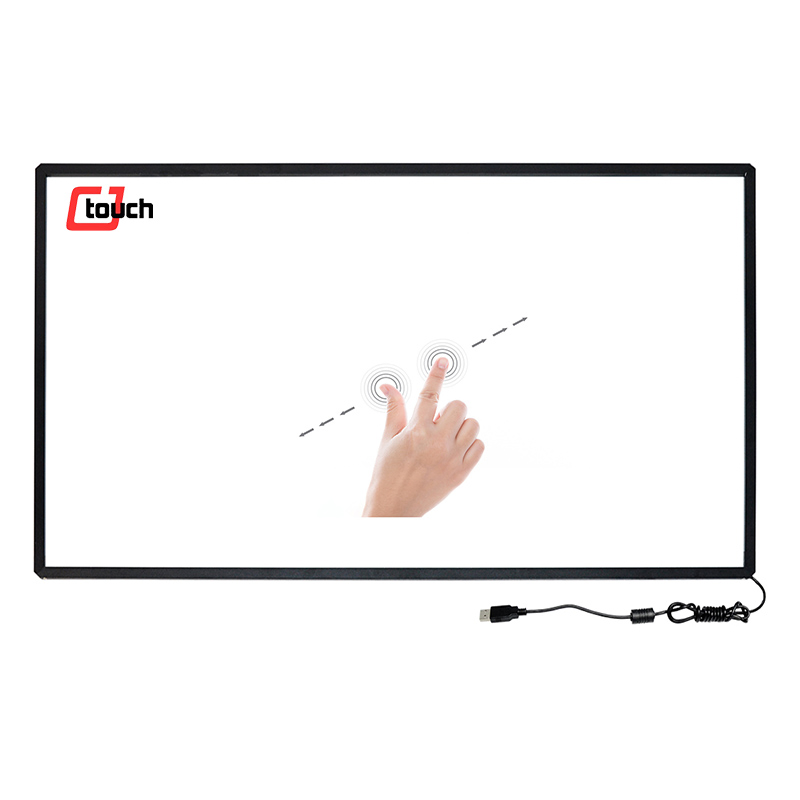

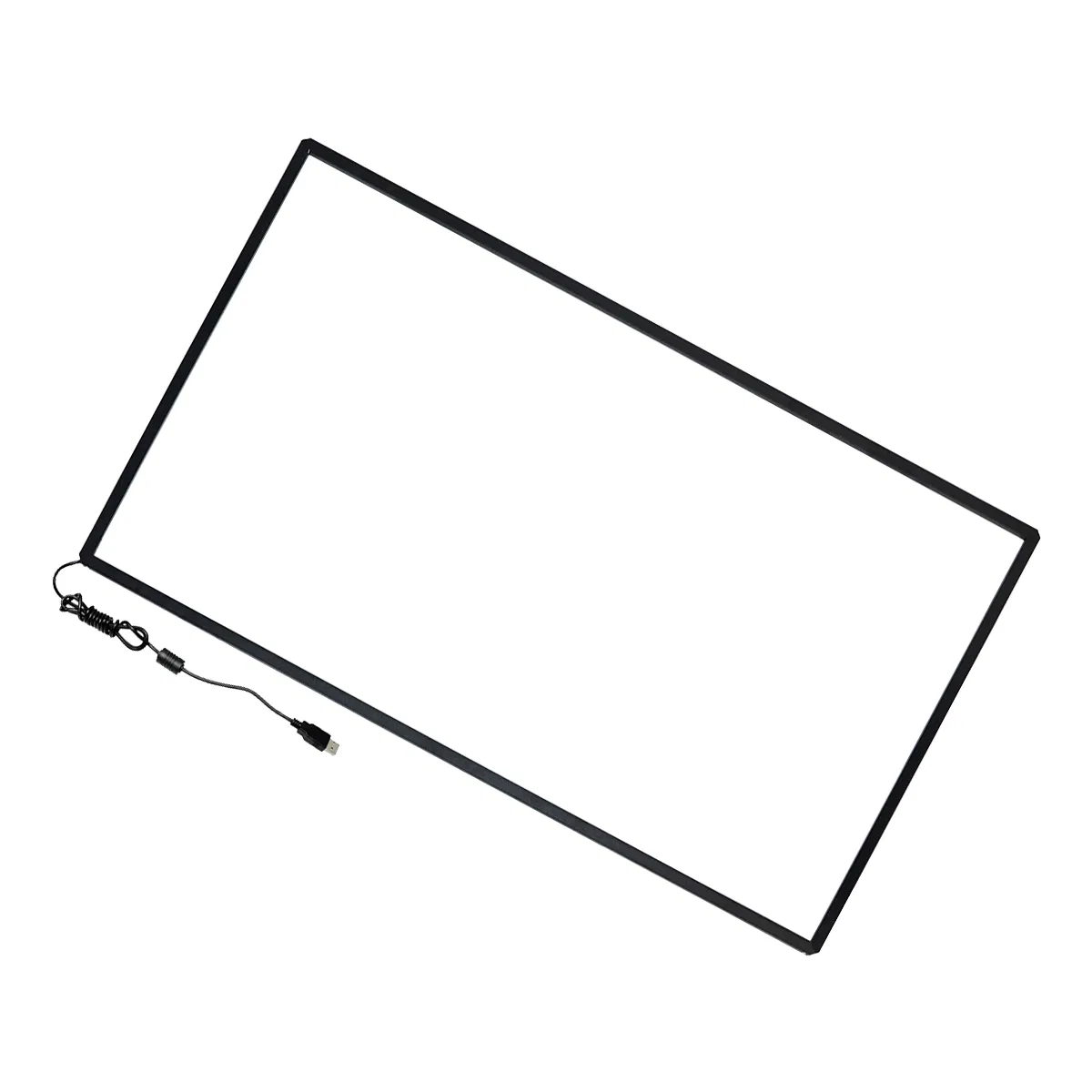

47" IR Touch Screen Multi-Touch Frame with 4mm Vandal Proof Glass

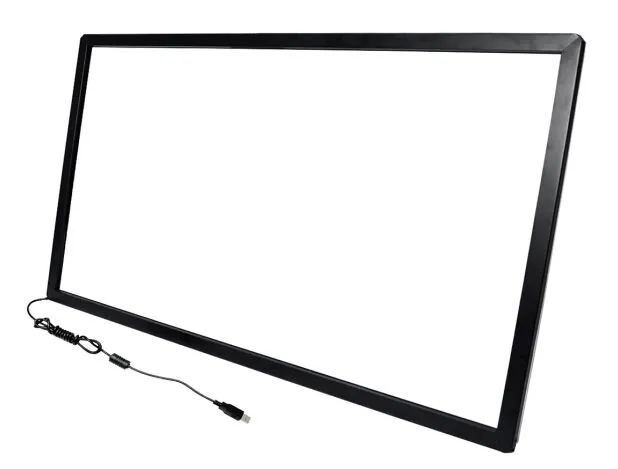

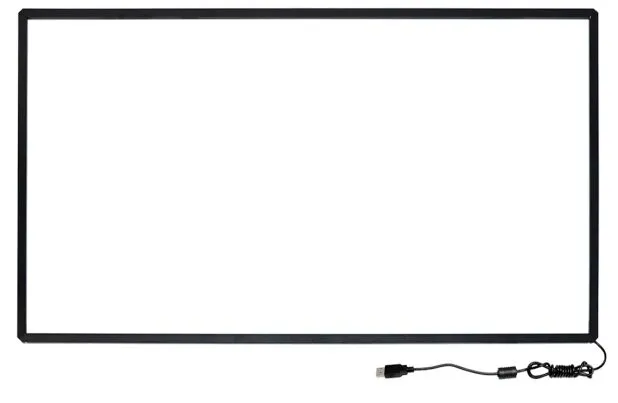

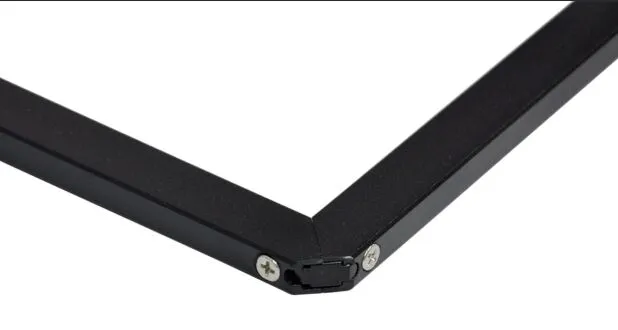

IR Bezel Display 1 IR Bezel Display 2 IR Bezel Display 3

🌟 Key Advantages:

  • High Reliability IR Touch Frame Series
  • Multi-touch support (2-10 points)
  • High Hardware & Software Compatibility
  • OS Support: Windows XP/7/8/10, Linux, Android
  • Perfect Anti-Sun interference performance
🛠️ Technical Specifications
Mechanical & Touch Characteristics
HousingAluminum Frame
Overlay Thickness / Width14.6 mm / 19.1 mm
Input MethodFinger or Touch Pen
Position Accuracy1mm
Resolution4096 × 4096
Response TimeTouch: 6ms / Drawing: 6ms
Transparency92% (4mm Glass)
Touch IntensityOver 60 million single touches
Operating VoltageDC 4.5V ~ DC 5.5V
Seal AbilityIP64 Anti-Spill (Customizable to IP65)

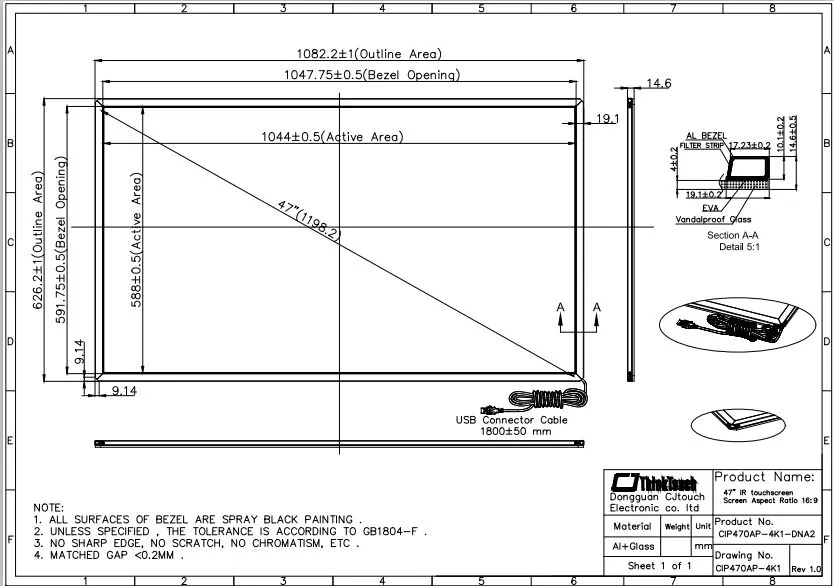

📐 Technical Drawings & Production
Technical Drawing

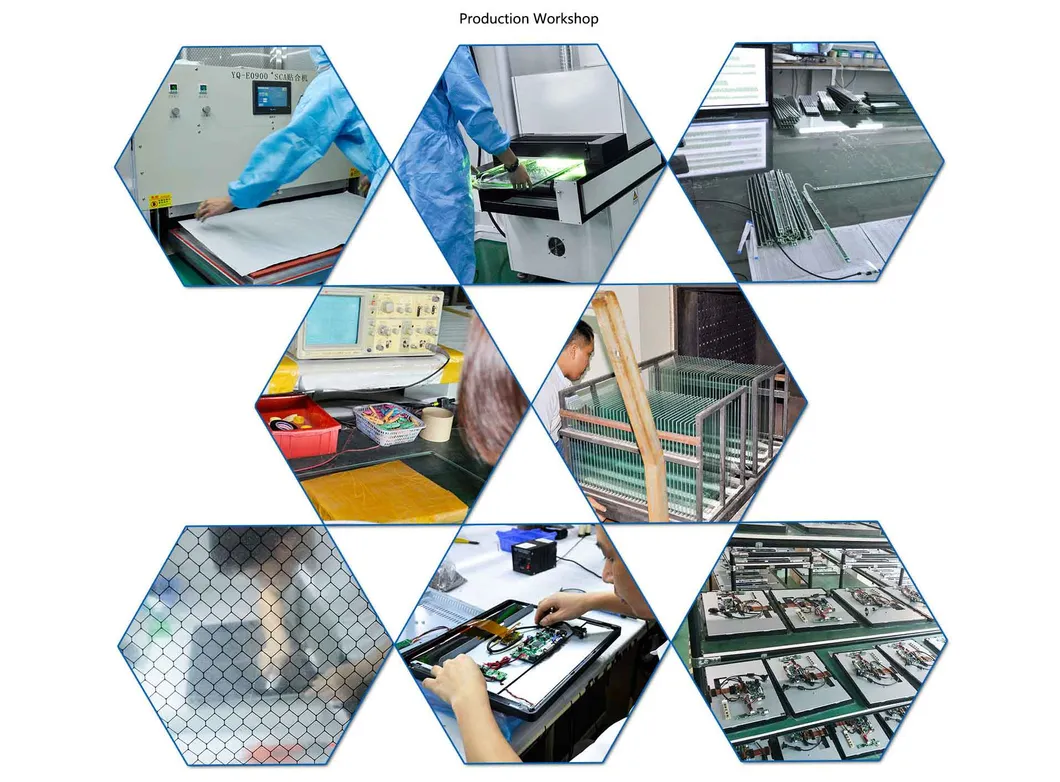

🏭 Production Workshop
Production Workshop
📱 Product Applications
Applications

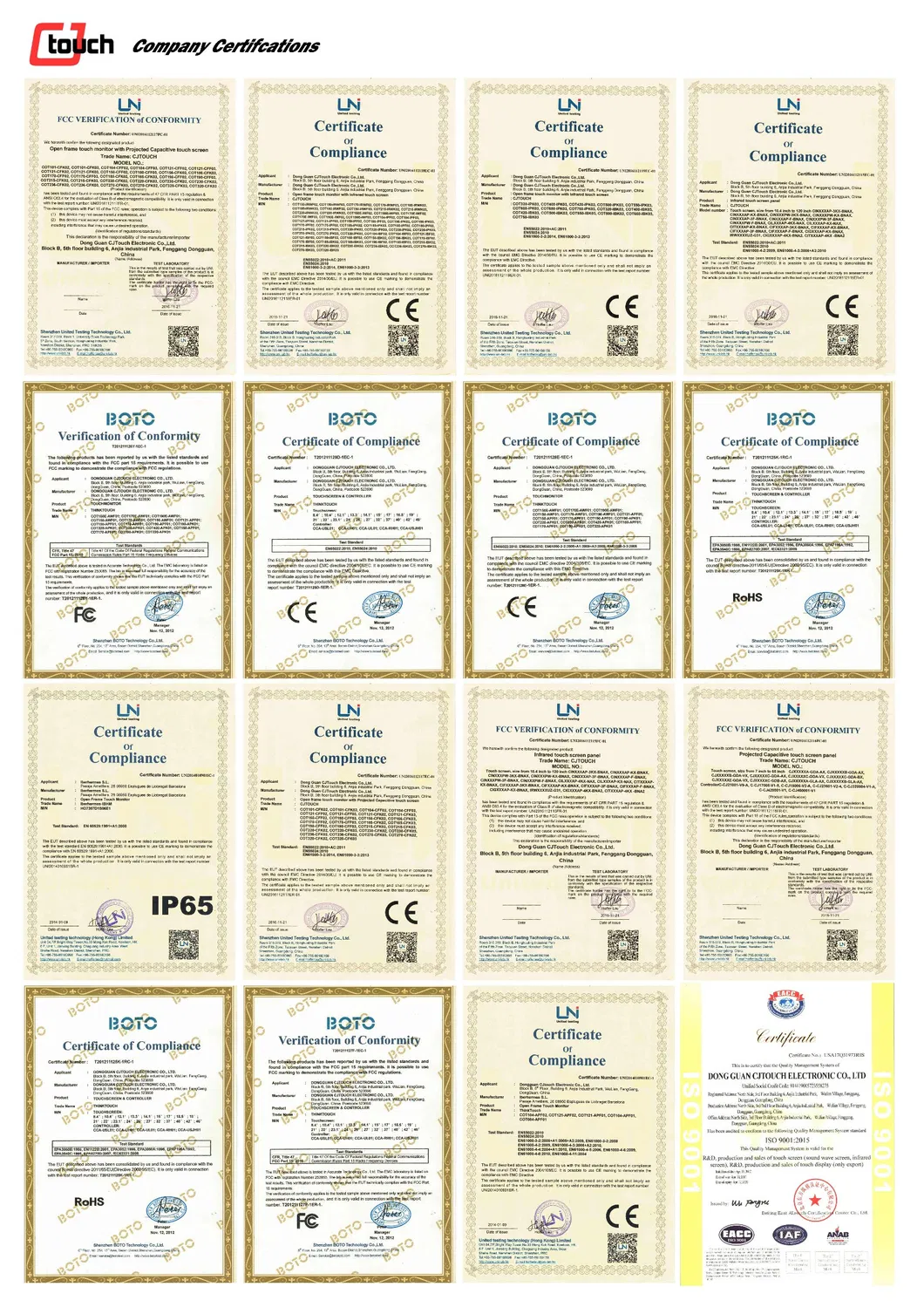

📜 Certifications
Certificates
❓ Frequently Asked Questions
What operating systems are supported?
The touch frame supports Windows 7, 8, 10, Android, and Linux.
Is it a plug-and-play device?
Yes, it features a USB interface and is plug-and-play, requiring no complex driver installation for standard OS.
Does it work under direct sunlight?
Yes, this series features anti-sun interference technology, making it suitable for both indoor and outdoor environments.
How many touch points can it handle?
Depending on the specific model configuration (NA2, NA4, NA6), it supports 2, 4, 6, or up to 10 simultaneous touch points.
Is the glass durable?
The unit is equipped with 4mm tempered vandal-proof glass, designed for high-traffic public applications like kiosks.
What is the protection rating?
It has a standard IP64 anti-spill rating, and can be customized to IP65 waterproof if required.
