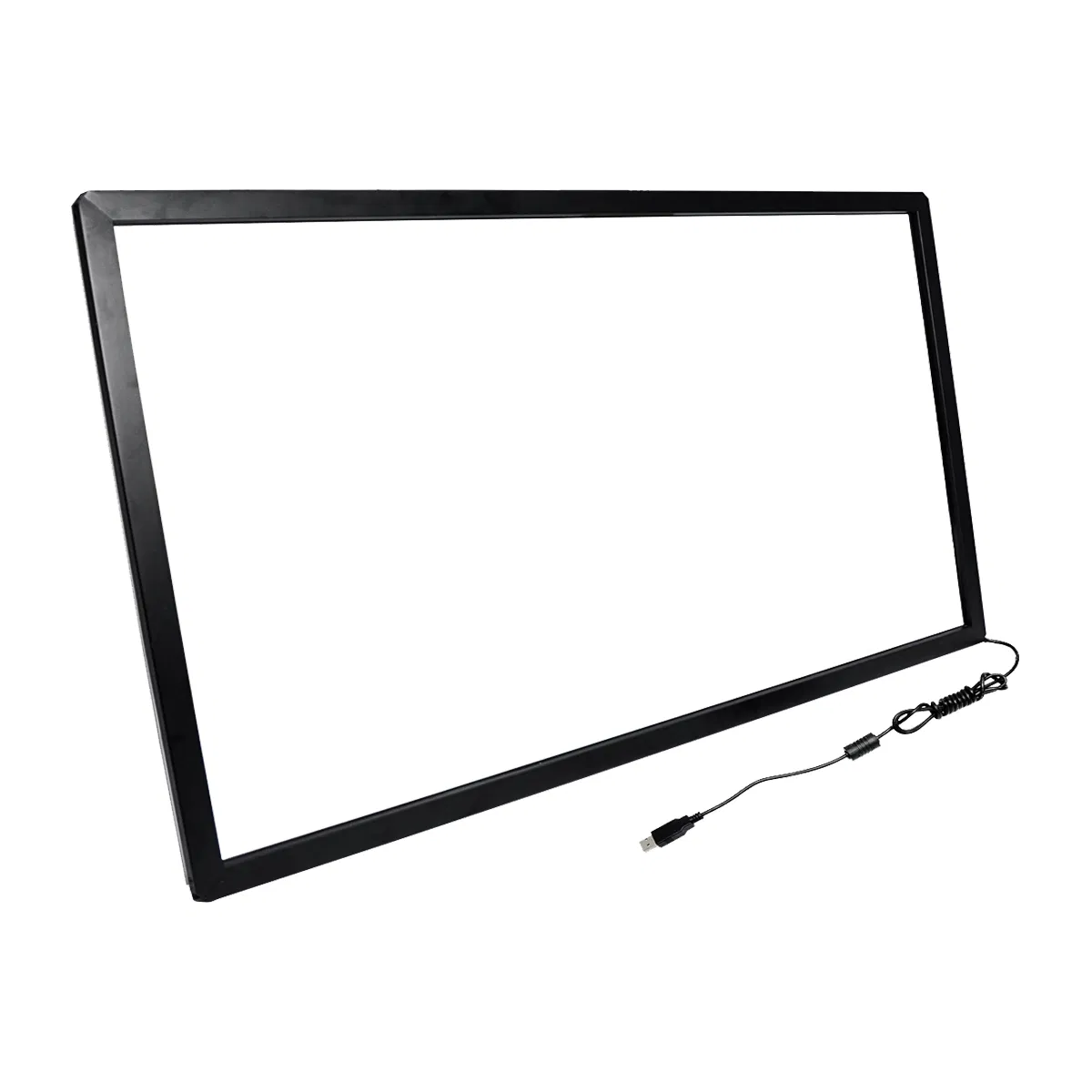

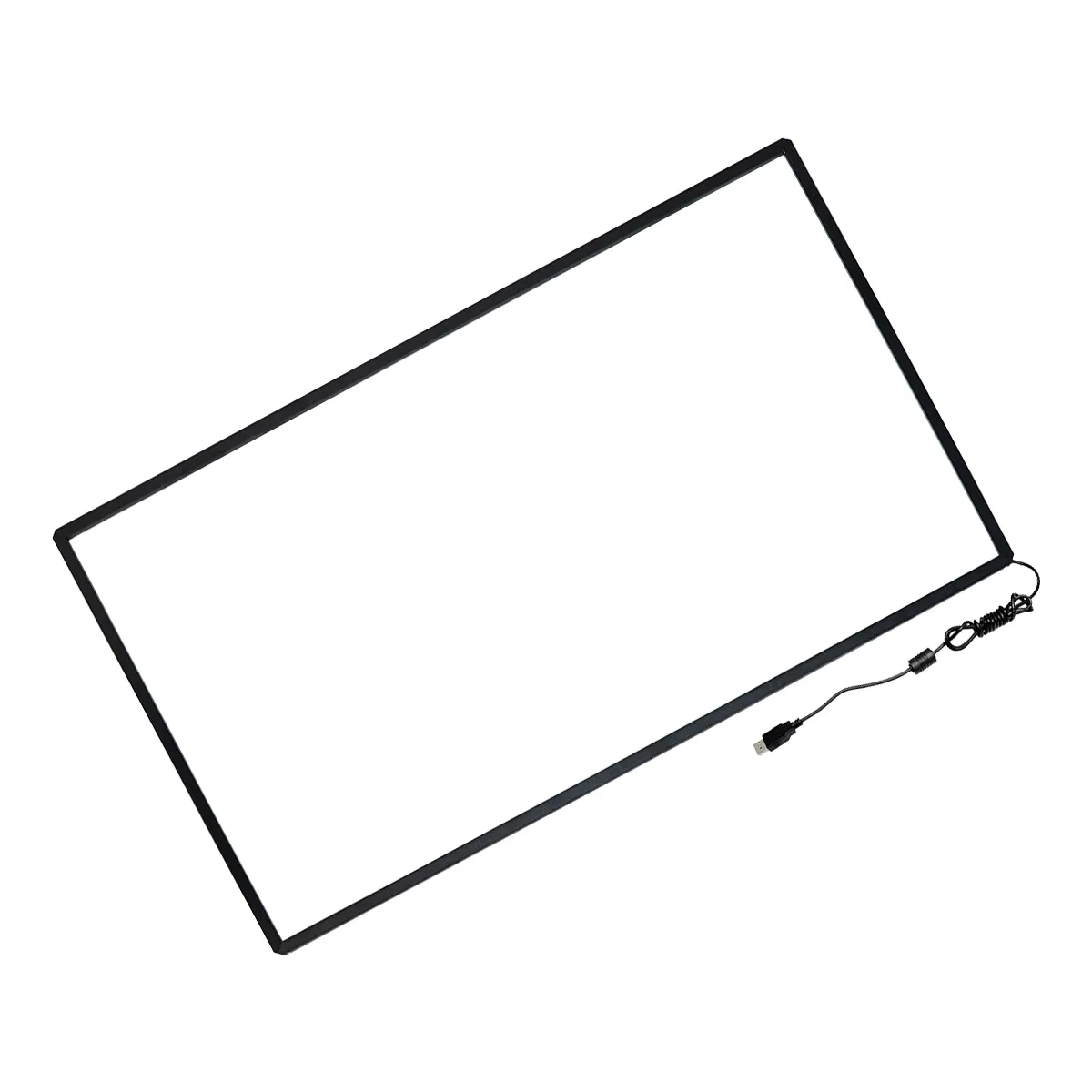

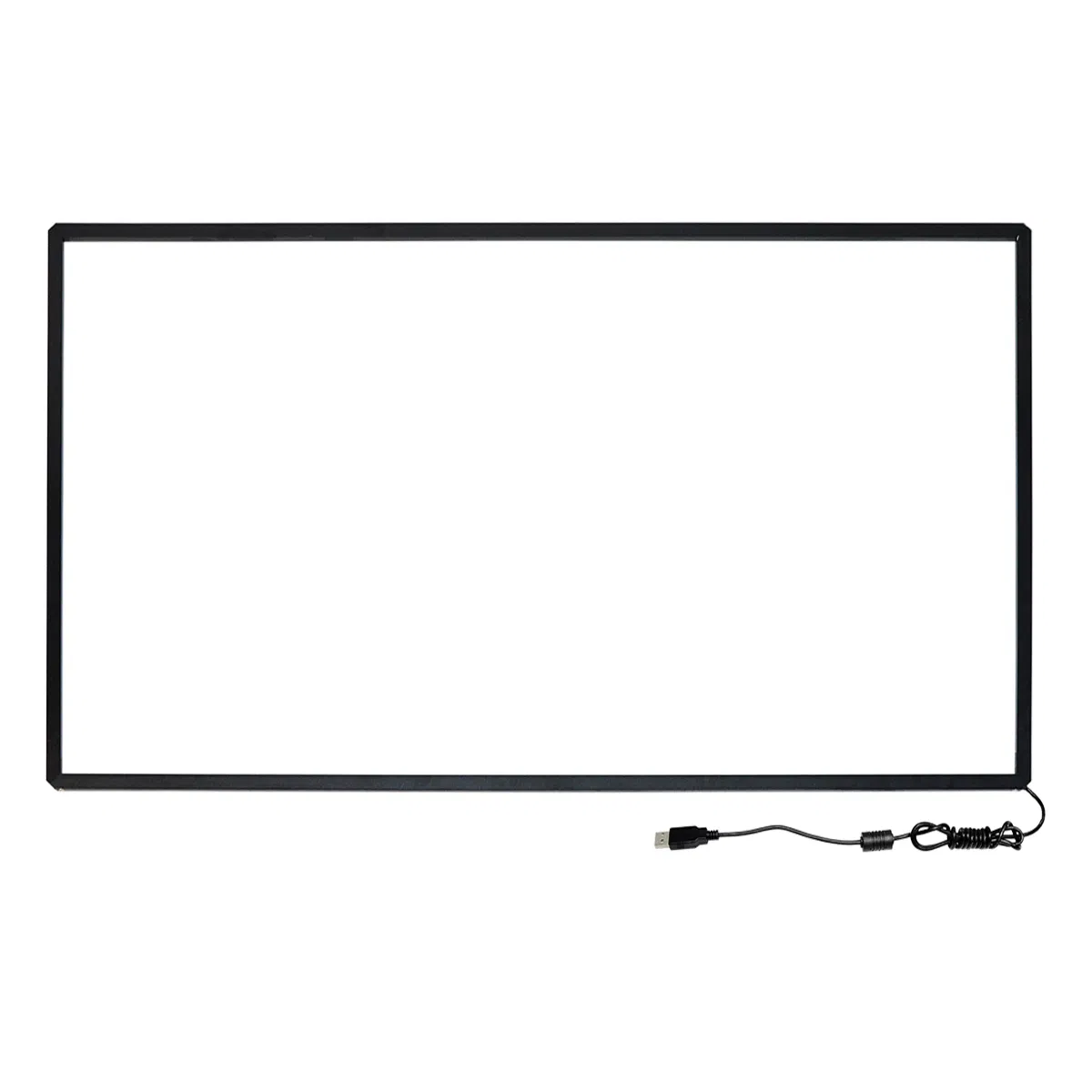

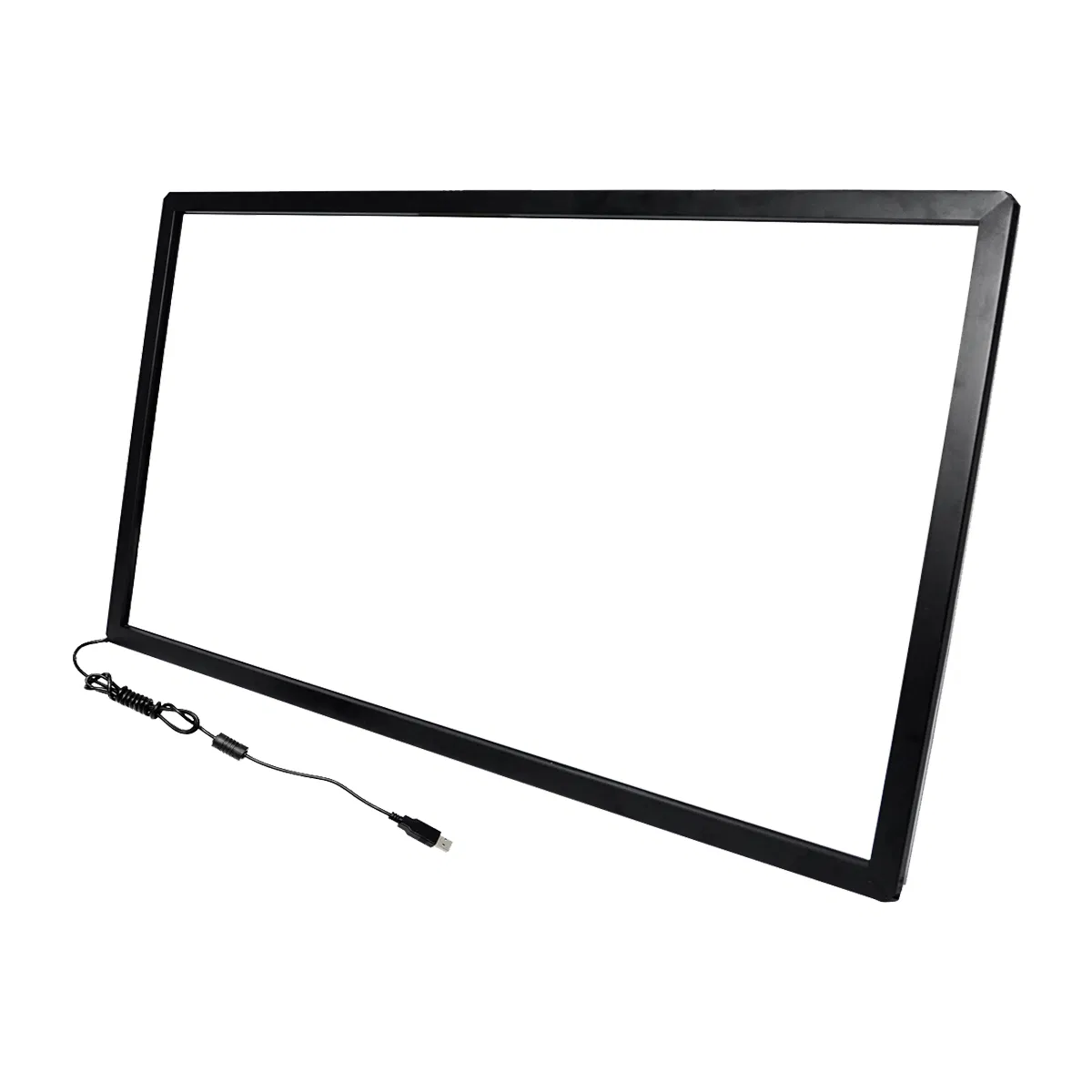

Interactive 55 Inch Infrared Touch Screen Overlay for Windows

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.:CIP550AP-4K-DNA2

Application:Financial Services System

Screen Type:Infrared

Touch Points:2.4.6.10 Touch Points

Glass:4mm Tempered Glass

Interface:USB (Plug and Play)

Certifications:Ce, FCC

Color:Black Frame

Product Description

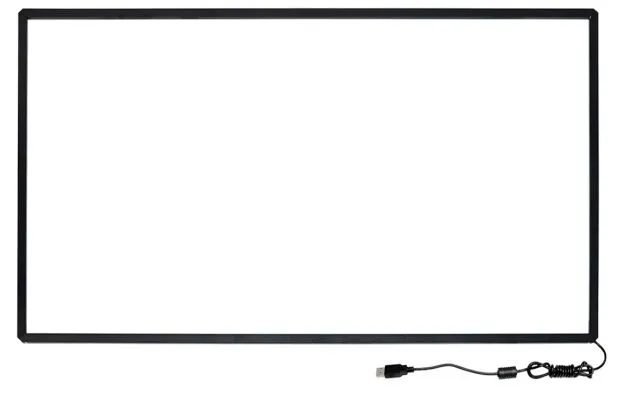

55" IR Touch Screen Multi Touch Screen with 4mm Vandal Proof Glass 2/4/6/10 Touch Points (Windows/Linux/Android)

🚀 Advantages of our Infrared IR Touch Frame:

Technical Specification

MECHANICAL
P/N	CIP Slim series (32"-98")
Overlay Thickness	14.6 mm

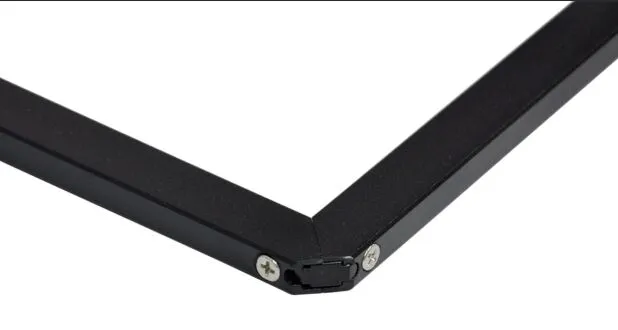

Housing	Aluminum frame
TOUCH CHARACTERISTICS
Input Method	Finger or touch pen
Touch Points	2, 4, or 6 Touch Points options
Position Accuracy	1mm
Response Time	Touch: 6ms / Drawing: 6ms
Glass Transparency	4mm glass, 92% Transparency
ELECTRICAL & ENVIRONMENT
Operating Voltage	DC 4.5V ~ DC 5.5V
Interface	USB 2.0 Full Speed
Temperature	Operating: -10°C ~ 60°C / Storage: -30°C ~ 70°C
Seal Ability	IP64 Anti-Spill (Customizable to IP65)

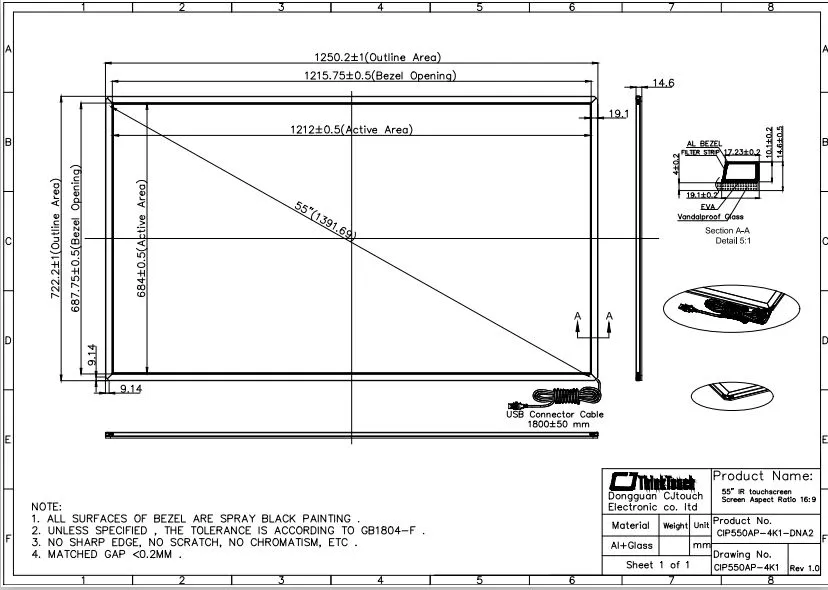

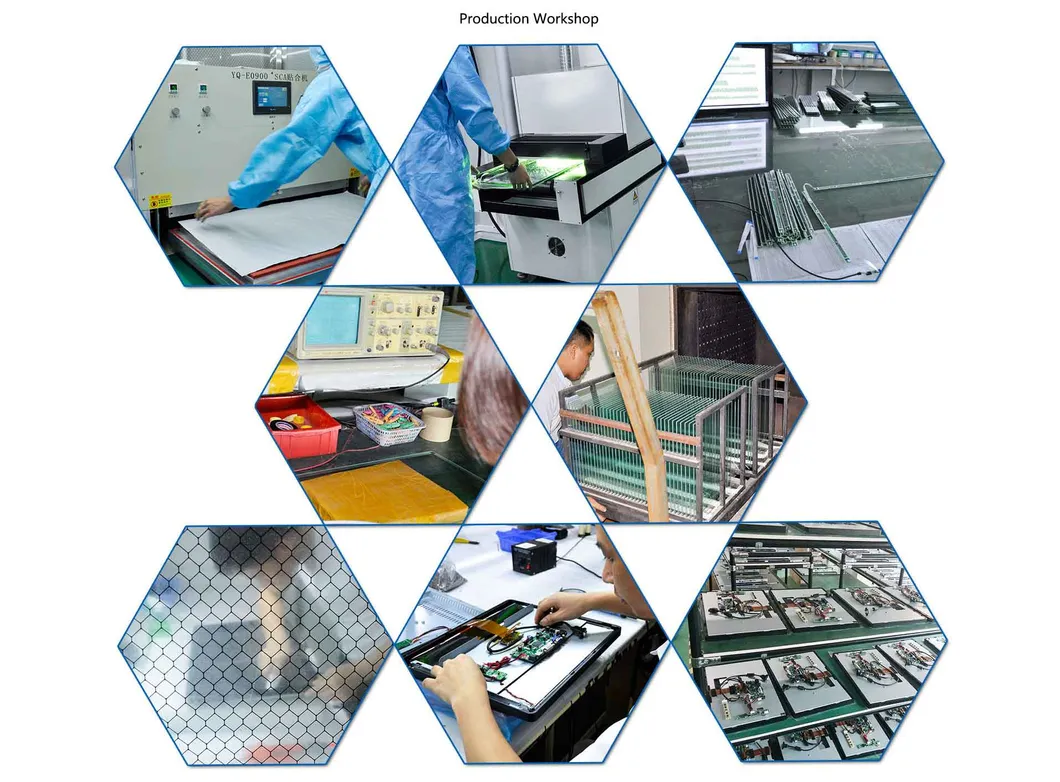

Technical Drawings & Production

Product Applications & Certifications

Frequently Asked Questions (FAQ)

Q1: Does this touch screen require drivers? A1: No, it is a Plug and Play device that uses a standard USB 2.0 interface.

Q2: Which operating systems are supported? A2: It is compatible with Windows 7/8/10, Android, and Linux.

Q3: How many touch points does it support? A3: Depending on the configuration, it supports 2, 4, 6, or 10 simultaneous touch points.

Q4: Is the glass durable enough for public use? A4: Yes, it features 4mm tempered vandal-proof glass with high transparency.

Q5: Can it be used outdoors under sunlight? A5: Yes, this series is designed with anti-glare properties and works directly under sunlight.

Q6: What is the typical response time? A6: The response time for both touch and drawing is approximately 6ms.
