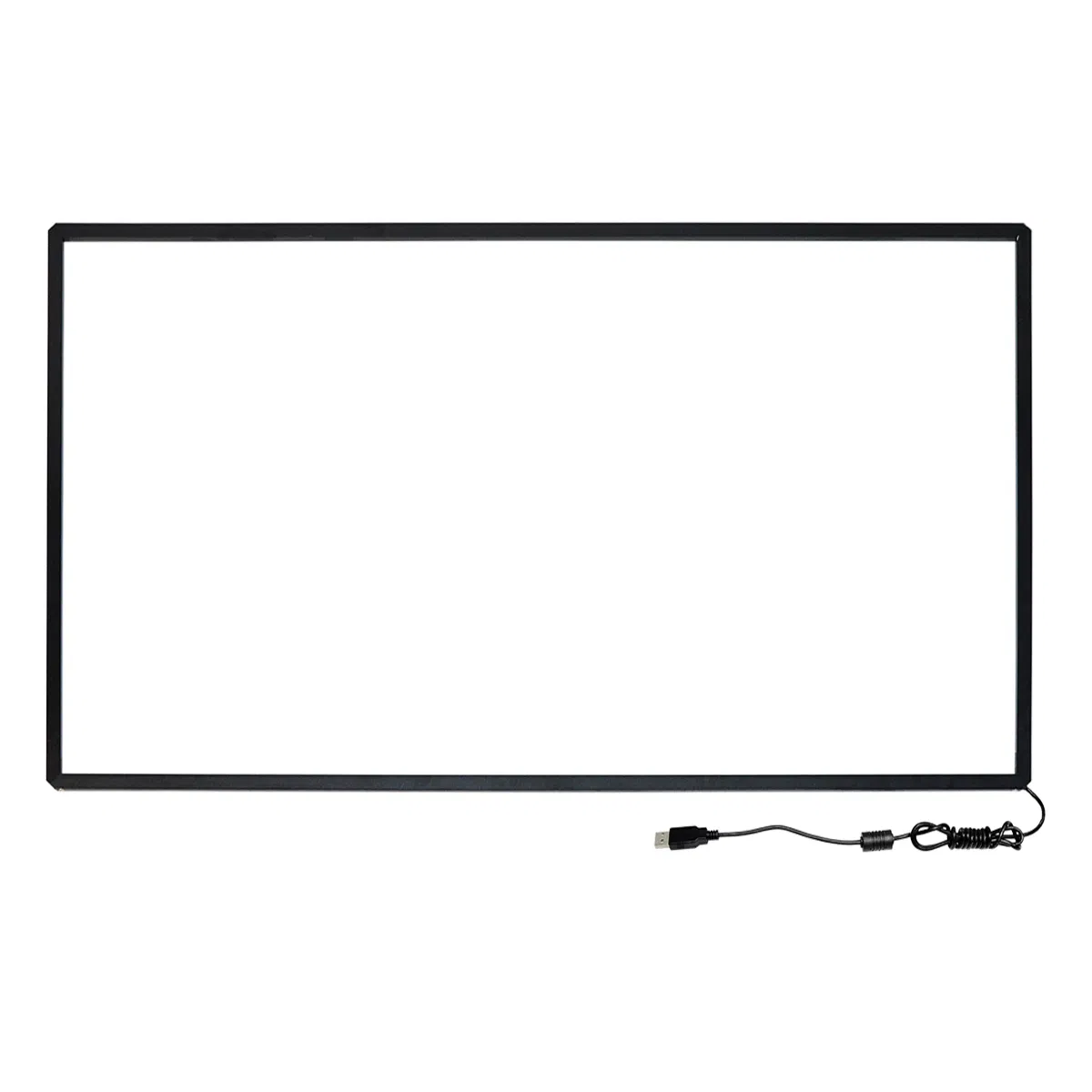

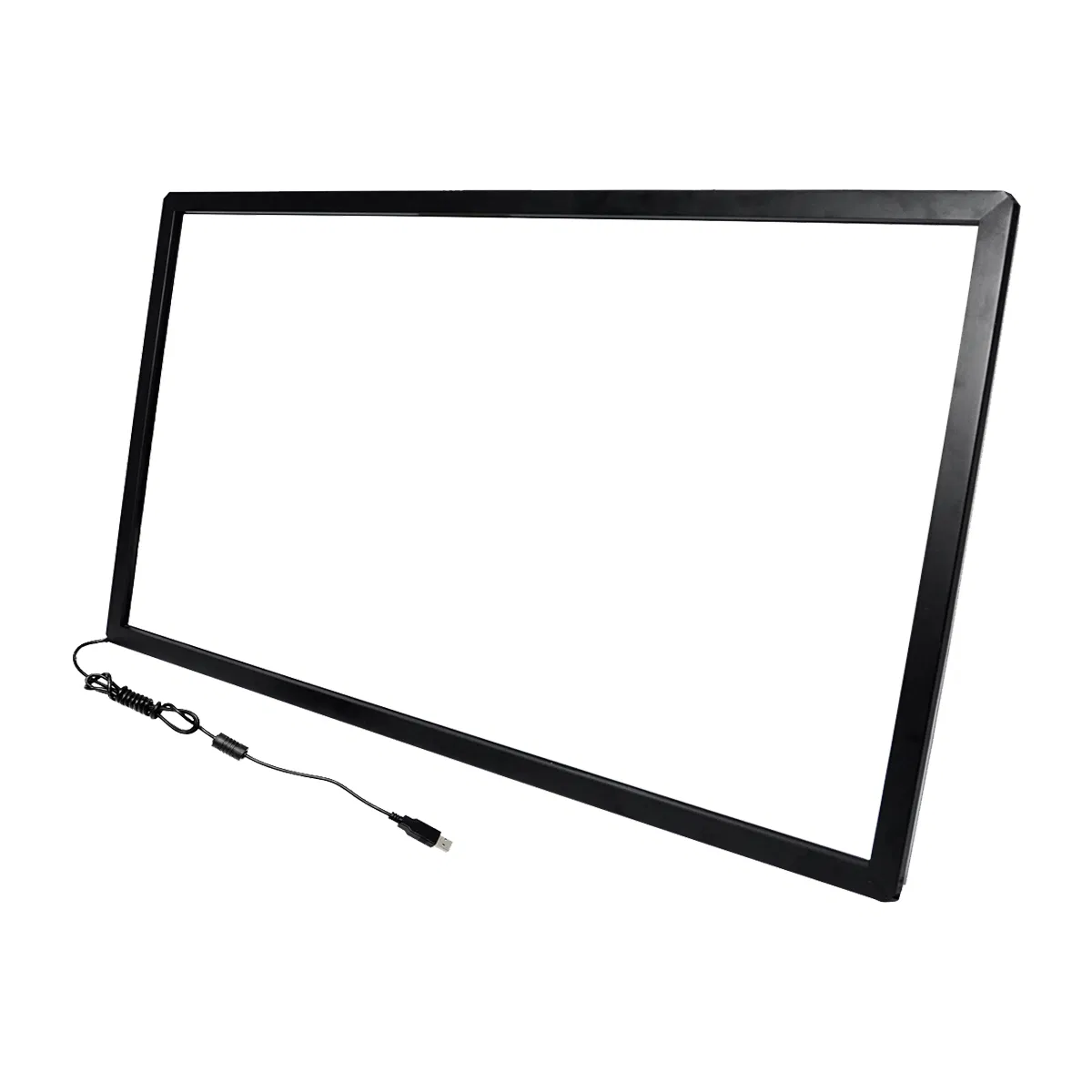

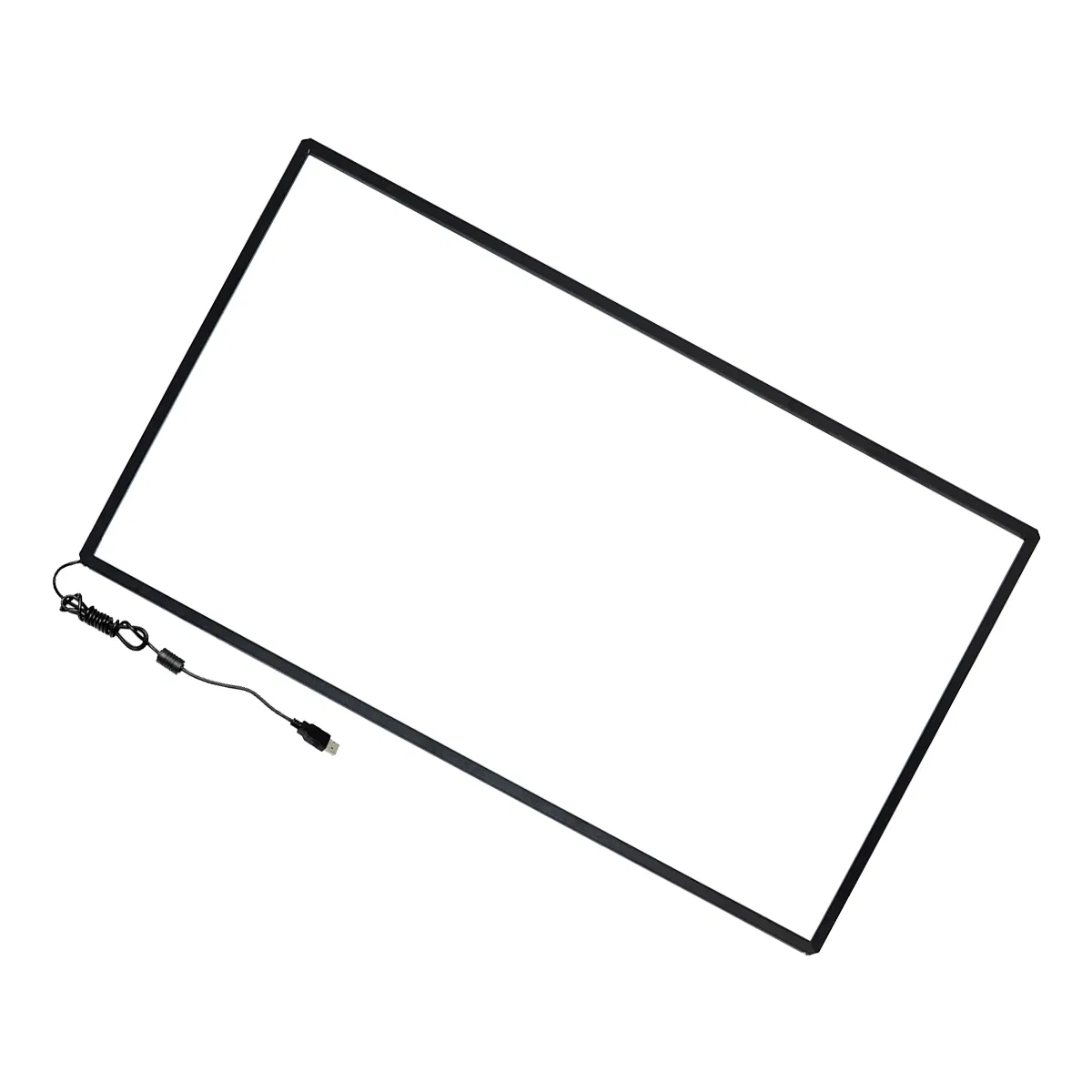

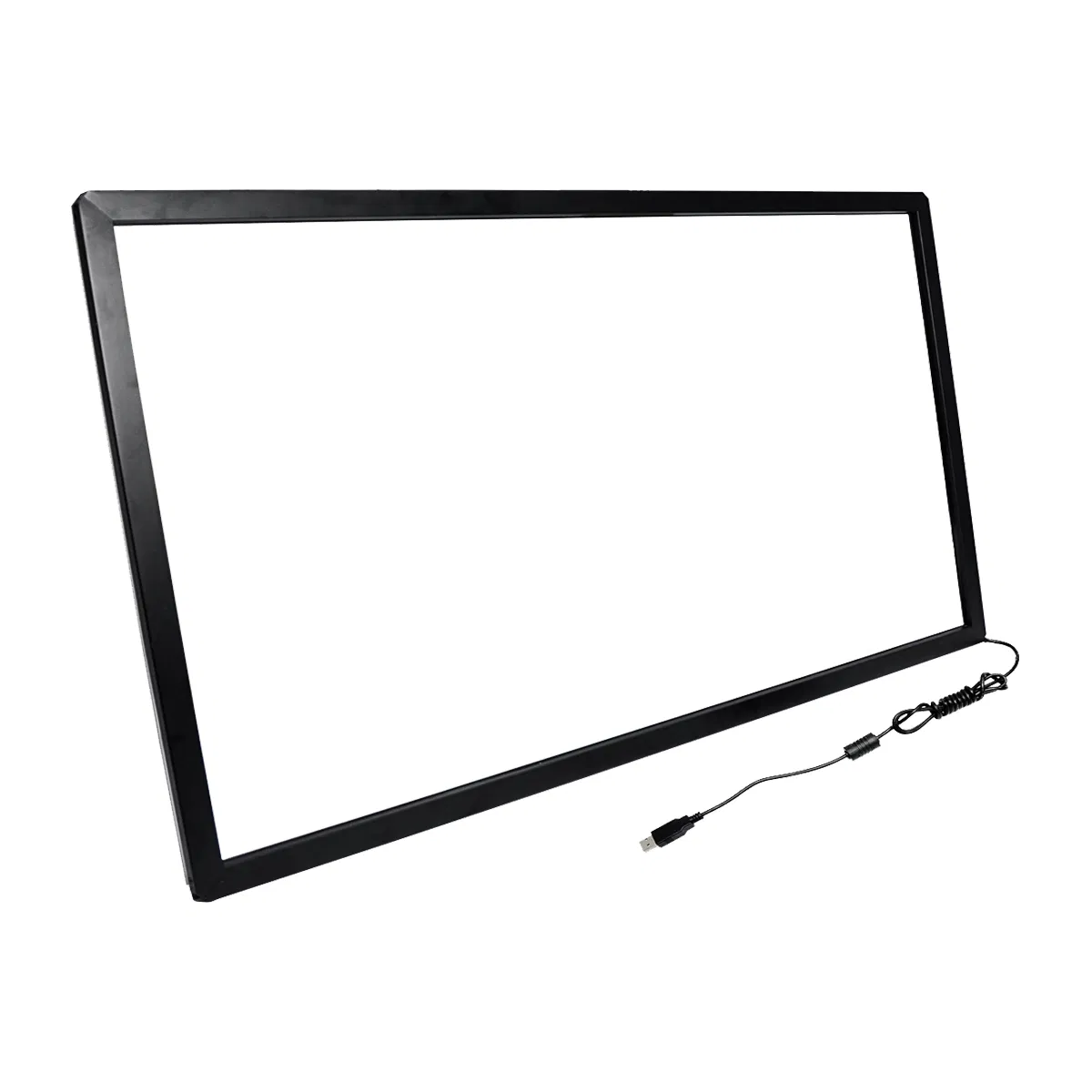

Factory Price 65" Infrared Really 10 Touch Ponits Touch Screen Frame/Overlay for Sale

1 / 5

Factory Price 65" Infrared Really 10 Touch Ponits Touch Screen Frame/Overlay for Sale

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📋 Basic Info.

Model NO.

CIP650AP-4K-DNA2

Application

Financial Services System

Screen Type

Infrared

Touch Points

2, 4, 6, 10 Points

Interface

USB

Glass

4mm Tempered Glass

Certifications

CE, FCC

HS Code

8471609000

🔍 Product Description

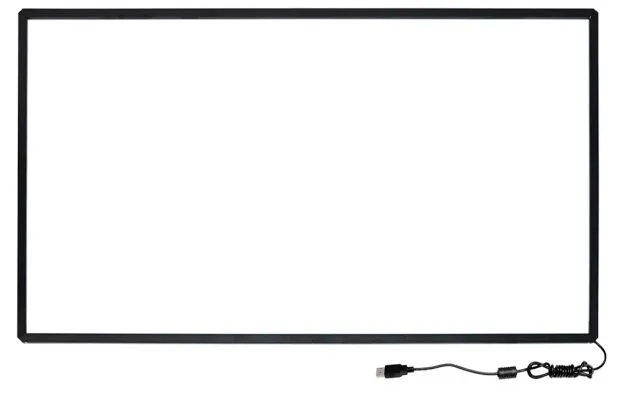

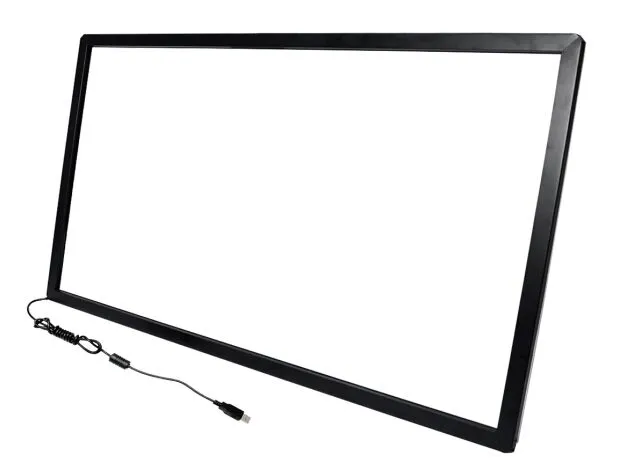

65" IR Touch Screen Multi Touch Screen with 4mm Vandal Proof Glass

Advantages of our Infrared IR Touch Frame:

🔹 High Reliability IR Touch Frames Series
🔹 Multi-touch 2-4-6-10 points support
🔹 High Compatibility of Hardware & Software
🔹 Support OS: XP / Win7 / Win8 / Win10 / Linux / Android
🔹 Perfect Anti-Sun IR Touch Screen technology

⚙️ Technical Specification

MECHANICAL & TOUCH CHARACTERISTICS
P/N	CIP Slim series (32"-98")
Overlay Thickness / Width	14.6 mm / 19.1 mm

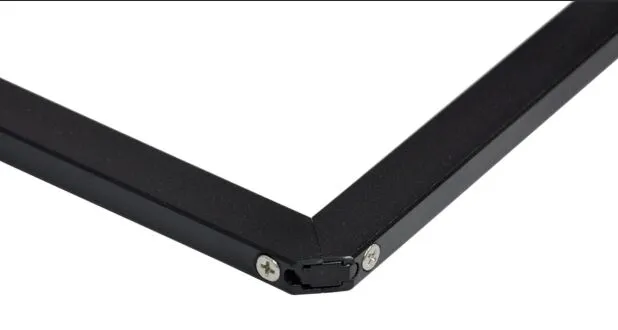

Housing	Aluminum frame
Input Method	Finger or touch pen
Position Accuracy	1mm
Response Time	Touch: 6ms / Drawing: 6ms
Glass	4mm Transparency: 92%
Operating Voltage	DC 4.5V ~ DC 5.5V
Operating Temp	-10 °C ~ 60 °C
Interface	USB 2.0 full speed

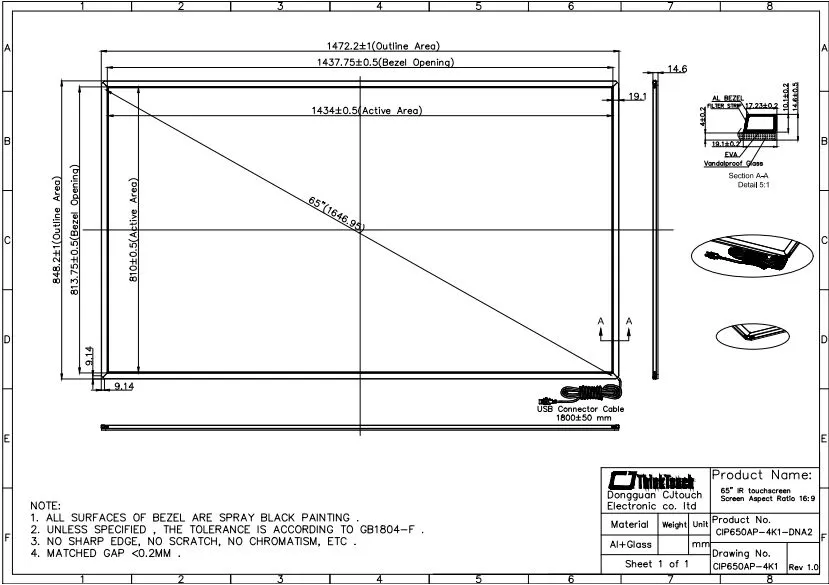

📐 Technical Drawings & Production

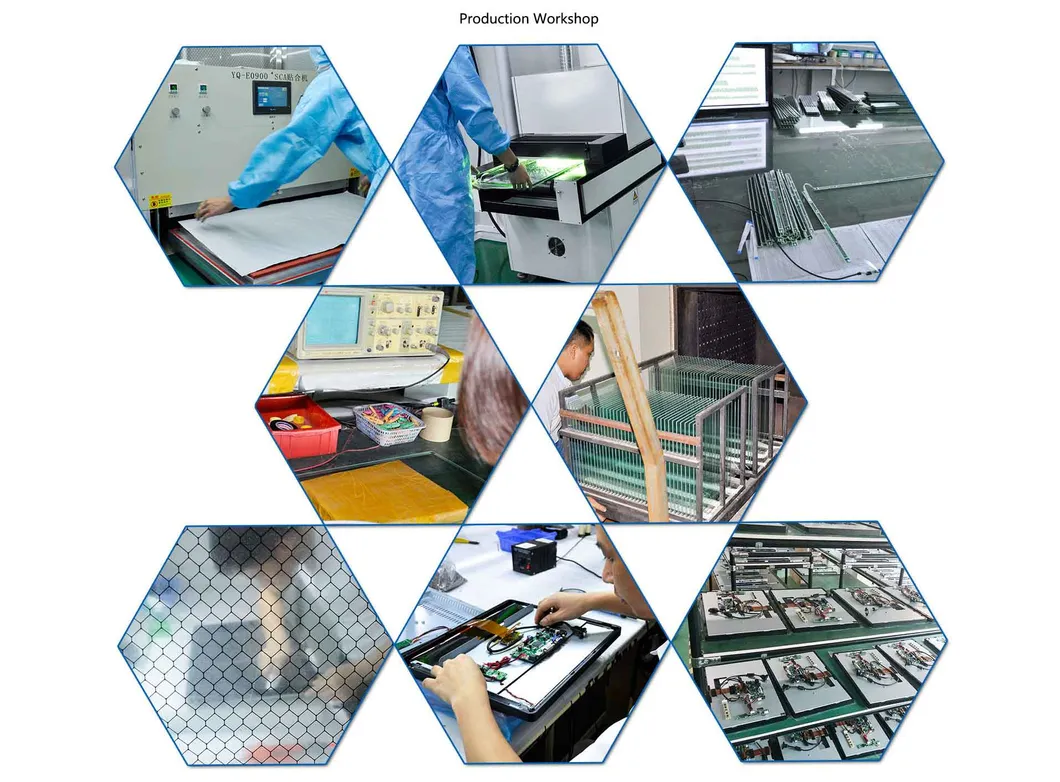

Production Workshop

🚀 Product Applications & Certifications

FAQ

Q1: What operating systems are supported by the IR touch frame?

It supports a wide range of systems including Windows XP/7/8/10, Linux, and Android.

Q2: Does it require any special drivers for installation?

No, it features a Plug and Play interface via USB for easy setup.

Q3: How many touch points does this model support?

Depending on the version (NA2, NA4, NA6), it supports 2, 4, 6, or up to 10 touch points.

Q4: Is the glass durable enough for public use?

Yes, it comes with 4mm Vandal Proof Tempered Glass, making it ideal for financial systems and kiosks.

Q5: Can it be used outdoors under direct sunlight?

Yes, the series features Perfect Anti-Sun IR technology suitable for both indoor and outdoor environments.

Q6: What is the touch response time?

The touch and drawing response time is approximately 6ms, ensuring a smooth user experience.
