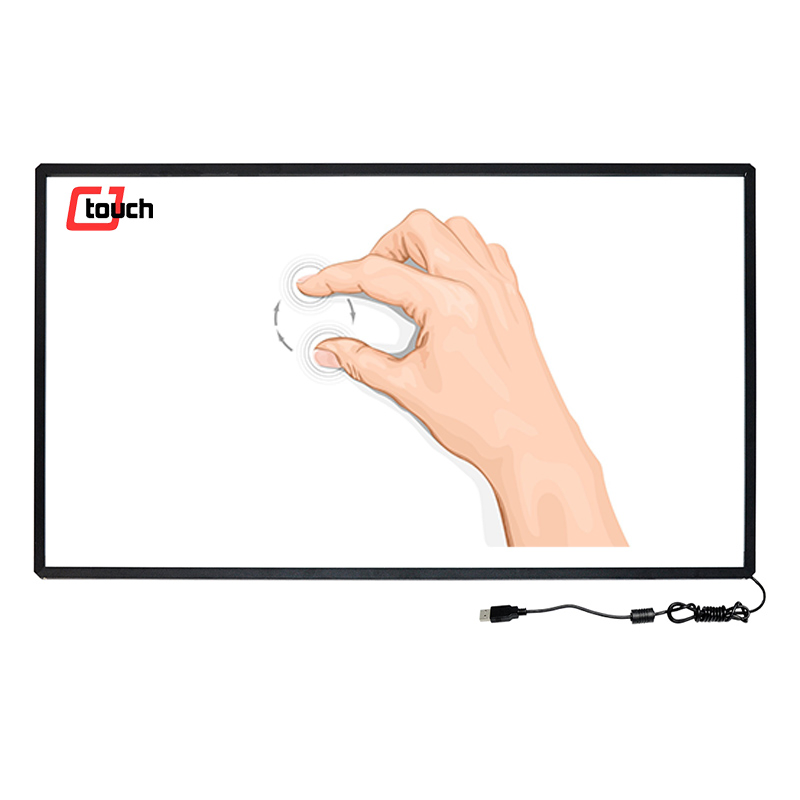

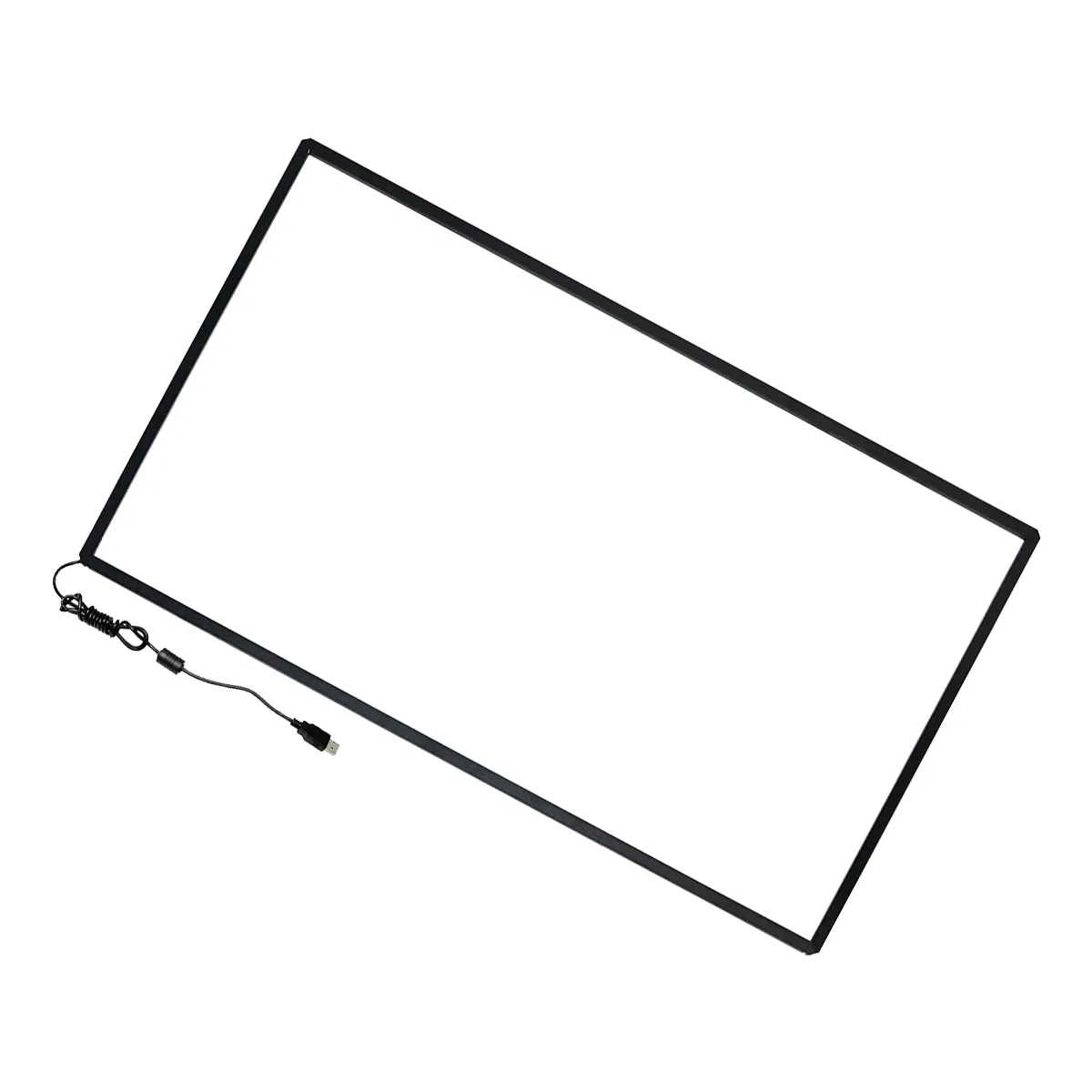

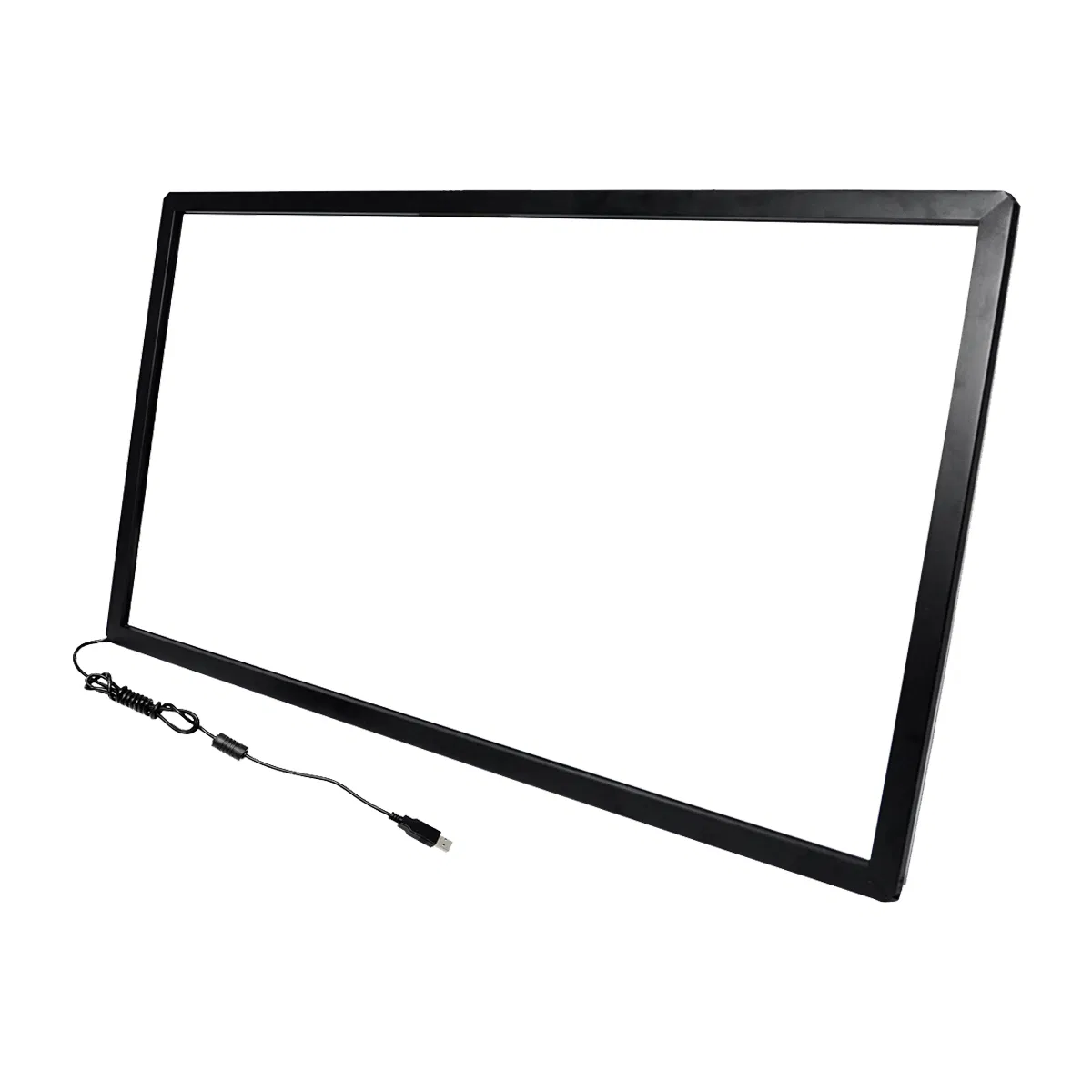

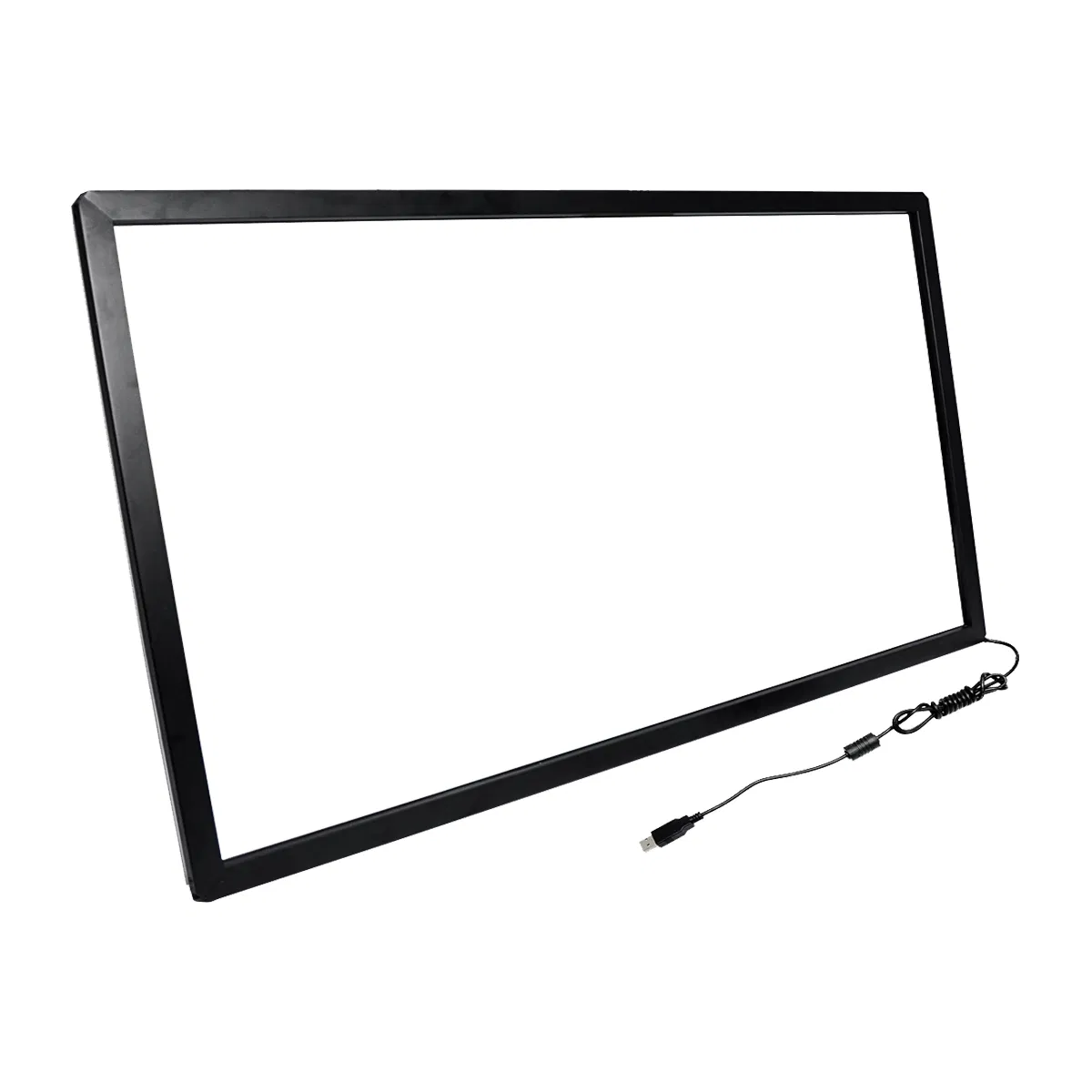

Cjtouch 65" USB IR Sensor Multitouch Touch Screen Frame, Infrared Touch Screen Frame
Cjtouch 65" USB IR Sensor Multitouch Touch Screen Frame, Infrared Touch Screen Frame
Cjtouch 65" USB IR Sensor Multitouch Touch Screen Frame, Infrared Touch Screen Frame
Cjtouch 65" USB IR Sensor Multitouch Touch Screen Frame, Infrared Touch Screen Frame
Cjtouch 65" USB IR Sensor Multitouch Touch Screen Frame, Infrared Touch Screen Frame
1 / 5
Cjtouch 65" USB IR Sensor Multitouch Touch Screen Frame, Infrared Touch Screen Frame
Cjtouch 65" USB IR Sensor Multitouch Touch Screen Frame, Infrared Touch Screen Frame
Cjtouch 65" USB IR Sensor Multitouch Touch Screen Frame, Infrared Touch Screen Frame
Cjtouch 65" USB IR Sensor Multitouch Touch Screen Frame, Infrared Touch Screen Frame
Cjtouch 65" USB IR Sensor Multitouch Touch Screen Frame, Infrared Touch Screen Frame

Cjtouch 65" USB IR Sensor Multitouch Touch Screen Frame, Infrared Touch Screen Frame

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information
Model NO.
CIP650AP-4K-DNA2
Application
Financial Services System
Screen Type
Infrared
Touch Points
2, 4, 6, 10 Touch Points
Glass
4mm Tempered Glass
Certifications
CE, FCC
Interface
USB (Plug and Play)
Origin
China (Mainland)
Product Overview

65" IR touch screen Multi Touch Screen with 4mm Vandal Proof Glass 2/4/6/10 Touch Points Windows/Linux/Android

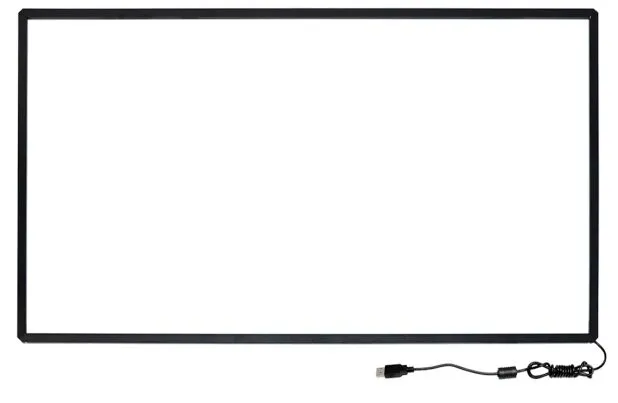

IR Sensor Multitouch Frame

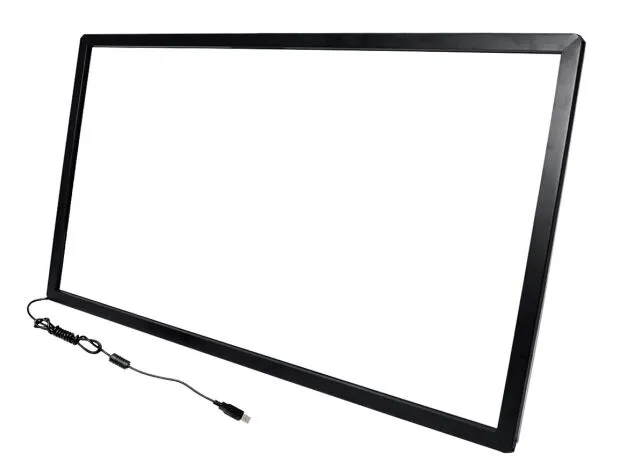

Infrared Touch Frame

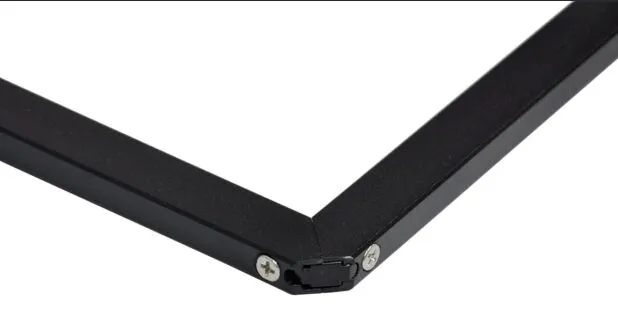

Touch Screen Detail
Key Advantages
  • High Reliability IR Touch Frames Series
  • Multi-touch support for 2-4-6-10 points
  • High Compatibility with Hardware & Software
  • Supports OS: XP / Win7 / Win8 / Win10 / Linux / Android
  • Perfect Anti-Sun IR Touch Screen performance
Technical Specifications
MECHANICAL
Overlay Thickness14.6 mm
Overlay Frame Width19.1 mm
HousingAluminum frame
TOUCH CHARACTERISTICS
Input MethodFinger or touch pen
Position Accuracy1mm
Response TimeTouch: 6ms / Drawing: 6ms
Glass4mm glass Transparency: 92%
Touch IntensityOver 60 millions single touch
ELECTRICAL & ENVIRONMENT
Operating VoltageDC 4.5V ~ DC 5.5V
TemperatureOperating: -10 °C ~ 60 °C
Seal AbilityIP64 Anti-Spill (Customizable to IP65 Waterproof)
Technical Drawings & Workshop

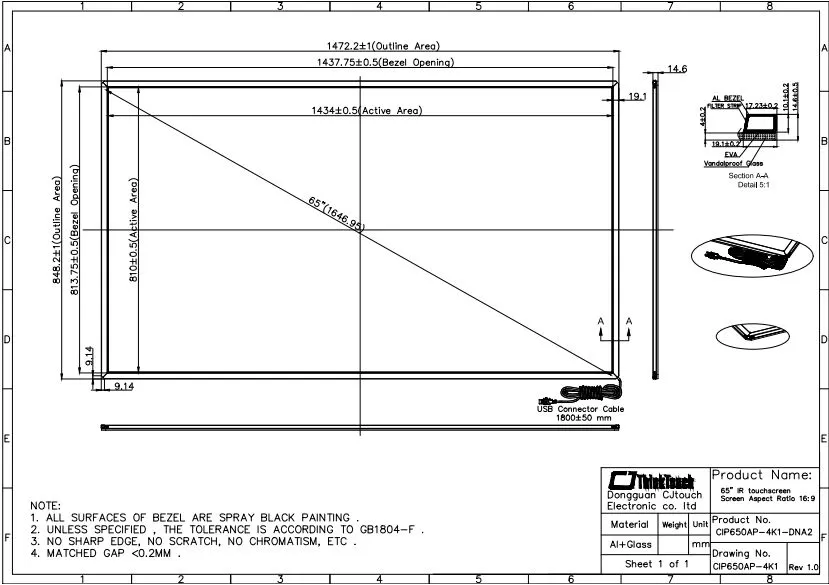

Technical Drawing

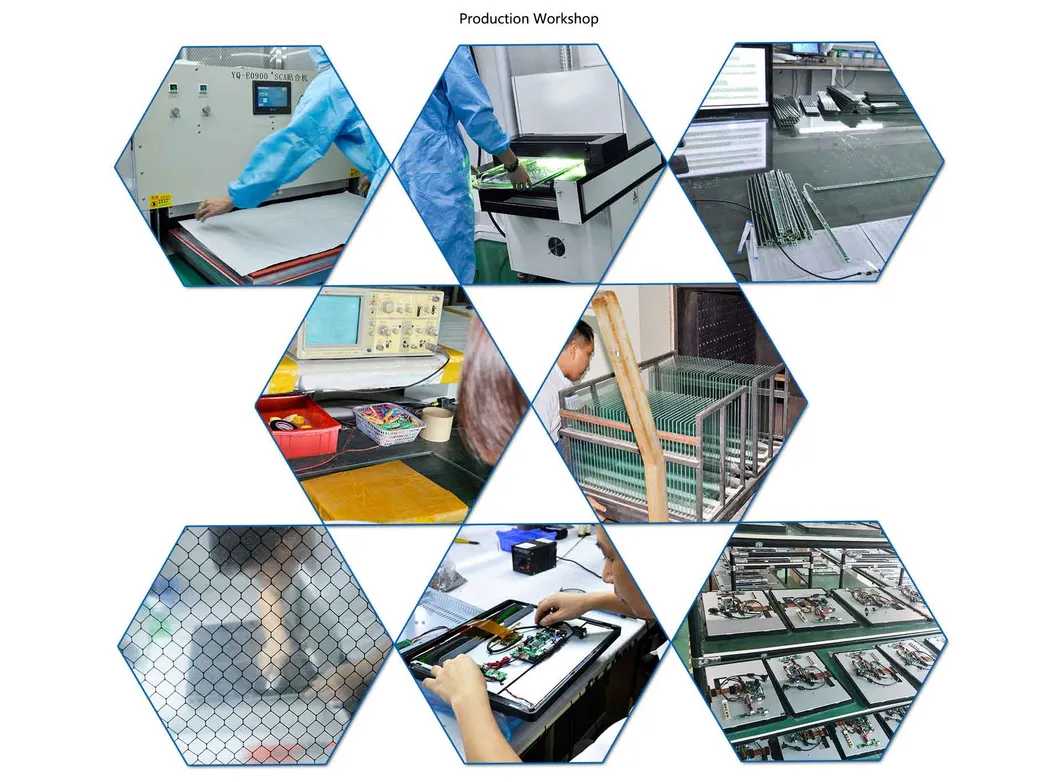

Production Workshop

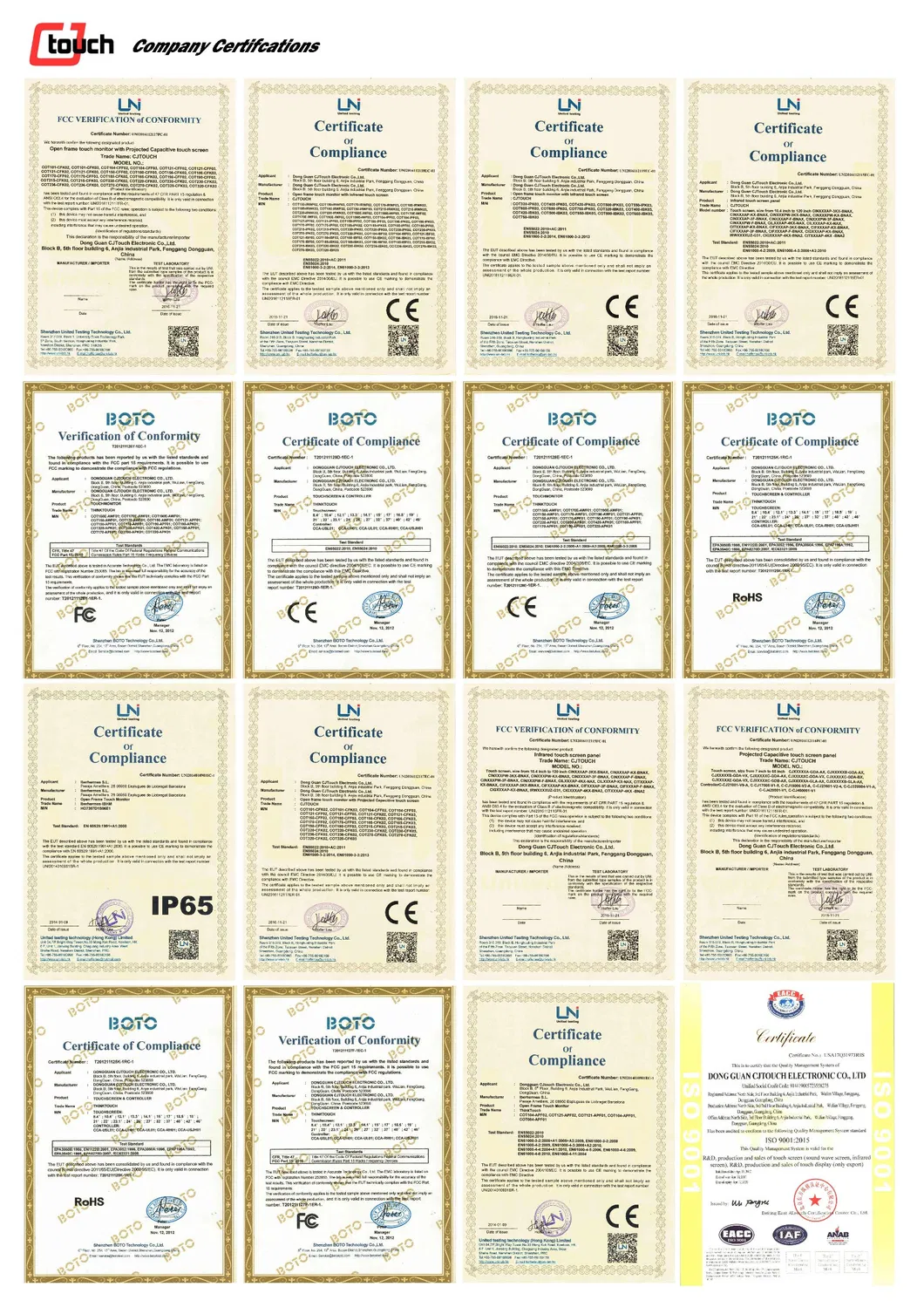

Product Applications & Certifications
Applications Certifications
Frequently Asked Questions
Q: What operating systems are compatible with this touch frame?
A: The IR touch frame supports Windows XP, 7, 8, 10, Linux, and Android.
Q: Is a driver required for installation?
A: No, it is a Plug and Play device using a USB 2.0 interface.
Q: How many touch points does it support?
A: It supports multiple touch points, including 2, 4, 6, or 10 points depending on your needs.
Q: Can it be used outdoors?
A: Yes, it features an Anti-Sun series design and is suitable for both indoor and outdoor environments.
Q: What is the glass type and durability?
A: It uses 4mm vandal-proof tempered glass with over 60 million single-touch intensity.
Q: Is it waterproof?
A: The standard rating is IP64 anti-spill, but it is customizable to IP65 waterproof.
