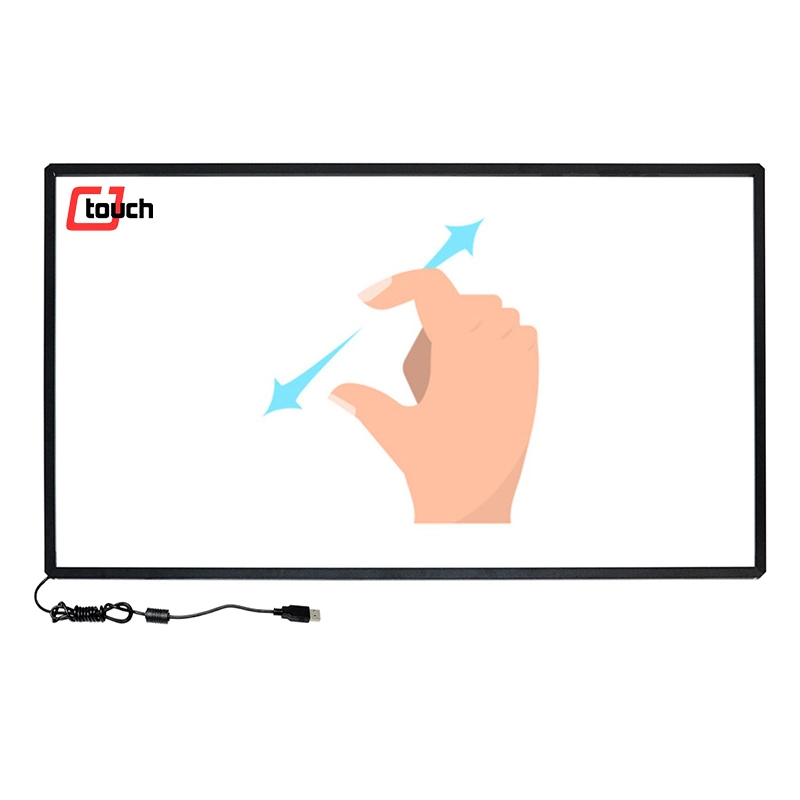

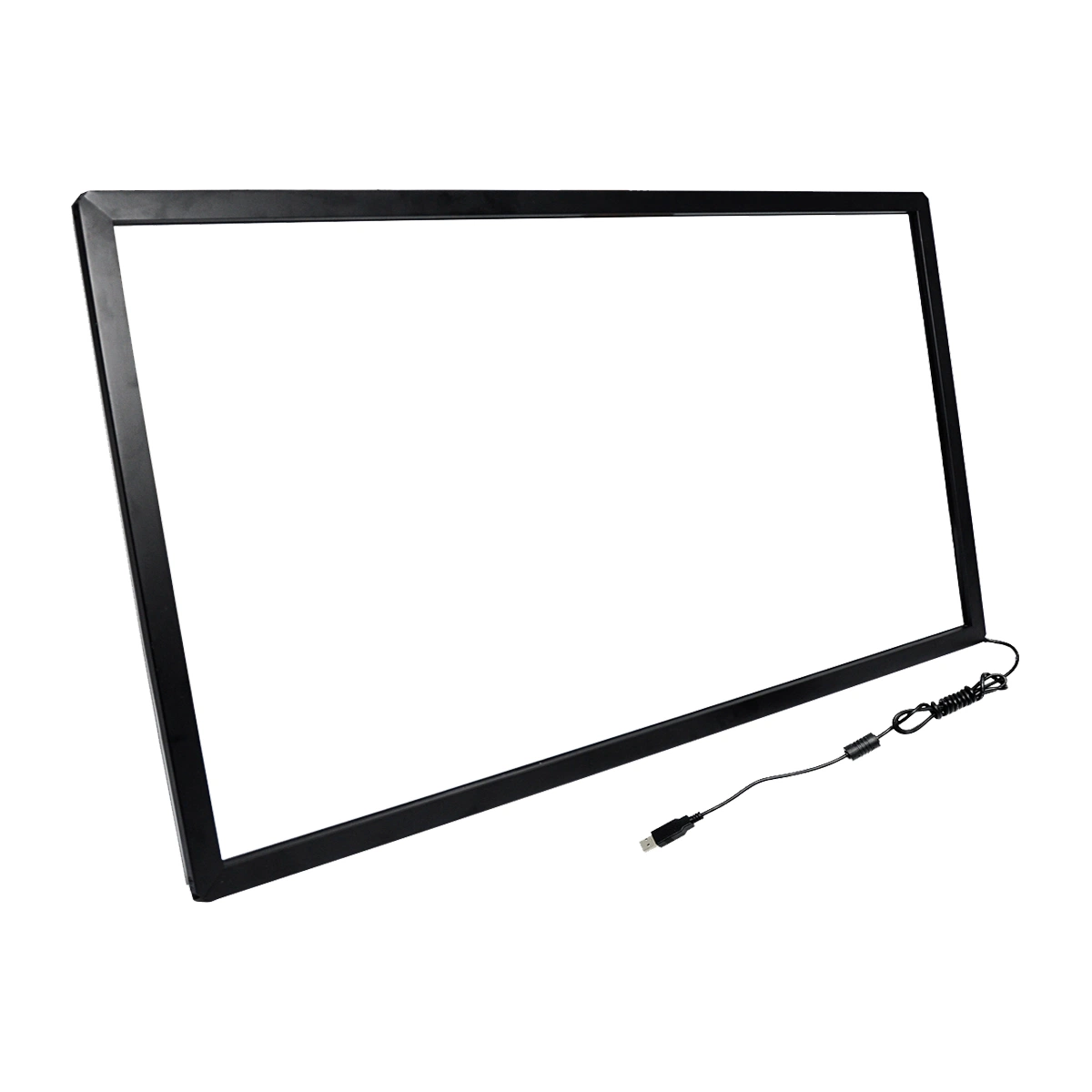

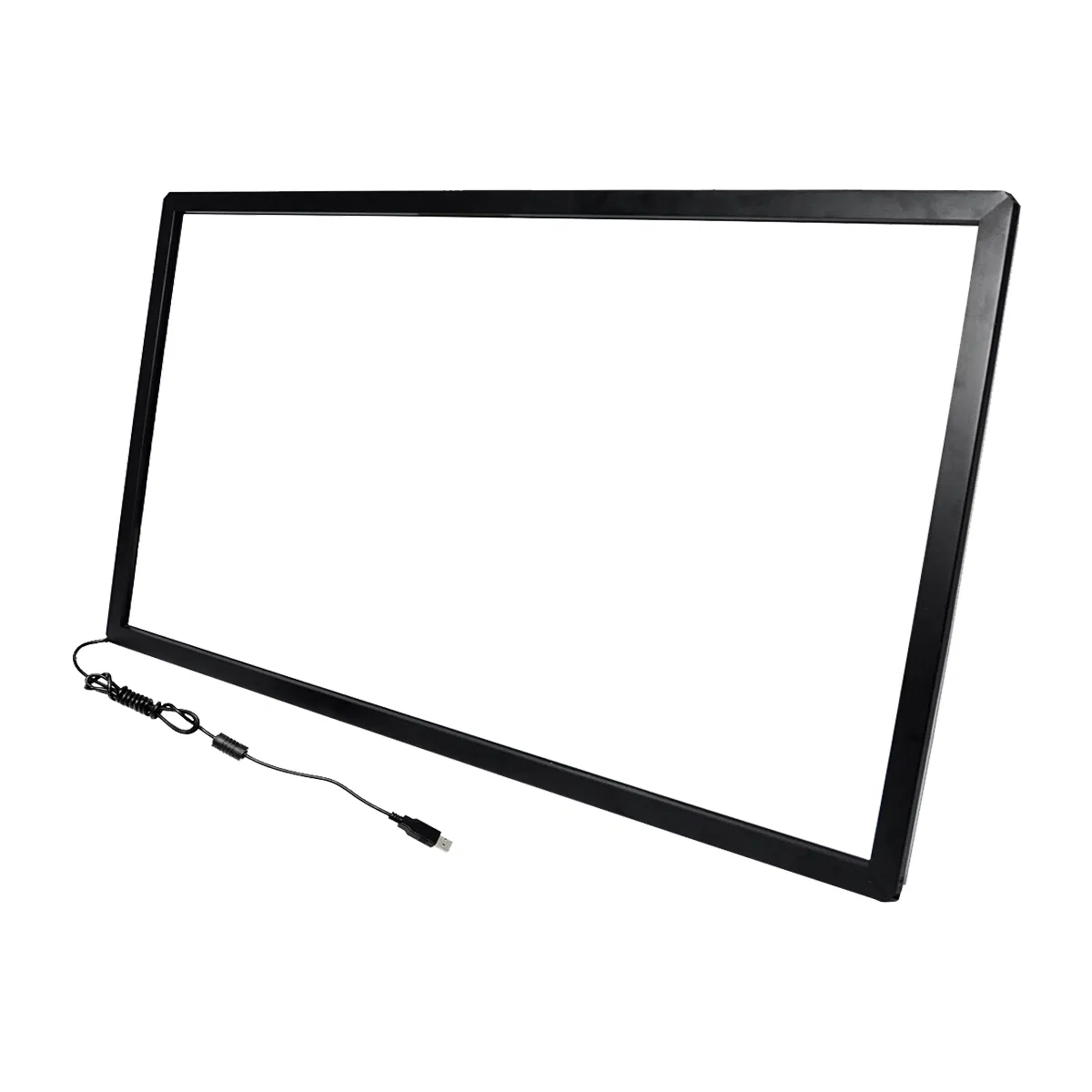

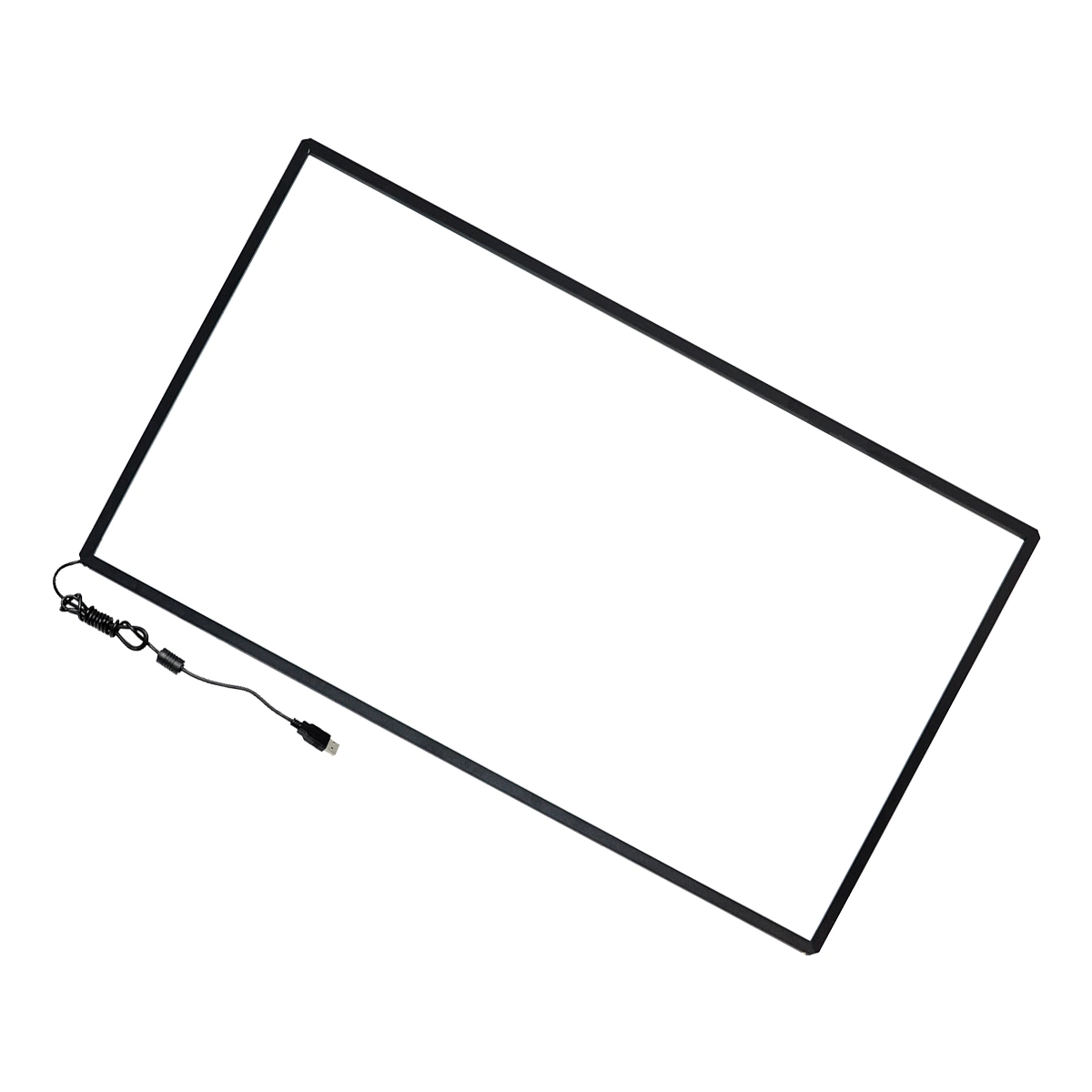

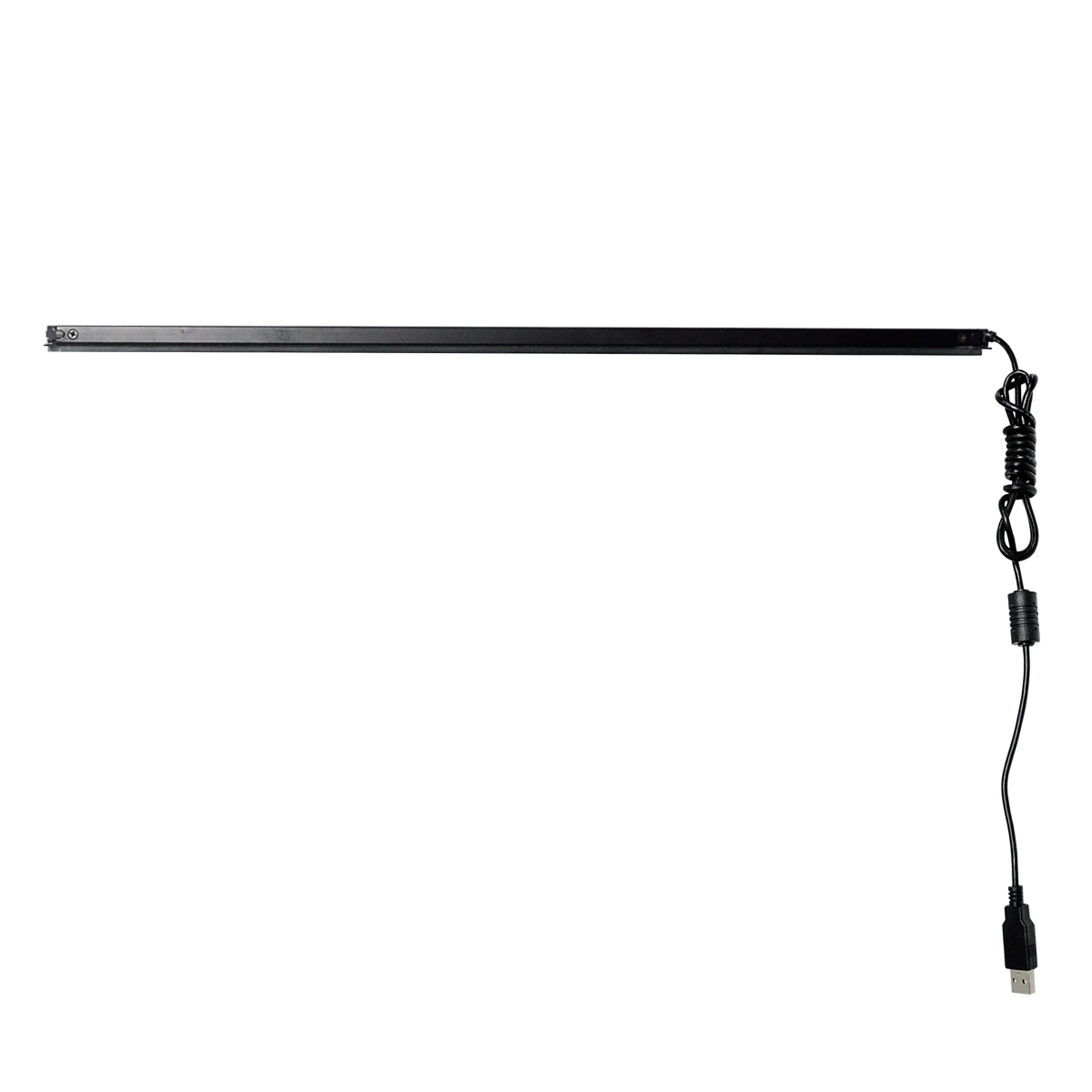

Cj Touch 82"IR Infrared Touch Screen Frame Dual Points Multi Touch Frame with USB

1 / 5

Cj Touch 82"IR Infrared Touch Screen Frame Dual Points Multi Touch Frame with USB

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.CIP820AP-5K-DNA2

ApplicationFinancial Services System

Screen TypeInfrared

Touch Points2.4.6.10 Touch Points

Glass5mm Tempered Glass

InterfaceUSB (Plug and Play)

CertificationsCE, FCC

Production Capacity500PCS/Week

Product Description

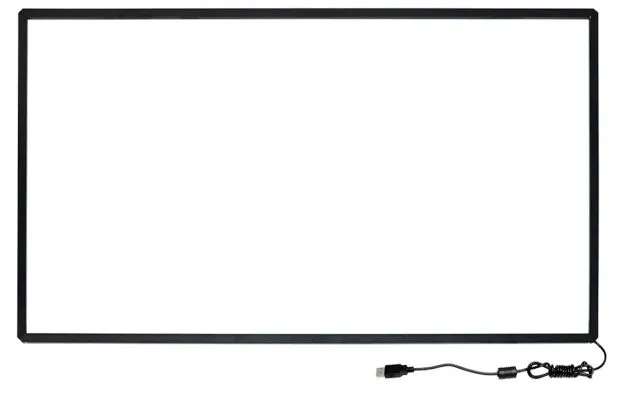

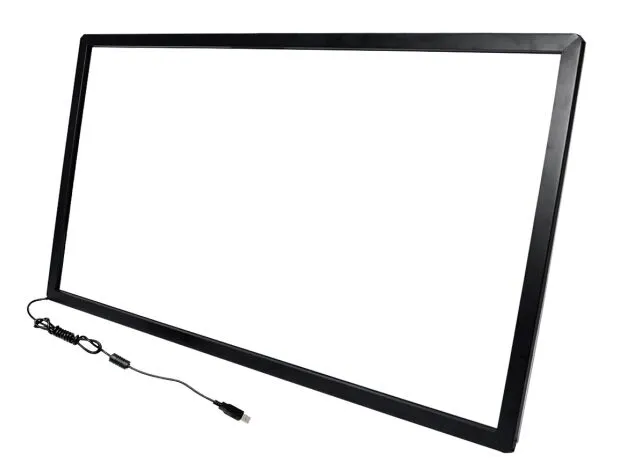

82" IR touch screen Multi Touch Screen with 4mm Vandal Proof Glass 2/4/6/10 Touch Points Windows/Linux/Android

Advantages of our Infrared IR Touch Frame:

High Reliability IR Touch Frames Series
Multi-touch 2-4-6-10 points
High Compatibility of hardware & Software
Support Operation System XP/Win7/Win8/Win10/Linux/Android
Perfect Anti-Sun IR Touch Screen Series

Technical Specification

MECHANICAL
P/N	CIP Slim series(32"-98")
Overlay Thickness	14.6 mm

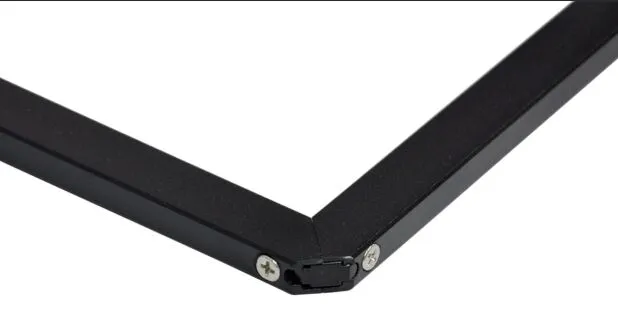

Housing	Aluminum frame
TOUCH CHARACTERISTICS
Input Method	Finger or touch pen
Touch Points	2, 4, 6 or 10 Points
Response Time	6ms
Resolution	4096(W)×4096(D)
Glass	5mm glass Transparency: 92%
ENVIRONMENT & ELECTRICAL
Operating Voltage	DC 4.5V ~ DC 5.5V
Temperature	Operating: -10 °C ~ 60 °C / Storage: -30°C ~ 70 °C
Seal Ability	IP64 Anti-Spill (Customizable to IP65)
Interface	USB 2.0 full speed

Technical Drawings & Production

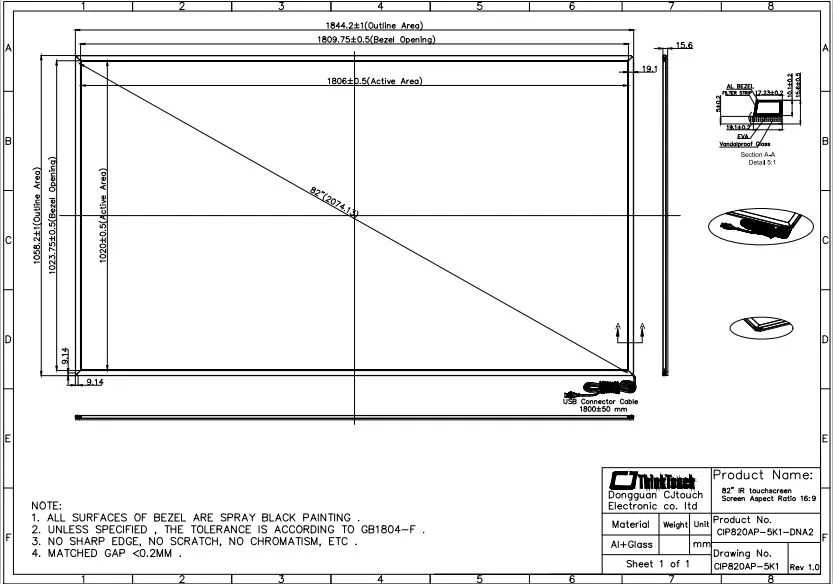

Technical Drawings

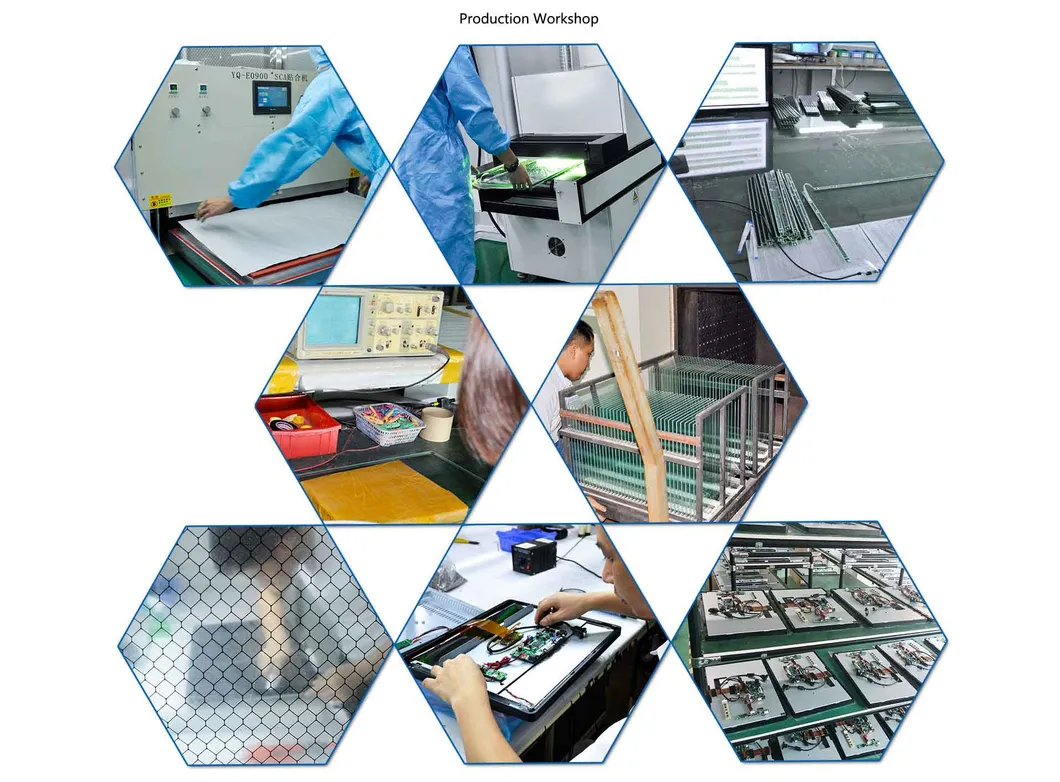

Production Workshop

Product Applications

Certifications

Frequently Asked Questions

Q1: What operating systems are supported? The IR touch frame supports Windows XP, 7, 8, 10, Linux, and Android operating systems.

Q2: Does it require special drivers? No, it is a Plug and Play device using a standard USB interface.

Q3: How many touch points does it support? It supports 2, 4, 6, or 10 touch points depending on your specific requirements.

Q4: Can it be used outdoors? Yes, it features an anti-sun series design and has an IP64 seal rating, making it suitable for both indoor and outdoor environments.

Q5: What is the touch response time? The response time for both initial touch and drawing is approximately 6ms.

Q6: What type of glass is used? The product uses 5mm tempered glass with 92% transparency and vandal-proof properties.
