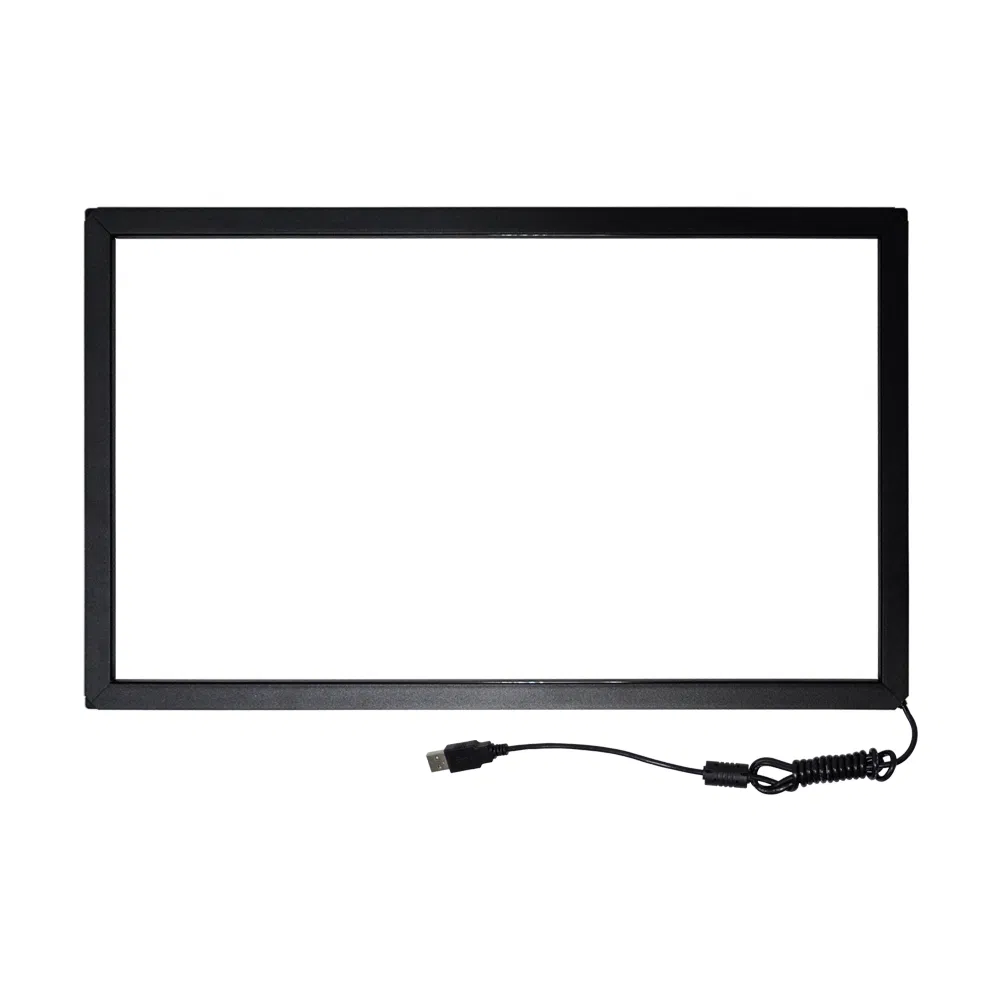

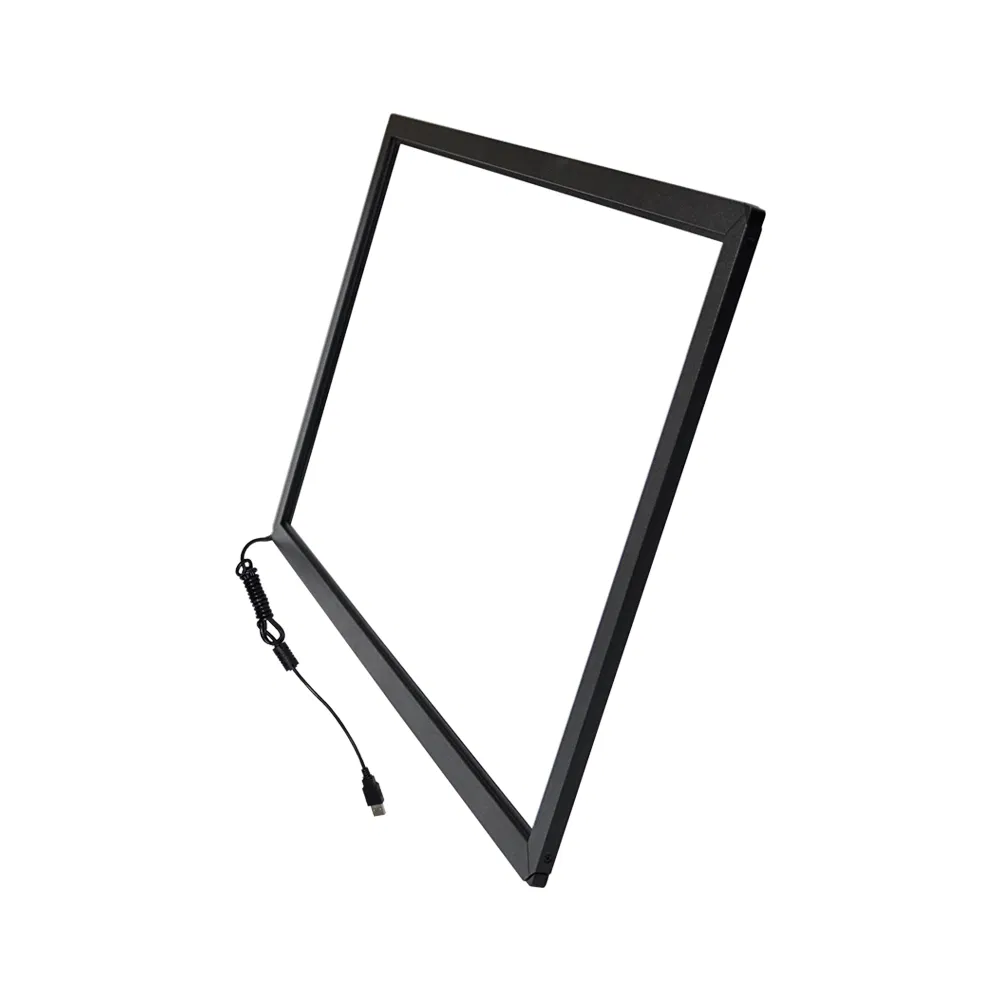

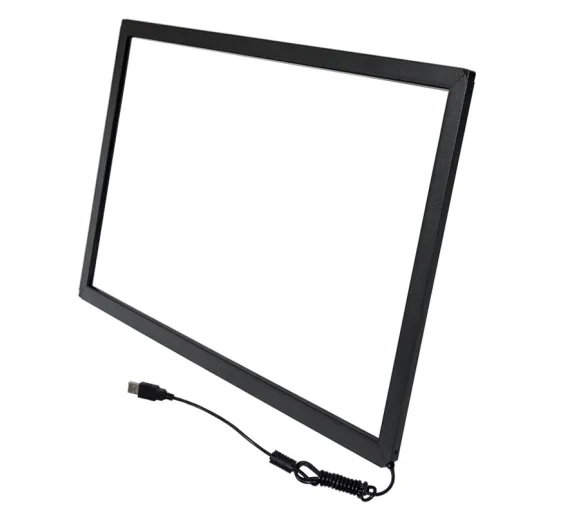

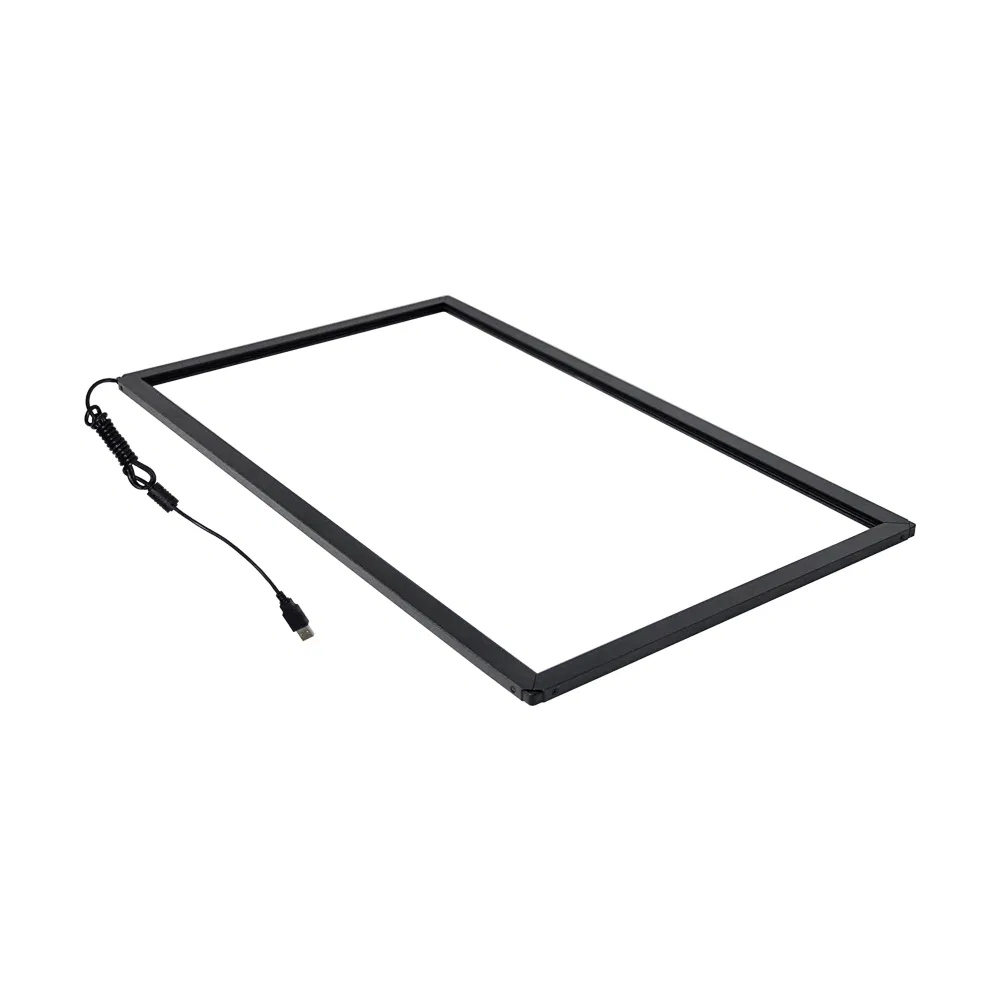

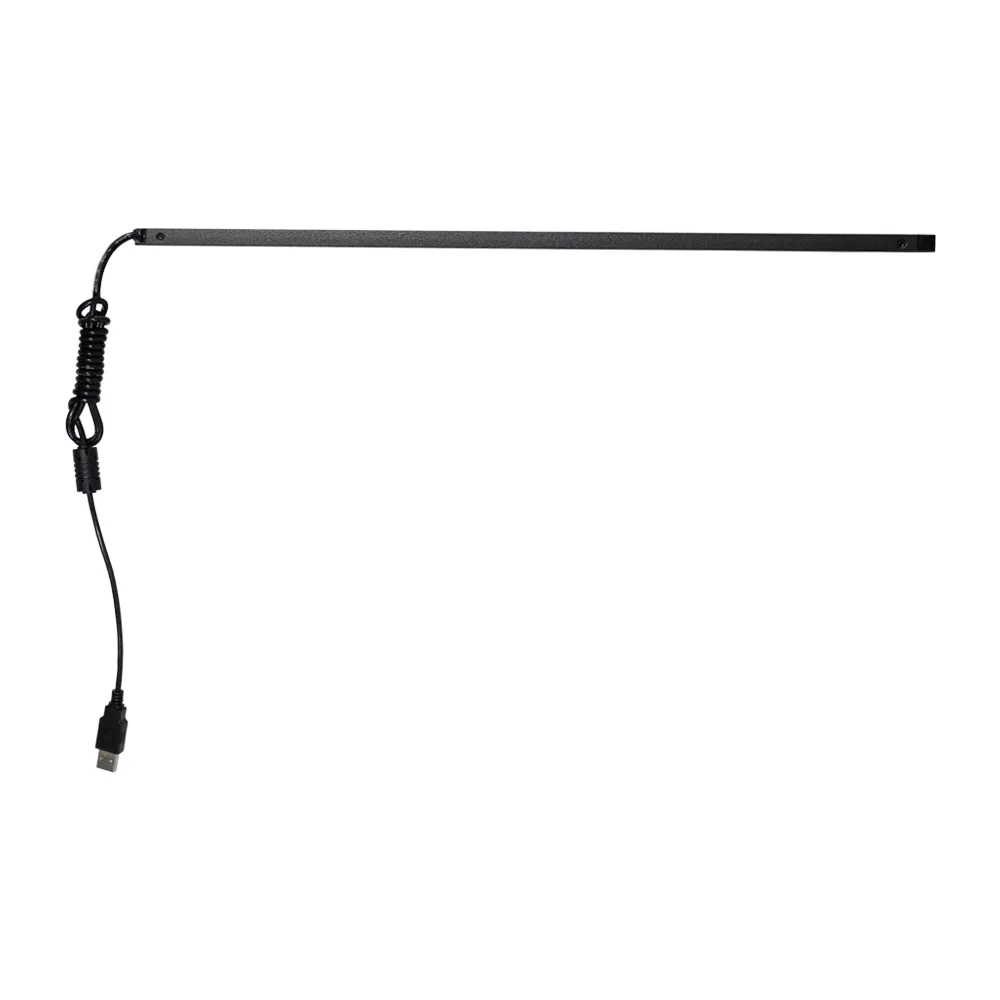

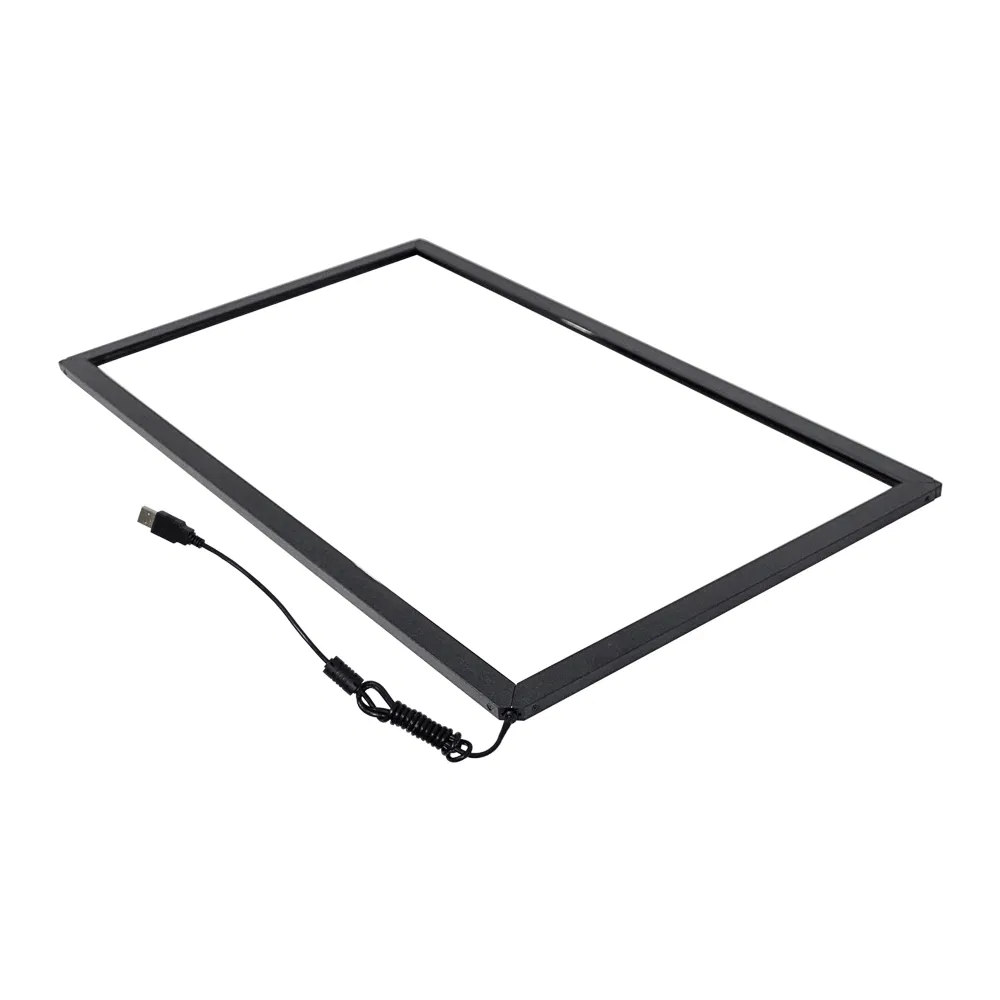

Cj Touch 48"IR Touch Screen Multi Touch Frame for Education

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.:CIN480AP-3K-BNA2

Application:Financial Services System

Screen Type:Infrared

Touch Points:2.4.6 Touch Points

Glass:3mm Tempered Glass

Interface:USB (Plug and Play)

Certifications:CE, FCC

Origin:China (Mainland)

Product Overview

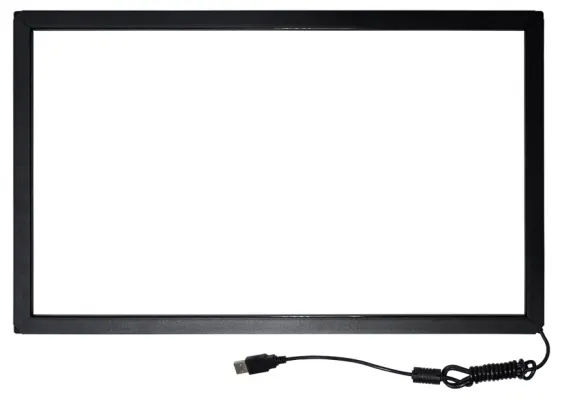

48" IR touch screen Multi Touch Screen with 3mm Vandal Proof Glass 2/4/6/10 Touch Points Windows/Linux/Android

🚀 Key Advantages:

Technical Specifications

MECHANICAL & TOUCH CHARACTERISTICS

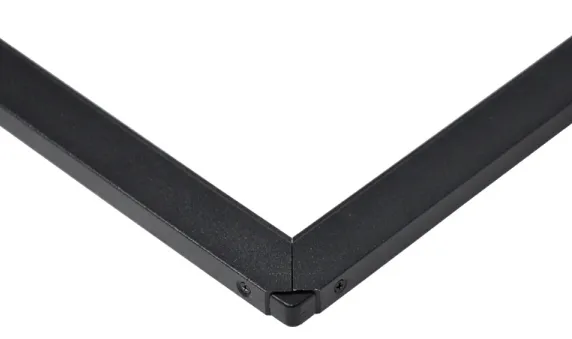

Housing Material	Aluminum frame / Plastic frame
Input Method	Finger or touch pen
Position Accuracy	1mm
Response Time	Touch: 6ms / Drawing: 6ms
Glass Transparency	3mm glass, Transparency: 92%
Touch Intensity	Over 60 millions single touch
ELECTRICAL & ENVIRONMENT
Operating Voltage	DC 4.5V ~ DC 5.5V
Power	1.0W (100mA at DC 5V)
Temperature Range	Operating: -10°C ~ 60°C / Storage: -30°C ~ 70°C
Seal Ability	IP64 Anti-Spill (Customizable to IP65)
Working Environment	Directly under sunlight, indoor and outdoor

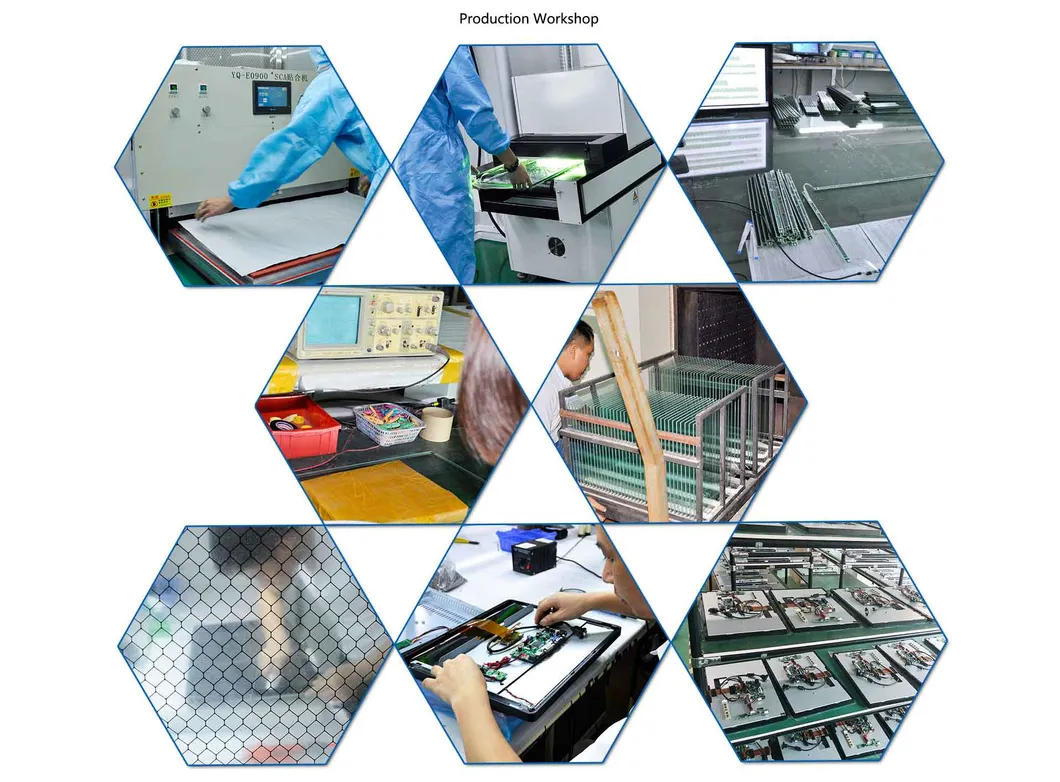

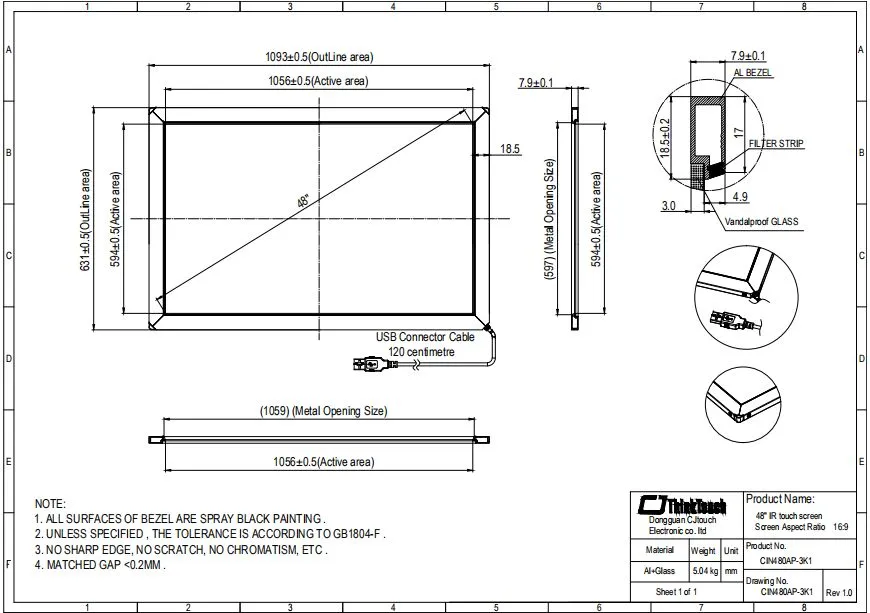

Technical Drawings & Production

Product Applications & Certifications

Frequently Asked Questions (FAQ)

Q1: Does this touch frame require special drivers? A: No, it is a Plug and Play device using a standard USB 2.0 interface.

Q2: What operating systems are supported? A: It is highly compatible with Windows 7/8/10, Linux, and Android.

Q3: Can the touch screen be used outdoors? A: Yes, it features an Anti-Sun series design and can work directly under sunlight with IP64 seal ability.

Q4: What is the thickness of the protection glass? A: It comes with 3mm Vandal Proof Tempered Glass with 92% transparency.

Q5: How many touch points does it support? A: Depending on the model, it supports 2, 4, 6, or 10 simultaneous touch points.

Q6: What is the response time for touch input? A: The response time for both initial touch and drawing is approximately 6ms.
