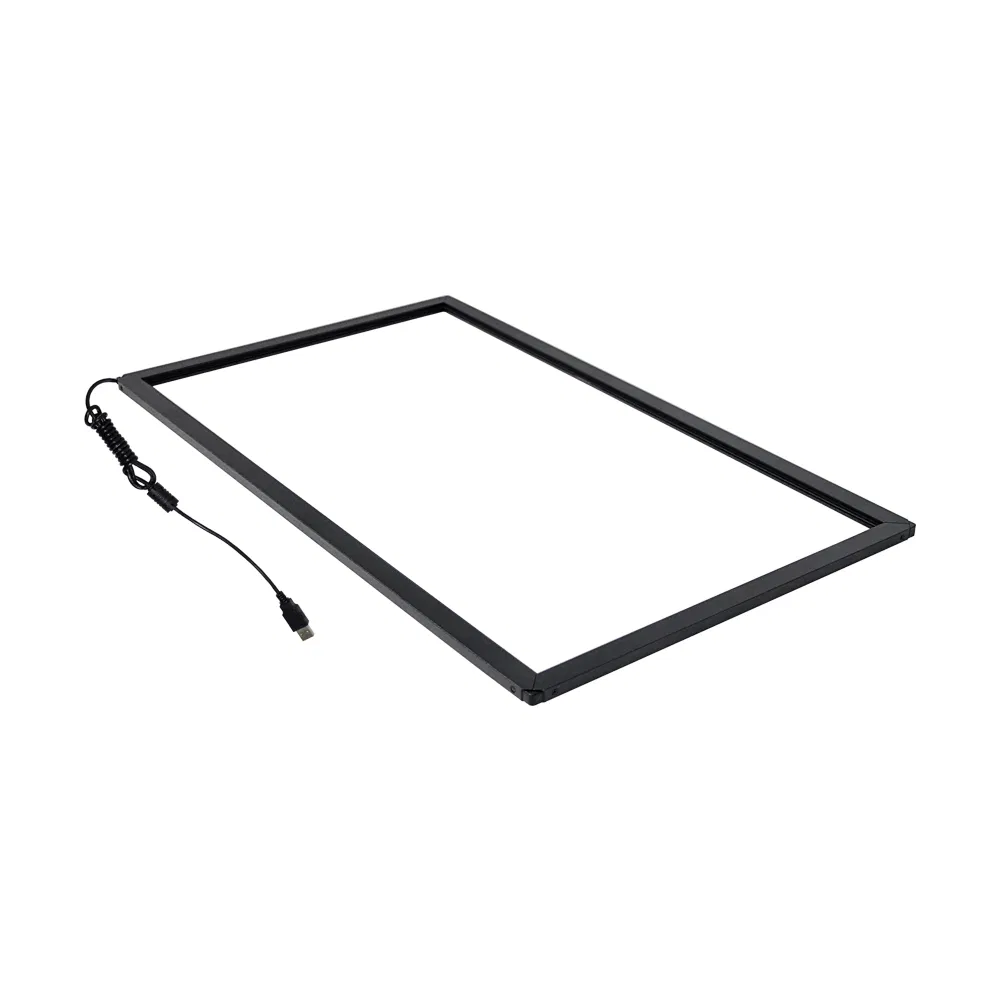

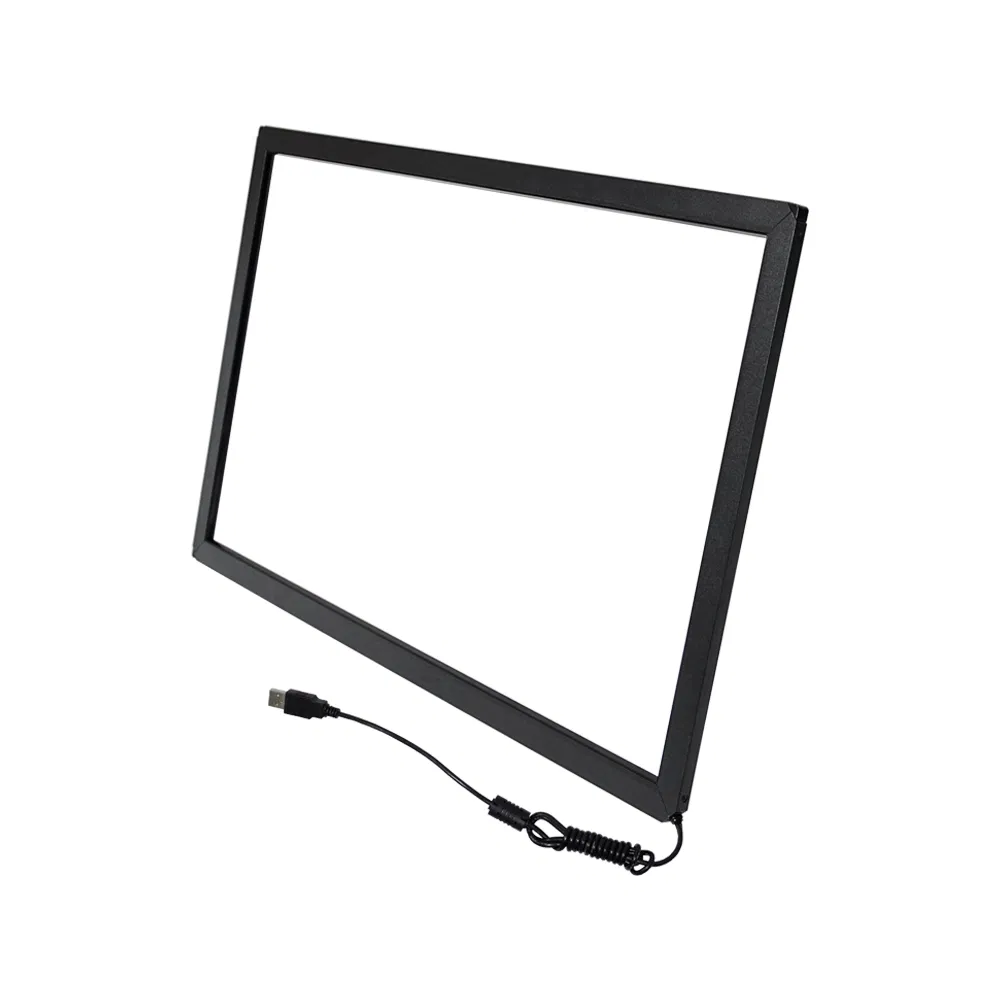

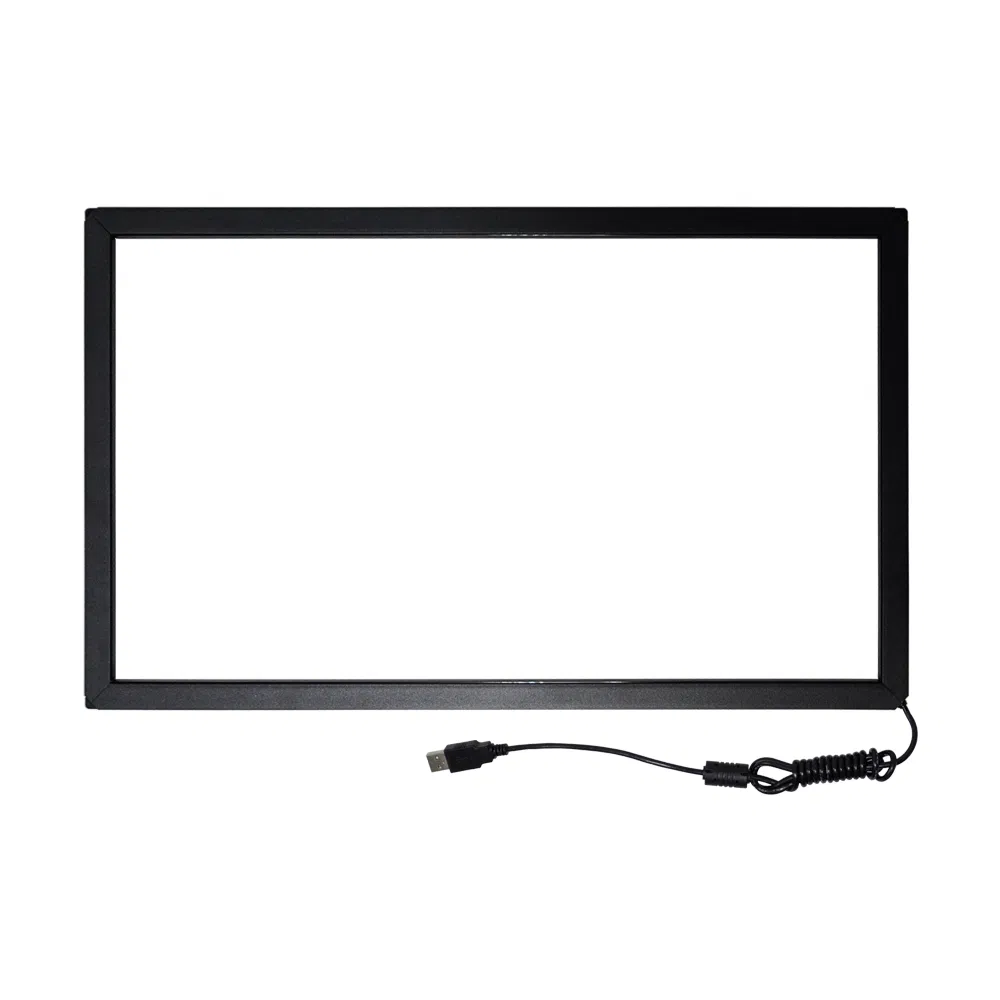

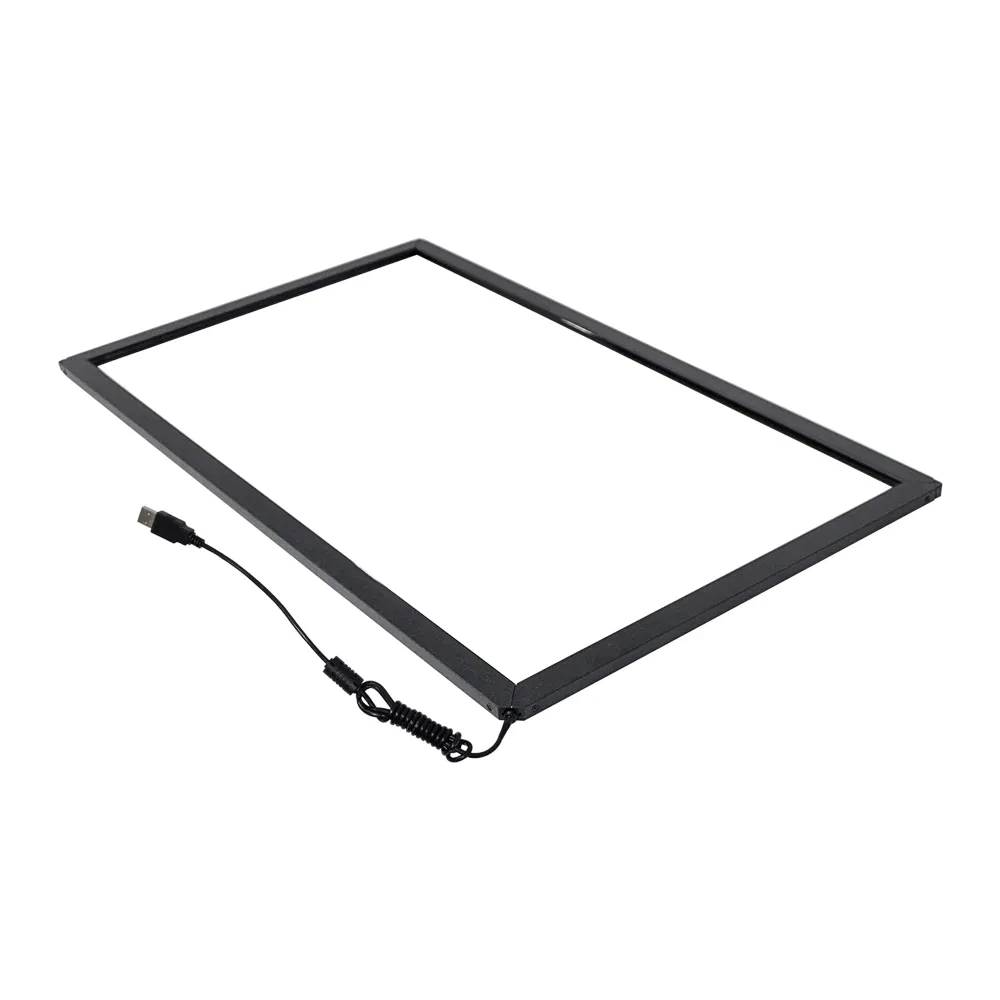

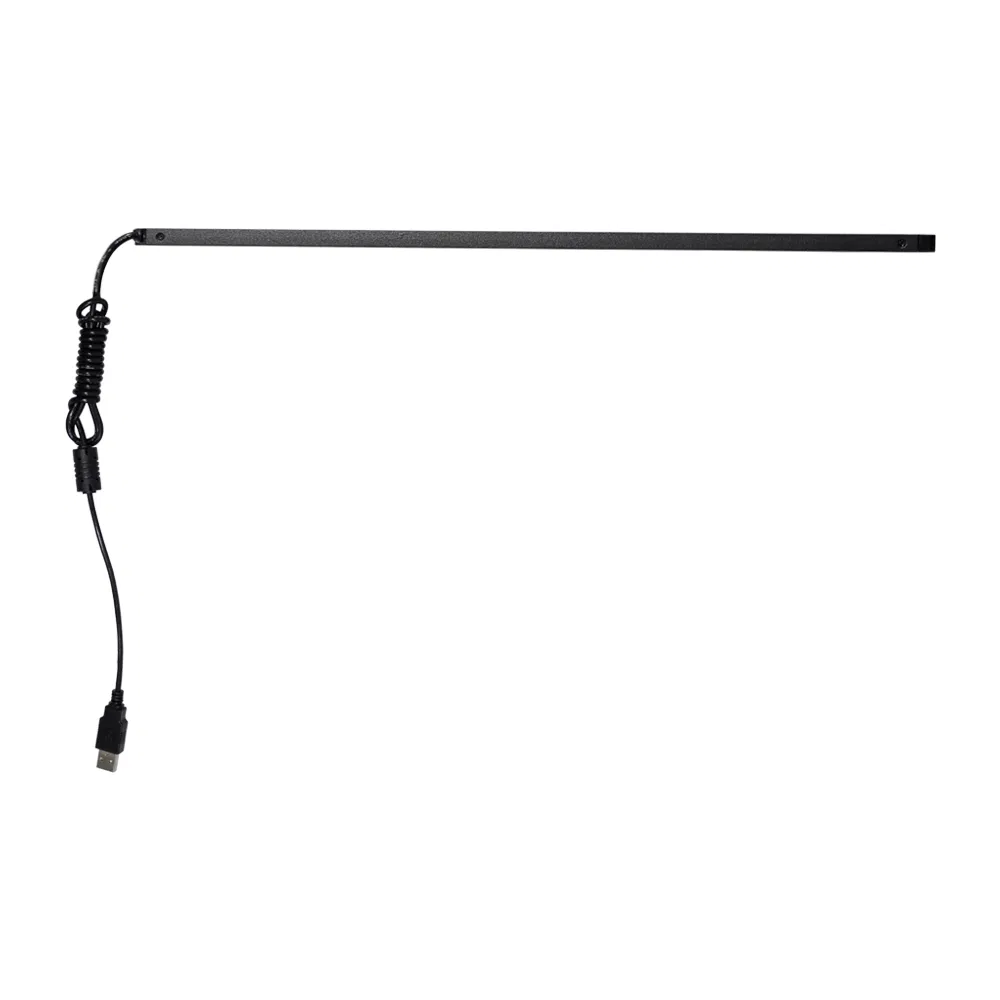

CJ Touch 22" Long Lifetime IR Touch Frame/Screen/Overlay CIN220AP-3K-BNA2

1 / 5

CJ Touch 22" Long Lifetime IR Touch Frame/Screen/Overlay CIN220AP-3K-BNA2

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📊 Basic Information

Model NO.:CIN220AP-3K-BNA2

Application:Financial Services System

Screen Type:Infrared

Touch Points:2/4/6/10 Points

Glass:3mm Tempered Glass

Interface:USB (Plug and Play)

Certifications:CE, FCC

Production:500PCS/Week

🔍 Product Description

22" IR touch screen Multi Touch Screen with 3mm Vandal Proof Glass (2/4/6/10 Touch Points) for Windows/Linux/Android

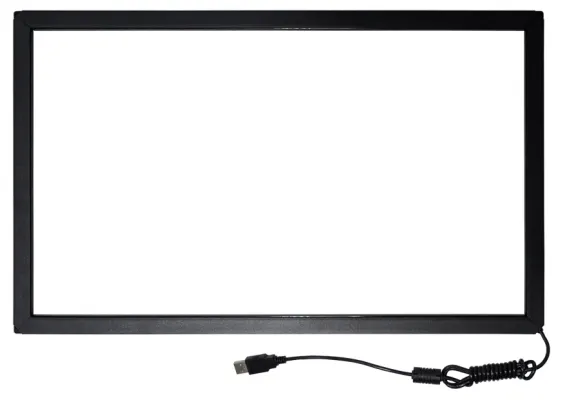

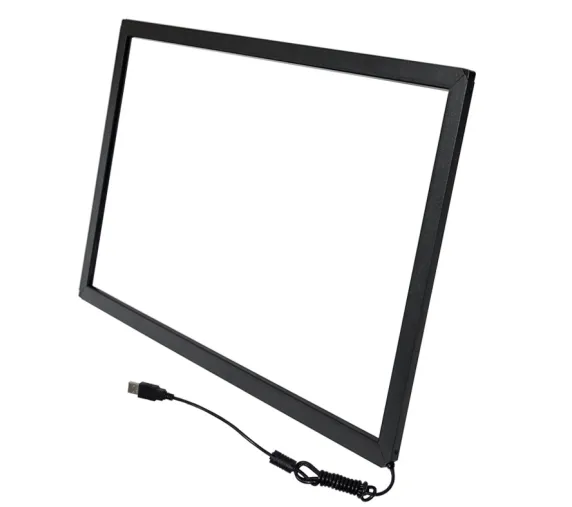

🌟 Advantages of our Infrared IR Touch Frame:

High Reliability IR Touch Frames Series
Multi-touch 2-4-6-10 points
High Compatibility of hardware & Software
Support Operation System XP/Win7/Win8/Win10/Linux/Android
Perfect Anti-Sun IR Touch Screen Series

⚙️ Technical Specifications

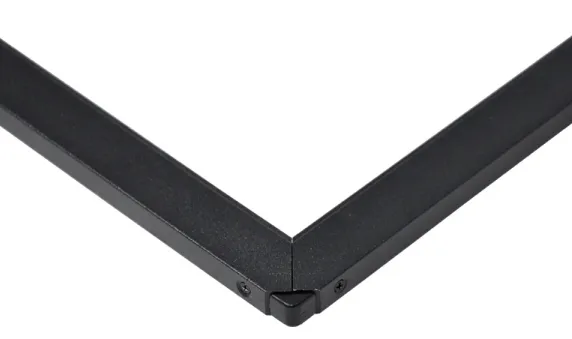

MECHANICAL
P/N	CIN Slim series
Overlay Thickness	7.9 mm
Overlay Frame Width	18.5 mm
Housing	Aluminum frame / Plastic frame
TOUCH CHARACTERISTICS
Input Method	Finger or touch pen
Touch Points	NA2=2, NA4=4, NA6=6 Points
Position Accuracy	1mm
Response Time	Touch: 6ms / Drawing: 6ms
Glass Transparency	3mm glass / 92%
Touch Intensity	Over 60 million single touches
ENVIRONMENT & INTERFACE
Operating Voltage	DC 4.5V ~ DC 5.5V
Temperature	Operating: -10°C ~ 60°C / Storage: -30°C ~ 70°C
Seal Ability	IP64 Anti-Spill (Customizable to IP65)
Interface	USB 2.0 Full Speed

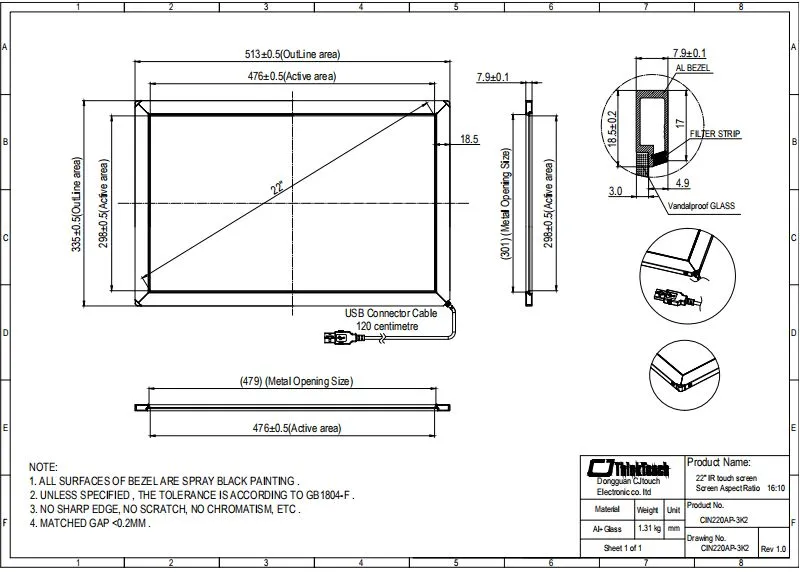

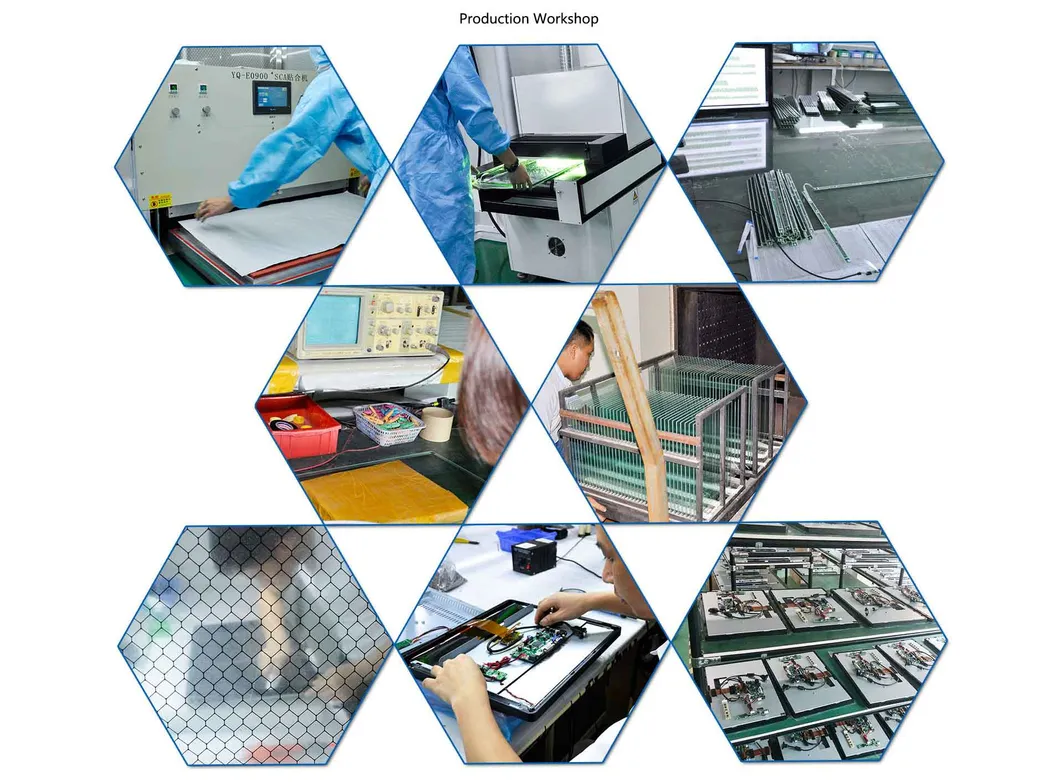

📐 Technical Drawings & Workshop

🚀 Product Applications

📜 Certifications

❓ Frequently Asked Questions

Q1: Which operating systems does the IR touch frame support? A1: It supports a wide range of systems including Windows XP, 7, 8, 10, Linux, and Android.

Q2: Is the touch screen plug-and-play? A2: Yes, it uses a USB interface and is designed for plug-and-play functionality without complex driver installations.

Q3: How many touch points are available? A3: Depending on the model selection (NA2, NA4, NA6), it supports 2, 4, 6, or up to 10 touch points.

Q4: What type of glass is used for protection? A4: The unit features 3mm Vandal Proof Tempered Glass with 92% transparency.

Q5: Can this be used in outdoor environments? A5: Yes, it features an Anti-Sun IR series design and can work directly under sunlight with IP64 seal ability.

Q6: What is the typical response time for touch? A6: The response time is approximately 6ms for both touch activation and drawing.
