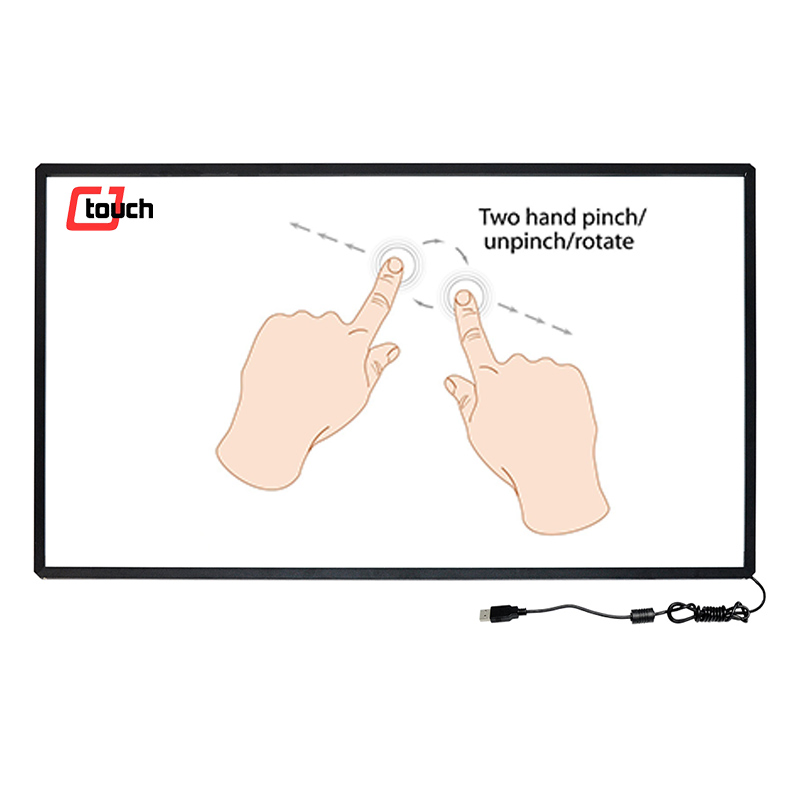

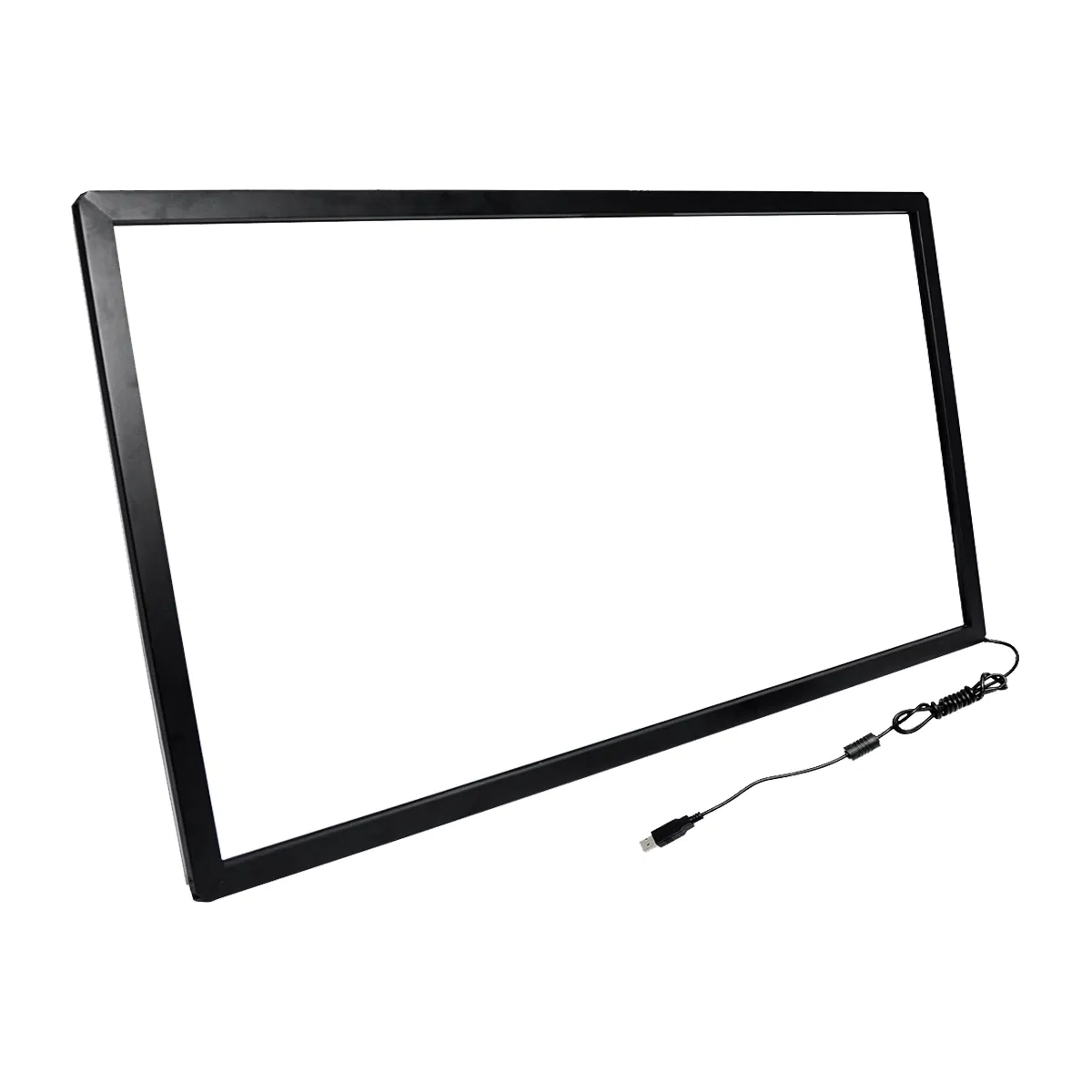

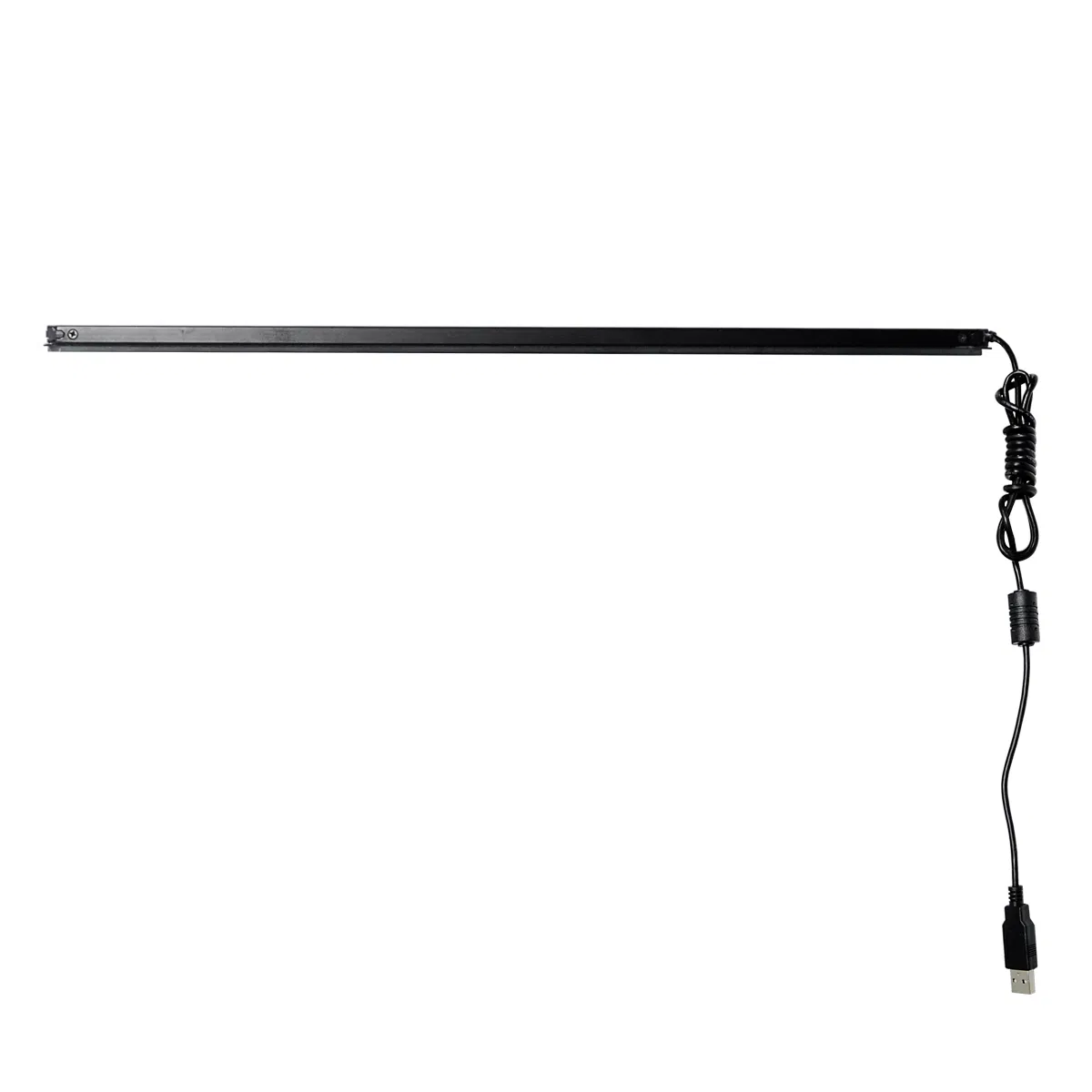

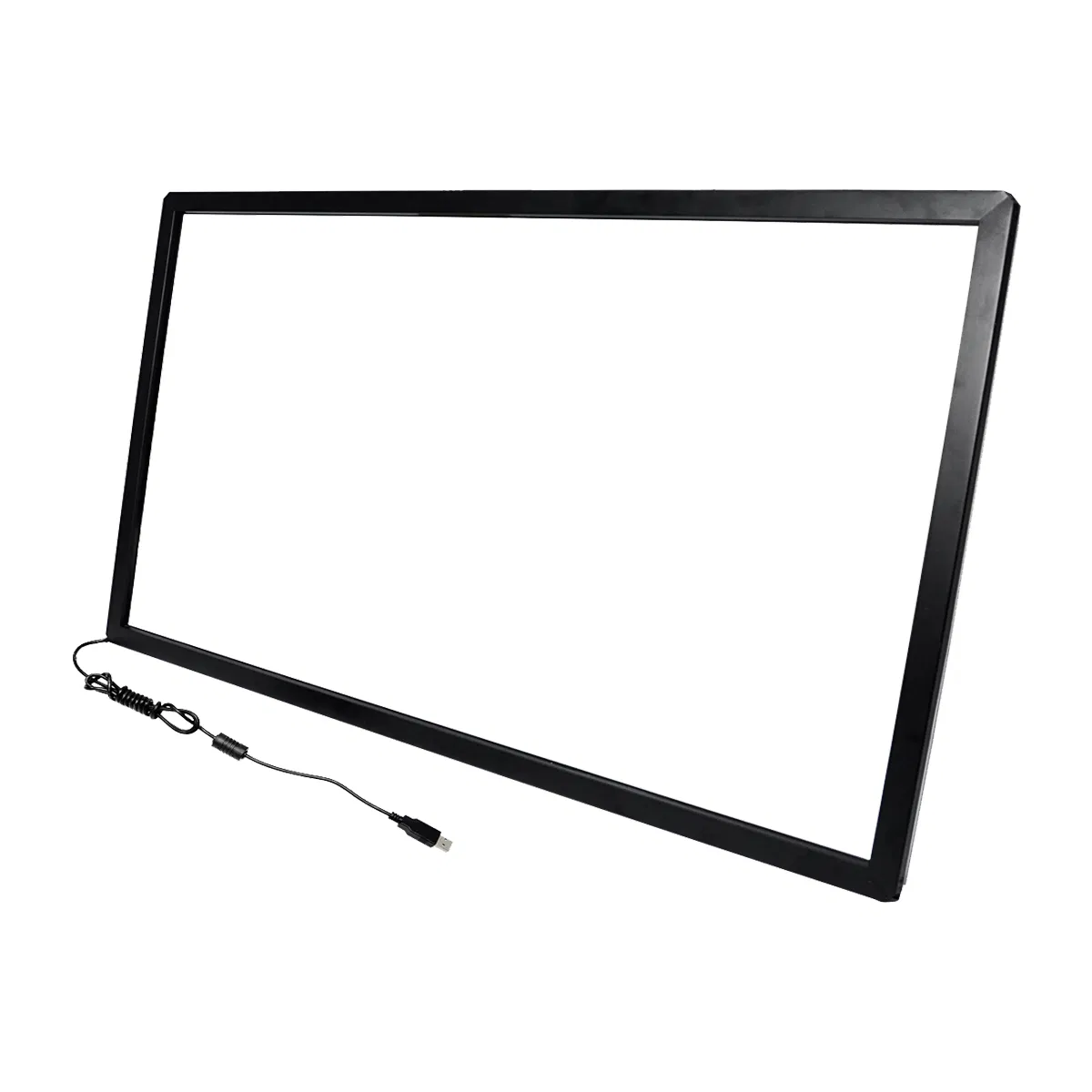

70inch 2/4/6/10 Infrared (IR) Touch Screen Frame Multi Touch Panel Overlay Kit for Table PC, All in One PC
70inch 2/4/6/10 Infrared (IR) Touch Screen Frame Multi Touch Panel Overlay Kit for Table PC, All in One PC
70inch 2/4/6/10 Infrared (IR) Touch Screen Frame Multi Touch Panel Overlay Kit for Table PC, All in One PC
70inch 2/4/6/10 Infrared (IR) Touch Screen Frame Multi Touch Panel Overlay Kit for Table PC, All in One PC
70inch 2/4/6/10 Infrared (IR) Touch Screen Frame Multi Touch Panel Overlay Kit for Table PC, All in One PC
1 / 5
70inch 2/4/6/10 Infrared (IR) Touch Screen Frame Multi Touch Panel Overlay Kit for Table PC, All in One PC
70inch 2/4/6/10 Infrared (IR) Touch Screen Frame Multi Touch Panel Overlay Kit for Table PC, All in One PC
70inch 2/4/6/10 Infrared (IR) Touch Screen Frame Multi Touch Panel Overlay Kit for Table PC, All in One PC
70inch 2/4/6/10 Infrared (IR) Touch Screen Frame Multi Touch Panel Overlay Kit for Table PC, All in One PC
70inch 2/4/6/10 Infrared (IR) Touch Screen Frame Multi Touch Panel Overlay Kit for Table PC, All in One PC

70inch 2/4/6/10 Infrared (IR) Touch Screen Frame Multi Touch Panel Overlay Kit for Table PC, All in One PC

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information
Model NO.
CIP700AP-4K-DNA2
Application
Financial Services System
Screen Type
Infrared
Touch Points
2, 4, 6, 10 Points
Glass
4mm Tempered Glass
Interface
USB (Plug and Play)
Certifications
CE, FCC
Production
500PCS/Week
Product Description

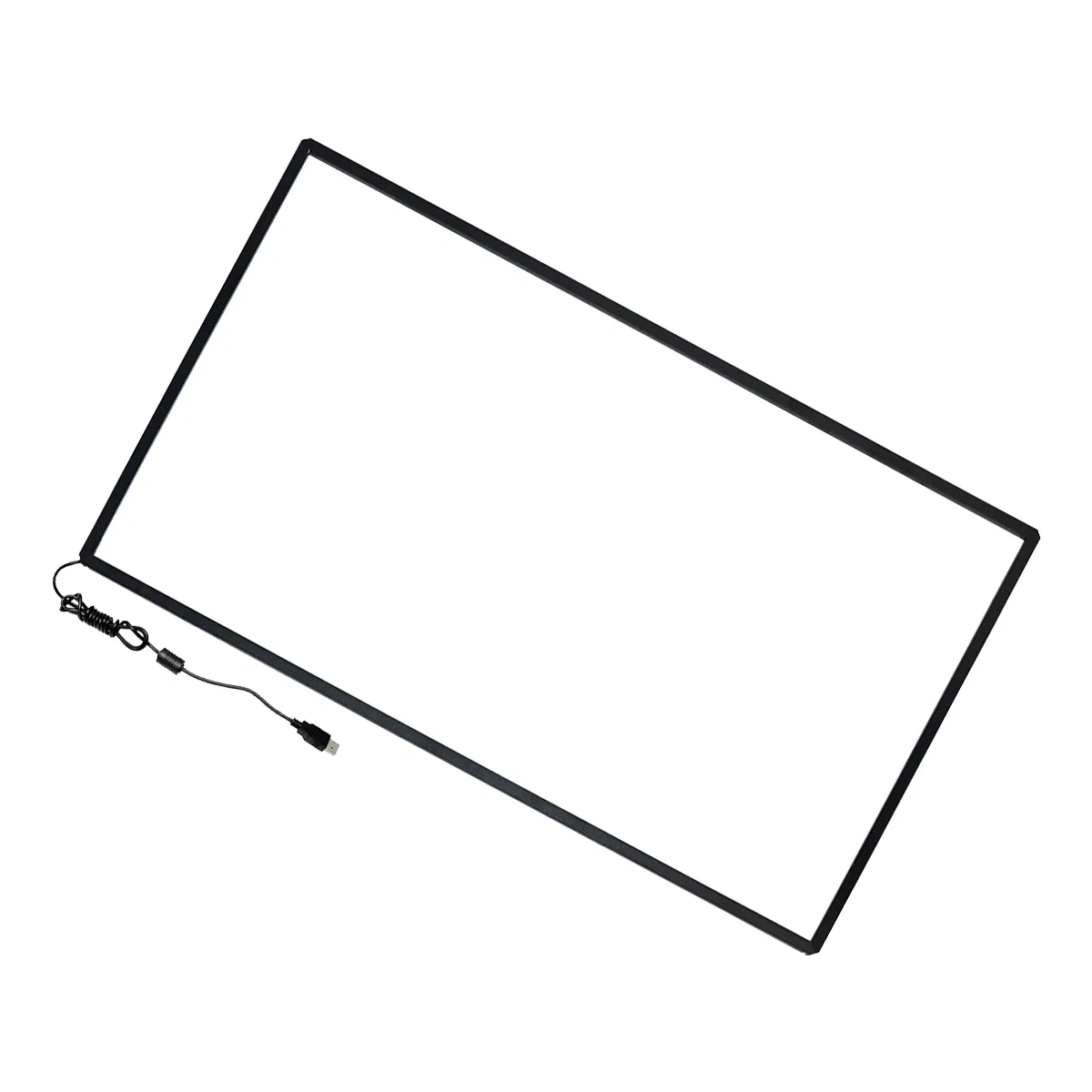

70" IR Touch Screen Multi-Touch Frame
Equipped with 4mm Vandal Proof Glass | Supports 2/4/6/10 Touch Points | Compatible with Windows, Linux, and Android.

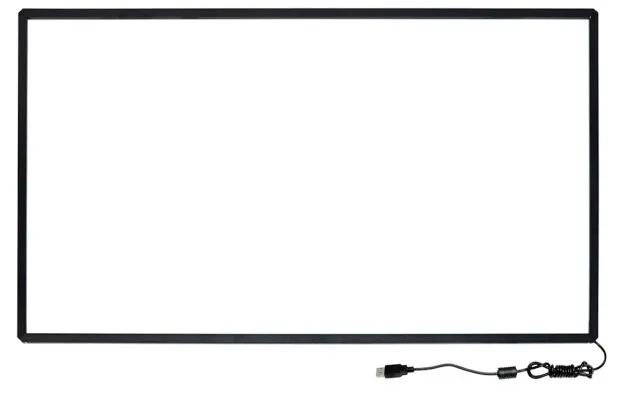

Touch Screen Display 1

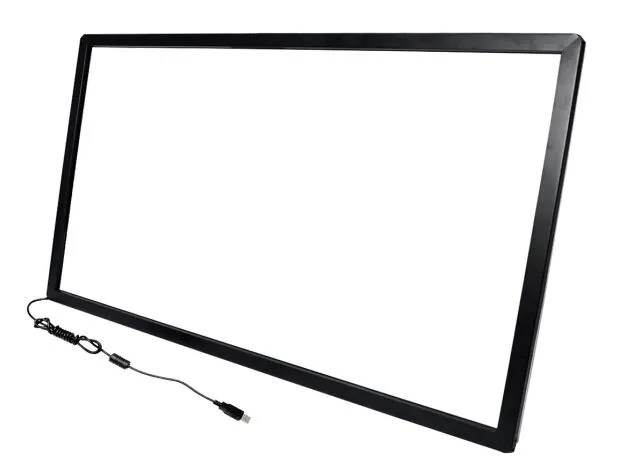

Touch Screen Display 2

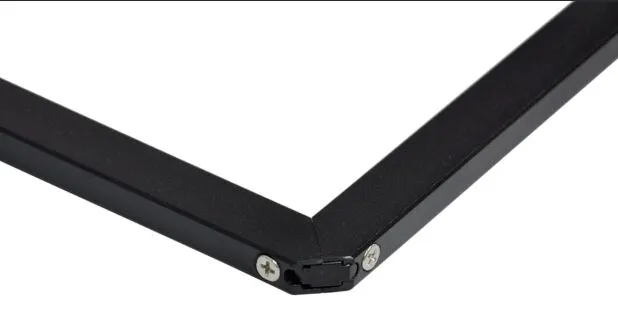

Touch Screen Display 3
Key Advantages
  • 🚀 High Reliability: Premium IR Touch Frames Series.
  • 🖐️ Multi-touch: Accurate 2-4-6-10 points interaction.
  • 💻 Compatibility: Full hardware & software support for XP/Win7/Win8/Win10/Linux/Android.
  • ☀️ Anti-Sun: Perfect performance even under strong light.
Technical Specification
MECHANICAL
P/NCIP Slim series (32"-98")
Overlay Thickness / Width14.6 mm / 19.1 mm
HousingAluminum frame
TOUCH CHARACTERISTICS
Input MethodFinger or touch pen
Response TimeTouch: 6ms / Drawing: 6ms
Position Accuracy1mm
Resolution4096(W) × 4096(D)
Glass Transparency4mm glass | Transparency: 92%
ENVIRONMENT & ELECTRICAL
Operating VoltageDC 4.5V ~ DC 5.5V
Seal AbilityIP64 Anti-Spill (Customizable to IP65)
Operating Temperature-10 °C ~ 60 °C
Technical Drawings & Workshop

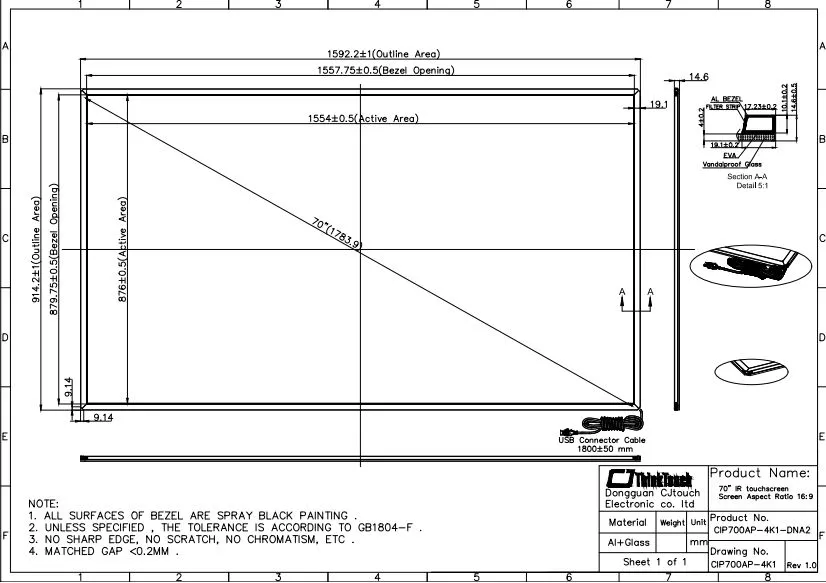

Technical Drawings

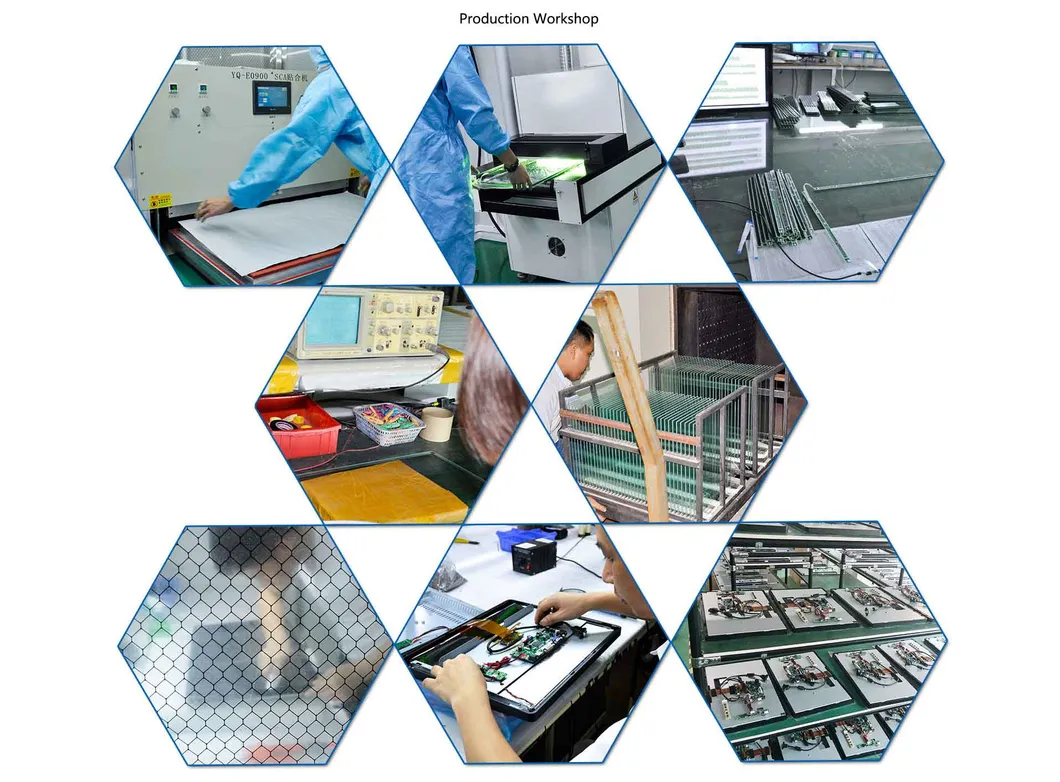

Production Workshop
Product Applications
Applications
Certifications
Certifications
Frequently Asked Questions
What operating systems does the touch frame support?
The system is highly compatible and supports Windows XP, Win7, Win8, Win10, Linux, and Android.
Is the glass durable enough for public use?
Yes, it features 4mm Vandal Proof Tempered Glass, making it ideal for kiosks and financial service systems.
Does it require special drivers?
No, it is a "Plug and Play" device using a USB 2.0 interface for easy installation.
Can it be used outdoors under direct sunlight?
Yes, it features an Anti-Sun series design specifically for stable operation indoor and under direct sunlight.
How many touch points are available?
We offer configurations for 2, 4, 6, or 10 simultaneous touch points depending on your needs.
What is the protection rating of the screen?
The standard model has an IP64 Anti-Spill rating, and it can be customized to IP65 waterproof standards.
