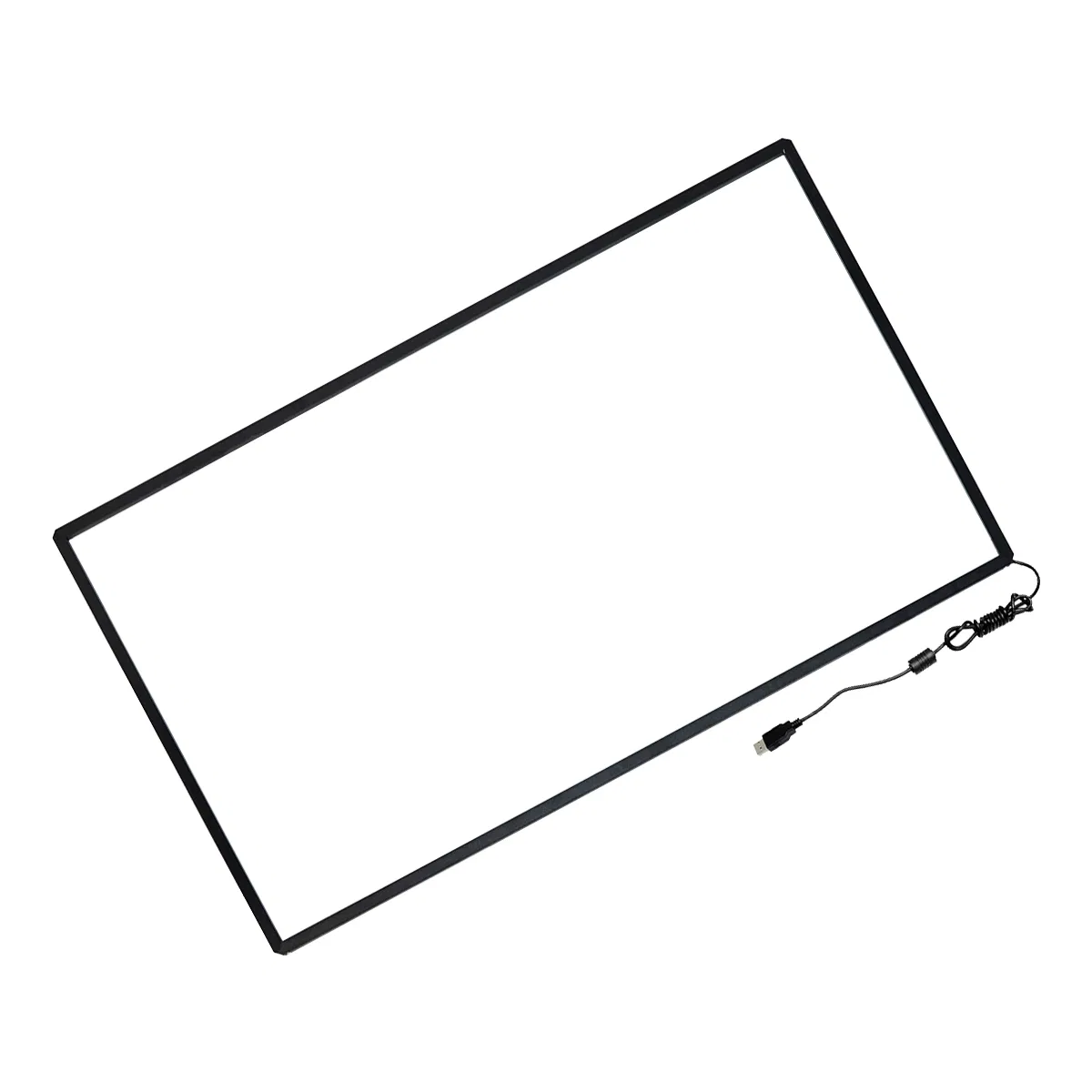

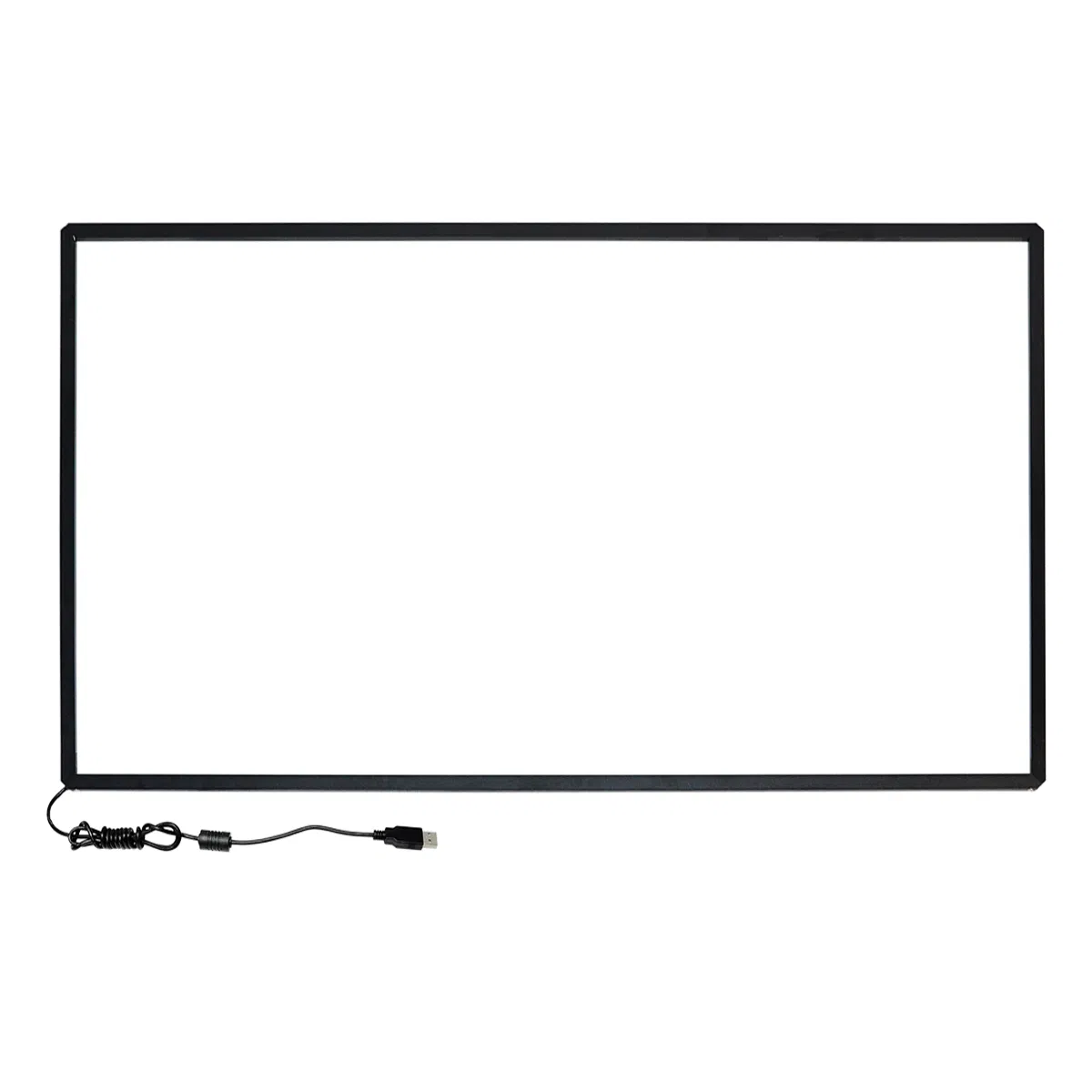

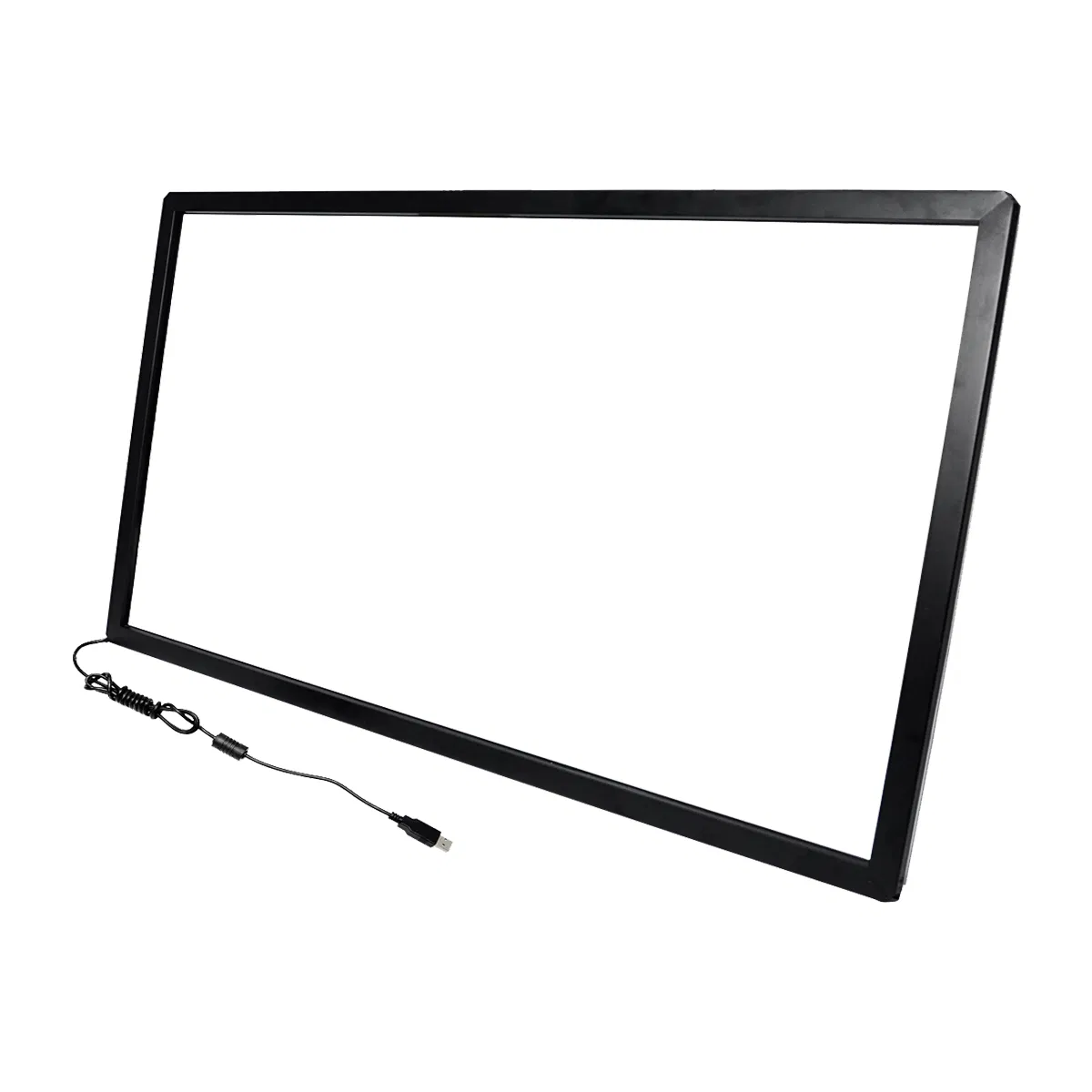

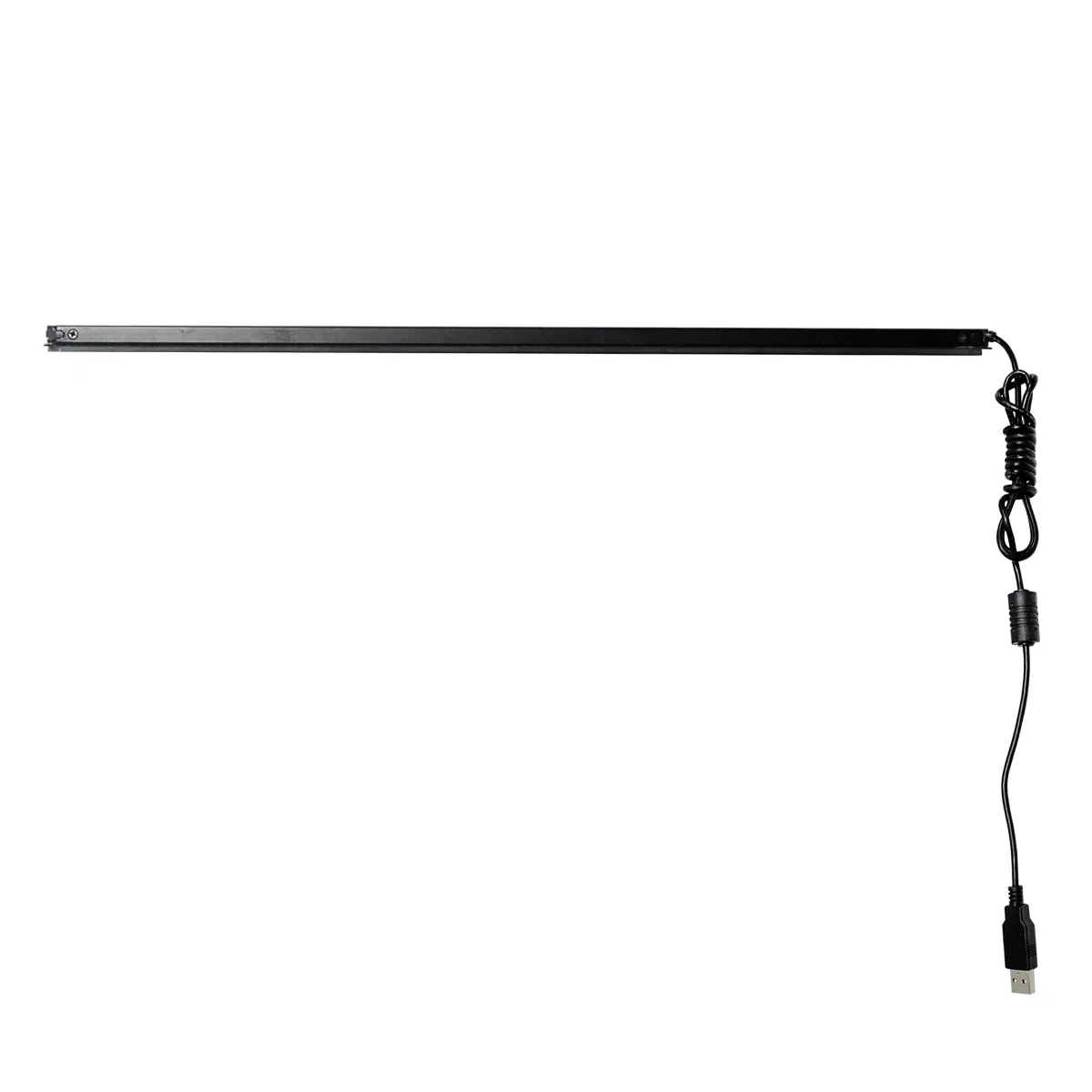

49 Inch IR Touch Screen Open Touch Frame with Factory Price
49 Inch IR Touch Screen Open Touch Frame with Factory Price
49 Inch IR Touch Screen Open Touch Frame with Factory Price
49 Inch IR Touch Screen Open Touch Frame with Factory Price
49 Inch IR Touch Screen Open Touch Frame with Factory Price
1 / 5
49 Inch IR Touch Screen Open Touch Frame with Factory Price
49 Inch IR Touch Screen Open Touch Frame with Factory Price
49 Inch IR Touch Screen Open Touch Frame with Factory Price
49 Inch IR Touch Screen Open Touch Frame with Factory Price
49 Inch IR Touch Screen Open Touch Frame with Factory Price

49 Inch IR Touch Screen Open Touch Frame with Factory Price

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

49" IR Touch Screen Multi Touch Frame

Featuring 4mm Vandal Proof Glass | 2/4/6/10 Touch Points | Cross-Platform Support (Windows/Linux/Android)

📊 Basic Information
Model NO.
CIP490-4K-DNA2
Application
Financial Services System
Screen Type
Infrared
Touch Points
2, 4, 6, 10 Points
Interface
USB (Plug and Play)
Glass
4mm Tempered Glass
Type
Vandal Proof
Certifications
CE, FCC
HS Code
8471609000
Capacity
500PCS/Week
⭐ Key Advantages
  • High Reliability IR Touch Frame Series
  • Multi-touch support (up to 10 points)
  • High Hardware & Software Compatibility
  • Support OS: Windows XP/7/8/10, Linux, Android
  • Perfect Anti-Sun IR Touch Performance
🖼️ Product Gallery

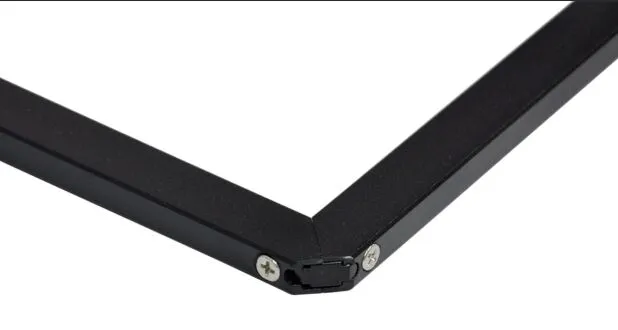

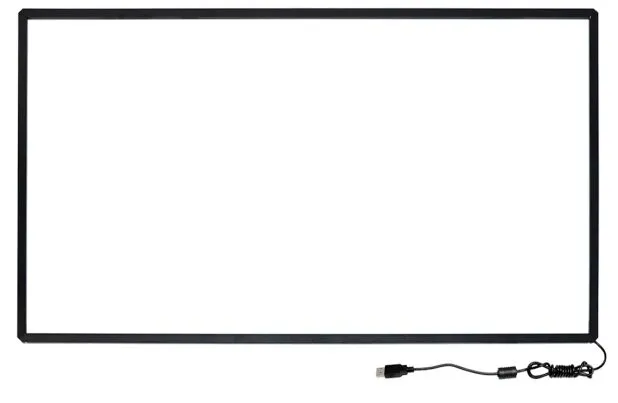

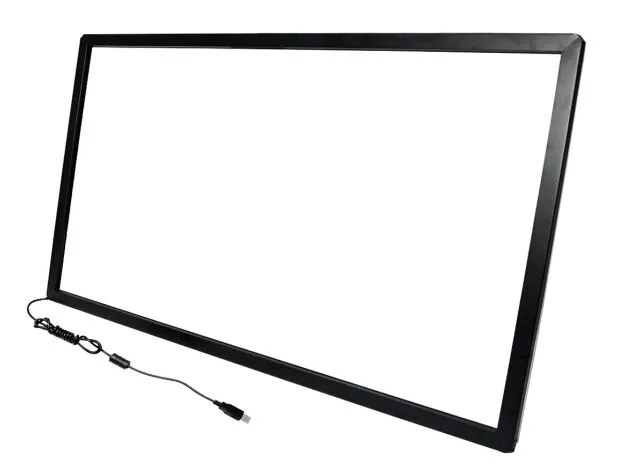

49 Inch IR Touch Screen Touch Frame Detail Infrared Touch View
⚙️ Technical Specifications
MECHANICAL & TOUCH CHARACTERISTICS
Housing MaterialAluminum frame
Overlay Thickness / Width14.6 mm / 19.1 mm
Input MethodFinger or touch pen
Position Accuracy1mm
Resolution4096(W) × 4096(D)
Response TimeTouch: 6ms / Drawing: 6ms
Glass Transparency4mm glass, Transparency: 92%
Touch IntensityOver 60 million single touches
Operating VoltageDC 4.5V ~ DC 5.5V
Operating Temperature-10 °C ~ 60 °C
Seal AbilityIP64 Anti-Spill (Customizable to IP65)

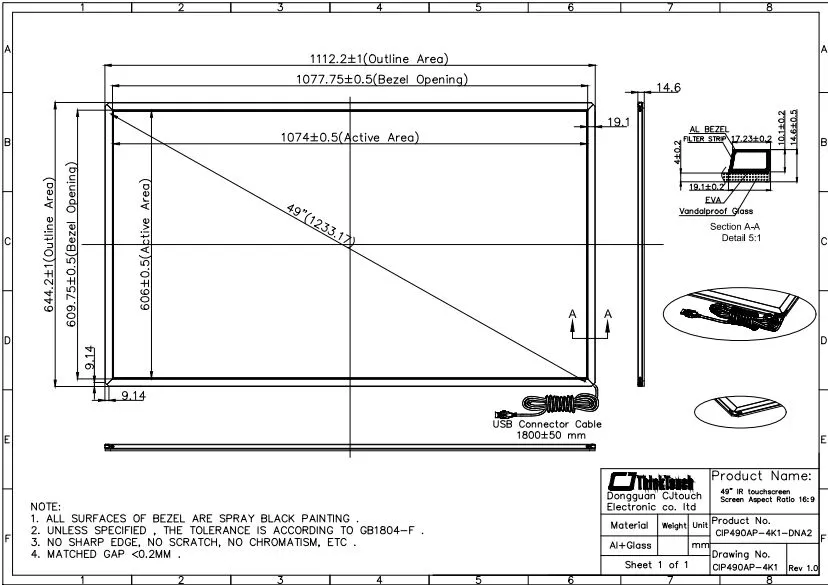

📐 Technical Drawings & Workshop

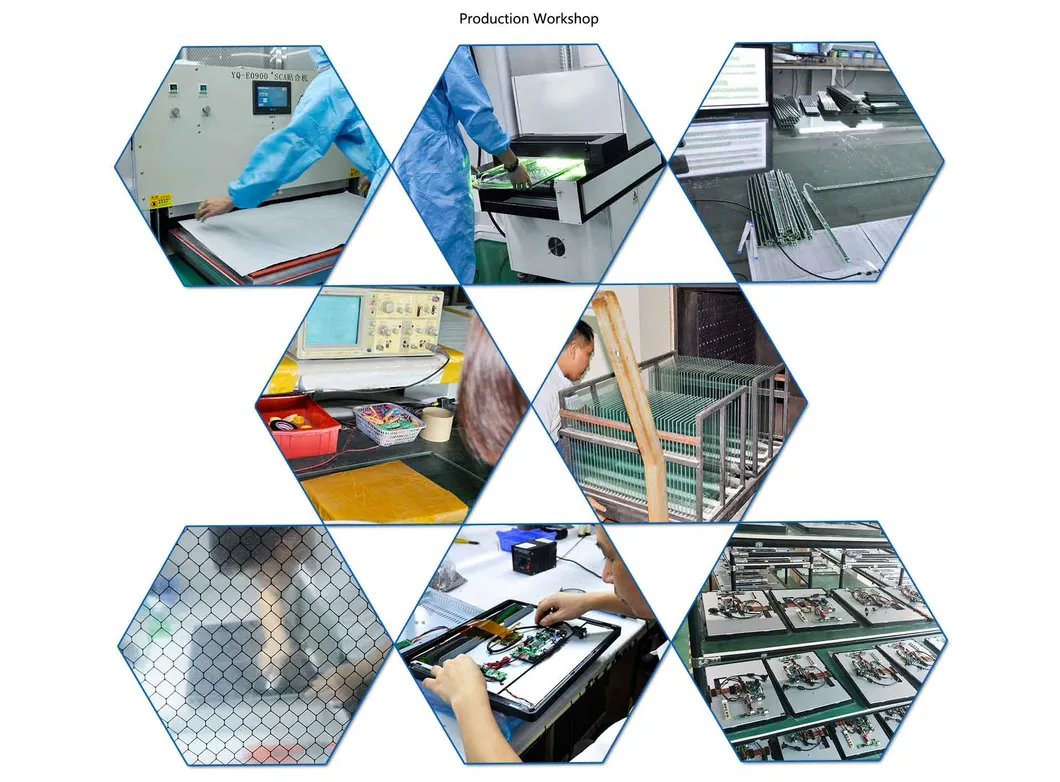

Technical Drawing Production Workshop
🚀 Applications & Certifications
Product Applications Certifications
❓ Frequently Asked Questions
Q1: Which operating systems are supported?
The IR touch frame supports Windows XP, Win7, Win8, Win10, Linux, and Android.
Q2: Does the device require drivers?
No, it is a Plug and Play device using a standard USB 2.0 interface.
Q3: How many touch points can it handle?
Depending on the model version (NA2, NA4, NA6), it supports 2, 4, 6, or up to 10 simultaneous touch points.
Q4: Is the screen durable for public use?
Yes, it features 4mm vandal-proof tempered glass and an aluminum housing, designed for over 60 million single touches.
Q5: Can it be used outdoors?
Yes, the Anti-Sun series is designed for high reliability under direct sunlight and features IP64 anti-spill protection.
Q6: What is the touch accuracy and response time?
The touch frame provides a high accuracy of 1mm and a rapid response time of 6ms for both touch and drawing.
