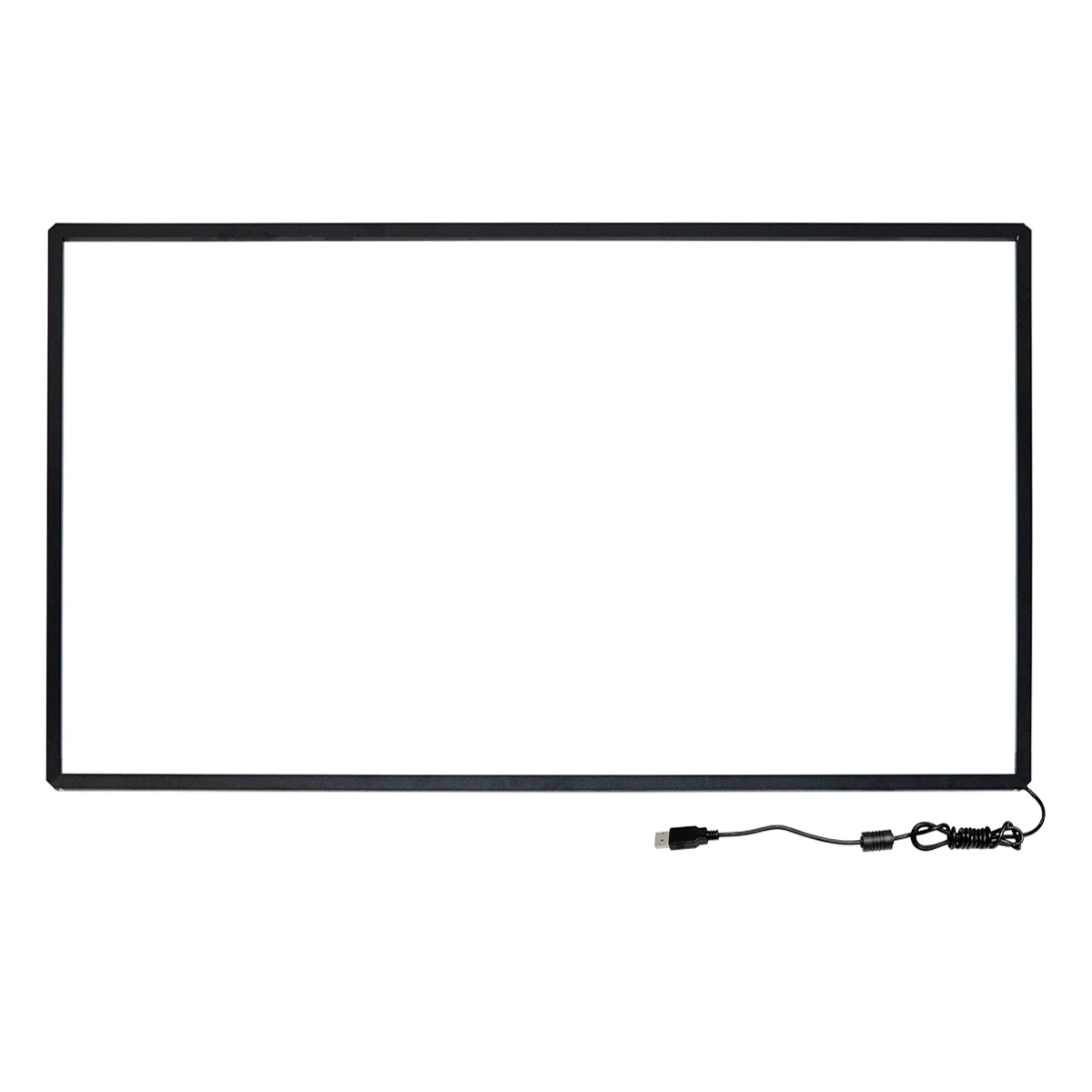

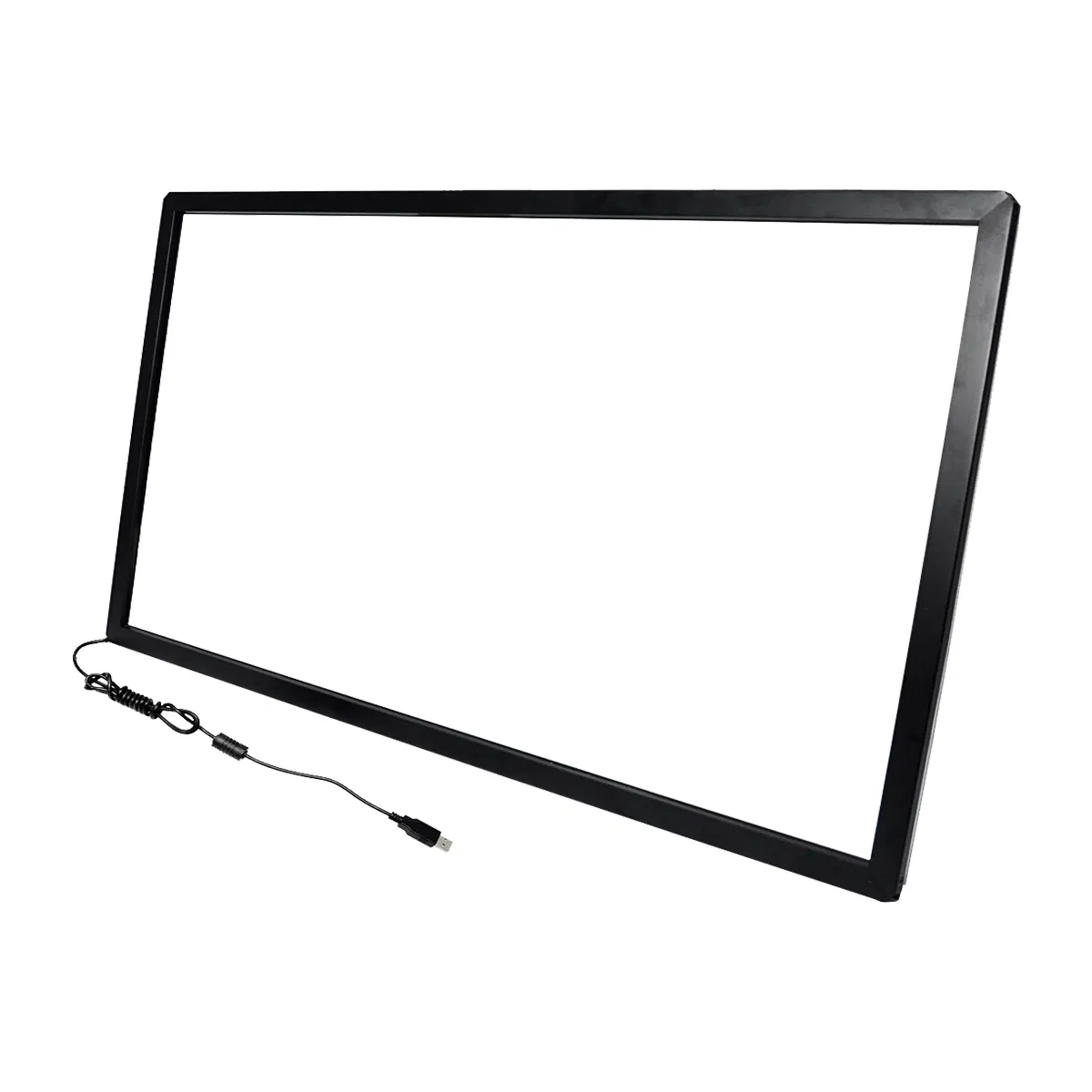

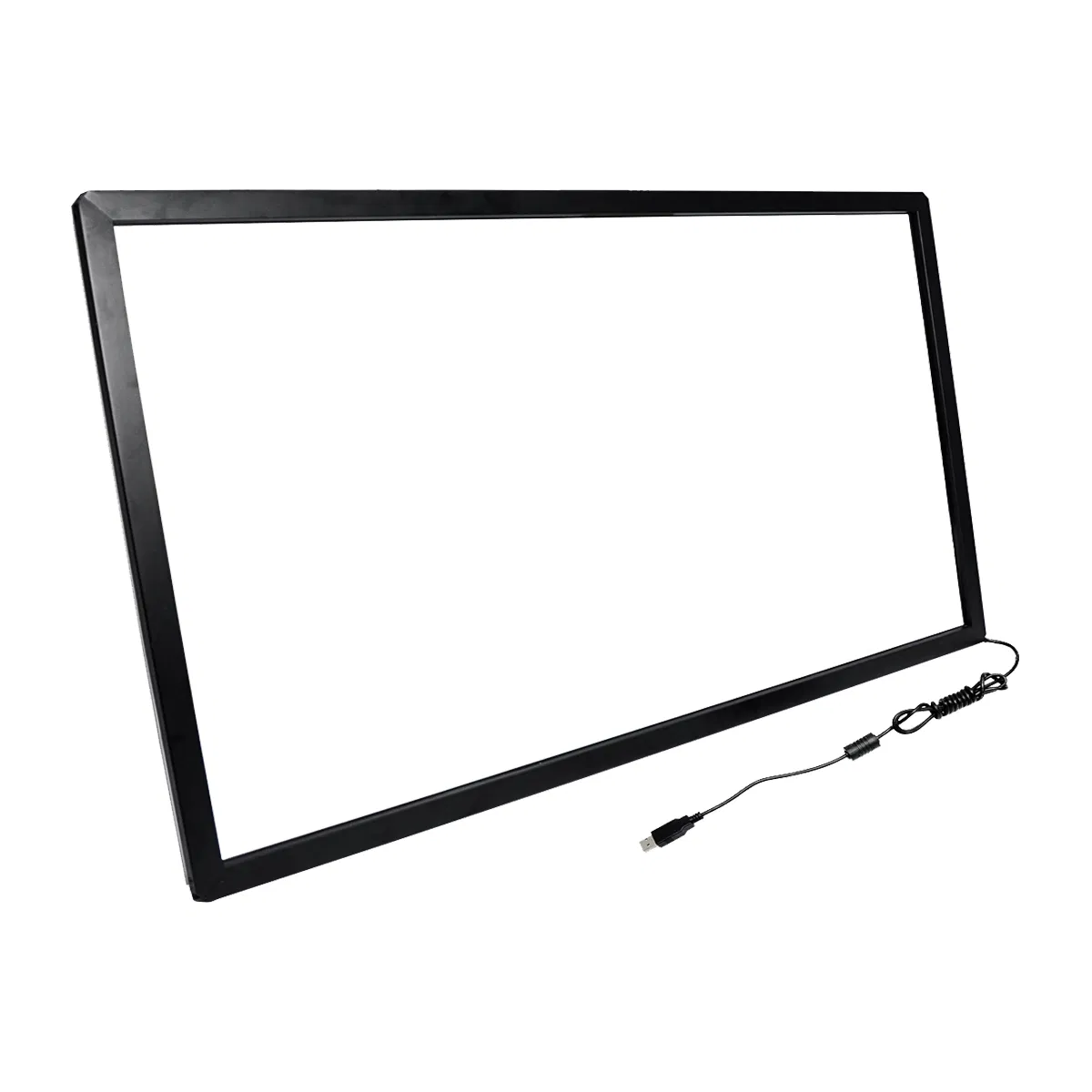

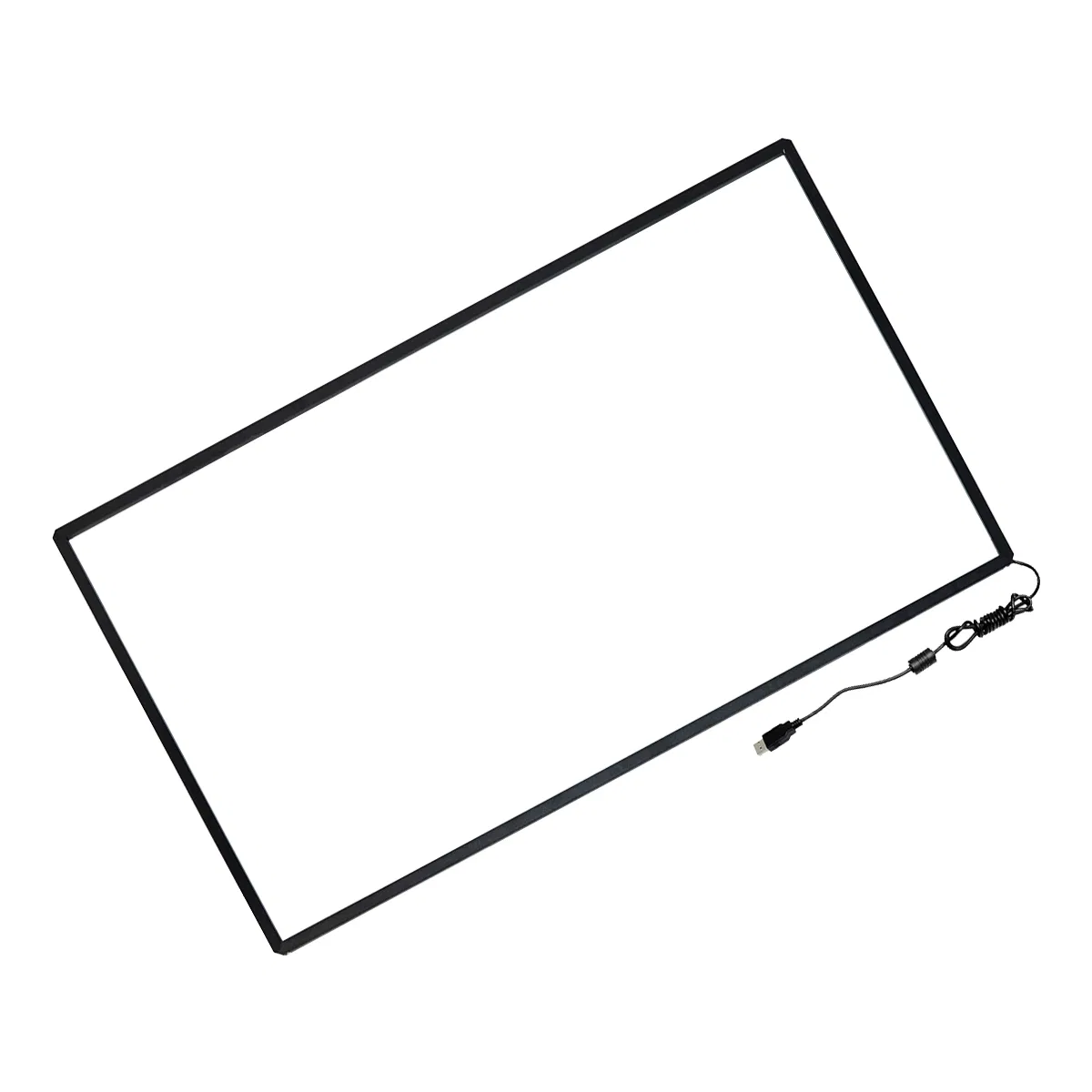

48'' Infrared IR Multitouch Screen Panel Frame with 10 Touch Points
48'' Infrared IR Multitouch Screen Panel Frame with 10 Touch Points
48'' Infrared IR Multitouch Screen Panel Frame with 10 Touch Points
48'' Infrared IR Multitouch Screen Panel Frame with 10 Touch Points
48'' Infrared IR Multitouch Screen Panel Frame with 10 Touch Points
1 / 5
48'' Infrared IR Multitouch Screen Panel Frame with 10 Touch Points
48'' Infrared IR Multitouch Screen Panel Frame with 10 Touch Points
48'' Infrared IR Multitouch Screen Panel Frame with 10 Touch Points
48'' Infrared IR Multitouch Screen Panel Frame with 10 Touch Points
48'' Infrared IR Multitouch Screen Panel Frame with 10 Touch Points

48'' Infrared IR Multitouch Screen Panel Frame with 10 Touch Points

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Specifications
Model NO.CIP480AP-4K-DNA2
ApplicationFinancial Services System
Screen TypeInfrared
Touch Points2.4.6.10 Points
InterfaceUSB (Plug and Play)
Glass4mm Tempered Vandal Proof Glass
CertificationsCE, FCC
Production Capacity500PCS/Week
HS Code8471609000
Product Overview

48" IR touch screen Multi Touch Screen with 4mm Vandal Proof Glass 2/4/6/10 Touch Points Windows/Linux/Android

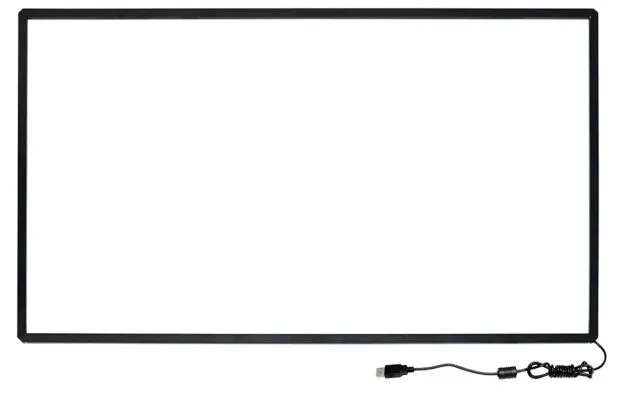

IR Touch Screen 1

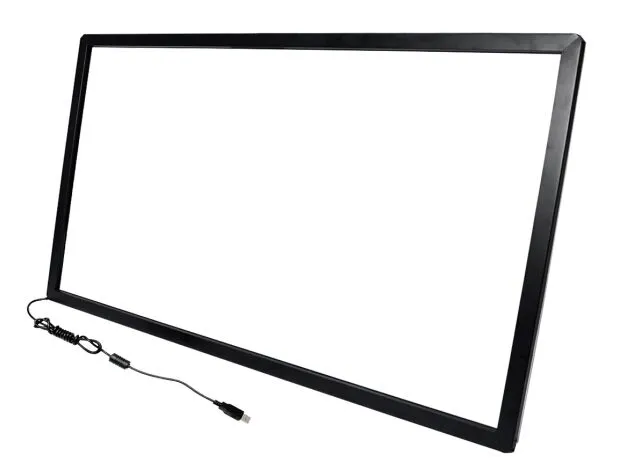

IR Touch Screen 2
🚀 Key Advantages
  • High Reliability IR Touch Frames Series
  • Multi-touch support (2-4-6-10 points)
  • High Compatibility with Hardware & Software
  • Supports Windows XP/7/8/10, Linux, and Android
  • Perfect Anti-Sun IR Touch Screen technology
Technical Specifications
  • Seal Ability
    • MECHANICAL & DESIGN
    Overlay Thickness / Width14.6 mm / 19.1 mm
    Housing MaterialAluminum frame
    TOUCH CHARACTERISTICS
    Input MethodFinger or touch pen
    Position Accuracy1mm
    Resolution4096(W) × 4096(D)
    Response TimeTouch: 6ms / Drawing: 6ms
    Glass Transparency92% (4mm glass)
    Touch IntensityOver 60 million single touches
    ELECTRICAL & ENVIRONMENT
    Operating VoltageDC 4.5V ~ DC 5.5V (1.0W)
    Operating Temperature-10 °C ~ 60 °C
    IP64 Anti-Spill (Customizable to IP65)

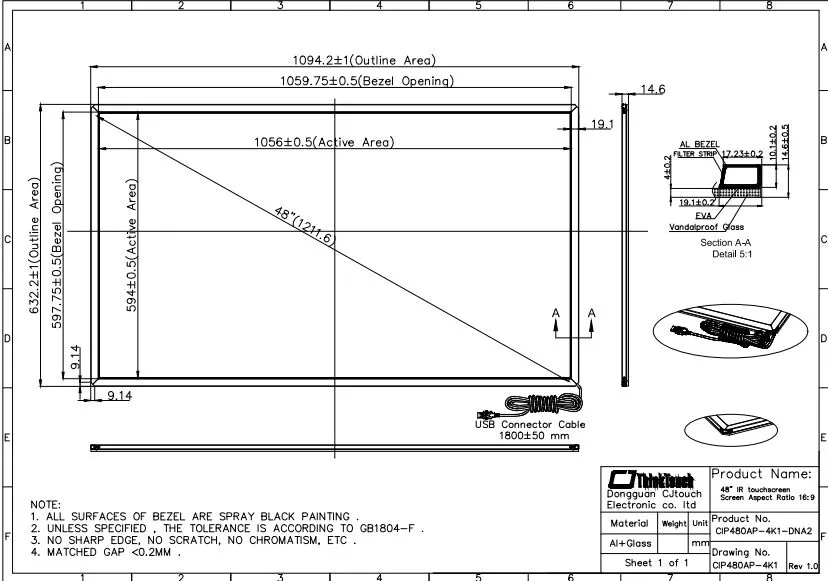

    Technical Drawing
    Technical Drawing
    Production Workshop & Application

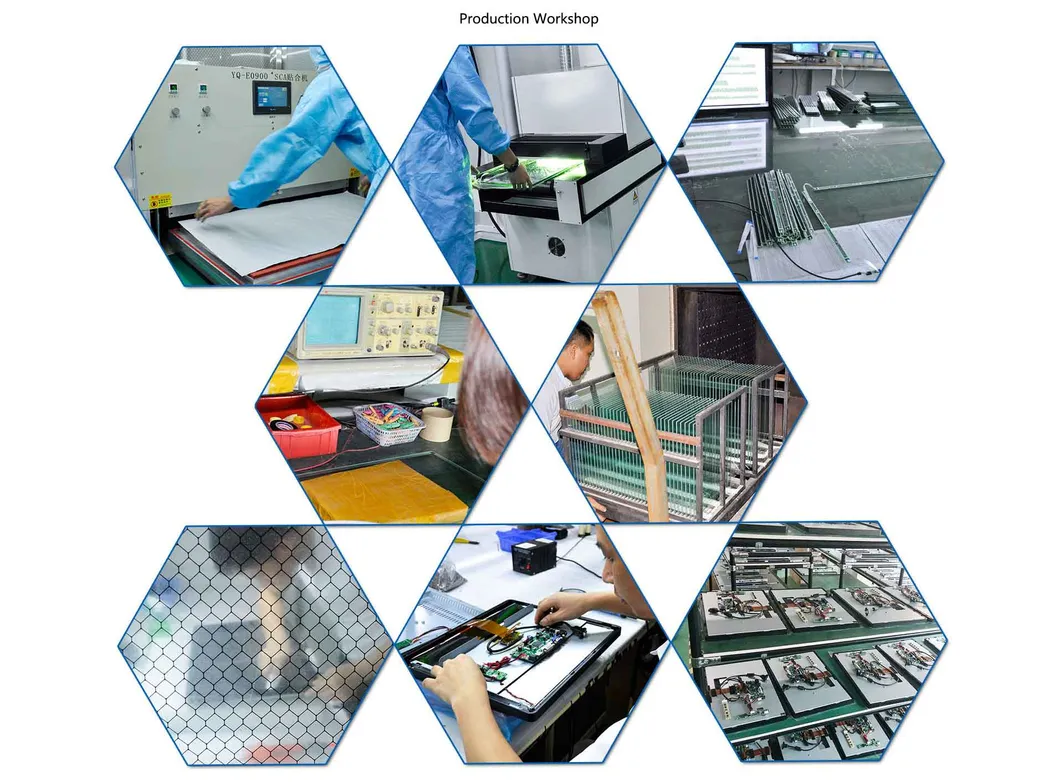

    Production Workshop
    Product Applications
    Quality Certifications
    Certifications
    Frequently Asked Questions
    Q1: What operating systems are supported?
    A: The infrared touch frame is compatible with Windows XP, 7, 8, 10, Linux, and Android.
    Q2: Does it require any special drivers?
    A: No, it is a Plug and Play device using a standard USB 2.0 interface.
    Q3: How many touch points does it support?
    A: It supports multi-touch options for 2, 4, 6, or 10 points depending on your requirements.
    Q4: Can it be used outdoors under sunlight?
    A: Yes, it features Perfect Anti-Sun IR technology, making it suitable for both indoor and outdoor environments.
    Q5: What is the durability of the touch screen?
    A: The screen is equipped with 4mm vandal-proof tempered glass and can withstand over 60 million single touches.
    Q6: What is the typical response time?
    A: The touch and drawing response time is approximately 6ms, ensuring a smooth user experience.
