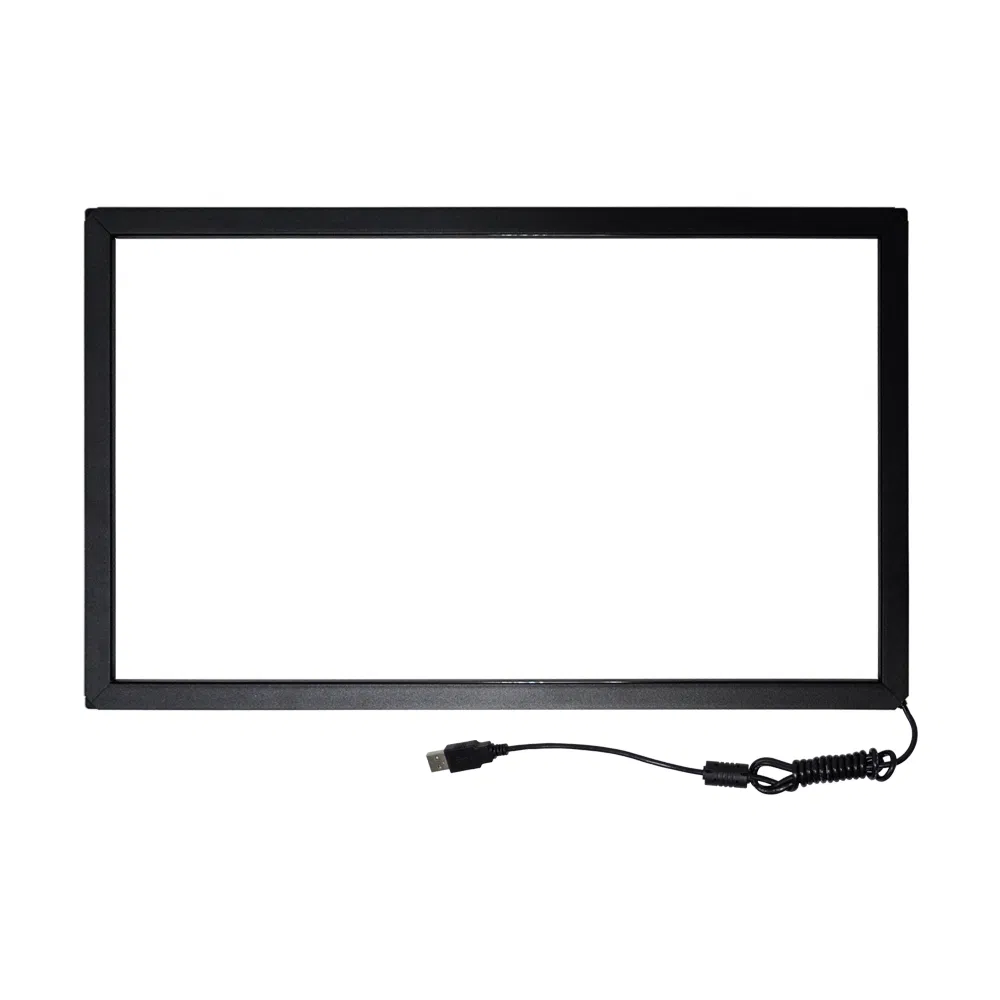

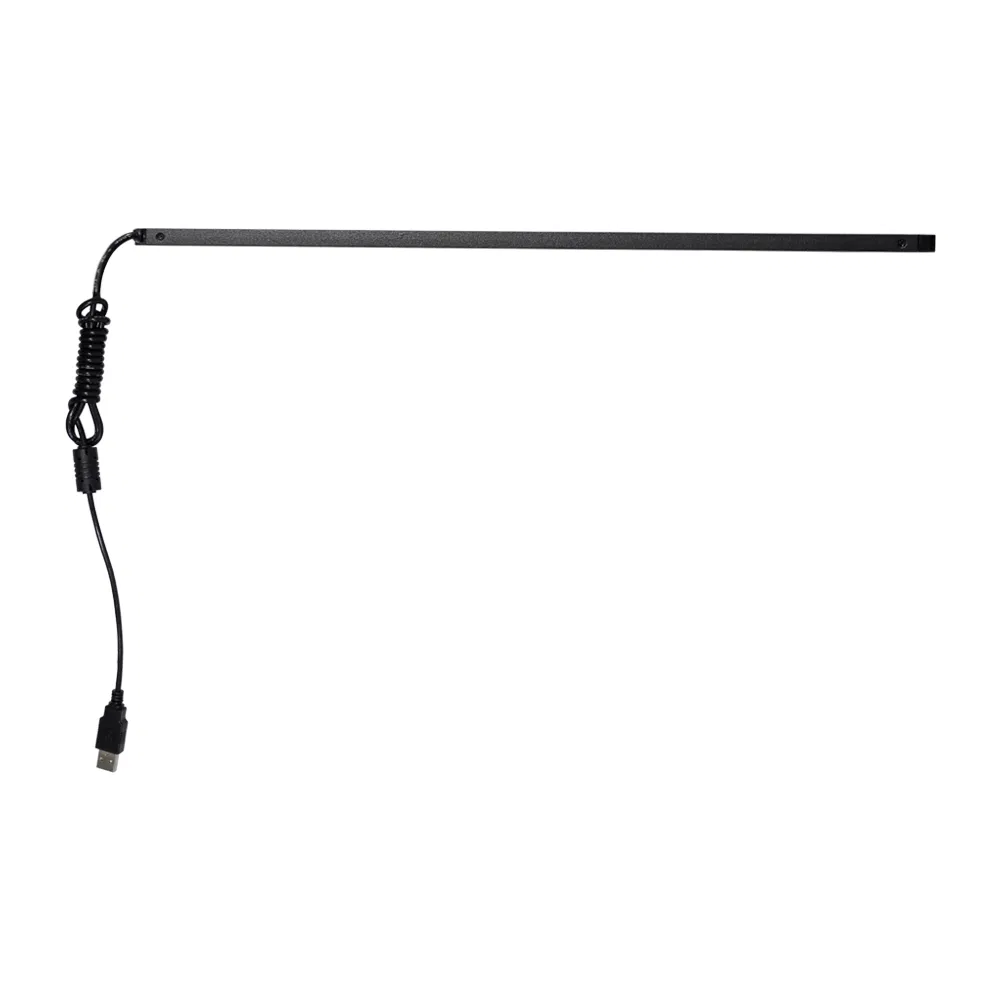

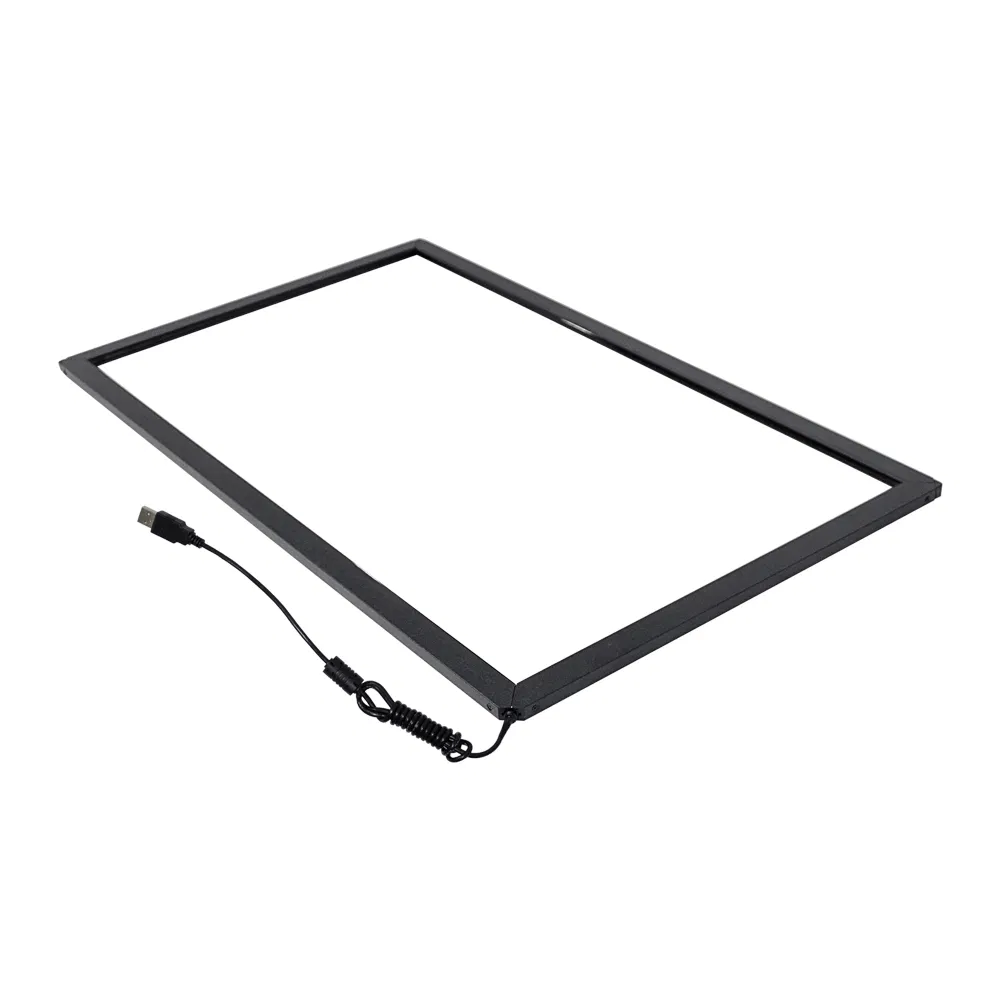

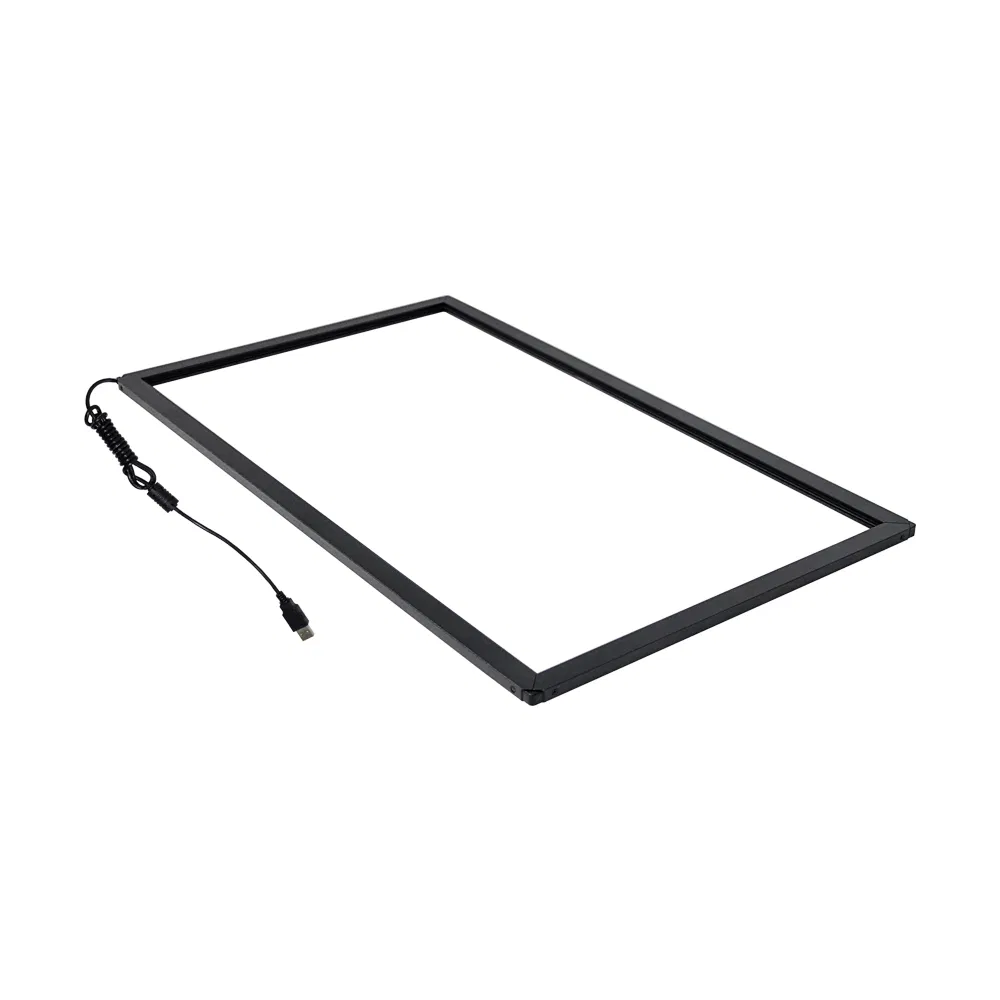

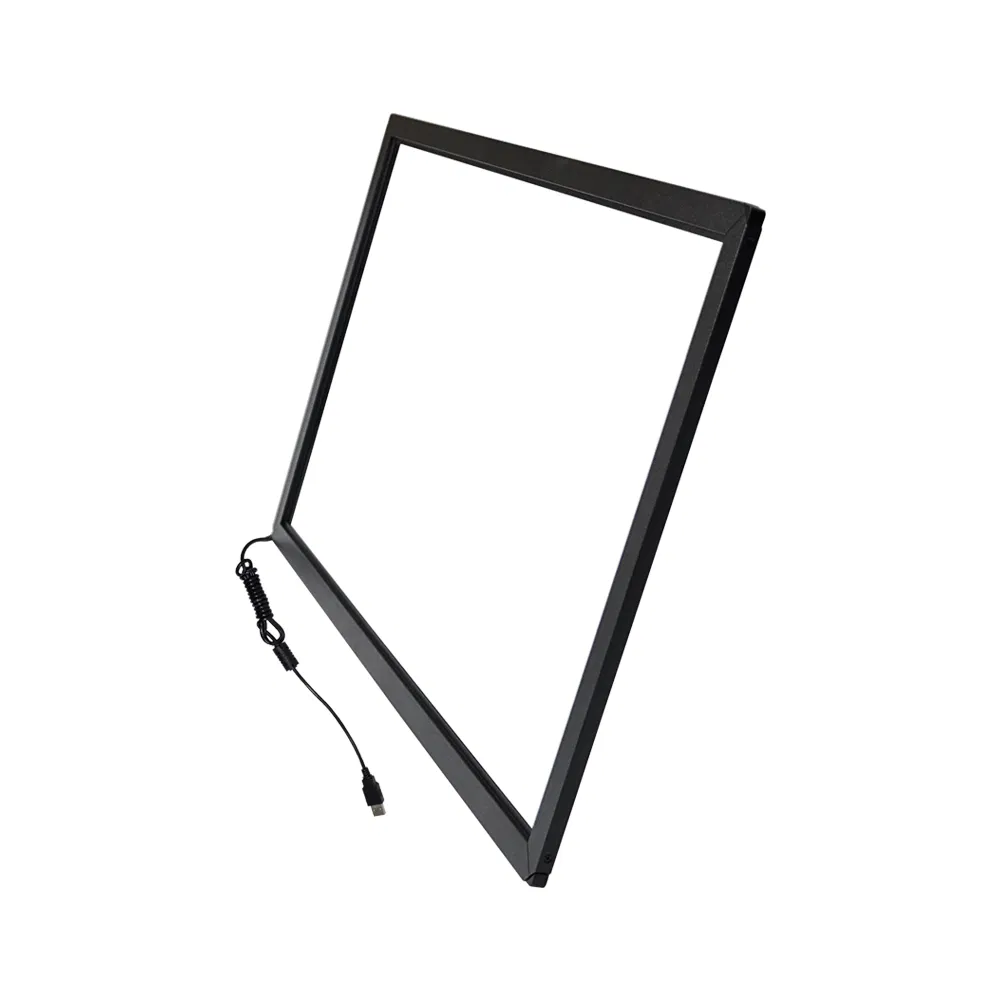

47"IR Touch Frame Infrared Touch Overlay 6 Point IR Touch Screen Overlay
47"IR Touch Frame Infrared Touch Overlay 6 Point IR Touch Screen Overlay
47"IR Touch Frame Infrared Touch Overlay 6 Point IR Touch Screen Overlay
47"IR Touch Frame Infrared Touch Overlay 6 Point IR Touch Screen Overlay
47"IR Touch Frame Infrared Touch Overlay 6 Point IR Touch Screen Overlay
1 / 5
47"IR Touch Frame Infrared Touch Overlay 6 Point IR Touch Screen Overlay
47"IR Touch Frame Infrared Touch Overlay 6 Point IR Touch Screen Overlay
47"IR Touch Frame Infrared Touch Overlay 6 Point IR Touch Screen Overlay
47"IR Touch Frame Infrared Touch Overlay 6 Point IR Touch Screen Overlay
47"IR Touch Frame Infrared Touch Overlay 6 Point IR Touch Screen Overlay

47"IR Touch Frame Infrared Touch Overlay 6 Point IR Touch Screen Overlay

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

📊 Basic Information
Model NO.:CIN470AP-3K-BNA2
Application:Financial Services System
Screen Type:Infrared
Touch Points:2.4.6 Touch Points
Glass:3mm Tempered Glass
Interface:USB
Driver:Plug and Play
Certifications:CE, FCC
Type:Vandal Proof
Production:500PCS/Week
🔍 Product Description

47" IR touch screen Multi Touch Screen with 3mm Vandal Proof Glass 2/4/6/10 Touch Points Windows/Linux/Android

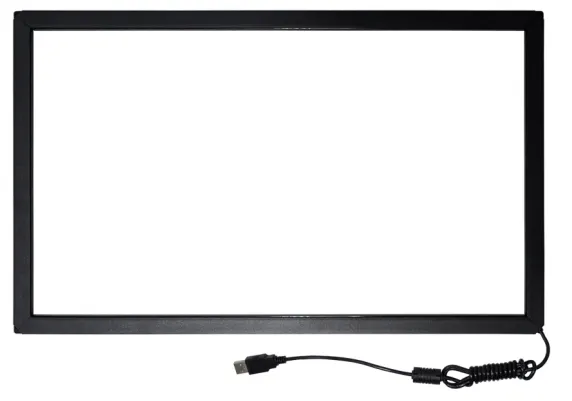

IR Touch Frame

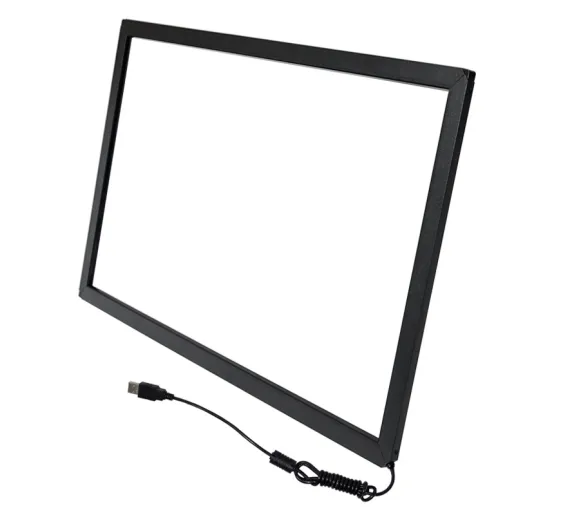

IR Touch Overlay

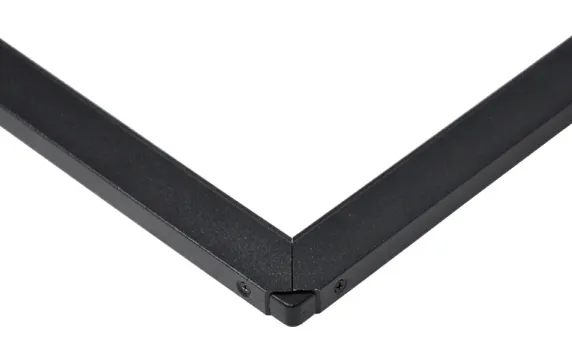

6 Point IR Touch

Key Advantages of Infrared IR Touch Frame:

  • High Reliability IR Touch Frames Series
  • Multi-touch 2-4-6-10 points capability
  • High Compatibility with hardware & software
  • Support OS: XP / Win7 / Win8 / Win10 / Linux / Android
  • Perfect Anti-Sun IR Touch Screen Series
⚙️ Technical Specification
MECHANICAL
P/NCIN Slim series
Overlay Thickness / Width7.9 mm / 18.5 mm
HousingAluminum frame / Plastic frame
TOUCH CHARACTERISTICS
Input MethodFinger or touch pen
Touch Points2, 4, 6 Touch Points
Resolution4096(W) × 4096(D)
Response TimeTouch: 6ms / Drawing: 6ms
Glass3mm glass Transparency: 92%
DurabilityOver 60 millions single touch
ENVIRONMENT & ELECTRICAL
Operating VoltageDC 4.5V ~ DC 5.5V (1.0W)
Operating Temp-10 °C ~ 60 °C
Seal AbilityIP64 Anti-Spill (Customizable to IP65)
Working EnvironmentDirect Sunlight, Indoor and Outdoor
📐 Technical Drawings

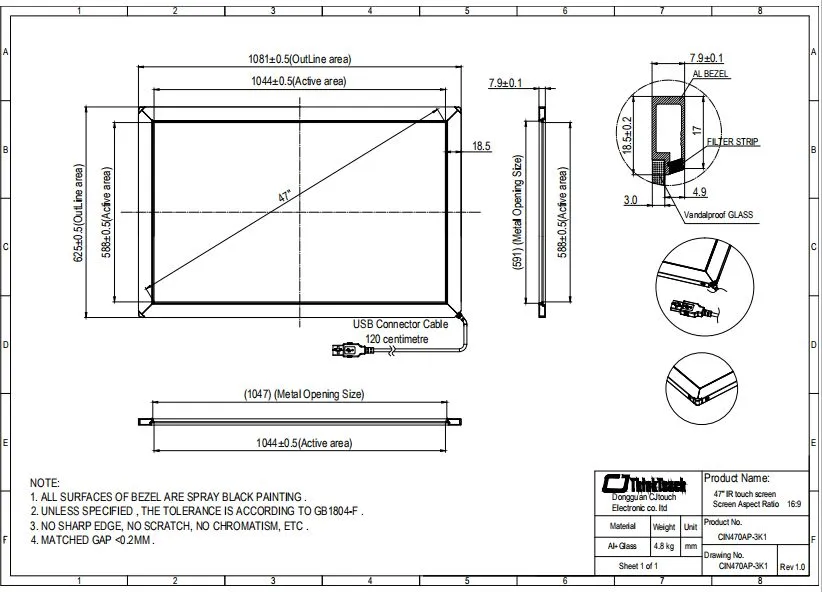

Technical Drawing
🏢 Production & Application

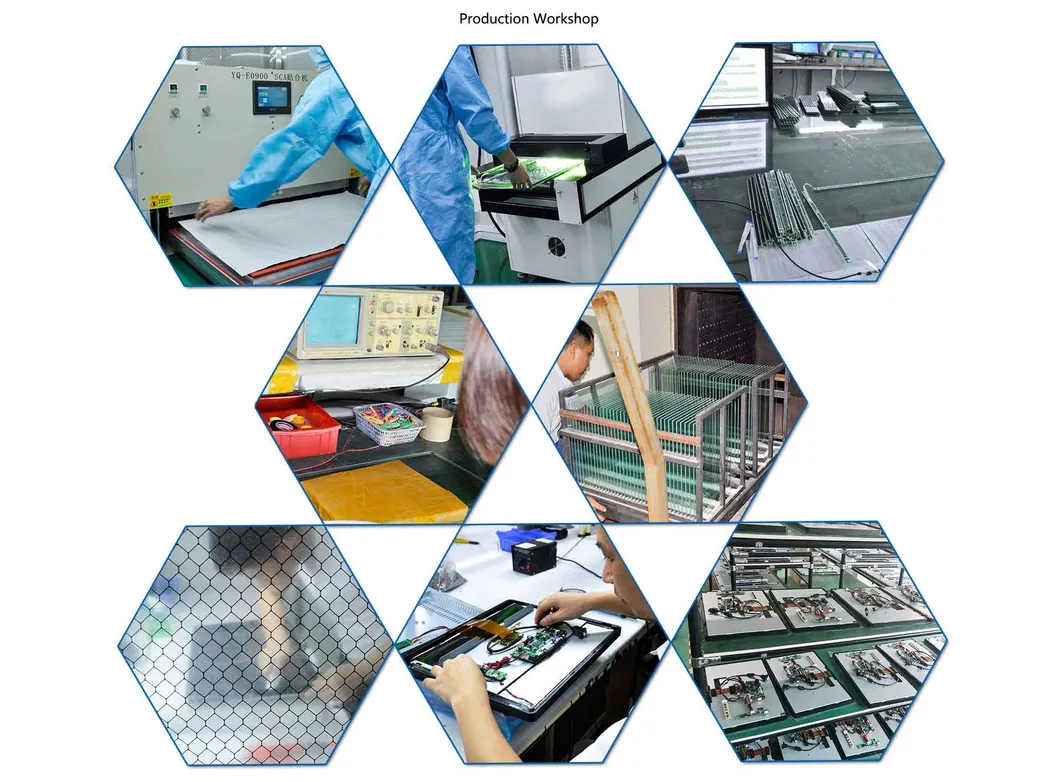

Workshop
Product Applications
📜 Certifications
Certifications
❓ Frequently Asked Questions
1. Does this touch frame require drivers?
No, it is a Plug and Play device via USB interface for most modern operating systems.
2. Can it be used outdoors?
Yes, it features an Anti-Sun series design and is IP64 rated, making it suitable for both indoor and outdoor environments.
3. What is the maximum number of touch points?
The frame supports multiple configurations including 2, 4, 6, and up to 10 touch points depending on the model.
4. Is the glass durable enough for public use?
Yes, it comes with 3mm vandal-proof tempered glass, designed for high-traffic financial and kiosk systems.
5. Which operating systems are compatible?
It is highly compatible with Windows 7/8/10, Linux, and Android.
6. What is the response time for touch input?
The response time for both touch and drawing is approximately 6ms, ensuring a smooth user experience.
