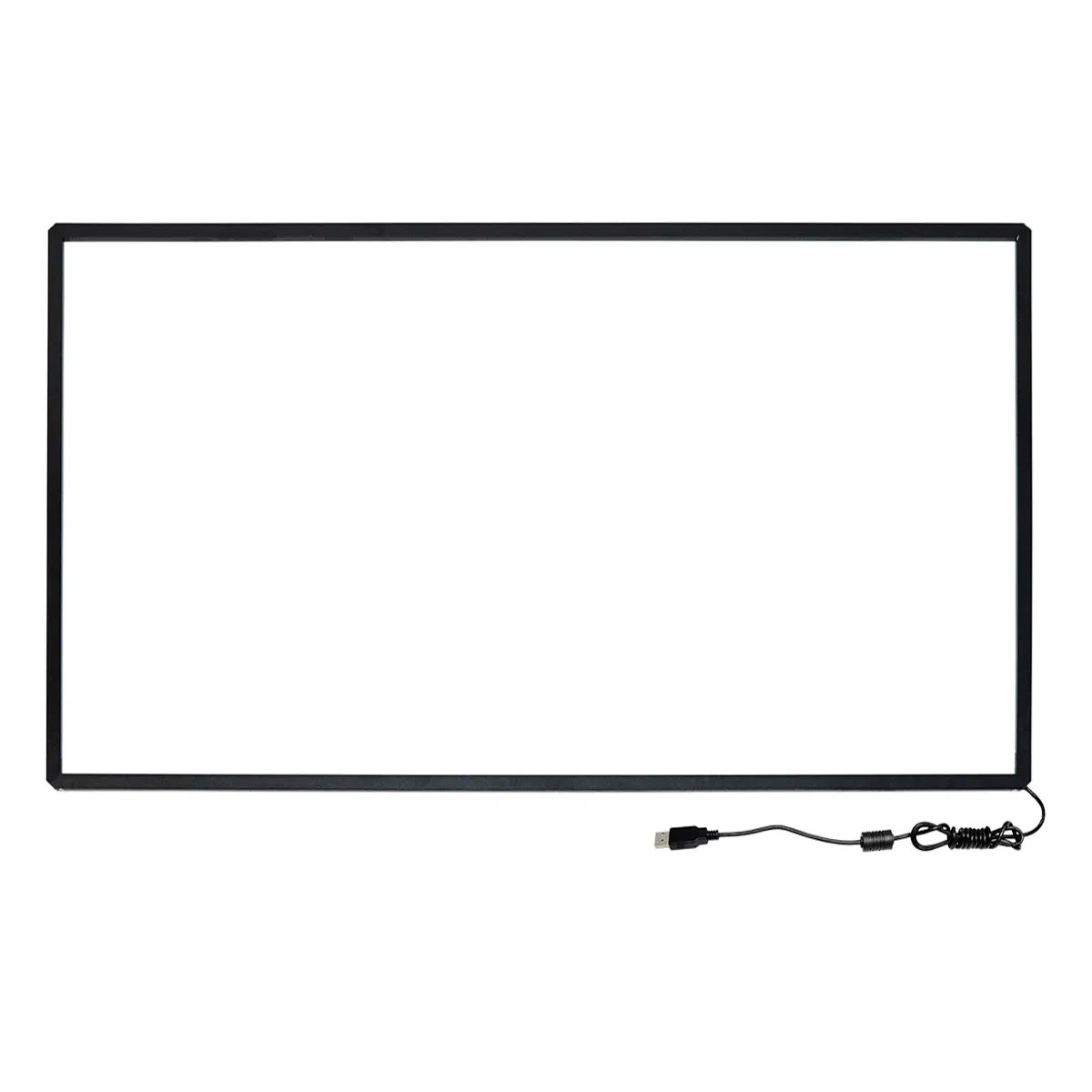

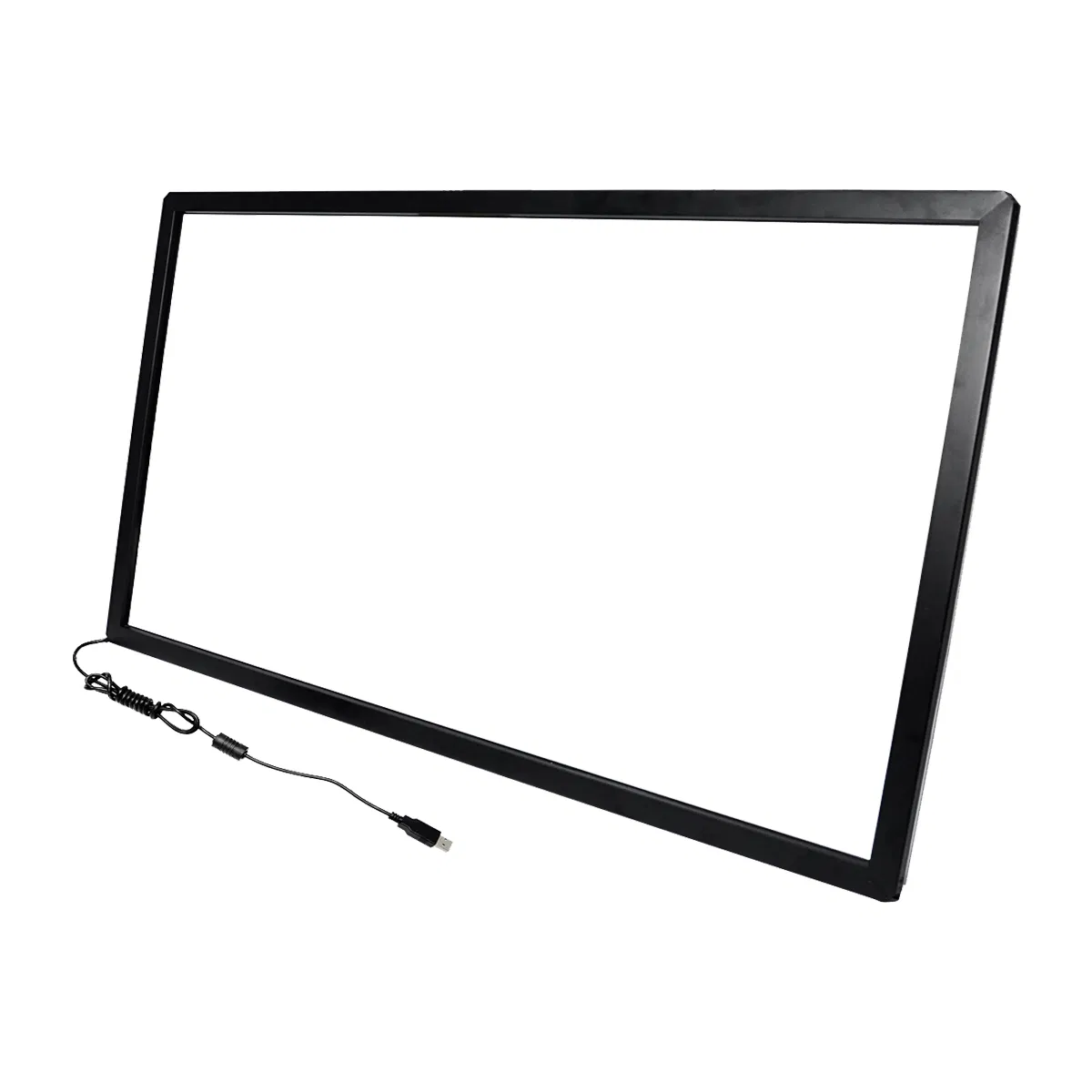

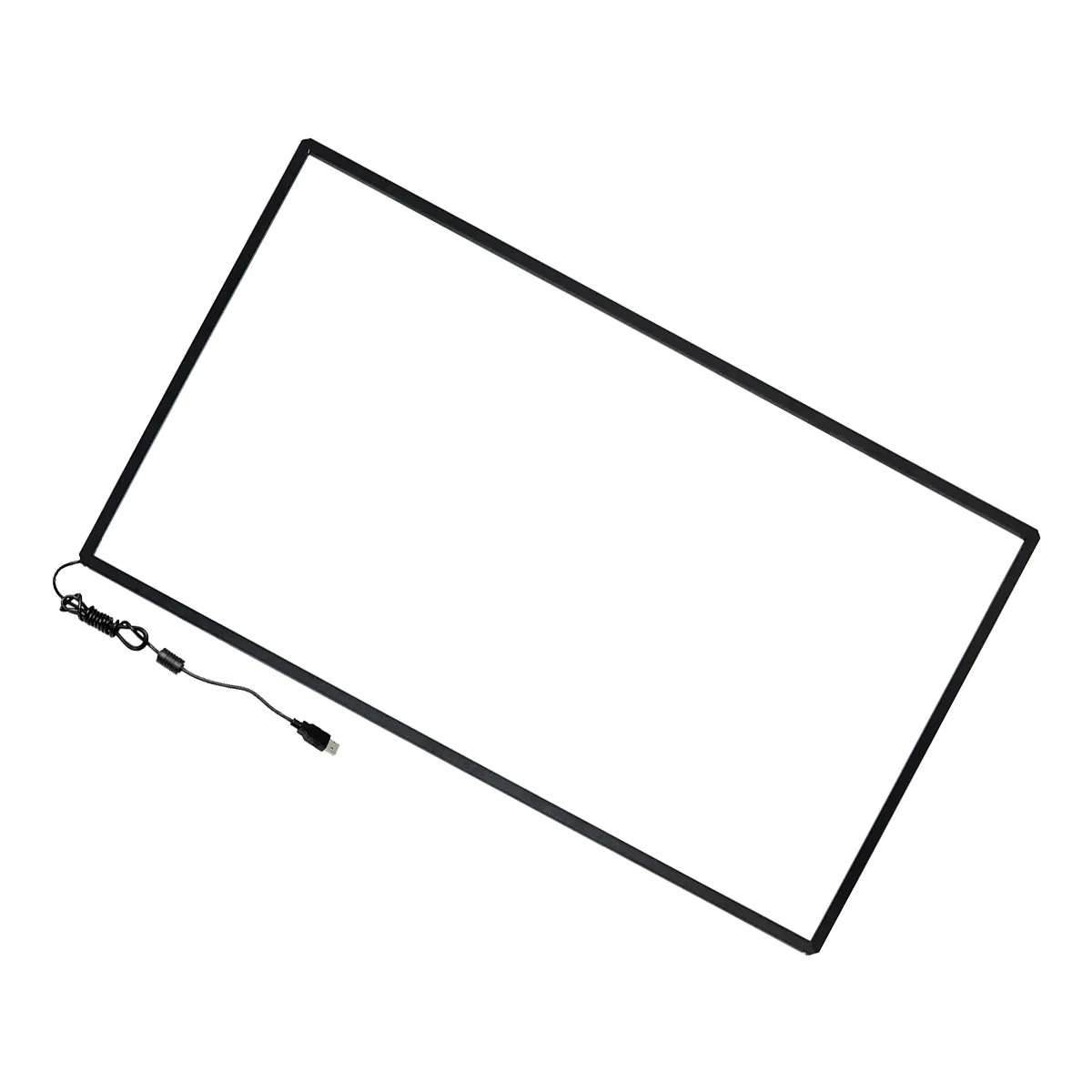

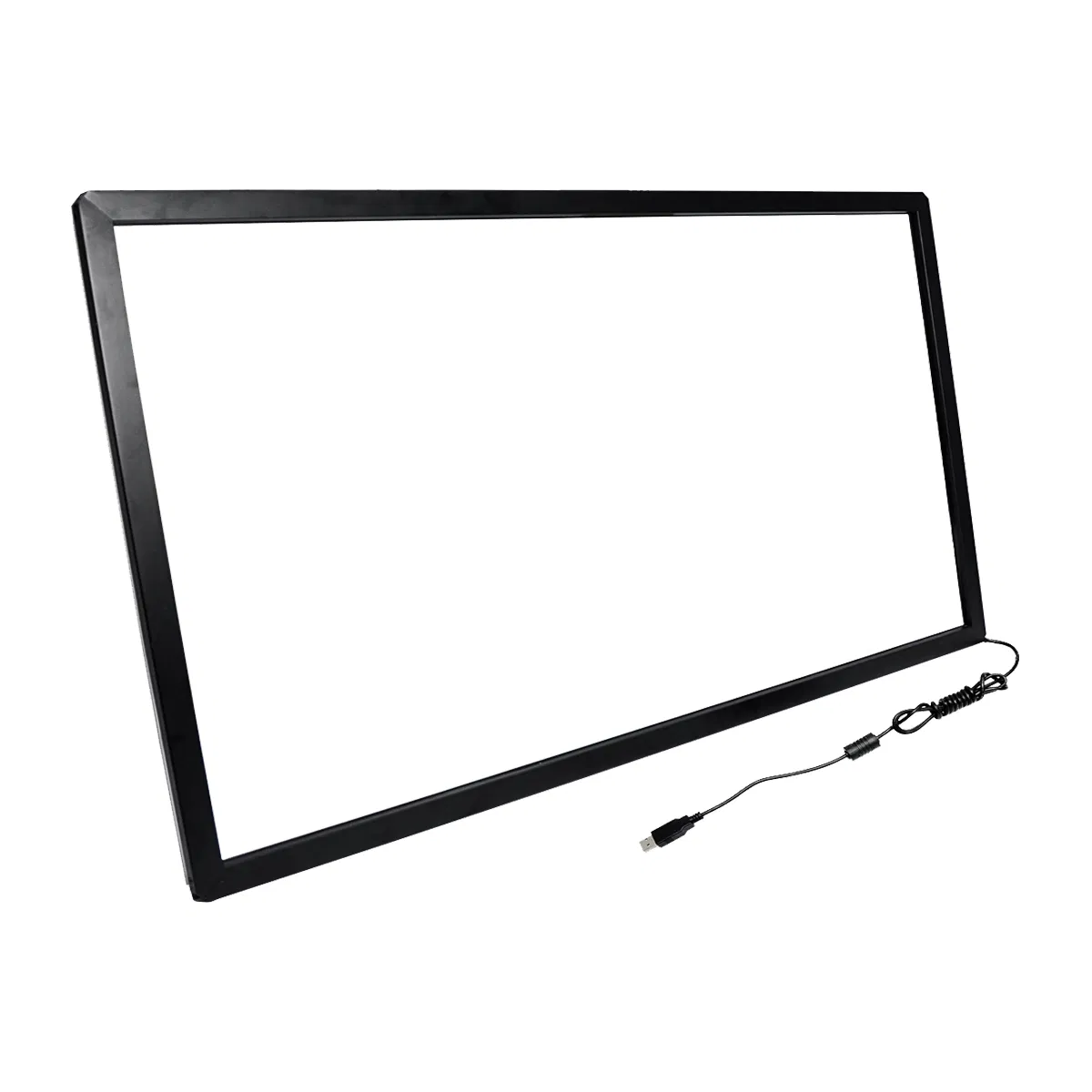

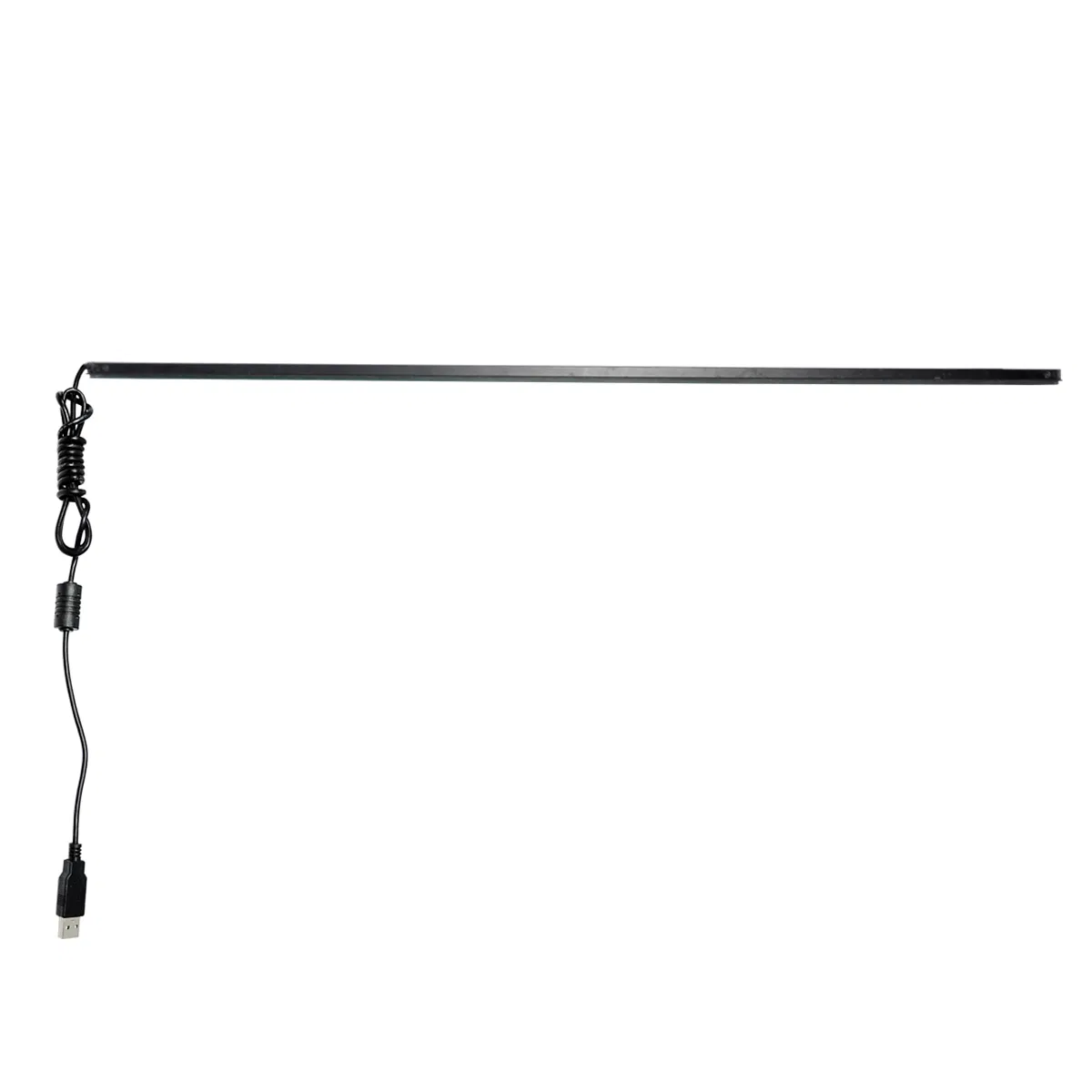

47"Black Aluminum Infrared Multi Touch Screen Frame for TV LED LCD Monitor

1 / 5

47"Black Aluminum Infrared Multi Touch Screen Frame for TV LED LCD Monitor

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📋 Basic Info.

Model NO.CIP470AP-4K-DNA2

ApplicationFinancial Services System

Screen TypeInfrared

Touch Points2.4.6.10 Touch Points

Glass4mm Tempered Glass

CertificationsCe, FCC

InterfaceUSB (Plug and Play)

Production Capacity500PCS/Week

🔍 Product Description

47" IR touch screen Multi Touch Screen with 4mm Vandal Proof Glass 2/4/6/10 Touch Points Windows/Linux/Android

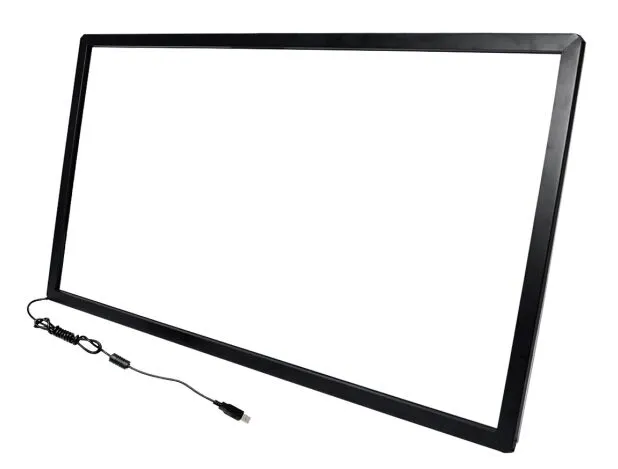

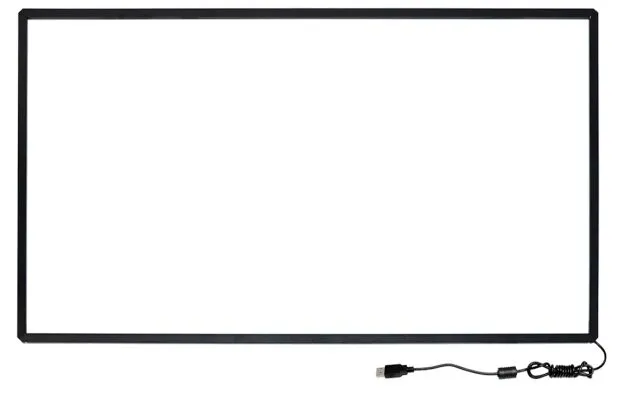

47 Inch Infrared Multi Touch Screen Frame

⭐ Advantages of our Infrared IR Touch Frame

High Reliability IR Touch Frames Series
Multi-touch 2-4-6-10 points
High Compatibility of Hardware & Software
Support Operation System XP/Win7/Win8/Win10/Linux/Android
Perfect Anti-Sun IR Touch Screen Series

⚙️ Specification

MECHANICAL
P/N	CIP Slim series
Overlay Thickness	14.6 mm
Overlay Frame Width	19.1 mm
Housing	Aluminum frame
TOUCH CHARACTERISTICS
Input Method	Finger or touch pen
Touch Points	2 / 4 / 6 Touch Points Options
Position Accuracy	1mm
Resolution	4096(W) × 4096(D)
Response Time	Touch: 6ms / Drawing: 6ms
Glass	4mm glass (Transparency: 92%)
Interface	USB 2.0 full speed
ENVIRONMENT
Operating Temp	-10 °C ~ 60 °C
Storage Temp	-30 °C ~ 70 °C
Seal Ability	IP64 Anti-Spill (Customizable to IP65)
Operating Environment	Direct Sunlight, Indoor and Outdoor

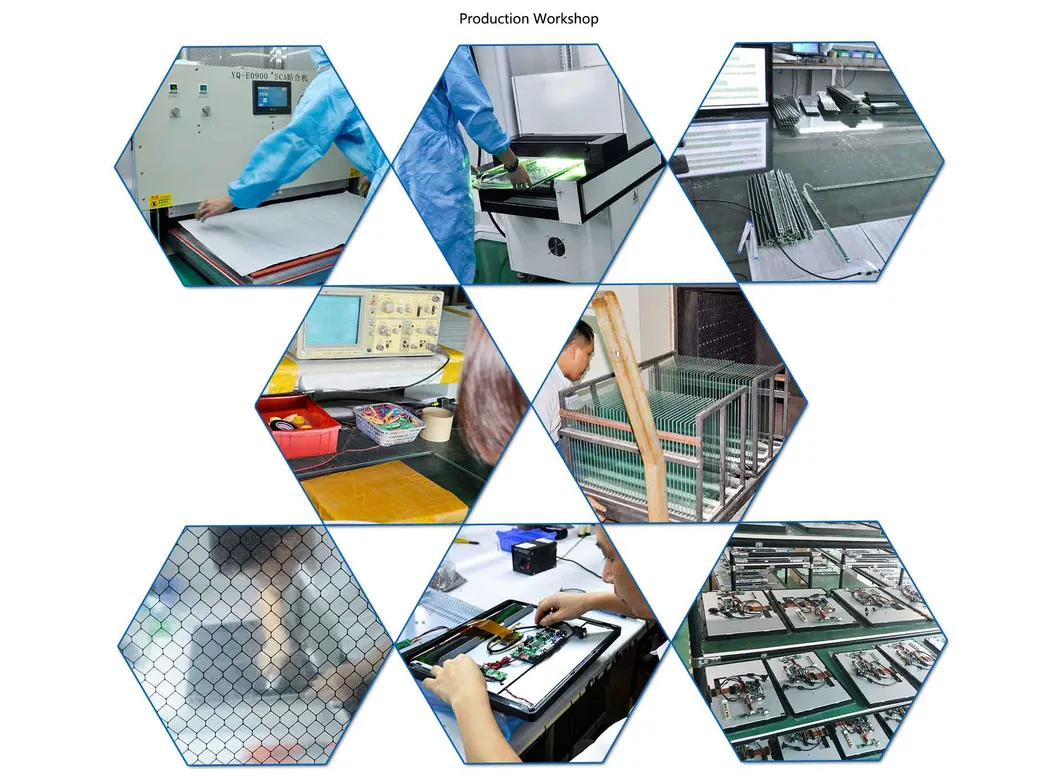

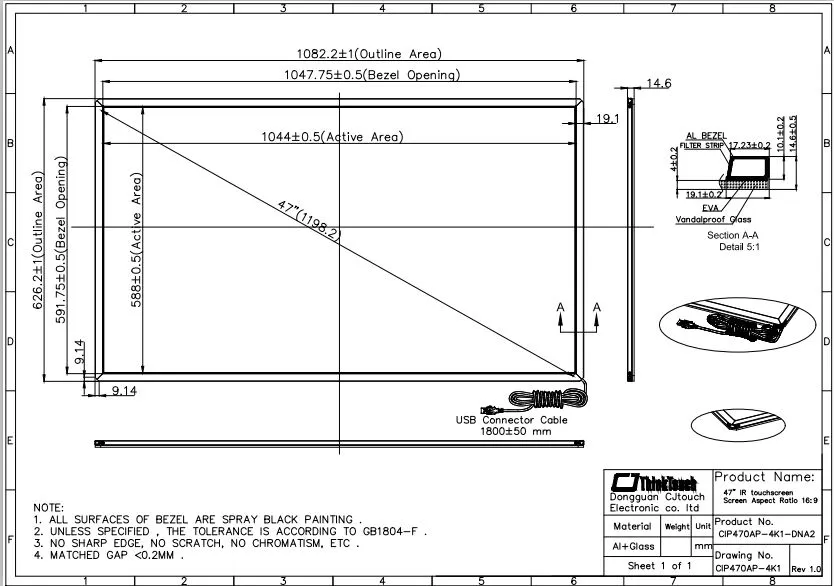

📐 Technical Drawings & Workshop

🚀 Product Applications & Certifications

❓ Frequently Asked Questions

Q: What operating systems are compatible with this touch frame?

A: It supports a wide range of systems including Windows XP, Win7, Win8, Win10, Linux, and Android.

Q: Does the touch screen require special drivers?

A: No, it features a Plug and Play USB interface, making it easy to install without additional driver software for most modern systems.

Q: Can this screen be used outdoors under sunlight?

A: Yes, it is designed as a "Perfect Anti-Sun" series and can work directly under sunlight.

Q: What is the durability of the touch surface?

A: The touch intensity is rated for over 60 million single touches, and it features 4mm vandal-proof tempered glass for extra protection.

Q: Is the frame waterproof?

A: The standard seal ability is IP64 (Anti-Spill), and it is customizable to IP65 waterproof rating upon request.

Q: How many simultaneous touch points does it support?

A: Depending on the configuration, it supports 2, 4, 6, or 10 multi-touch points.
