📋 Basic Information
Model NO.
CIP460AP-4K-DNA2
Application
Financial Services System
Touch Points
2.4.6.10 Touch Points
📍 Product Overview

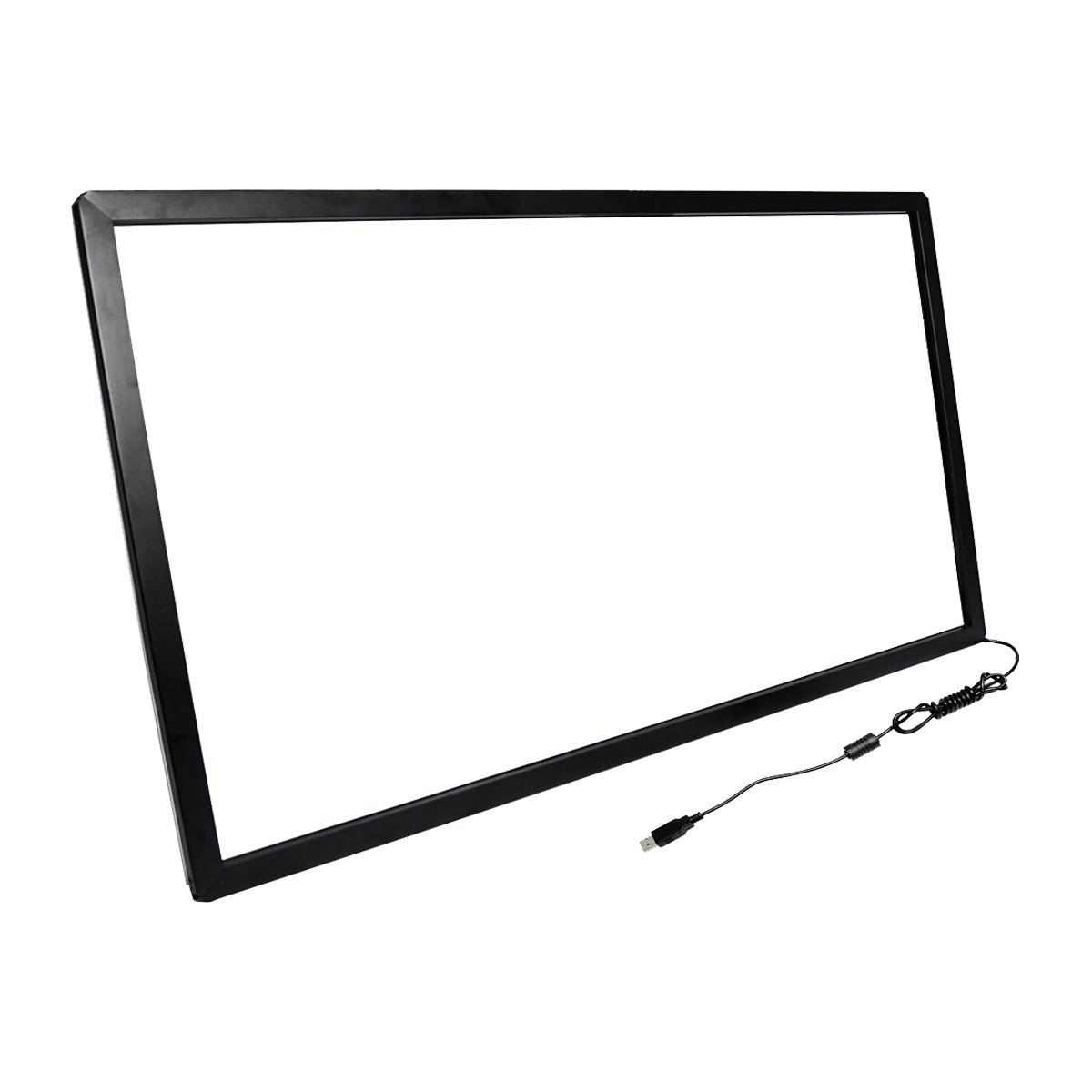

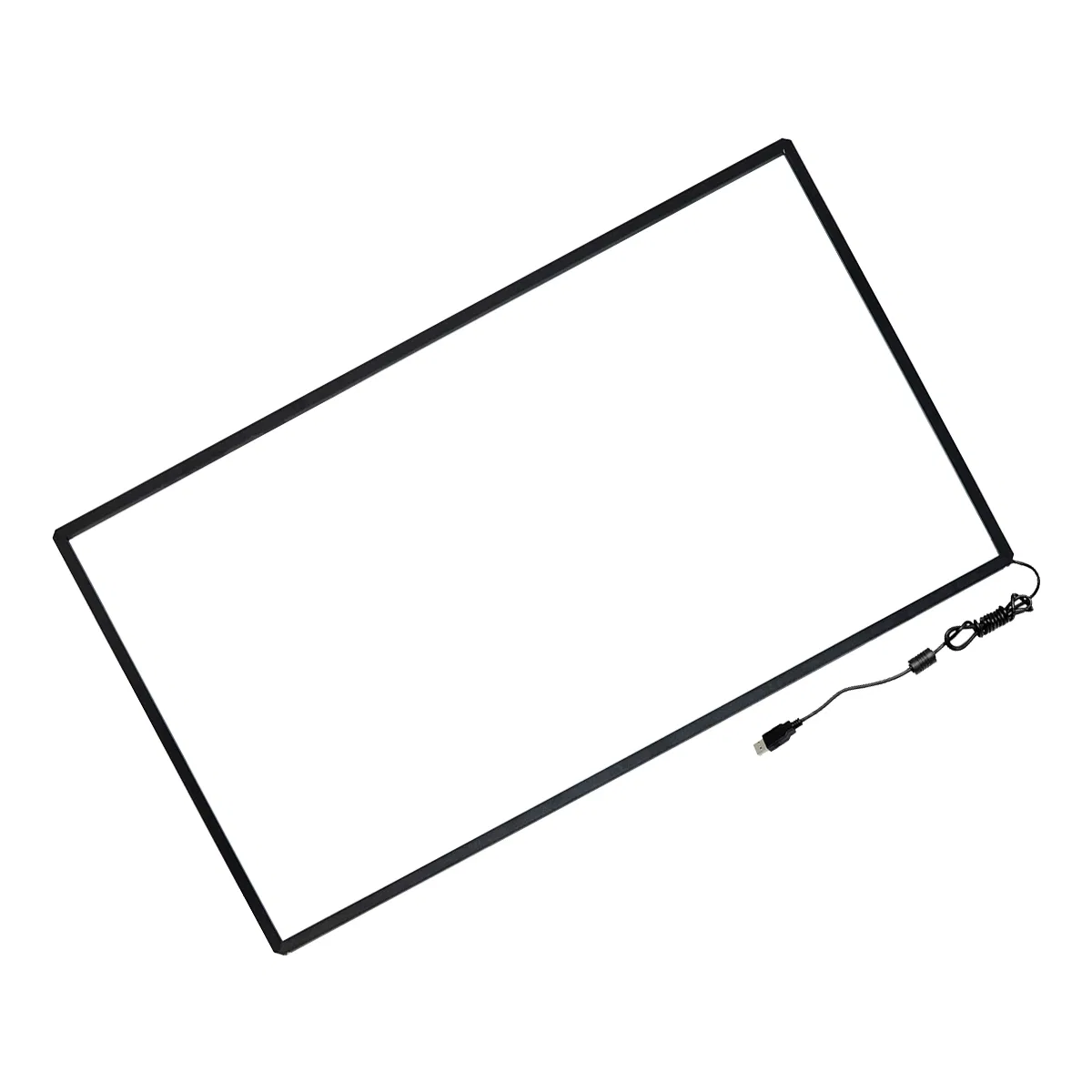

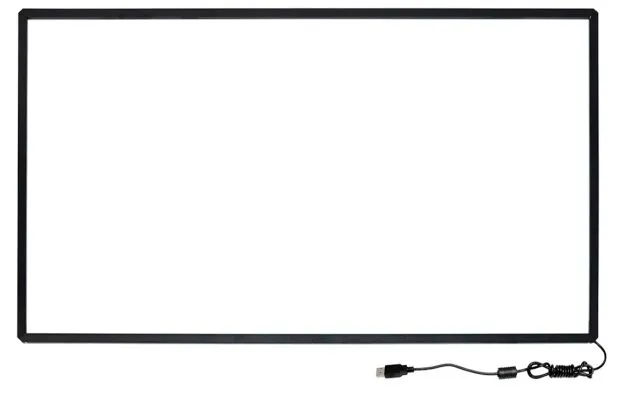

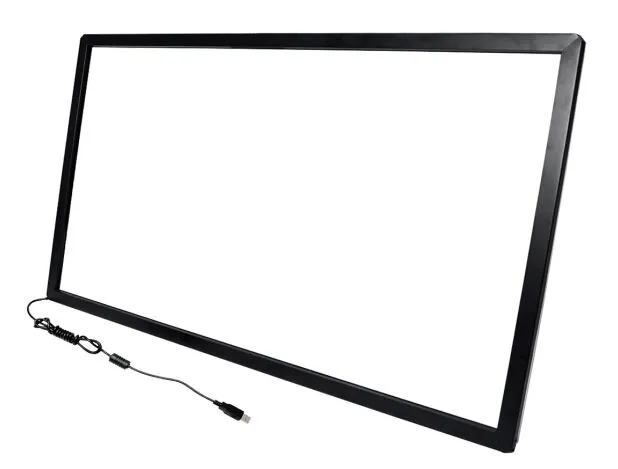

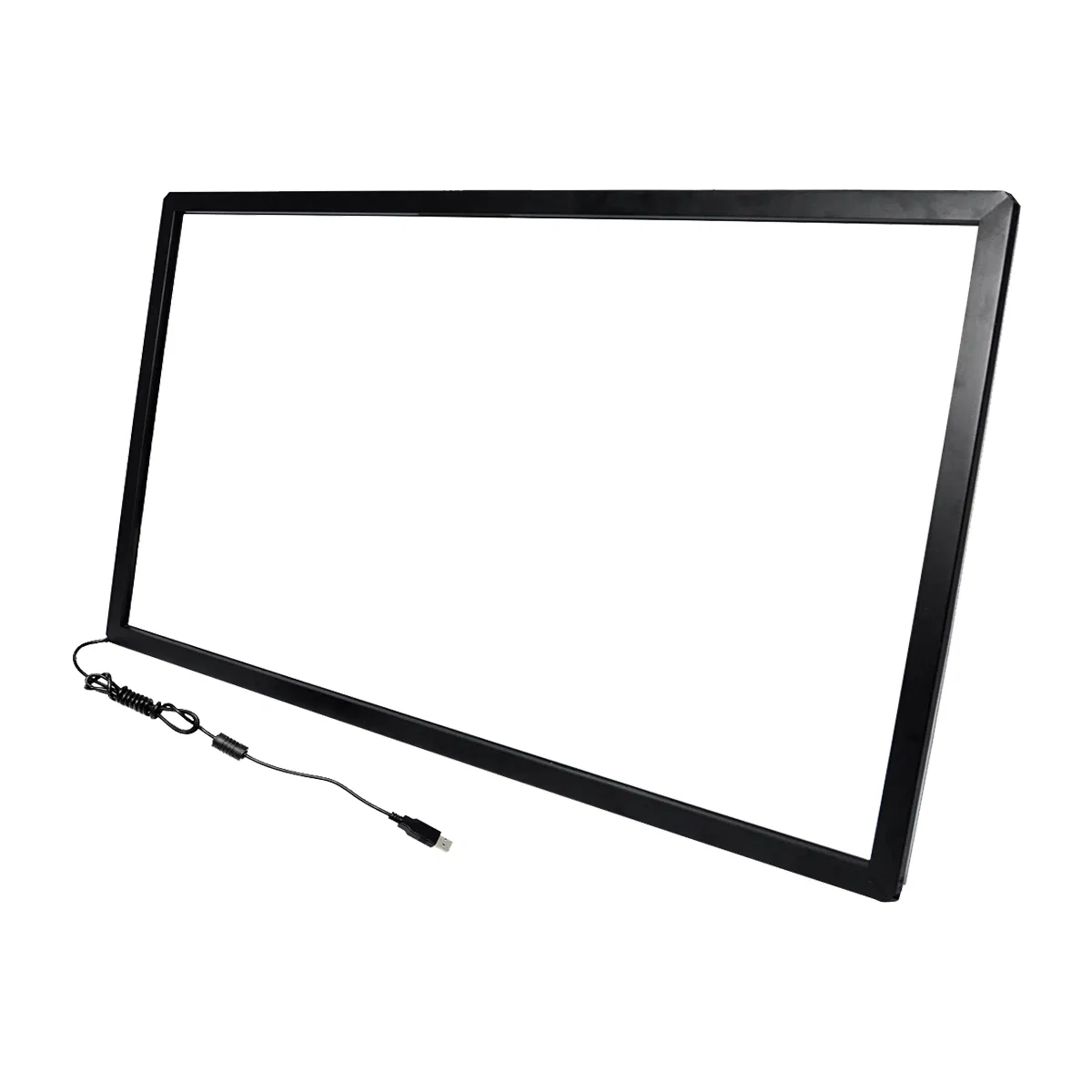

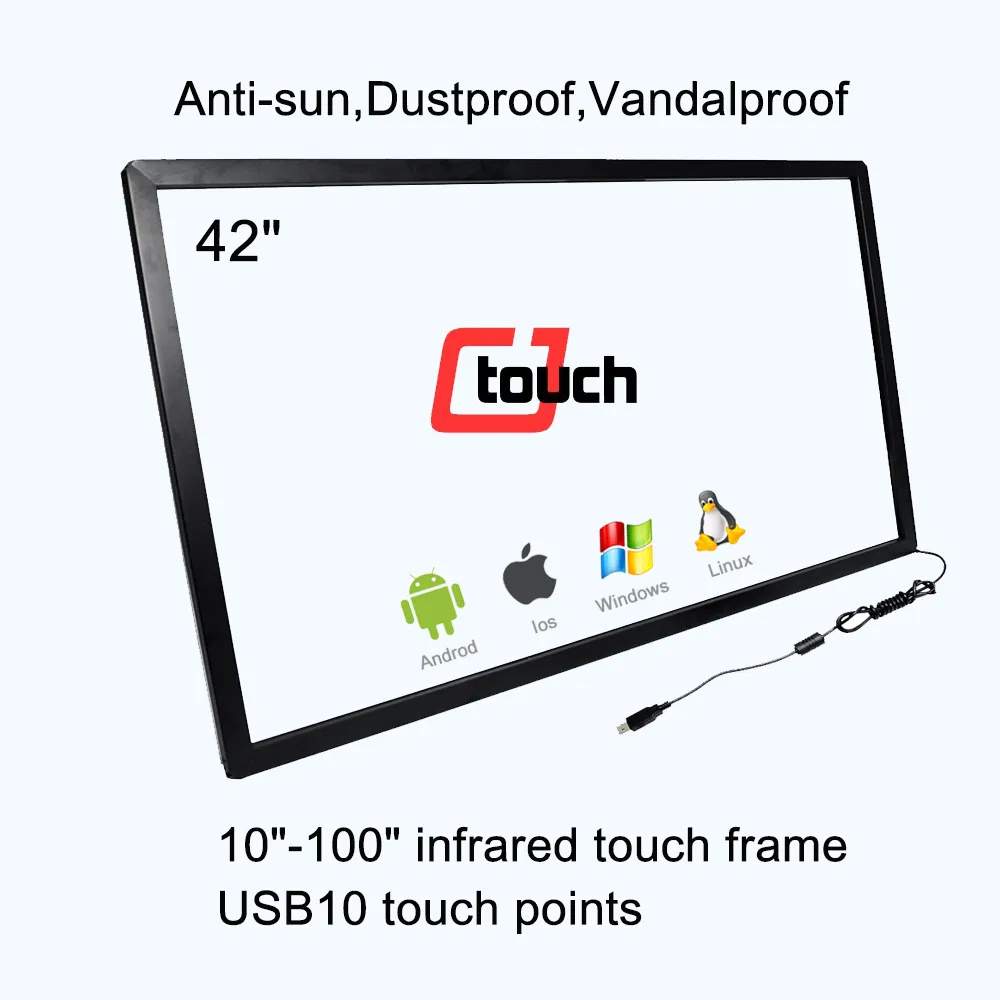

46" IR touch screen Multi Touch Screen with 4mm Vandal Proof Glass
Supports 2/4/6/10 Touch Points. Compatible with Windows, Linux, and Android systems.
✨ Key Advantages
- High Reliability IR Touch Frames Series
- Multi-touch capabilities (2-4-6-10 points)
- High Compatibility of hardware & Software
- Support Operation System XP/Win7/Win8/Win10/Linux/Android
- Perfect Anti-Sun IR Touch Screen Series
⚙ Technical Specifications
| MECHANICAL & TOUCH CHARACTERISTICS |
|---|
| P/N | CIP Slim series |
| Overlay Thickness | 14.6 mm |

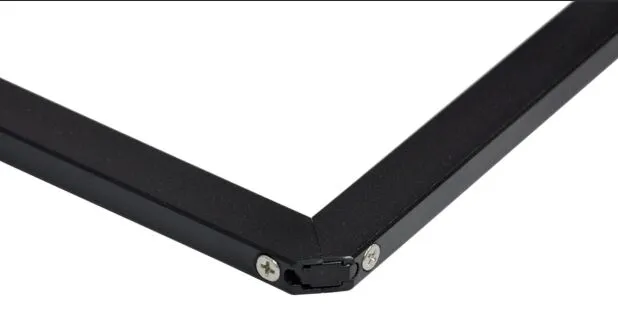

| Housing | Aluminum frame |
| Input Method | Finger or touch pen |
| Position Accuracy | 1mm |
| Resolution | 4096(W)×4096(D) |
| Response Time | 6ms |
| Glass Transparency | 92% (4mm Vandal Proof) |
| Touch Intensity | Over 60 millions single touch |
| Operating Voltage | DC 4.5V ~ DC 5.5V |
| Seal Ability | IP64 Anti-Spill (Customizable to IP65) |
| Working Environment | Directly under sunlight, indoor and outdoor |

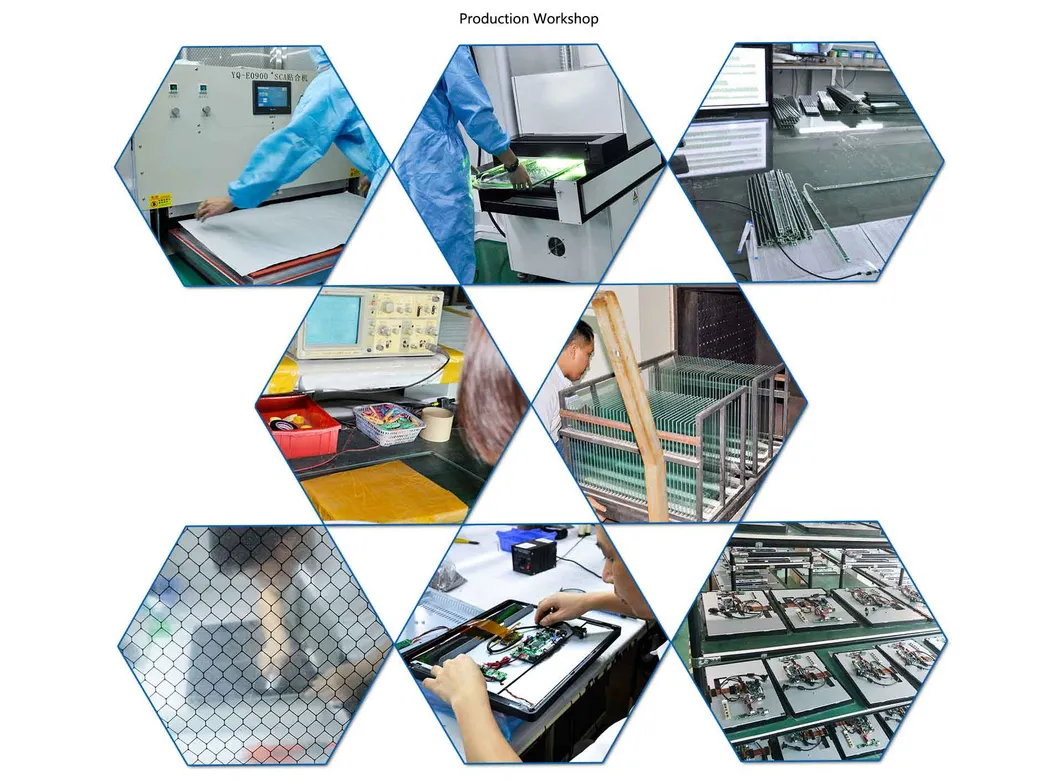

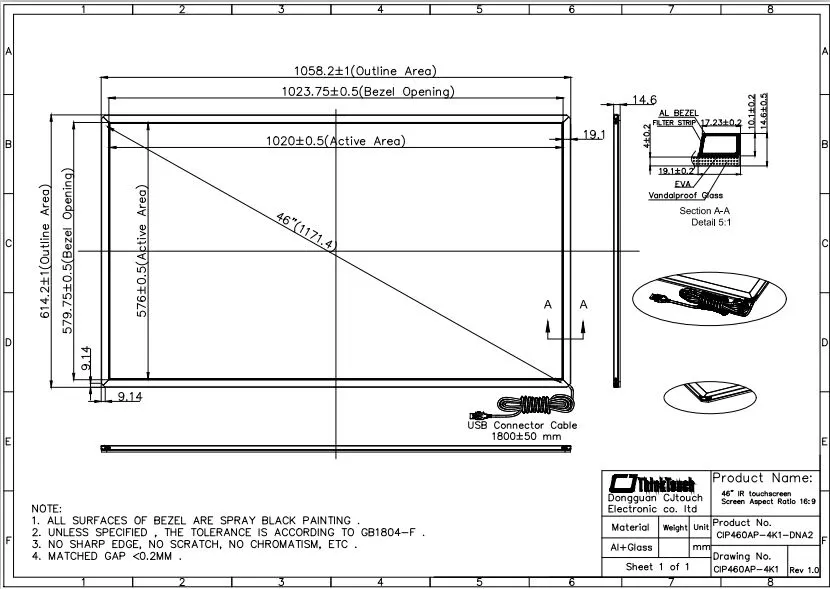

📈 Technical Drawings & Workshop

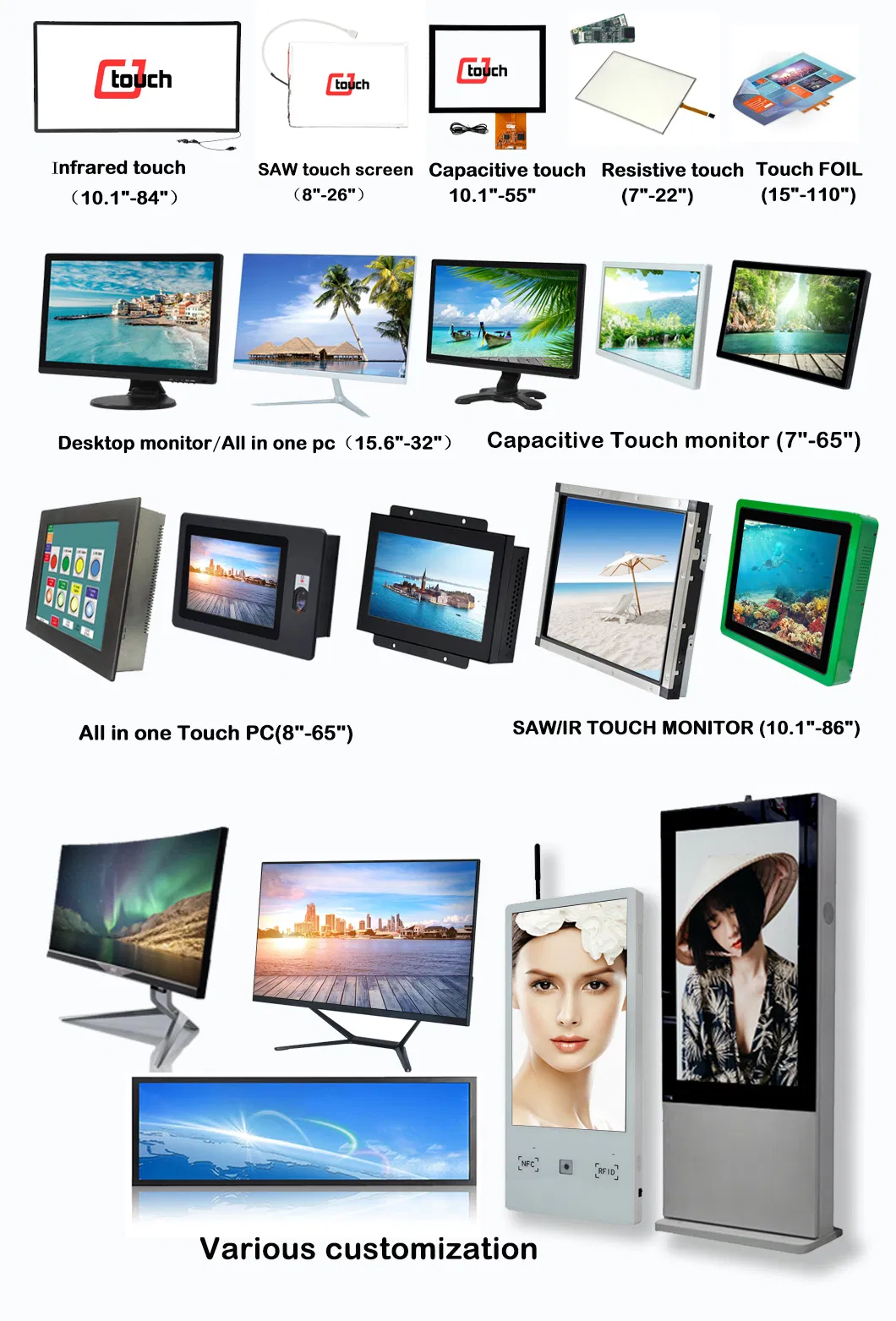

📦 Product Offering
❓ FAQ
1. What operating systems does the touch frame support?
The infrared touch frame is highly compatible and supports Windows XP, 7, 8, 10, Linux, and Android operating systems.
2. Is the touch screen visible under direct sunlight?
Yes, this series features perfect Anti-Sun technology, making it suitable for both indoor and outdoor environments, even under direct sunlight.
3. What is the durability of the touch surface?
The screen is protected by 4mm tempered vandal-proof glass and the touch mechanism is rated for over 60 million single-point touches.
4. Does it require special drivers?
No, it is a Plug and Play device using a standard USB 2.0 interface, requiring no complex driver installation for most modern systems.
5. Can the sealing be upgraded for wet environments?
The standard seal ability is IP64 (Anti-Spill), but it can be customized to IP65 waterproof rating upon request.
6. What touch inputs are recognized?
The infrared technology allows for input via finger, gloved hand, or any opaque touch pen with no minimum activation force required.
