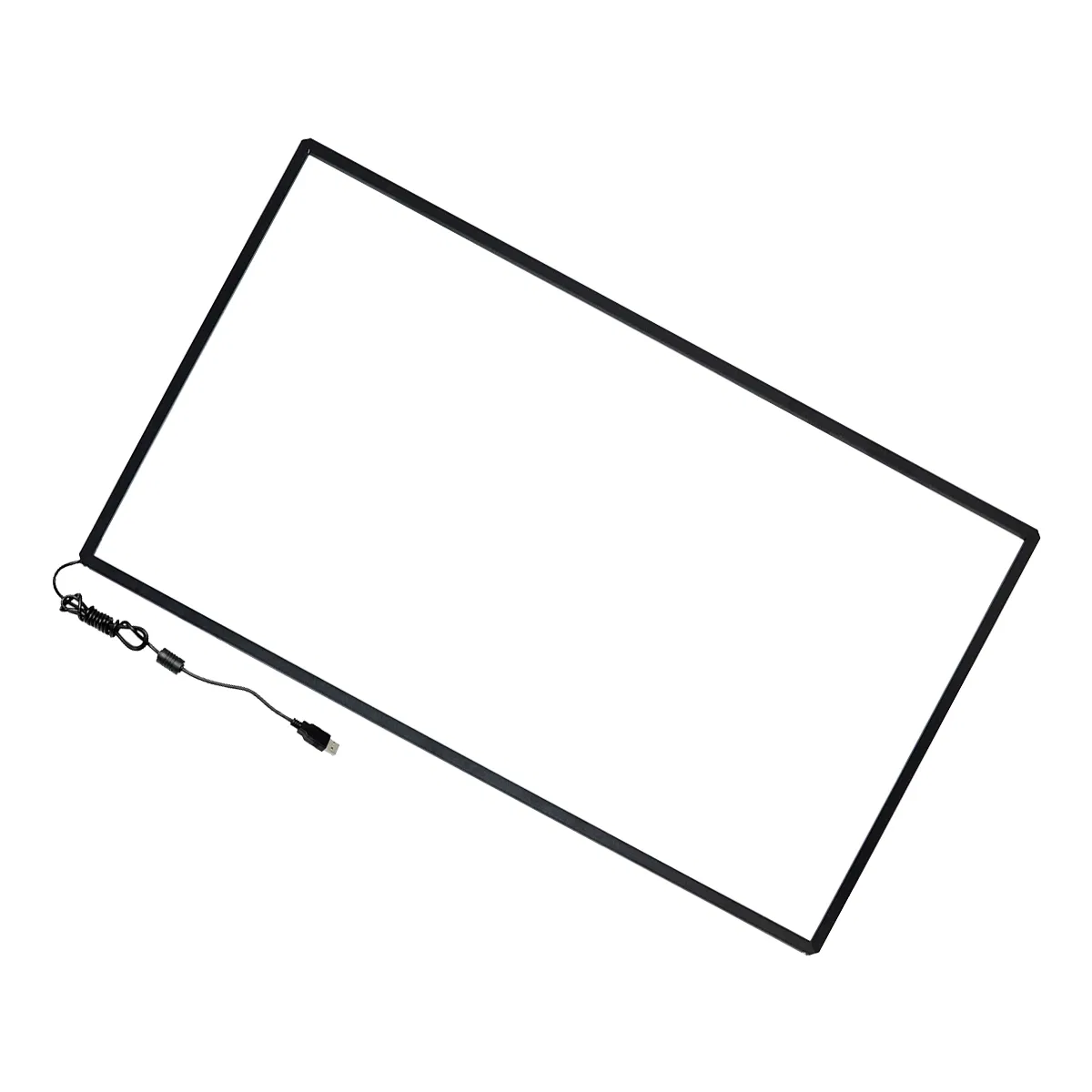

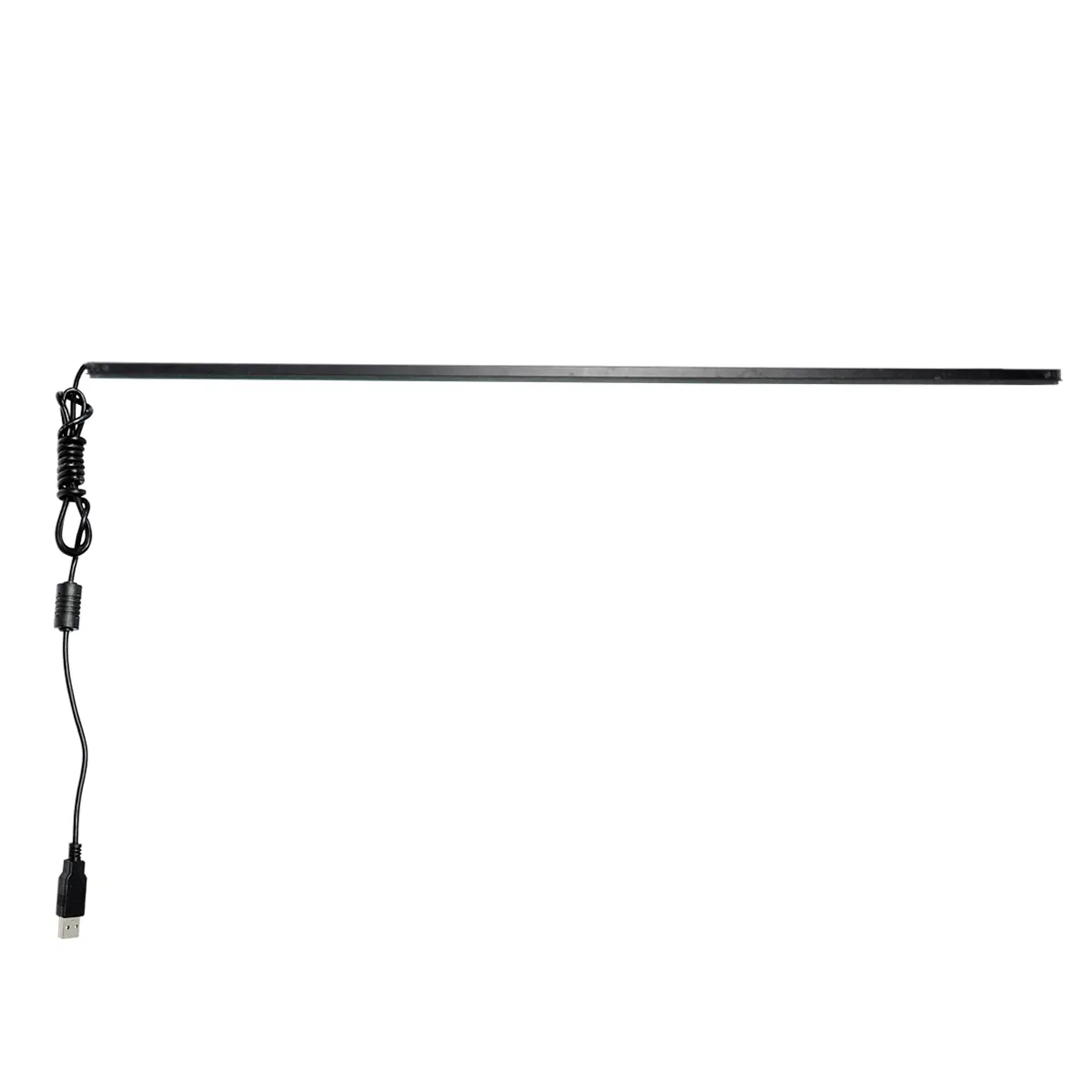

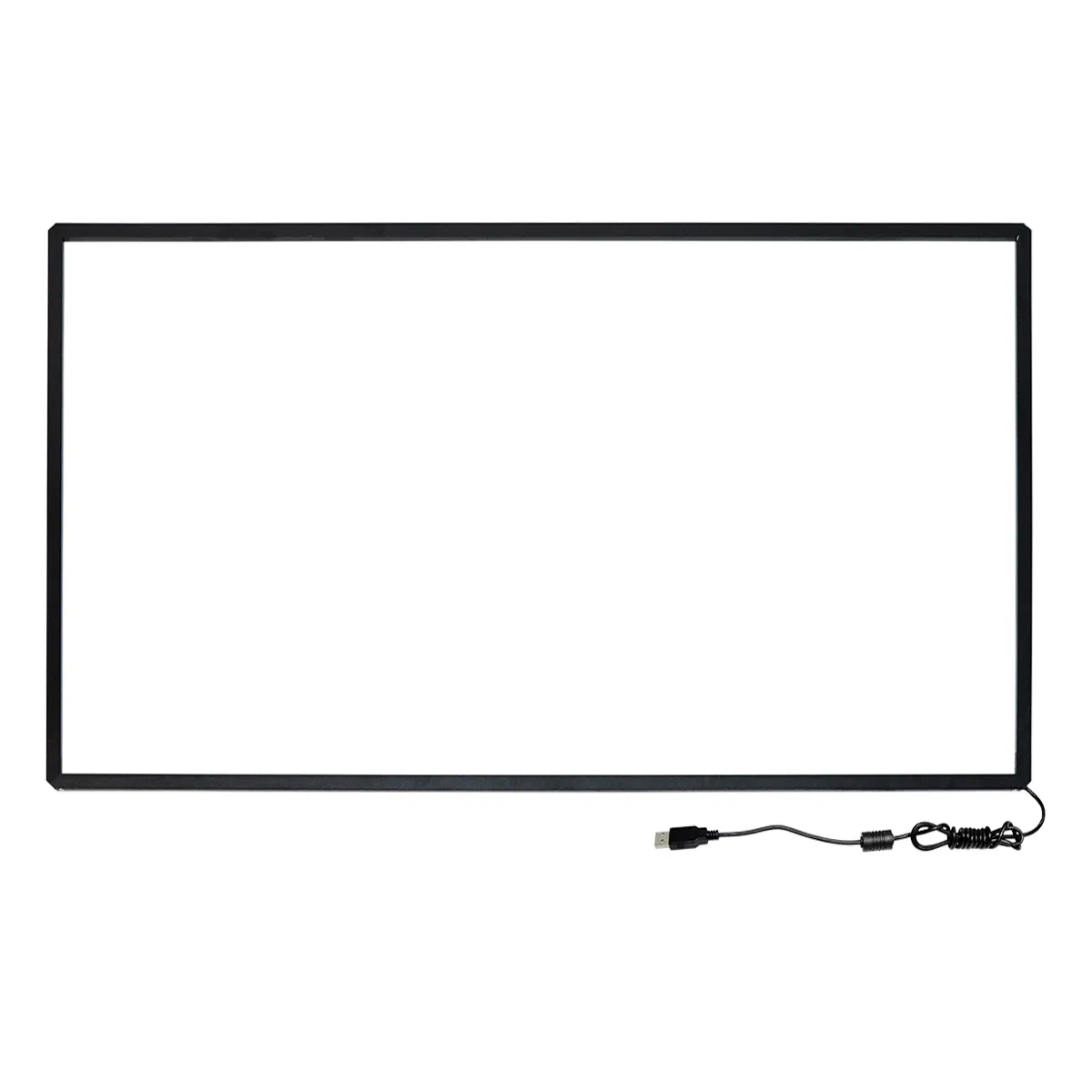

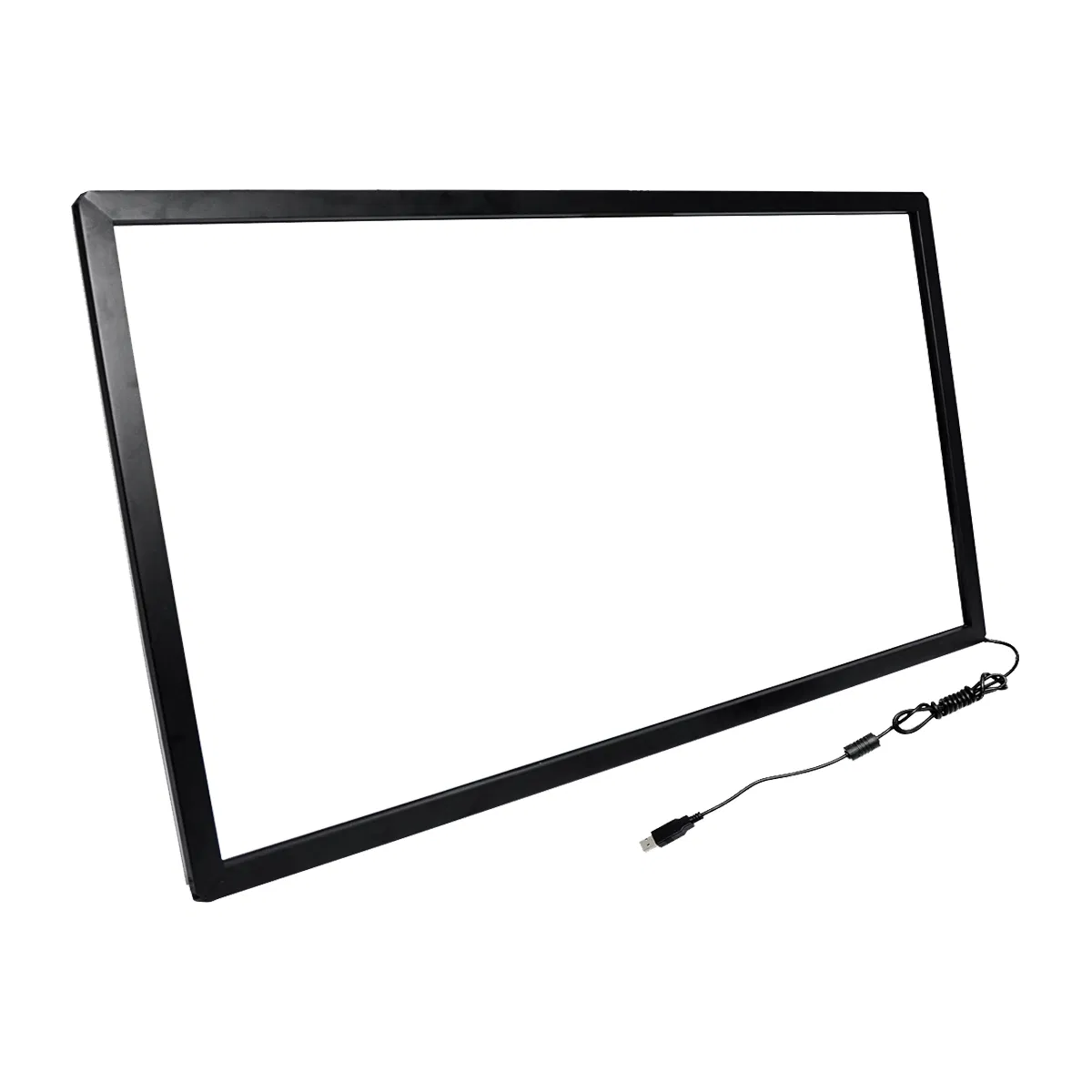

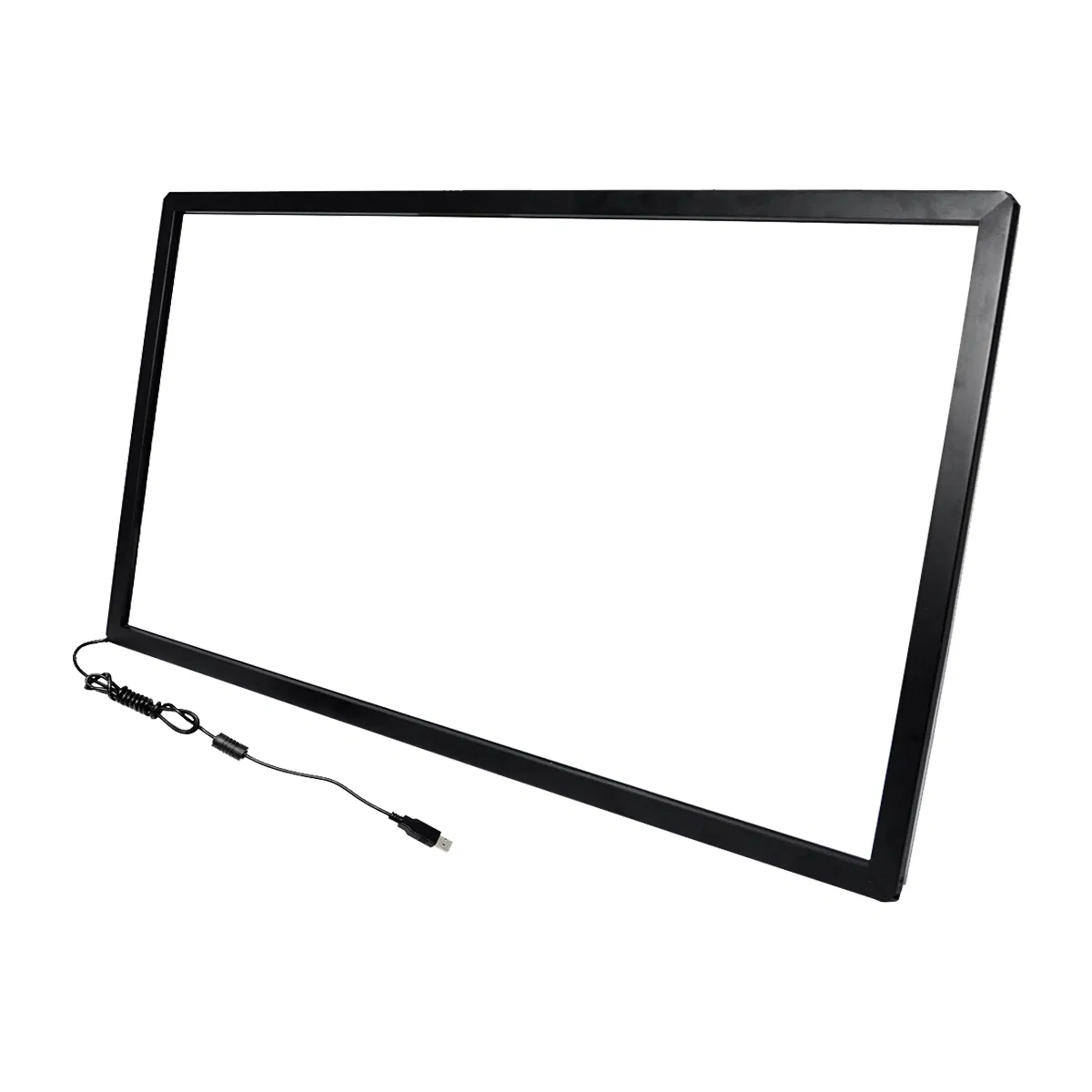

42" Infrared Touch Screen Multi IR Touch Frame, IR Touch Panel
42" Infrared Touch Screen Multi IR Touch Frame, IR Touch Panel
42" Infrared Touch Screen Multi IR Touch Frame, IR Touch Panel
42" Infrared Touch Screen Multi IR Touch Frame, IR Touch Panel
42" Infrared Touch Screen Multi IR Touch Frame, IR Touch Panel
1 / 5
42" Infrared Touch Screen Multi IR Touch Frame, IR Touch Panel
42" Infrared Touch Screen Multi IR Touch Frame, IR Touch Panel
42" Infrared Touch Screen Multi IR Touch Frame, IR Touch Panel
42" Infrared Touch Screen Multi IR Touch Frame, IR Touch Panel
42" Infrared Touch Screen Multi IR Touch Frame, IR Touch Panel

42" Infrared Touch Screen Multi IR Touch Frame, IR Touch Panel

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information
Model NO.:
CIP420AP-4K-DNA2
Application:
Financial Services System
Screen Type:
Infrared
Touch Points:
2, 4, 6, 10 Points
Glass:
4mm Tempered Glass
Certifications:
CE, FCC
Interface:
USB (Plug and Play)
Color:
Black Frame
Production:
500PCS/Week
HS Code:
8471609000
Product Overview

42" IR Multi Touch Screen with 4mm Vandal Proof Glass

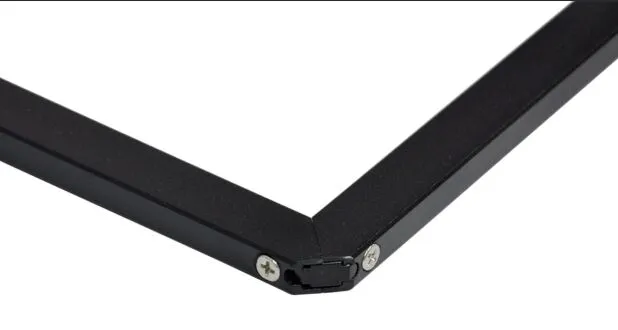

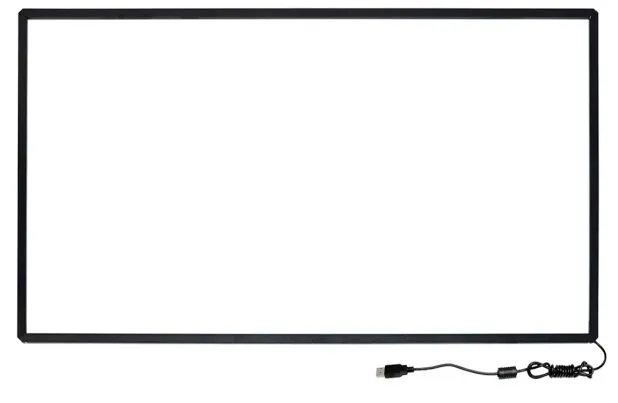

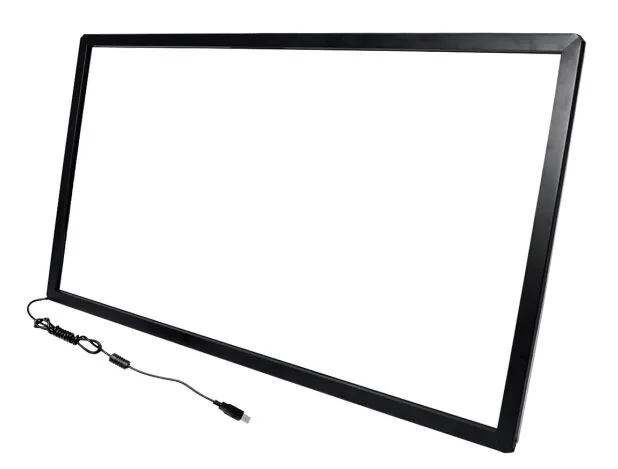

Infrared Touch Frame IR Touch Panel Multi Touch Detail

Advantages of Infrared IR Touch Frame:

  • High Reliability IR Touch Frames Series
  • Multi-touch 2-4-6-10 points support
  • High Compatibility of Hardware & Software
  • Supported OS: Windows XP/7/8/10, Linux, Android
  • Perfect Anti-Sun IR Touch Screen Series
Technical Specification
MECHANICAL
Overlay Thickness / Width14.6 mm / 19.1 mm
HousingAluminum frame
TOUCH CHARACTERISTICS
Input MethodFinger or touch pen
Resolution4096(W) × 4096(D)
Response Time6ms
Glass Transparency4mm glass, 92% Transparency
Touch IntensityOver 60 million single touches
ELECTRICAL & ENVIRONMENT
Operating VoltageDC 4.5V ~ DC 5.5V
Temperature RangeOperating: -10°C ~ 60°C / Storage: -30°C ~ 70°C
Seal AbilityIP64 Anti-Spill (Customizable to IP65)
InterfaceUSB 2.0 Full Speed
Technical Drawings & Production

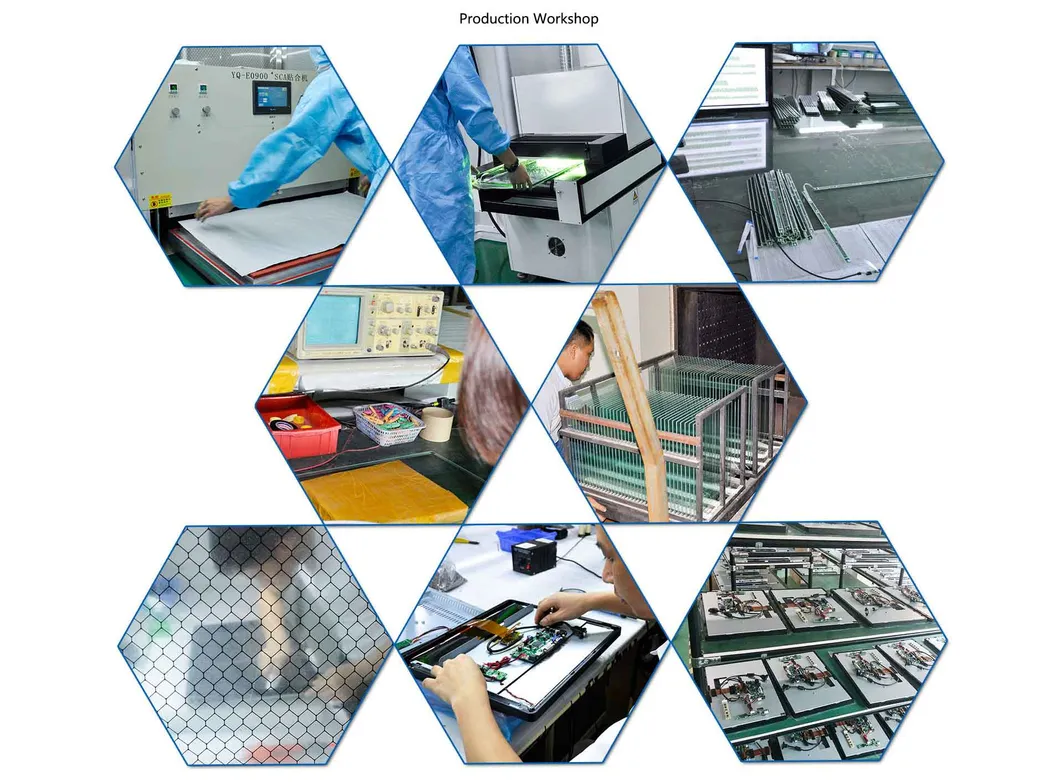

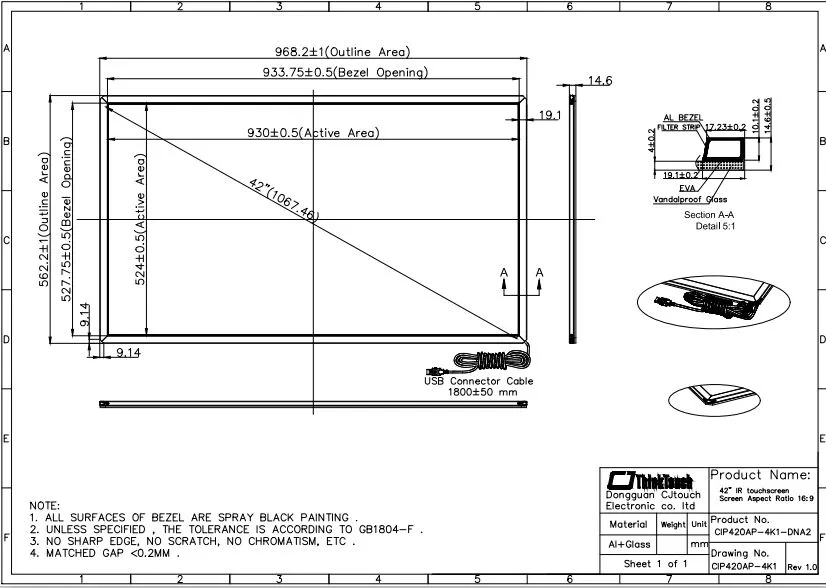

Technical Drawing Production Workshop
Product Applications
Applications
Certifications
Certificates
Frequently Asked Questions (FAQ)
What operating systems are supported by this IR touch frame?
The system supports wide compatibility including Windows XP, Win7, Win8, Win10, Linux, and Android.
Is the touch screen glass durable?
Yes, it features 4mm Vandal Proof Tempered Glass, making it suitable for high-traffic and public applications.
Does it require special drivers?
No, it is a Plug and Play device using a standard USB interface, making installation quick and easy.
Can it be used outdoors?
It is designed as an Anti-Sun series and can be used both indoors and directly under sunlight. The seal ability is IP64 (customizable to IP65).
How many touch points does it support?
The frame supports multiple touch point options including 2, 4, 6, or 10 points depending on your specific requirements.
What is the response time for the touch input?
The touch screen provides a fast response time of approximately 6ms for both touch and drawing actions.
