Windows 10 Tablet Camera 16m Pixels 30fps Display LCD Screen for Microscope
Windows 10 Tablet Camera 16m Pixels 30fps Display LCD Screen for Microscope
Windows 10 Tablet Camera 16m Pixels 30fps Display LCD Screen for Microscope
Windows 10 Tablet Camera 16m Pixels 30fps Display LCD Screen for Microscope
Windows 10 Tablet Camera 16m Pixels 30fps Display LCD Screen for Microscope
1 / 5
Windows 10 Tablet Camera 16m Pixels 30fps Display LCD Screen for Microscope
Windows 10 Tablet Camera 16m Pixels 30fps Display LCD Screen for Microscope
Windows 10 Tablet Camera 16m Pixels 30fps Display LCD Screen for Microscope
Windows 10 Tablet Camera 16m Pixels 30fps Display LCD Screen for Microscope
Windows 10 Tablet Camera 16m Pixels 30fps Display LCD Screen for Microscope

Windows 10 Tablet Camera 16m Pixels 30fps Display LCD Screen for Microscope

Customization: Available
Magnification: <50X
Type: Biological
Send Inquiry

Product Description

🟦 Basic Info.
Model NO.
AM5698
Number of Cylinder
Binoculars
Mobility
Desktop
Stereoscopic Effect
Stereoscopic Effect
Kind of Light Source
Ordinary Light
Shape
Rectangular Prism
Usage
Teaching
Principle
Optics
Principle of Optics
Polarizing Microscope
Transport Package
Carton
Specification
2KG
Trademark
AMDSP
Origin
Nanjing
HS Code
9011900000
Production Capacity
50000
🟦 Product Description
ModelAM5698
SeriesIntegrated display camera
Sensor size1/2.3"
Effective pixels16 million pixels
Resolution1920*1080@30FPS
OutputUSB2.0, HDMI, TF card, WIFI
Pixel size1.335*1.335um
PowerDC-12V/2A
UIDigital design, mouse operation, humanized setting
Mark functionPoint coordinates, cross lines, coordinate systems, text annotations
Length measuringLine length, line length, length of curve, parallel line distance and point line distance
Center distance of circlesRadius fixed circle, two point circle, three point fixed circle
Geometry measurementLine length, radius fixed circle, two point circle, three point fixed circle, concentric circle
Geometry areaPolygon and square
Image captureSupport 16M photos
Video recordSupport 1080P video
Measuring toolS-EYE

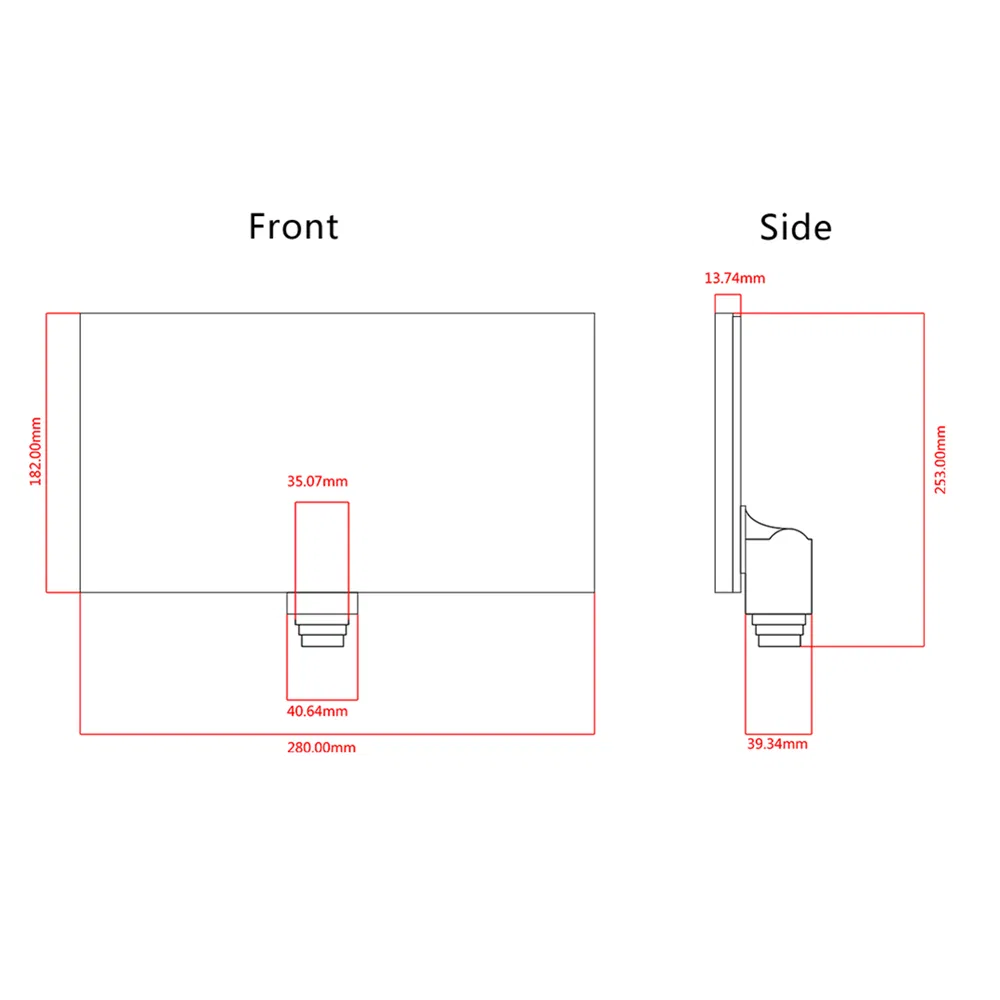

Size280.00*53.08*253.00mm
Weight0.8kg
AccessoryDC-12V Power adapter
Integrated Display Camera View 1

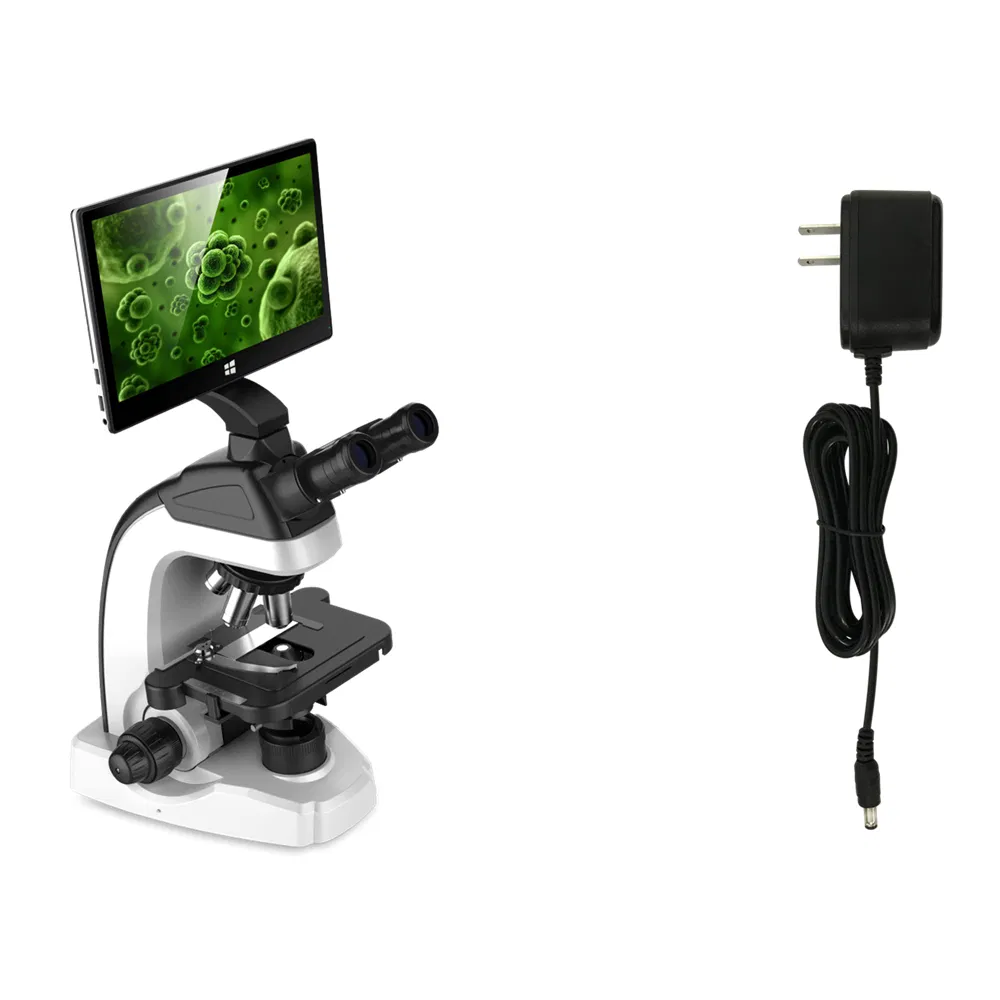

Integrated Display Camera View 2
Integrated Display Camera View 3

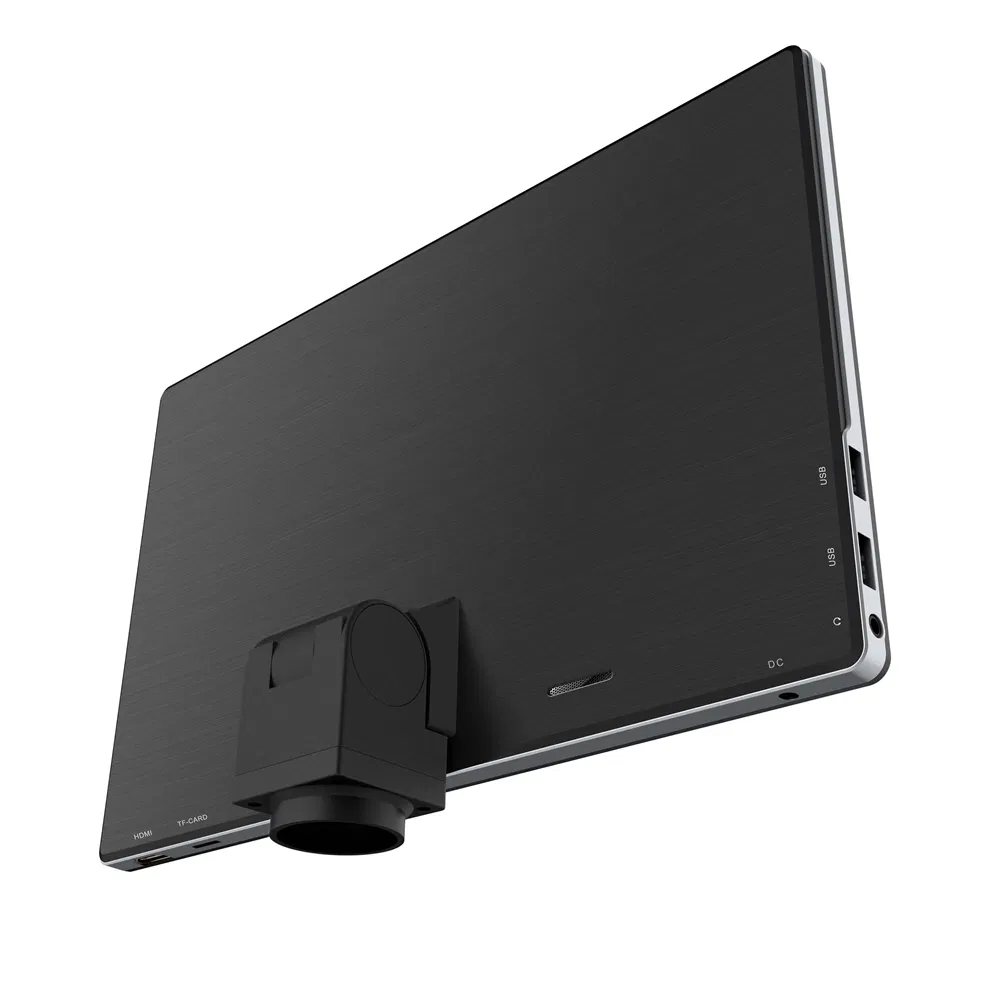

Integrated Display Camera View 4
Integrated Display Camera View 5
Integrated Display Camera View 6
🟦 Frequently Asked Questions
What is the resolution of the AM5698 camera?
The camera supports a resolution of 1920*1080 at 30FPS with 16 million effective pixels.
What output interfaces are available?
The device supports multiple output options including USB2.0, HDMI, TF card, and WIFI.
Does it support measurement functions?
Yes, it features comprehensive measuring tools for length (lines, curves), geometry (radius, circles), and area (polygons, squares).
What is the primary application for this model?
It is primarily designed for teaching and optical research using polarizing microscope principles.
What accessories are included in the package?
The standard package includes the integrated display camera and a DC-12V power adapter.
Is the user interface easy to operate?
Yes, it features a digital design with humanized settings and supports convenient mouse operation.
