Basic Information
Weave Technique:
Plain Weave
Weave Method:
Flat-Topped Curved
Surface Treatment:
Anti Rust Oil, Anti Rust Paint
Steel Grade:
Stainless Steel, 45#, 55#, 65mn, 72b
Tensile Strength:
More Than 1000-1800MPa
Capacity:
50000 Square Meters Per Month
Product Description

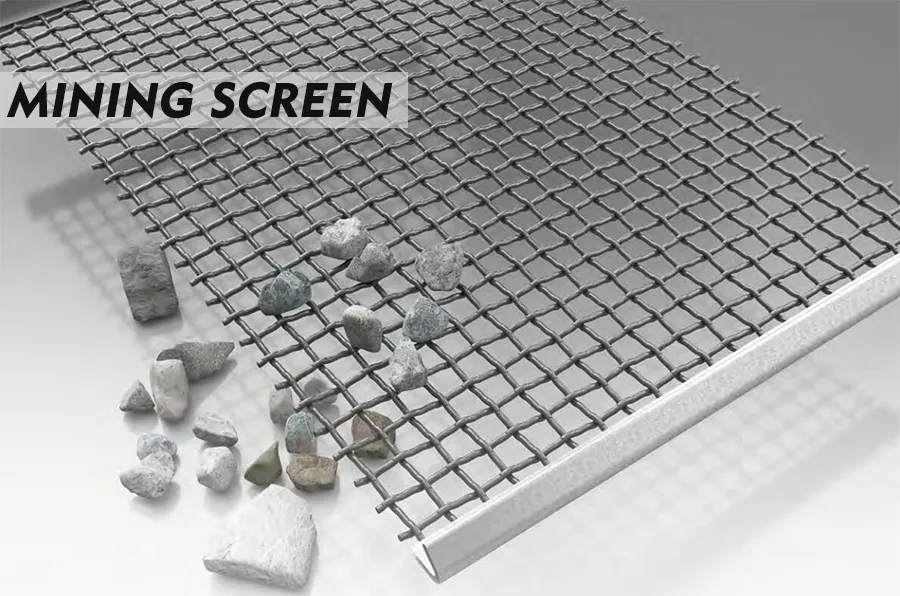

Mining screen, also known as vibrating screen mesh, quarry screen, and crusher screen, is one of the most important and versatile parts of screening machines in the mining industry, which separates a mix of particles into two or more groups depending on size and is widely used in a variety of sizing, grading, scalping, dewatering, wet screening, and washing applications.
In its simplest form, the mining screen is a surface having many apertures, or openings, usually with uniform dimensions. Particles presented to that surface will either pass through or be retained, according to whether the particles are smaller or larger than the governing dimensions of the aperture. The efficiency of screening is determined by the degree of perfection of separation of the material into size fractions above or below the aperture size.
Materials & Parameters
Our main materials are carbon steel and stainless steel wires, and their parameters are listed as below.
Technical Parameters of Carbon Steel Wire
| Grade |
C (%) |
Si (%) |
Mn (%) |
| 45 | 0.42-0.50 | 0.52-0.60 | 0.50-0.80 |
| 50 | 0.47-0.55 |
| 55 | 0.52-0.60 |
| 60 | 0.57-0.65 |
| 65 | 0.62-0.70 |
| 70 | 0.67-0.75 |
| 65Mn | 0.62-0.70 | 0.90-1.20 |
Technical Parameters of Stainless Steel Wire
| Grade |
C (%) |
Si (%) |
Mn (%) |
Cr (%) |
| 304 | ≤0.08 | 8.0-10.5 | ≤2.0 | 18.0-20.0 |
| 321 | ≤0.08 | 9.0-12.0 | ≤2.0 | 17.0-19.0 |
| 316 | ≤0.08 | 10.0-14.0 | ≤2.0 | 16.0-18.0 |
| 2205 | ≤0.03 | 4.5-6.5 | ≤2.0 | 21.0-23.0 |

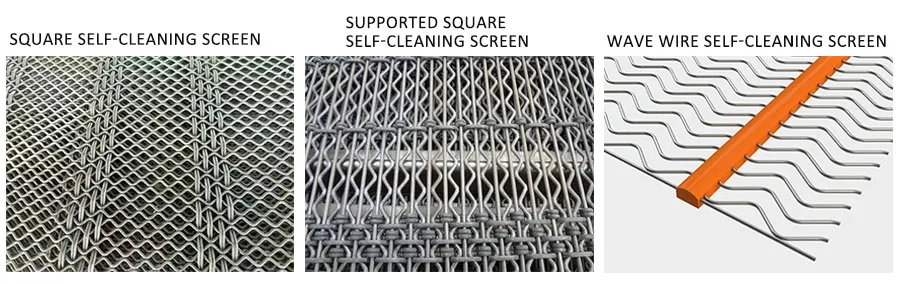

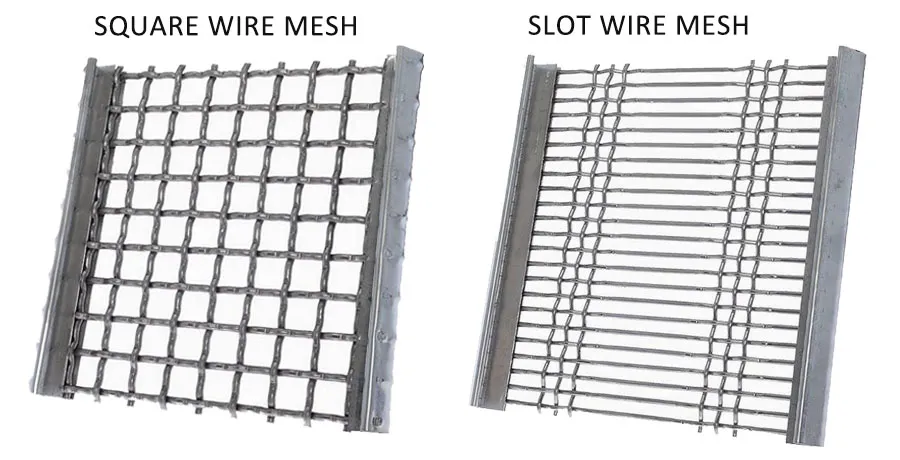

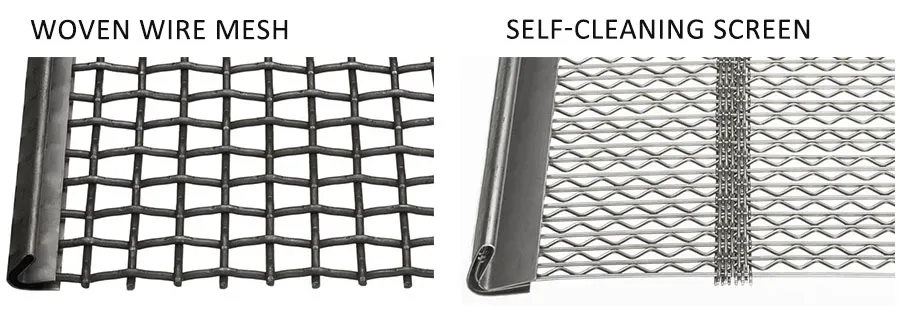

Product Ranges

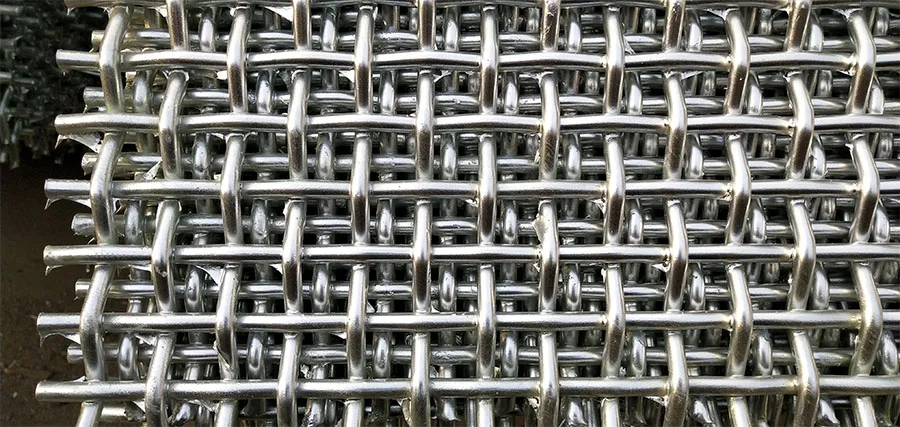

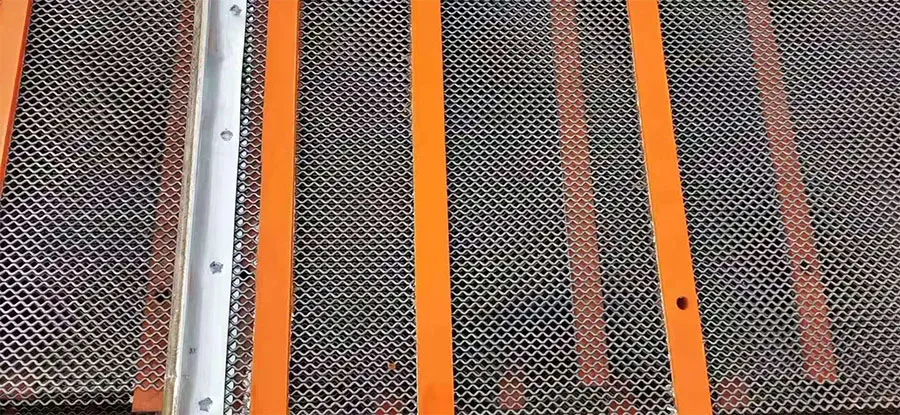

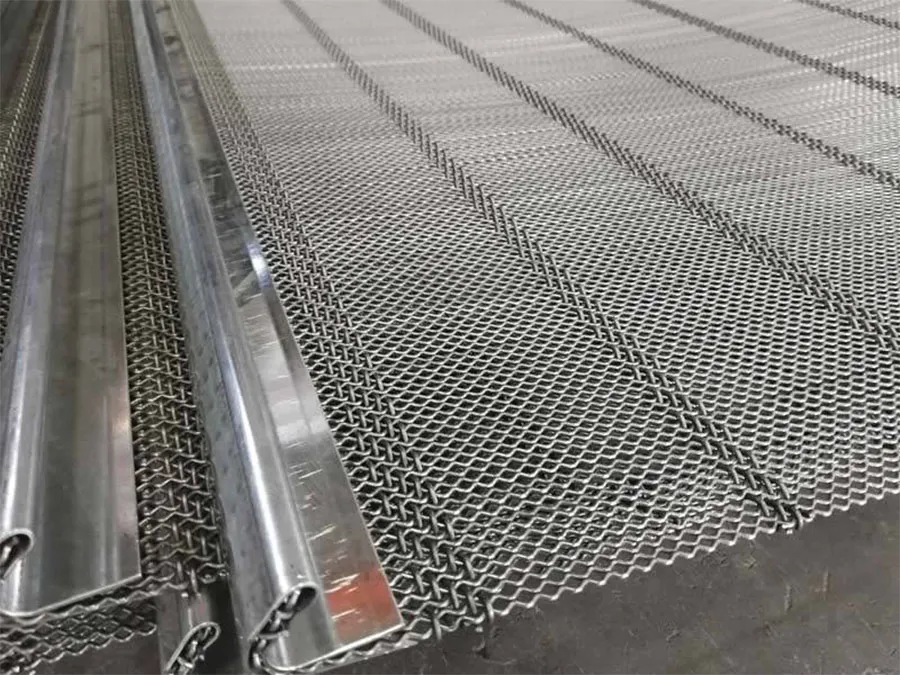

Advantage of Mining Screen
- High mechanical strength, large carrying capability
- High abrasion and chemical corrosion resistance
- Excellent vibration and impact resistance
- Large screening area
- A long service life

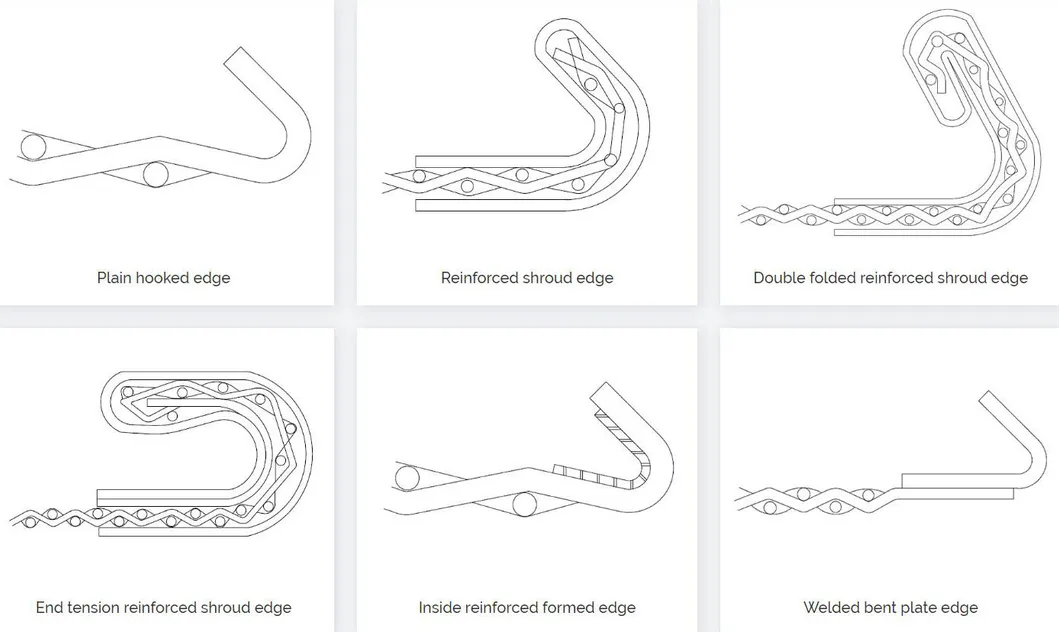

Edge Types

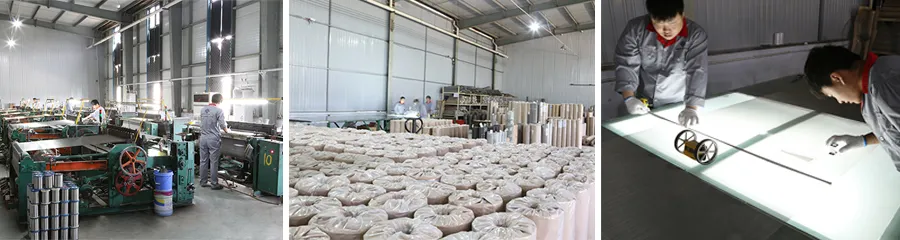

Factory Overview
Frequently Asked Questions
What materials are used for the mining screen mesh?
We primarily use high-strength carbon steel (grades like 45#, 65Mn, 72B) and various stainless steel grades (304, 316, 2205) to ensure durability and resistance to abrasion and corrosion.
What are the common applications for these screens?
They are widely used in the mining and quarrying industries for sizing, grading, scalping, dewatering, wet screening, and washing applications.
Can the aperture size be customized?
Yes, our apertures range from 2mm to 100mm with a tolerance of approximately 3% to fit specific screening requirements.

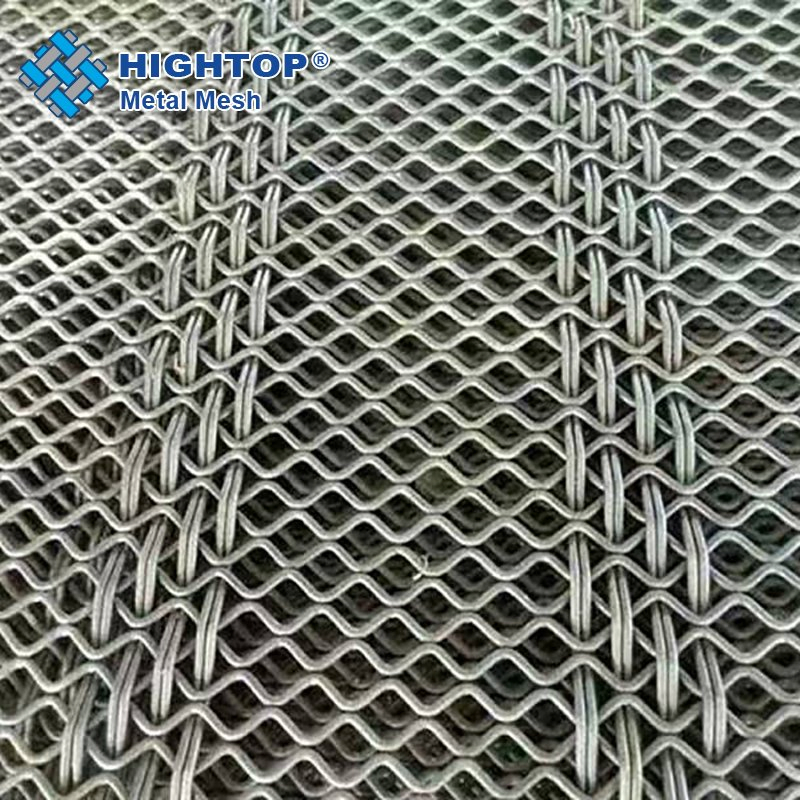

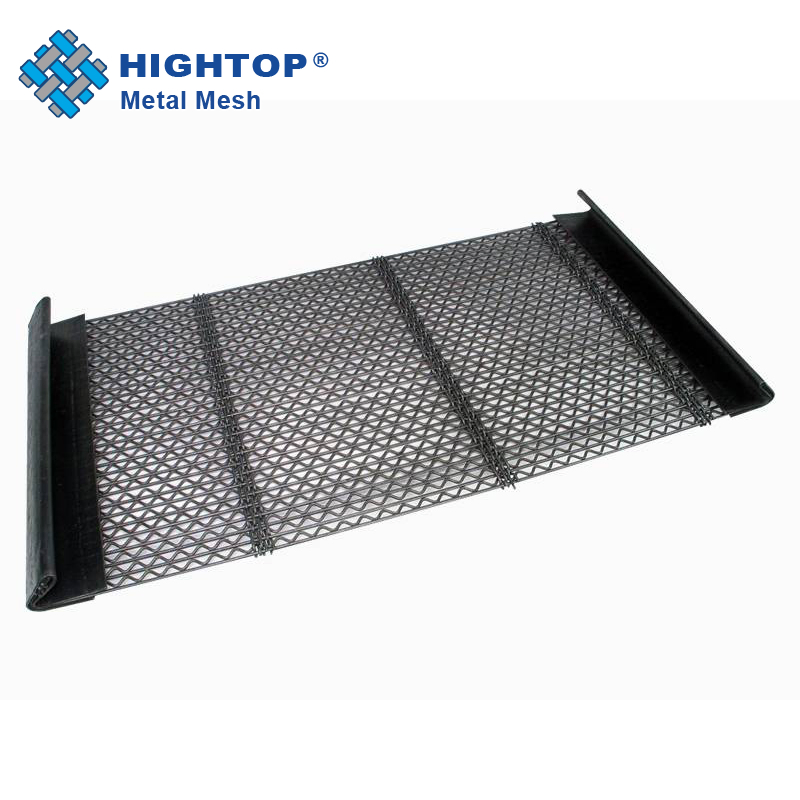

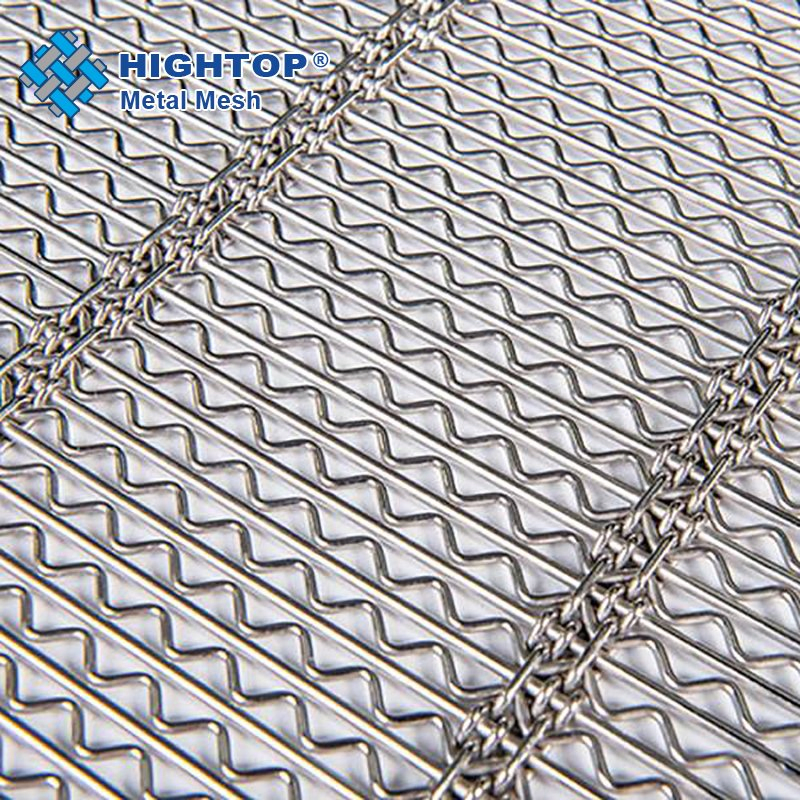

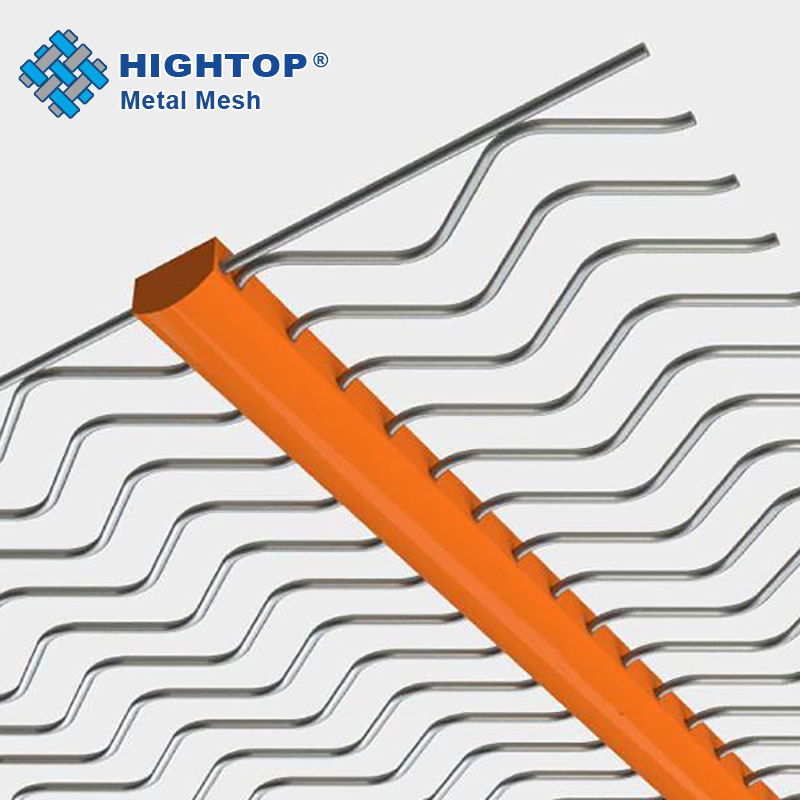

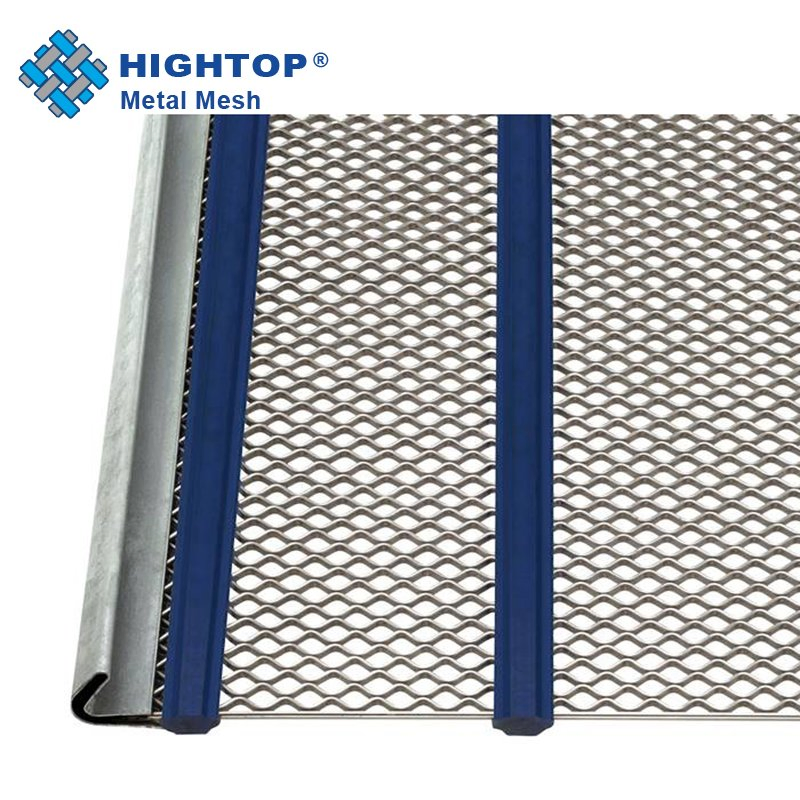

What makes your self-cleaning screens efficient?
Our self-cleaning screens are designed in various shapes to provide high vibration and impact resistance, which helps prevent clogging even in harsh conditions.
How is the product packaged for transport?
All screen products are securely packaged on pallets to ensure safe delivery and easy handling during international shipping.
What is the production capacity for this product?
We have a robust production capacity of up to 50,000 square meters per month to support large-scale industrial demands.
