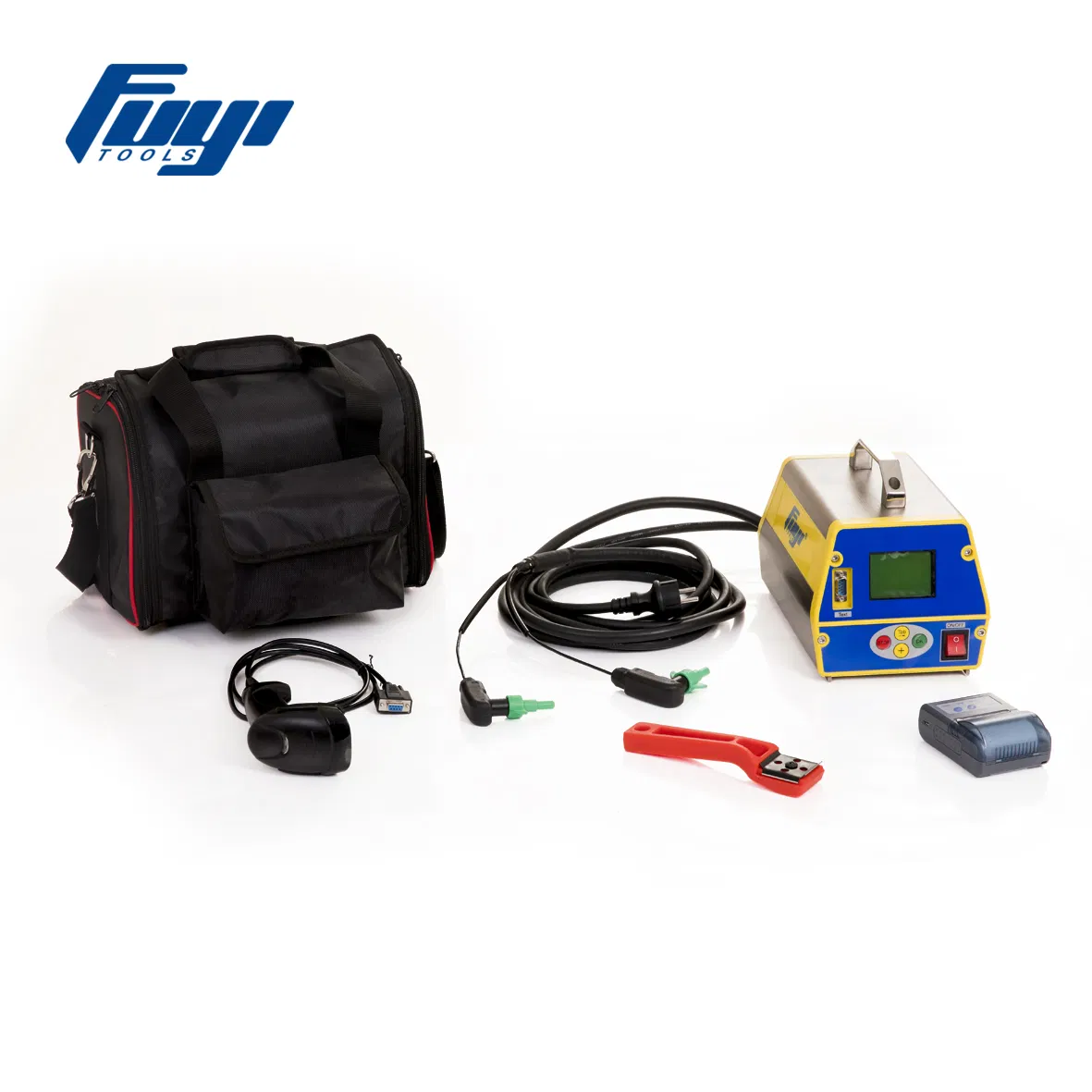

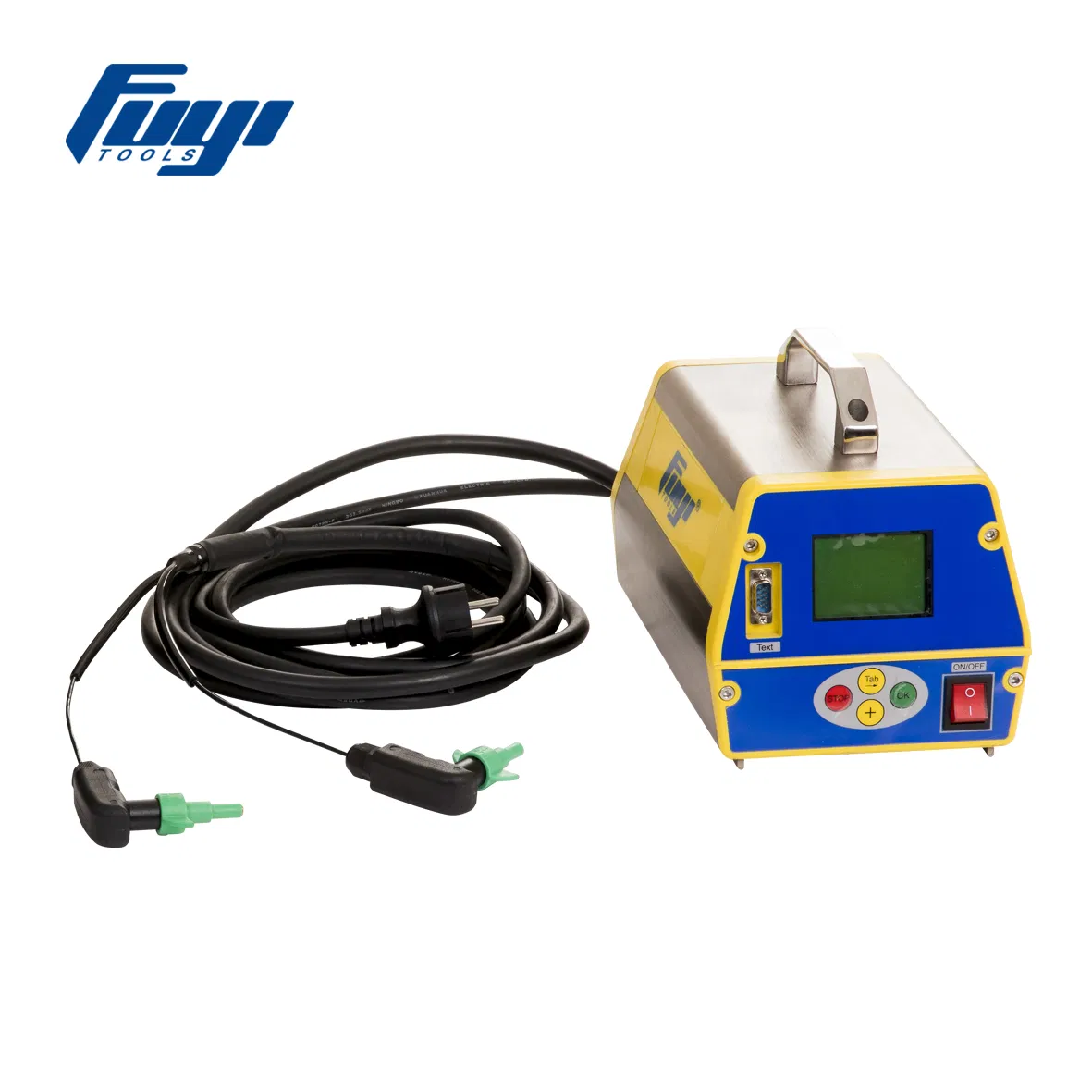

20-200mm HDPE PP Pipe Lightweight Portable Electrofusion Welding Machine

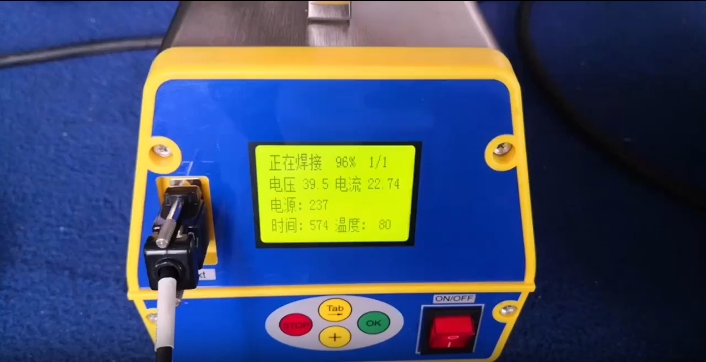

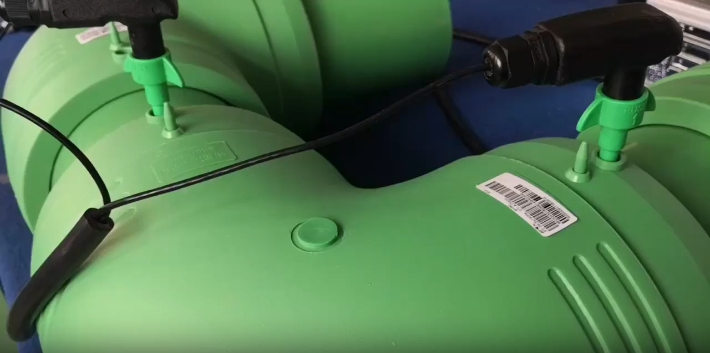

This universal electrofusion machine is designed for welding pipes and fittings for gas, water transport, and fire sprinkler systems (HDPE, PP, PP-R couplings from 8 to 48 V). Built in compliance with international standards, the structure is lightweight for extreme portability. It features a large LCD interface supporting English, Spanish, Russian, and Chinese languages.

Using advanced PID control technology, the FYEFM200 provides stable and reliable output for both pressure and non-pressure conduits. Suitable for PPR up to OD 160mm and PP/HDPE up to OD 200mm.

Error #1-24: Barcode parsing error. Solution: Contact supplier.

Error #31-34: Output voltage/current range error. Solution: Modify parameters or use correct fittings.

Error #37: Load short circuit. Solution: Check fittings or cable.

Error #38: Unconnected load. Solution: Reconnect fittings/pipes.

Error #41: High ambient temperature (>50°C). Solution: Cool the work site.

Error #51-53: Power source voltage/frequency error. Solution: Use required power source.

• Professional maintenance recommended; keep components free of dust and debris.
• Check equipment grounding and high-current connection points regularly.
• Inspect capacitors for leakage or bulging if the device has been in long-term storage.
• Warranty: 12 months guarantee under normal operation from delivery date.
