Top Quality Toma Monoblock Window

Customization:	Available
Material:	Aluminum Alloy
Open Style:	Rolling and Casement or Tilt and Turn

Send Inquiry

Product Description

🟦 Basic Specifications

Model NO.

TMMW

Frame Material

Aluminum Alloy

Style

Modern

Opening Pattern

Vertical and Horizontal

Surface Finishing

Finished

Security Rating

Transport Package

Compreg Case

Origin

Shanghai, China

HS Code

76101000

Capacity

1000sqm/Month

Heat Insulation Soundproof Anti-Theft Airproof Insect-proof Dust-proof

🟦 Product Description

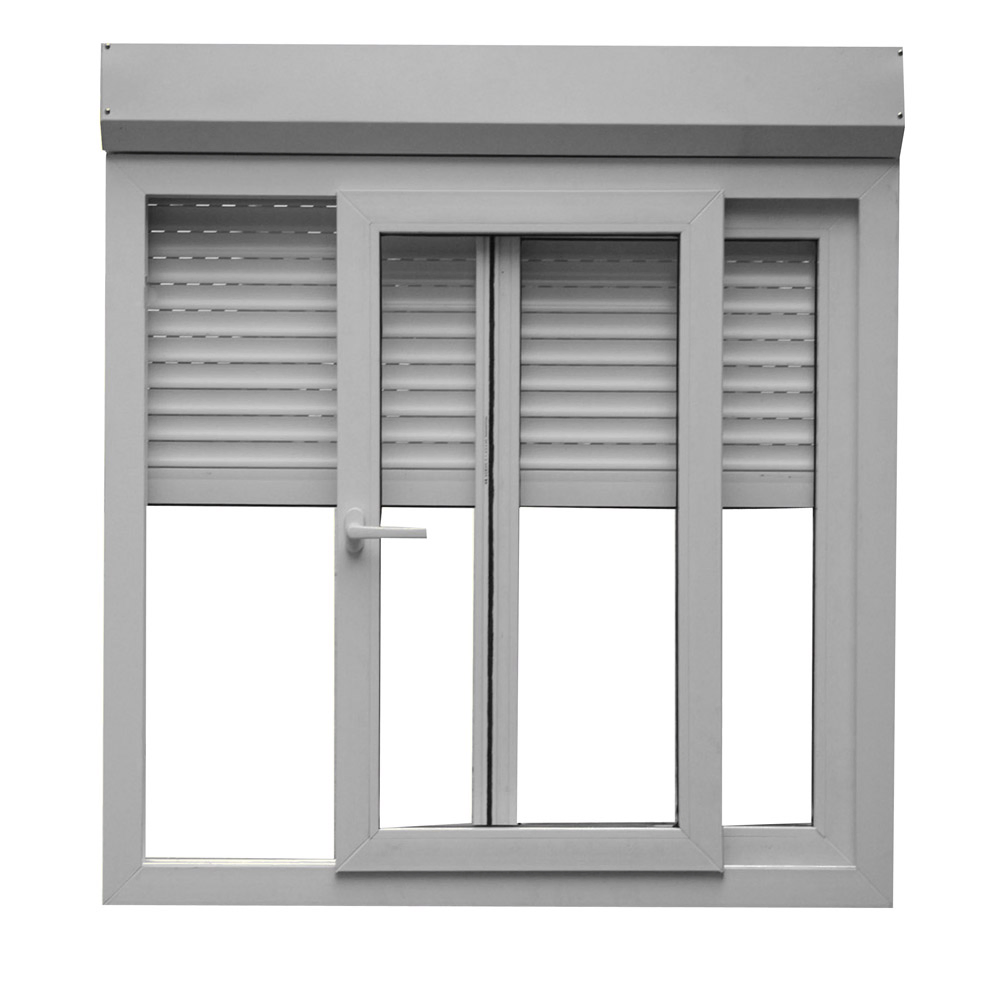

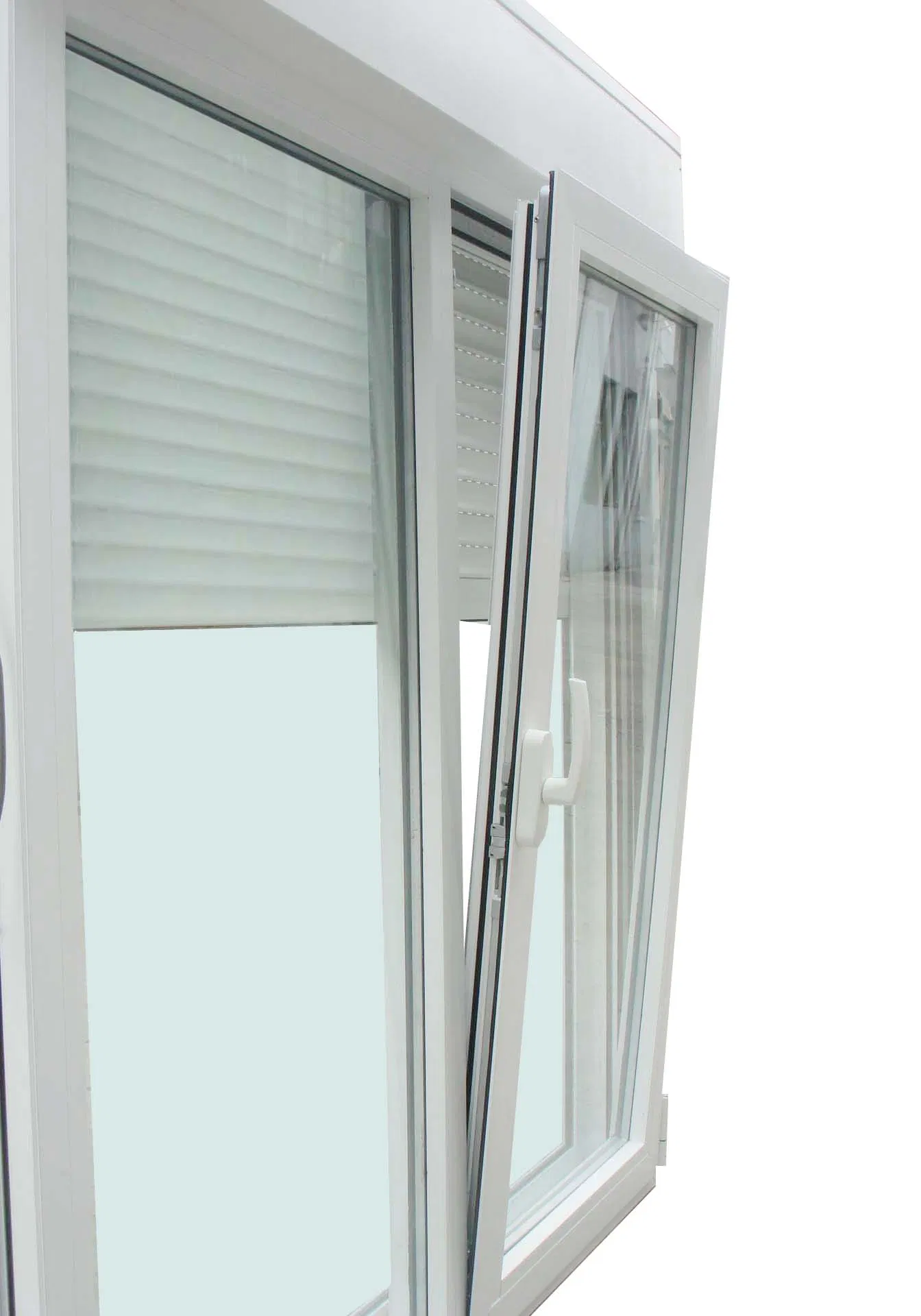

TOMA aluminium window, roller shutter and insect screen (monoblock)

This integrated solution offers a comprehensive approach to modern building needs, combining heat insulation, soundproofing, visual privacy, and weather protection in a single multi-functional design.

Key Advantages:

Fuel Economization: Save energy with no thermal bridges between the shutter element and the inner room.
Optimal Heat Protection: An insulating air cushion develops between the window and shutter, increasing insulation by up to 20%.
High Soundproofing: Achieve values (Rw) of up to 42dB, providing a restful environment for sleep and productivity.
Weather Protection: Shields against rain, snow, hail, and strong solar radiation.

Technical Performance:

Wind resistance: Class 3
Air tightness: Class 5
Water tightness: Class 4
Sound insulation: Rw=40~44db
Aluminium profile thickness: >1.4mm
Sash Material: Heat insulation bar nylon PA66, 25% fiber glass reinforced

Integrated Monoblock Features:

The monoblock solution eliminates the coordination issues between different workshops (carpenter, shutter suppliers, painters, etc.). It features EPDM seals for additional air tightness, preventing dust from entering the shutter box. The elegant architectural design ensures the box does not protrude into the room, making cleaning and maintenance significantly easier.

🟦 Frequently Asked Questions

What are the benefits of a Monoblock solution?

Monoblock solutions combine the window, roller shutter, and insect screen into one unit, ensuring better air tightness, easier installation, and consistent design without thermal bridges.

Can the roller shutters be operated automatically?

Yes, monoblock rolling shutters can be equipped with motors for automatic operation, including optional group control or photo sensors for automatic closing based on sunlight.

Does this system help with noise reduction?

Absolutely. The aluminum panels are filled with sound-absorbing foam, and when closed, they can provide soundproofing values of up to 42-44dB.

What materials are used for the shutter slats?

The rolling shutter slats can be manufactured from either high-quality aluminium or PVC, depending on your specific requirements.

Is the system effective against insects?

Yes, the integrated mosquito net provides effective protection, ensuring your living space remains free of mosquitoes and other insects.
