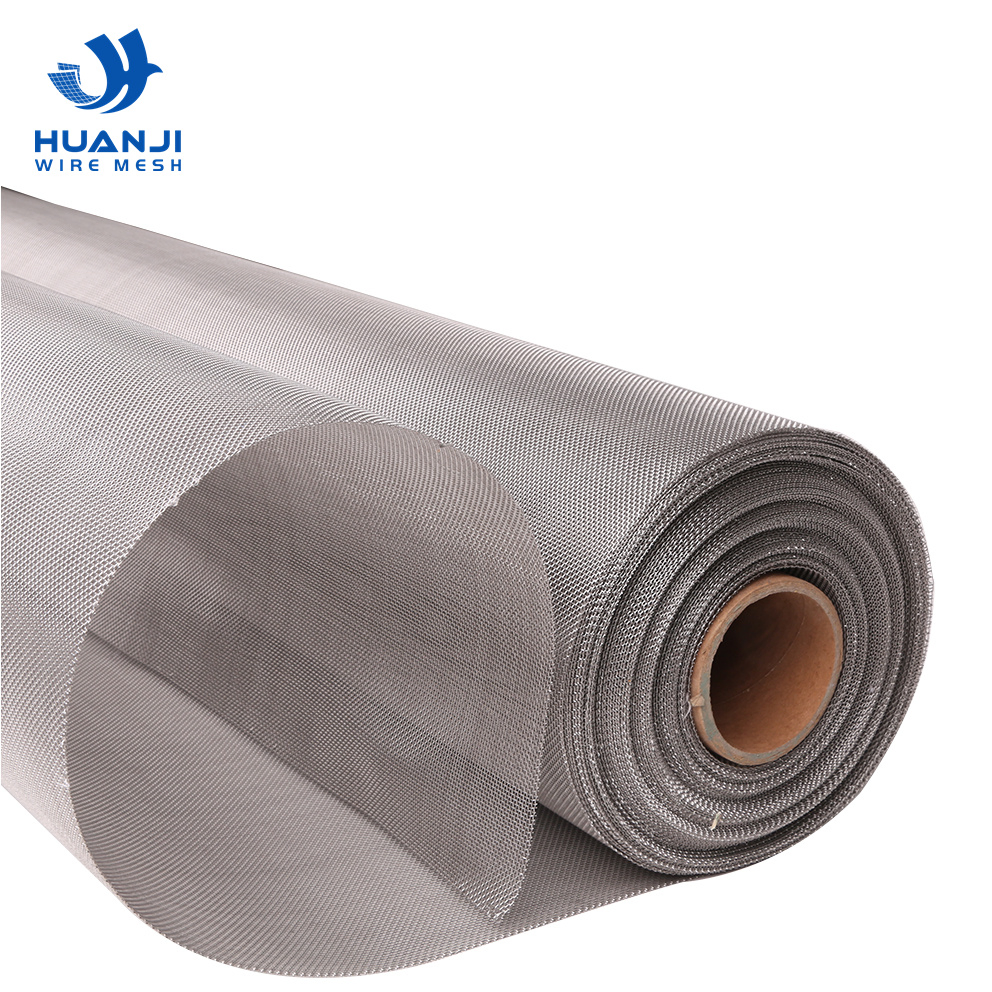

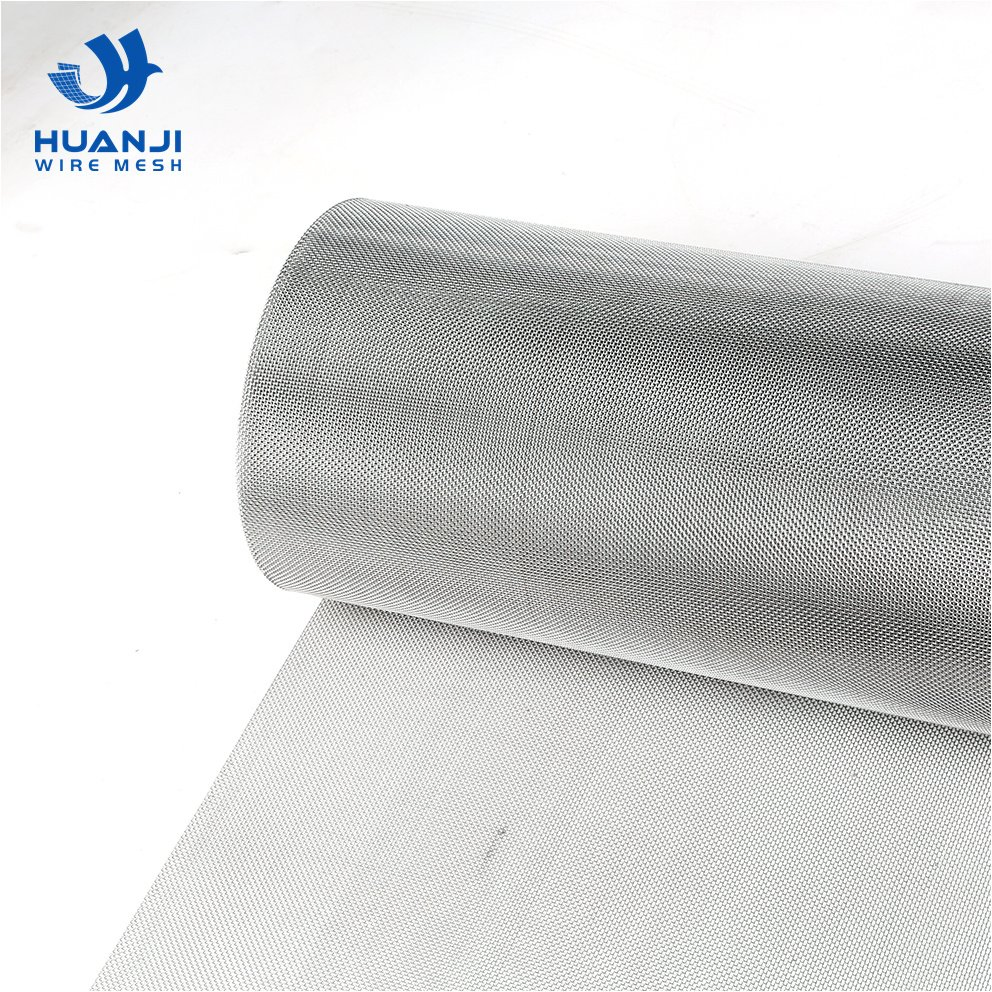

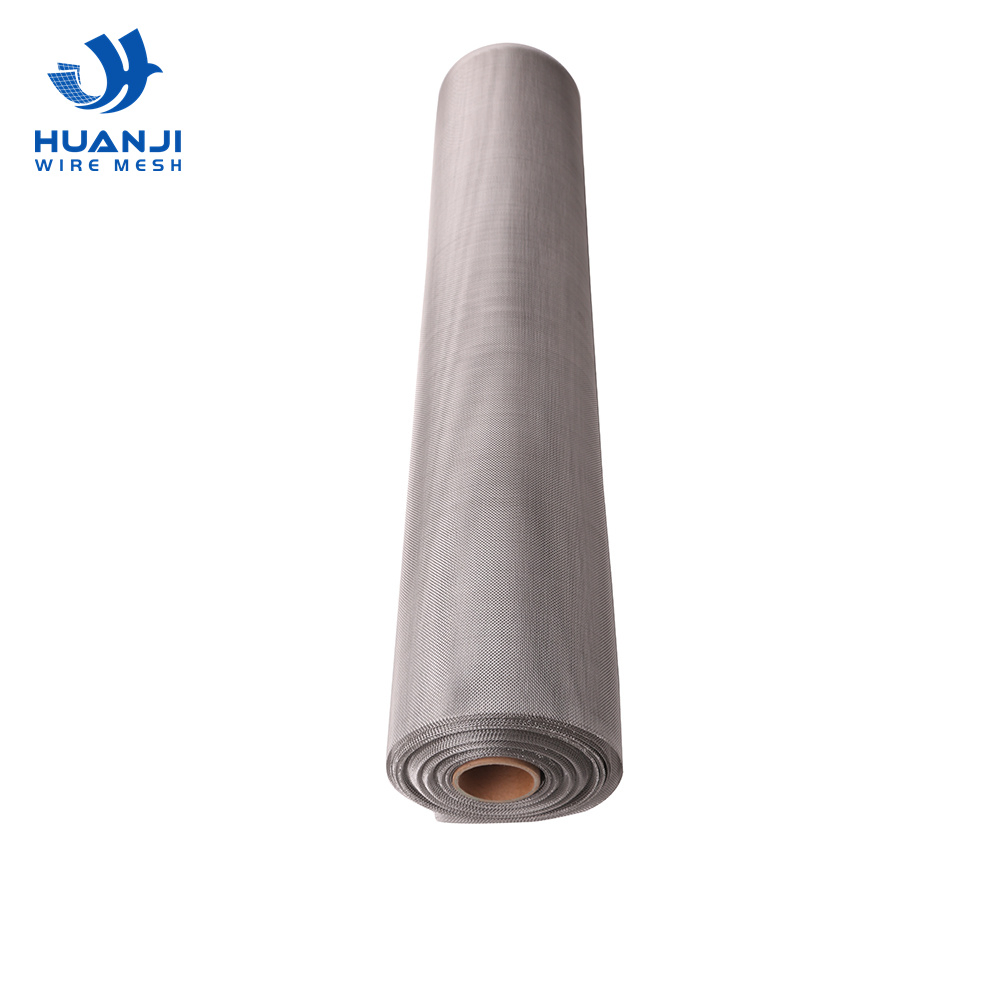

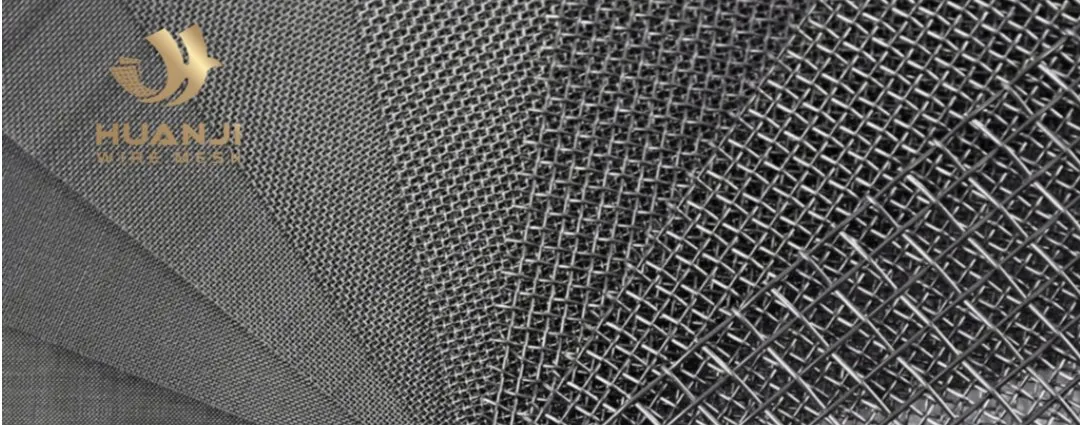

Stainless Steel Woven Wire Mesh Excellent Durability and Strength

1 / 5

Stainless Steel Woven Wire Mesh Excellent Durability and Strength

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.	HUANJI
Material	SUS304 / 316 / 316L Stainless Steel
Hole Shape	Square
Weave Technique	Plain Weave / Twill / Dutch

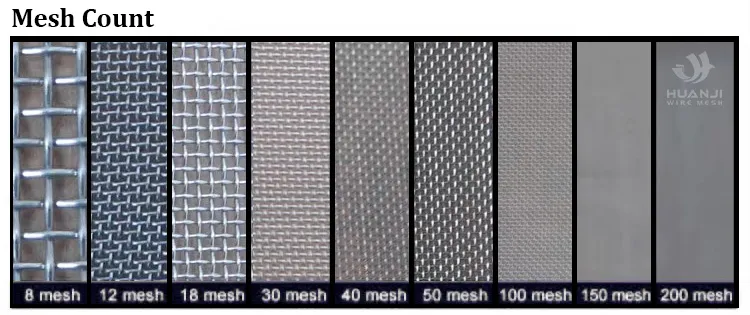

Mesh Size	1-3500 mesh
Wire Diameter	0.018-2mm
Width	1m / 1.2m / 1.5m / 2.0m / 2.5m
Feature	Acid, Alkali, Corrosion-Resistant
Certification	ISO9001, RoHS, ASTM E2016

Product Description

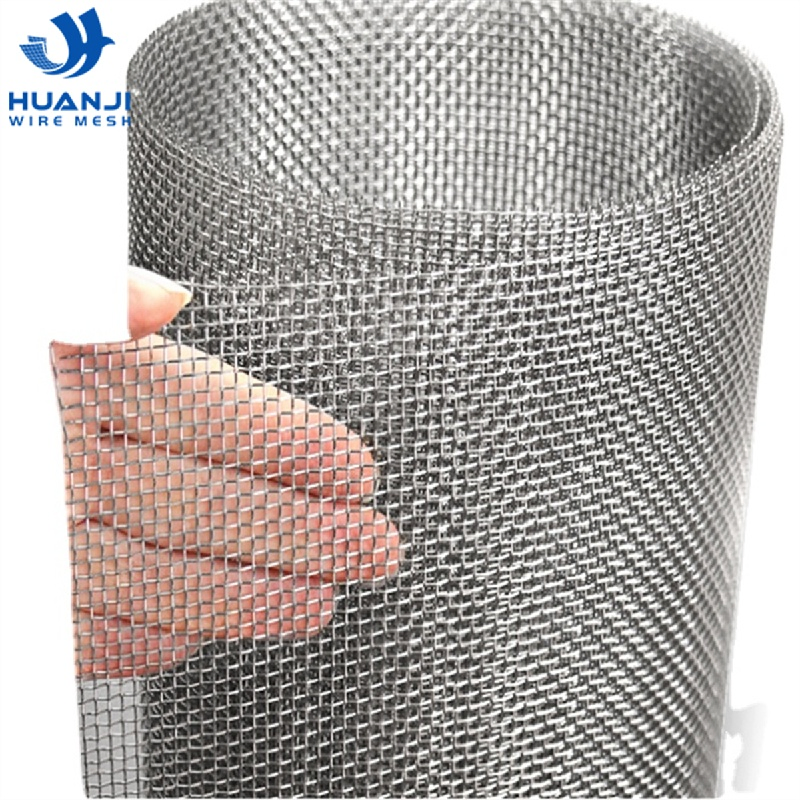

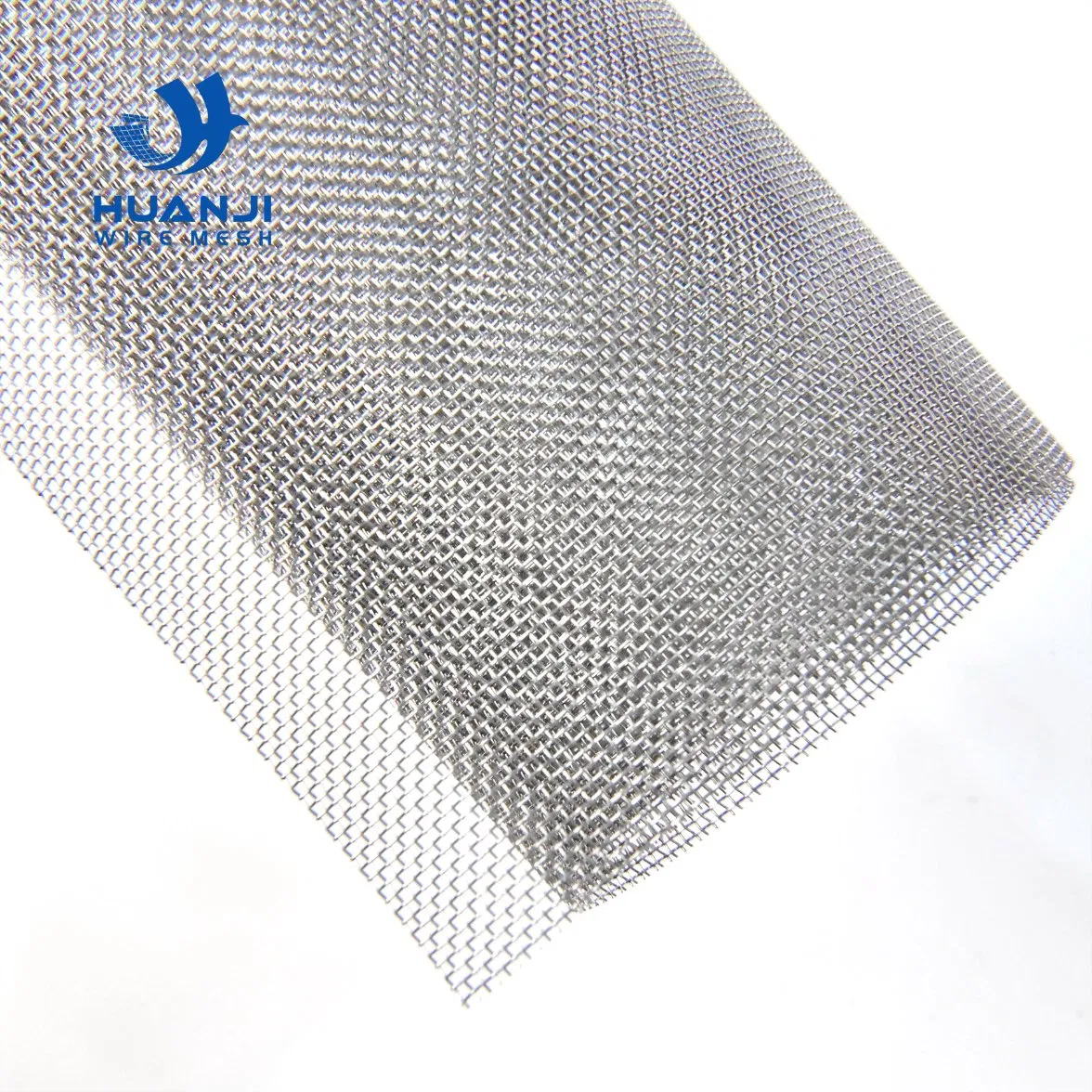

Plain Weave Mesh: Plain weave mesh is one of the most common metal woven meshes. With high precision mechanical equipment and cutting-edge weaving technology, our plain weave mesh features uniform mesh opening size and good permeability. It is widely used in manufacturing mesh screens, filter elements, and filter discs.

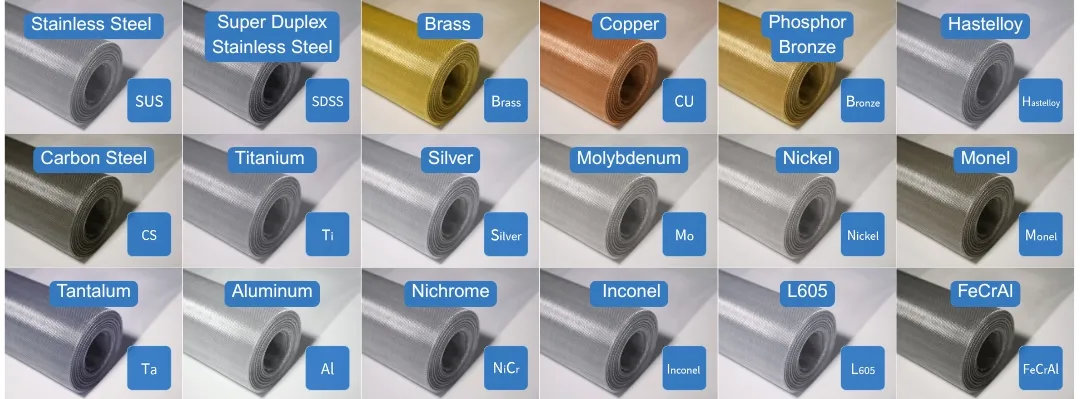

Materials Available

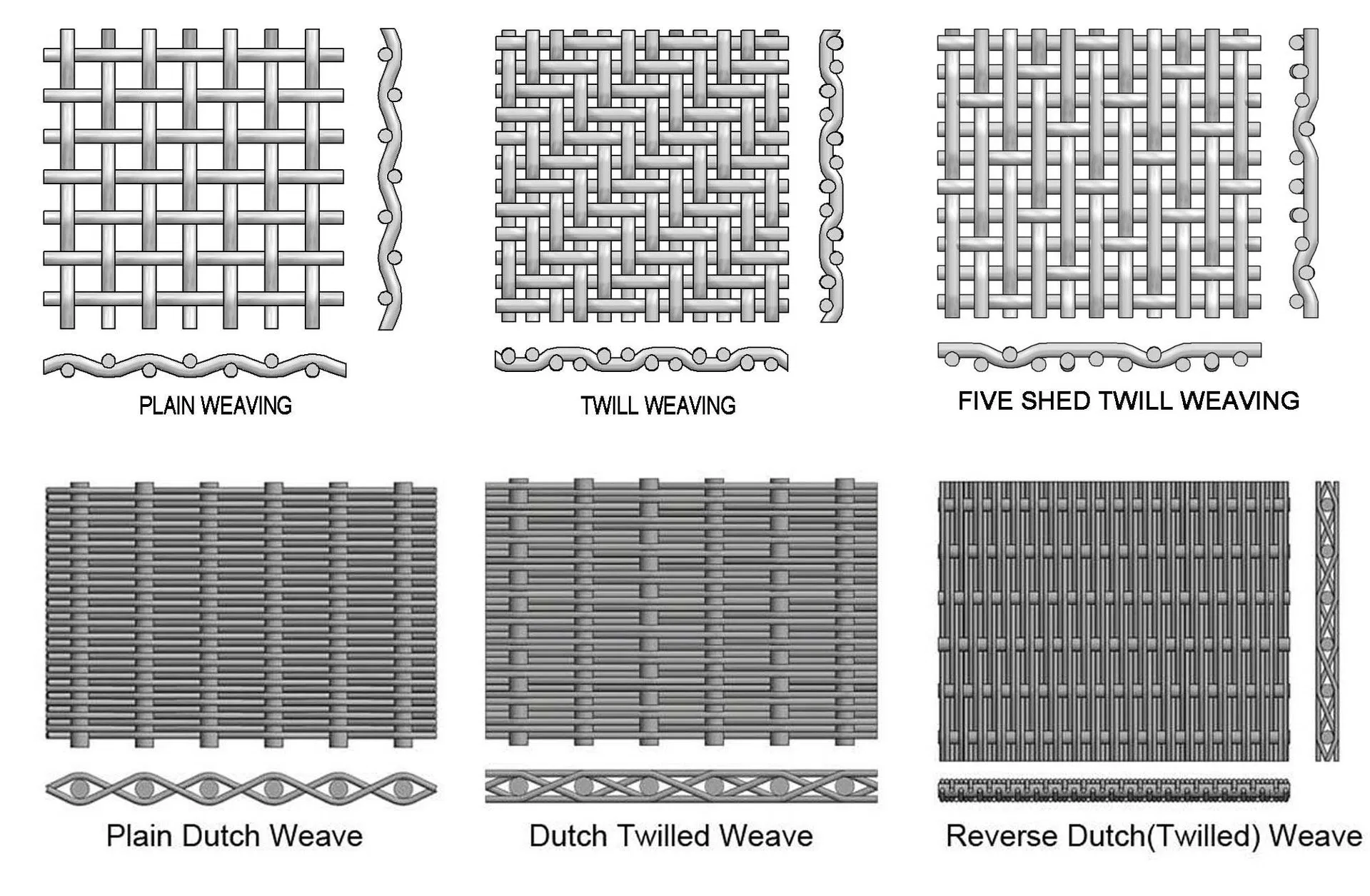

Pattern Type

Technical Specifications

Model	Mesh Count	Wire Dia (mm)	Opening (mm)	Open Area %
HJ-0185	1x1	2.030	23.37	85
HJ-0276	2x2	1.600	11.1	76
HJ-0456	4x4	1.600	4.75	56
HJ-1056	10x10	0.640	1.91	56
HJ-2046	20x20	0.406	0.86	46
HJ-10037	100x100	0.100	0.154	37
HJ-40028	400x400	0.030	0.0335	28

Applications

Our stainless steel wire mesh is widely applied in filtering, printing, sugar production, sieving, oil industries, and construction.

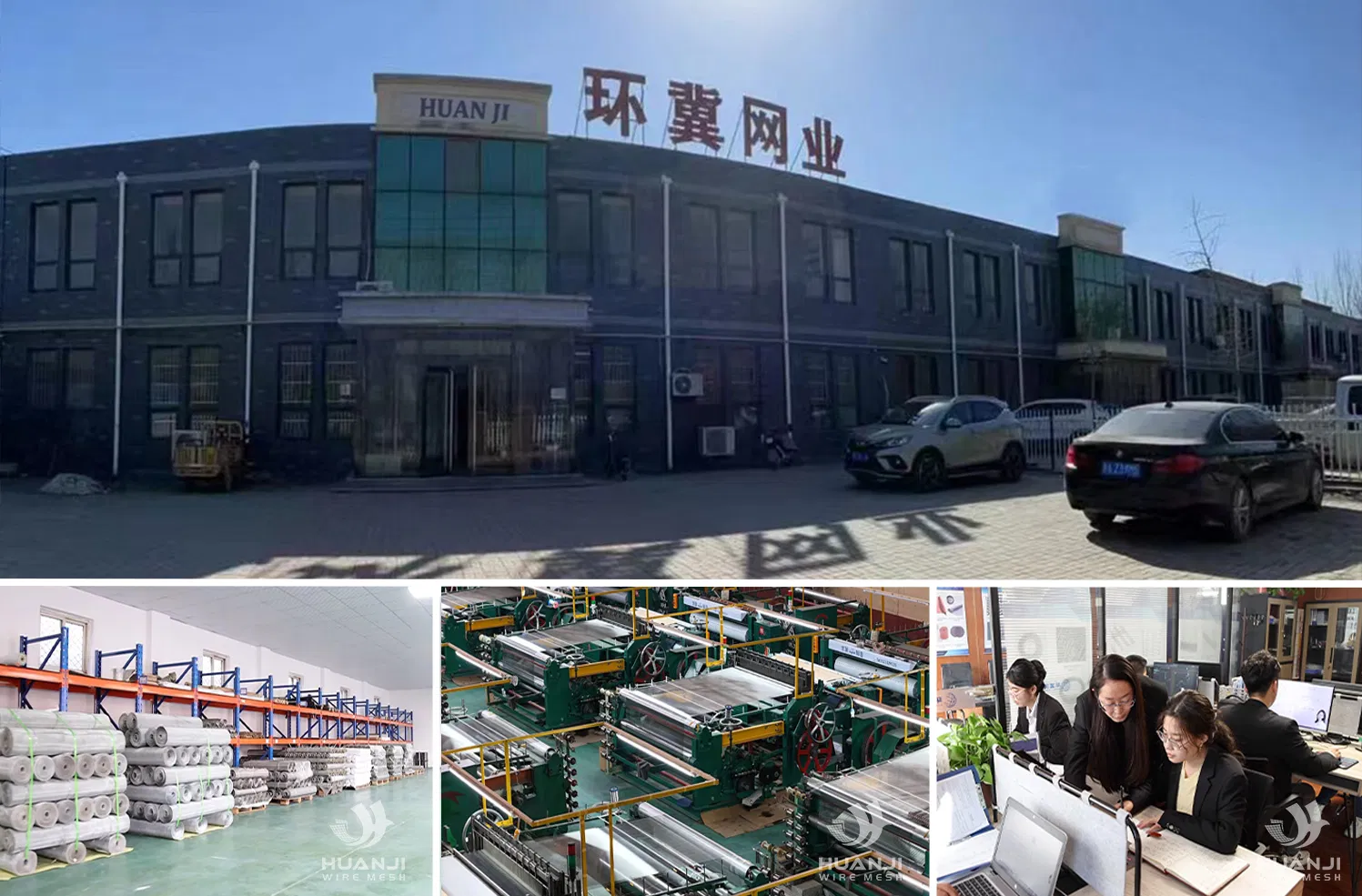

Packaging & Certifications

Frequently Asked Questions

What materials are available for the wire mesh?

We offer SUS304, 316, 316L, 310S, and specialty materials like Nickel, Titanium, Silver, and Tungsten.

What is the maximum temperature resistance?

Our stainless steel woven wire mesh can withstand temperatures up to 800°C (1472°F).

Can I request a custom mesh size?

Yes, we provide customizable mesh counts ranging from 1x1 up to 635x635 and mesh sizes from 1 to 3500 mesh.

What are the common weaving types?

The most common types are Plain Weave, Twill Weave, and Dutch Weave, depending on your filtration requirements.

How is the product packaged for shipping?

Products are typically wrapped in waterproof paper and then secured in pallets or wooden cases to prevent damage.

Are samples available before placing a bulk order?

Yes, samples are available to ensure the mesh specifications meet your application needs.
