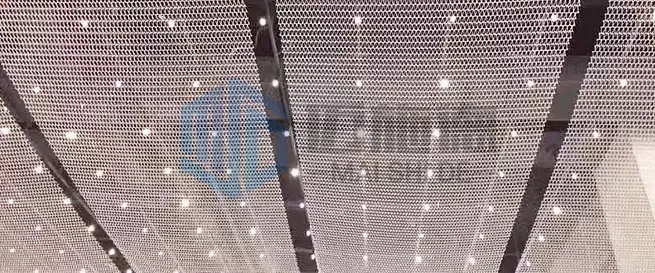

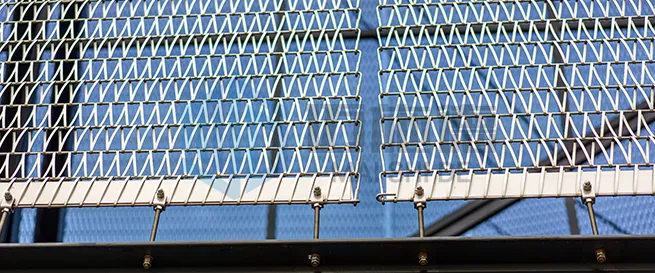

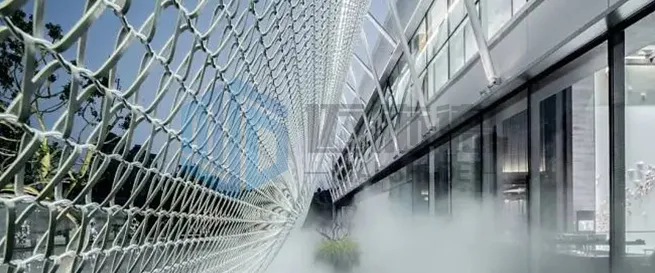

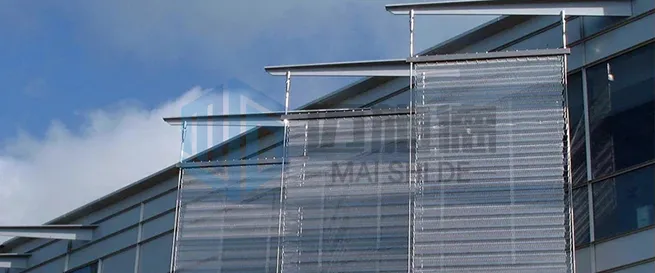

Flexible metal mesh can be used in both indoor and outdoor spaces. Metal curtain systems can create fixed-size interior space partitions or act as movable partition screens to add color and transparency to a space. Additionally, exterior wall mounted systems can achieve uninterrupted coverage of large areas of a building.
Our metal mesh can be made from aluminum, stainless steel, and copper. Once made, it can be treated with a variety of secondary finishes such as powder coated, anodized, or painted to suit any project vision.

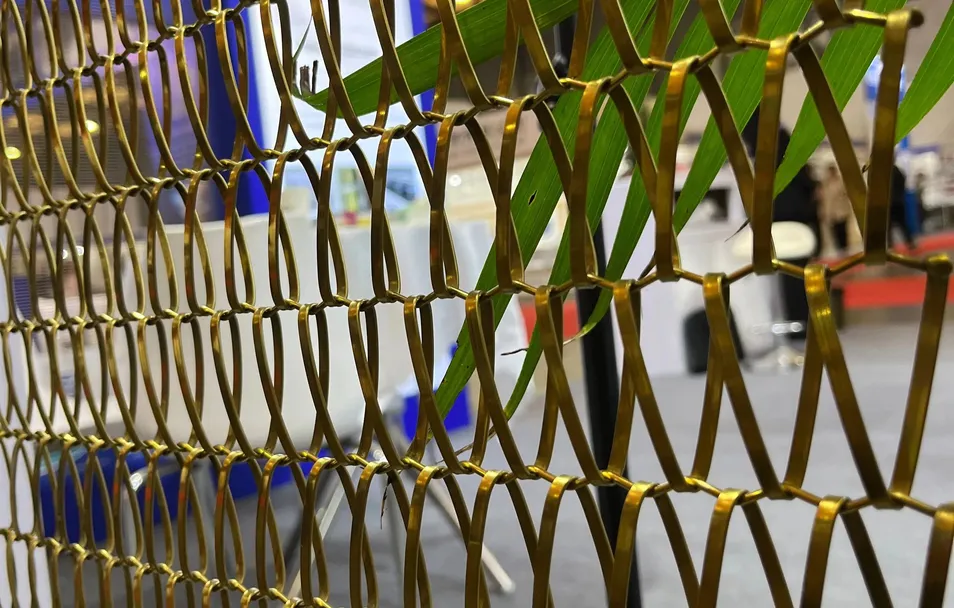

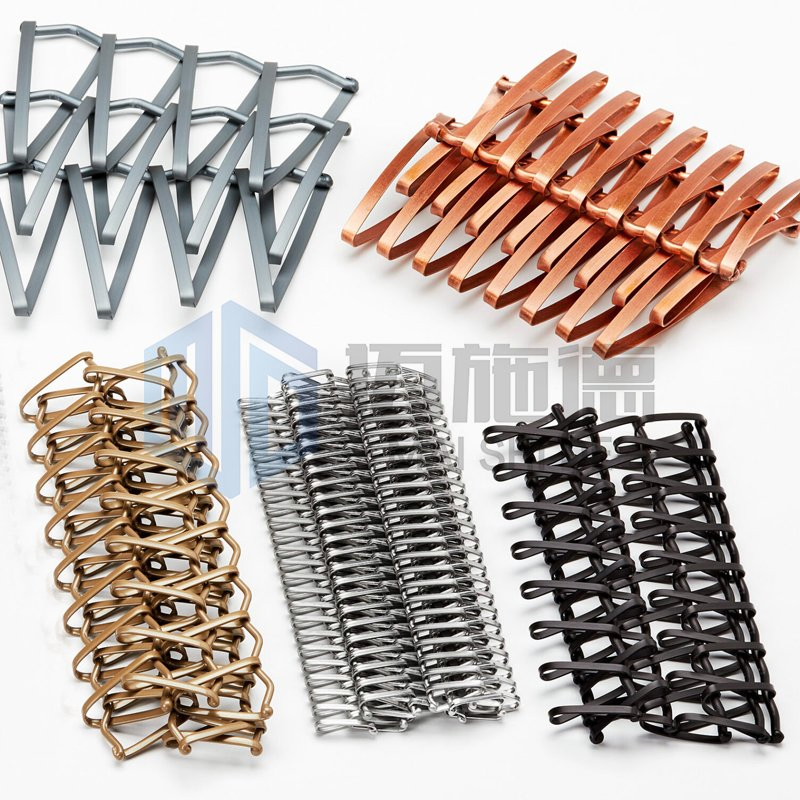

| Material | Stainless steel, copper wire, brass wire and other alloy wires. |
| Spiral Wire Type | Flat wire or round wire. |
| Spiral Wire Pitch | 3 mm, 8 mm, 12.5 mm, 20 mm, 24.3 mm, 35 mm, 36 mm, 38 mm. |
| Rod Wire Type | Straight wire or crimped wire. |
| Rod Wire Pitch | 13 mm, 15 mm, 22.5 mm, 25 mm, 30 mm, 40 mm, 60 mm/ 64.5 mm. |
| Available Colors | Black, silver, white, brass, golden, etc. |
| Surface Finish | Galvanized, oxidation or spray-painting. |

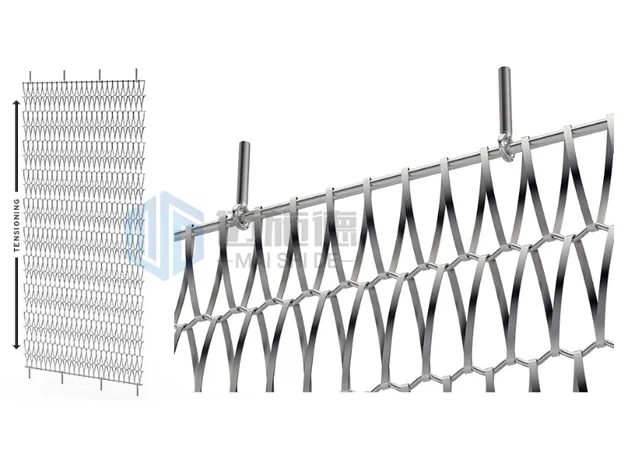

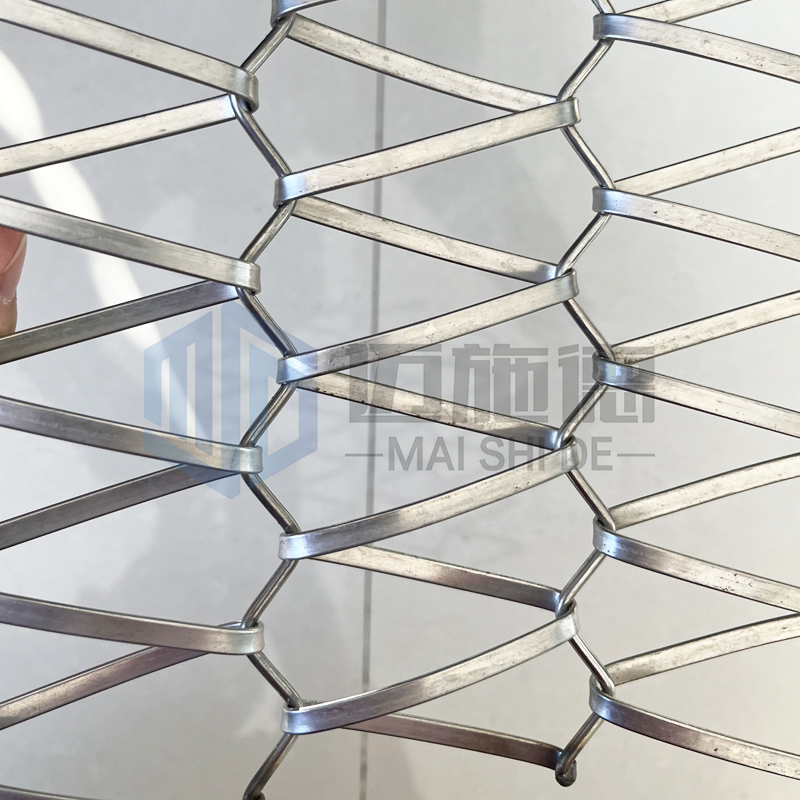

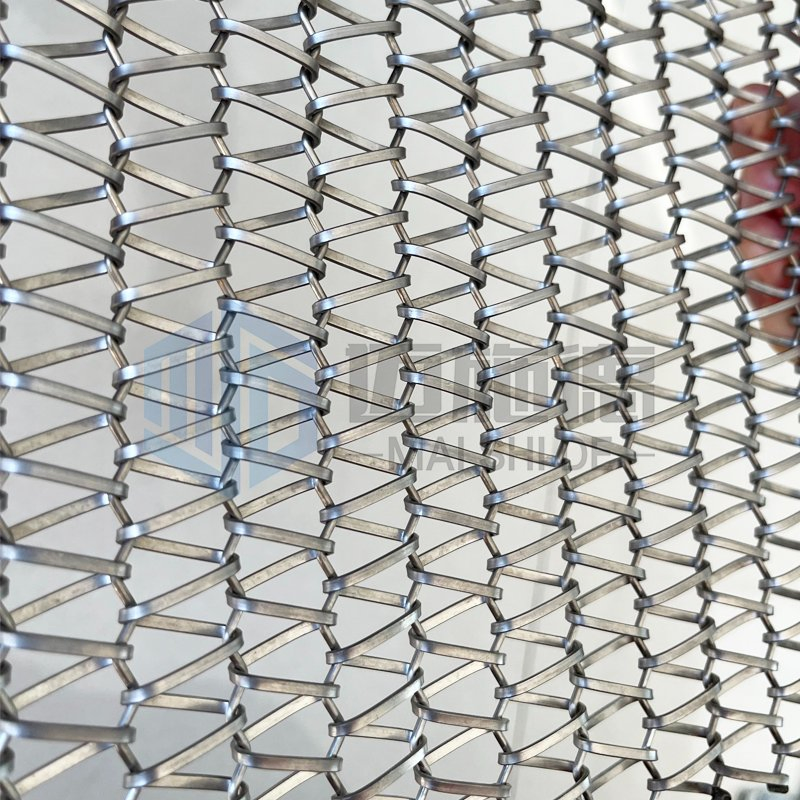

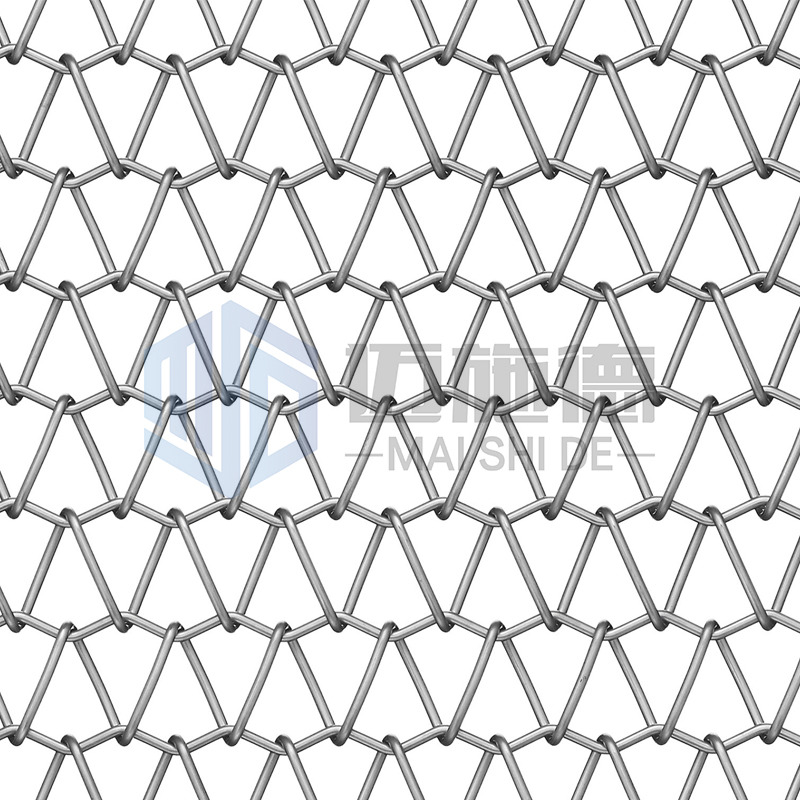

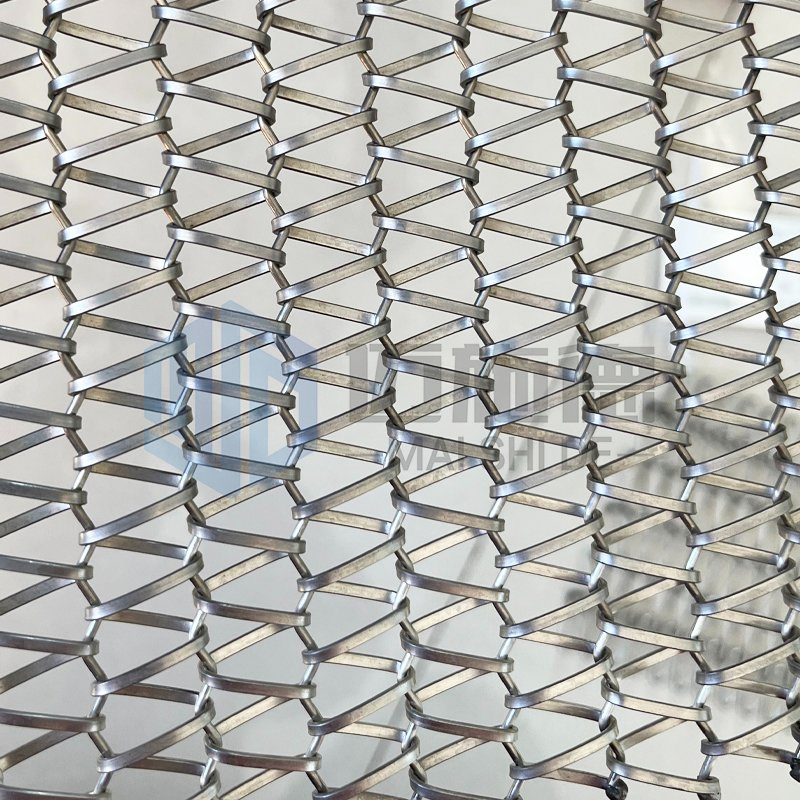

The flexible braid consists of a spiral of wires connected to a rod that passes through an opening in the spiral. These connection points are combined to form a ribbon-like structure.
