📋 Basic Information
Model NO.CT-1
MaterialSteel Wire
Hole ShapeSquare
Weave TechniquePlain Weave
Wire Diameter9.0mm
CertificationASTM, ISO9001, RoHS, CE
Production Capacity5000m2 /Week
HS Code731449000
⚙ Technical Specifications
| Product Name |
Factory Supply High carbon steel polyurethane self cleaning vibrating screen mesh Separating mineral Screening industry Machinery Accessories |
| Material |
Manganese steel(65Mn,30Mn), high carbon steel(72a,82b,60,55,45), spring steel, stainless steel(316, 304, 202). |
| Wire Diameter Range |
0.8mm - 12.7mm |
| Mesh Hole Size |
2mm to 100mm |
| International Certification |
SGS standard, ISO9001:2008 |
📊 Product Features

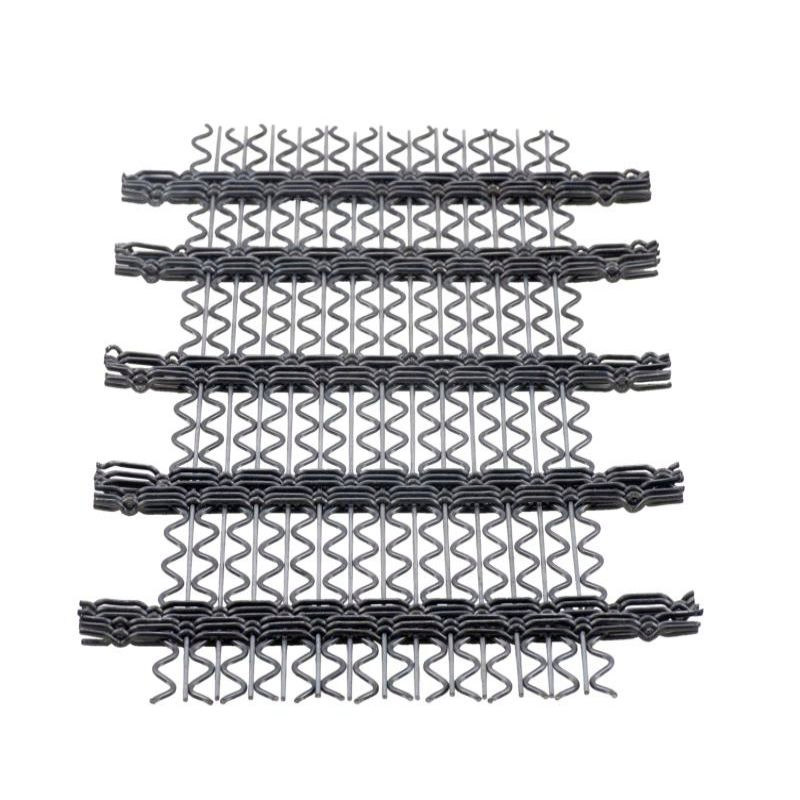

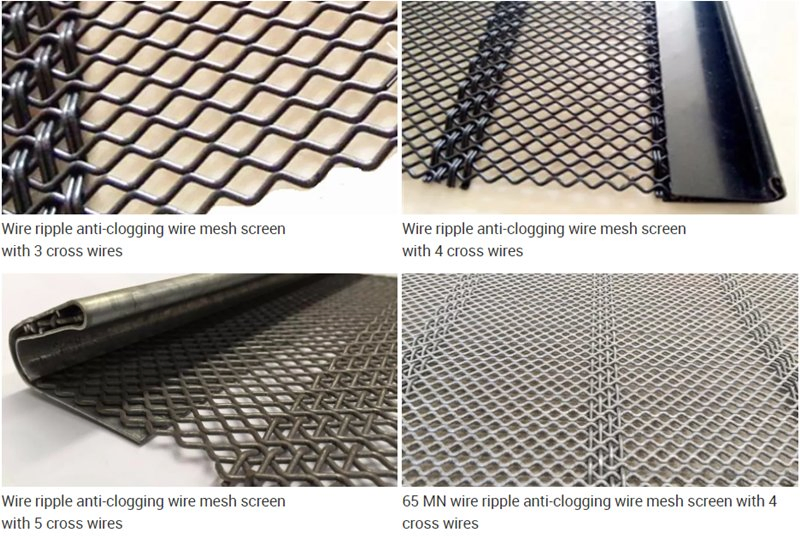

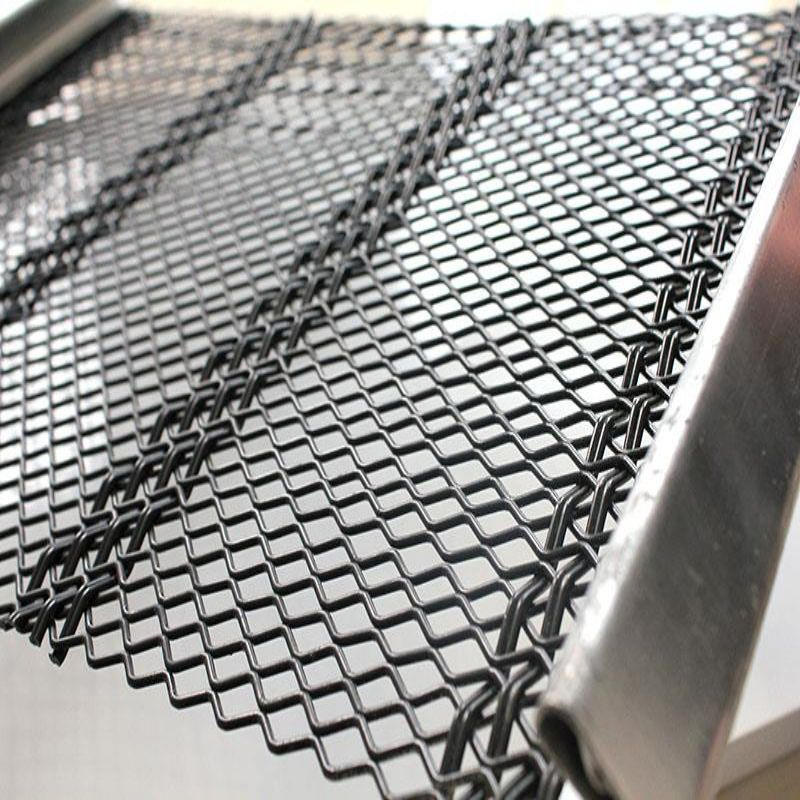

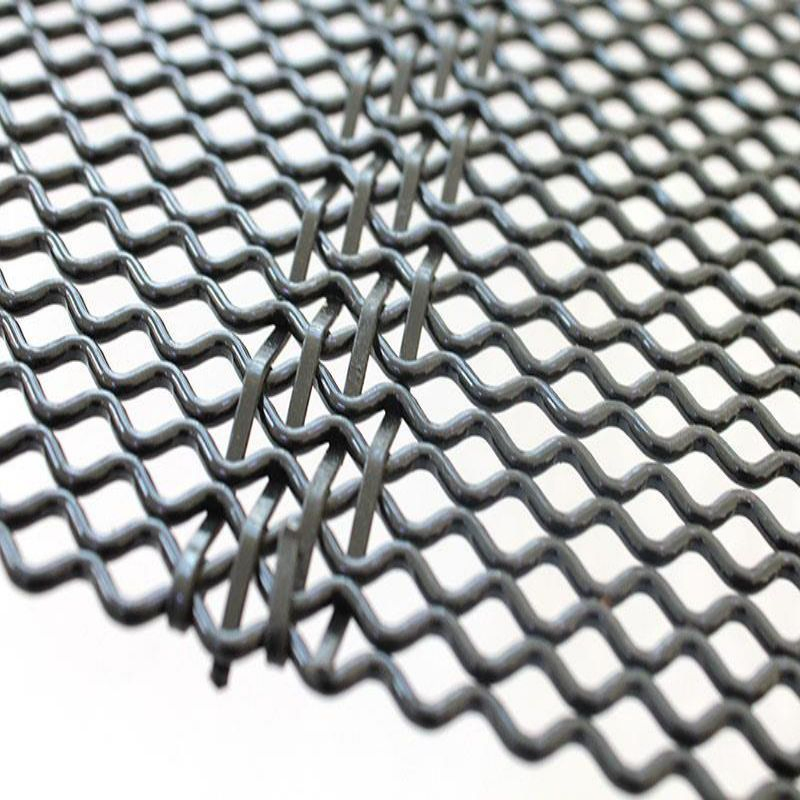

Self cleaning poly ripple screen/folding screen/poly screen mesh mine screens are made with polyurethane coated wire and synthetic rope, either fully or partially welded. Partially welded Tufflex screens are only welded at every 5th crossing point, providing extra flexibility to prevent pegging issues. These screens offer up to 2 times wear life depending on application.
H-Type Poly Ripple Wire Mesh Features:
- Maximum Opening Area and Most effective sizing rate
- Aperture / Opening: 1.3mm to 14mm
- Wire Diameter: 1.0mm ~ 4mm
- Edge types: Raw Edge, plated sheathed, hooked, inner plated welded etc.
- Service Temperature: Maximum 80° C
📦 Packaging & Delivery

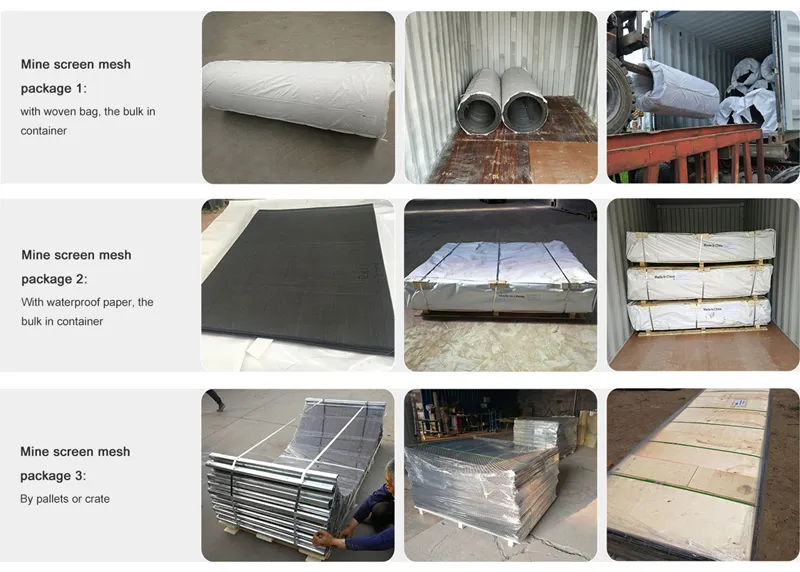

Woven mesh screen is packed inside with moisture-proof paper and other materials. External packaging consists of wooden cases or wooden/steel pallets to ensure product surface quality during transport.
❓ Frequently Asked Questions
What materials are used for the screen mesh?
We use Manganese steel (65Mn, 30Mn), high carbon steel, spring steel, and stainless steel (316, 304, 202) combined with high wear-resistant polyurethanes.
What are the main benefits of self-cleaning mesh?
It provides a high open area while reducing pegging and blinding. The inbuilt flexibility allows wires to move, letting particles pass through rather than blocking the aperture.
What is the maximum service temperature?
The maximum recommended service temperature for our poly ripple wire mesh screens is 80° C.
Is OEM service available?
Yes, OEM service is available to meet specific industrial requirements and dimensions.
How is the product protected during shipping?
Items are packed with moisture-proof paper and secured in wooden cases or on wooden/steel pallets for maximum protection.
