| Technical Specification | |
|---|---|
| Application | Meeting requirement for melting ferrous and non-ferrous metal |
| Capacity range | 25,000kg-70,000kg (related to cast iron) |
| Standard features | Semi-open design, Rodless coil, Wind cooling yoke, All-round protective cover, Lining-output system, Furnace-leakage alarm |
| Optional features | Fume hood, Weighing system, Backward slag removal mechanism |

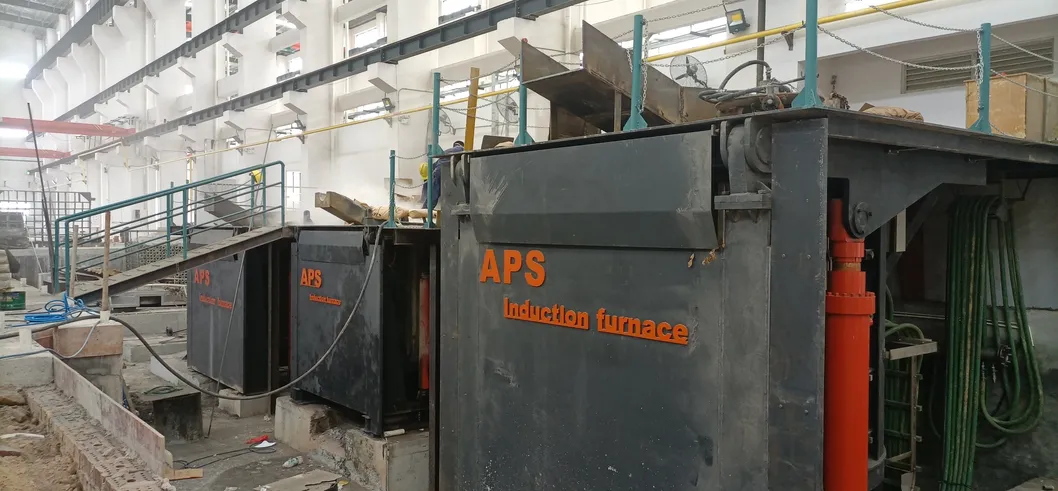

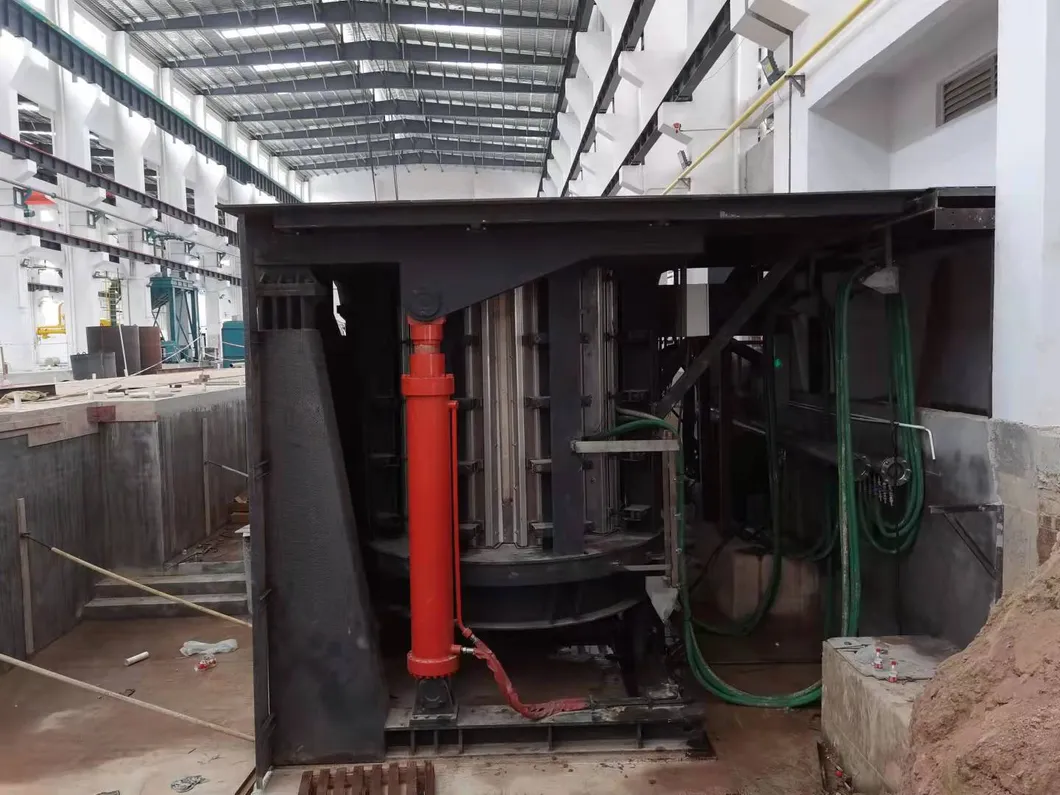

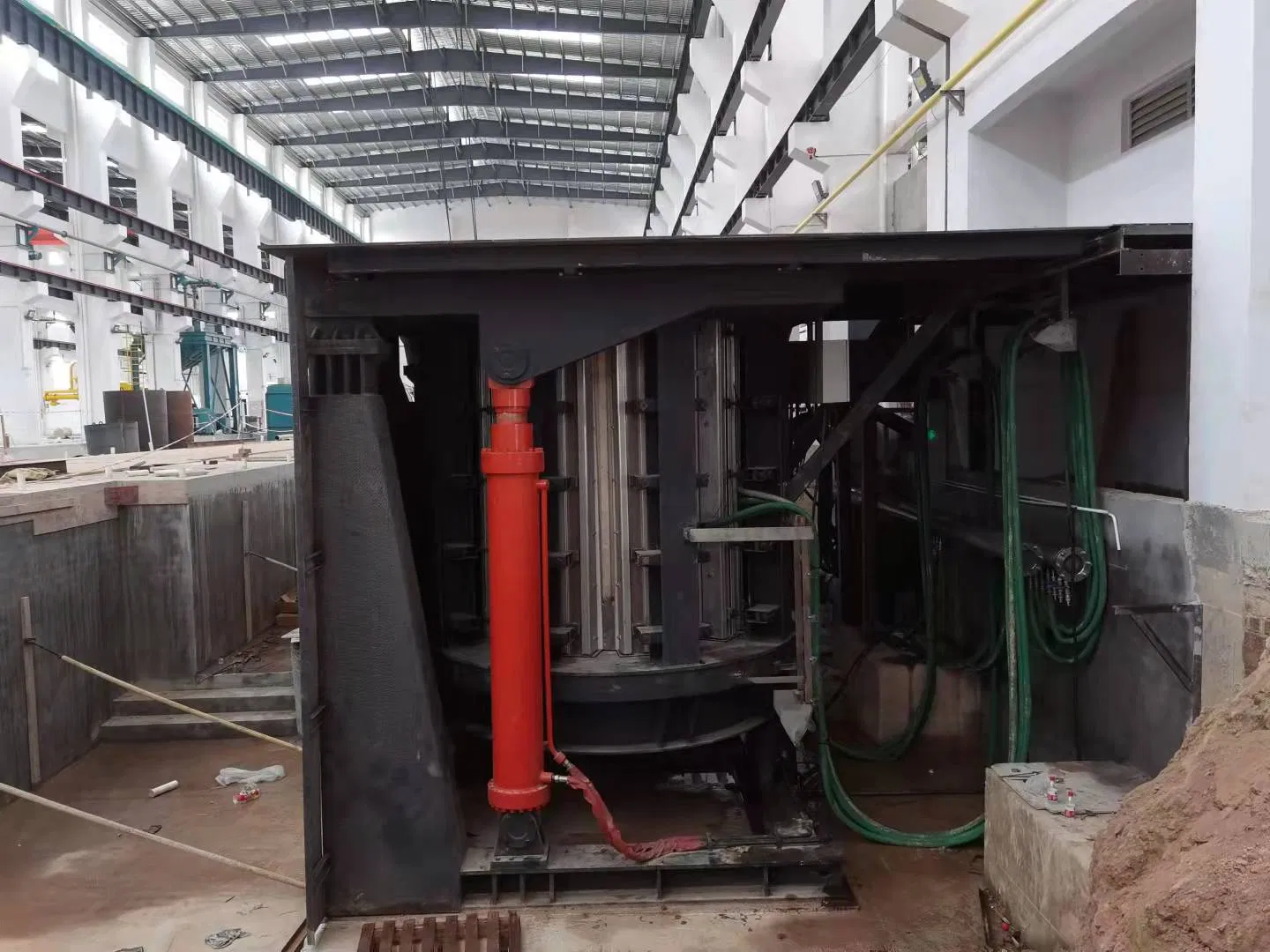

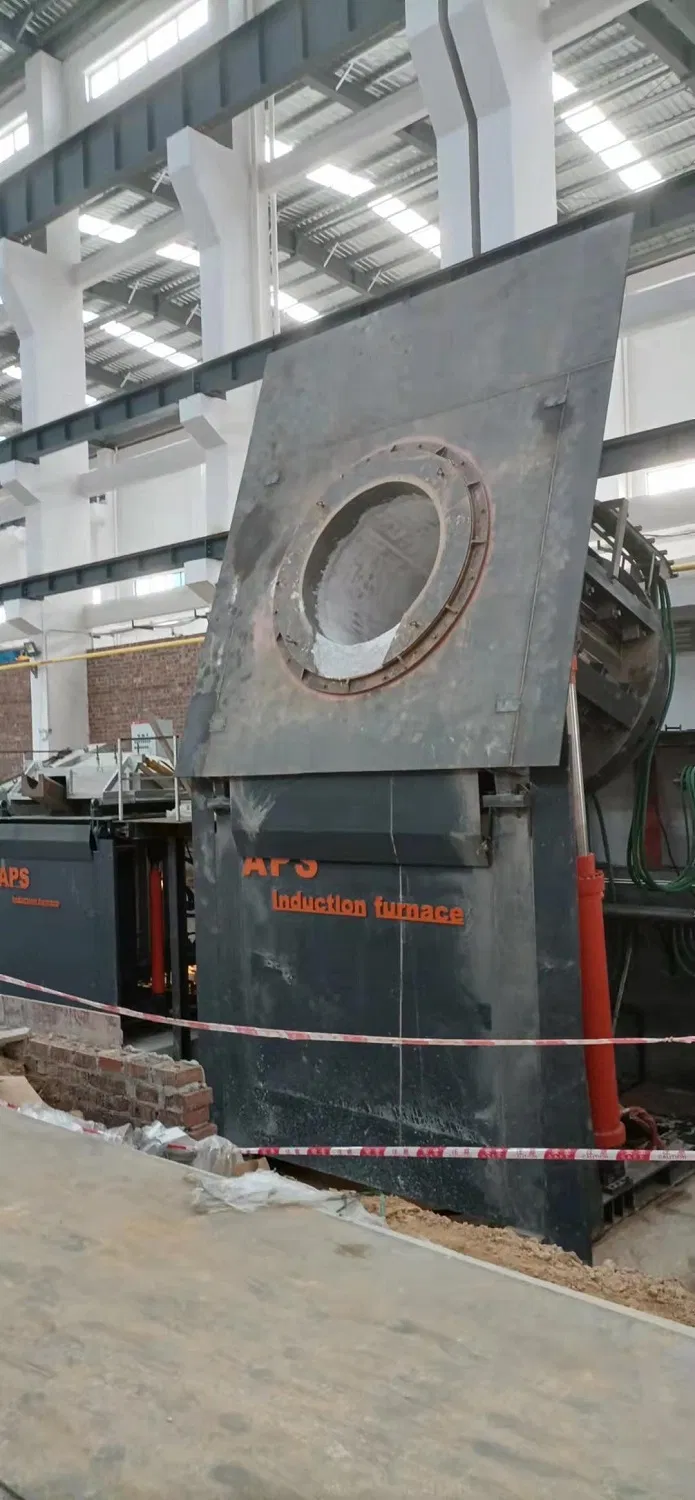

In order to ensure the strength of the furnace body, the steel shell furnace above 25 tons is designed to be semi-open design.

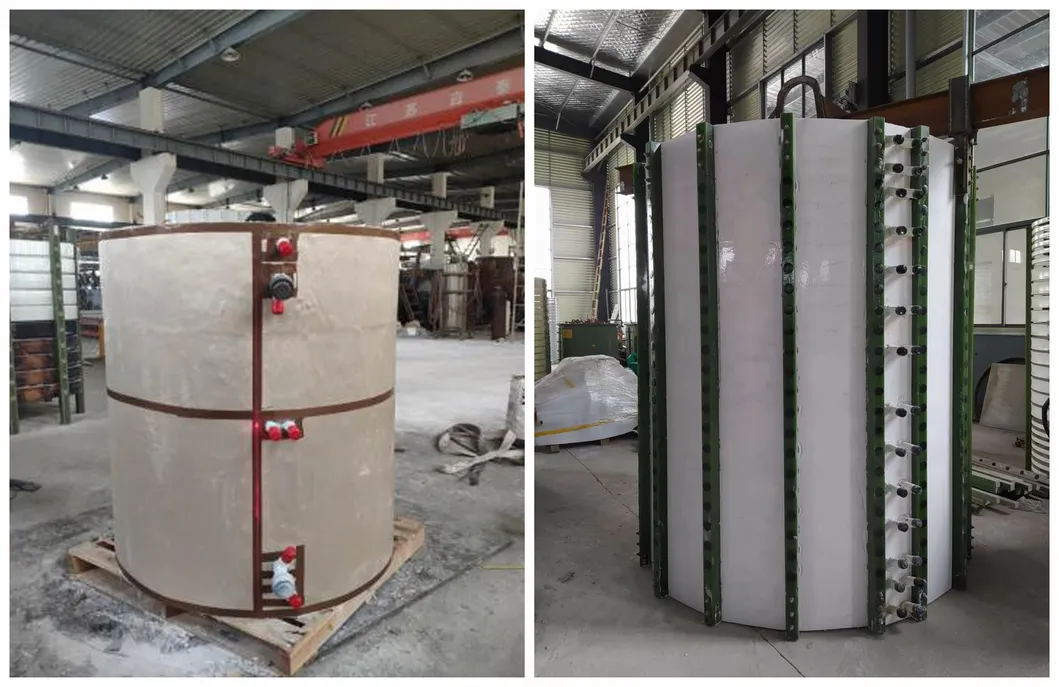

By using horizontal winding process, the effective coil and the water-cooled coil can be wound from the same oxygen-free copper tube without any segmentation. Coil turn gaps are tight and consistent for maximum electrical efficiency.

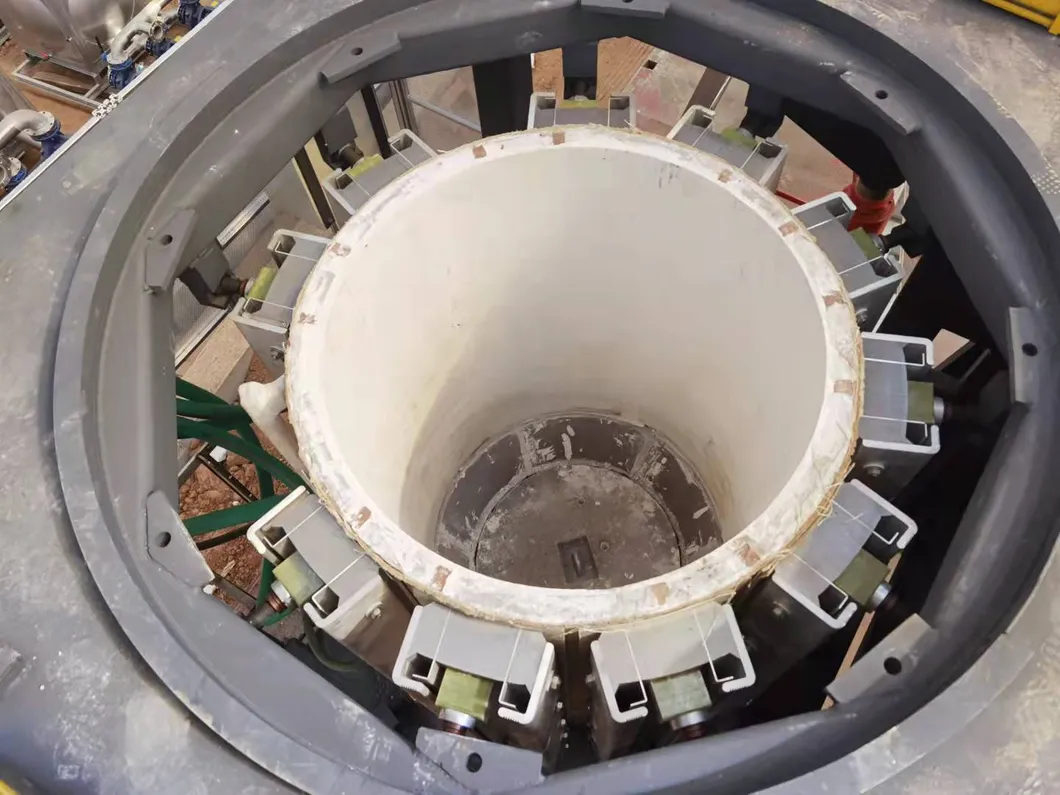

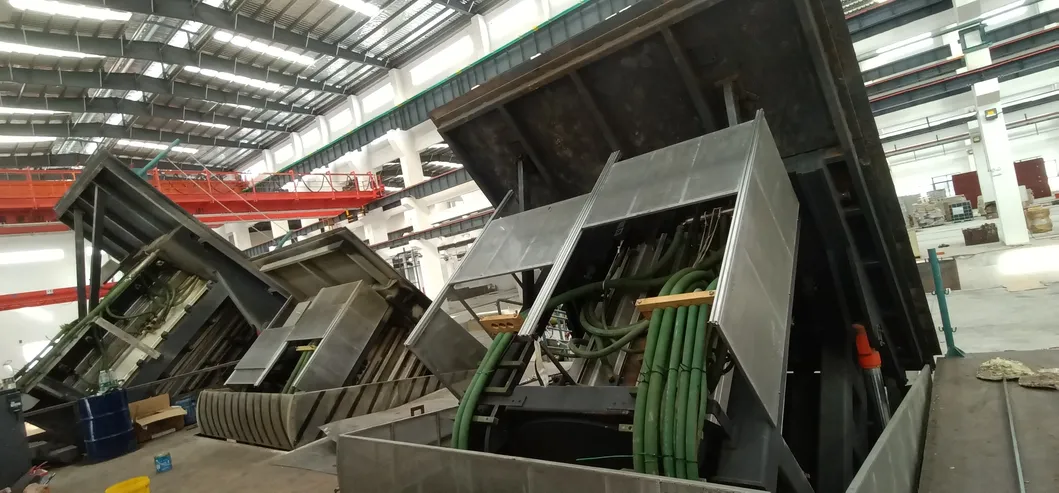

The yoke adopts a unique design without water cooling, eliminating hidden dangers of water leakage. The upgrade all-round protective cover shields the coil and cables from metal debris damage while remaining maintenance-friendly.

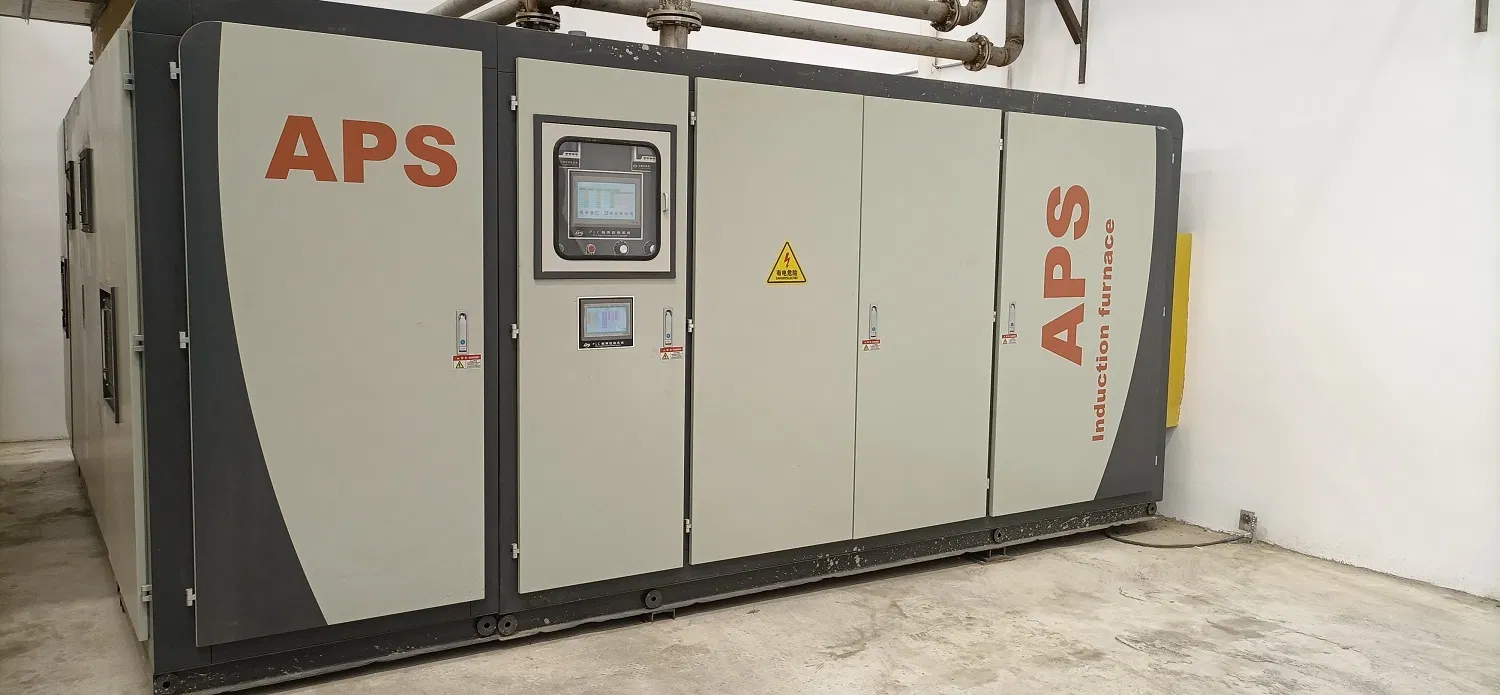

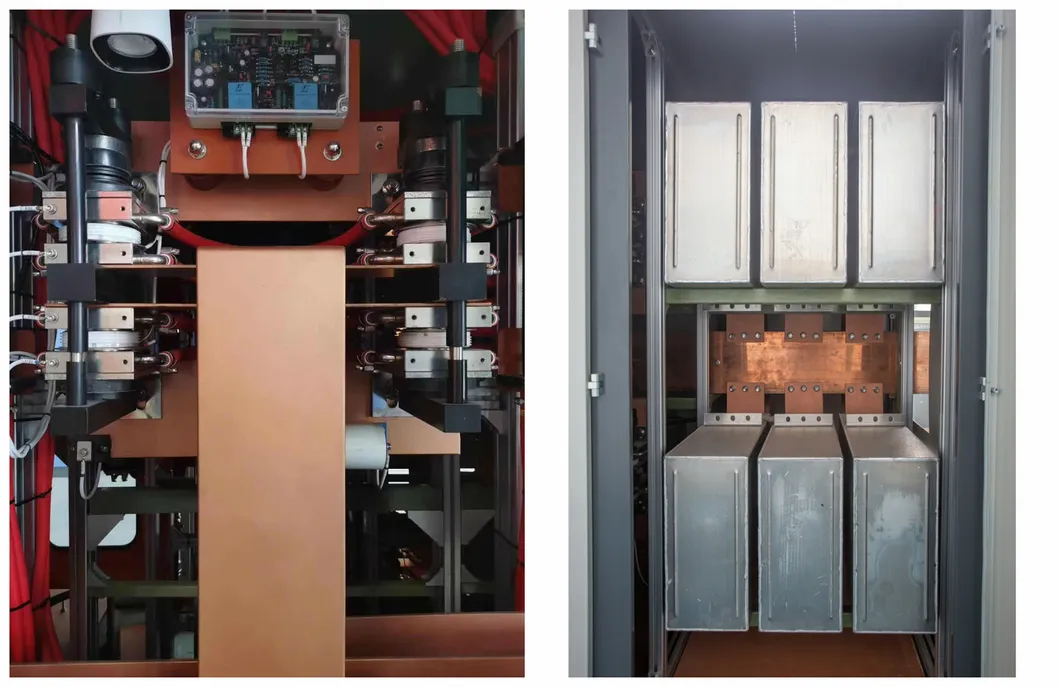

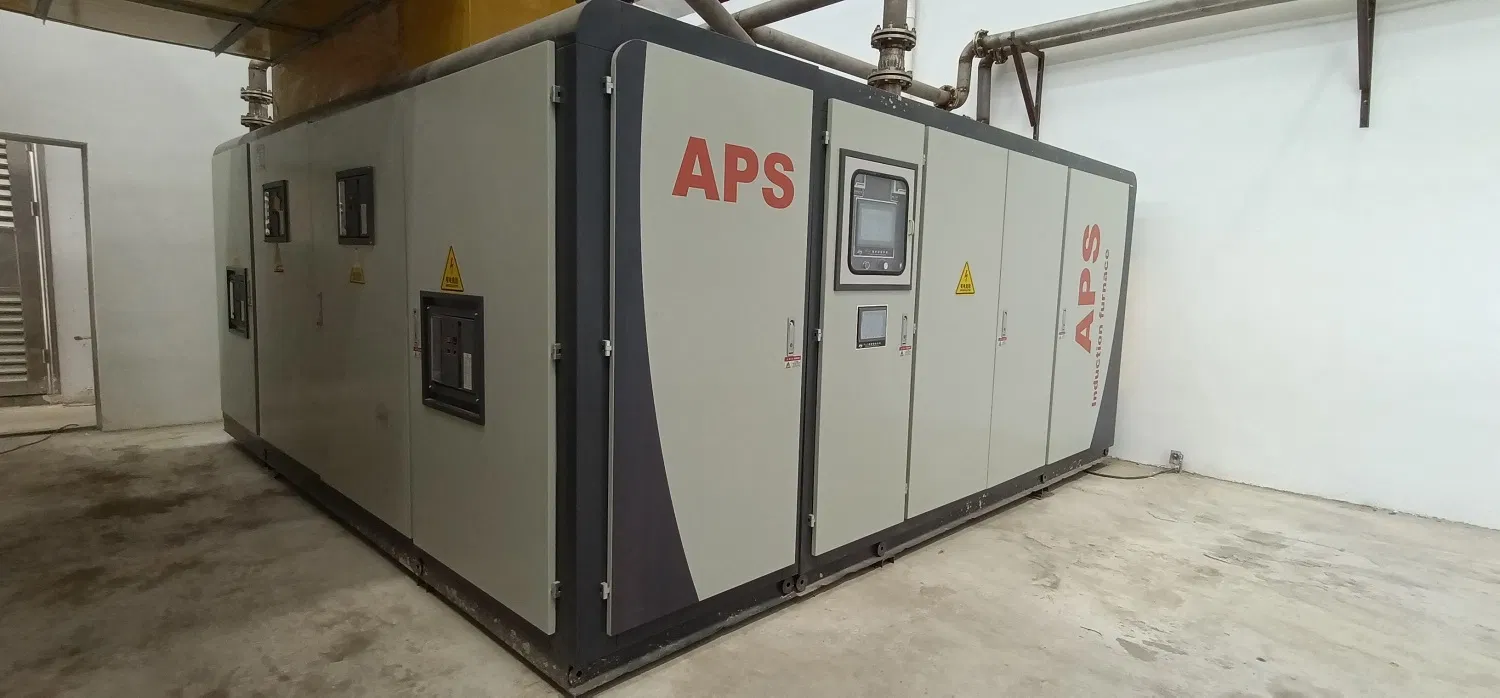

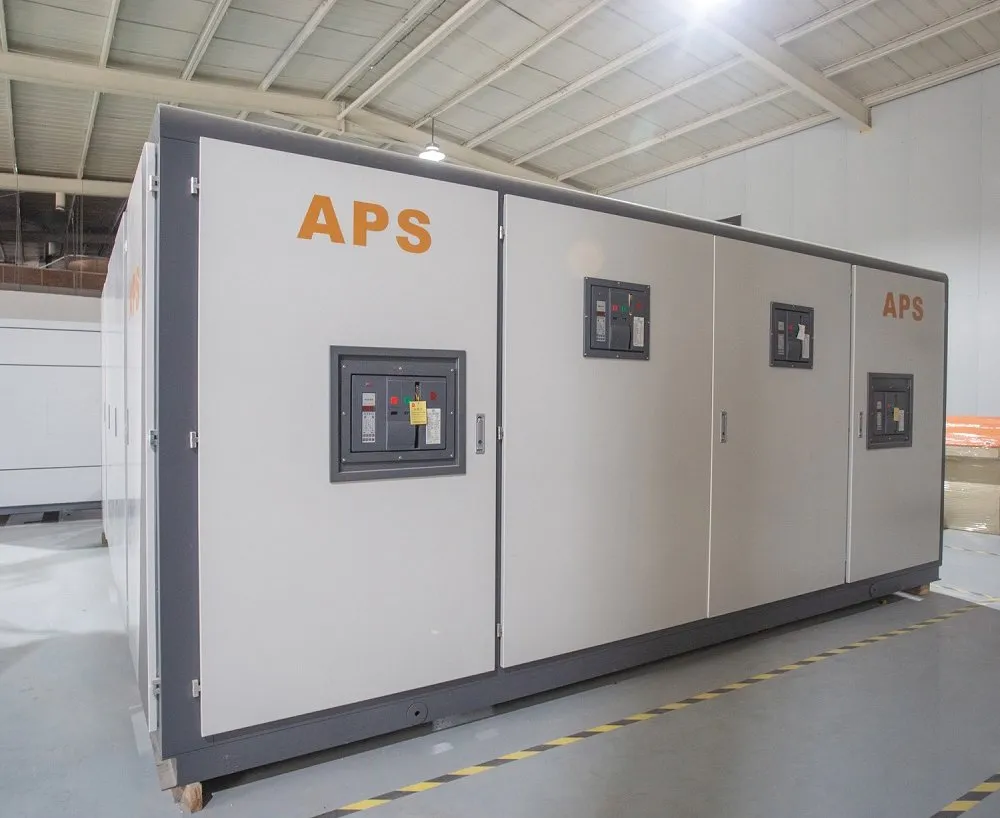

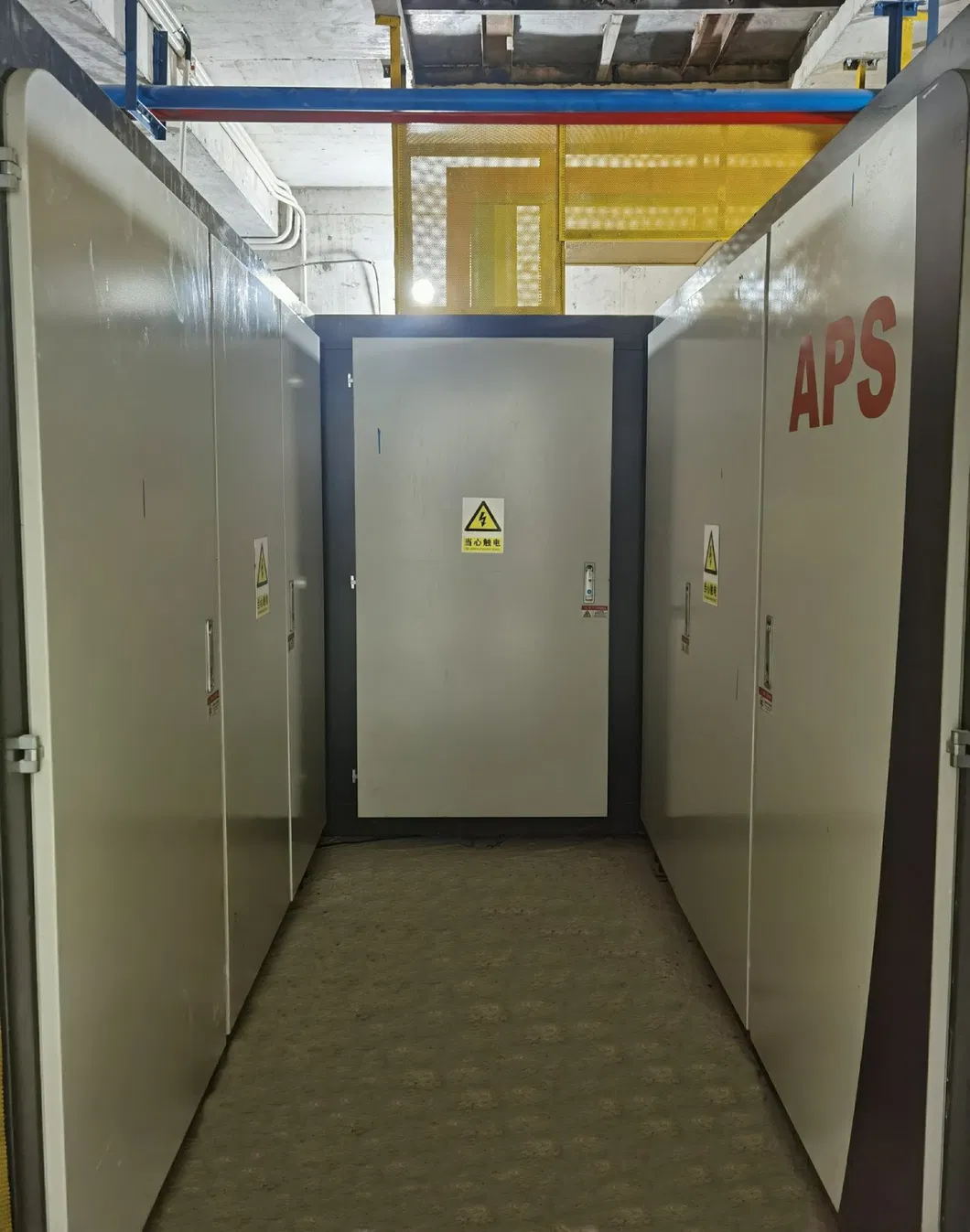

Core components like thyristors and capacitors are equipped with spare modules. These can be quickly activated if a device is damaged, ensuring continuous production. The modular design also allows for easy capacity upgrades at a lower cost.
Specializing in international leading technology for induction melting and heating. Current production capacity for induction melting furnaces reaches up to 70 tons, with power supplies up to 50,000kw. The equipment is widely used in carbon-based composite materials, high-performance ceramics, vacuum melting, and powder metallurgy.
The facility is also a professional manufacturer of power control boards, induction coils, water-cooled cables, yokes, and reactors, ensuring high quality control and optimized delivery times.
