Basic Info
| Model NO. | SW8000NBE |
| Storage Method | Hard Drive |
| Use | Workstation |
| Supporting System | LINUX |
| Product Name | Outdoor Wireless Base Station |
| Frequency Band | IEEE802.11A/N: 4920 ~ 6100MHz |
| RF Power Output | 2*500MW |
| Max Operating Speed | 300Mbps |
| Specification | 323*310*97mm |
📝
Product Description

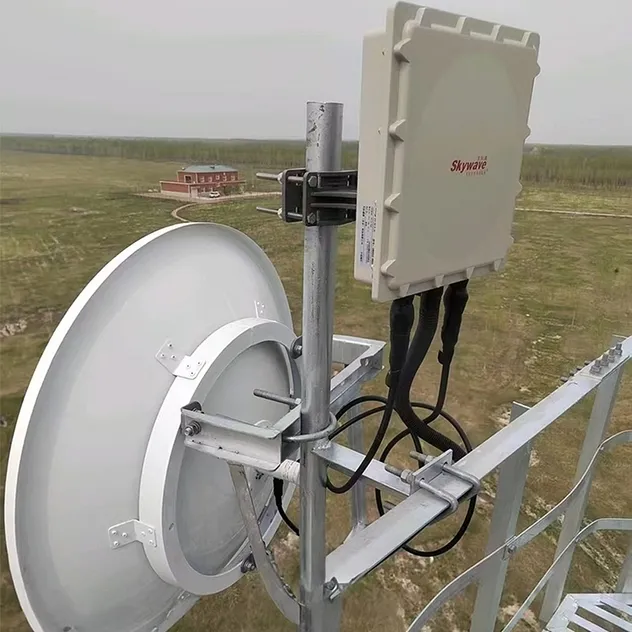

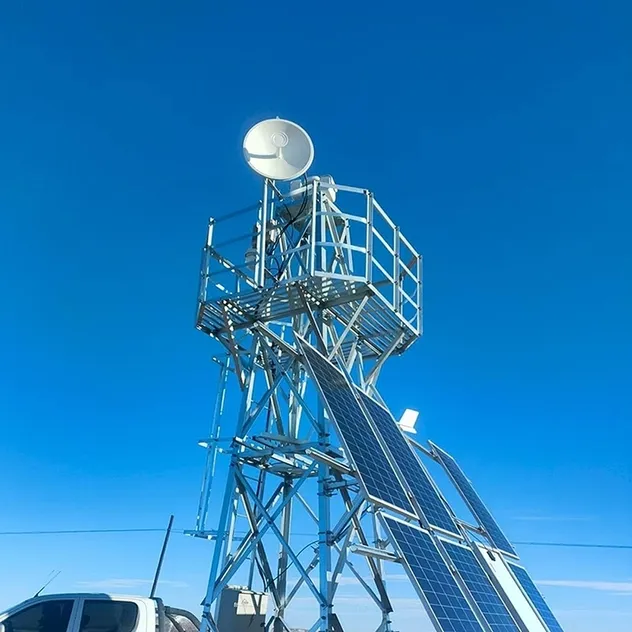

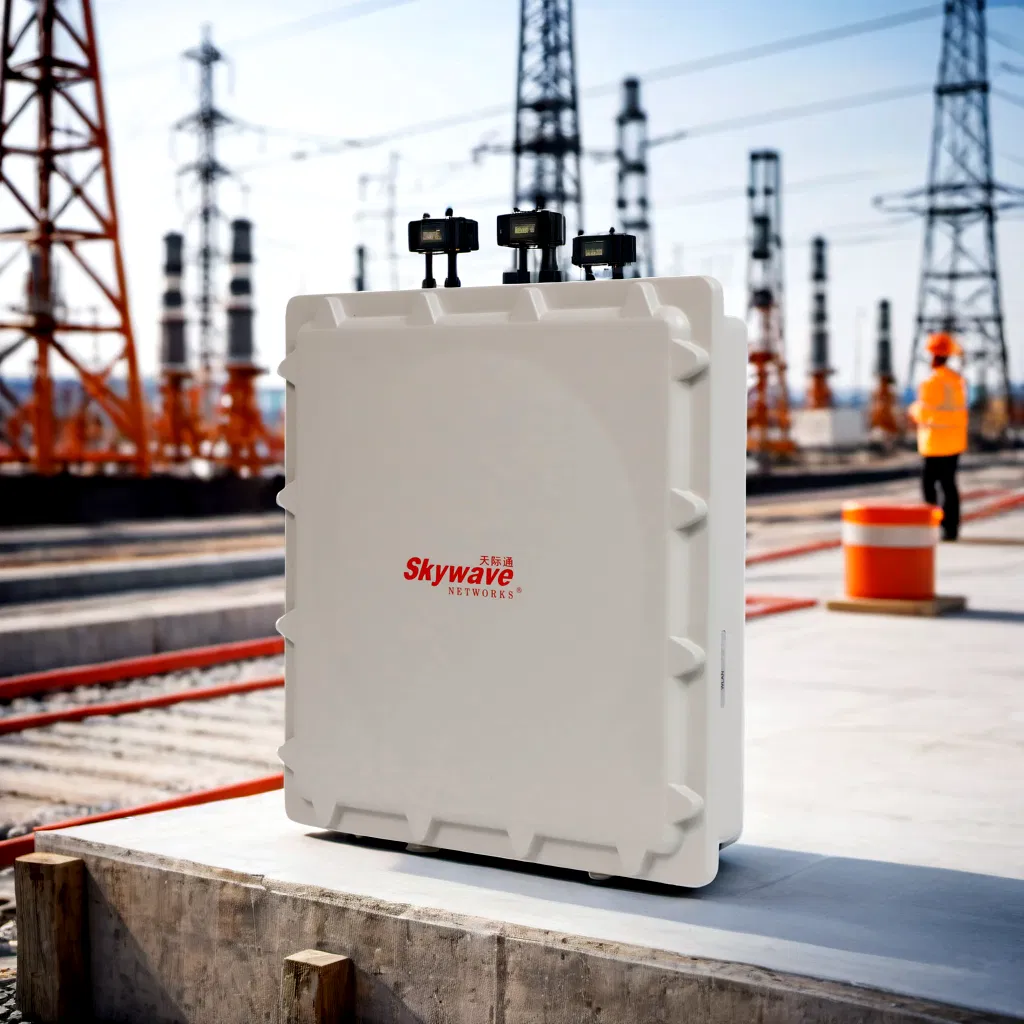

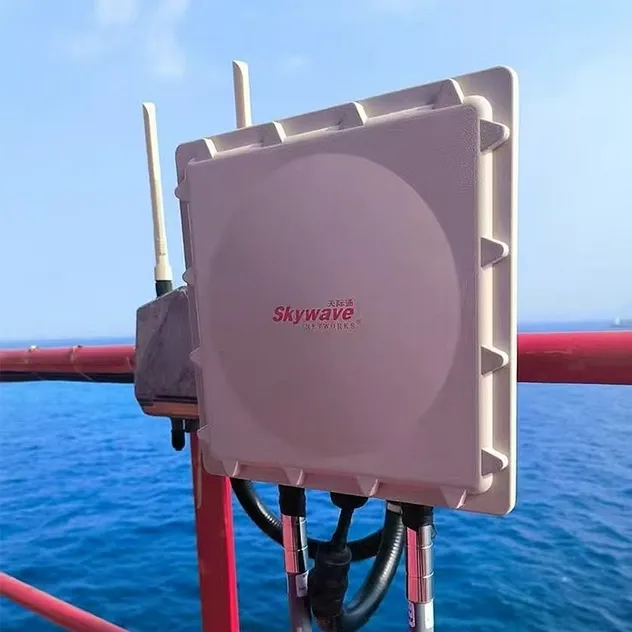

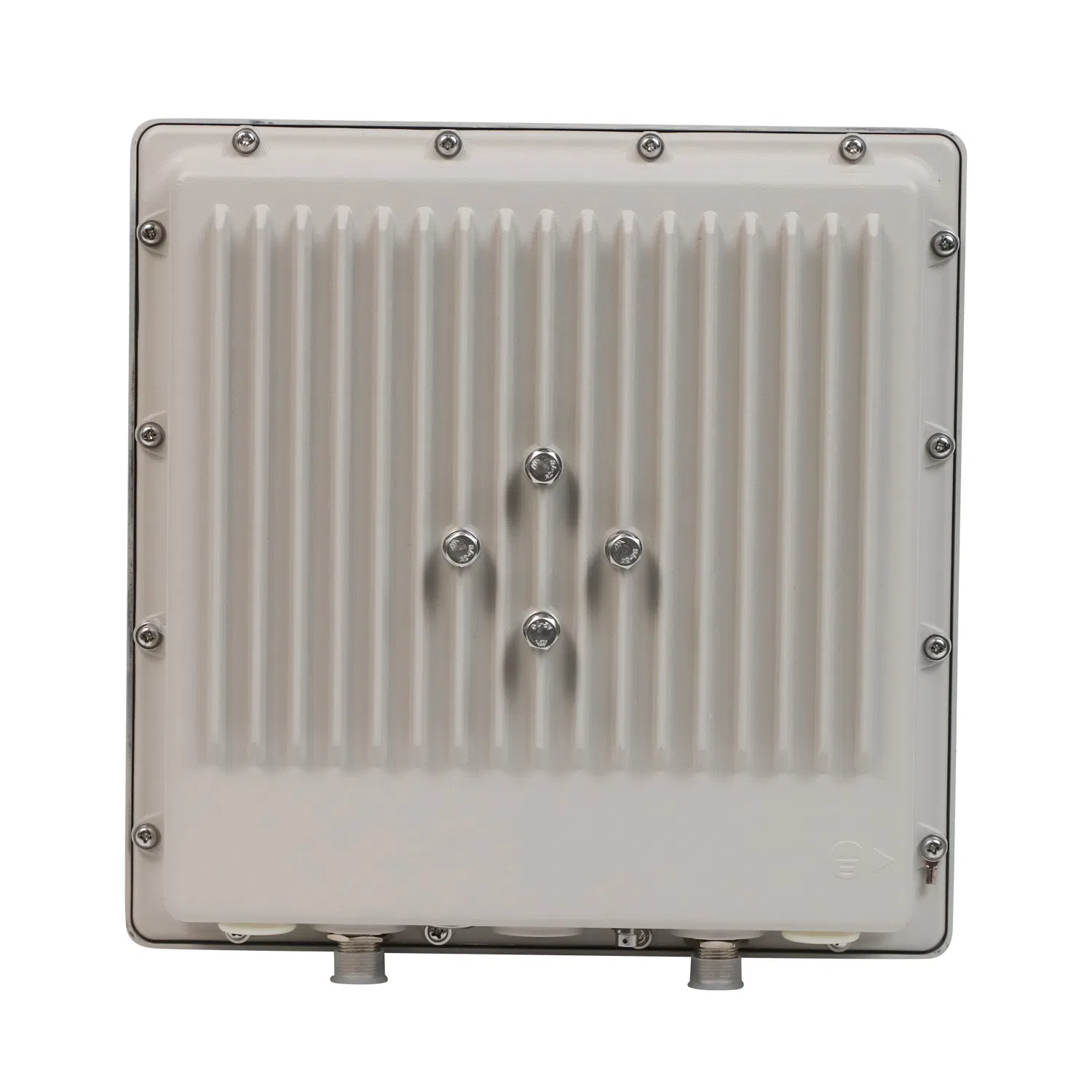

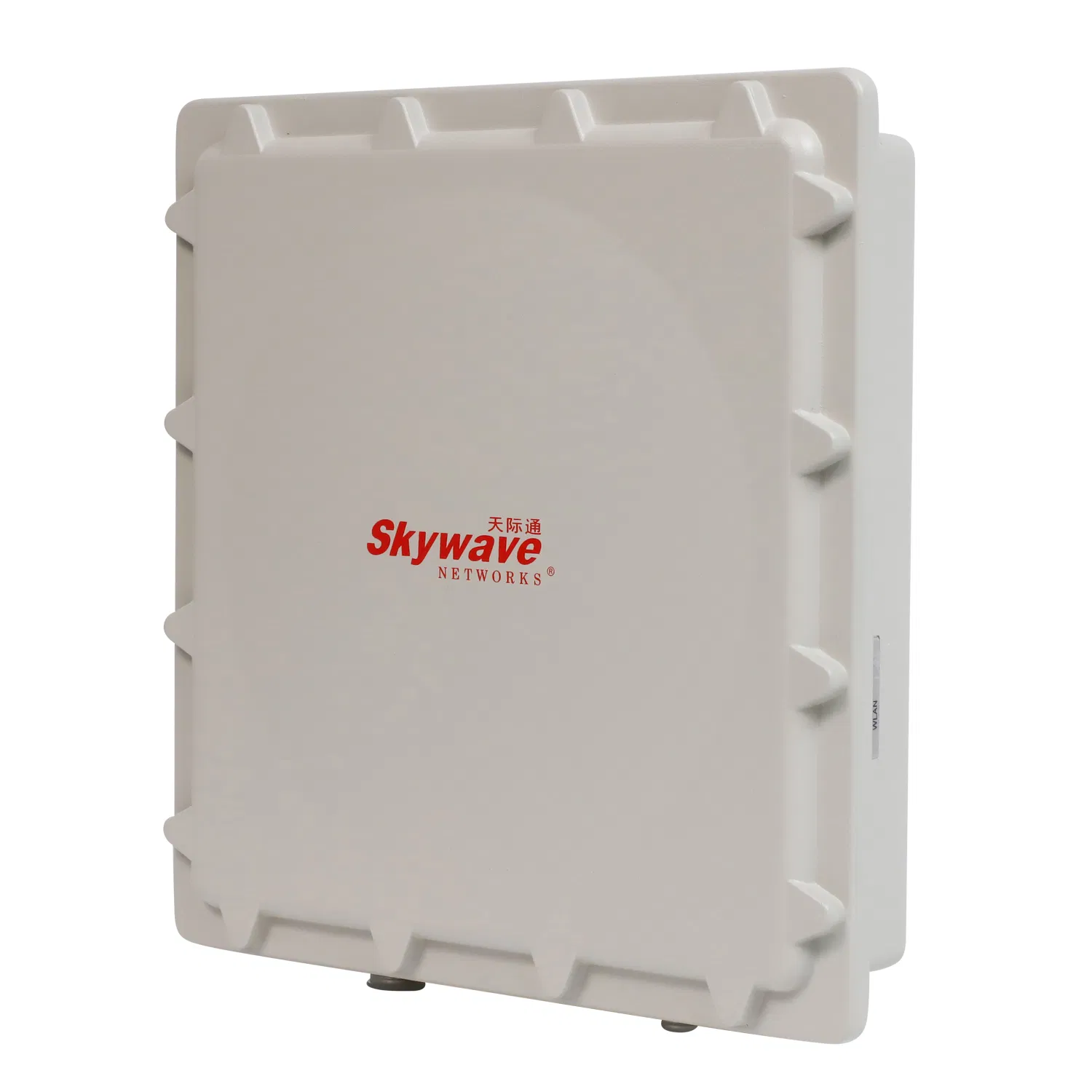

The SW8000NBE is an outdoor, carrier-grade, split wireless base station operating in the 5GHz unlicensed frequency band. It is a wireless network device compliant with the IEEE802.11a/n standards. It utilizes a high-performance Qualcomm Atheros high-speed network processor and IEEE802.11a/n MIMO (Multiple Input Multiple Output) technology. It employs a 2T2R architecture and supports wireless transmission rates of up to 300Mbps. Its combined RF output can reach up to 2 x 500mW, with a sensitivity of up to -96dBm. The device utilizes a 2 x N-type RF interface, allowing for connection to various external antenna types based on site conditions. It is ideally suited for long-distance backbone network transmission projects and real-time, high-data-stream services, such as those in oilfields, power generation, water conservancy, forestry, industrial and mining enterprises, safe cities, intelligent transportation, and digital energy.
🖼️

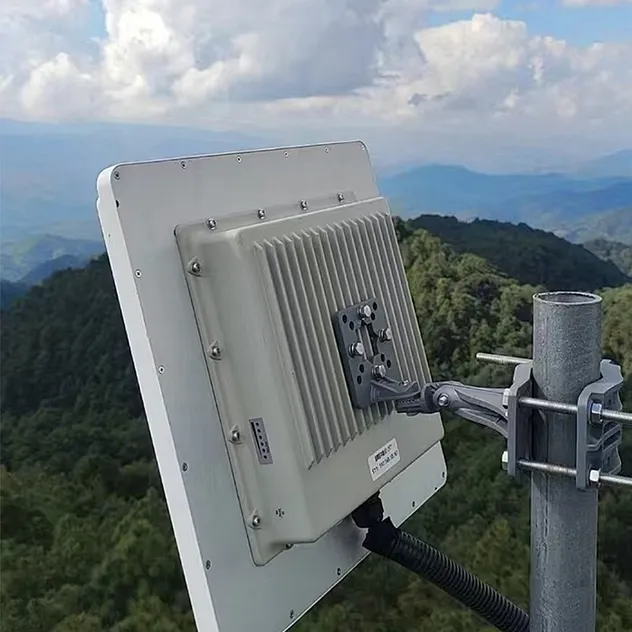

Detailed Photos

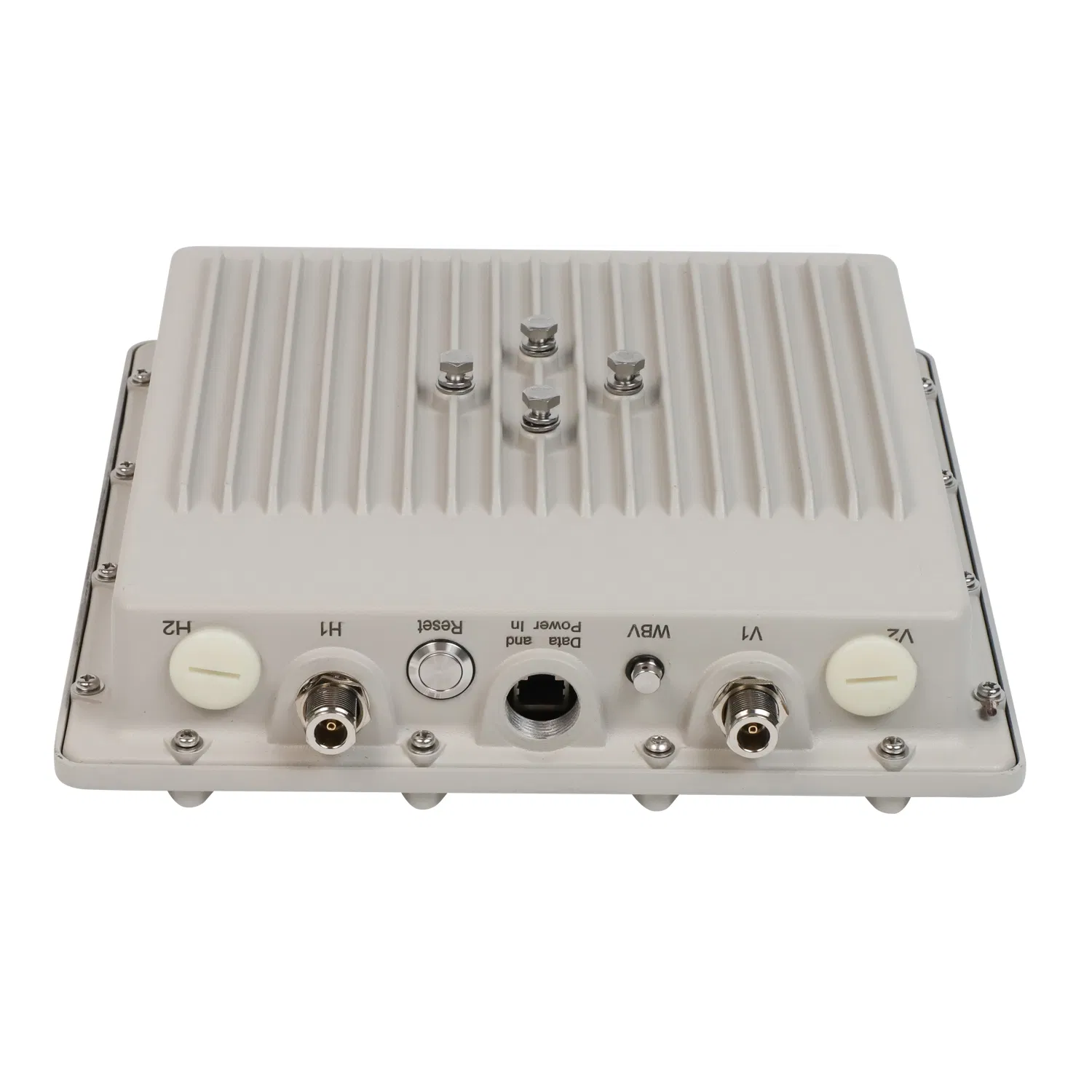

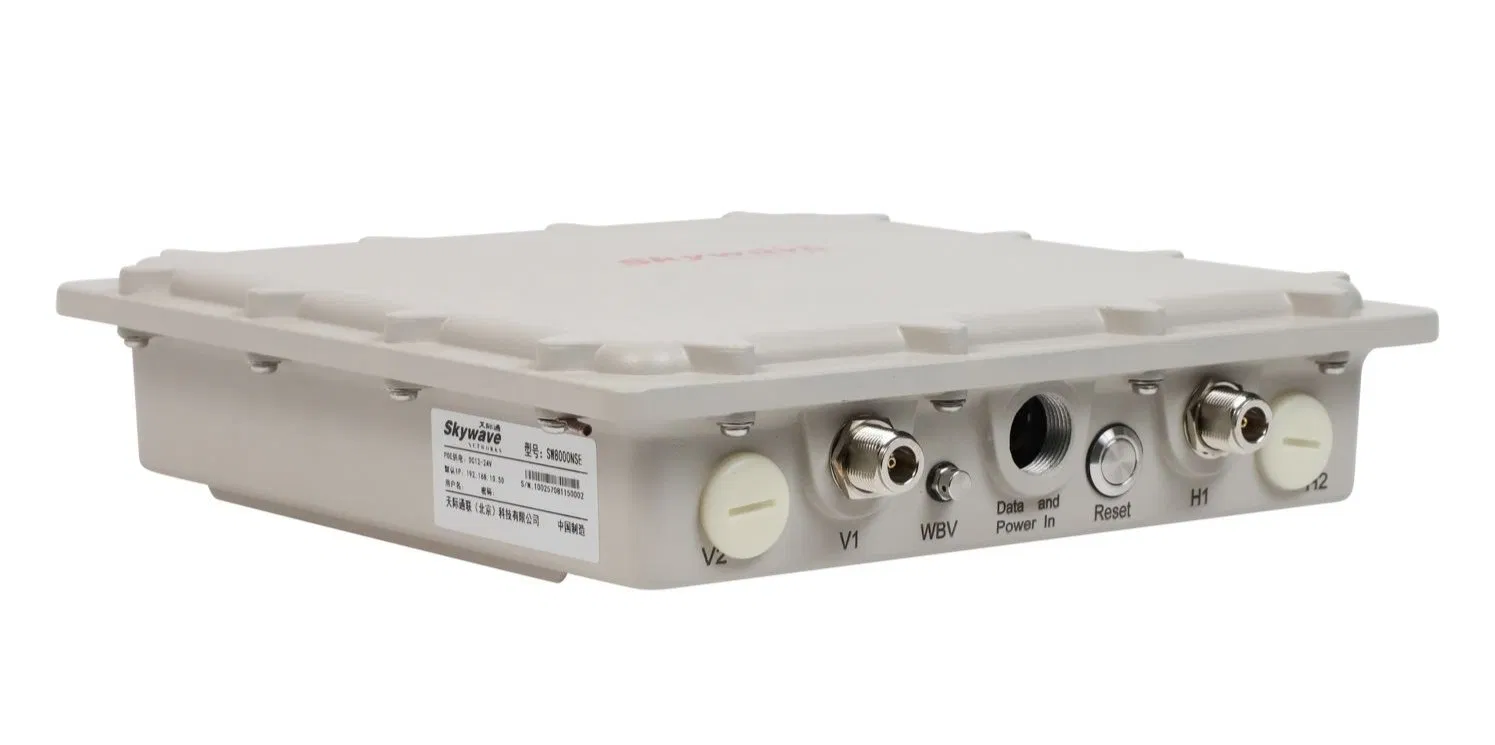

The SW8000NBE supports point-to-point (PTP) and point-to-multipoint (PTMP) wireless applications, and features wireless roaming (WDS), virtual AP, and mobile Wi-Fi access management. Its cast aluminum housing is weatherproof, windproof, rainproof, lightning-proof, sun-proof, dustproof, shockproof, and heat-dissipating. It also supports a one-click restore function, requiring no specialized setup. Power over Ethernet (PoE) technology makes it easy to install and operate outdoors.
📊
Product Parameters
| RF SPECIFICATIONS |
| Frequency Band | IEEE802.11a/n: 4920 ~ 6100MHz |
| Channel | 5/10/20/40MHz |
| RF Power Output | 2*500mW |
| Sensitivity | -96dBm@MCS0, -75dBm@MCS7 |
| HARDWARE SPECIFICATIONS |
| CPU Chip | AR9342/AR9283 (600MHz) |
| Memory | 64MB DDR2 |
| Dimensions | 270×270×65 mm |
| Power Supply | PoE (100-240V Default) |
| Operating Temp | -50°C to +80°C |
| Protection | IP68 Waterproof & Dustproof |
⭐
Technical Highlights
Standard Compatibility
Complies with IEEE 802.11a/n standards, utilizing advanced technologies such as MIMO and OFDM.
Long Distance Transmission
High transmit power combined with high receive sensitivity allows the split antenna to reach distances exceeding 200km.
Bandwidth Management
Supports WMM (QoS), ensuring priority mapping for voice and video service priority.

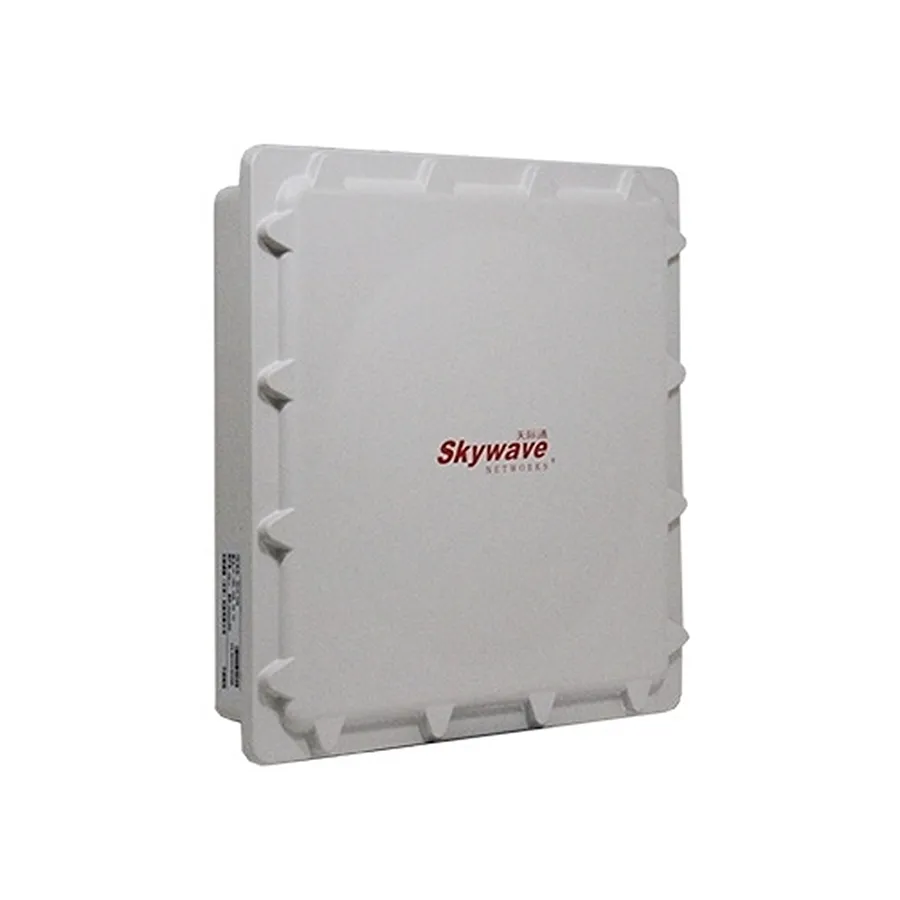

Industrial Durability
Metal cast aluminum housing with IP68 sealing is dustproof, waterproof, windproof, and heat-resistant.
Integrated Vent Valve
Stainless steel decompression vent valve balances air pressure and prevents condensation in harsh environments.
Security Encryption
Supports WEP, WPA, WPA2, AES, TKIP, EAP, and 802.1X for robust data protection.
❓
Frequently Asked Questions
Is the device suitable for extreme weather conditions?
Yes, it features an industrial-grade IP68 design and operates in temperatures ranging from -50°C to +80°C.
What is the maximum wireless transmission rate?
The SW8000NBE supports 2x2 MIMO technology with a maximum transmission rate of up to 300Mbps.
Does it support remote power supply?
Yes, it supports Gigabit Power over Ethernet (PoE), which simplifies outdoor installation and maintenance.
Can I customize the product with my own branding?
We support on-demand customization, including LOGO, color, and appearance size adjustments.
How do I monitor the signal strength during installation?
The device is equipped with a 5-level LED indicator that automatically displays received signal strength for easy commissioning.
What transmission protocols are supported?
It supports standard 802.11 protocols as well as a proprietary TDMA protocol for improved efficiency in PTMP applications.
