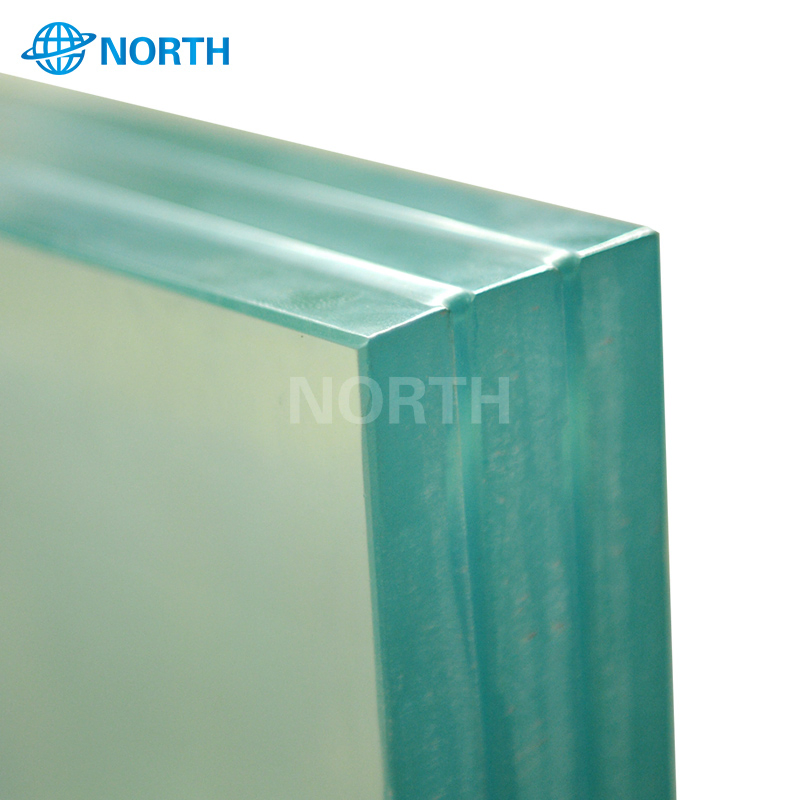

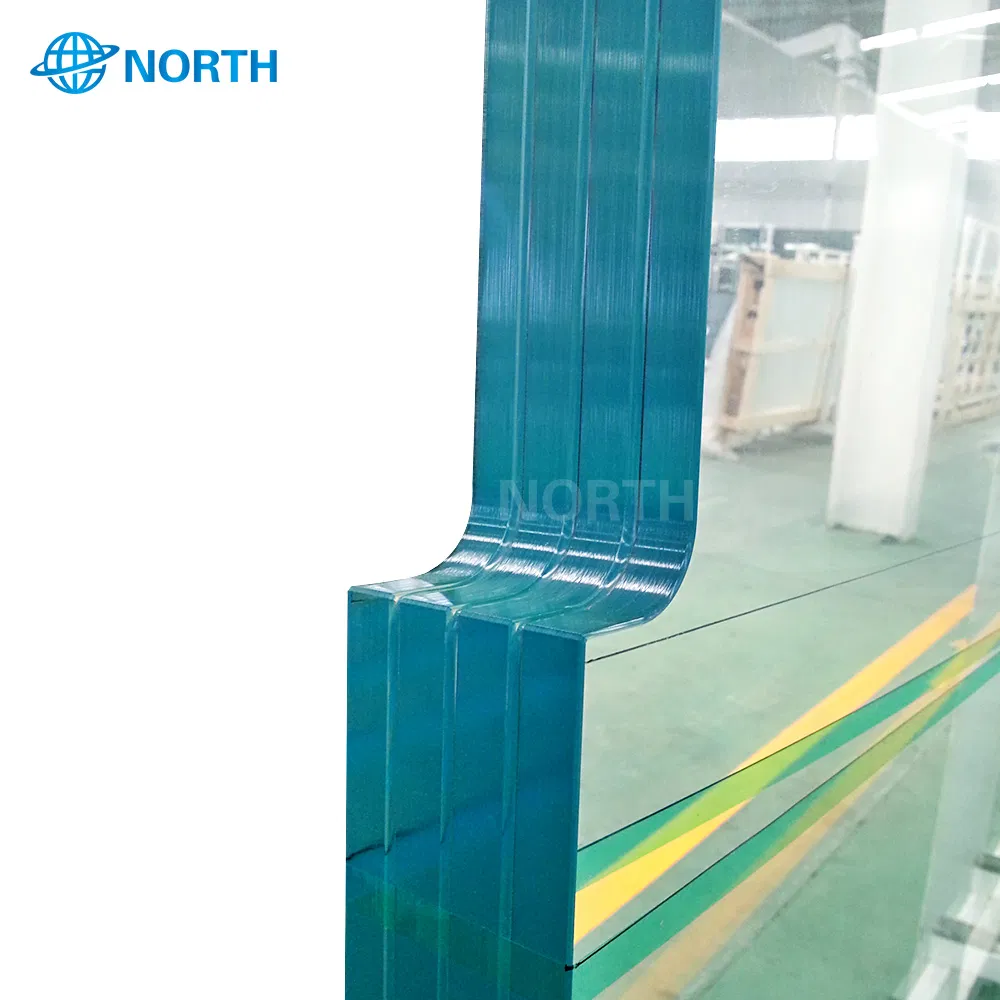

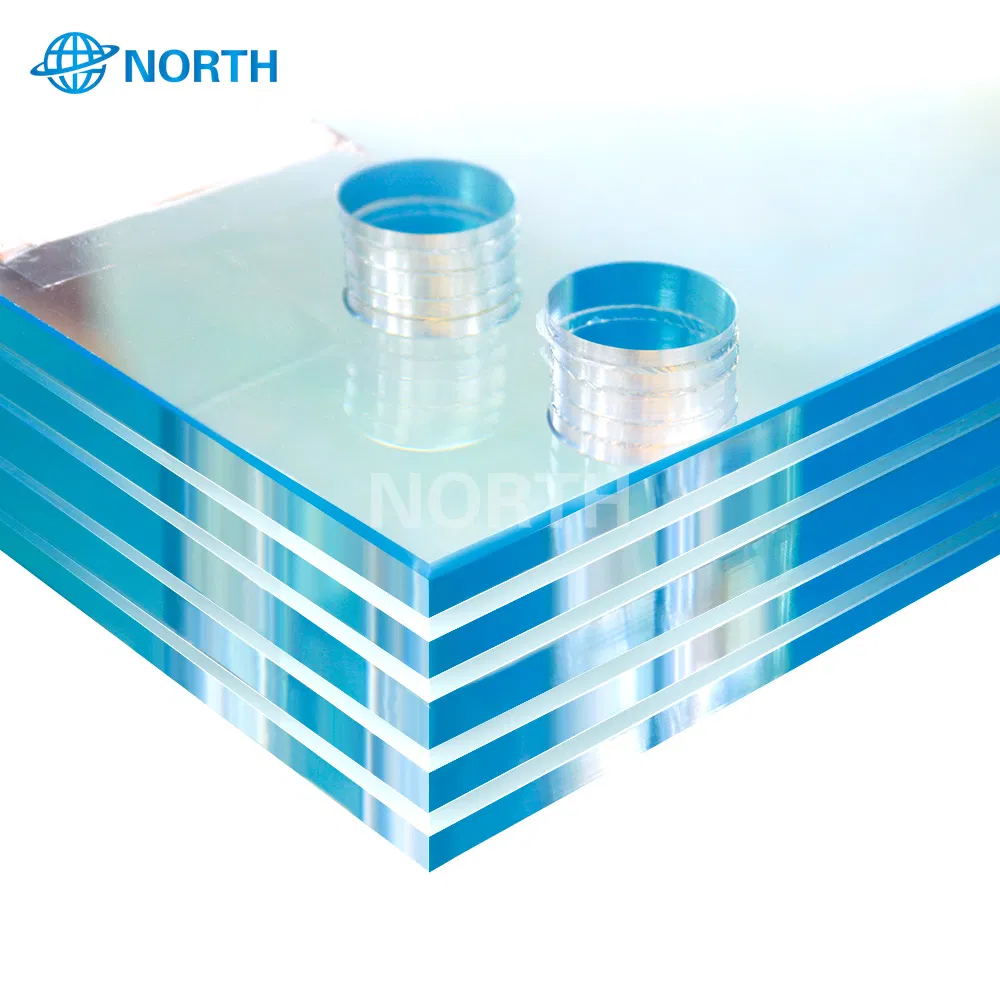

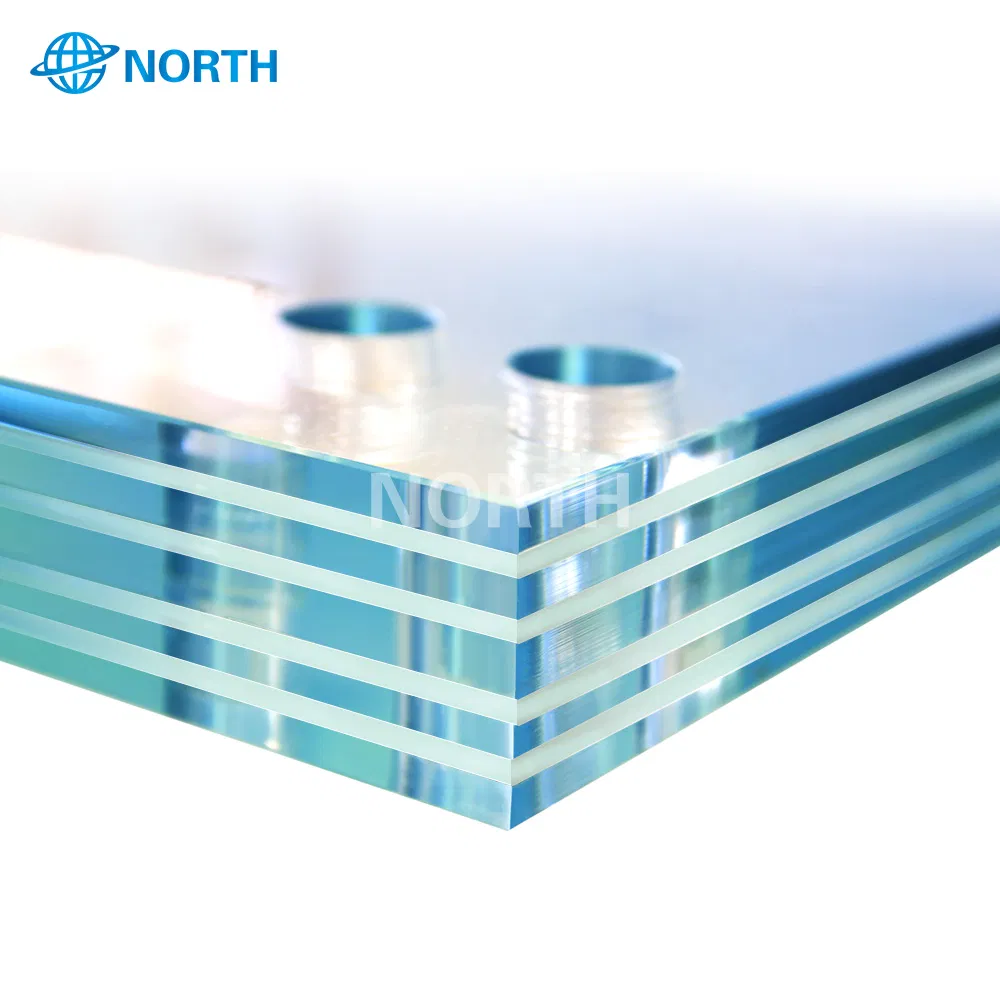

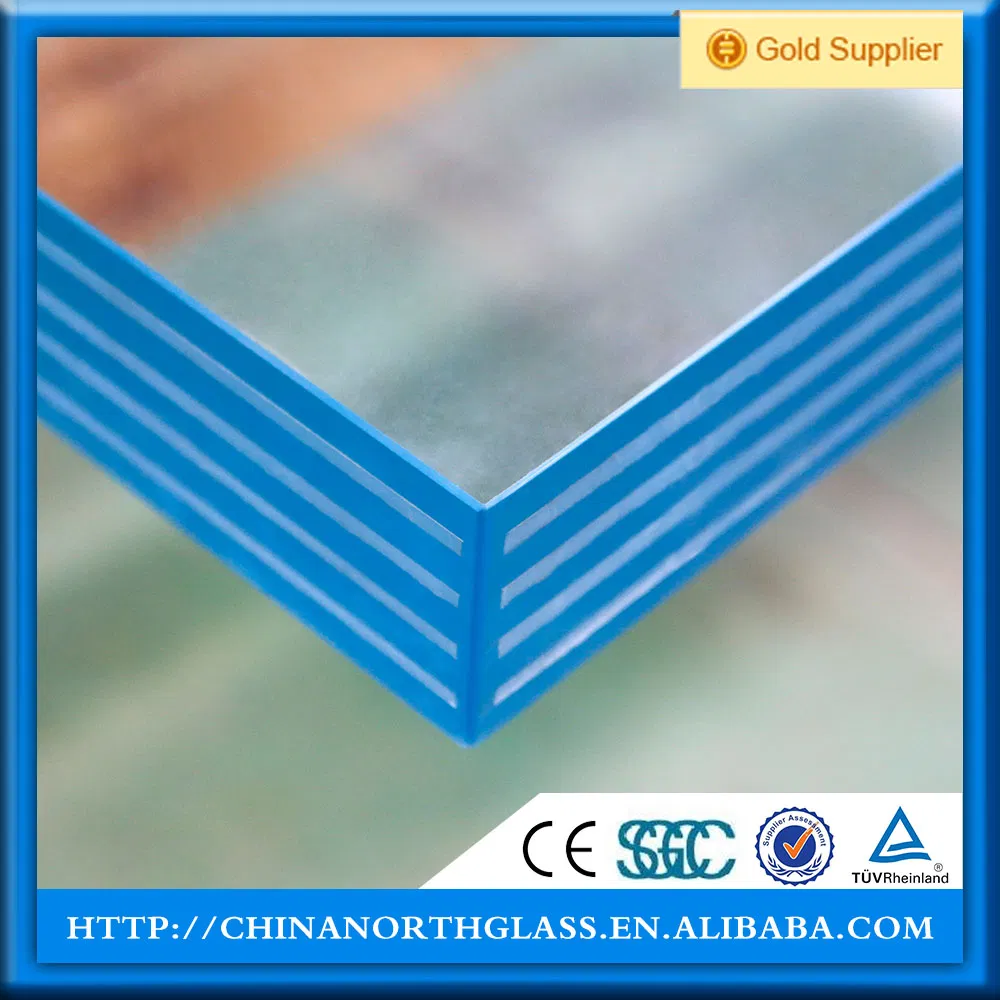

Profesional Double Panel Laminated Glass Safety Window Glass

Still deciding? Get samples of $ !
Request Sample

Product Description

📊 Basic Info.
Model NO.
NGHK
Appearance
Flat
Structure
Solid
Layer Type
Common Laminated Glass
Function
Building Glass
Intermediate Film
PVB/Sgp
Melting Point
High Temperature
Production
Dry Laminated Glass
Color
Clear
Usage
Furniture, Door, Building, Window
Technique
Laminated Glass
Thickness
3-22mm
Quality
Top
Transport Package
Wooden Crates
Specification
Standard
Trademark
Northglass
Origin
China
HS Code
7007290000
Production Capacity
100000 Sqm/Month
🔍 Product Description
Profesional Double Panel Laminated Glass Safety Window Glass

In order to guarantee the quality of laminated glass/sandwich glass/interlayer glass, PVB film could be imported from Du Pont of USA or Sekisui of Japan to make laminated glass/sandwich glass/interlayer glass. We also have Chinese famous brand PVB for laminated glass with high quality and transparency.

Laminated glass/sandwich glass/interlayer glass can be further processed into tempered laminated glass, glass with holes, into insulating glass etc.

Profesional Double Panel Laminated Glass Safety Window Glass
📍 Applications

Transparent laminated glass/sandwich glass/interlayer glass is widely used for bullet proof, burglar-proof, showcase, counter, aquarium, skylight, long corridor, sidelite, etc.

📏 Specifications
Max. Size: 2440mm*6000mm | Min. Size: 300mm*300mm
Thickness of PVB film: 0.38mm-3.04mm
Standard Laminated Thickness(mm): 3+0.38+3, 4+0.38+4, 5+0.38+5, 3+0.76+3, 4+0.76+4, 5+0.76+5, etc
Standard Compliance: EN 12543; ANSI Z 97.1 200; BS 6206
Competitive Advantage & Features
Extremely High Safety

The PVB interlayer withstands penetration from impact. Even if the glass cracks, splinters will adhere to the interlayer and not scatter.

Energy-Saving

PVB interlayer impedes the transmission of solar heat and reduces cooling loads.

Sound Control

Effective absorber of sound, reducing noise spread significantly in residential or commercial buildings.

Ultraviolet Screening

Filters out 99.5% of UV rays, preventing furniture and curtains from fading effects.

Aesthetic Design

Tinted interlayers beautify buildings and harmonize appearances with surrounding views.

📦 Package

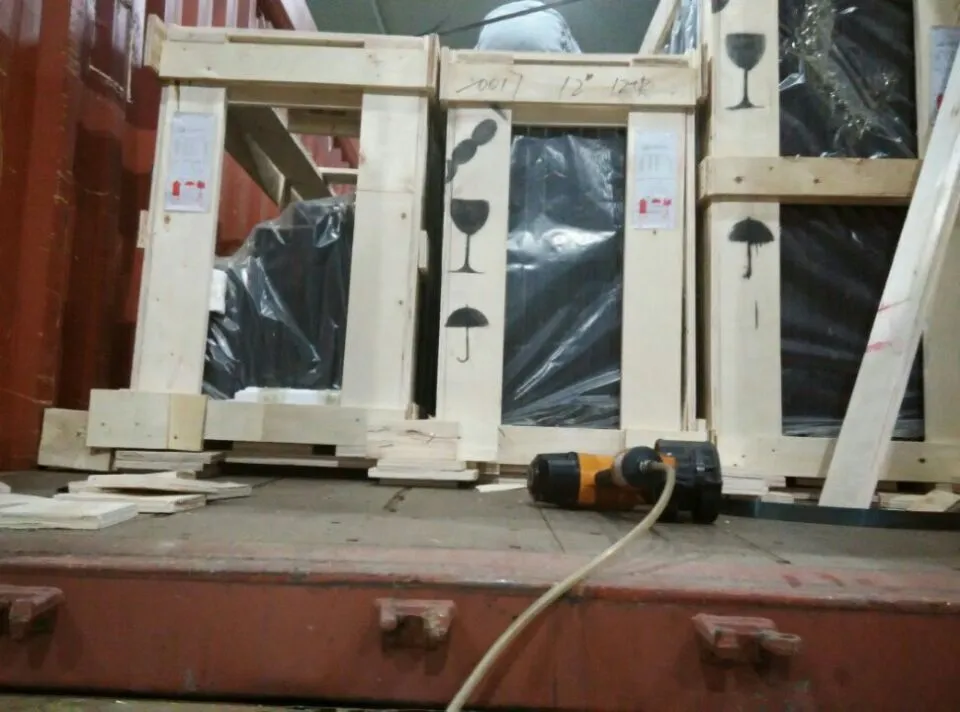

Packaging of Laminated Glass
FAQ
1. What is the maximum size available for the laminated glass?
The maximum size we offer is 2440mm * 6000mm, suitable for large-scale architectural projects.
2. Does the laminated glass provide UV protection?
Yes, the PVB interlayer can filter and absorb at least 99.5% of ultraviolet (UV) rays, protecting interior furniture from fading.
3. Is this glass suitable for high-security applications?
Absolutely. Due to its impact resistance and the fact that fragments adhere to the interlayer if broken, it is widely used for bullet-proof and burglar-proof applications.
4. What film brands do you use for the interlayer?
We use high-quality films from world-renowned brands such as Du Pont (USA) and Sekisui (Japan), as well as top-tier Chinese brands.
5. How is the glass transported safely?
All products are packed in professional-grade wooden crates to ensure safety and prevent damage during transit.
6. Can the laminated glass be further processed?
Yes, it can be further processed into tempered laminated glass, insulating glass, or customized with specific drill holes.
