PLC Module 2711P-T10C22D9P 2711P-T15C22A9P 2711P-RAAT10 2711P-T12W22D9P 2711P-RDT10C PanelView Plus 7 Standard Color Terminal Touch Screen

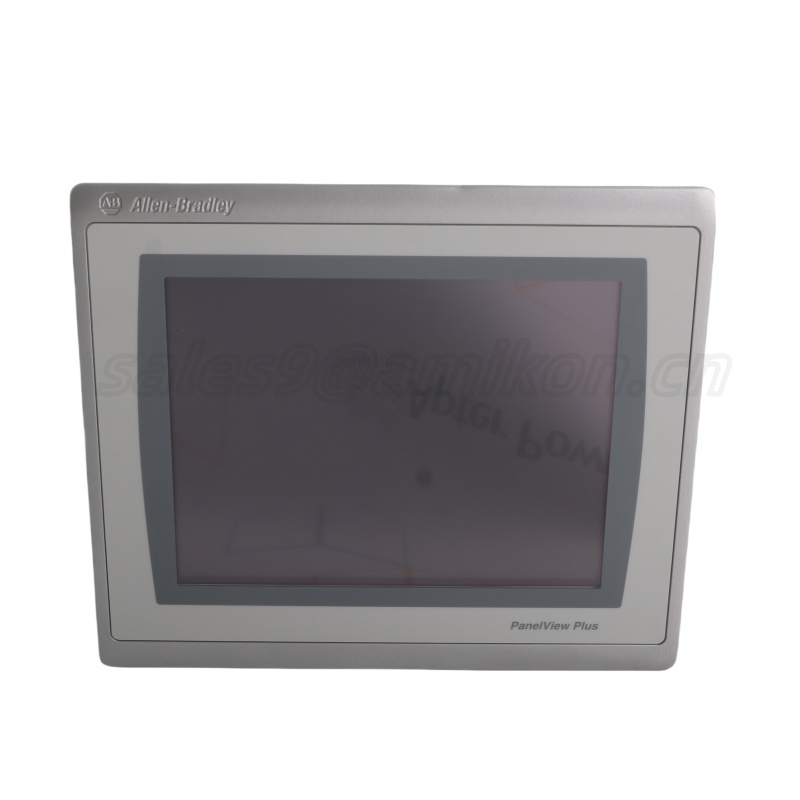

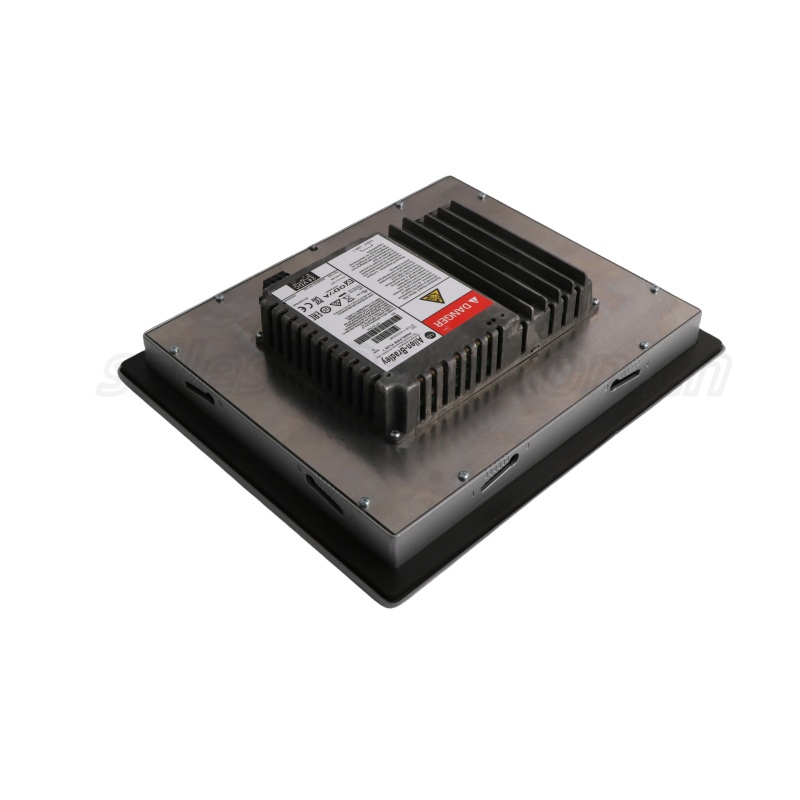

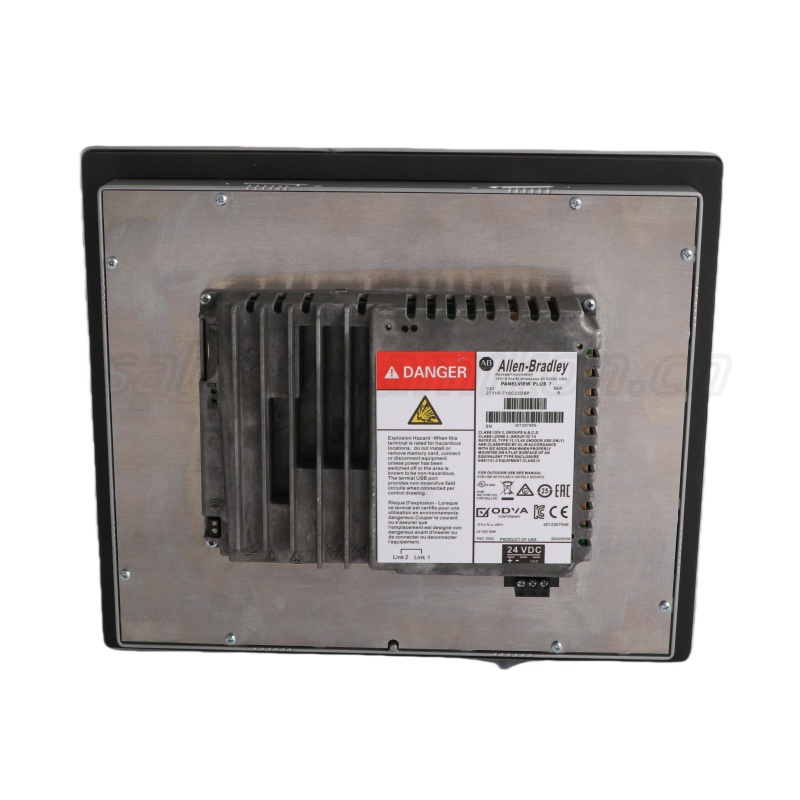

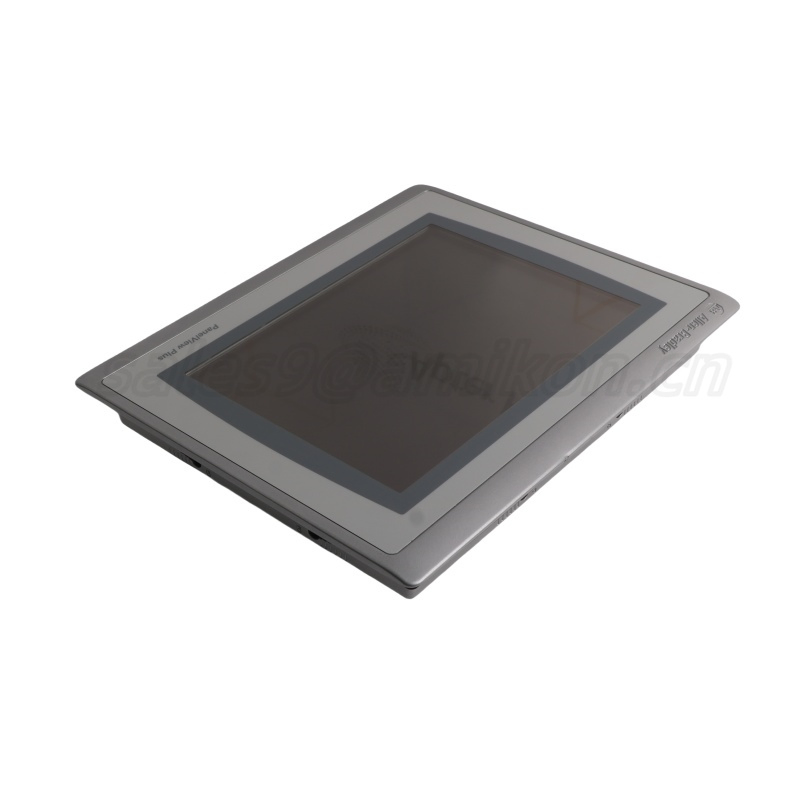

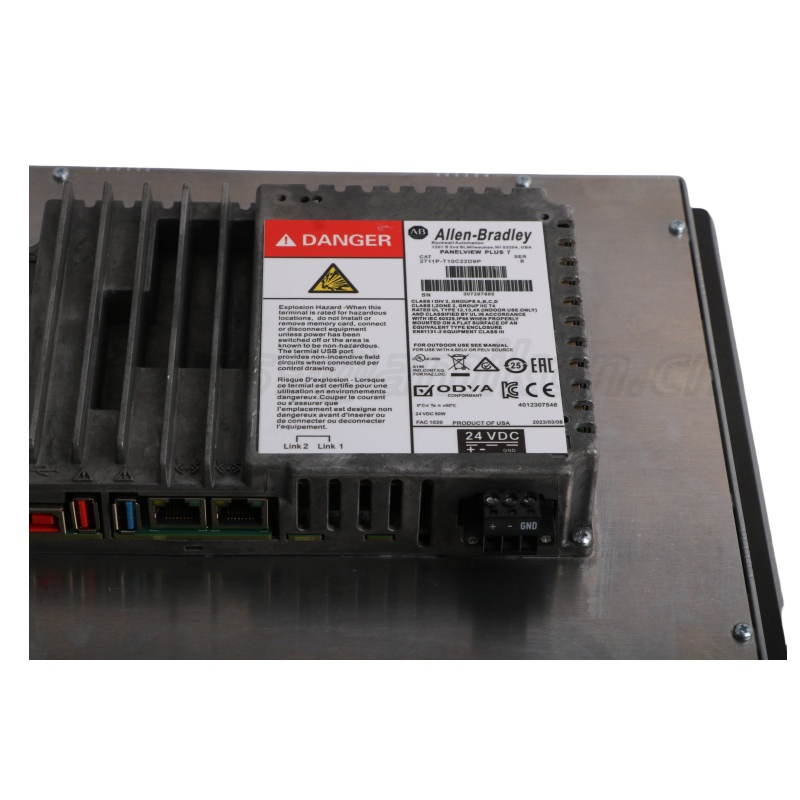

PanelView Plus 7 Standard Color Terminal 2711P-T10C22D9P

This PanelView Plus 7 2711P-T10C22D9P is a touchscreen performance PanelView, used to input commands to a network through its color TFT display with an 18-bit, 800 x 600 SVGA resolution. The white-light diode, solid state LED backlight on this panelview has around 50,000 hours of life. It contains a single SD card to allow for external storage which supports SD cards corresponding to the number 1784-SDx. It also has two 10/100 Base-T DLR Ethernet ports. In addition, it has a pair of Type A, high speed 2.0 USB ports and one high speed 2.0 device port. With 24 Volts of DC nominal supply voltage, this unit consumes at maximum 50 Watts of power. This unit weighs roughly 5.03 pounds (2.28 kg), measuring approximately 9.92 x 11.69 x 2.74 inches, with a 10.4-inch display screen.

• Includes Windows CE 6.0 standard features and color TFT LCD, 18-bit color graphics
• Monitors applications from a remote location with VNC connectivity and FactoryTalk ViewPoint
• Uses an SD card or USB drive to quickly copy and restore the operator interface
• Includes email and texting notification capabilities
• Includes 512 MB RAM and 512 MB nonvolatile memory
• Offers 100 screens and 500 alarms with FactoryTalk Machine Edition
• Features single or DLR Ethernet ports for network connectivity
