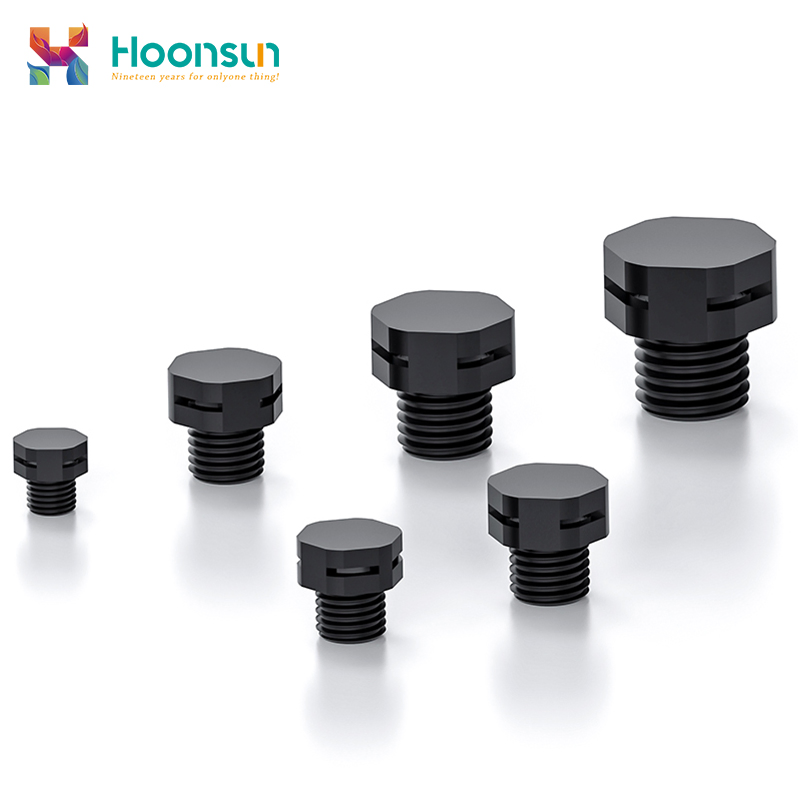

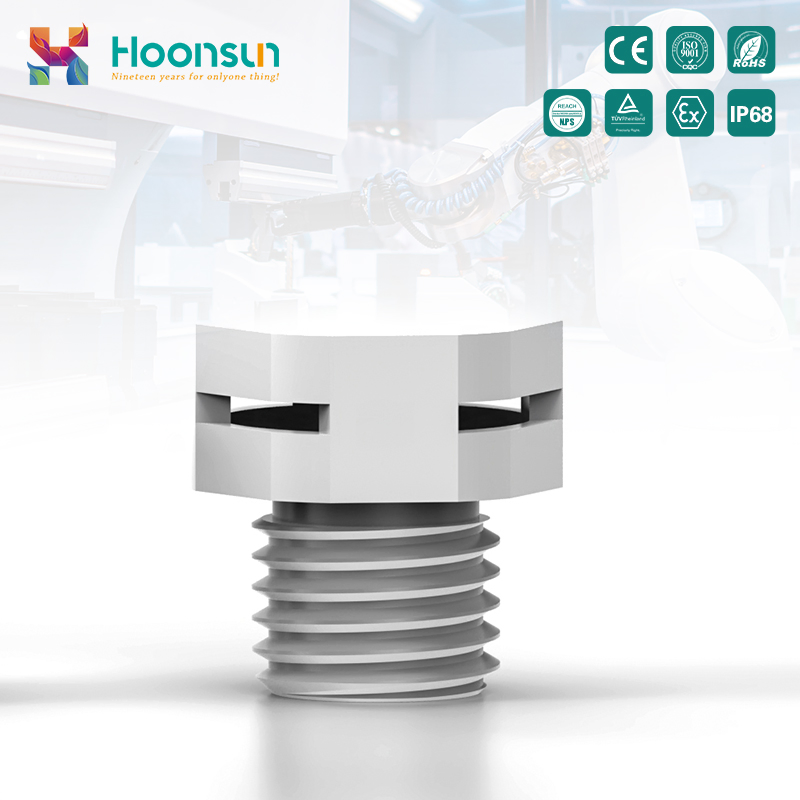

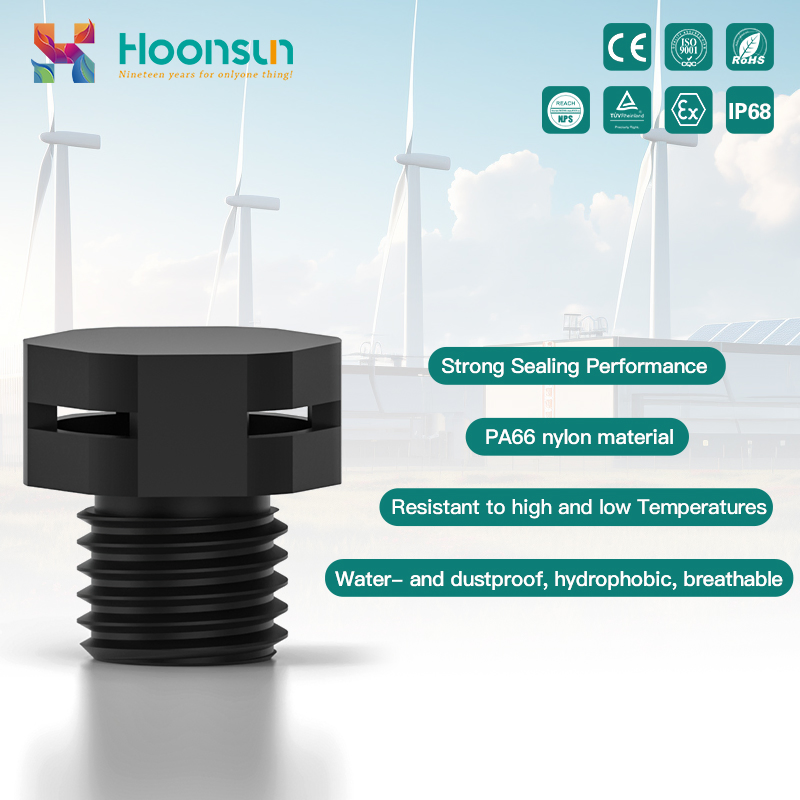

Dustproof, Hydrophobic, Breathable, Heat Dissipating, and Oil Resistant Nylon Vent Plug

Still deciding? Get samples of $ !
Request Sample

Product Description

📊 Basic Information
Model NO.
HX-PF. M5
Color
Grey
IP Rating
IP68
Material
Nylon
Type
Straight Head
Production Capacity
50,000
📘 Product Description

The nylon breathable valve connector is a lightweight, corrosion-resistant device that combines the insulation of nylon material with the microporous structure of the breathable membrane. It is ideal for medium and low temperature, dust-proof, and waterproof applications.

🔹 Material Properties:
  • Nylon shell: Available in PA6, PA66, and PA12 with glass fiber reinforcement options.
  • Advantages: Lightweight (1.1~1.3g/cm³), high insulation, and resistant to weak acids/alkalis.
  • Temperature range: -40ºC to +120ºC (Short-term resistance up to 150ºC).
  • Breathable membrane: ePTFE waterproof material with pore sizes from 0.1 to 10μm.
🔹 Structural Design:
  • Breathable channel: Sintered micropores or embedded membrane with 20%~60% porosity.
  • Sealing: O-rings made of silicone, fluororubber, or EPDM for aging resistance.
  • Interface types: Metric threads (M3-M20), PG threads, and G threads.
🔹 Performance Parameters:
  • Air permeability: 0.05~5 L/min·cm² at 1kPa pressure difference.
  • Protection level: IP67/IP68 (Submersible up to 1m for 48 hours).
  • Pressure resistance: Shell pressure ≤2MPa; Membrane pressure difference ≥50kPa.
  • Environmental adaptability: Anti-UV additives ensure outdoor service life > 5 years.
🖼️ Detailed Photos

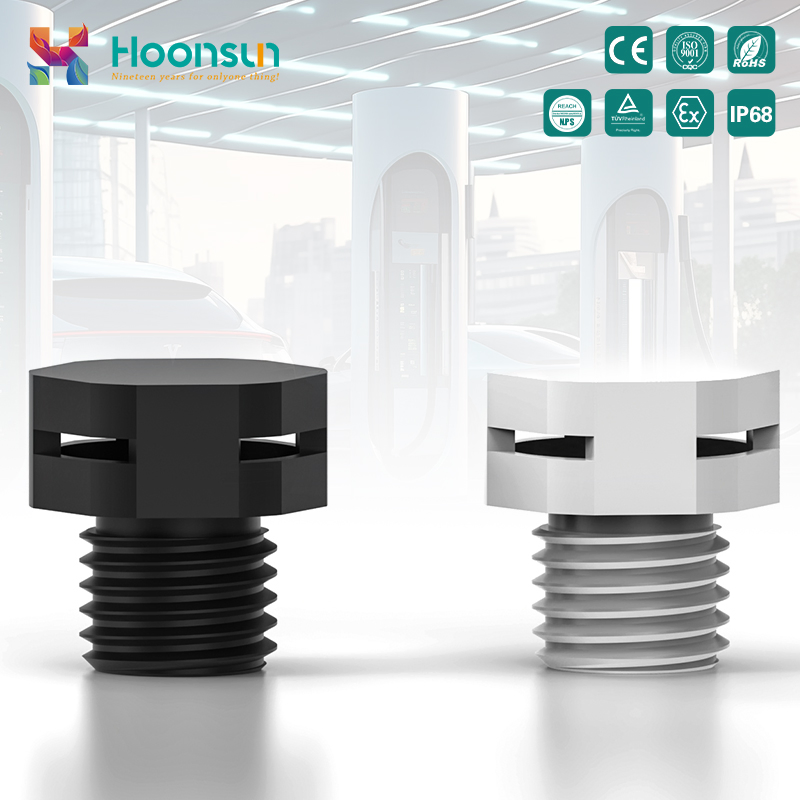

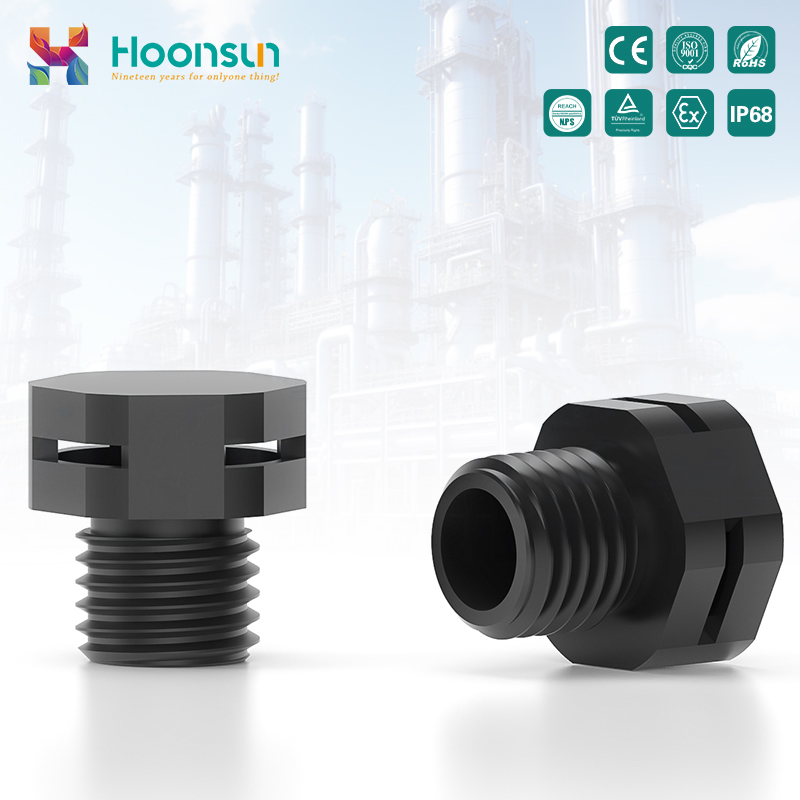

Product View
📏 Product Parameters

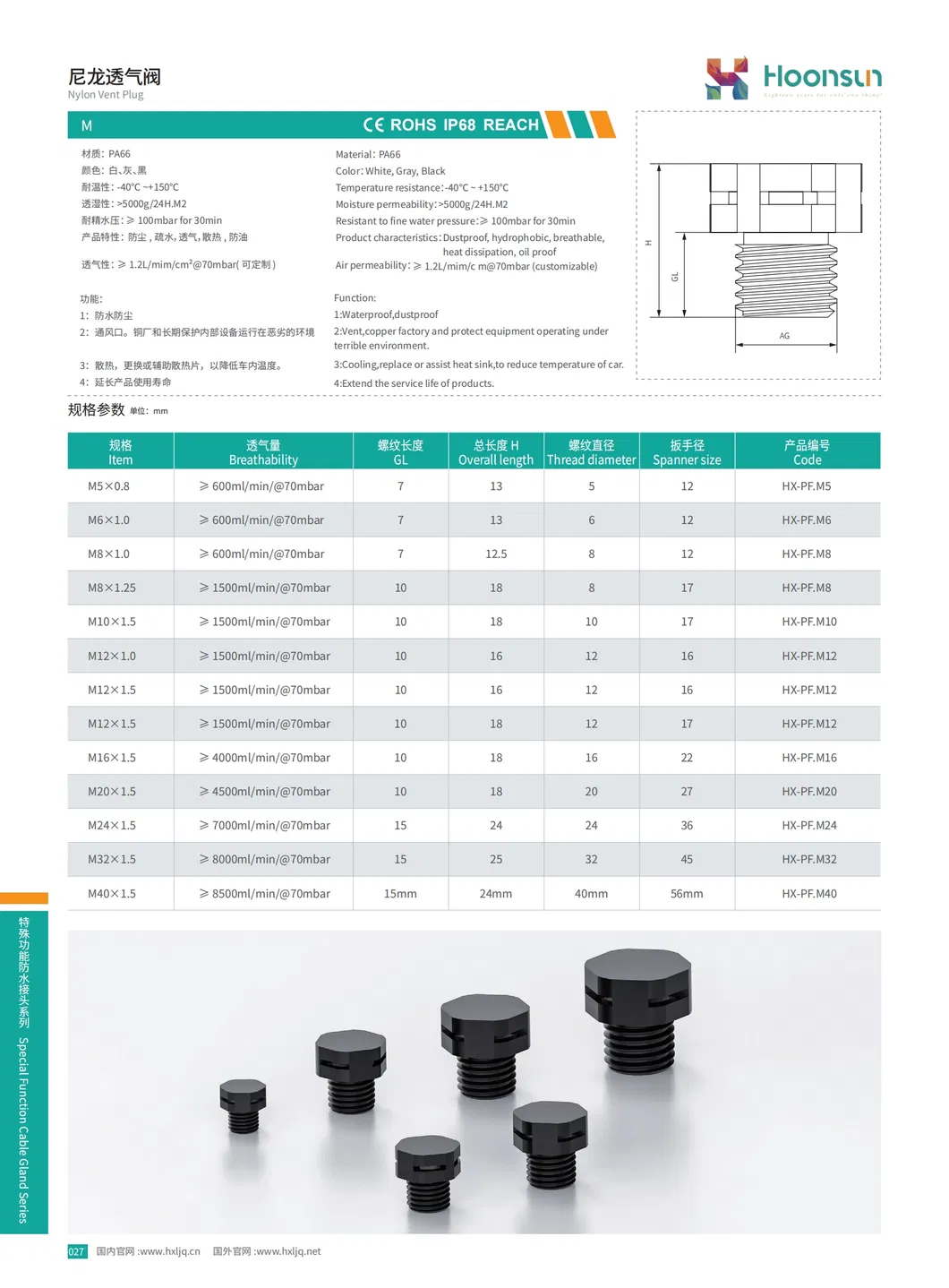

Technical Specifications
🏢 Professional Manufacturing

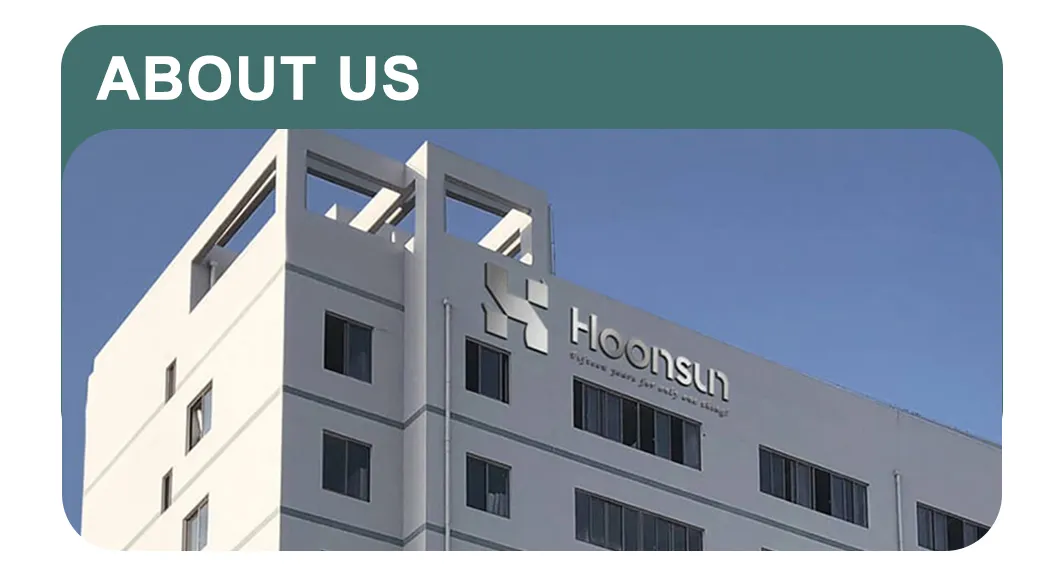

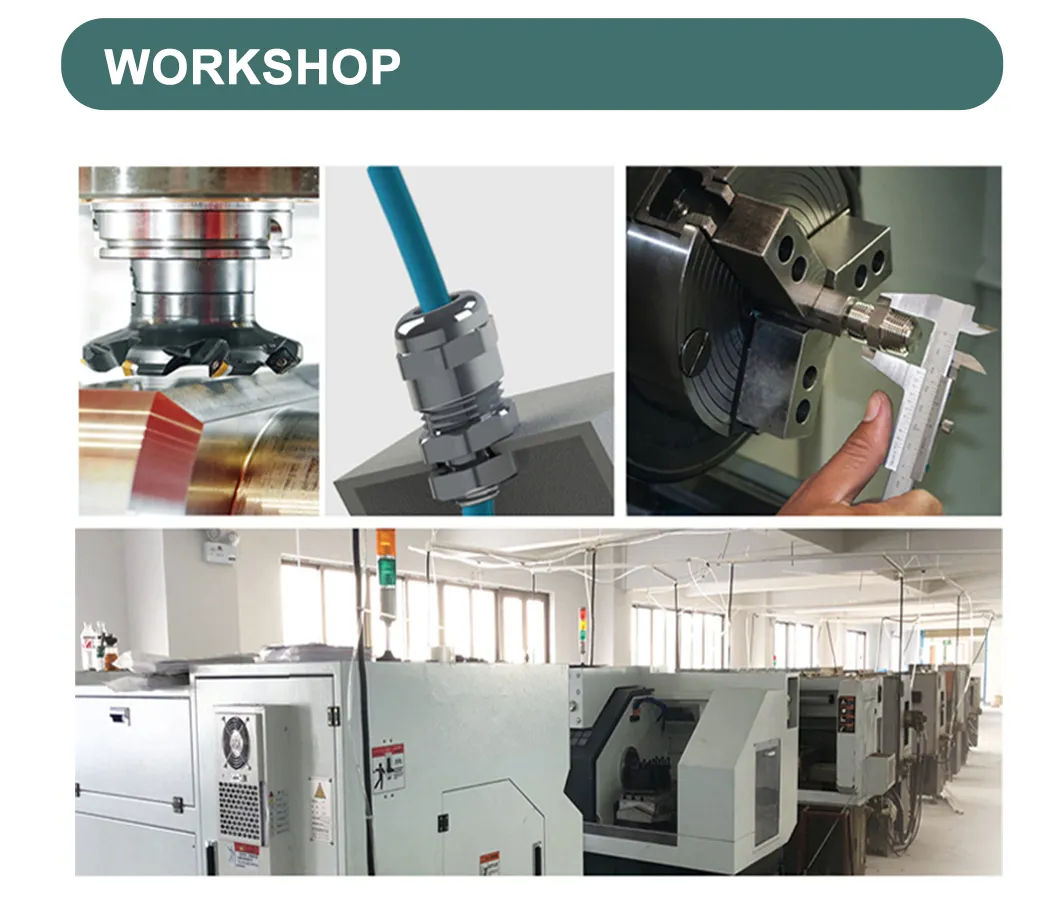

Established in 2006, our high-tech company integrates R&D, production, and sales. With over 100 dedicated employees and professional workshop management, we serve the global market with various high-quality cable joints and accessories. After 18 years of development, we have provided thousands of customers with an exceptional product experience.

We adhere to a customer-oriented principle, pursuing quality perfection and continuous self-motivation. Our mission is to strive for excellence in the cable connector industry, maintaining a strong reputation and earning consistent praise from our global clients.

Our Advantages
Key Advantages
📜 Certifications
Certified Quality
📦 Packaging & Shipping
Shipping Standards
Frequently Asked Questions
What is the protection level of this nylon vent plug?
The product reaches IP67/IP68 rating, which means it can be immersed in 1 meter of water for up to 48 hours while maintaining a complete seal.
What temperature range can the valve withstand?
The standard operating temperature range is -40ºC to +120ºC. Glass fiber reinforced types can handle short-term exposure up to 150ºC.
Is the nylon material resistant to corrosion?
Yes, the nylon shell (PA6/PA66/PA12) is resistant to fuels, lubricating oils, and weak acid or alkaline solutions (pH 3~11).
How does the breathable membrane work?
It uses an ePTFE microporous membrane that allows air molecules to pass through for pressure equalization while blocking water droplets and dust particles.
What thread specifications are available?
We provide multiple specifications including Metric threads (M3 to M20), PG threads, and G (Gas) threads from 1/8 to 1/2.
Is this product suitable for outdoor use?
Yes, the nylon shell contains anti-UV additives, providing an outdoor service life of more than 5 years under normal conditions.
