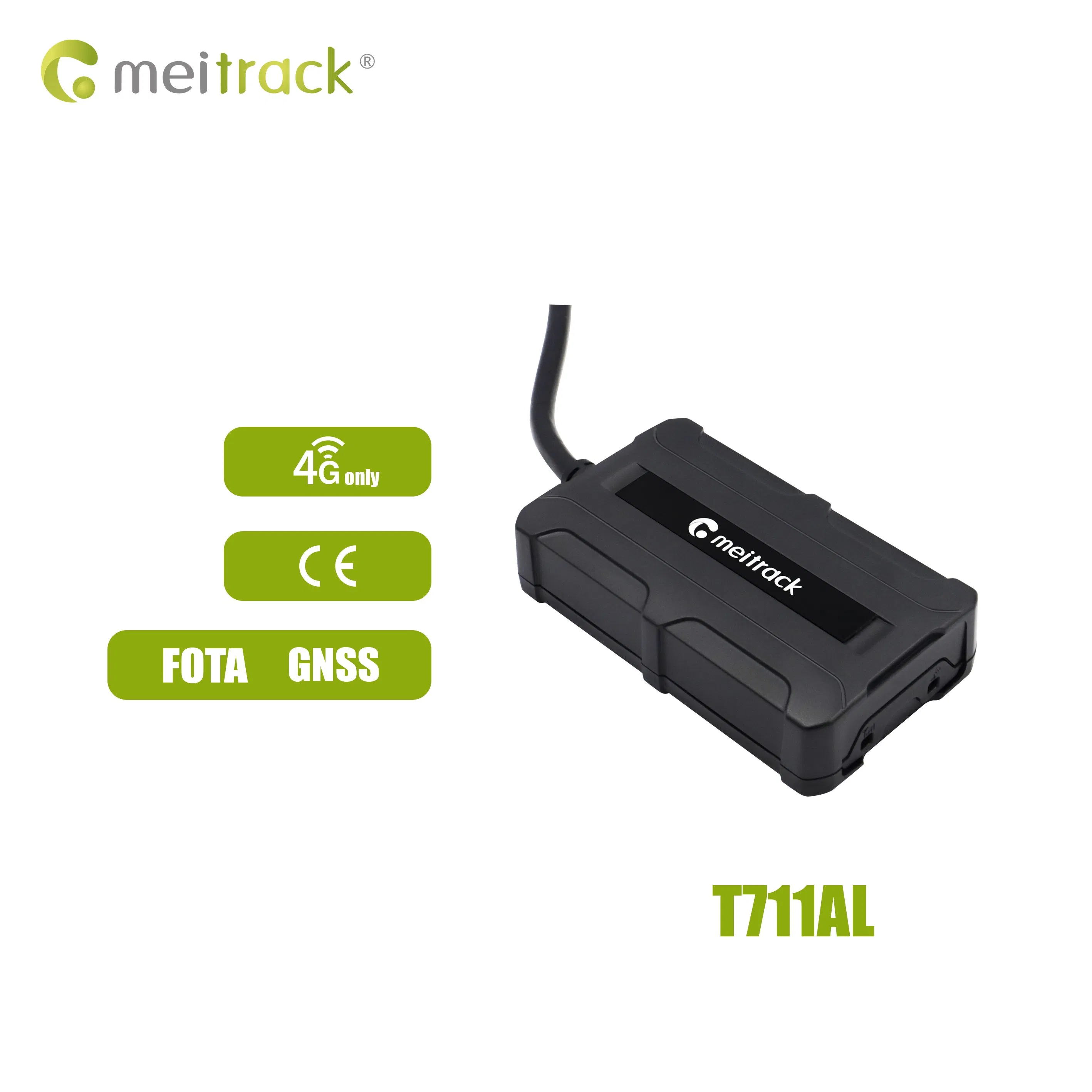

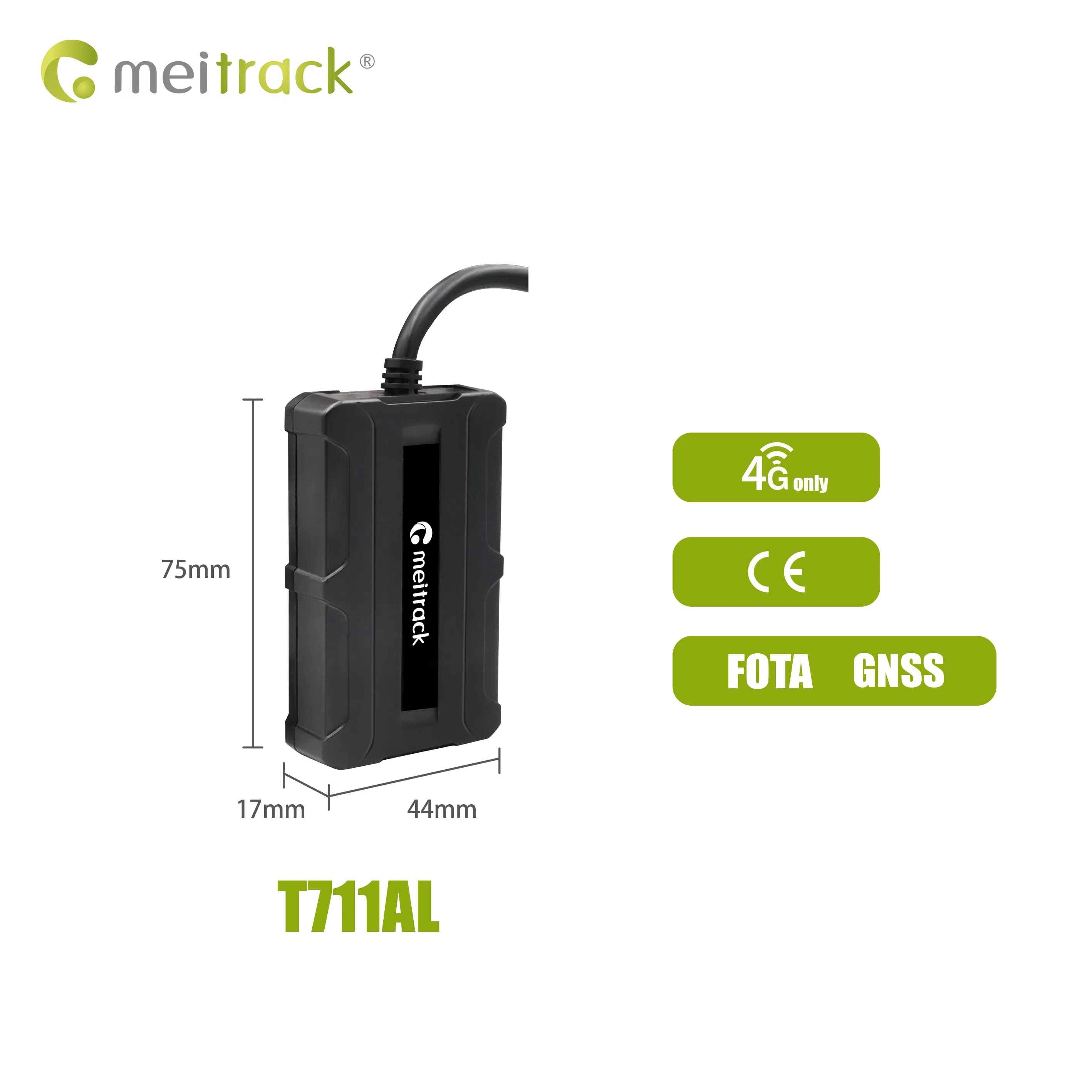

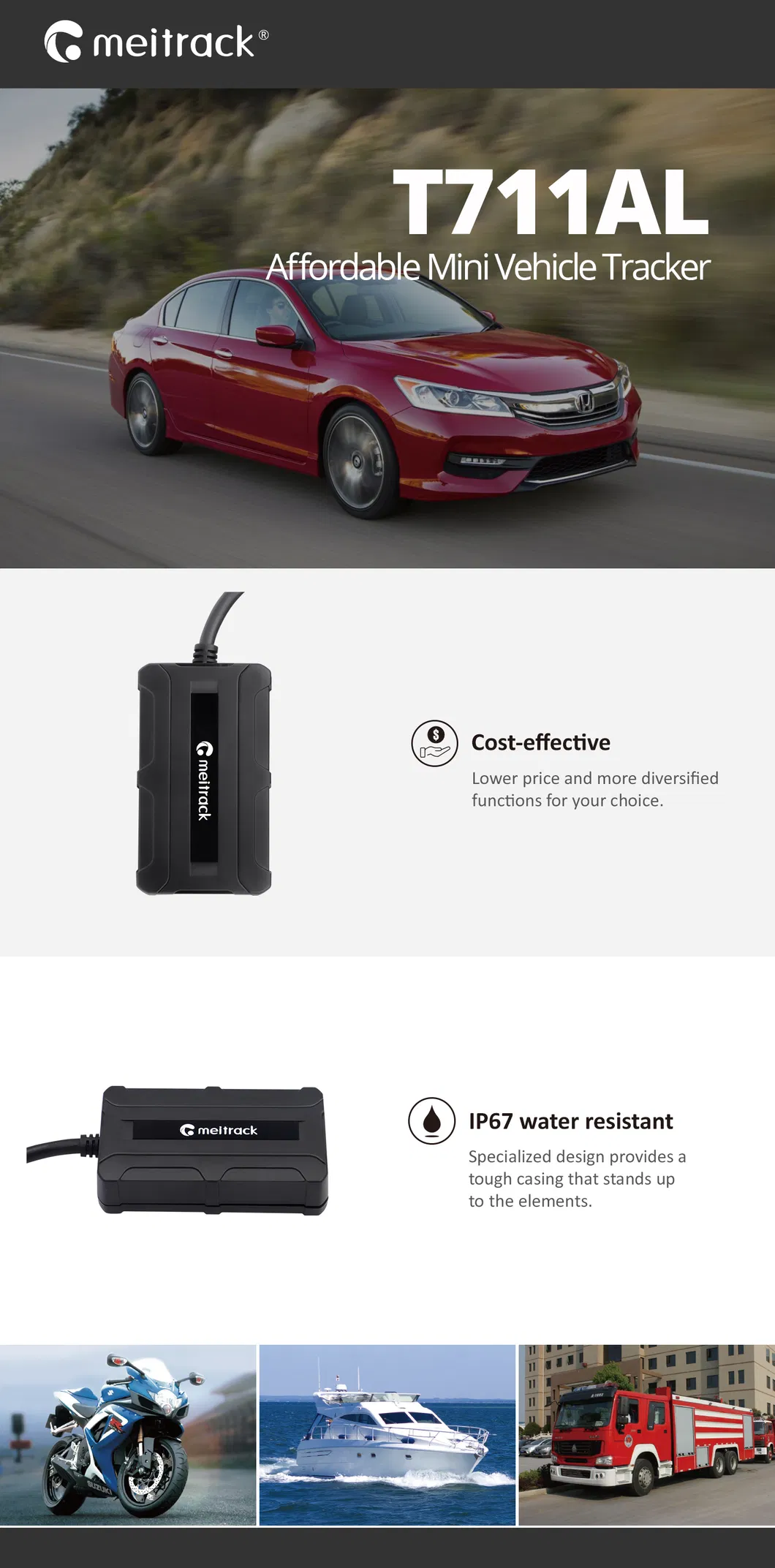

| Model | T711AL |
| Certification | CE |
| Warranty | 1 Year |

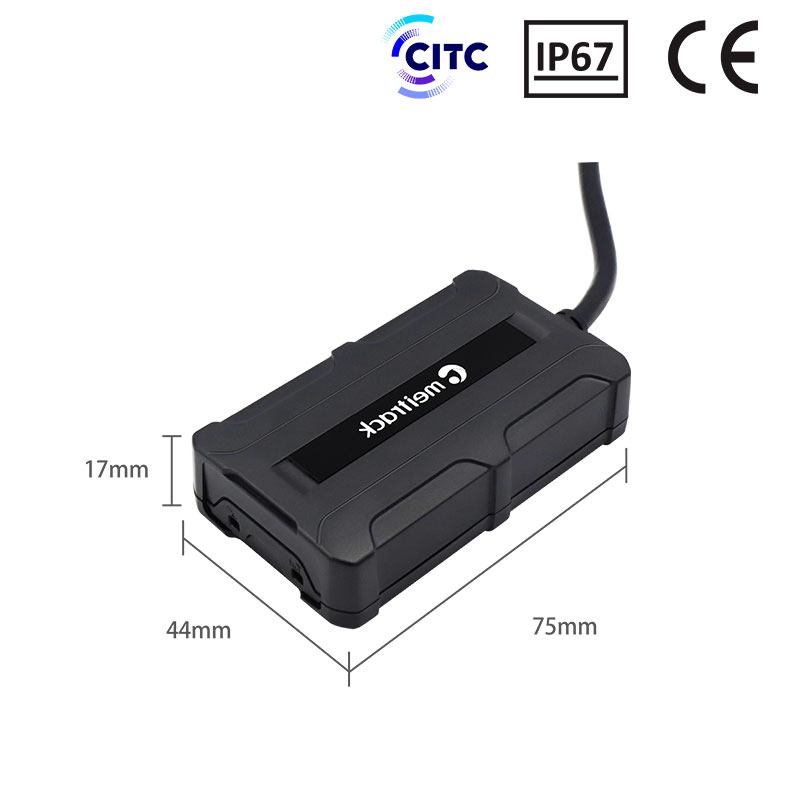

| Dimension | 75 mm X 44 mm X 17 mm |
| Weight | 77g |
| Power Supply | DC 11.4-90 V/1.5 A |
| Battery | 200mAh High Temperature Resistant (-5 to 75°C) |
| GNSS | Dual-Mode (GPS/Beidou/Glonass) |
| Sensor | 3-Axis Accelerometer |
| GPS Accuracy | 2.5 Meters |
| Memory | 8 MB Flash |
| Power Consumption | Current in standby mode: 65 mA |
| Operating Temp | -35°C to 80°C (without battery) |
| Operating Humidity | 5% to 95% |
| LED Indicators | Green (Network Signal), Blue (GPS Signal) |
| Frequency Bands | LTE FDD: B1/B2/B3/B4/B5/B7/B8/B20/B28/B66 |

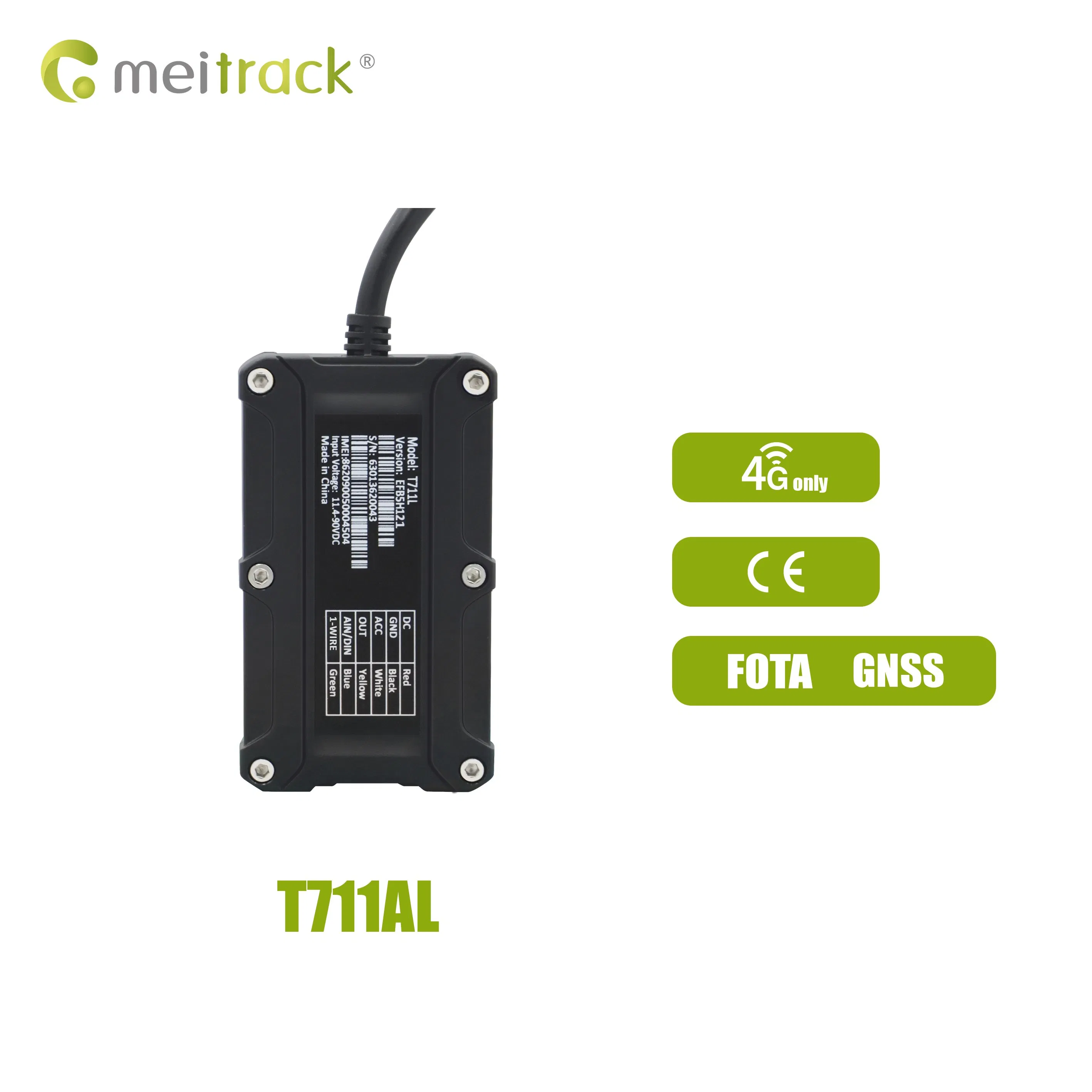

| I/O Ports | ACC Input, Analog Detection (0-30V), Open Collector, 1-Wire Port, Micro USB Debug |

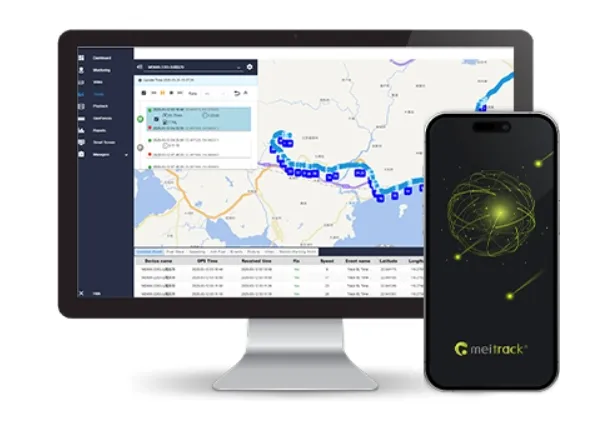

A professional centralized platform tailor-designed to support diverse business needs. Key features include real-time GPS tracking, video surveillance, and comprehensive alarm systems.
Implemented to enhance driver and passenger safety. Equipment includes magnetic card readers and taximeters. Only authorized drivers can operate the vehicles, with real-time pinpointing for emergency response.
System used to record vehicle status, movement patterns, and destination arrival times. Data is utilized for cost analysis and operational optimization.
Optimal bus monitoring solution ensuring safe travel and preventing illegal activities. Provides effective video surveillance data as evidence for government authorities.
Mobile DVR solution connected to four cameras. Features include authorized-only start and remote engine cutoff to minimize loss during unauthorized access or hijacking attempts.
Over 50 R&D professionals and 50+ intellectual properties. More than 18% of annual sales revenue is reinvested into research and development to maintain technological leadership.

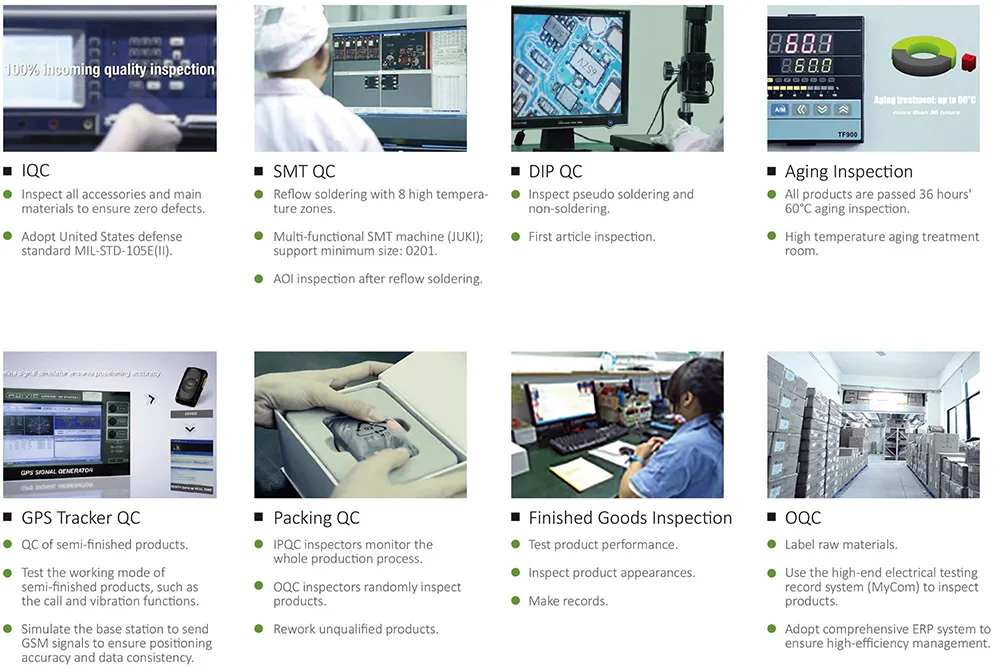

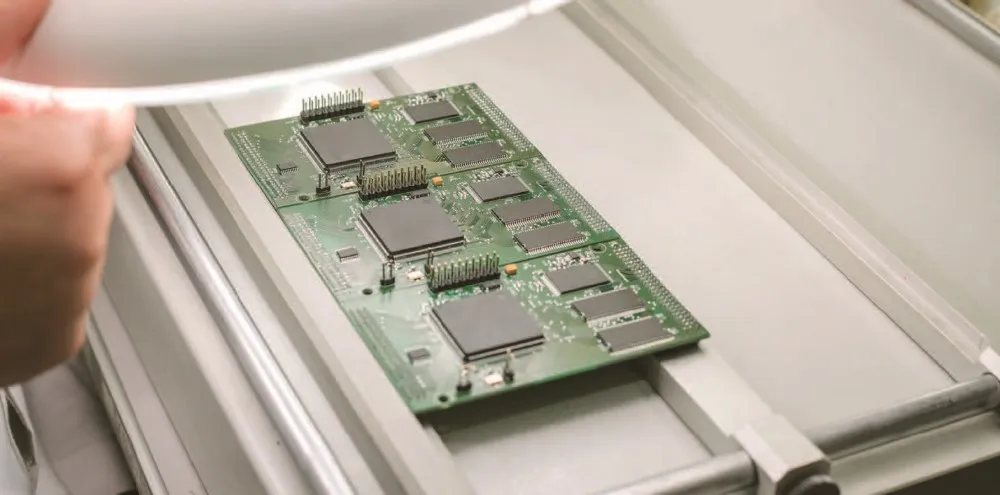

Adhering to IATF16949:2016 and ISO9001:2015 Quality Management Systems. Products are certified by CE, FCC, RoHS, and PAHs.
A1: It is primarily designed for Southeast Asia (excluding Japan and South Korea) and Australia.
A2: The device supports a wide input voltage range of DC 11.4V to 90V, making it compatible with various vehicle types.
A3: The T711AL offers a high positioning accuracy of approximately 2.5 meters using dual-mode positioning.
A4: Yes, it includes a 200mAh high-temperature resistant battery that can operate safely between -5°C and 75°C.

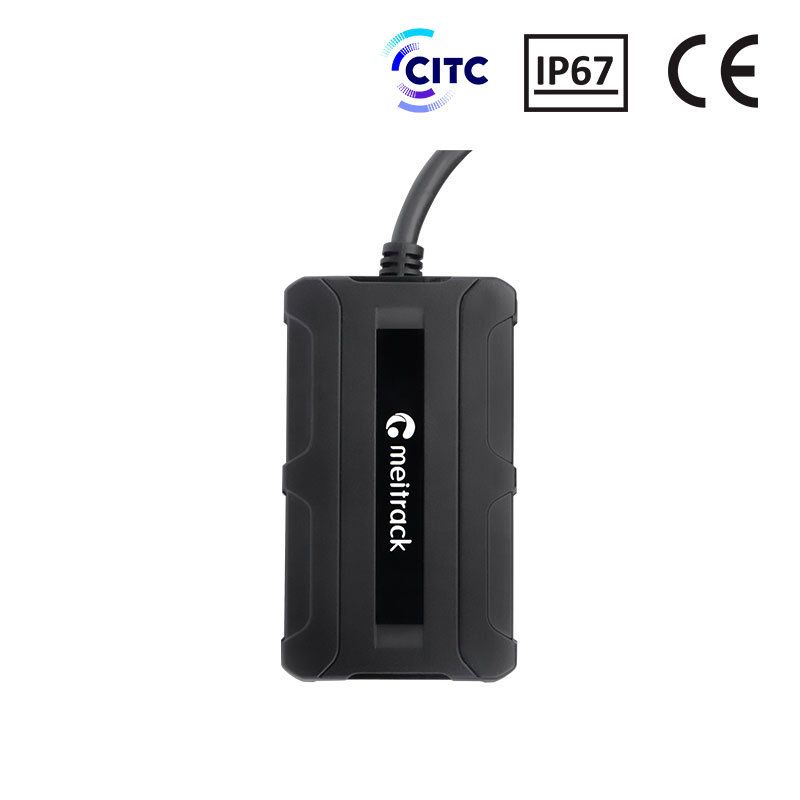

A5: Yes, the device is built to meet IP67 waterproof standards, providing reliable protection against dust and water immersion.
A6: It features a built-in 3-axis accelerometer for motion detection and behavior monitoring.
