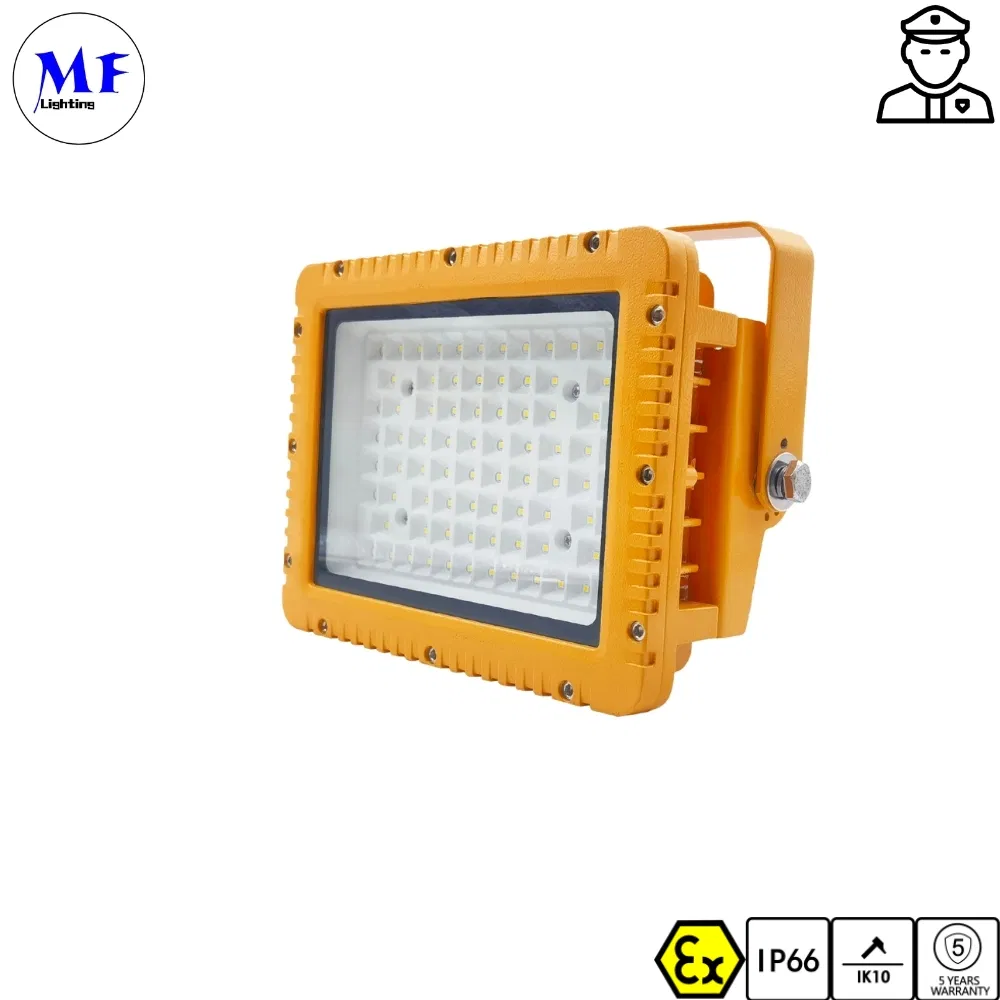

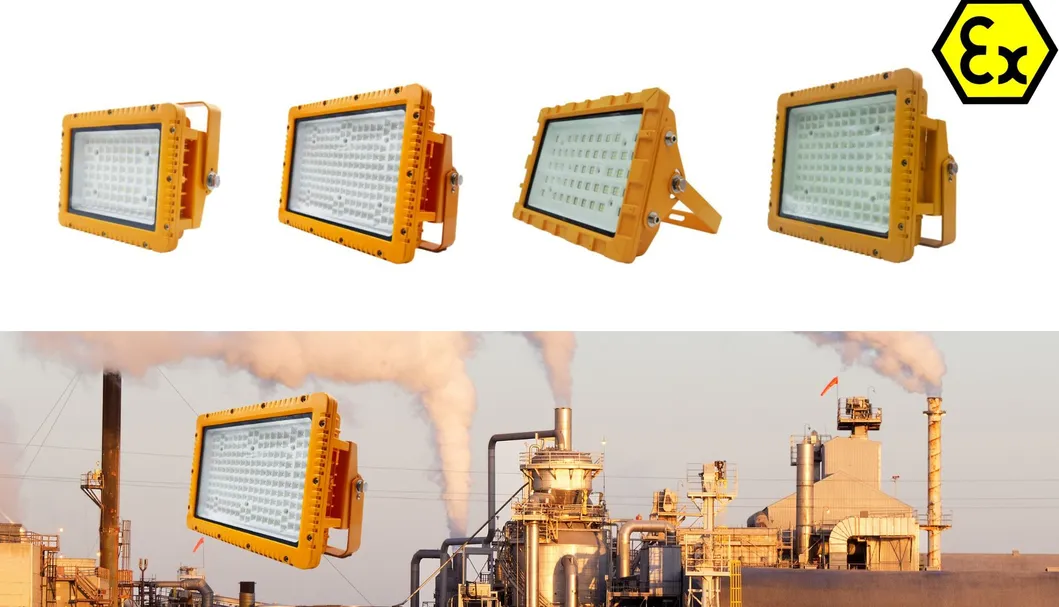

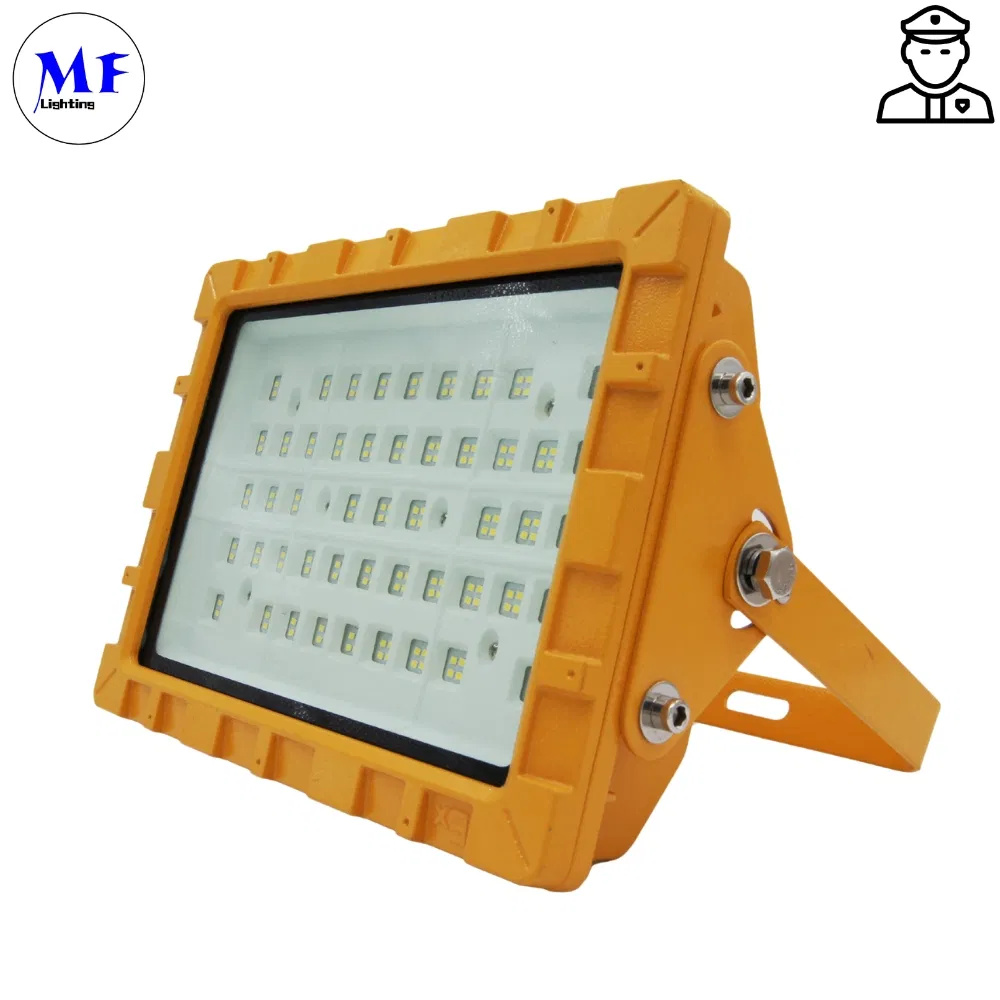

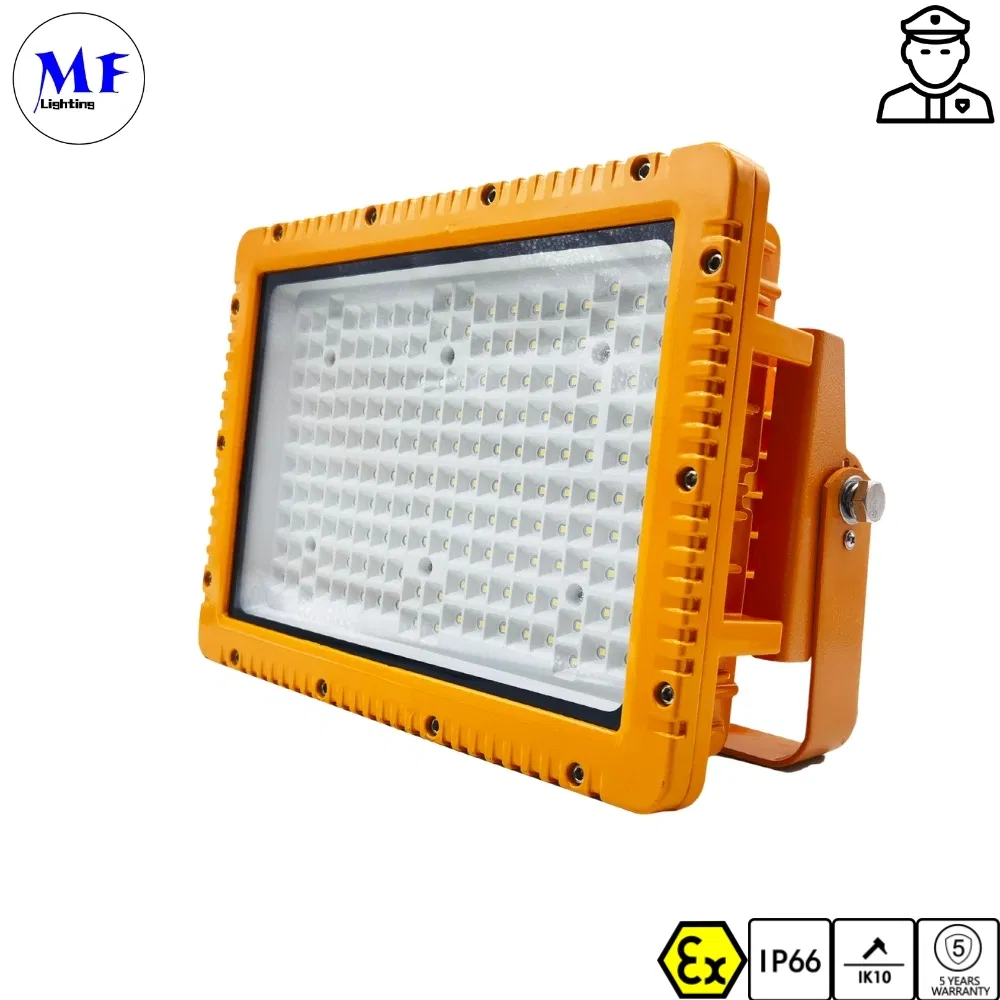

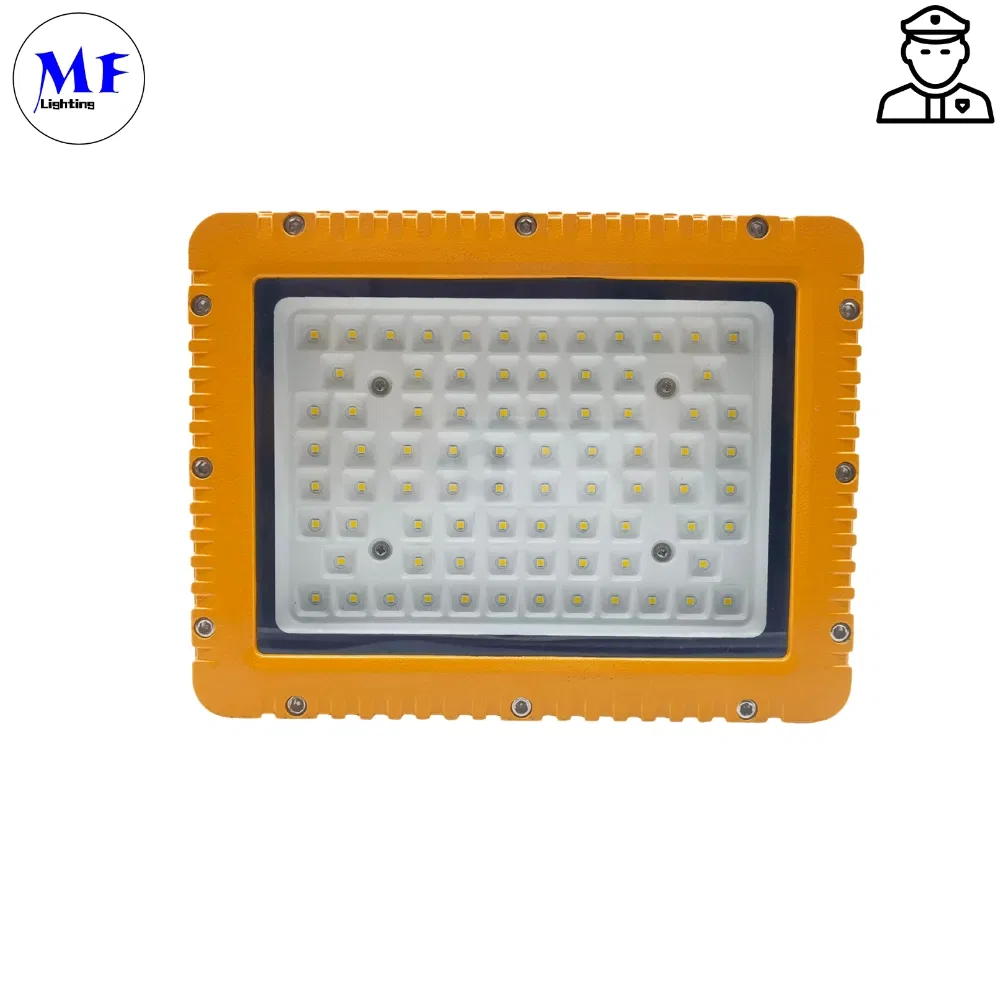

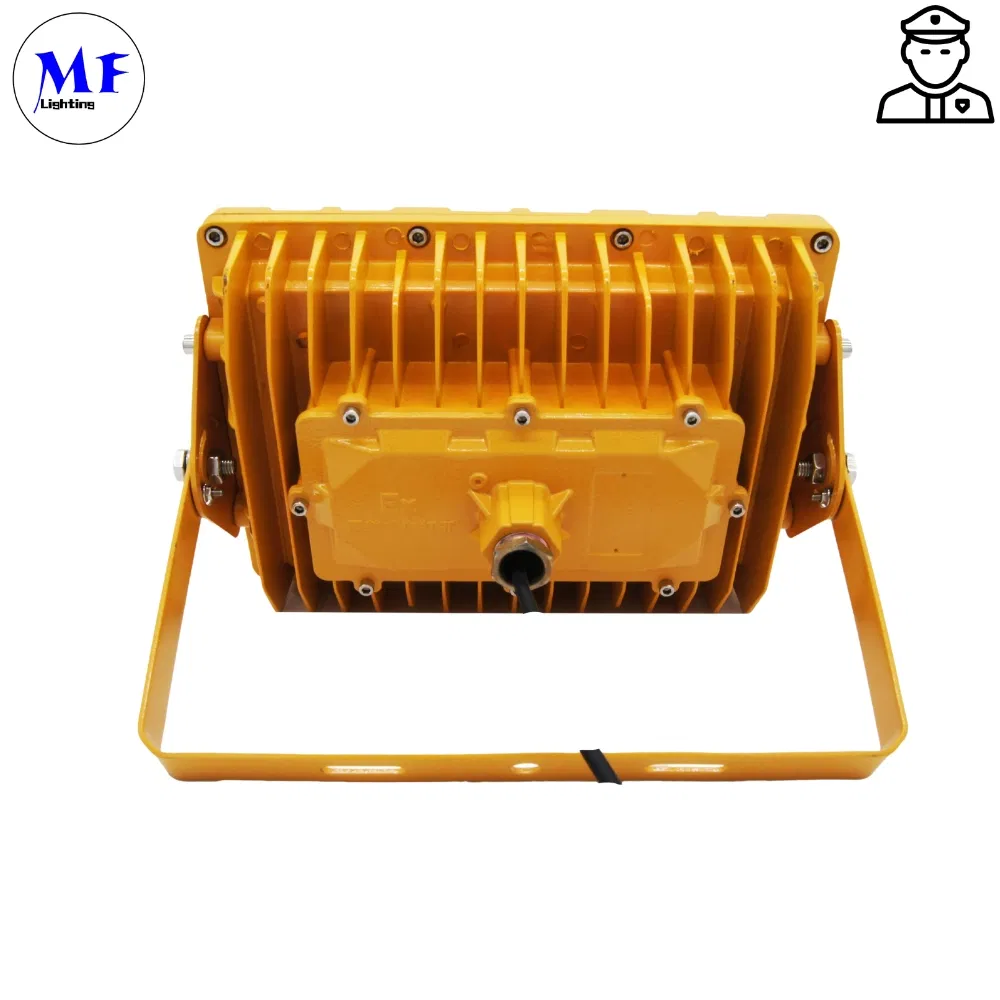

Atex EX IECEx IK10 IP66 Dustproof Explosion Proof LED Flood Light
High-performance explosion-proof lighting solution designed for Marine Offshore and storage yards, providing reliable illumination in hazardous environments.

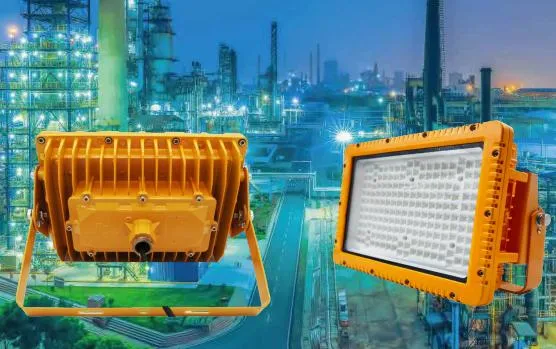

Marking ATEX: II 2 G Ex eb mb IIC T6...T4 Gb / II 2 D Ex tb IIIC T80°C...T100°C Db IP66
Marking IECEx: Ex eb mb IIC T6...T4 Gb / Ex tb IIIC T80°C...T100°C Db IP66
Marking UL844: Class I, Div 2, Groups A,B,C,D; Class II, Div 1; Class III
Marine: UL 1598, UL 1598A, ABS Rating IP66
| Wattage | Color Temp | Voltage | Lumens | Warranty | CRI | Emergency Time |
|---|---|---|---|---|---|---|
| 30W / 50W / 60W | 2200K-7000K | AC200-250V | 4200 - 8400 | 5 Years | 70 | 3 Hours |
| 80W / 100W | 2200K-7000K | AC200-250V | 11200 - 14000 | 5 Years | 70 | 3 Hours |
| 150W / 180W / 200W | 2200K-7000K | AC200-250V | 21000 - 28000 | 5 Years | 70 | 3 Hours |
| 240W | 2200K-7000K | AC200-250V | 33600 | 5 Years | 70 | 3 Hours |

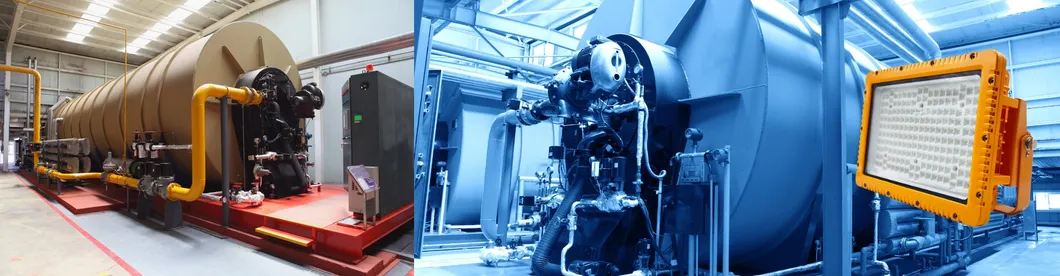

Oil and Gas Industry: Refining, loading, transportation, storage, and LNG industry.
Chemical Industry: Paint facilities, chemical production, and storage.

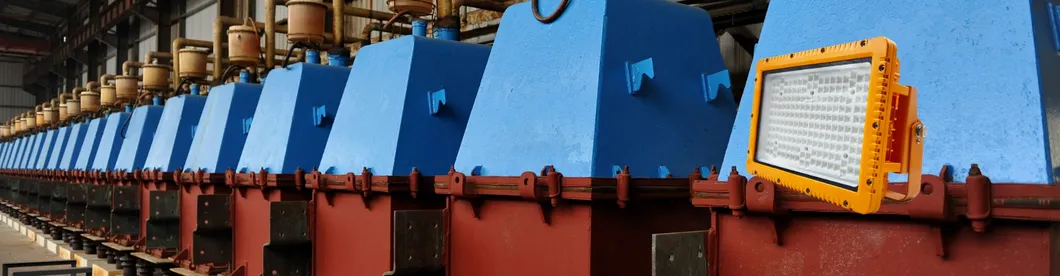

Metal Treatment: Steel/aluminum factories, smelting, and foundry operations.
Marine & Aerospace: Ocean platforms, vessels, and aerospace clean rooms.
Food & Alcohol: Flour production, distilling, and high humidity locations.
| Quantity per Carton | Packing Size (mm) | Net Weight (KG) | Gross Weight (KG) |
|---|---|---|---|
| 1 PC | 460*490*290 | 12.5 | 15.0 |
