Product Description

Overview & Basic Info

Model NO.:XLD-GSM001

Glue Type:Solvent-based, Water-based

Machine Type:Automatic

Voltage:380V

Power:10kw

Working Speed:12m/Min

Coating Width:0-1300mm / 1600mm / 2000mm

Coating Amount:0-6000g/Min

HS Code:8424899990

Origin:China

Product Description

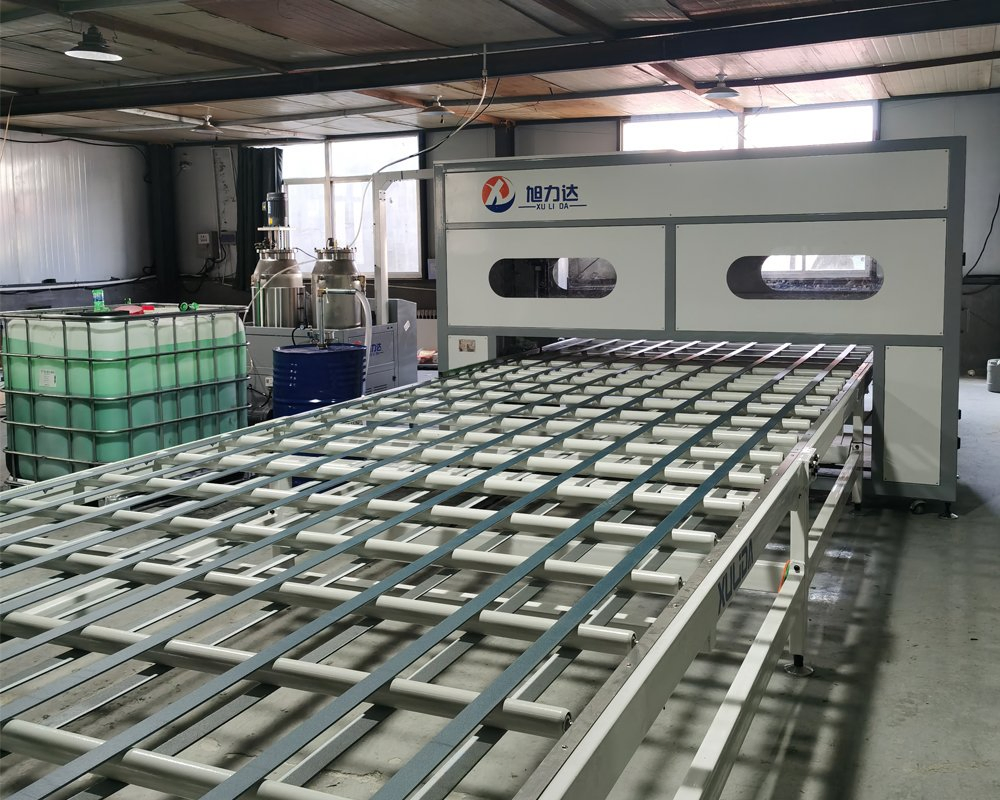

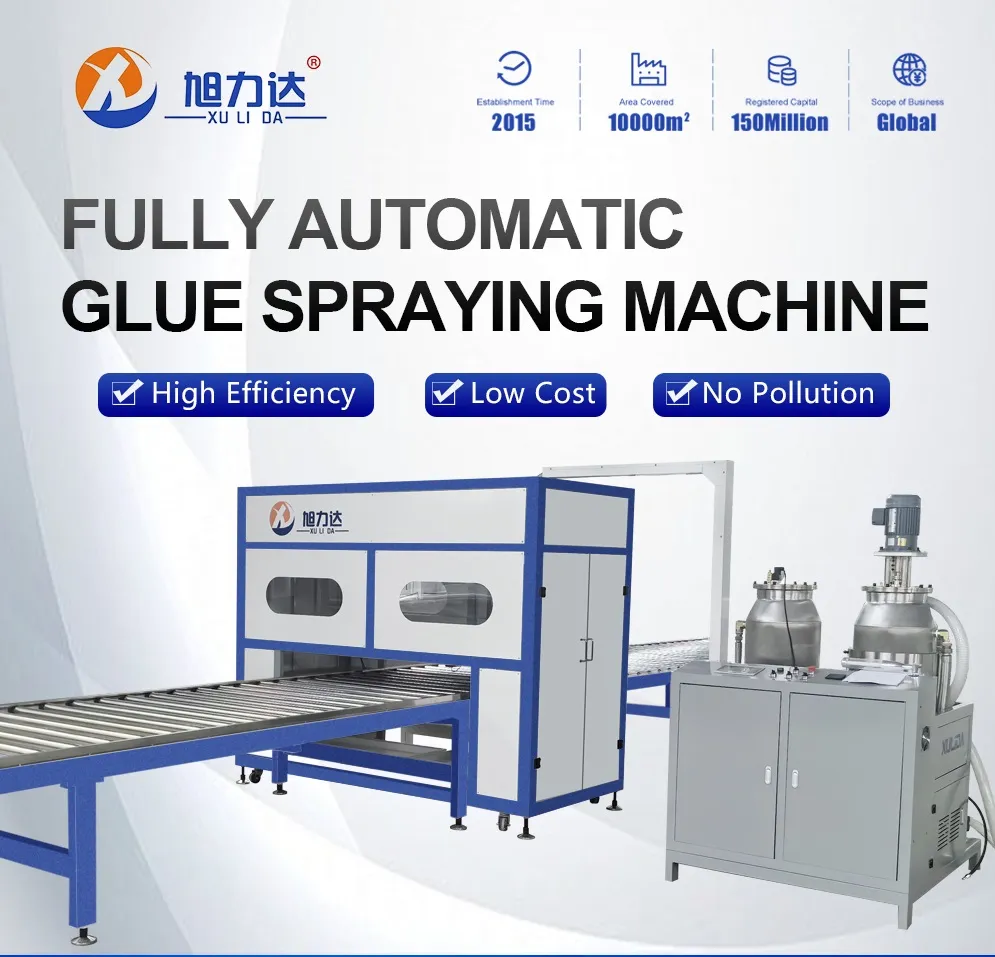

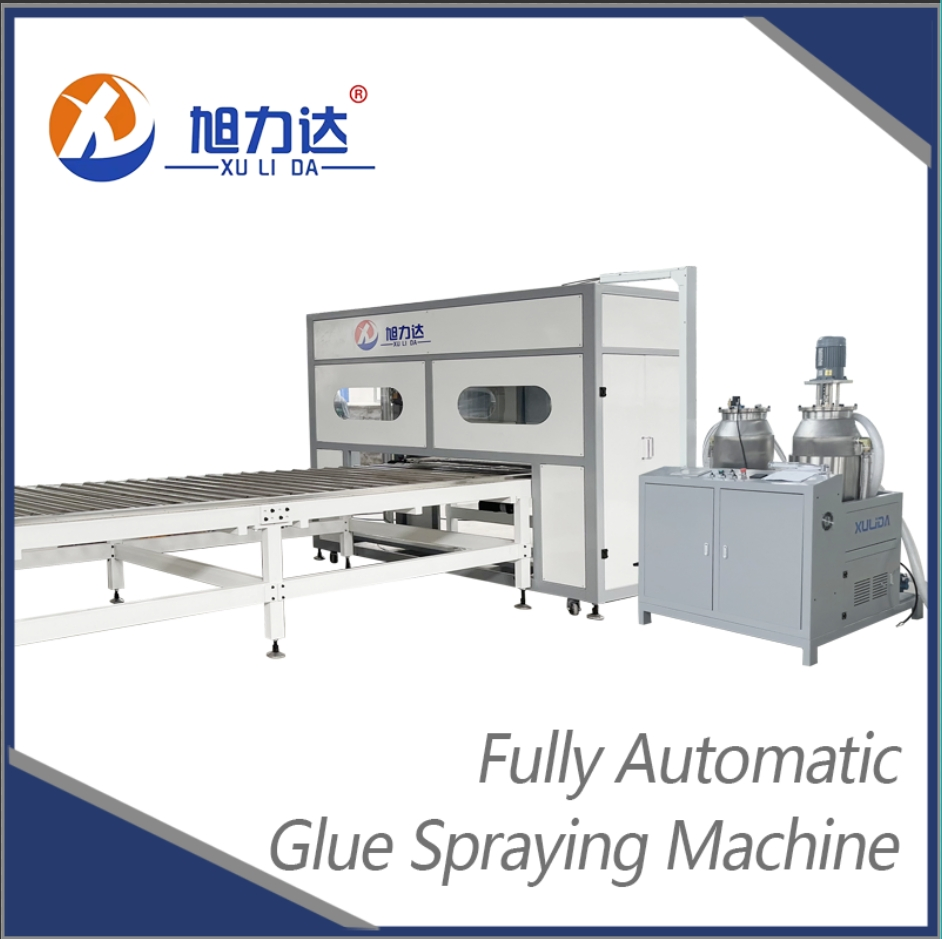

Reduced Labor Costs Aluminum Panel Adhesive Glue Applicator Gluing Machine

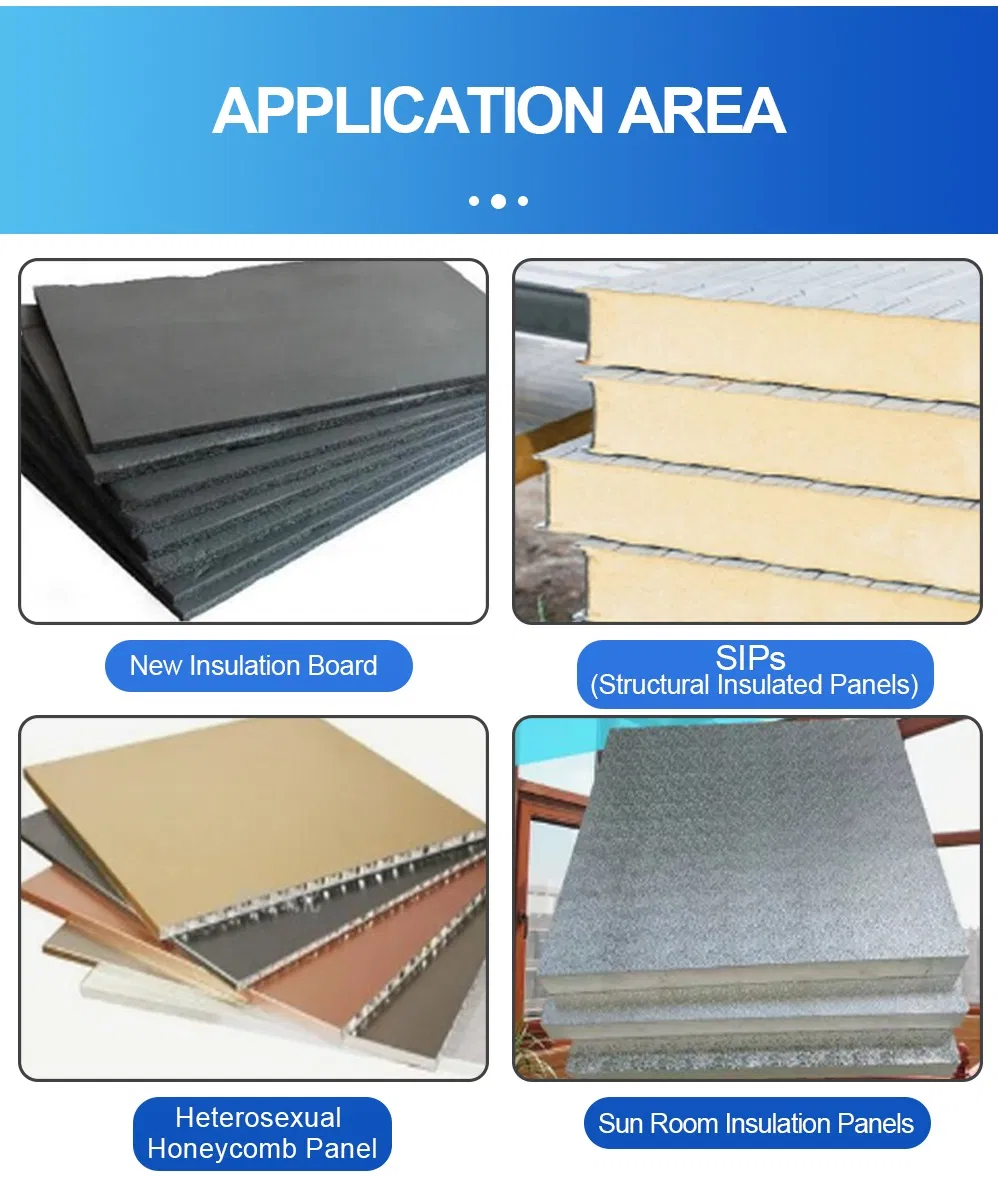

Universal Application: This machinery can compound various products including Integrated Ceilings, Wallboards, Honeycomb Panels, Refrigerated Truck Body Panels, SIPs (Structural Insulated Panels), and many more.

Automatic Coating vs Manual Scraping

Category	Automatic Coating	Manual Scraping
Coating Method	Single operator, automatic proportioning and mixing.	Requires 3-4 people, uneven scraping.

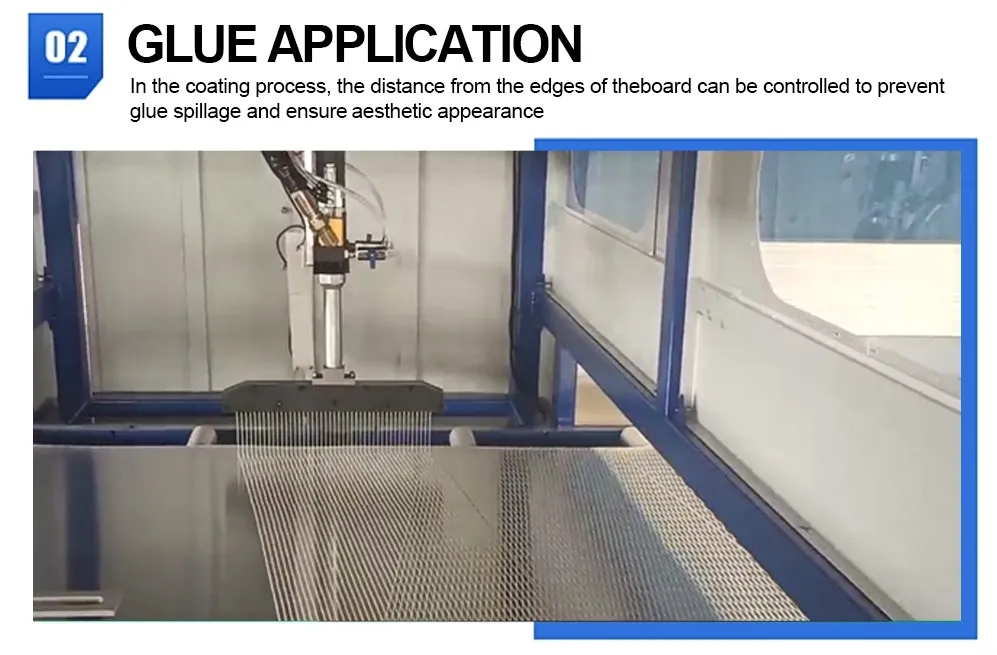

Precision	Edge control prevents glue spillage, ensures aesthetics.	Manual uneven application, edge contamination.
Efficiency	Approx. 4600 sqm per 8 hours.	Approx. 1000 sqm per 8 hours.
Cost Control	Accurate data usage, uniform coating, zero waste.	Difficult to control, prone to incorrect ratios.

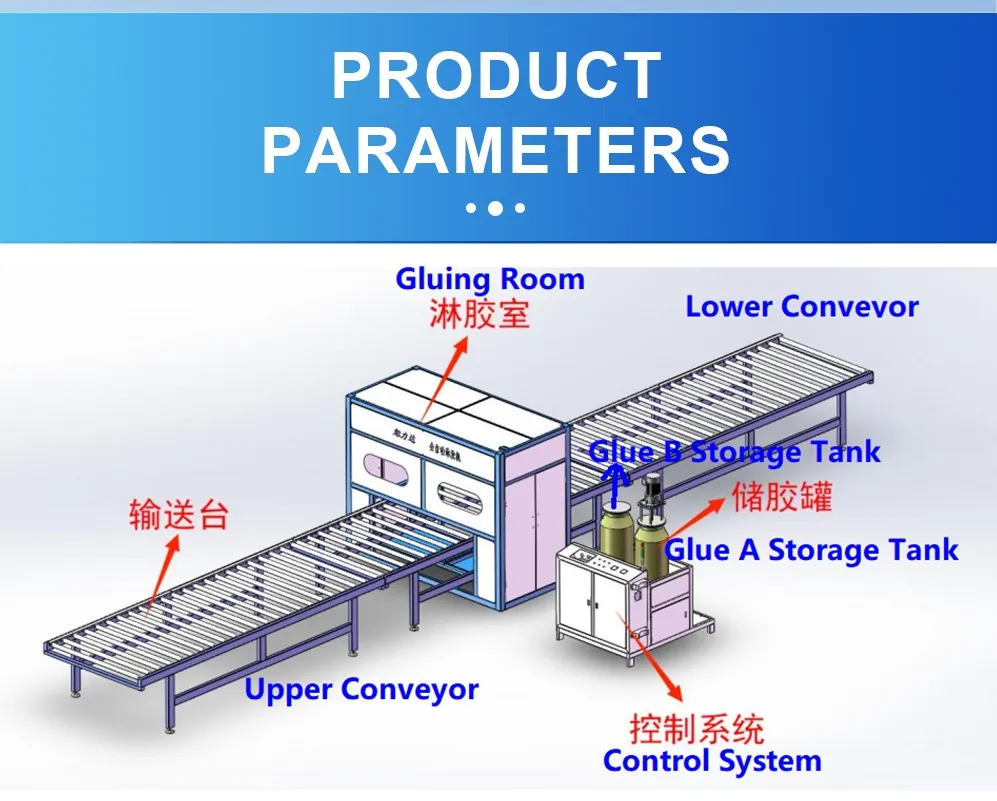

Product Parameters

Glue Output	0-6000g/min	Flow Accuracy	≤ ± 3%
A/B Ratio Precision	≤ ± 2%	Conveying Speed	Up to 12m/min

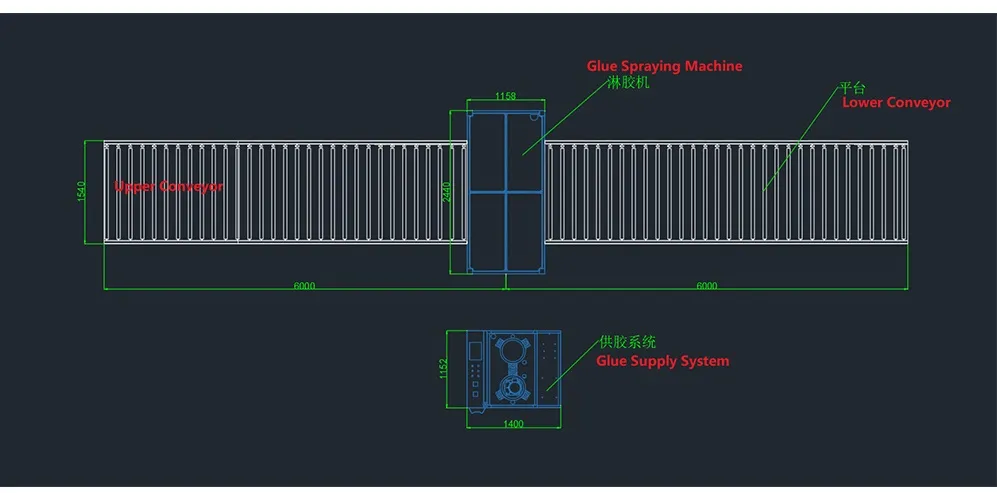

Dimensions (Model 2000)	12m * 3.1m * 2.2m	Proportioning Ratio	1:1 to 5:1 Adjustable

Key Functions

Automatic Edge-Seeking Mode: Identifies non-standard boards to coat effective areas only.
Automatic Variable Speed: Controls conveyor speed based on board width.
Proportion Imbalance Alarm: Immediate alerts to prevent batch waste.
Pulse-type Air Mist Cleaning: Centralized waste collection to prevent pollution.
Aviation-grade Aluminum Head: Features anti-stick coating and corrosion resistance.

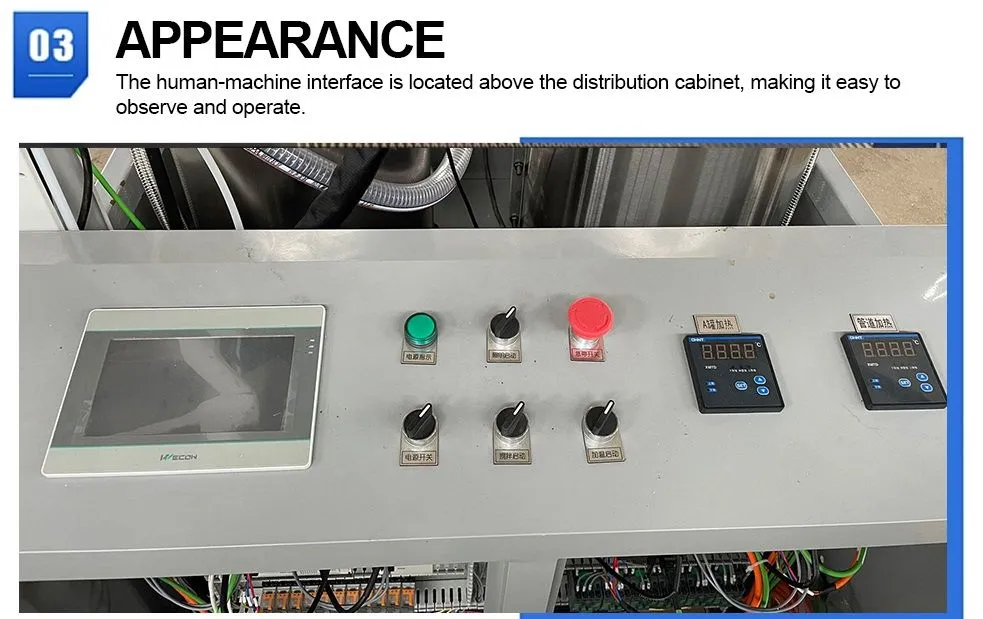

Remote Fault Reporting: Central controller system for fast troubleshooting.

Our Advantages

✓ Professional spraying machine production solutions.
✓ 24/7 technical support and online internet service.
✓ OEM & ODM customized design available.
✓ Competitive factory-direct pricing with no middleman.
✓ Strict quality testing and control system.

Frequently Asked Questions

Q1: What are your terms of packing?

A: Generally, we pack goods in containers by Standard Export Package (Plywood box). Special requirements can be accommodated.

Q2: What are your payment terms?

A: T/T 30% as deposit, and 70% before delivery. Photos of products and packages are provided before final payment.

Q3: How long is the typical delivery time?

A: Generally, it takes 30 to 45 days after receiving your advance payment, depending on the item and order quantity.

Q4: Can you produce according to specific samples?

A: Yes, we can produce based on your samples or technical drawings, including building custom molds and fixtures.

Q5: Do you test the equipment before delivery?

A: Yes, we conduct a 100% test on all goods before they are shipped to ensure stability and quality.

Q6: What is your sample policy for high-value machinery?

A: Due to high value, we can accept sample orders at a discount. If a large production order follows, we may consider re-funding the sample cost.
