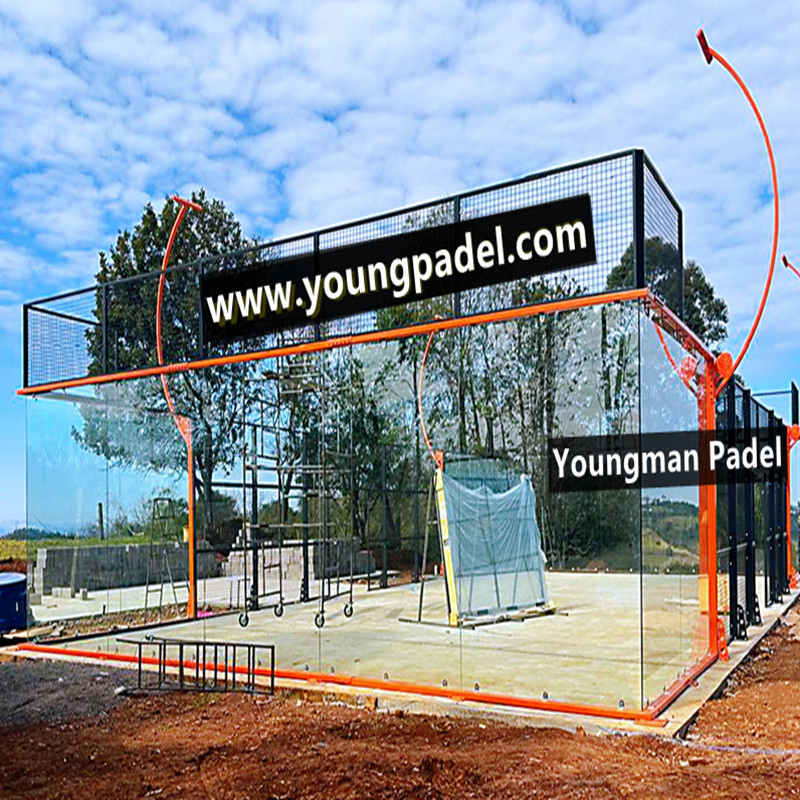

Ready to build an Ultra Super Panoramic 20*10m padel tennis court? Our professional solutions provide standard 20*10 meter sizes with cutting-edge designs. As a leading manufacturer with over 15 years of industry dedication, our courts are audited by independent third-party agencies to ensure FIP and European standards.
A full set of Padel Court includes:
| Model | Ultra Panoramic 20*10m padel court |
|---|---|
| Dimensions | Length: 20m, Width: 10m |
| Steel Columns | Lamp columns: 100*100*3mm (3m height); Pillars: 100*50*3mm |
| Mesh Fence | Frame: 1m*2m; Pipe: 50*30*2mm; Mesh: 50*50mm (4mm diameter) |

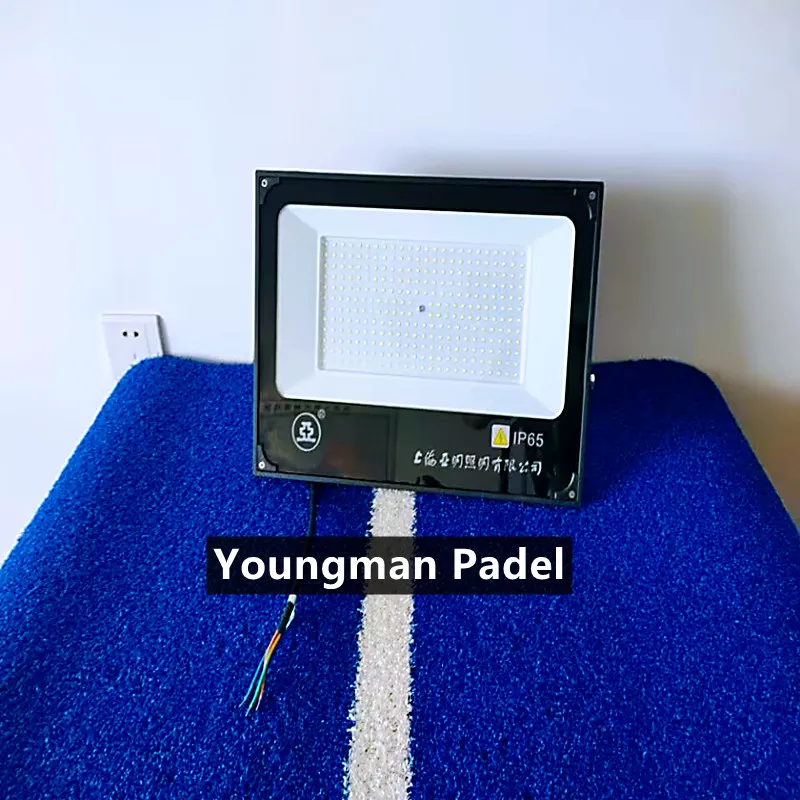

| Lighting | 200W LED Lights, IP65 waterproof; 6000mm Post height |
| Tempered Glass | 12mm thickness; 18 pieces (2*3m each) |
| Artificial Turf | Reinforced monofilament, 12mm height, 10000 Dtex, 58800 density/m² |

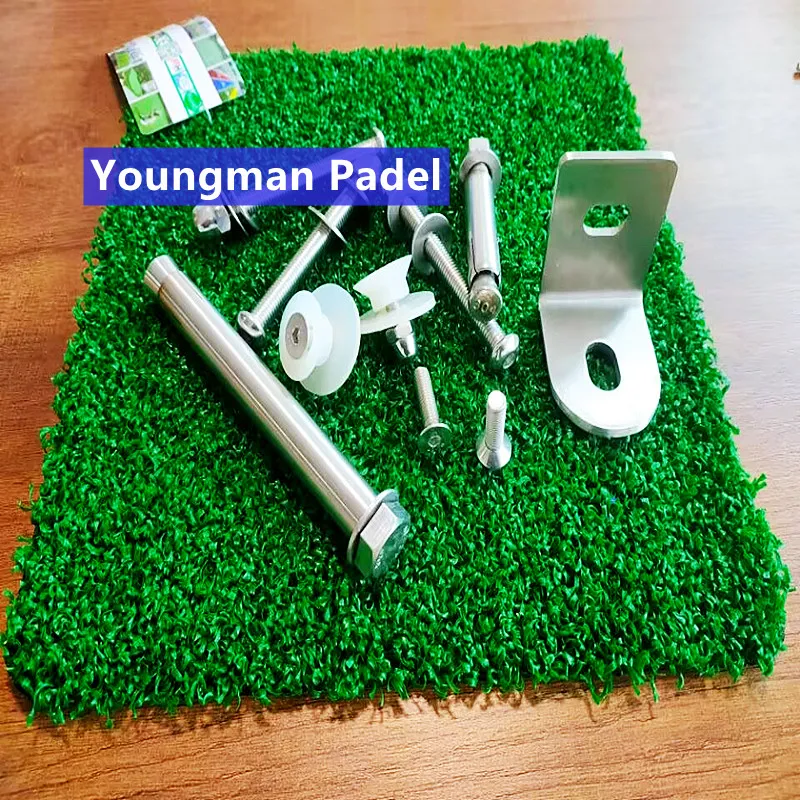

| Hardware | 304 Stainless Steel Bolts and Screws |

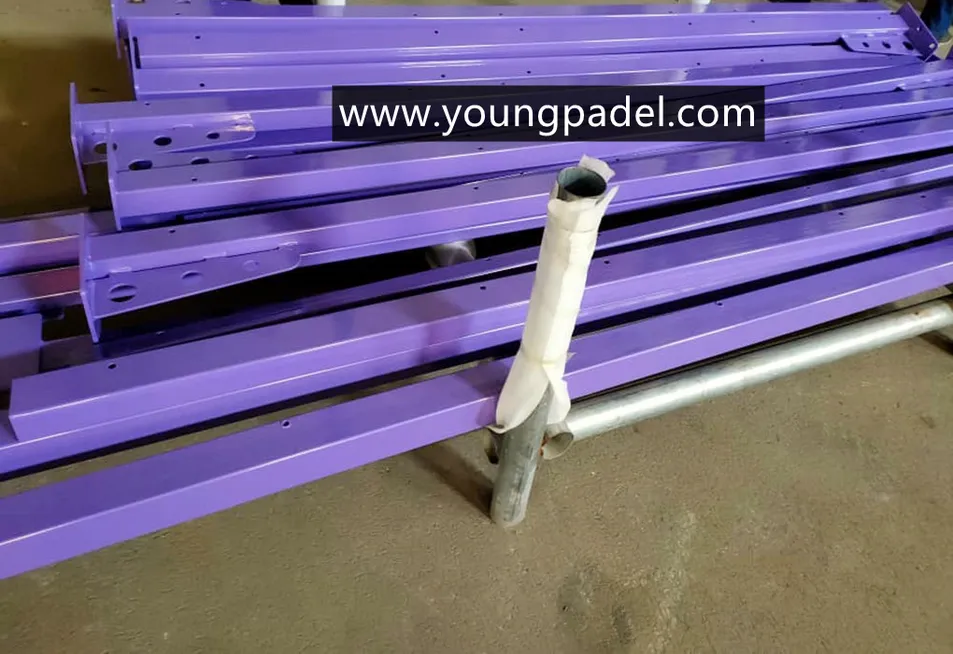

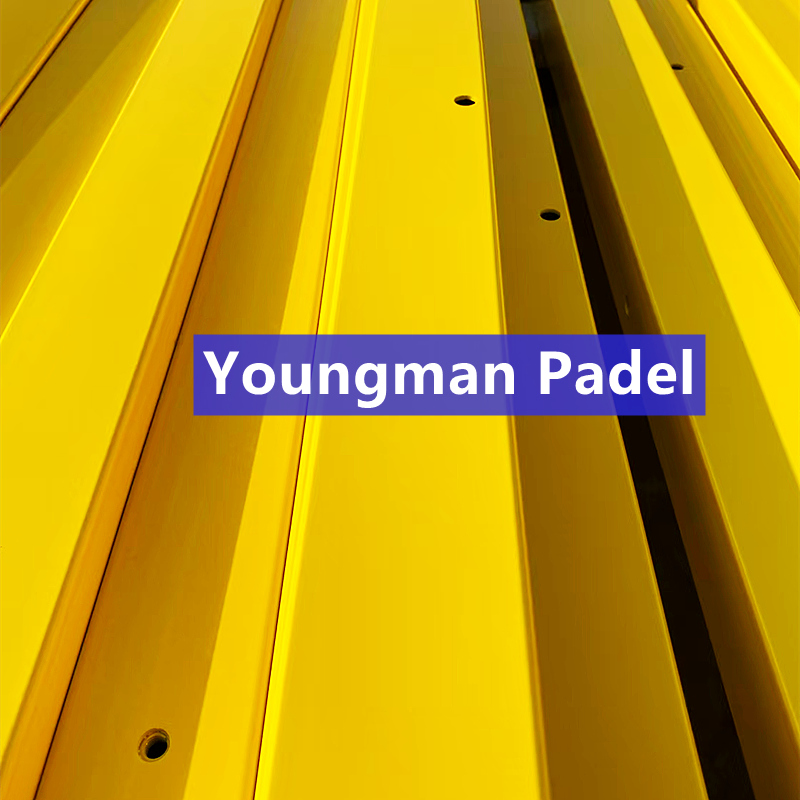

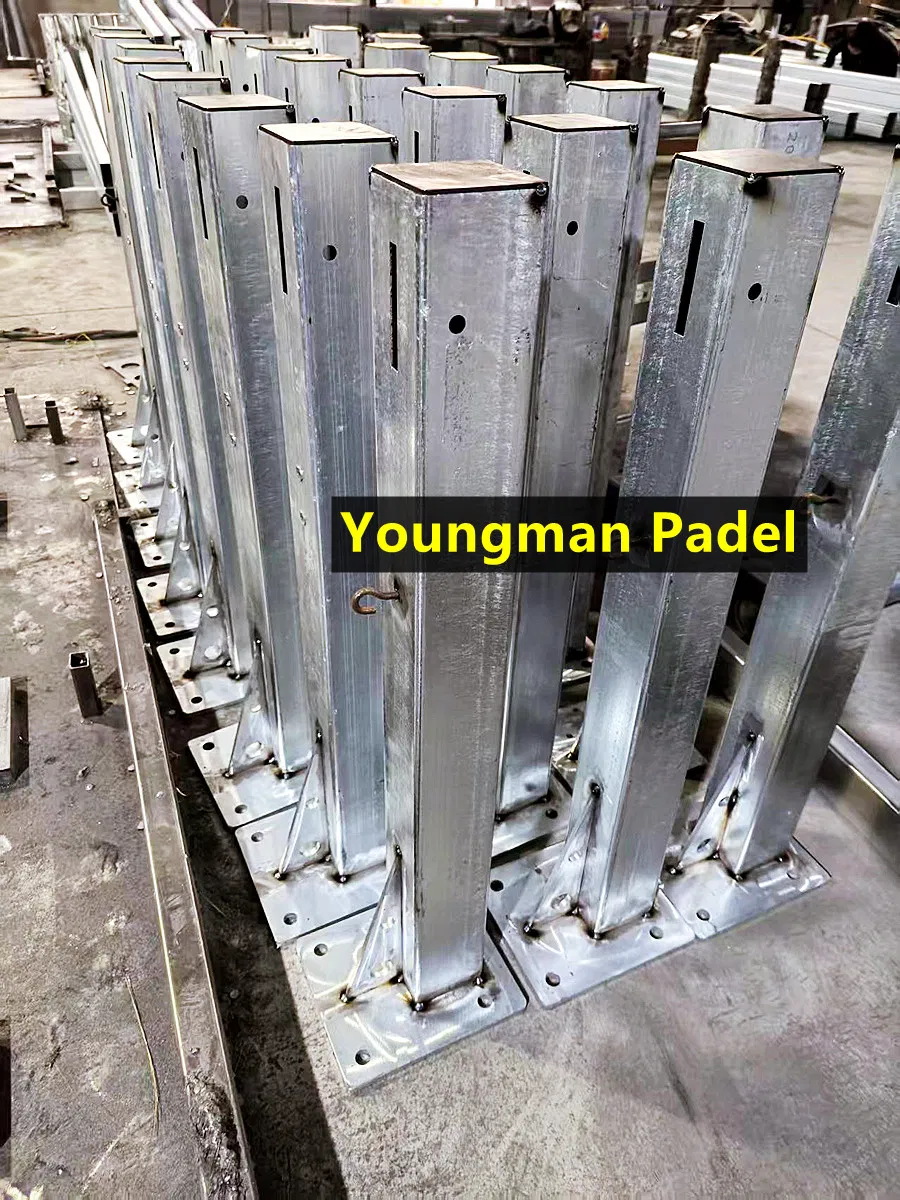

We use high-quality Q235B material which undergoes industry-standard hot-dip galvanizing treatment. The surface features three layers of protection: hot-dip galvanizing, zinc powder spraying, and outdoor high-quality powder coating. This ensures the structure will not rust or rot for more than 20 years outdoors.

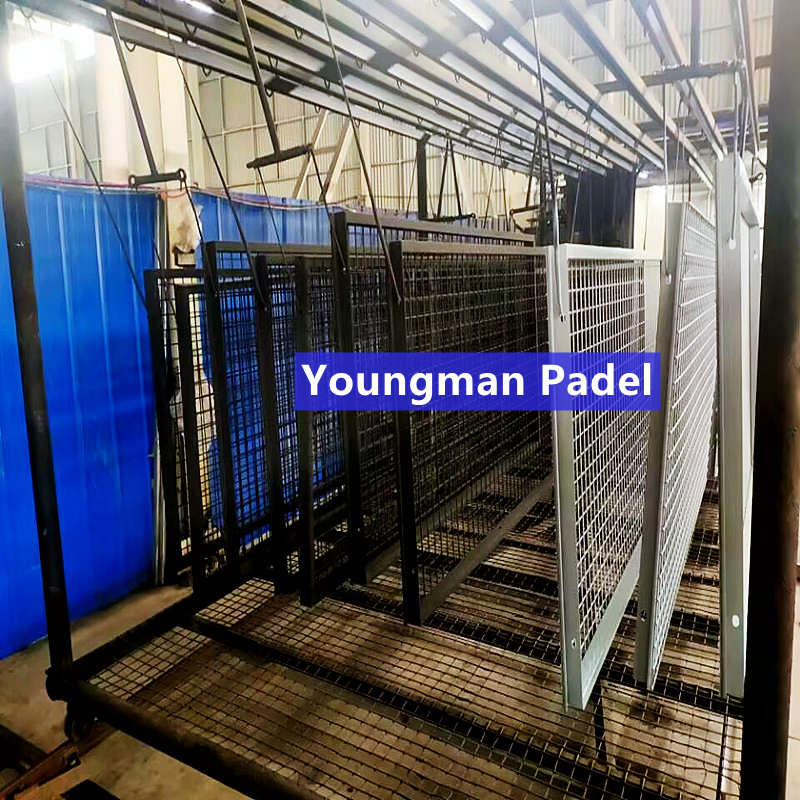

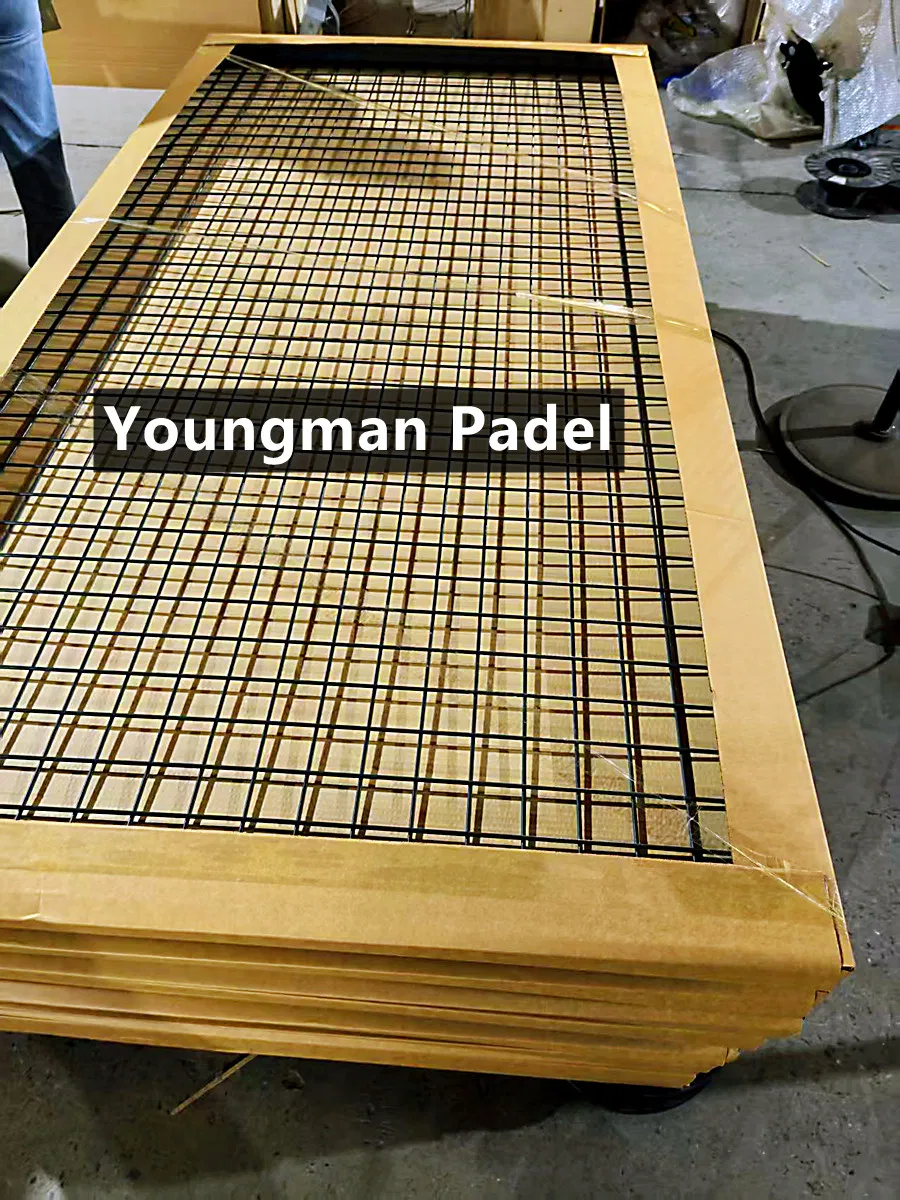

Each wire mesh is 1-to-1 welded for superior strength and durability. The ends are protected from scratches, and the surface is smooth and delicate. All indexes meet GB15065-94 and IE60502 standards with a 0% water absorption rate.

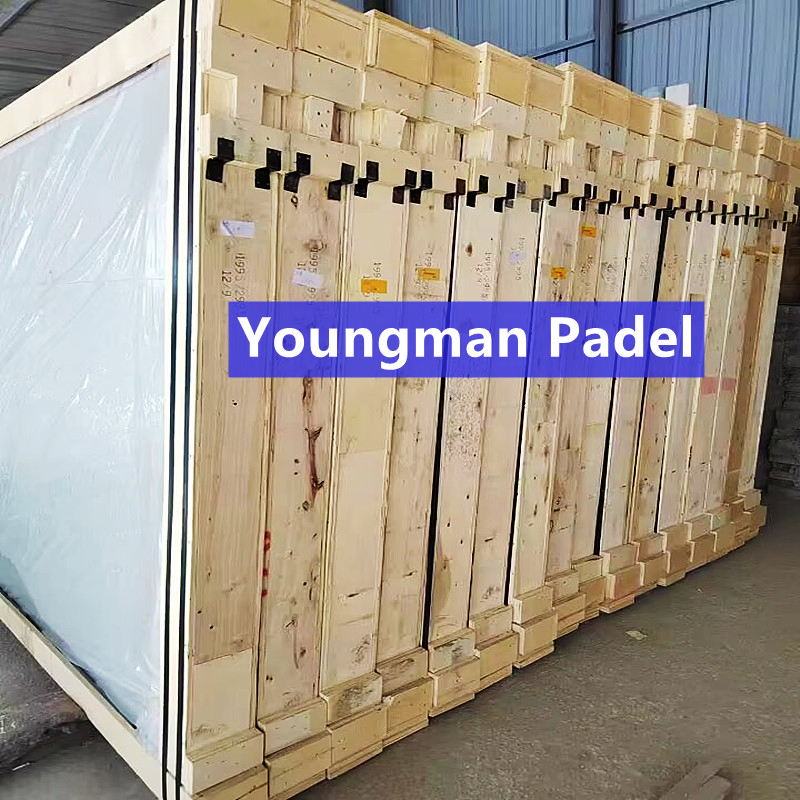

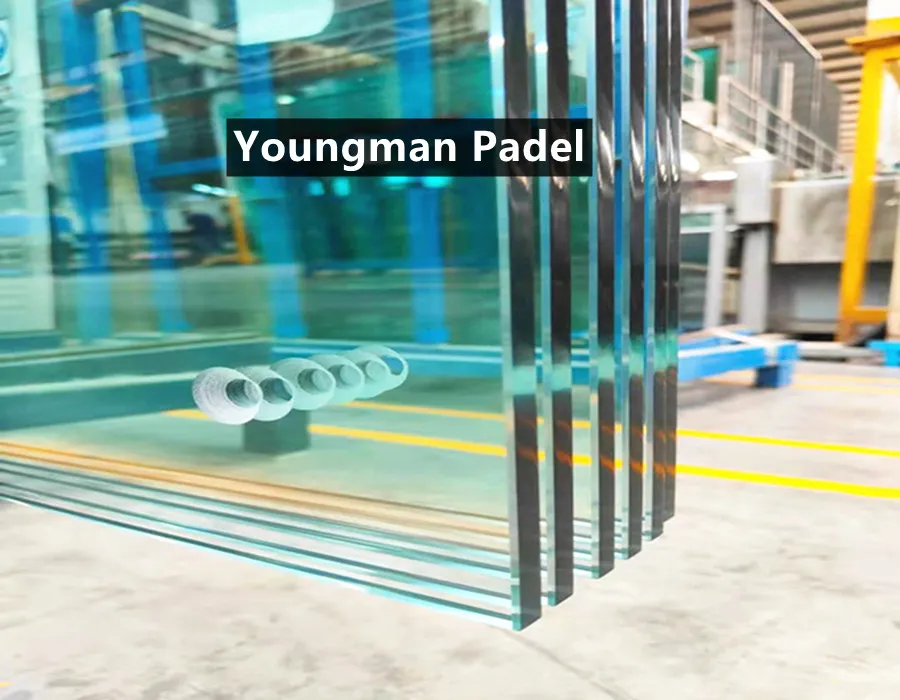

Tempered Glass: 12mm special explosion-proof glass complying with European Standard EN 12150-2. High impact resistance and super high strength.

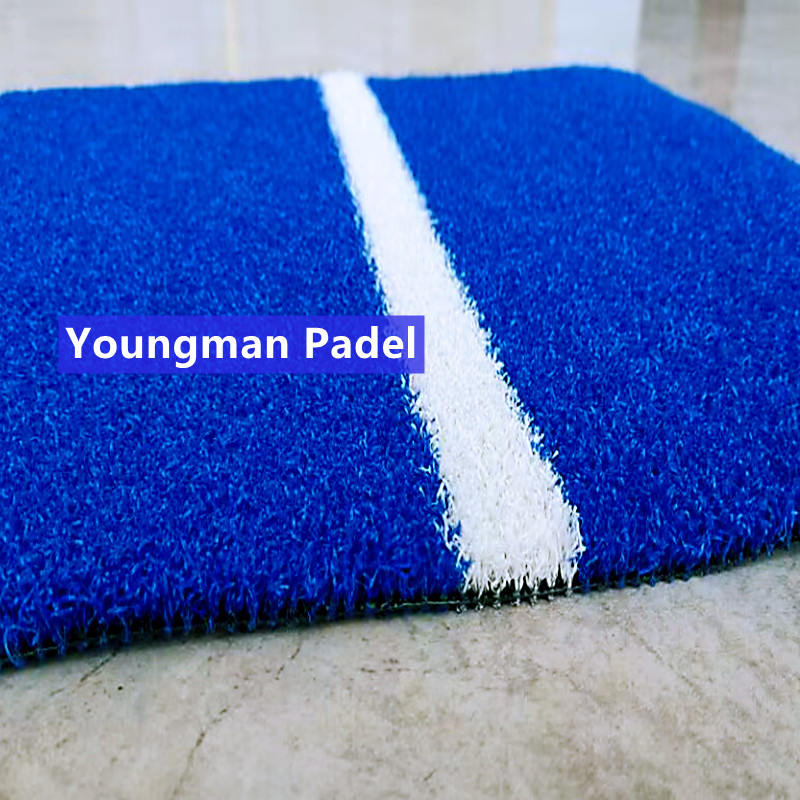

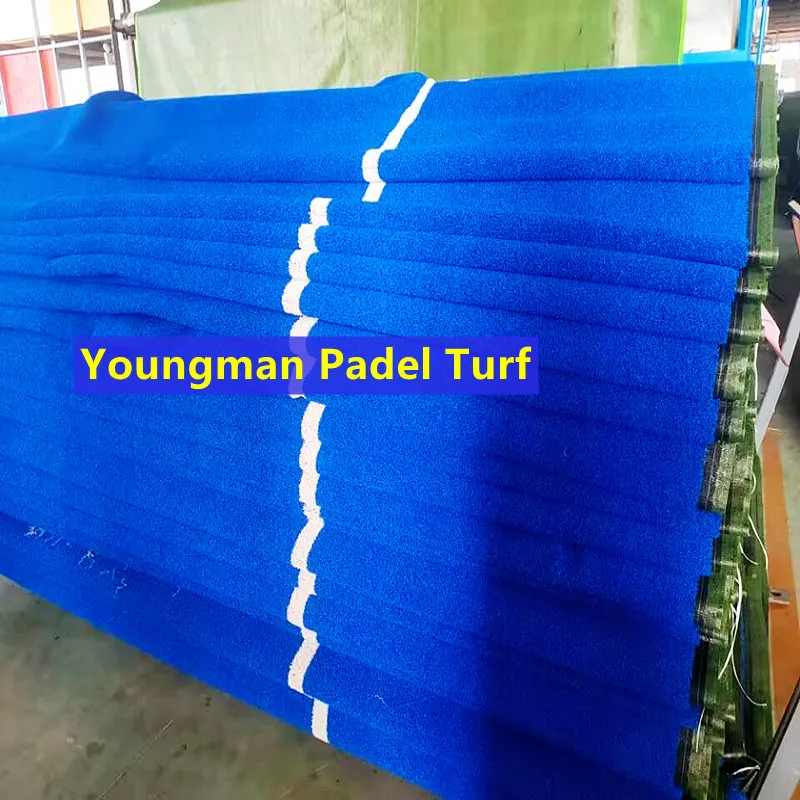

Artificial Grass: Reinforced monofilament with triple-layer backing (PP+PP+SBR). High linear PE particles ensure color and curvature longevity. Environmentally friendly and mold-resistant.
Founded in 2010, we are a leading manufacturer and pioneer with over 15 years of industry dedication. Our facilities utilize digital laser cutting for precision accessories, ensuring every court meets international safety and aesthetic standards. To date, we have supplied and installed more than 8,900 court sets in over 50 countries worldwide.
