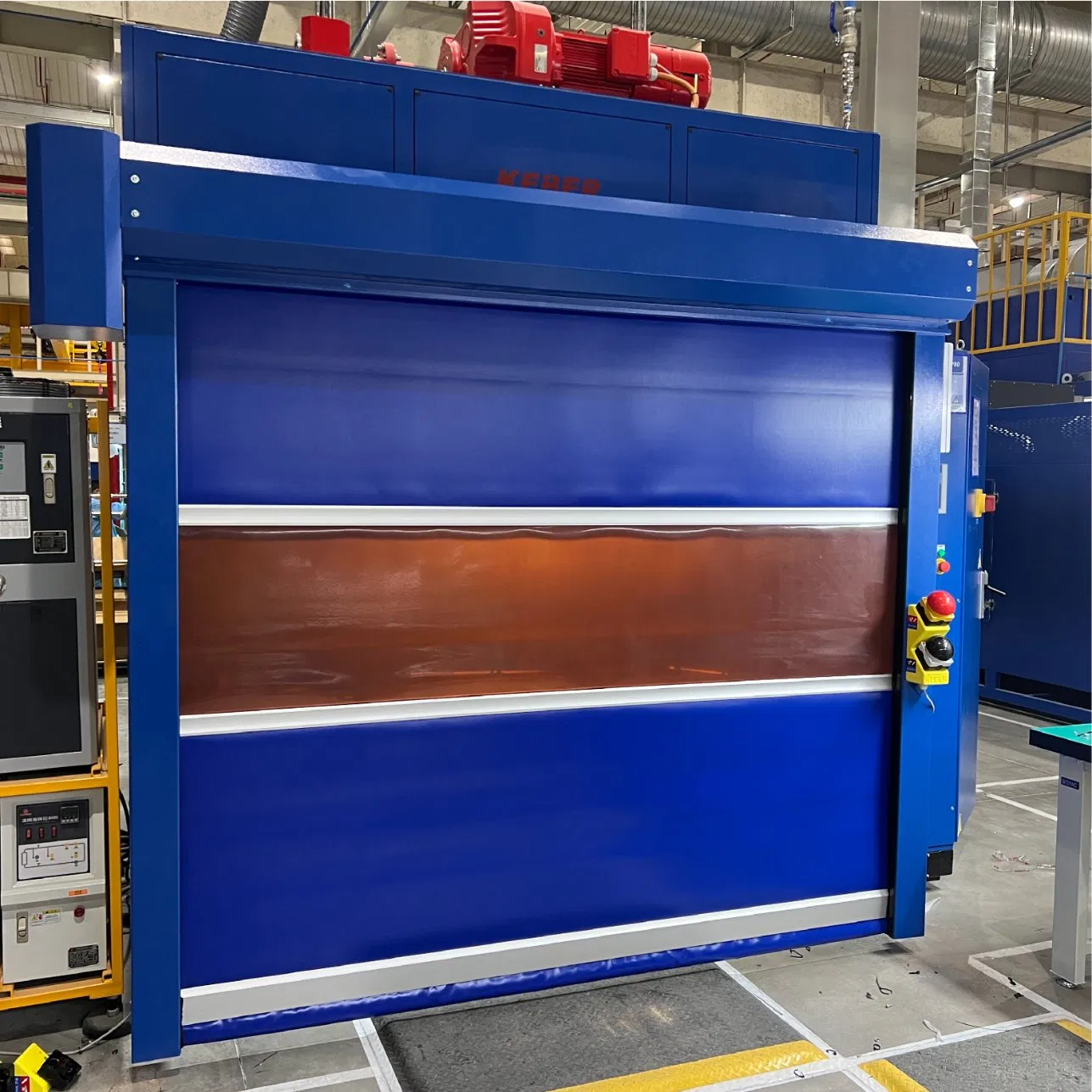

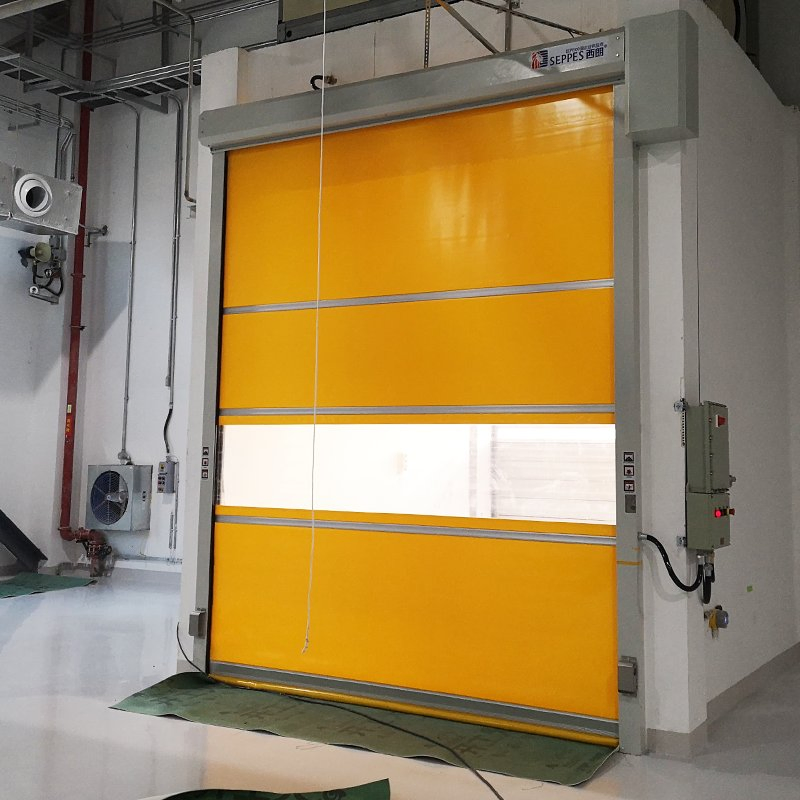

Insect-Proof Dust-Proof High-Speed Doors USA Fast Doors for Chewing Gum Processing Plants

Customization: Available
After-sales Service: Online Guide
Warranty: 2 Year

Product Description

Basic Information
Model NO.
HSD-180
Material
PVC
Type
Rolling
Open Style
Rolling
Opening Type
Induced
Special Function
Security
Max Size
5000*5000mm
Opening Speed
Max 2.0m/S (Adjustable)
Operation
Buttons, Sensors, Remote Control
Power Supply
1-Phase 220V, or 3-Phase 380V
Packaging & Delivery
Package Size
35.00cm * 25.00cm * 150.00cm
Gross Weight
350.000kg
High Performance Industrial Doors

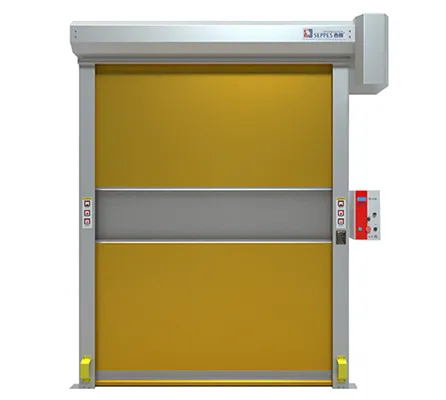

Industrial Door

Why choose high-speed industrial doors?

  • Exported to Over 50 Countries
  • Serving Over 3600 Clients Worldwide
  • CE, SGS, and UL Certified
  • Trusted Supplier to Fortune 500 Companies
  • Advanced Servo Intelligent Control Systems

Adopt integrated intelligent control system, servo high-precision drive unit, with patented safety protection technology, ensuring safe, stable, fast, and efficient professional performance.

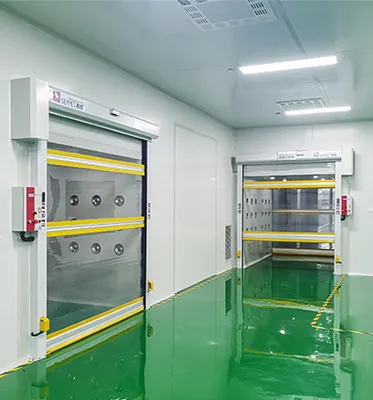

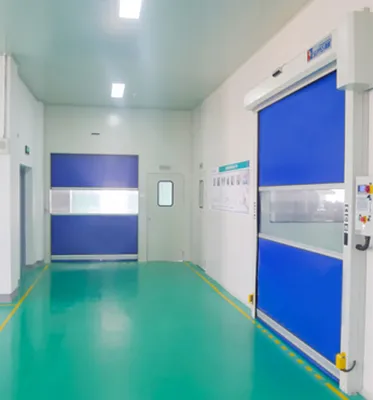

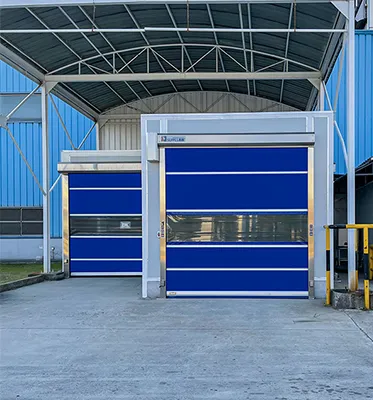

Installation Sites
Detailed Features

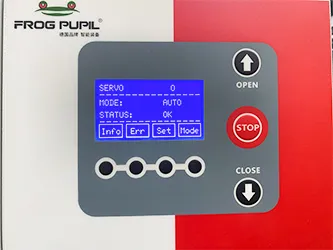

Human-Machine Interface

Innovative visual operation with real-time display of running status. Plug-in interface for easy use and maintenance.

Interface

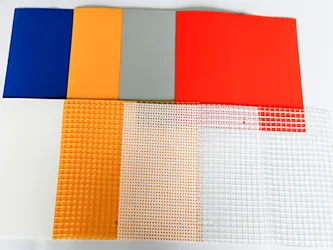

Strong Door Curtain

High-strength base cloth with surface self-cleaning function. Wear-resistant, tear-resistant, and impact-resistant for a longer service life.

Door Curtain

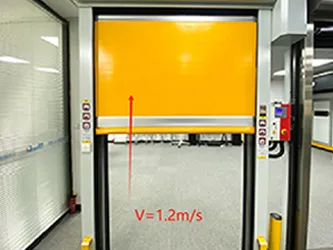

Rapid Operation

Opening speed of 1.0-1.2m/s (customizable up to 1.5m/s), which is 5-7 times faster than ordinary rolling doors. Suitable for frequent daily use.

Speed

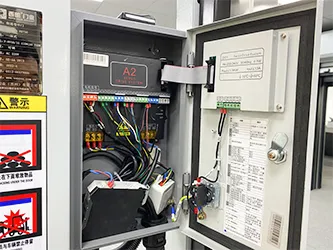

Intelligent Control

Equipped with high-precision drive units to ensure stable and efficient operation of industrial fast rolling shutter products.

Control

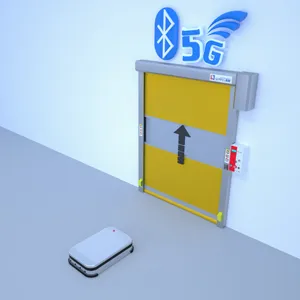

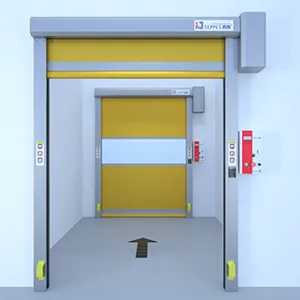

Advanced Functions

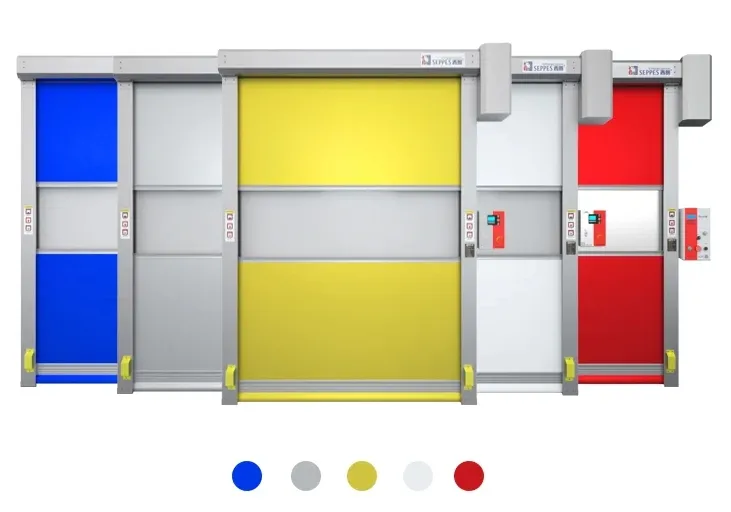

Available Colors
Product Specifications

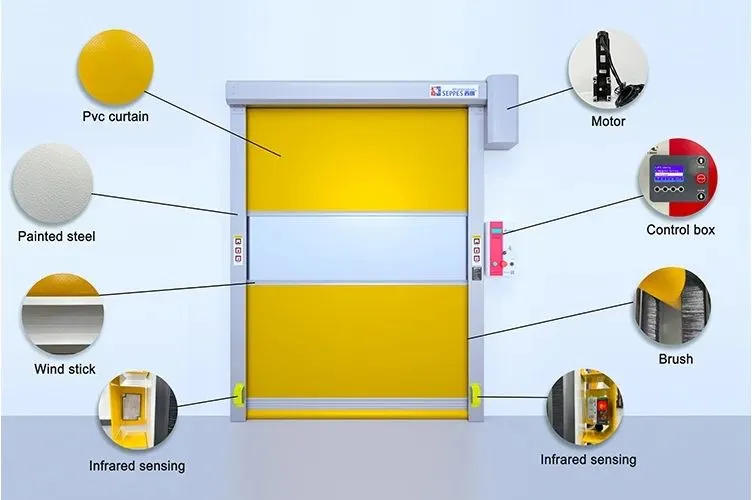

Structure

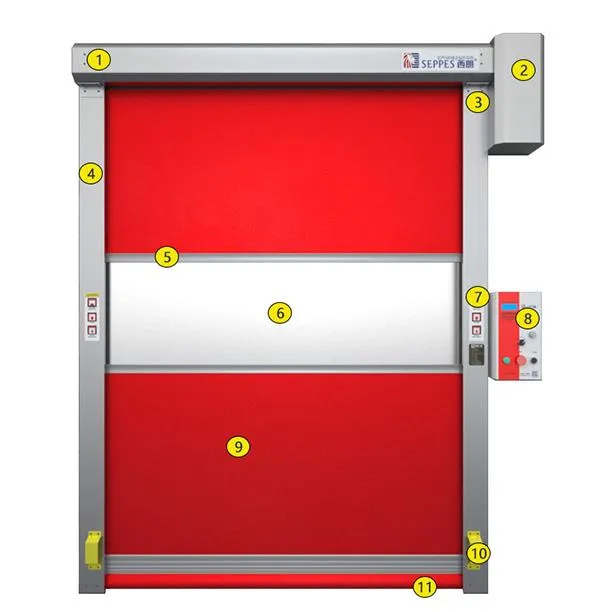

Component List
(1) Front box | (2) Motor | (3) Fixed angle iron | (4) Track ribs | (5) Window | (6) Nameplate | (7) Control box | (8) PVC curtain | (9) Infrared safety | (10) U-shaped bottom
Wind pressure4-5 wind (refer to size)
Opening speed1.0-2.0 m/s (adjustable)
Closing speed0.8 m/s
Operating temp-5 to 60°C
PVC thickness0.8-1.2mm
Frame materialCold-rolled steel / 304 Stainless steel / Aluminum
Induction modeRadar, Geomagnetic, Photoelectric, Remote

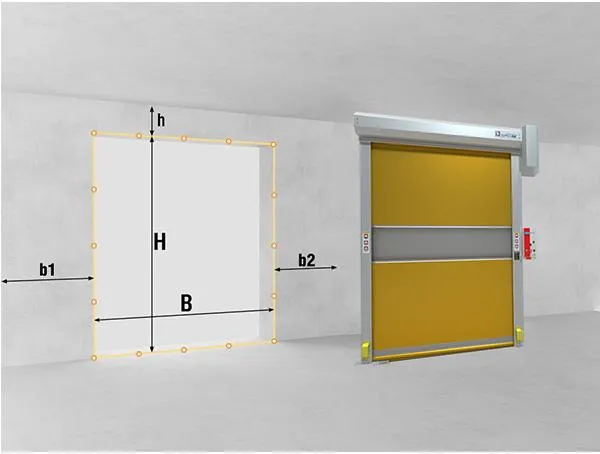

Measurement Guide
Measurement

H: Height of the doorway

B: Width of the doorway

h: Space above (min 600mm recommended)

b1/b2: Lateral distance (min 200mm required)

Real Projects

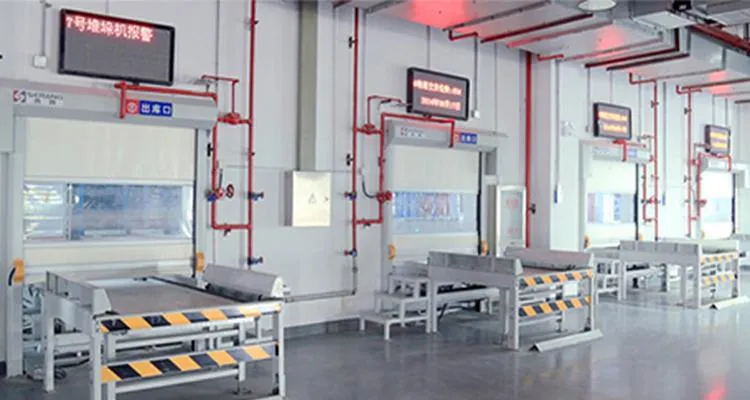

Warehouse

Automatic three-dimensional warehouse outlet

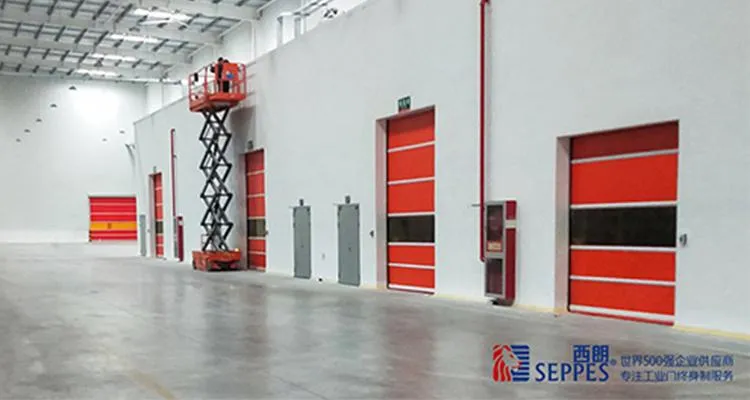

Beverage Project

Beverage Industry Project

Global Manufacturing Presence

A high-tech company focusing on the development, design, and manufacturing of industrial door technology. We provide complete customized entrance door system solutions for industrial customers. Our main products include high-speed doors, automatic roller shutter doors, and sectional doors, all complying with international industry standards including EU CE, SGS, and ISO9001 quality management systems.

Factory
Frequently Asked Questions
What are high-speed doors?
High-speed doors are specialized industrial doors designed for fast opening and closing to ensure efficient traffic flow, enhance environmental control, and improve safety in warehouses and factories.
What materials are used in construction?
Common materials include high-strength PVC for the door curtain and cold-rolled steel, stainless steel, or aluminum for the frame, depending on durability and security needs.
Can these doors be customized?
Yes, dimensions, materials, colors, and activation features (sensors, remote controls) can be customized to meet specific facility requirements.
Are high-speed doors energy efficient?
Yes, their rapid operation minimizes the time the doorway is open, significantly reducing energy loss from heating or cooling systems.
What safety features are included?
Standard safety features include infrared anti-pinch sensors, emergency stop functions, and optional safety bottom edges to prevent injury or equipment damage.
How do I maintain my high-speed door?
Regular cleaning of sensors and tracks, checking for curtain wear, and ensuring the motorized mechanism is lubricated will ensure longevity and optimal performance.
