| Model NO. | Umek |
| Power | 1.5kw |
| Power Supply | AC 380V 50Hz 3phase or 220V 50Hz Single Phase |
| RO Membrane | Ulp31-4040 2PCS |
| Membrane Housing | Stainless Steel SUS-304, 4040 2PCS |
| Raw Water Pump | China Brand |
| Quartz Sand | 100 Kg |
| Origin | Hebei |
| Production Capacity | 50,000 |
| S/N | Commodity Name | Application & Function |
|---|---|---|
| 1 | Raw water tank | Store water, buffering pressure, ensures stable supply for the system. |
| 2 | Booster pump | Provides needed pressure for every pretreatment filter. |
| 3 | Mechanical filter | Fiber glass/SS housing with quartz sand to filter big impurities and colloids. |
| 4 | Activated carbon filter | Removes color, odor, residual chlorine, and organic substances. |
| 5 | Water softener | Cation resin absorbs Ca2+ and Mg2+ to reduce water hardness. |
| 6 | Dosing system | Prevents RO membranes from blocking and regulates PH range. |
| 7 | Security filter | Prevents large particles, bacteria, and viruses from entering RO membrane. |
| 8 | High pressure pump | Ensures working pressure for pure water production capacity. |
| 9 | RO system | Removes heavy metal ions, bacteria, viruses, and 99% dissolved salts. |
| 10 | CIP cleaning | Chemical cleaning system for RO membrane maintenance. |
| 11 | Sterilizing device | UV sterilizer or ozone generator for final purification. |

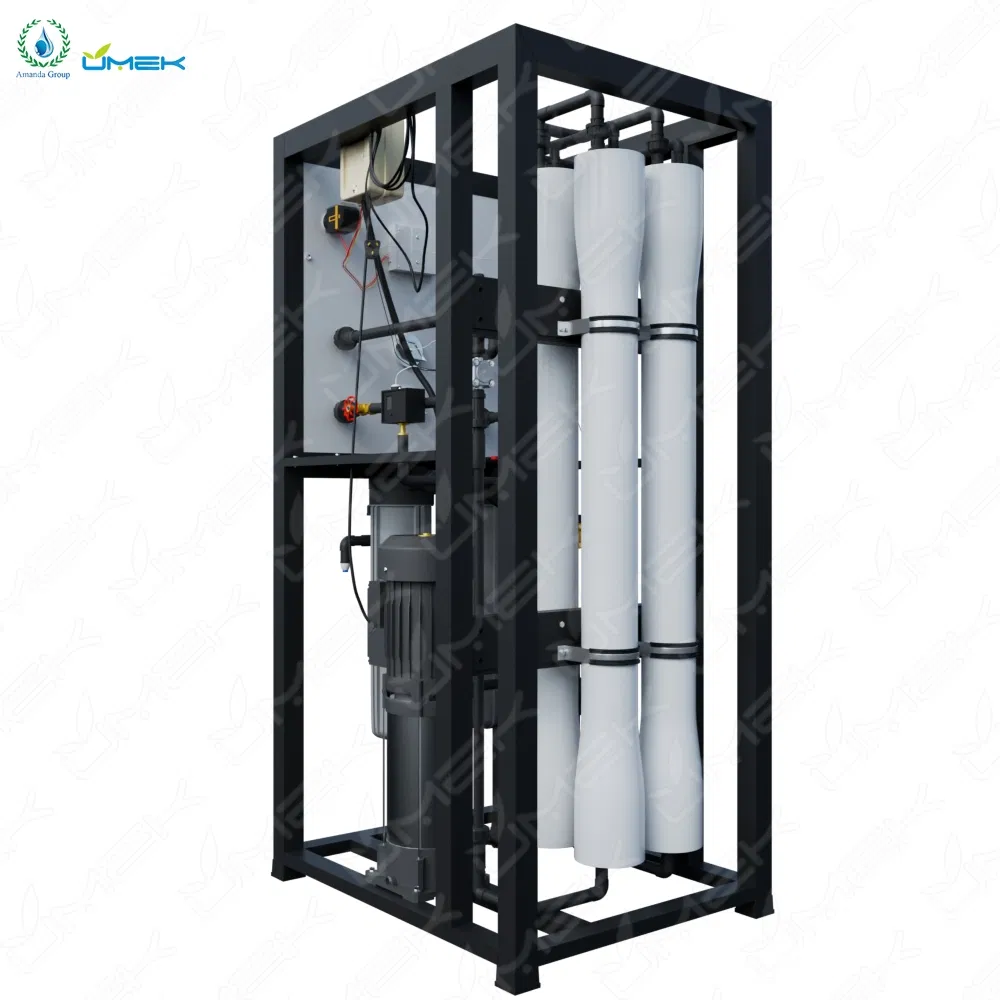

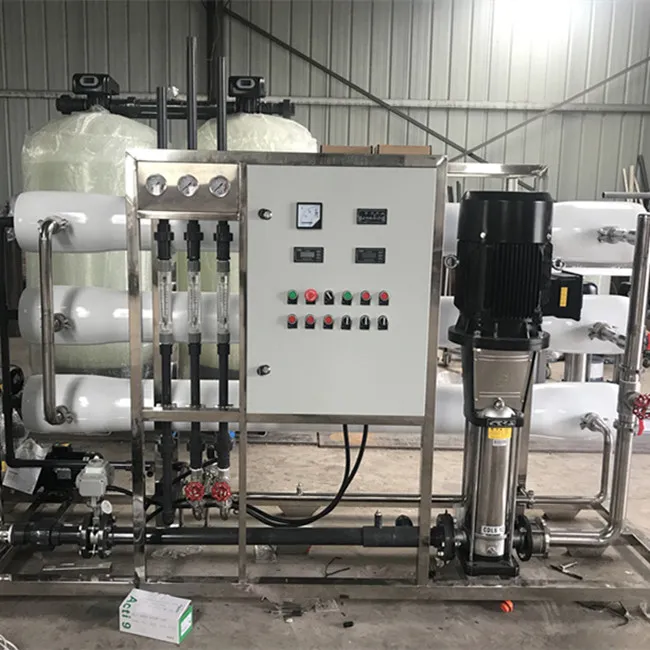

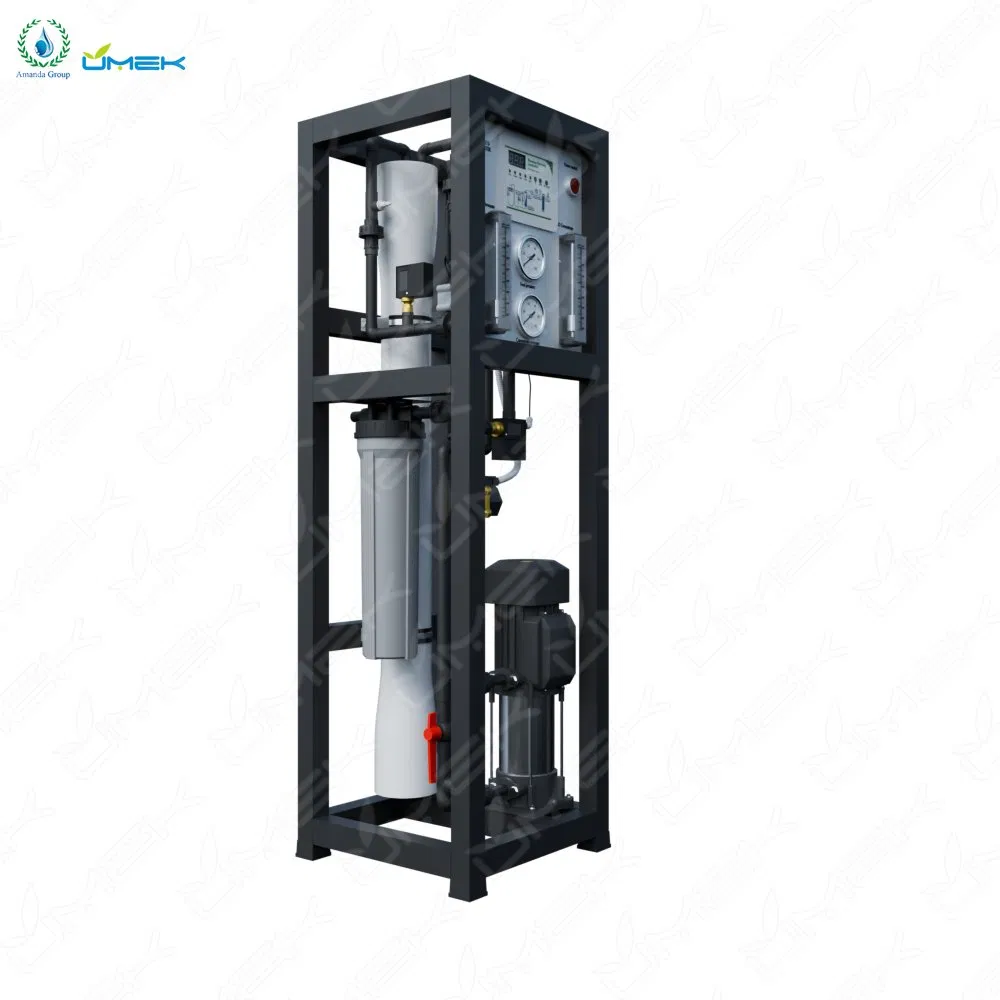

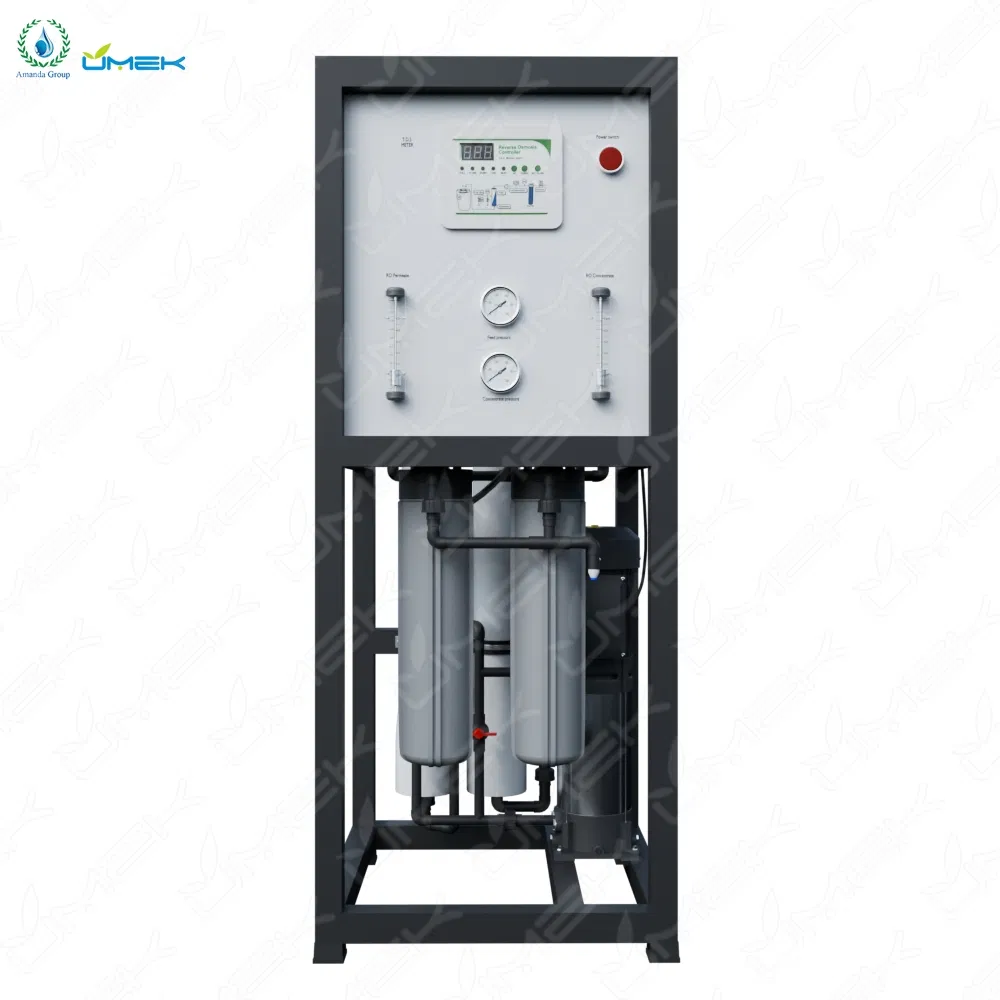

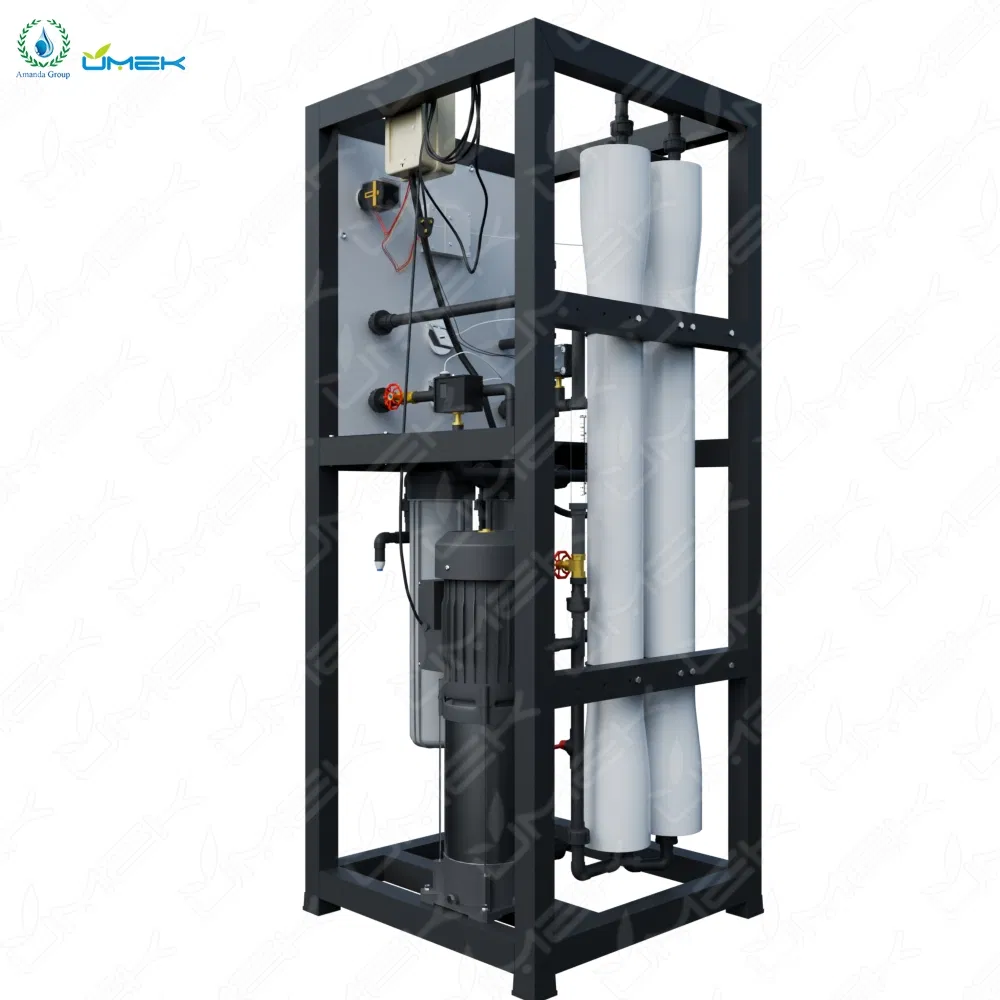

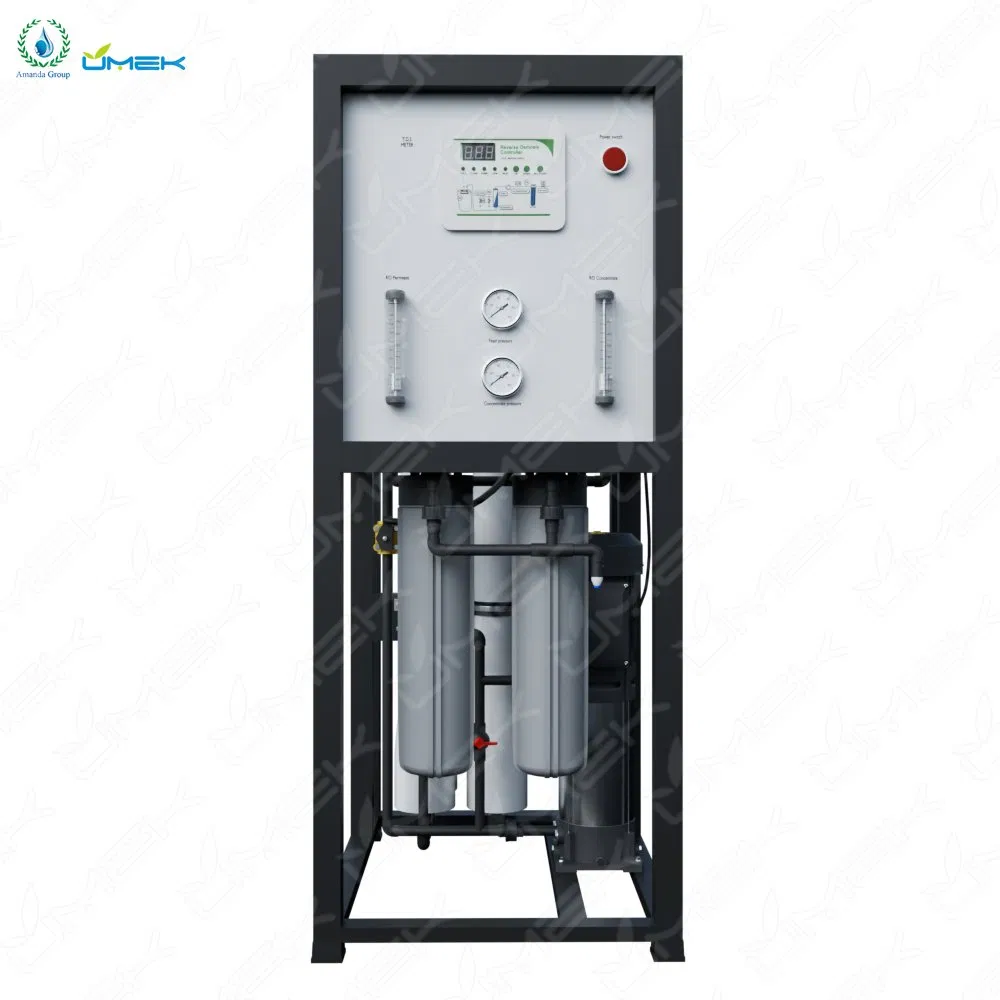

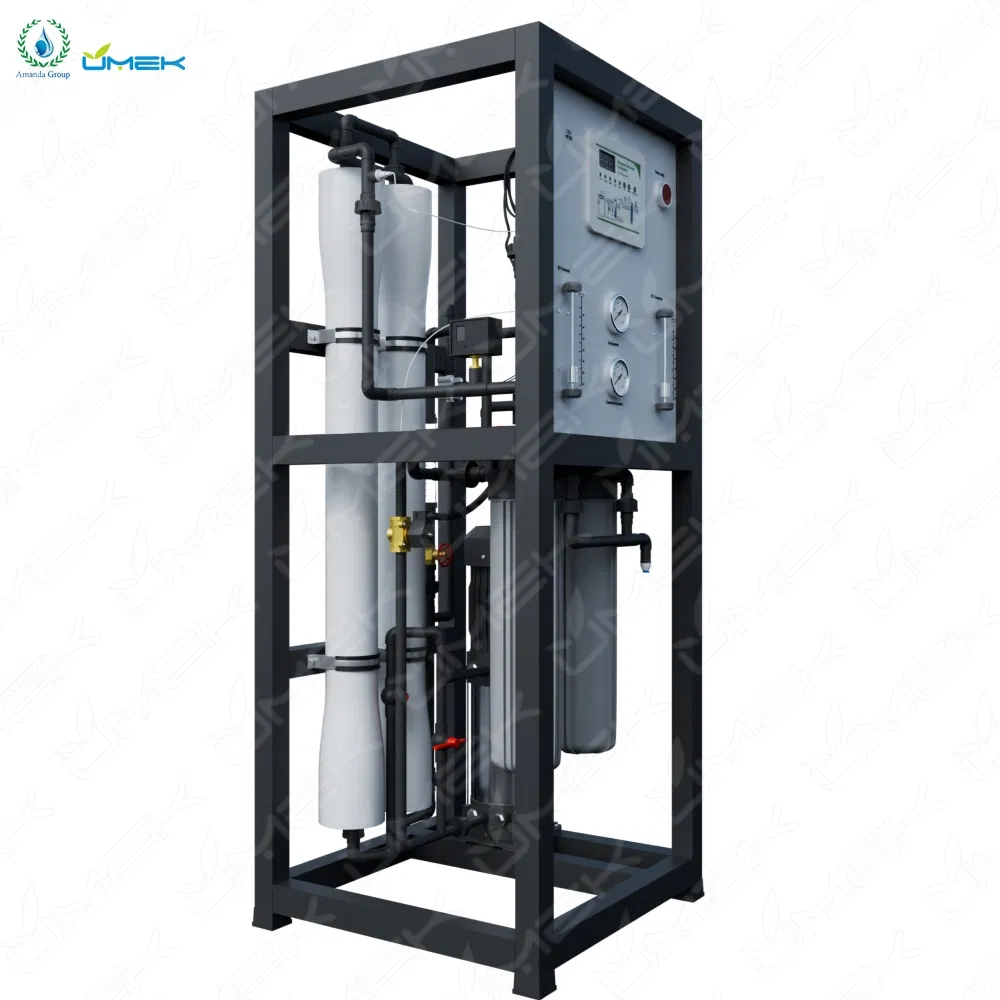

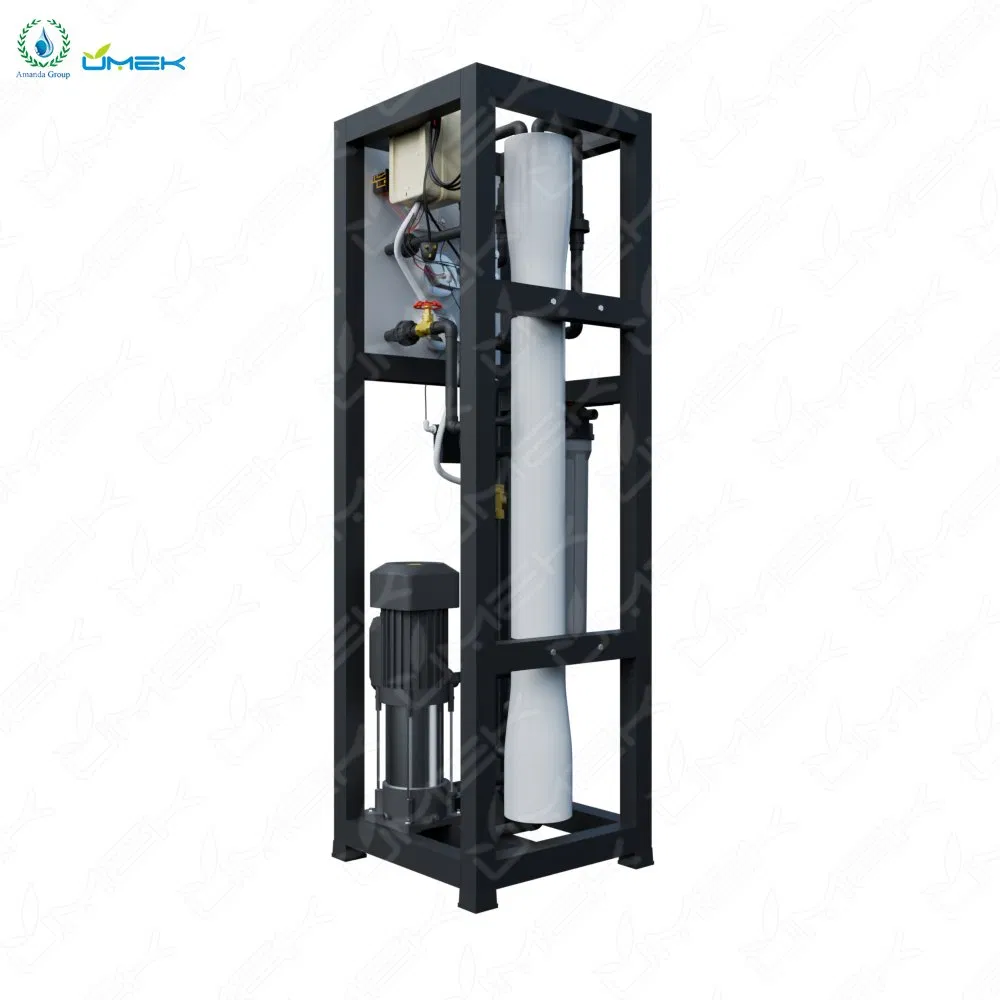

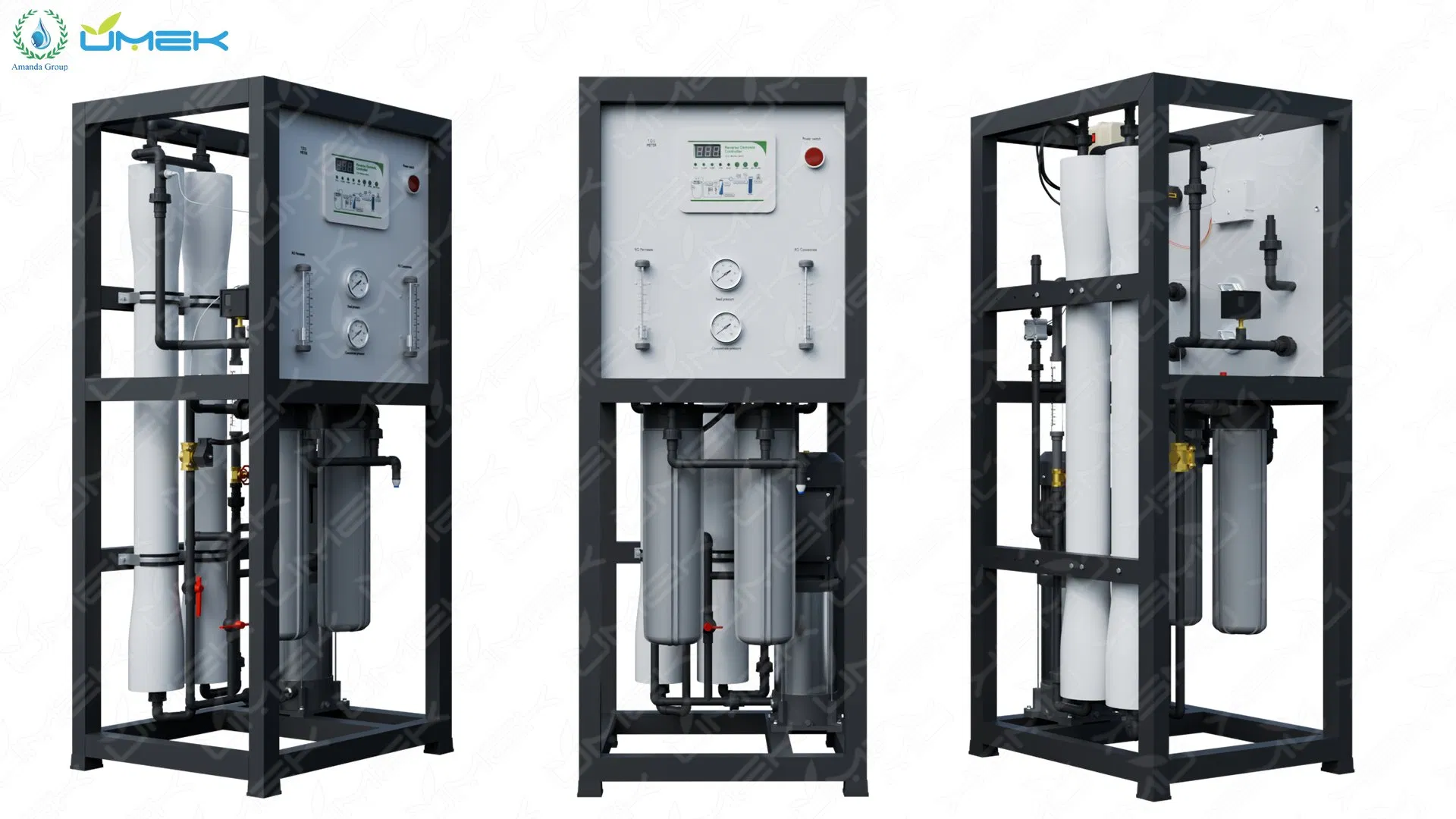

500LPH Stainless Steel RO Water Softener Filter Machine Pure Water Maker
The reverse osmosis (RO) water treatment plant is an equipment to purify water with the action of pressure difference across a semi-permeable membrane. RO membranes effectively remove the majority of organics, harmful substances, bacteria, and particulates from raw water. This system is widely used for tap water, well water, borehole salty water, and brackish water purification.
Key industries include power stations, electronics, cosmetics production, pharmaceuticals, and medical treatments such as hemodialysis.
