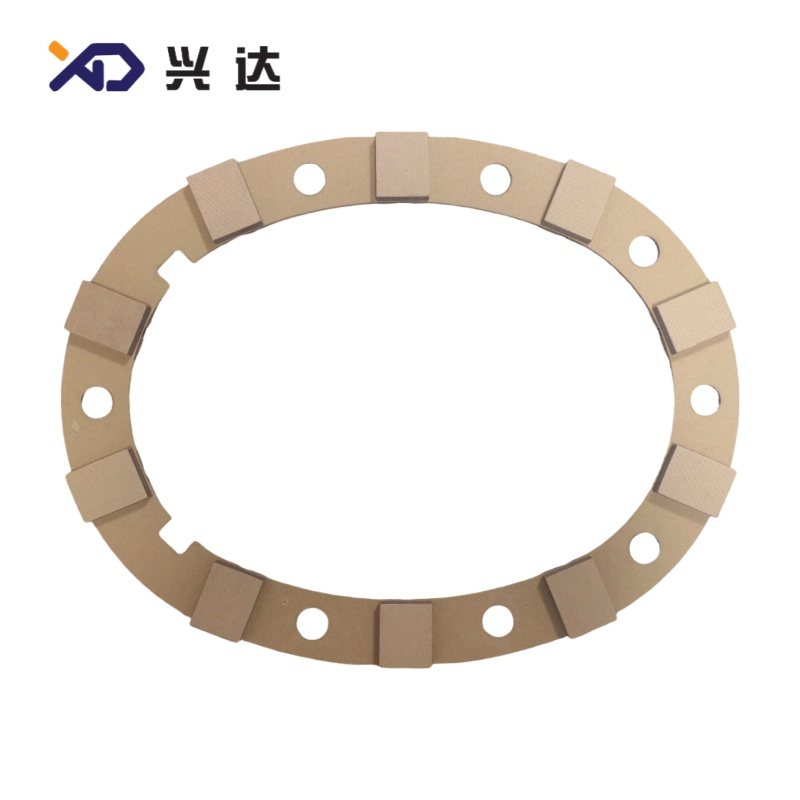

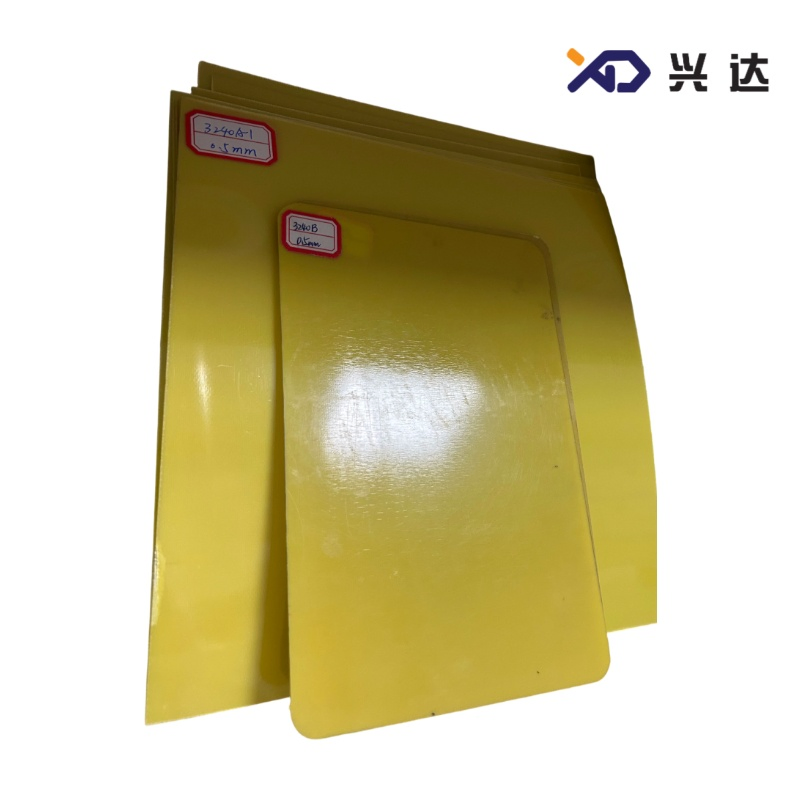

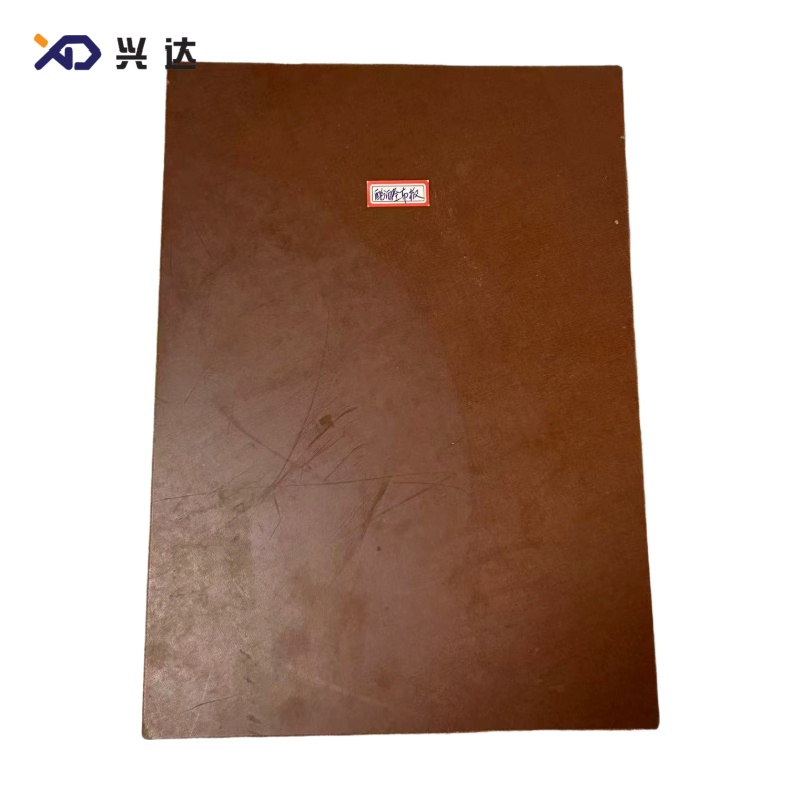

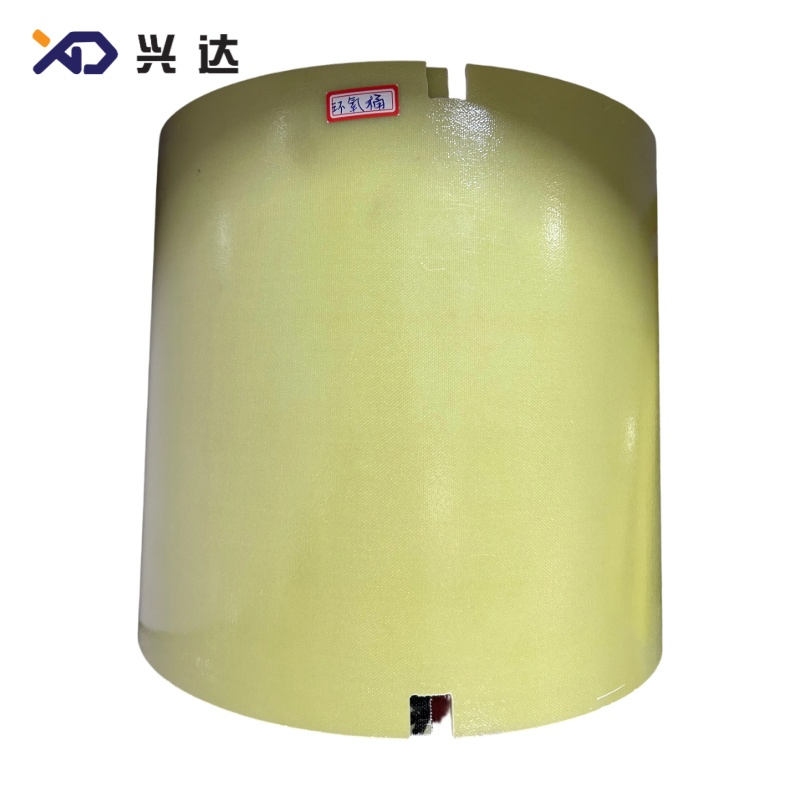

High-Temperature Resistant and Thin-Film Pet

Customization: Available
Application: Transformer
Color: Customisable

Product Description

🔹 Basic Information
Model NO.
Customized
Material
Diamond Embellished Paper
Maximum Voltage
20KV~100KV
Thermal Rating
H 180
Thickness
0.08mm-0.25mm
Certification
ISO9001
Product Type
Insulating Paper
Application
Oil Duct for Transformer
🔹 Product Description
  • Winding Insulation Films: Wrapped around transformer or inductor windings to isolate the windings from the core and between different layers, effectively preventing short circuits.
  • Insulation Gaskets: Placed between the iron core and coil framework to enhance mechanical support and electrical insulation.

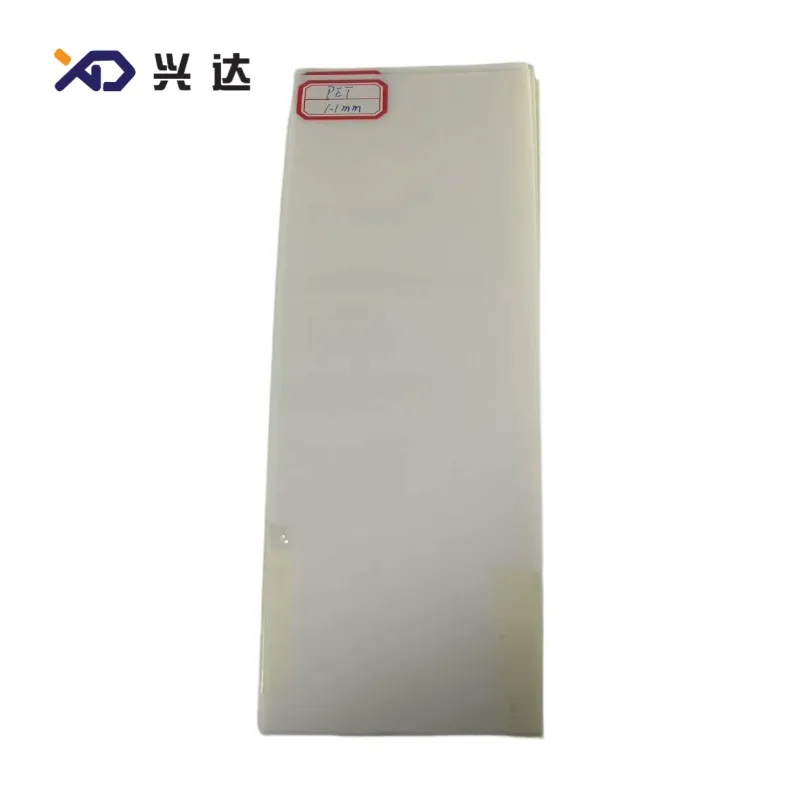

High-Temperature Resistant Insulation
Pet Thin-Film

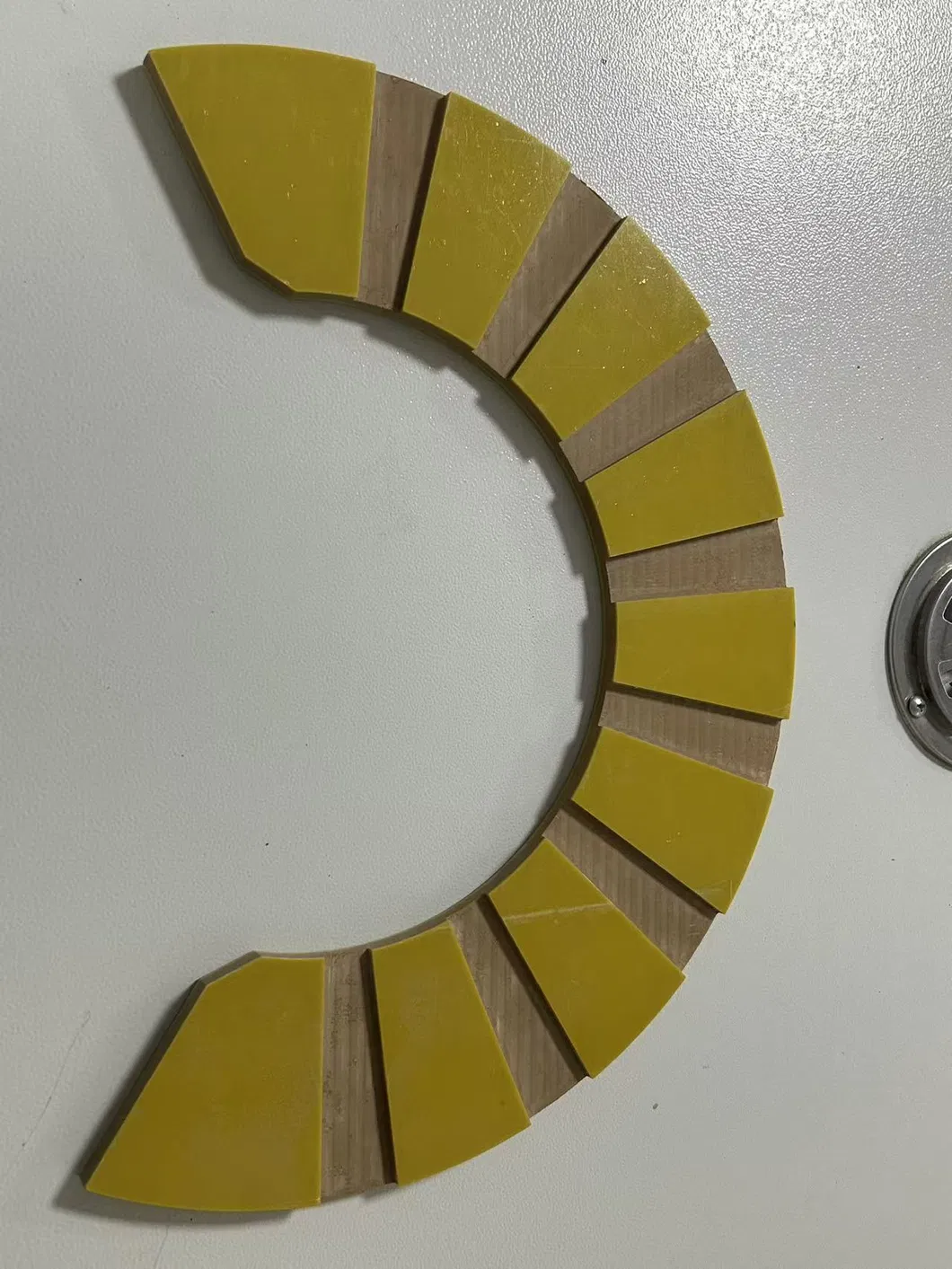

Insulation Paper Details
OriginChina
ModelDDP
MaterialDiamond Embellished Paper
SizeCustomizable sizes
TypeInsulating Materials
🔹 Professional Manufacturing

Our facility is a professional production hub for high-tech transformer accessories. We specialize in producing transformer bushings that strictly comply with IEC, EN, AP, and HD standards, along with a wide range of transformer fittings and insulating materials.

We provide comprehensive development, design, and manufacturing services for non-standard transformer bushings. All products are designed to meet or exceed international technical indexes, ensuring high performance in diverse electrical applications.

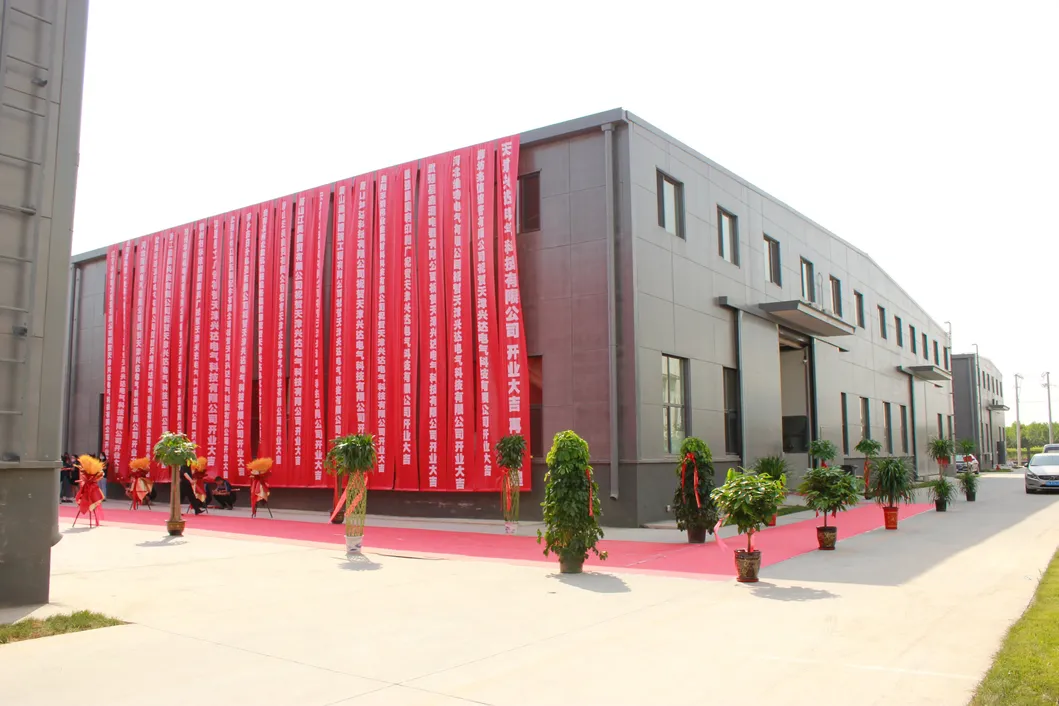

Manufacturing Facility
🔹 Quality Certifications
Certification Documents
ISO Standard Certificate
🔹 Production Workshop

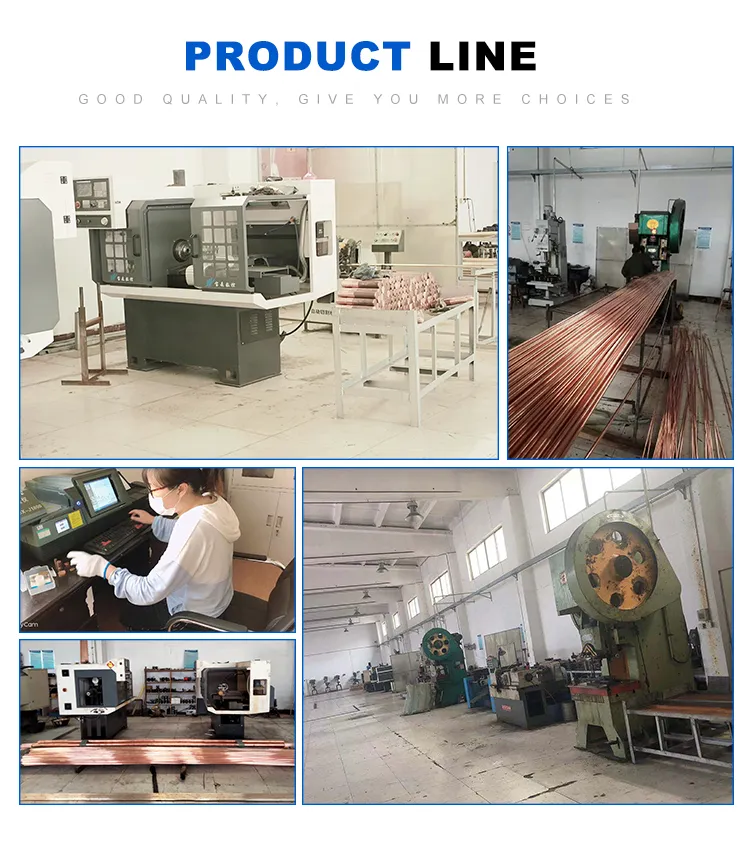

Production Line 1

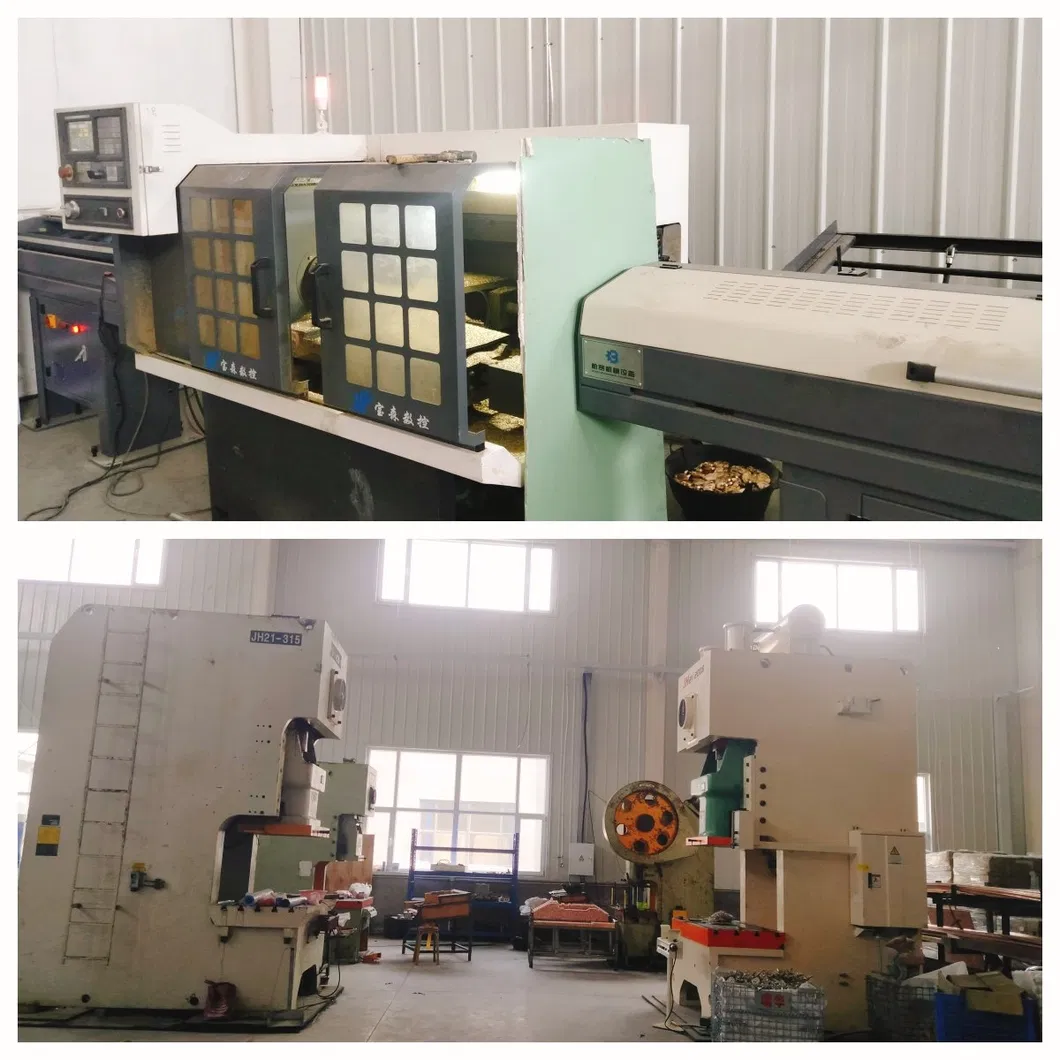

Production Line 2
🔹 Packaging & Shipping
Secure Packaging

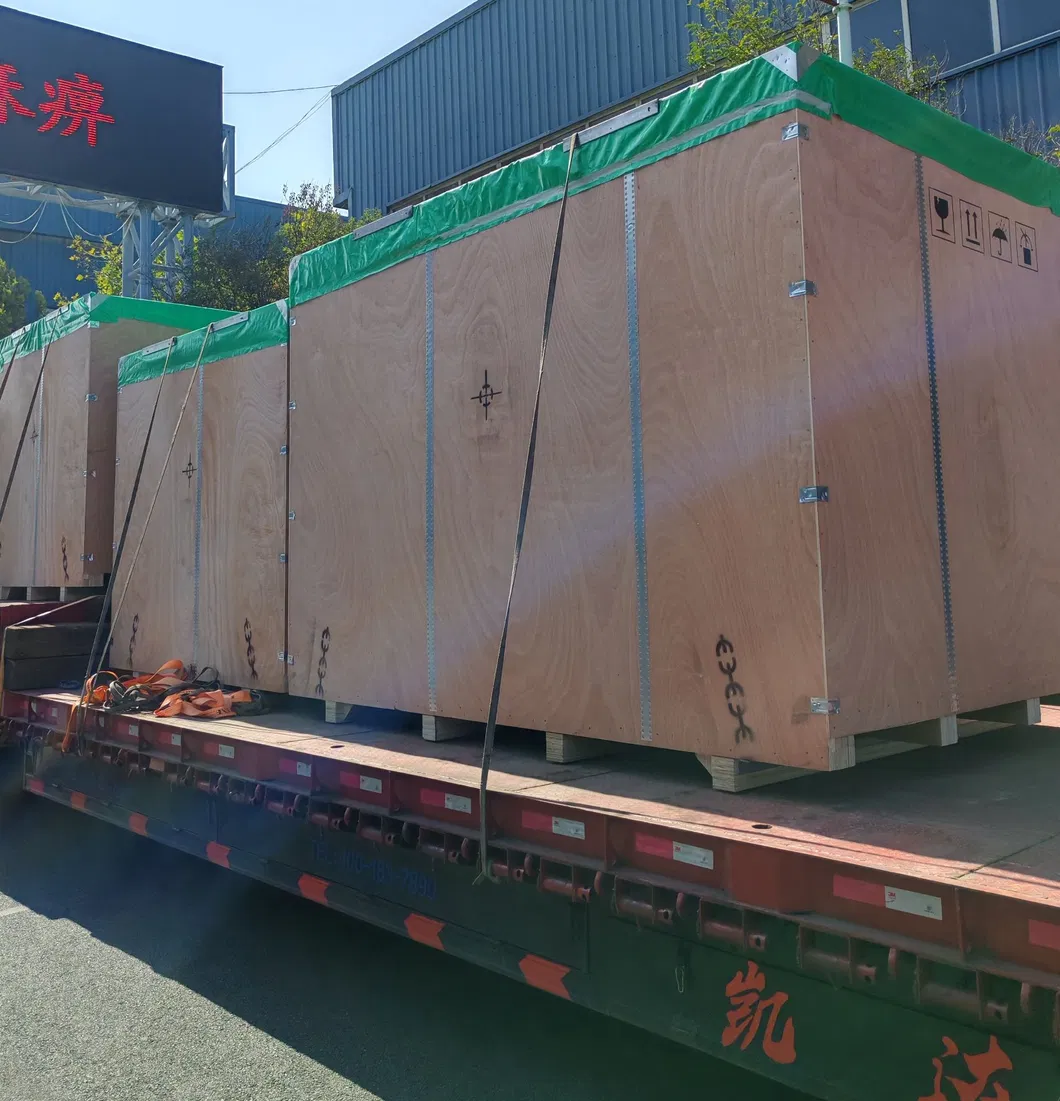

Shipping Logistics
❓ Frequently Asked Questions
What are the primary applications of this insulating paper?
The Diamond Embellished Paper is mainly used for winding insulation in transformers and inductors, as well as for making insulation gaskets that support the iron core and coil framework.
What technical standards do your products follow?
All our transformer accessories and insulating materials are manufactured according to IEC, EN, AP, and HD international standards.
How is product quality guaranteed?
We maintain strict quality control through pre-production samples and a comprehensive final inspection before shipment. Our facility is also ISO9001 certified.
Can the insulating materials be customized?
Yes, we provide customization for sizes, thicknesses (ranging from 0.08mm to 0.25mm), and specific technical requirements to fit your equipment needs.
What is the thermal rating and voltage capacity?
The product features a thermal rating of H 180 and is designed to handle maximum voltages between 20KV and 100KV.
What types of transformer accessories do you provide?
We offer a wide range of products including transformer bushings, butterfly valves, low voltage circuit breakers, insulators, and oil level meters.
