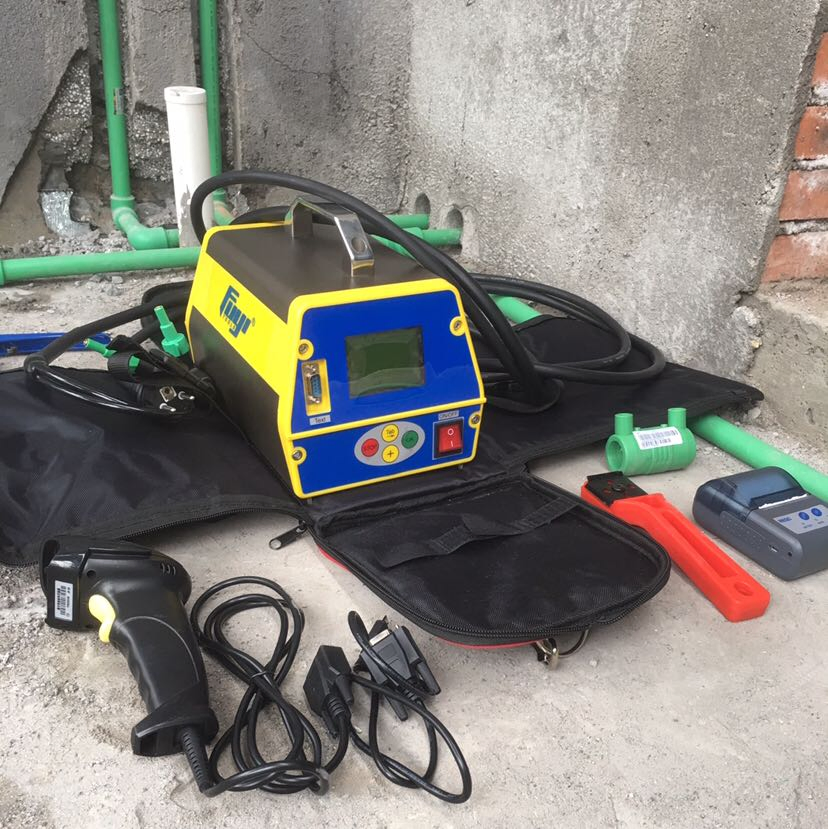

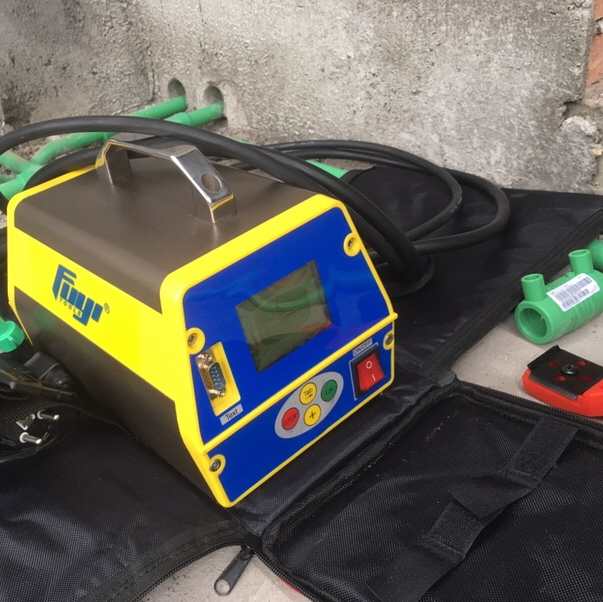

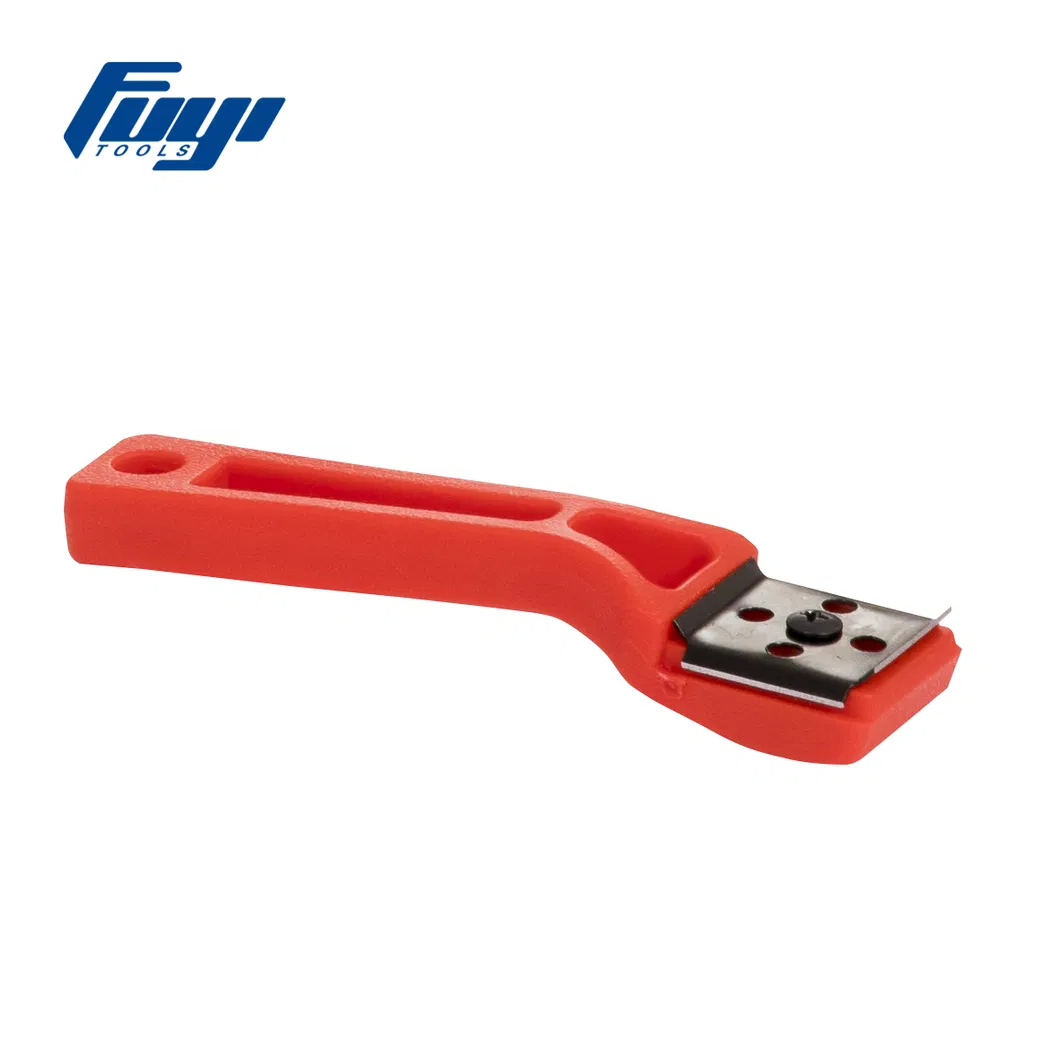

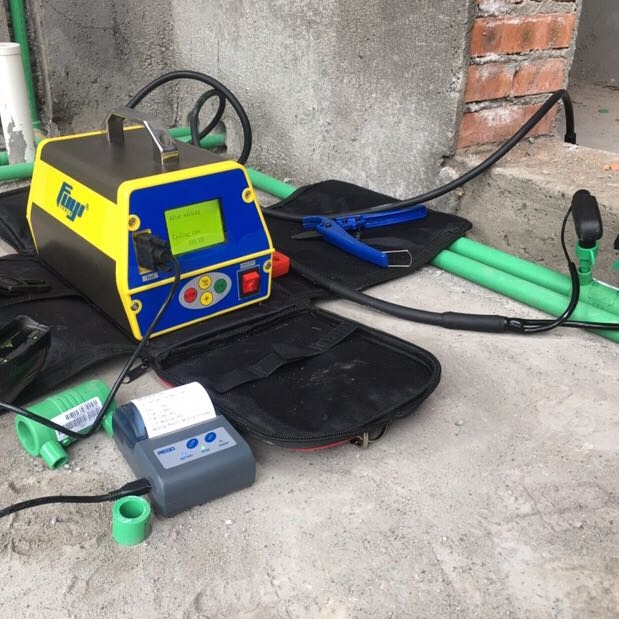

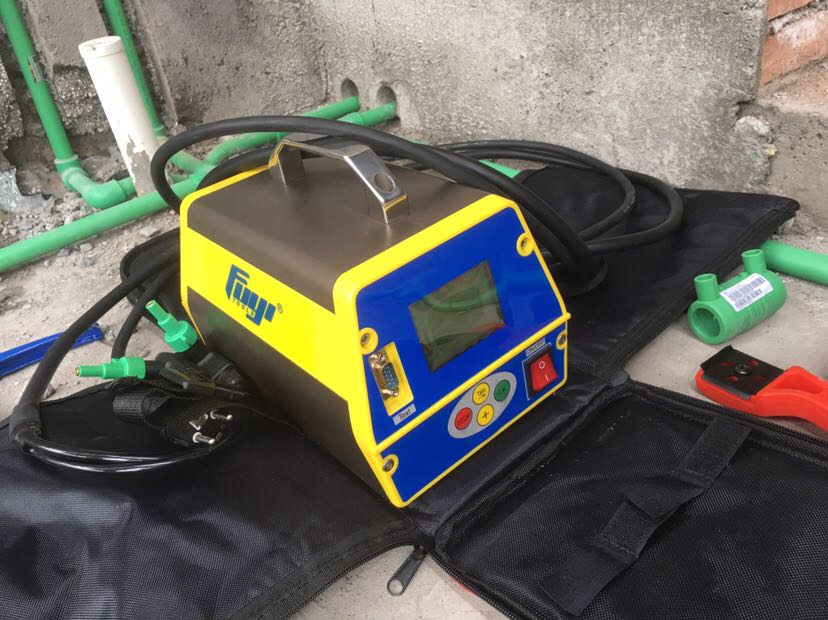

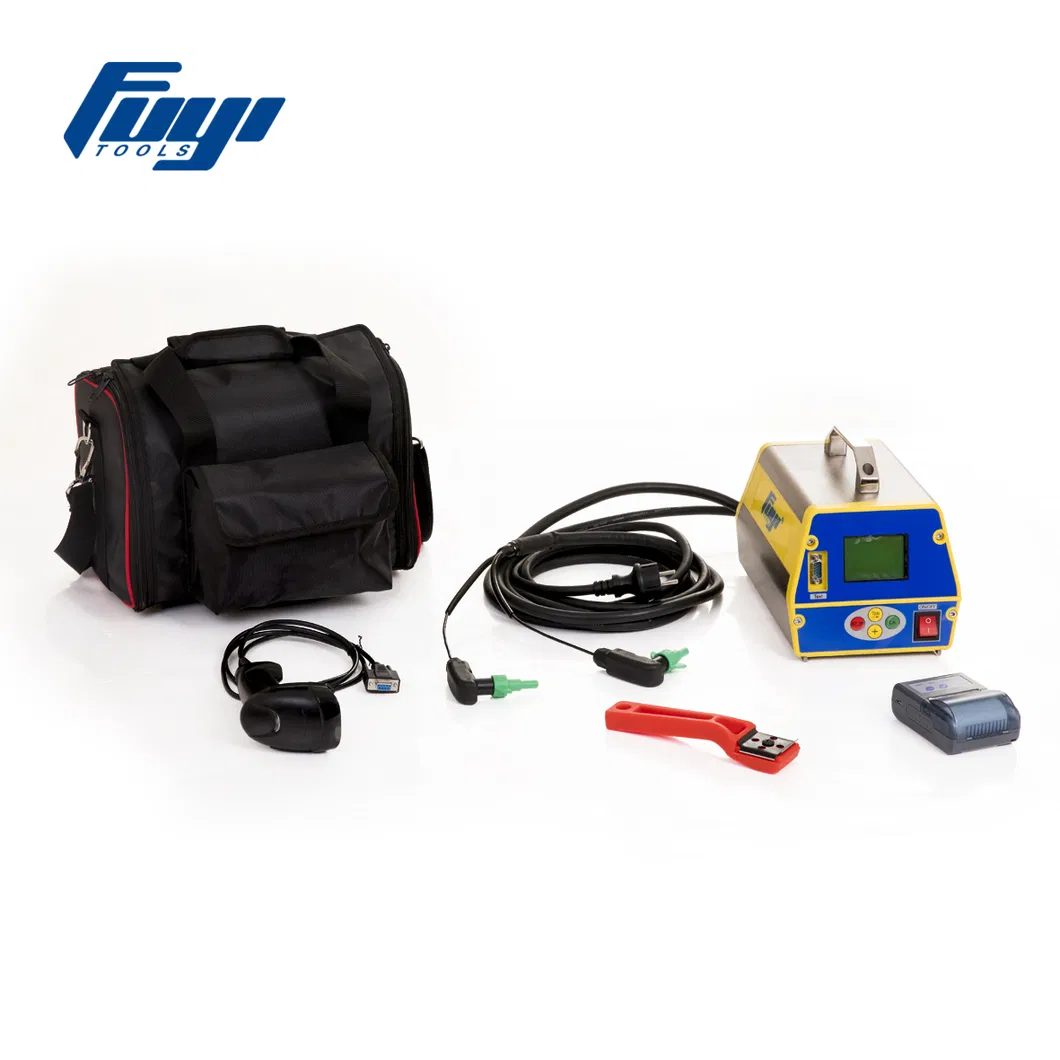

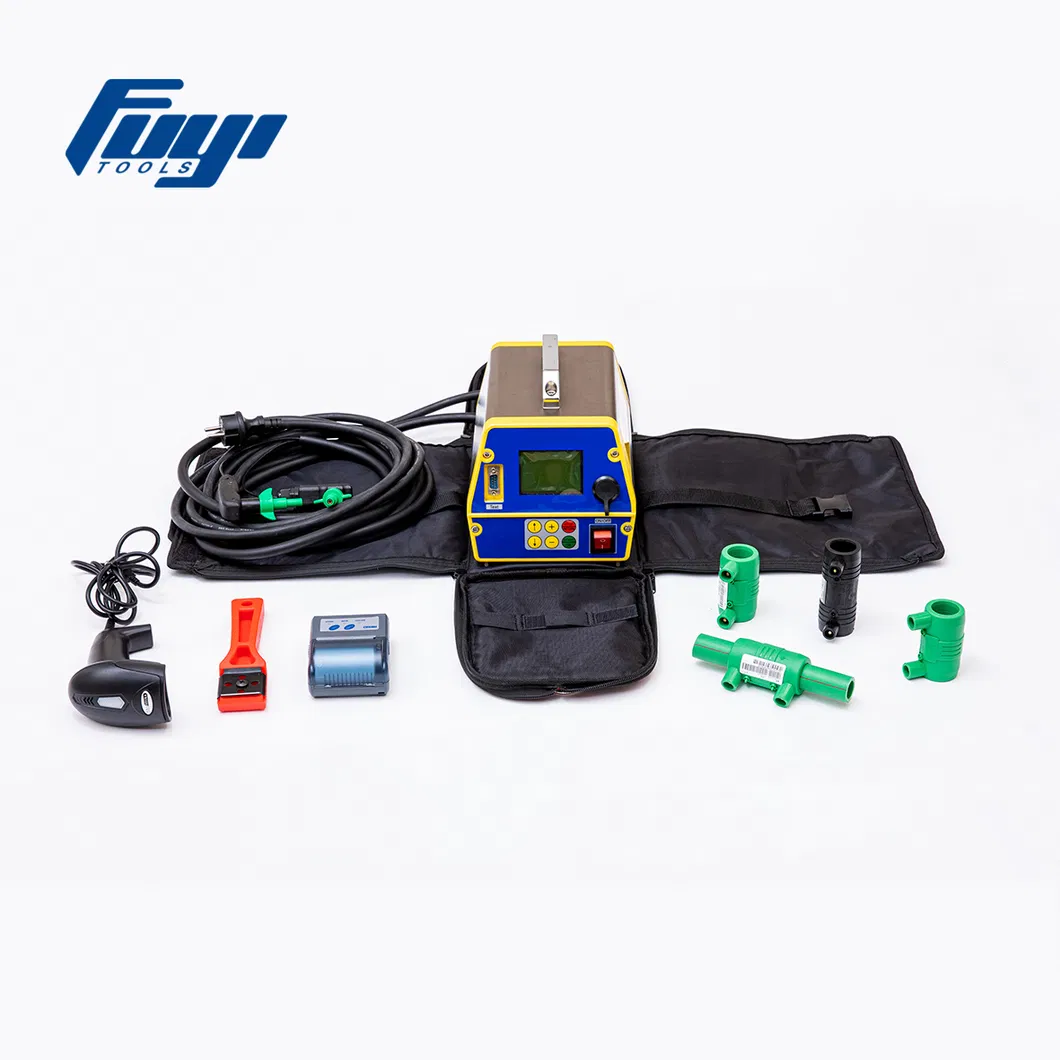

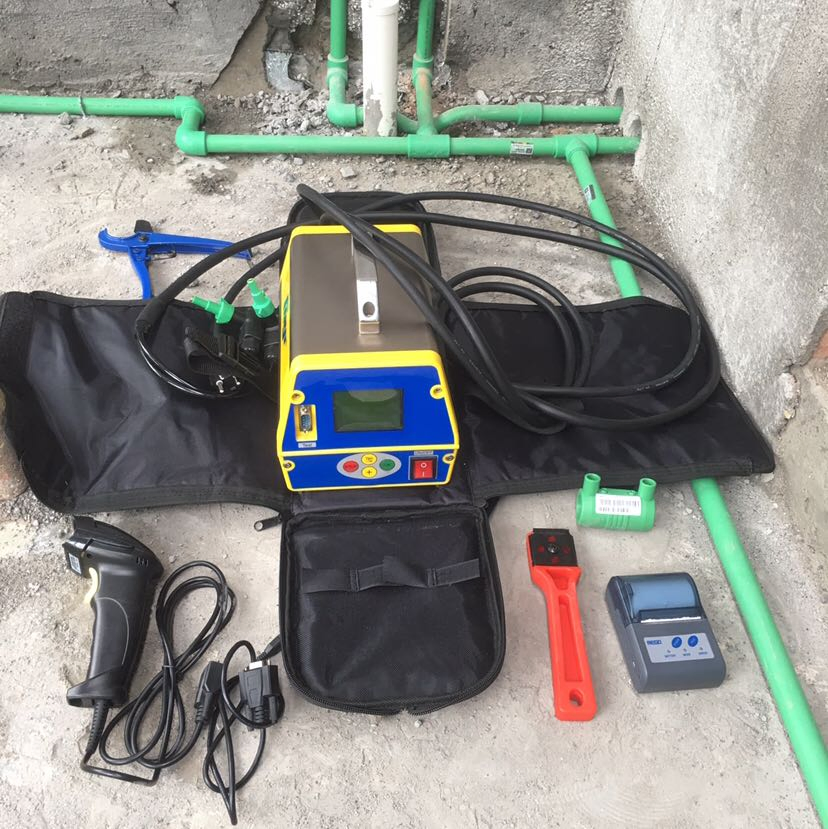

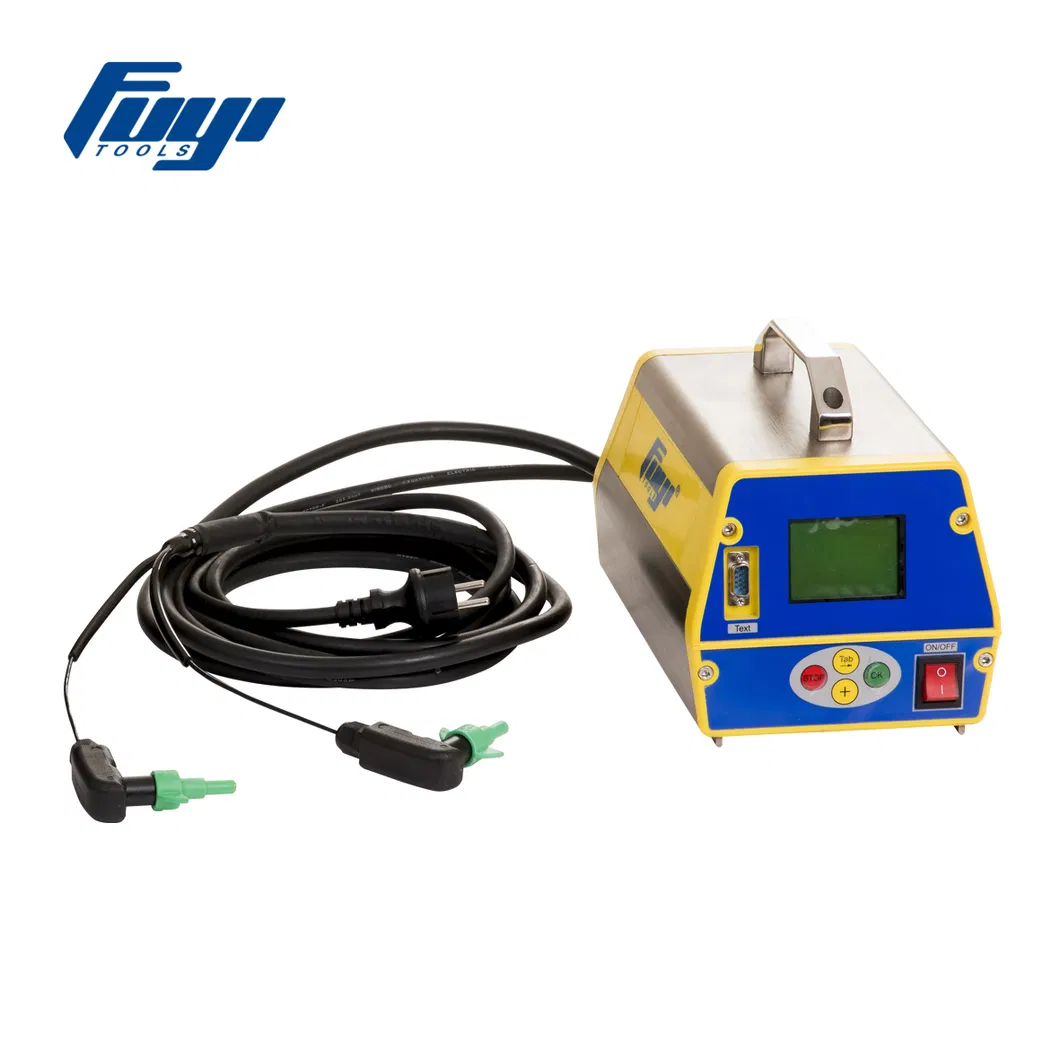

HDPE Electrofusion Touch Screen with Scanner and Scrapper HDPE Pipe Welding Machine

20-200mm HDPE PP Pipe The Lightweight Portable Electrofusion Welding Machine

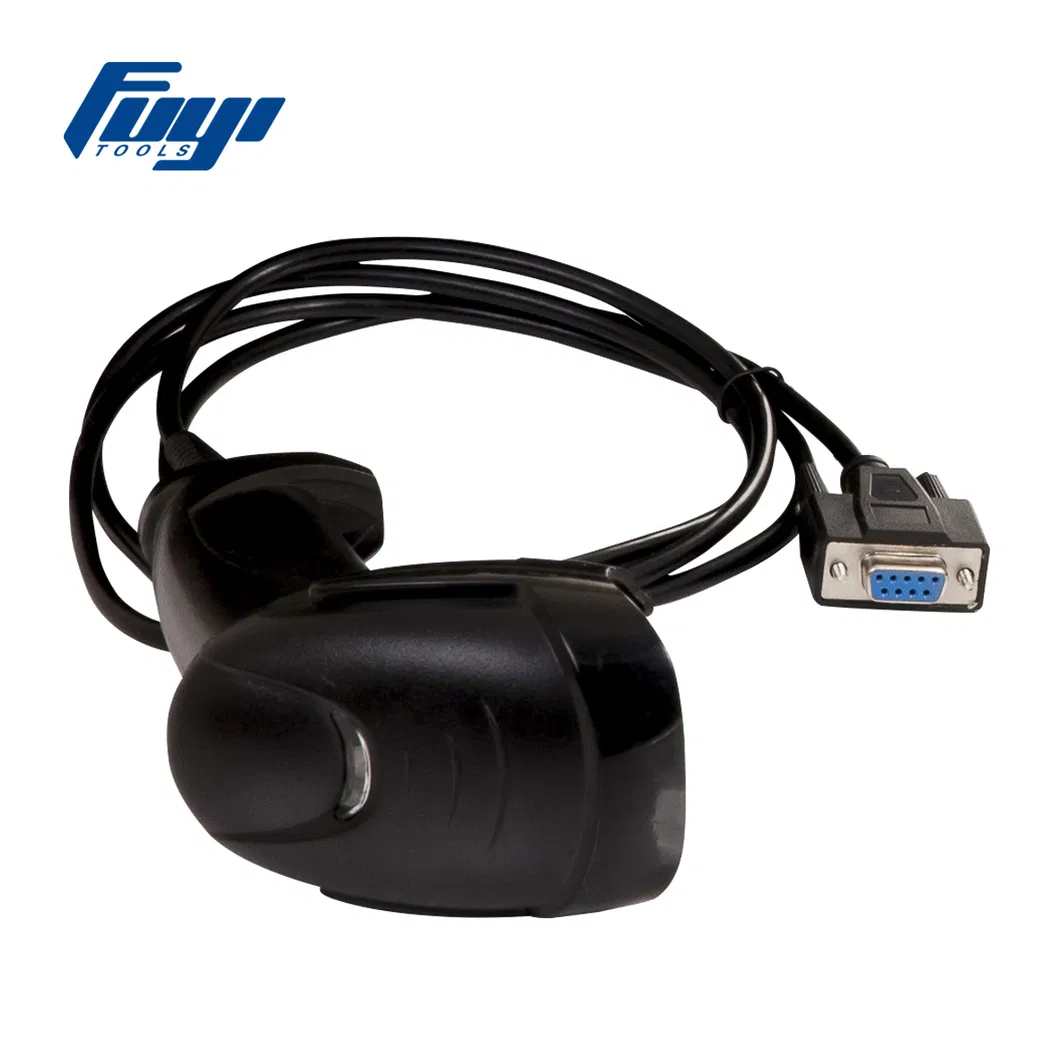

It is an universal electrofusion machine, suitable for welding pipe/fittings for the transport of gas water and for welding fire sprinkler system (HDPE, PP, PP-R couplings from 8 to 48 V). The electrofusion welding machine is made in compliance with international standards. The machine structure is lightweight, making it extremely easy to carry. Available in two versions: with or without laser scanner.

Using advanced PID control technology, the device output is stable and reliable. Features a large size LCD screen supporting Chinese, English, Russian, and Spanish languages. Capable of using any brand of HDPE, PP, PP-R couplers available in the market. PPR up to OD 160mm; PP and HDPE up to OD 200mm.

• Error #1-24: Bar code parsing error. Contact coupler supplier.
• Error #31-34: Output voltage/current range error. Modify parameters or use correct fittings.
• Error #37: Load short circuit. Check fitting or cable.
• Error #41-43: Temperature too high or component overheated. Wait for cooling.
• Error #51-53: Power source frequency or voltage issues.

📍 Clean dust and sundries on components regularly.

📍 Check grounding and high-current connection points for safety.

📍 Device is guaranteed for 12 months under normal operation from the date of delivery.
