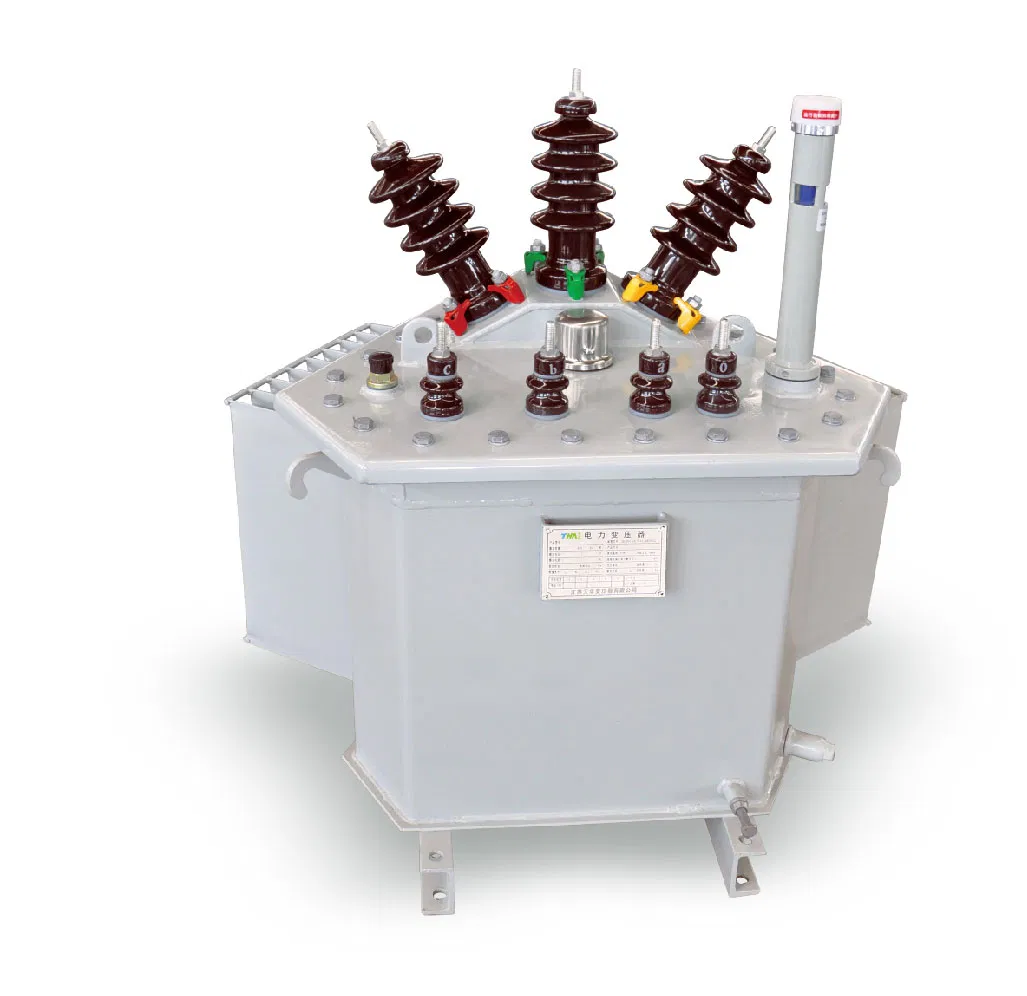

Excellent Fire Resistance Oil-Immersed Power Transformer for for Prefabricated Substations

1 / 5

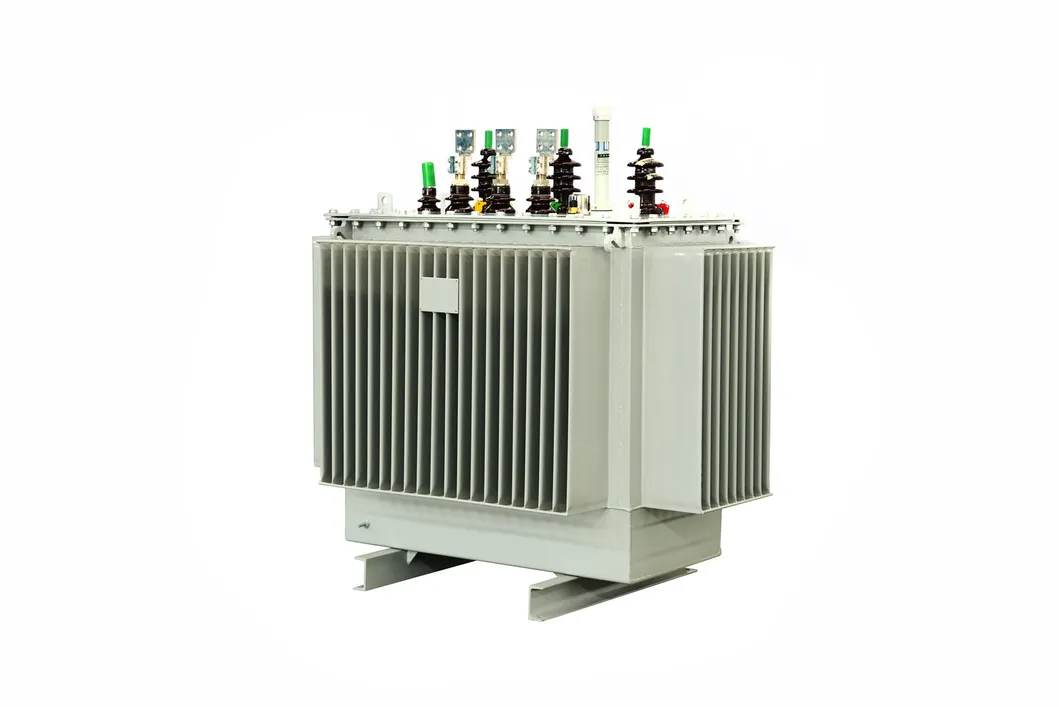

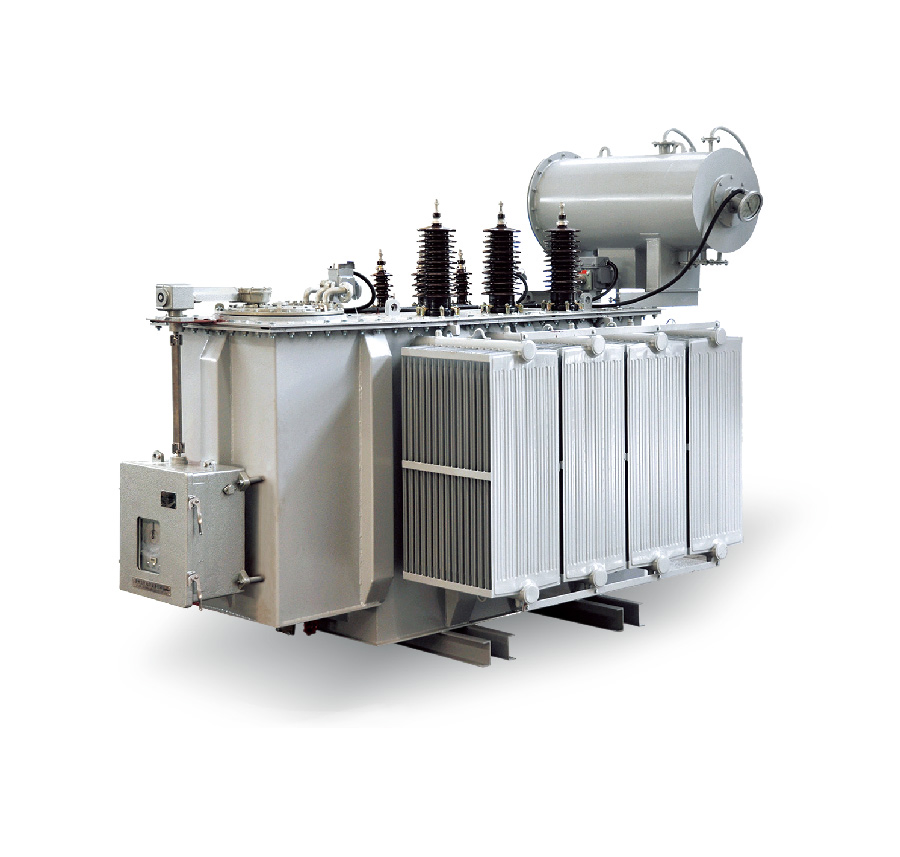

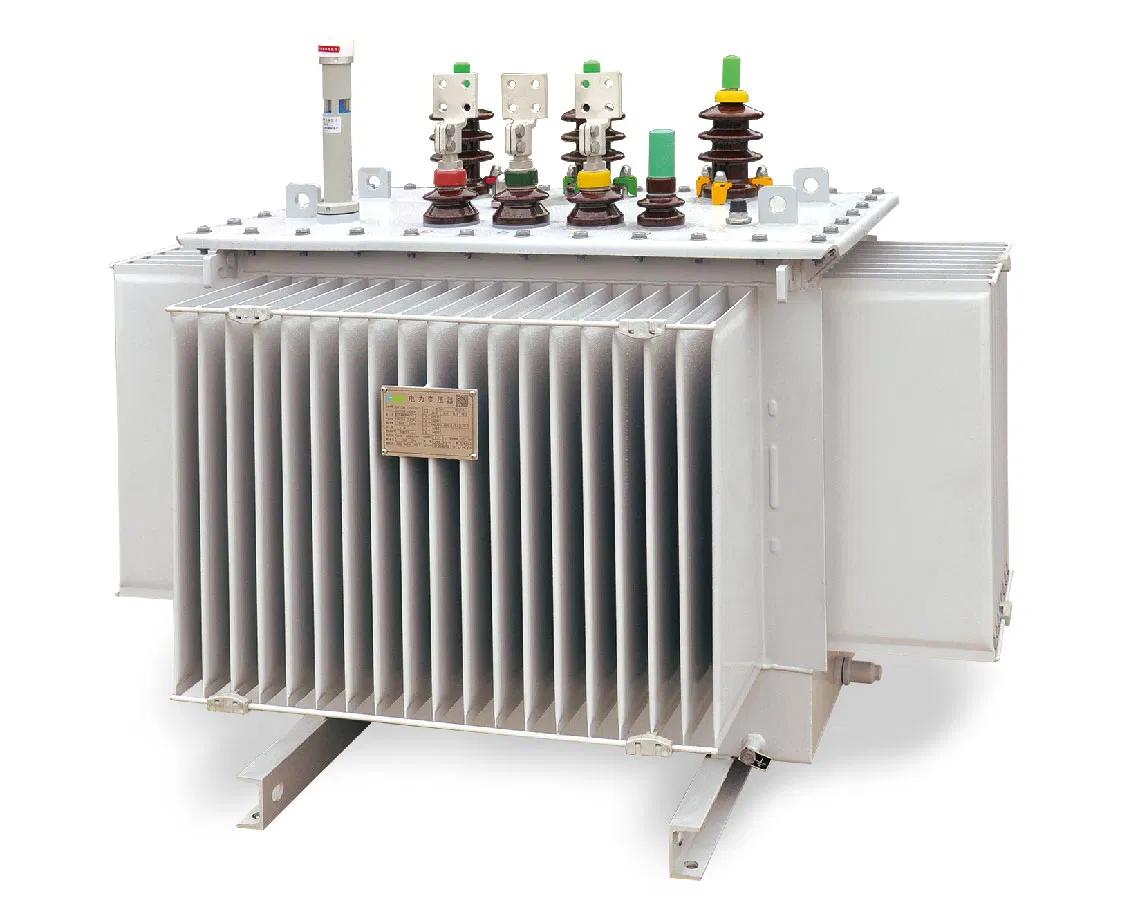

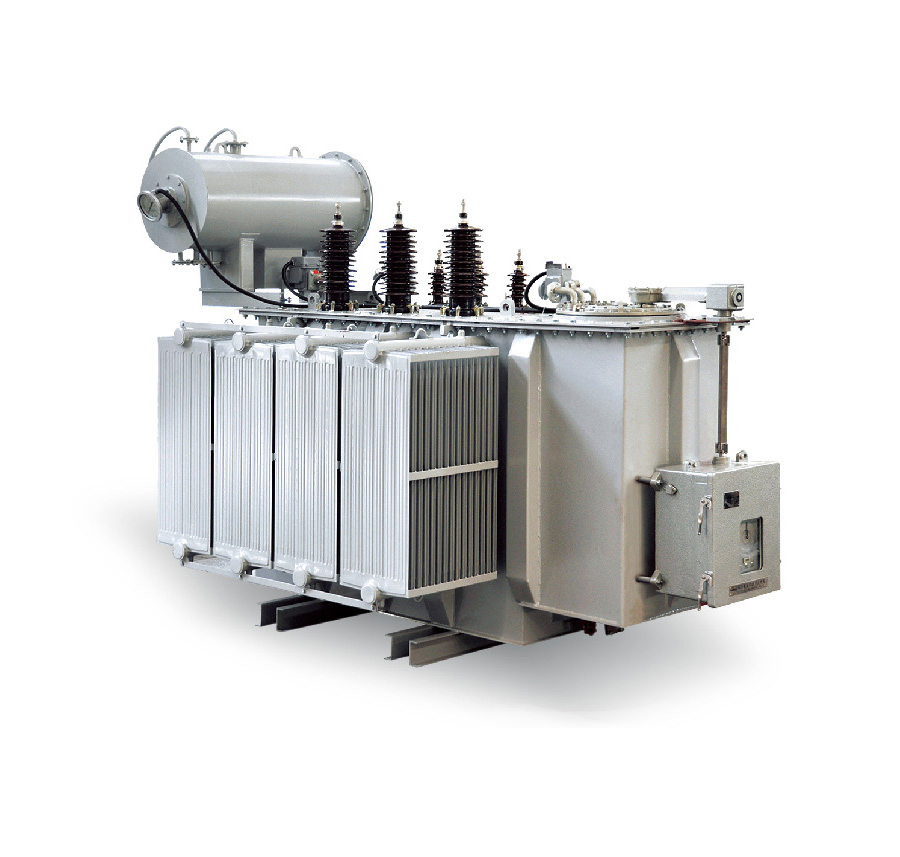

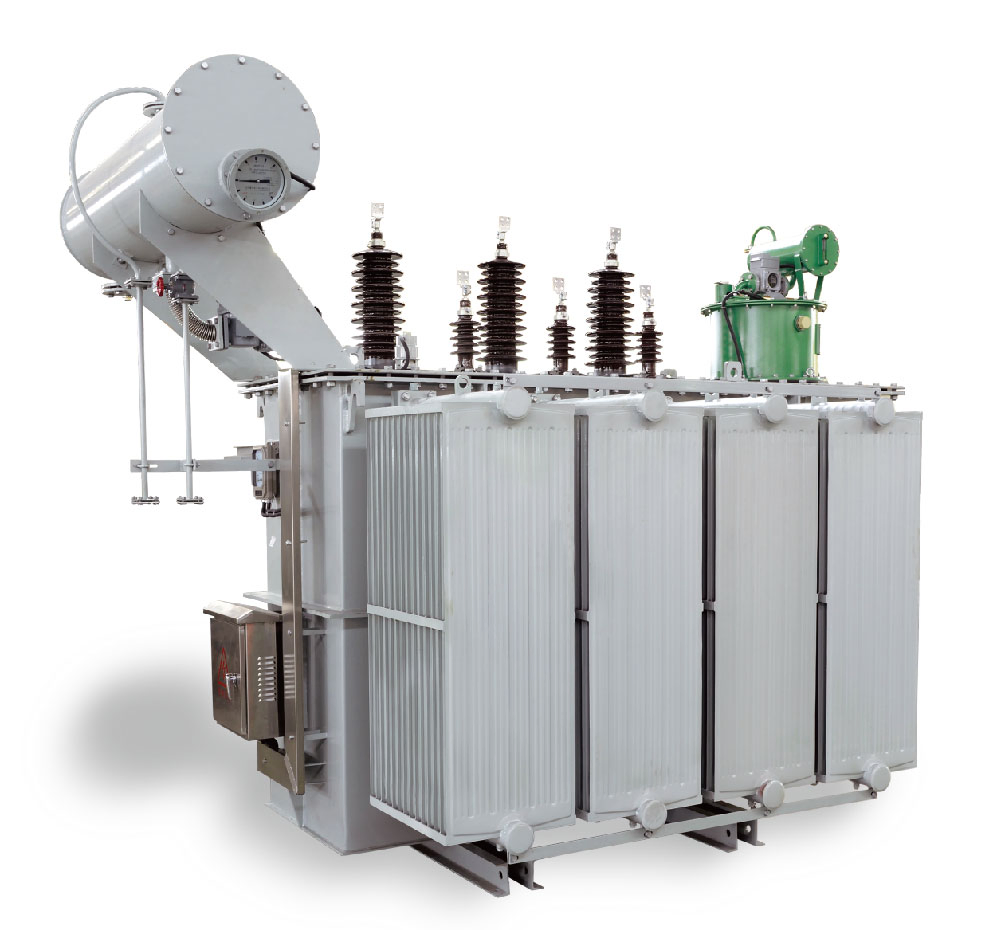

Excellent Fire Resistance Oil-Immersed Power Transformer for for Prefabricated Substations

Customization:	Available
Application:	Power, Electronic
Phase:	Three

Send Inquiry

Product Description

📦 Basic Info.

Model NO.

S11

Core

Core-type Transformer

Cooling Method

Onan/Onaf

Certification

ISO9001

Input Voltage

10kv-110kv

Output Voltage

440V 400V 480V

Rated Capacity

30-3000kVA

Standard

IEC60076

Winding Material

Aluminum, Copper

Frequency

50Hz, 60Hz

🔍 Product Description

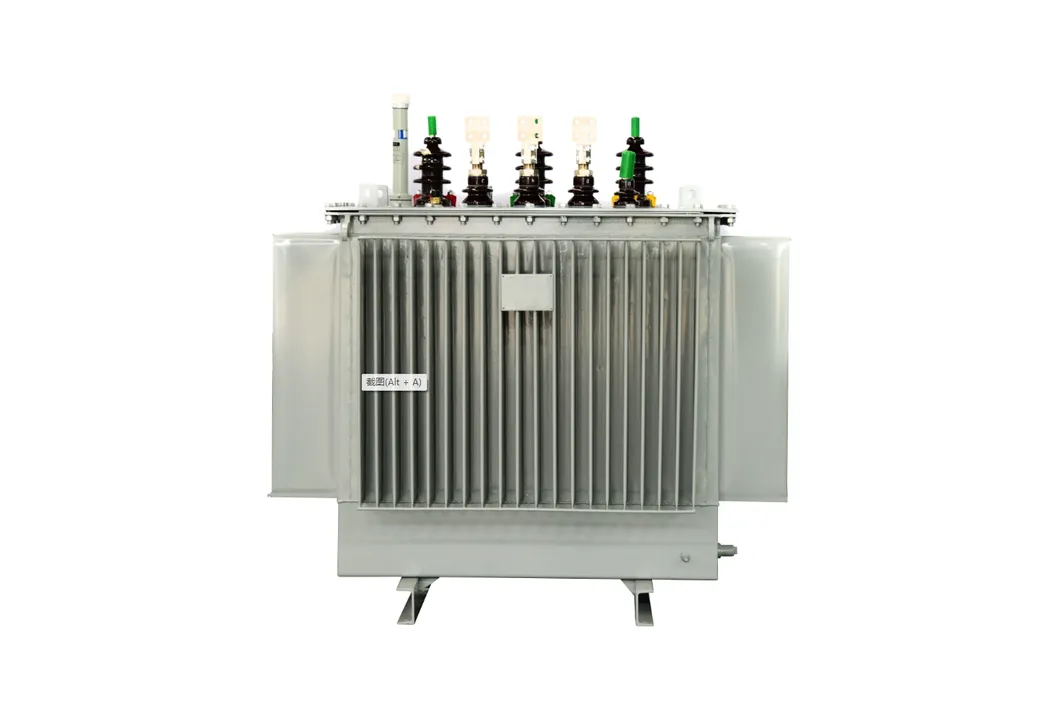

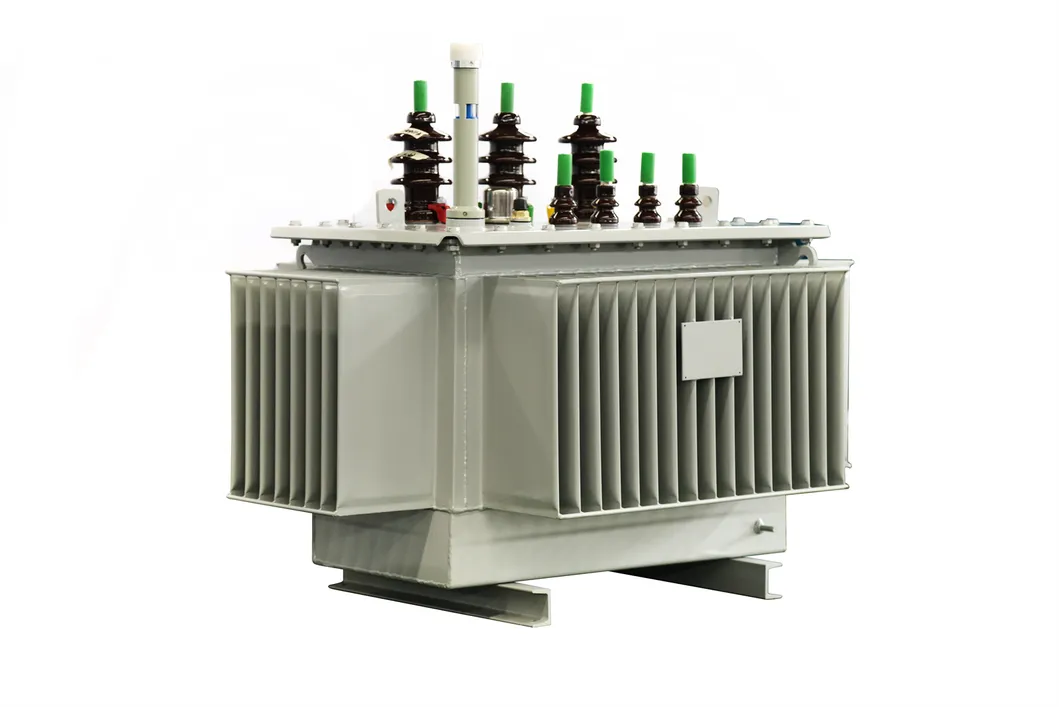

An oil-immersed transformer is a common power equipment that performs critical tasks such as voltage conversion and power distribution in electrical grids. It is widely used in urban/rural power grid upgrades, industrial/mining applications, combined transformers, and prefabricated substations.

⚙️ Key Components

Core: Laminated from high-permeability silicon steel sheets.
Windings: Copper or aluminum wire conductive loops.
Conservator: Compensates for oil volume changes.
Radiators: Enhance heat dissipation for stable operation.
Buchholz Relay: Advanced detection for internal faults.

📊 Product Parameters

Product Name	Product Model	Key Features	Specifications
Oil-immersed transformer	S11/S13/S20/S22	Energy conservation, Low load loss, Lightning resistance, Short-circuit resistance	Input: 10kv-110kv; Output: 400v-480v; Capacity: 30-3000kva; Material: Silicon steel

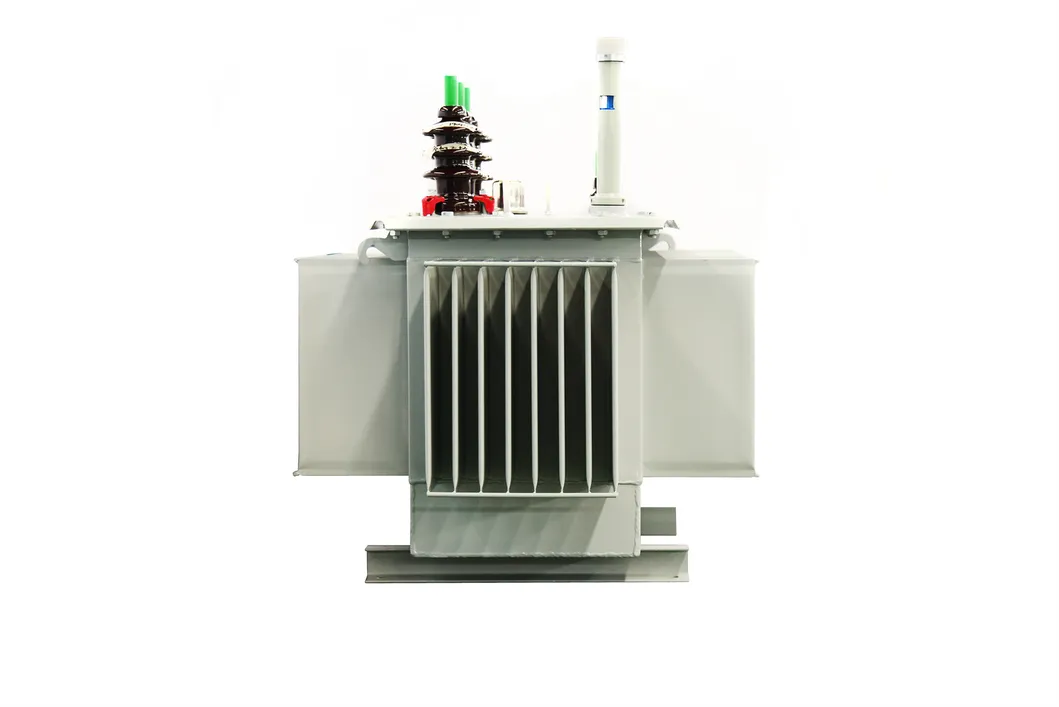

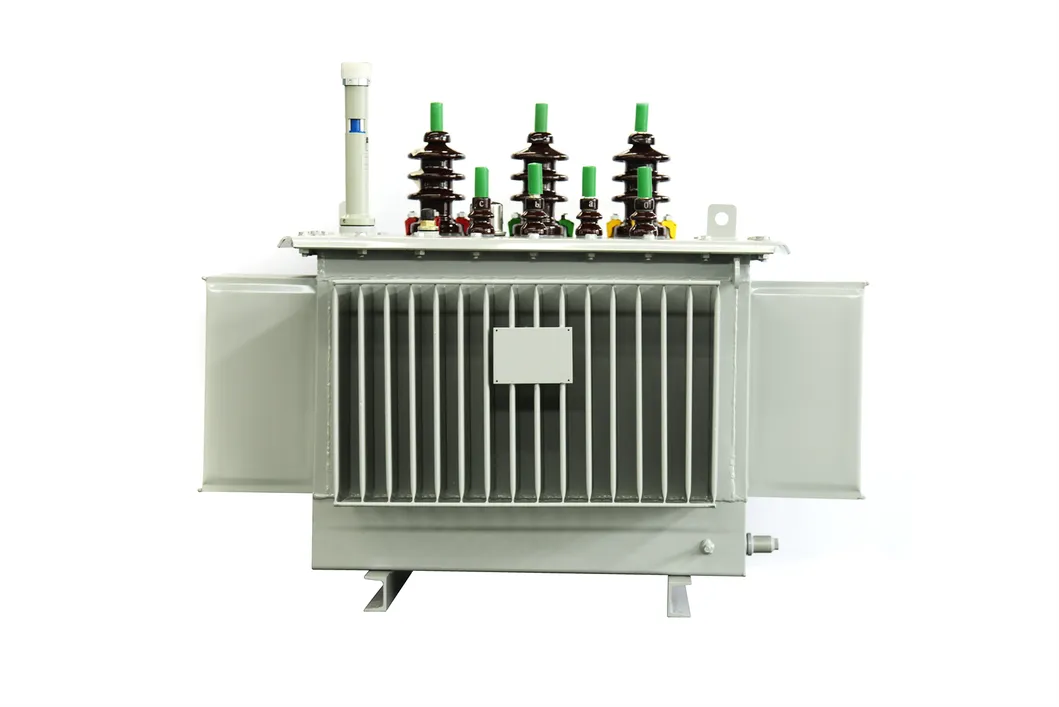

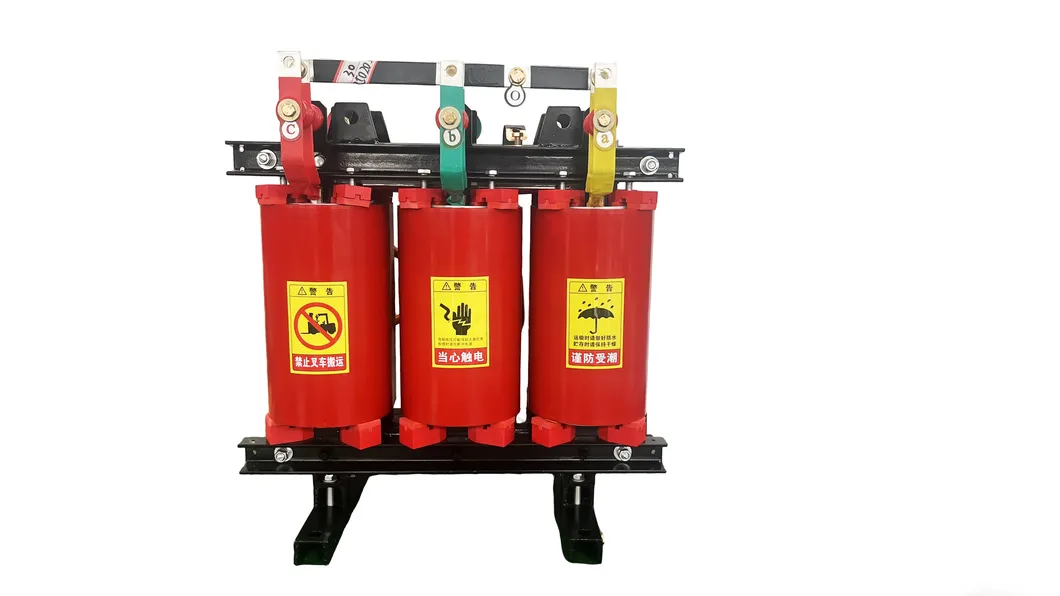

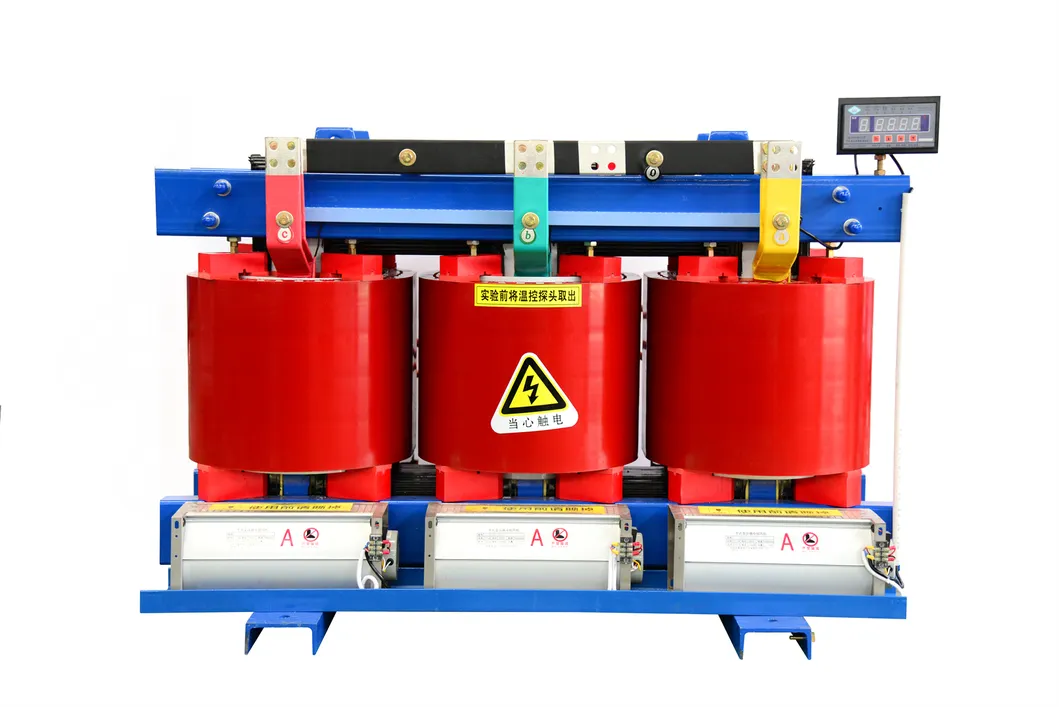

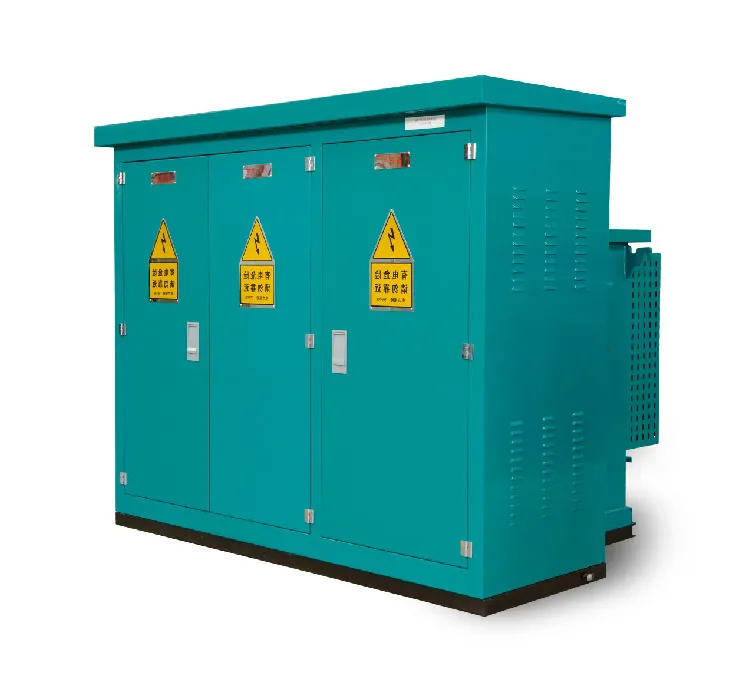

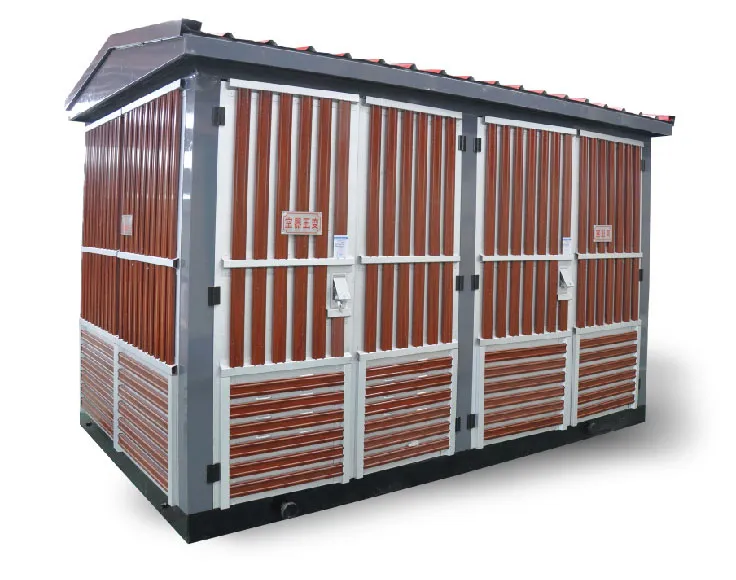

⭐ Main Products

🏢 Enterprise Overview

A high-tech enterprise specialized in the production, development and sales of transformers and related products. With a total investment of 258 million Yuan and a dedicated team of over 270 employees, including senior engineers and technical personnel, we strictly follow ISO9000 quality management systems to provide excellent quality products worldwide.

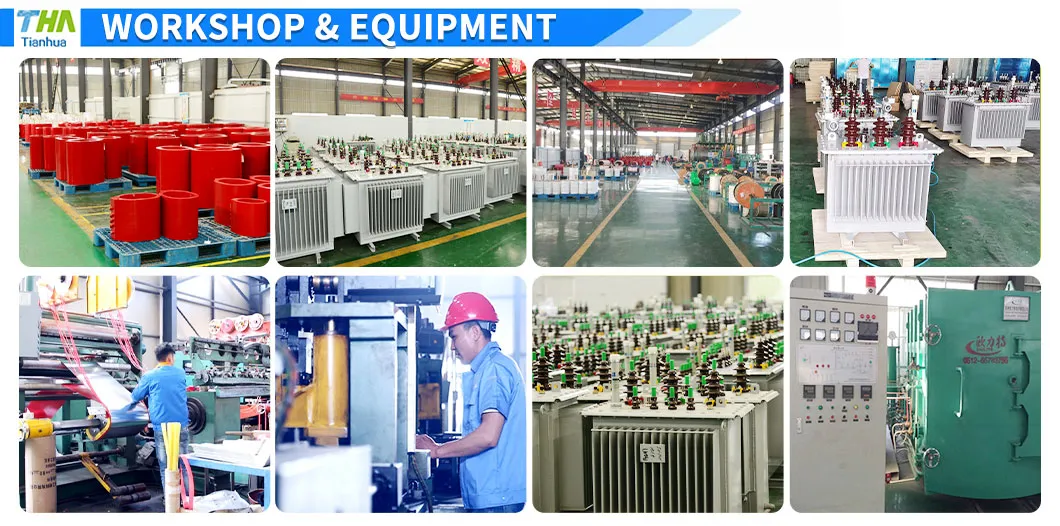

🛠️ Workshop & Team

📜 Certifications & Shipping

❓ Frequently Asked Questions

Q1: What are the primary cooling methods for your oil-immersed transformers?

A1: We offer ONAN (Oil-Natural Air-Natural), ONAF (Oil-Natural Air-Forced), and OFAF (Oil-Forced Air-Forced) methods depending on capacity and application requirements.

Q2: What is the recommended operating temperature?

A2: The top oil temperature should ideally stay below 85°C for maximum longevity, though it can handle up to 90°C. An alarm is typically triggered at 80°C.

Q3: Do these transformers meet international standards?

A3: Yes, our transformers are designed and manufactured according to the IEC60076 standard and our facility is ISO9001 certified.

Q4: What materials are used for the windings?

A4: We provide both high-quality Copper and Aluminum winding options based on the specific load demands and customer specifications.

Q5: What is the typical overload capacity?

A5: During emergencies, our transformers permit a 1.1 to 1.2 times rated current. It is vital to monitor load and temperature closely during such periods.

Q6: How is the core constructed to reduce energy loss?

A6: We use laminated high-permeability silicon steel sheets with a near-circular cross-section to minimize air gaps, noise, and harmonic distortion.
