Basic Information
Wire Core Material
Bare Copper Wire
Certification
CE, ISO, RoHS, CCC
Operating Voltage
300V, 500V
Cross Section
0.8mm², 1.5mm², 2.5mm²

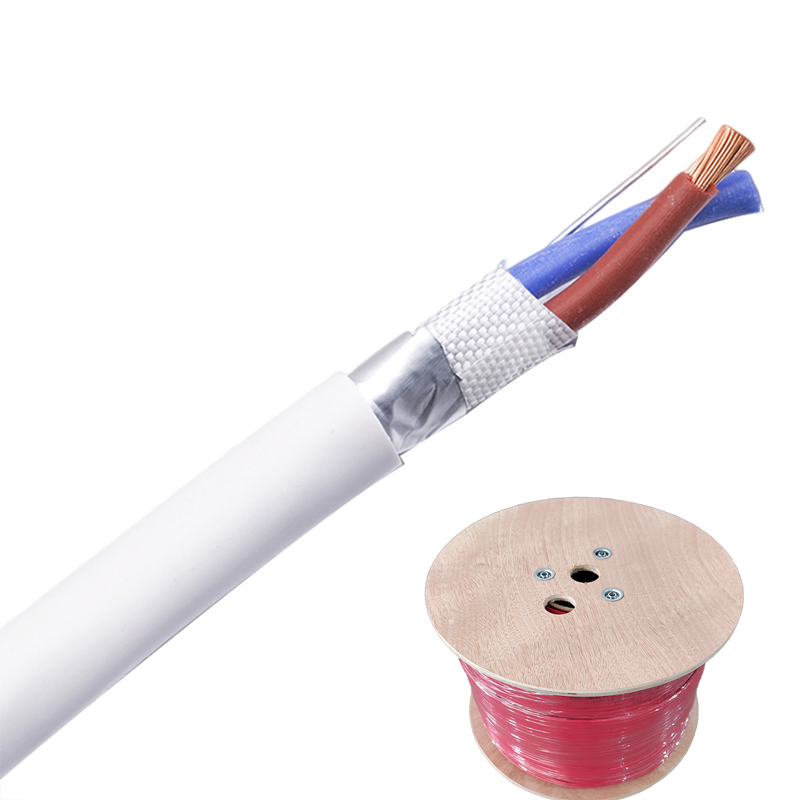

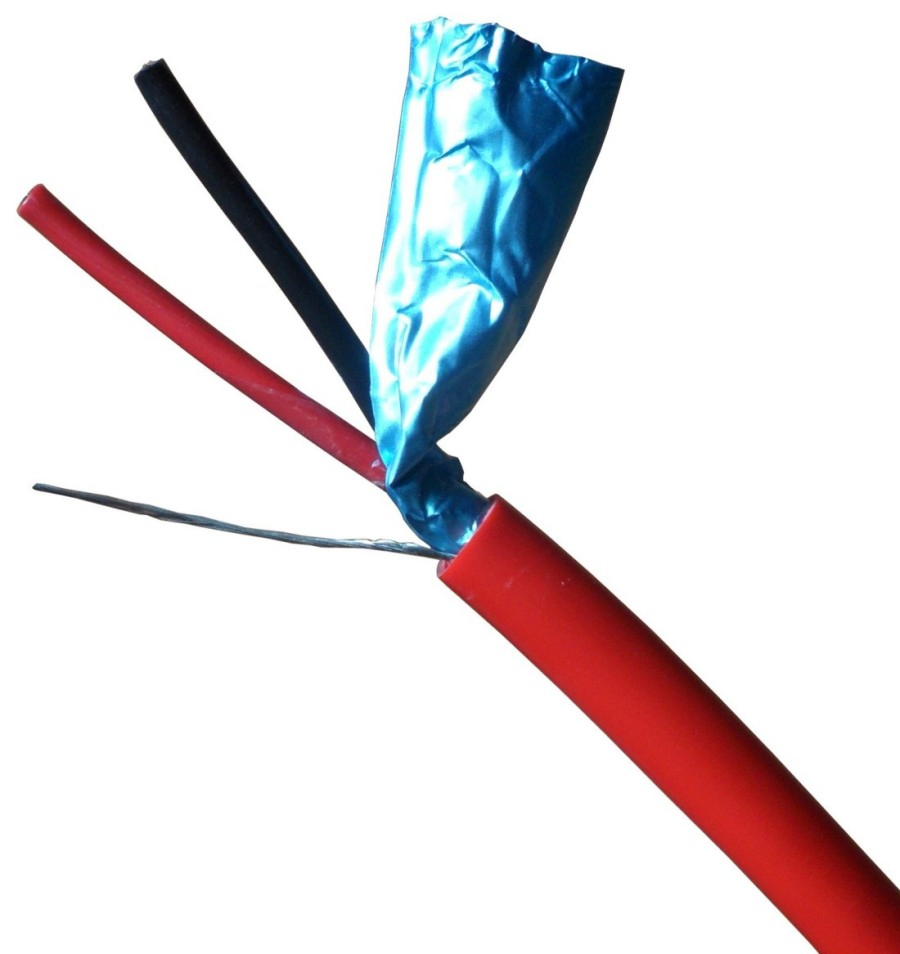

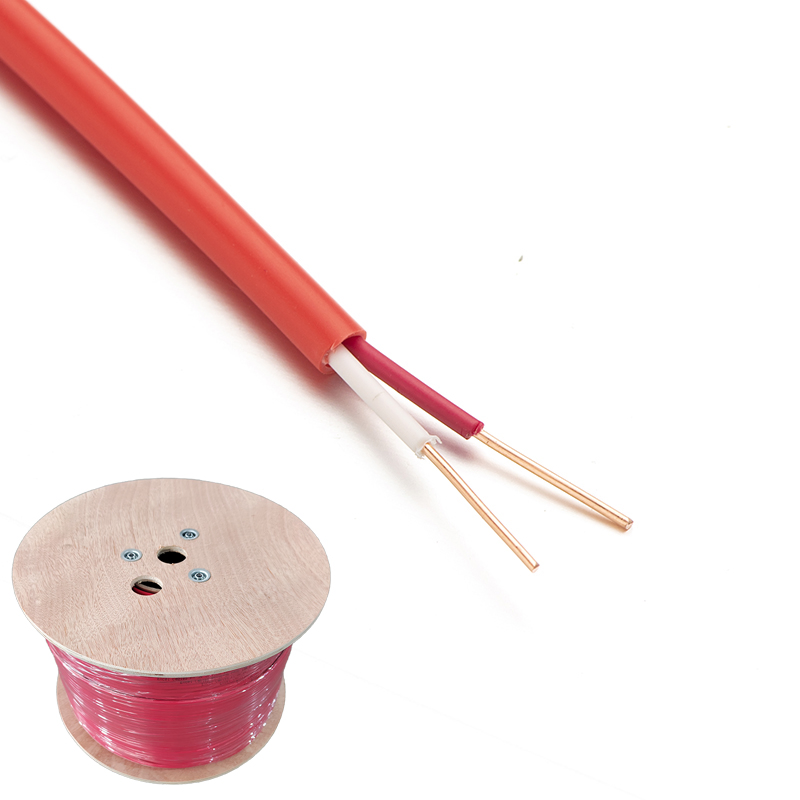

Product Description

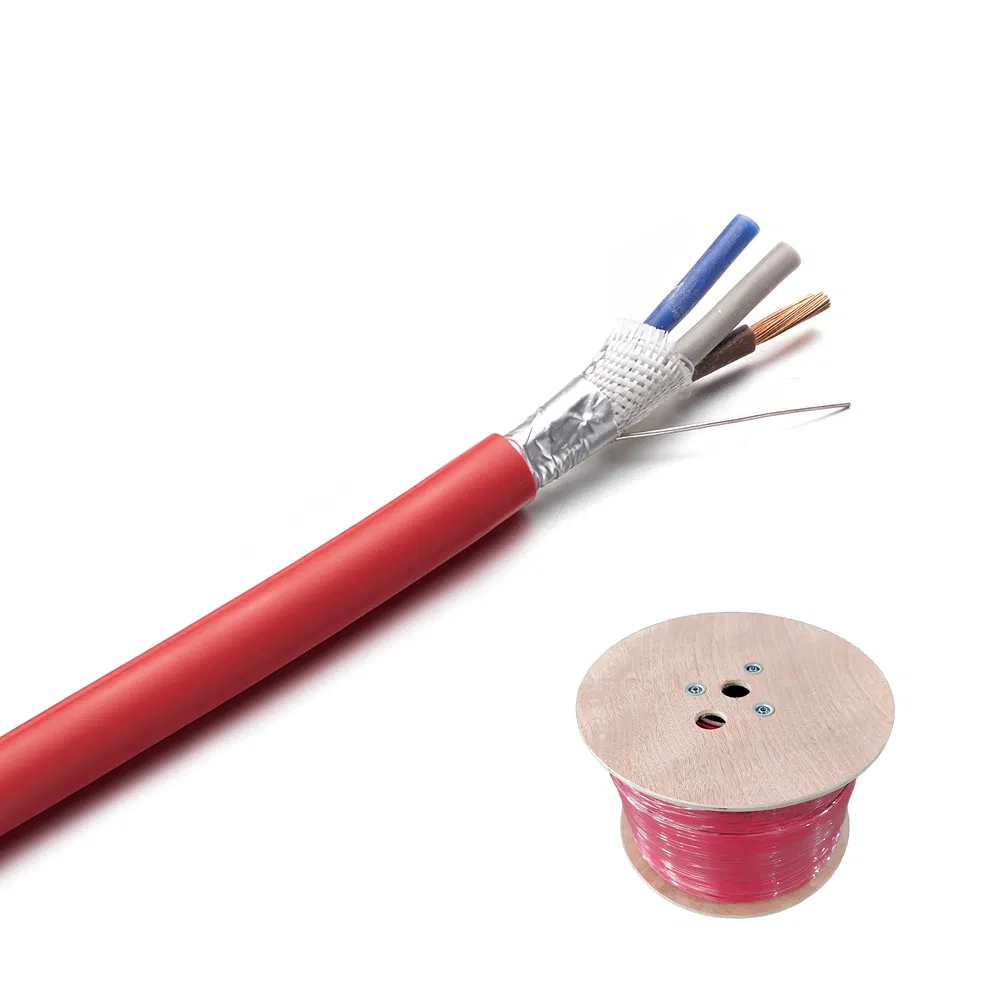

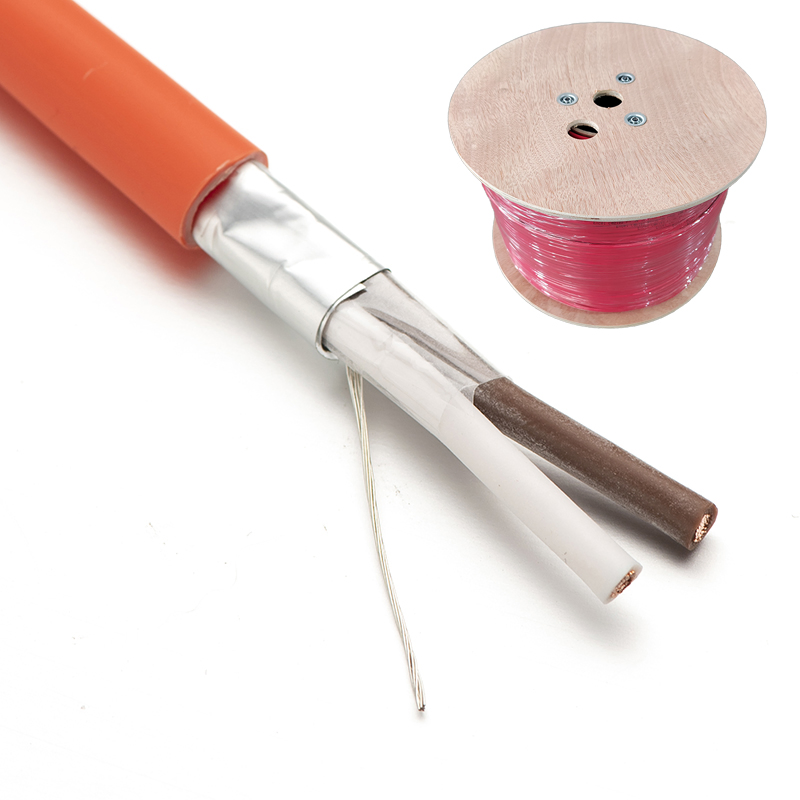

High-Performance Fire Rated Cable
Fire Resistant Cables are manufactured with latest technology to ensure consistent quality and reliability.

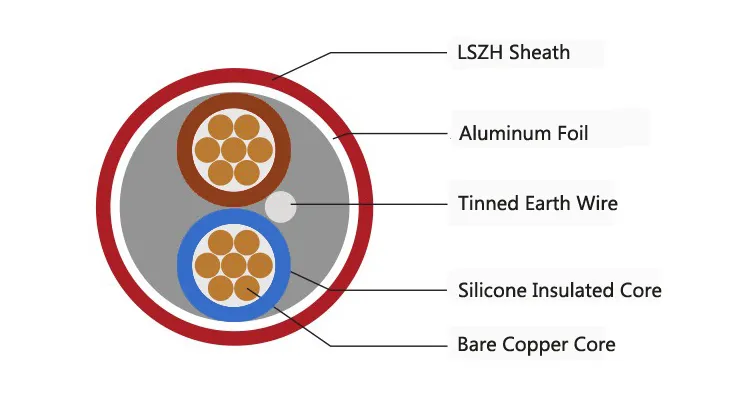

• Conductor: Bare copper (IEC60331 / EN50200, BS 6387)
• Insulation: Fire resistant silicon rubber (HD 22.1, BS 7655 EI2)
• Drain Wire: 0.8mm solid tinned copper
• Shield: Aluminium laminated polyester tape
• Sheath: LSZH (Orange/White/Red)
Key Applications
• Fire detection and fire alarm systems for buildings
• Voice alarm systems and emergency voice communication
• Emergency and escape lighting systems
• Essential service control circuits for standard fire resistance
Specifications
| Reel Length | 100m/500m coil /wooden drum or customized |
| Conductor Cores | 2 cores or 4 cores |
| Conductor Material | Solid/Stranded Bare copper |
| Insulation Material | Silicone Rubber |
| Shielding | Aluminum Foil |
| Jacket Material | LSZH (Low Smoke Zero Halogen) |

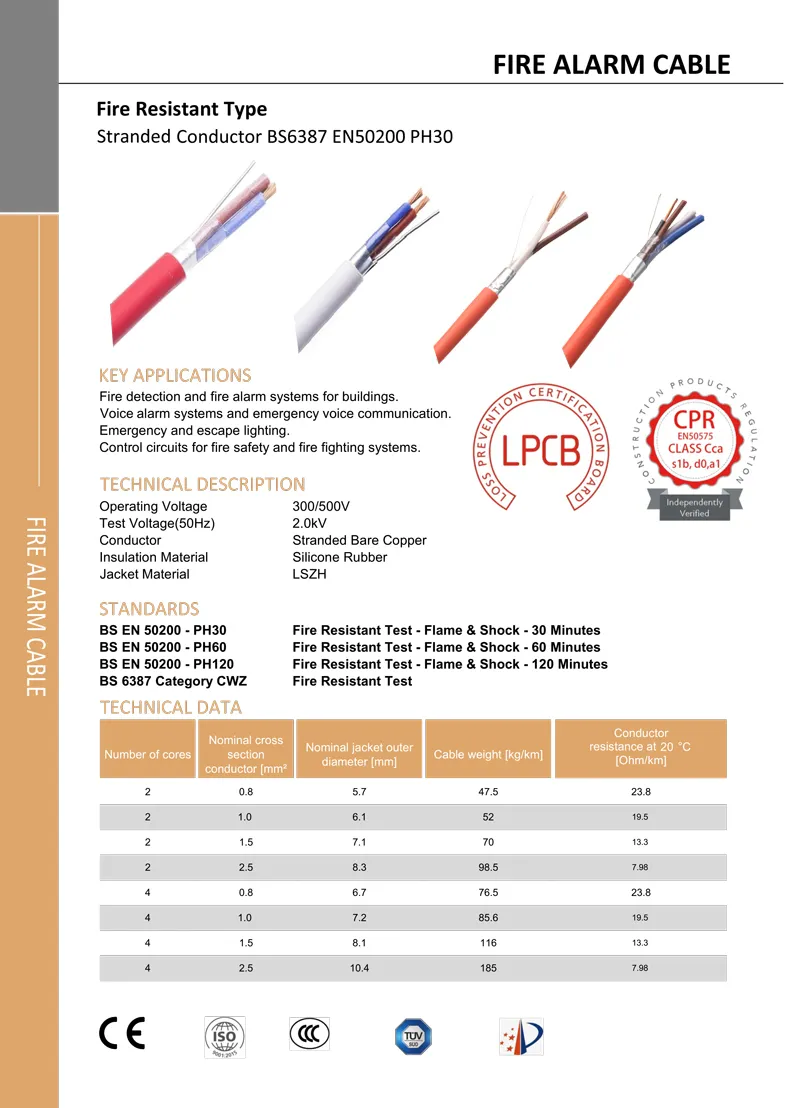

Detailed Gallery

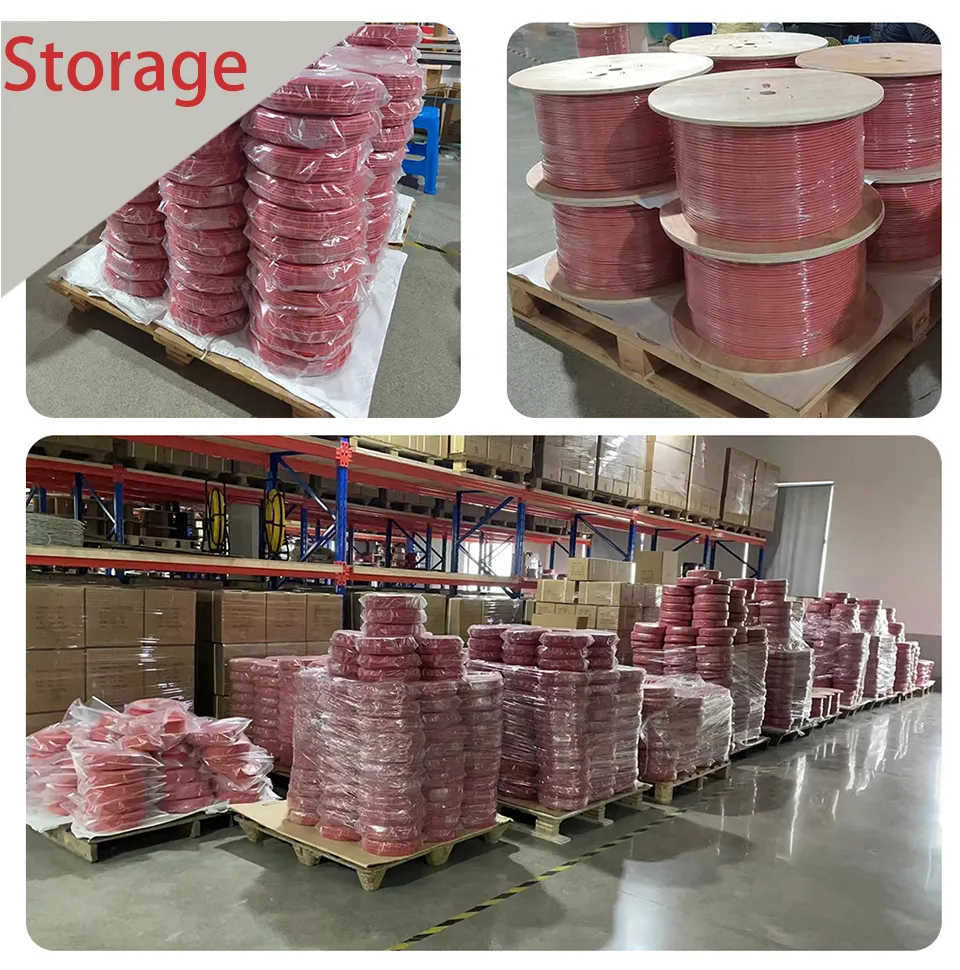

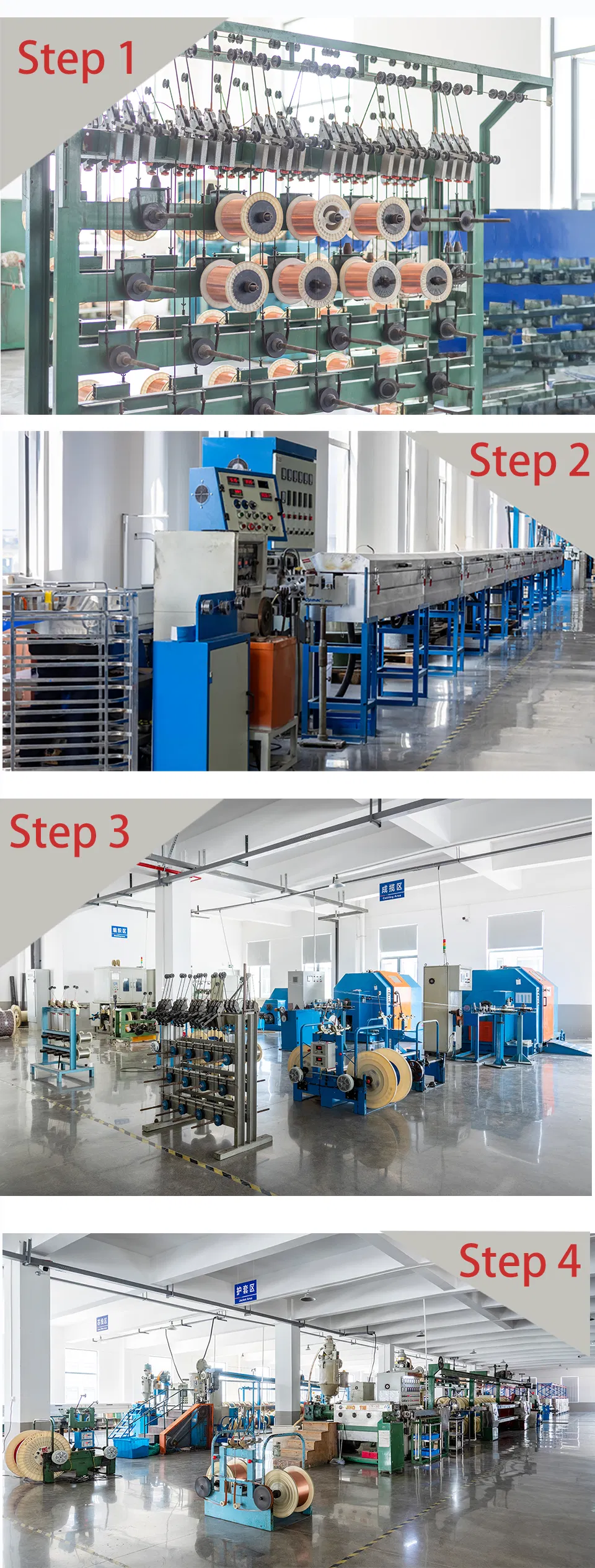

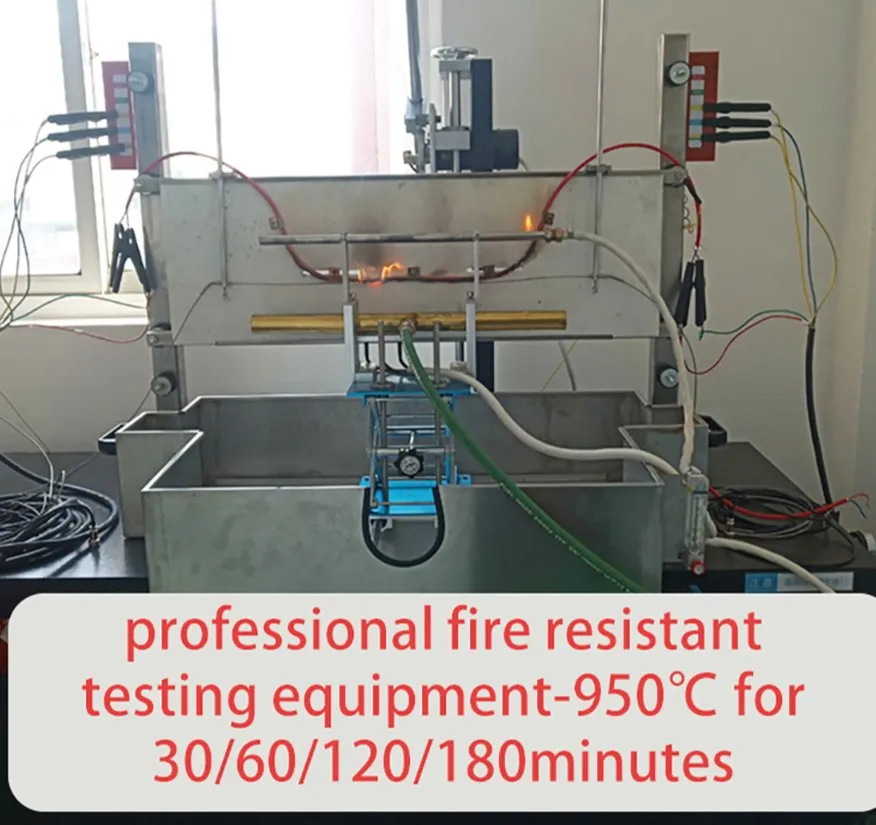

Testing & Production
Frequently Asked Questions
What types of cables do you manufacture?
We specialize in fire resistant alarm cables, solar cables, speaker cables, DMX cables, microphone cables, and network patch cables.
Can I request a sample for testing?
Yes. If we have stock for small amounts, the sample is free. Otherwise, sample costs are paid by the customer but refunded upon the initial formal order.
Do you support OEM and ODM services?
Absolutely. We accept both OEM and ODM orders to meet specific branding and technical requirements.
What is your standard Minimum Order Quantity (MOQ)?
The standard MOQ for cables is 5KM, and for LAN cables it is 100 boxes, though this can be negotiated.
What is the typical delivery timeframe?
Delivery usually takes 20-30 days after the deposit is received, depending on the order quantity.
What trade terms do you accept?
We accept various trade terms including FOB, CIF, CFR, and EXW to facilitate international shipping.
