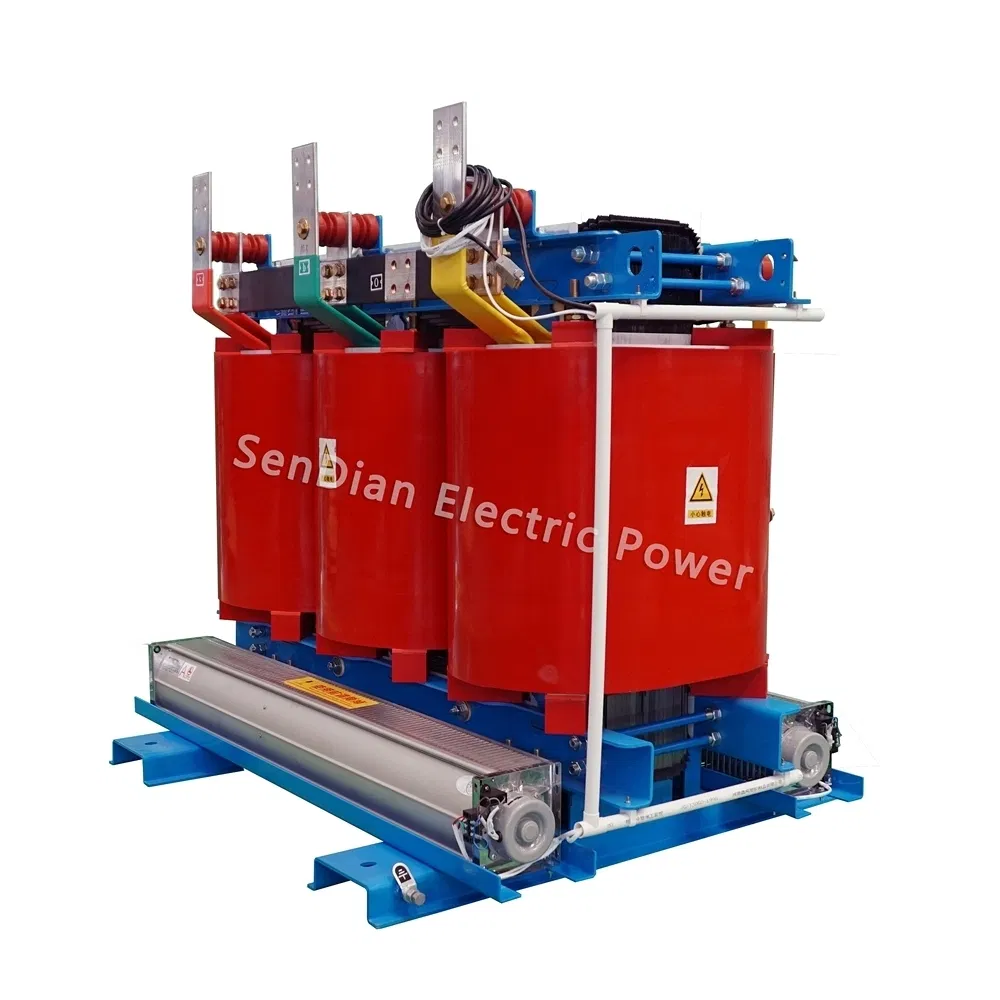

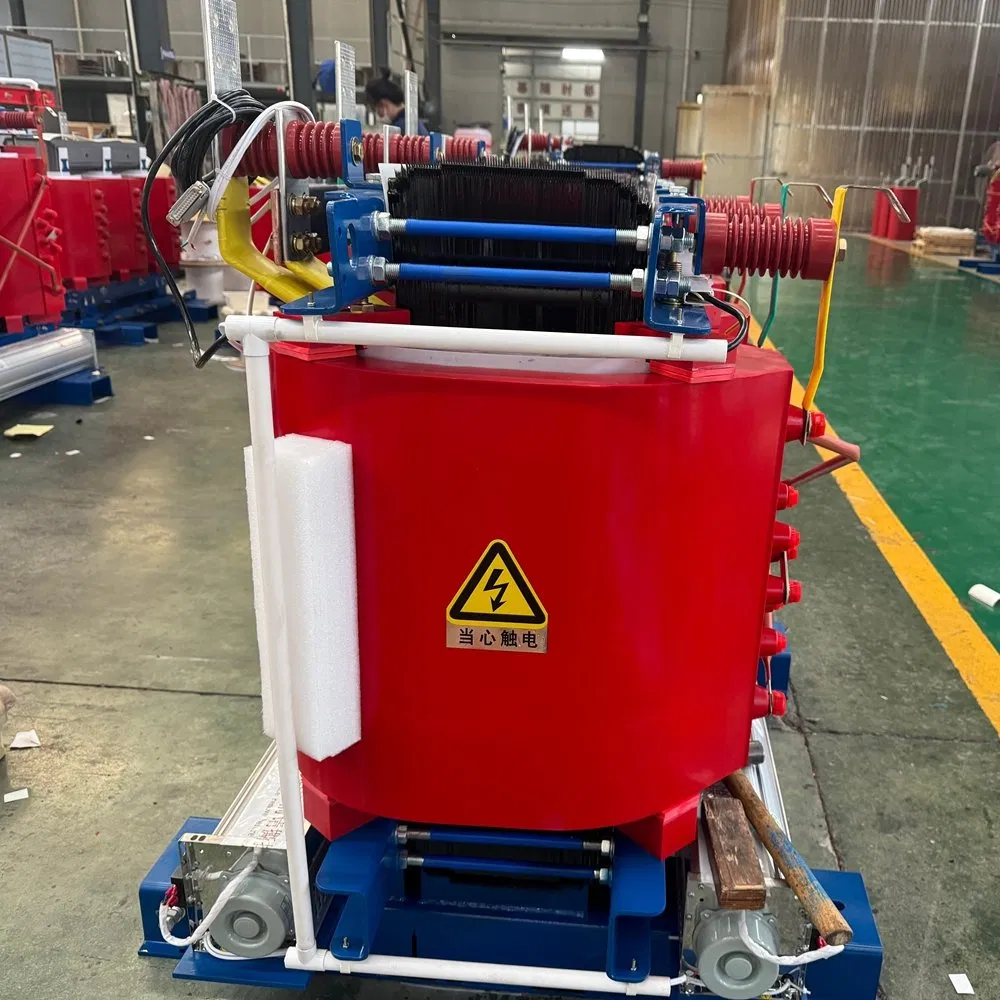

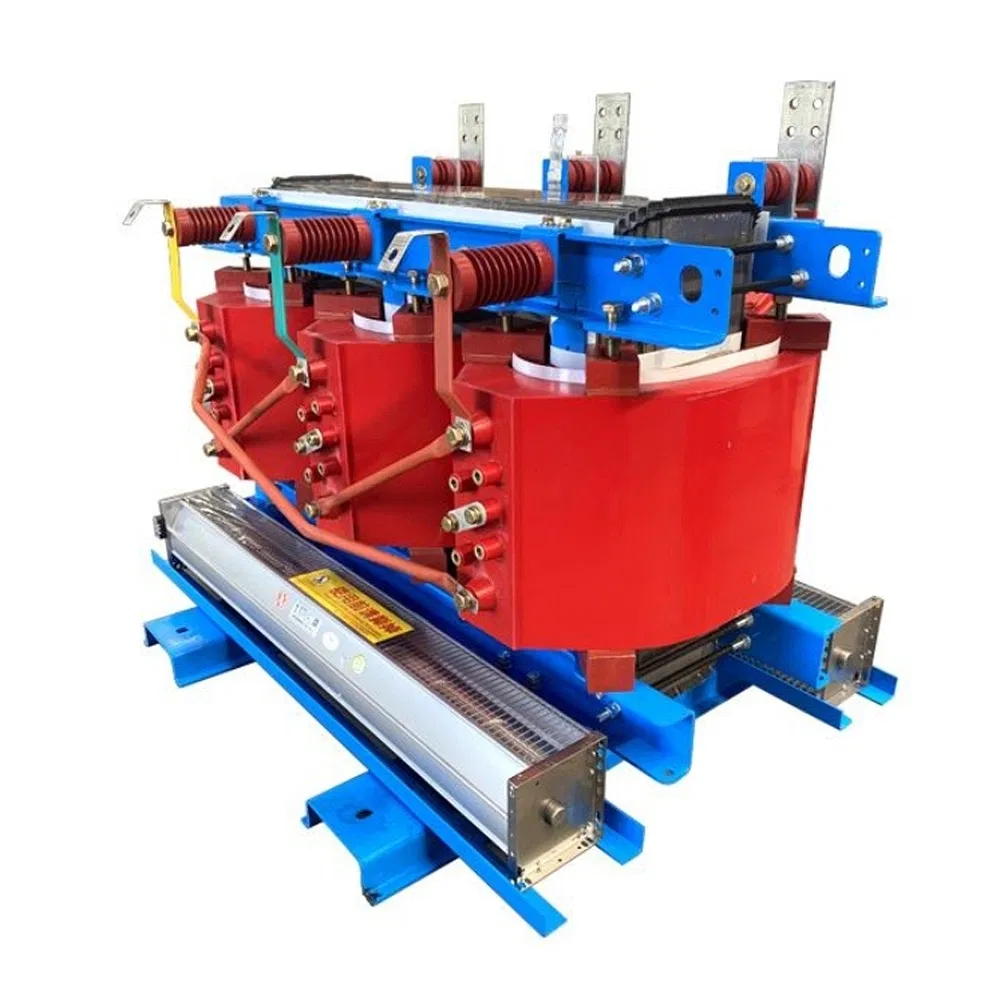

Good-Fire Resistance Scb11-2500 Epoxy Resin Three-Phase Electric Power Dry Transformer for High-Voltage Lines
Good-Fire Resistance Scb11-2500 Epoxy Resin Three-Phase Electric Power Dry Transformer for High-Voltage Lines
Good-Fire Resistance Scb11-2500 Epoxy Resin Three-Phase Electric Power Dry Transformer for High-Voltage Lines
Good-Fire Resistance Scb11-2500 Epoxy Resin Three-Phase Electric Power Dry Transformer for High-Voltage Lines
Good-Fire Resistance Scb11-2500 Epoxy Resin Three-Phase Electric Power Dry Transformer for High-Voltage Lines
1 / 5
Good-Fire Resistance Scb11-2500 Epoxy Resin Three-Phase Electric Power Dry Transformer for High-Voltage Lines
Good-Fire Resistance Scb11-2500 Epoxy Resin Three-Phase Electric Power Dry Transformer for High-Voltage Lines
Good-Fire Resistance Scb11-2500 Epoxy Resin Three-Phase Electric Power Dry Transformer for High-Voltage Lines
Good-Fire Resistance Scb11-2500 Epoxy Resin Three-Phase Electric Power Dry Transformer for High-Voltage Lines
Good-Fire Resistance Scb11-2500 Epoxy Resin Three-Phase Electric Power Dry Transformer for High-Voltage Lines

Good-Fire Resistance Scb11-2500 Epoxy Resin Three-Phase Electric Power Dry Transformer for High-Voltage Lines

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information
Model NO.:Scb11-2500
Core:Core-type Transformer
Cooling Method:Dry-type Transformer
Winding Type:Two-winding Transformer
Certification:ISO9001, ISO14001, ISO45001
Capacity:2500kVA
Frequency:Power Frequency
Connection:Dyn11
Product Description
Dry Type Transformer Overview

🚀 DRY TYPE TRANSFORMER

Scb11 three-phase epoxy resin casting dry-type transformers represent cutting-edge electrical distribution technology. This advanced product utilizes a high-density silicon steel core manufactured with precision engineering techniques and is fitted with premium epoxy resin copper coils designed for optimal electrical conductivity.

The comprehensive product capacity ranges from 160-2500kVA, effectively covering most industrial, commercial, and residential application scenarios.

✅ KEY FEATURES

  • Fully sealed and professionally insulated structure for absolute security.
  • Perfectly suited for network distribution and industrial terminal applications.
  • Low power loss, exceptionally low noise, and superior electrical performance.
  • Outstanding low-temperature resilience and remarkable overload capacity.
  • Extended operational lifespan through innovative technical design.

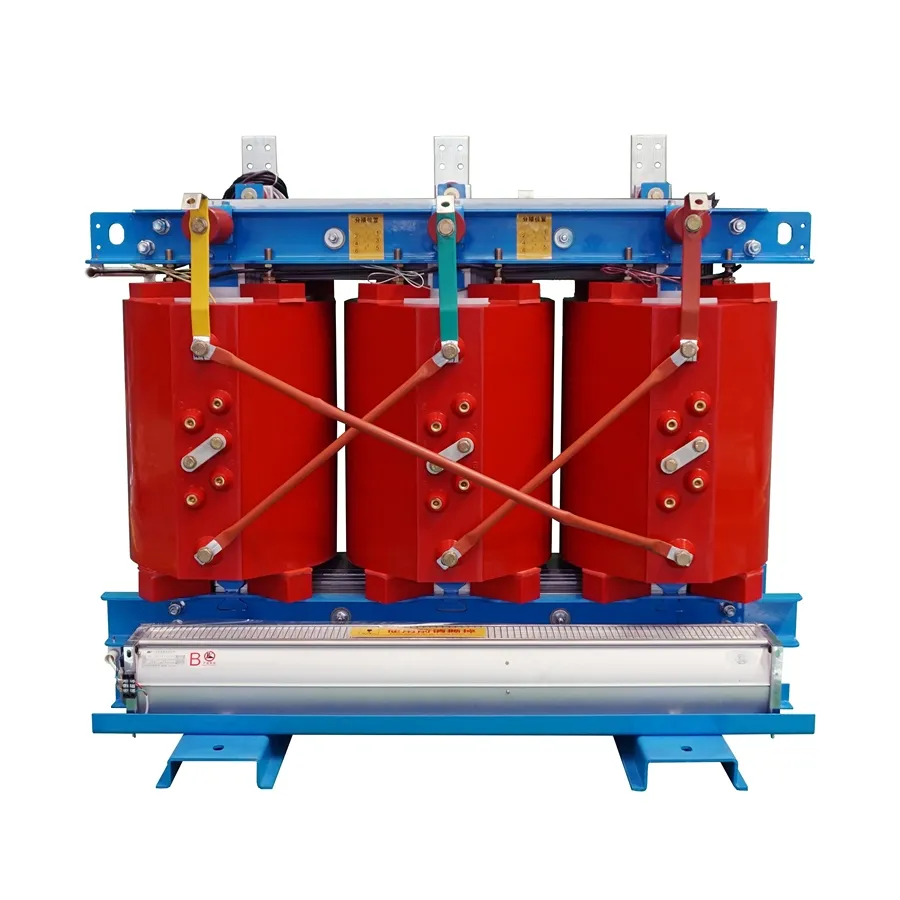

Transformer Detail 1

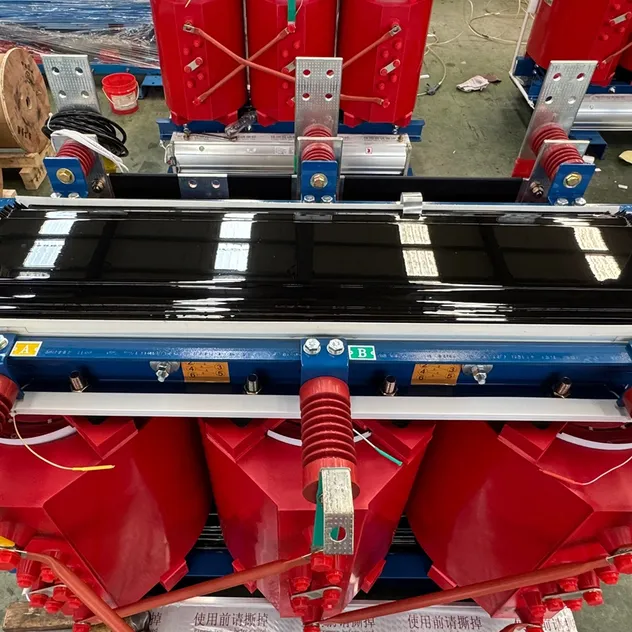

Transformer Detail 2

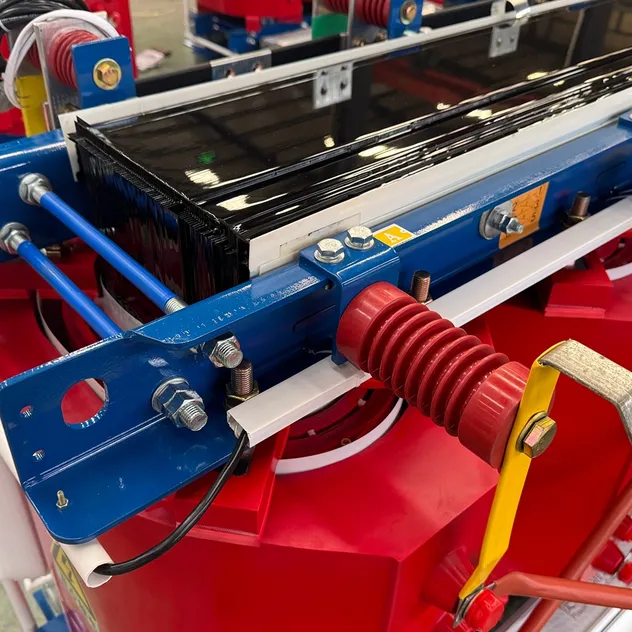

Transformer Detail 3
Technical Specification
TECHNICAL PARAMETERS
Product NameScb11 Three Phase Epoxy Resin Casting Dry Type Transformer
CoreCore-Type Transformer
Winding MaterialCopper, Aluminum
Cooling SystemNature Air, Fans Cooling
Tap ChangerOff Load Tap Changer
Short circuit impedance4% / 6%
Type Rated Capacity (kVA) HV (kV) No-load Loss (W) On-load Loss (W) Size L*W*H (mm)
SC(B)11-30/10306/10/11180560800*660*940
SC(B)11-500/105006/10/1184043001520*870*1520
SC(B)11-1000/1010006/10/11143073801760*970*1500
SC(B)11-2500/1025006/10/112650150802090*1260*1930
Detailed Photos & Advantages

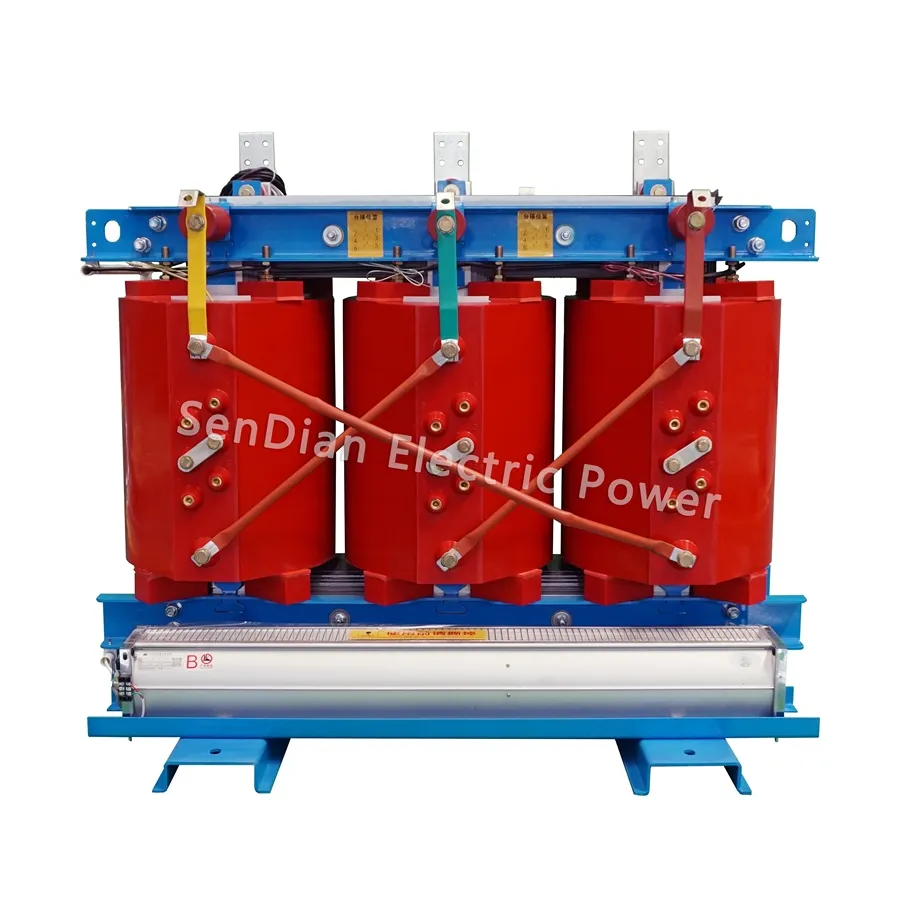

Safety Solution

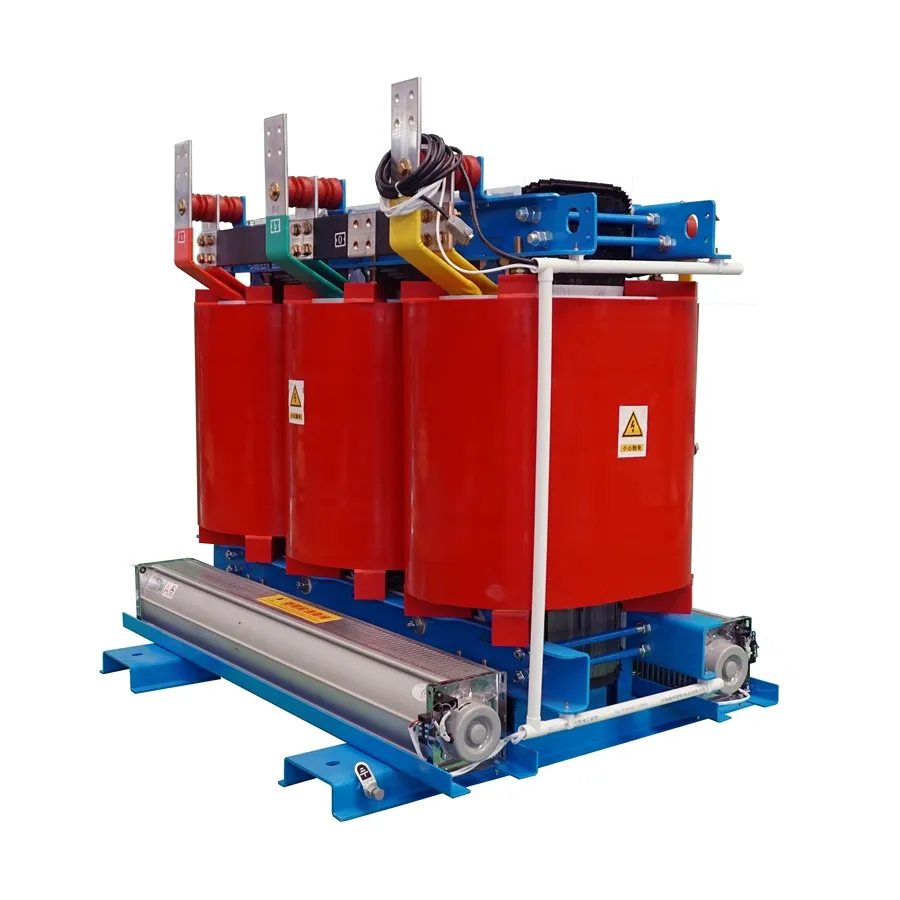

Energy Efficiency

🛡️ ULTIMATE SAFETY & RELIABILITY

SCB11 transformers eliminate fire hazards through advanced flame-retardant epoxy resin technology, providing maintenance-free operation that reduces downtime costs by up to 80% compared to traditional oil-filled units.

💰 ENERGY EFFICIENCY

Precision-engineered silicon steel cores deliver industry-leading low-loss performance, reducing operational electricity costs by 15-25% annually.

Production Process

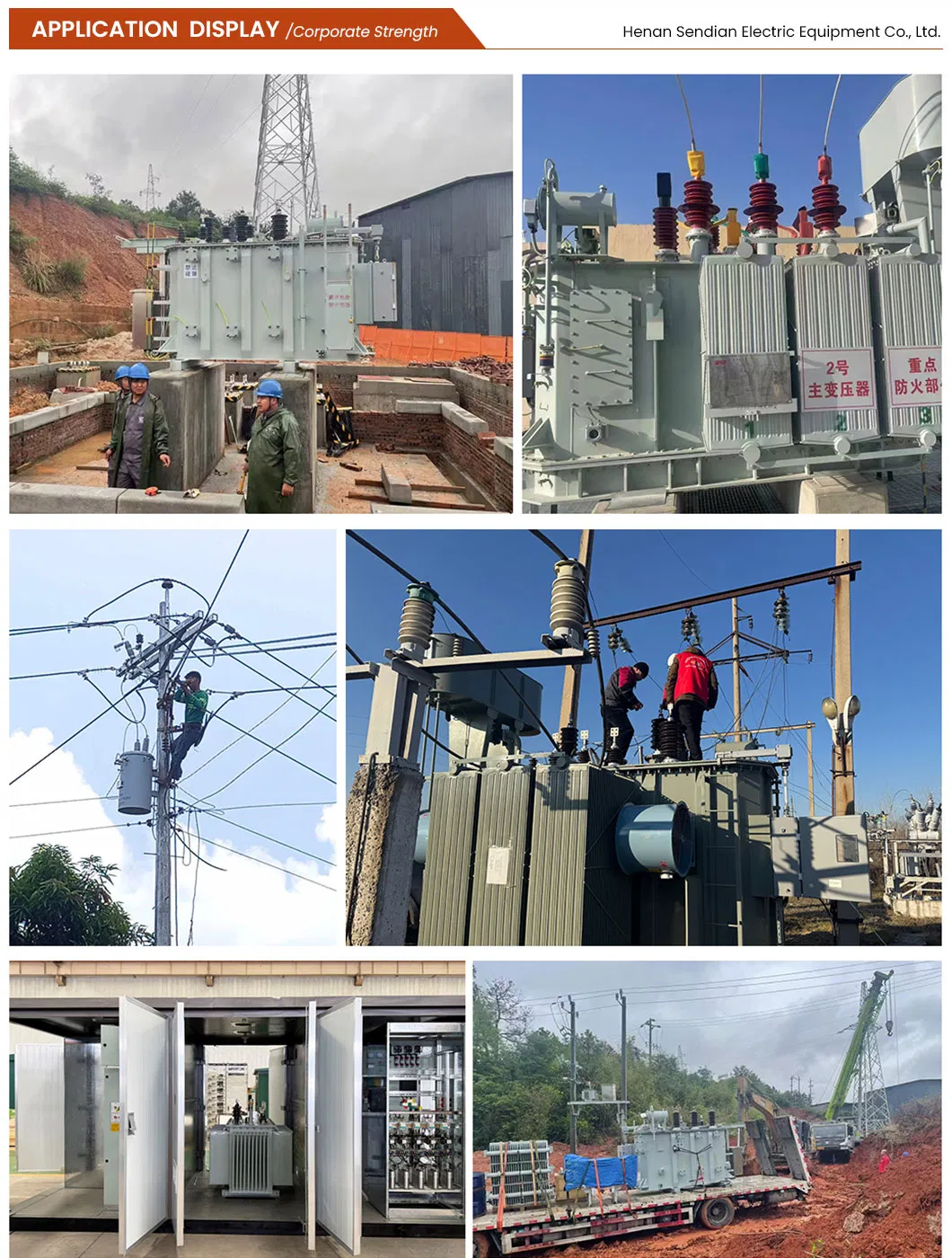

Finished Product
FAQ
Q1: What is the primary advantage of Scb11 dry-type transformers? A: They offer superior fire resistance, low maintenance, and high efficiency, making them safer and more cost-effective for indoor and urban environments than oil-filled transformers.
Q2: How do you guarantee the quality of your transformers? A: We conduct rigorous final inspections before shipment and provide a two-year warranty. Our production follows ISO9001, ISO14001, and ISO45001 standards.
Q3: What ranges of capacity do you offer? A: Our standard capacity for Scb11 series ranges from 160kVA up to 2500kVA, suitable for various industrial and commercial needs.
Q4: Can these transformers operate in extreme environments? A: Yes, they are designed for versatile environmental adaptability, operating reliably in temperatures from -40°C to +40°C with excellent overload capacity.
Q5: What materials are used for the windings? A: We use high-quality Copper or Aluminum winding materials depending on customer specifications and application requirements.
Q6: Are your products certified for international markets? A: Yes, our products meet international quality management and environmental standards, including ISO certifications, ensuring reliable performance globally.
