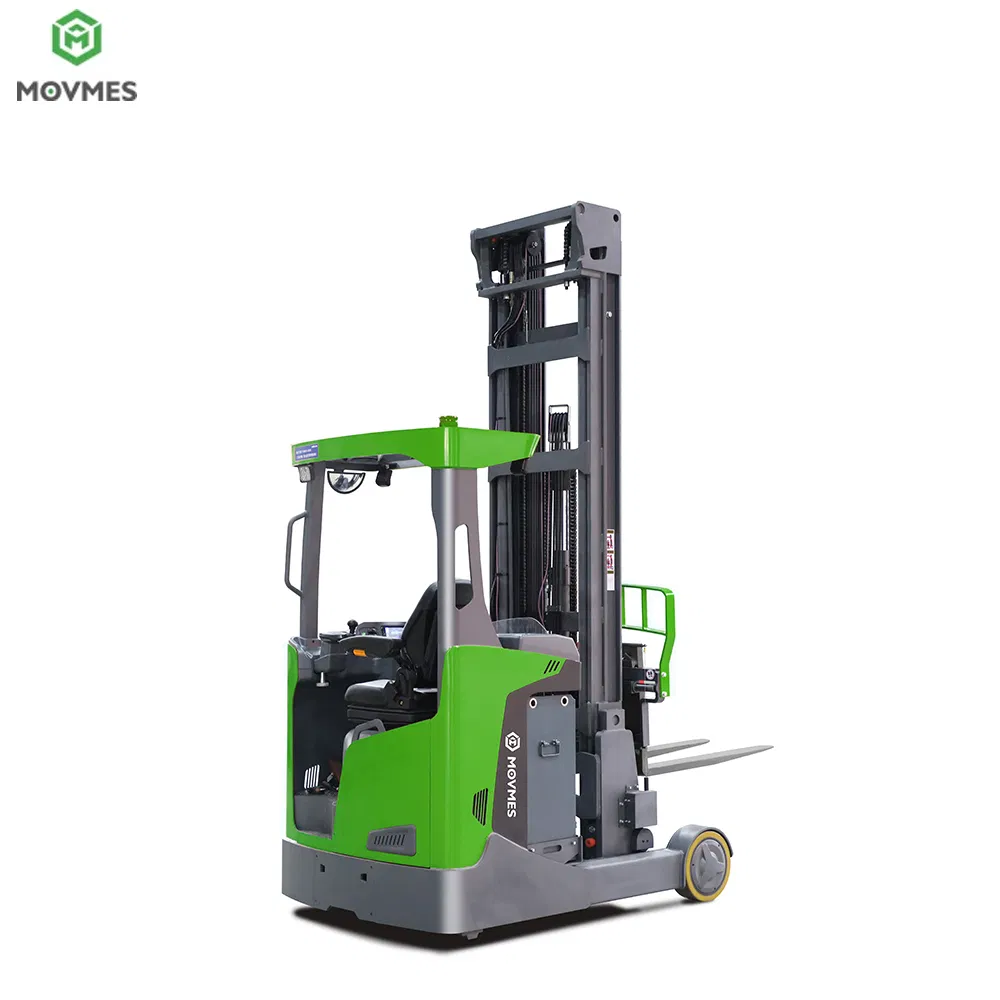

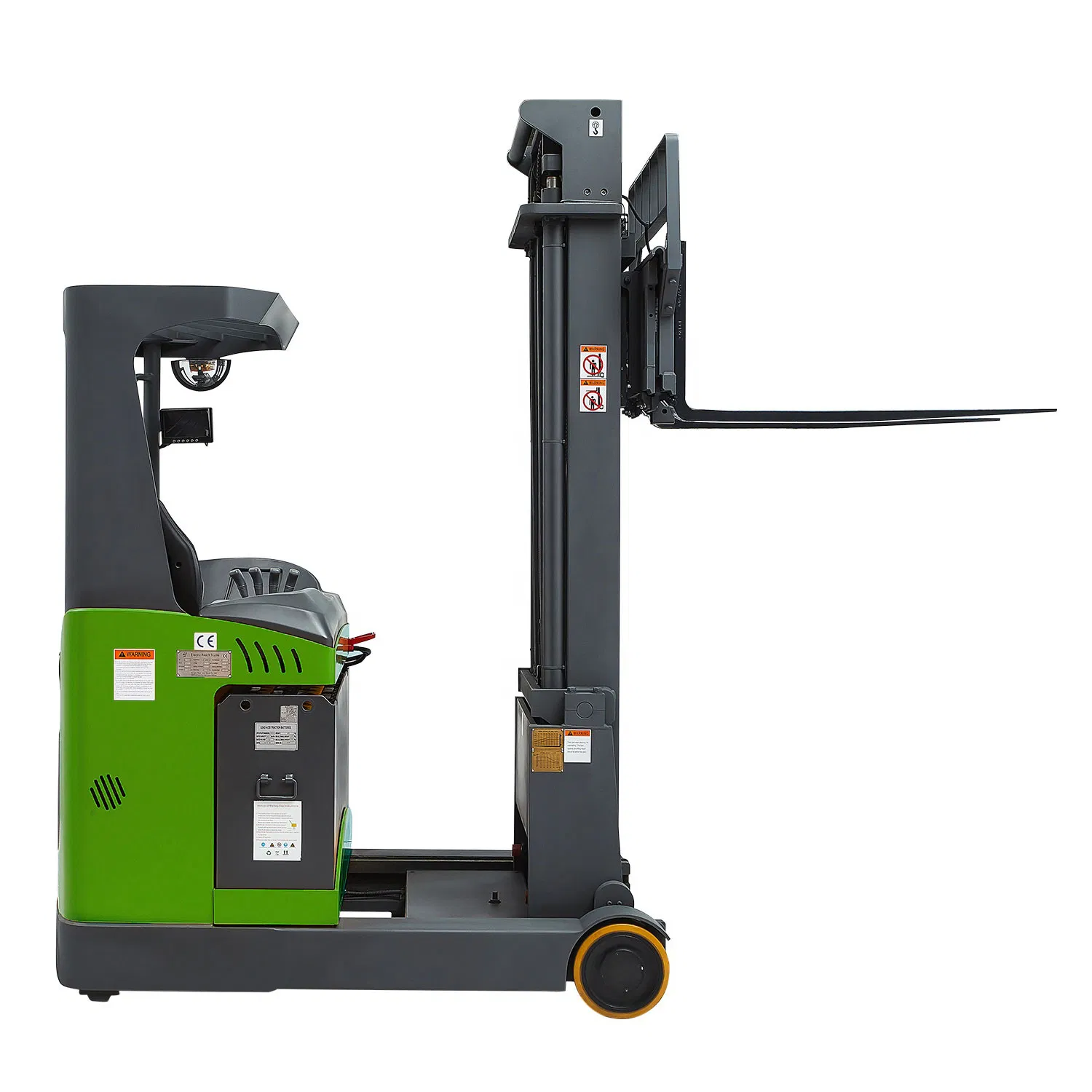

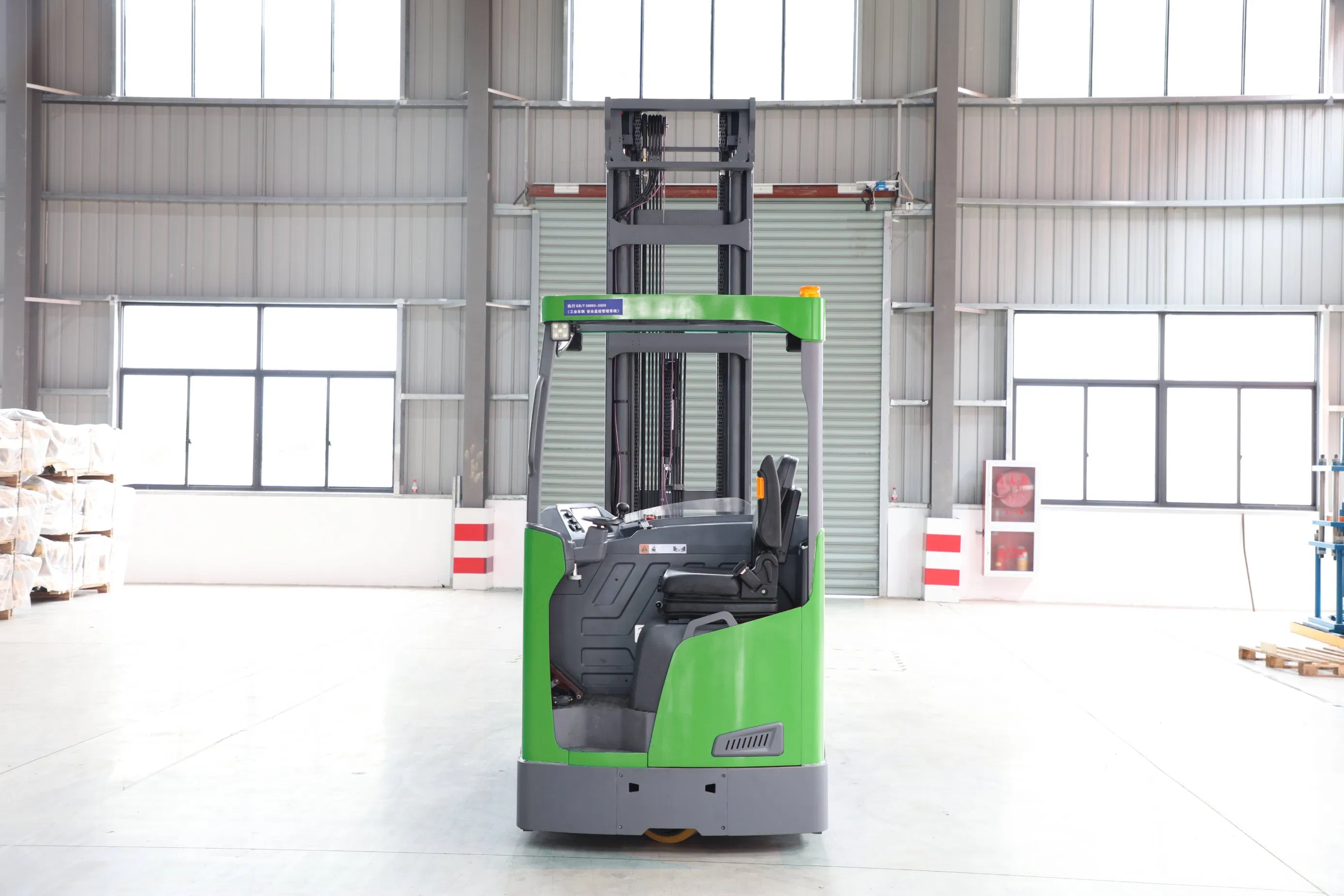

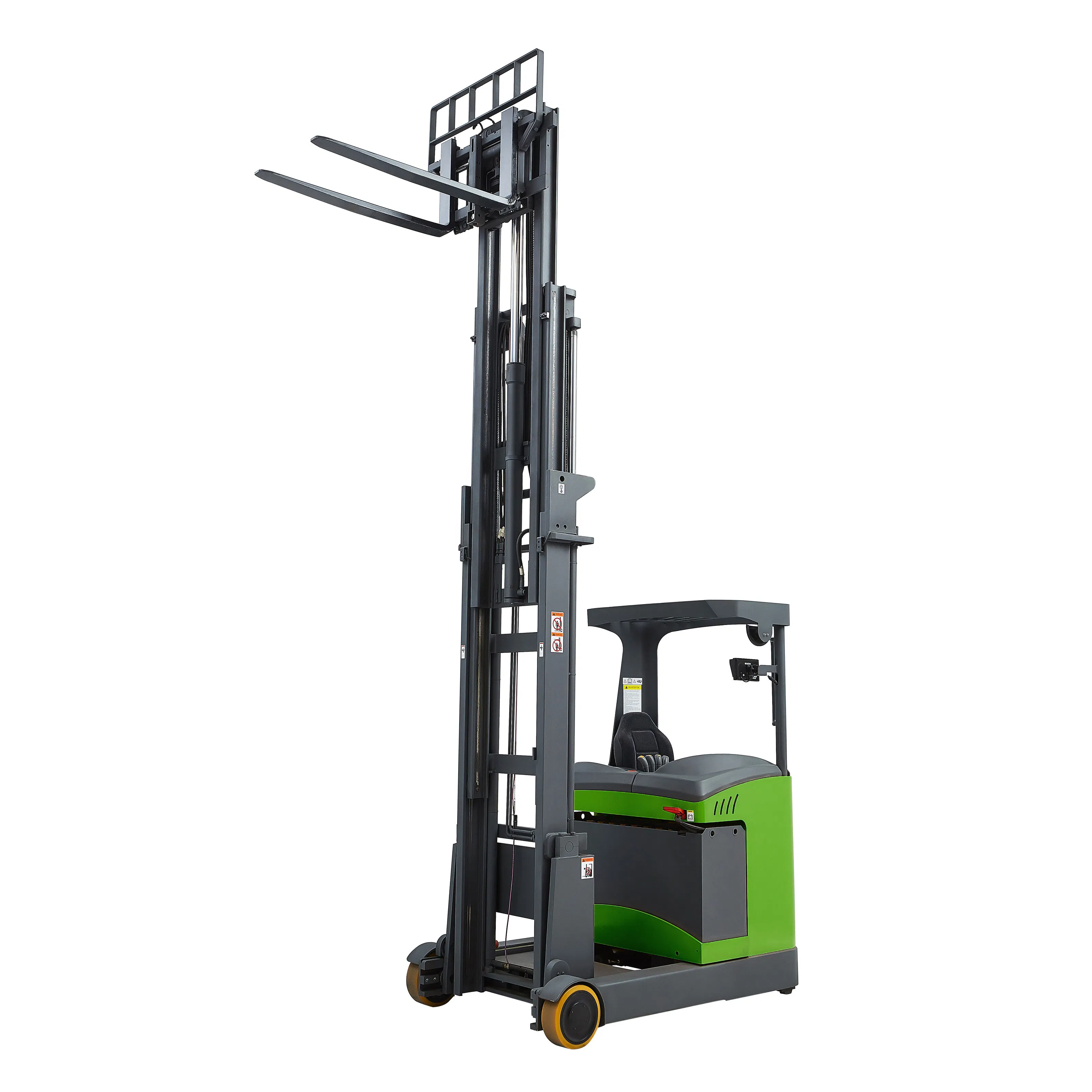

Maximum Lift/Lifting Height 1.5t 2t 2.5t 3t Retractable Forklift Stacking Electric Reach Truck for Narrow Aisles/Pallet
| Parameter Item | Unit | Details (CQD20-D) |
|---|---|---|
| Drive type | - | Electric |
| Operator type | - | Seated |
| Rated load | kg | 2000 |
| Load center distance | mm | 600 |
| Wheelbase | mm | 1510 |
| Service weight (with battery) | kg | 4205 |
| Tyre size, front | mm | 343X140 |
| Tyre size, rear | mm | 340X114 |

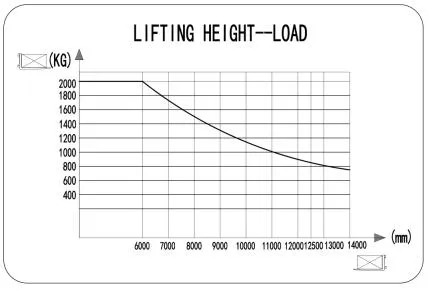

| Lifting height | mm | 3000 - 12500 |
| Overall length | mm | 2466 |
| Overall width | mm | 1260/1270 |
| Turning radius | mm | 1783 |
| Travel speed (laden/unladen) | km/h | 10.5/11 |
| Battery voltage/capacity | V/Ah | 48/500 |
Our products have approved CE standards of ISO3691-1, EN1175-1, and EN16307-1. Up to 90% of our material handling equipment is CE certified by TUV.
We are actively looking for agents all over the world to expand our brand presence. We provide high-end products as main support power, ensuring the same quality as world-famous brands.
