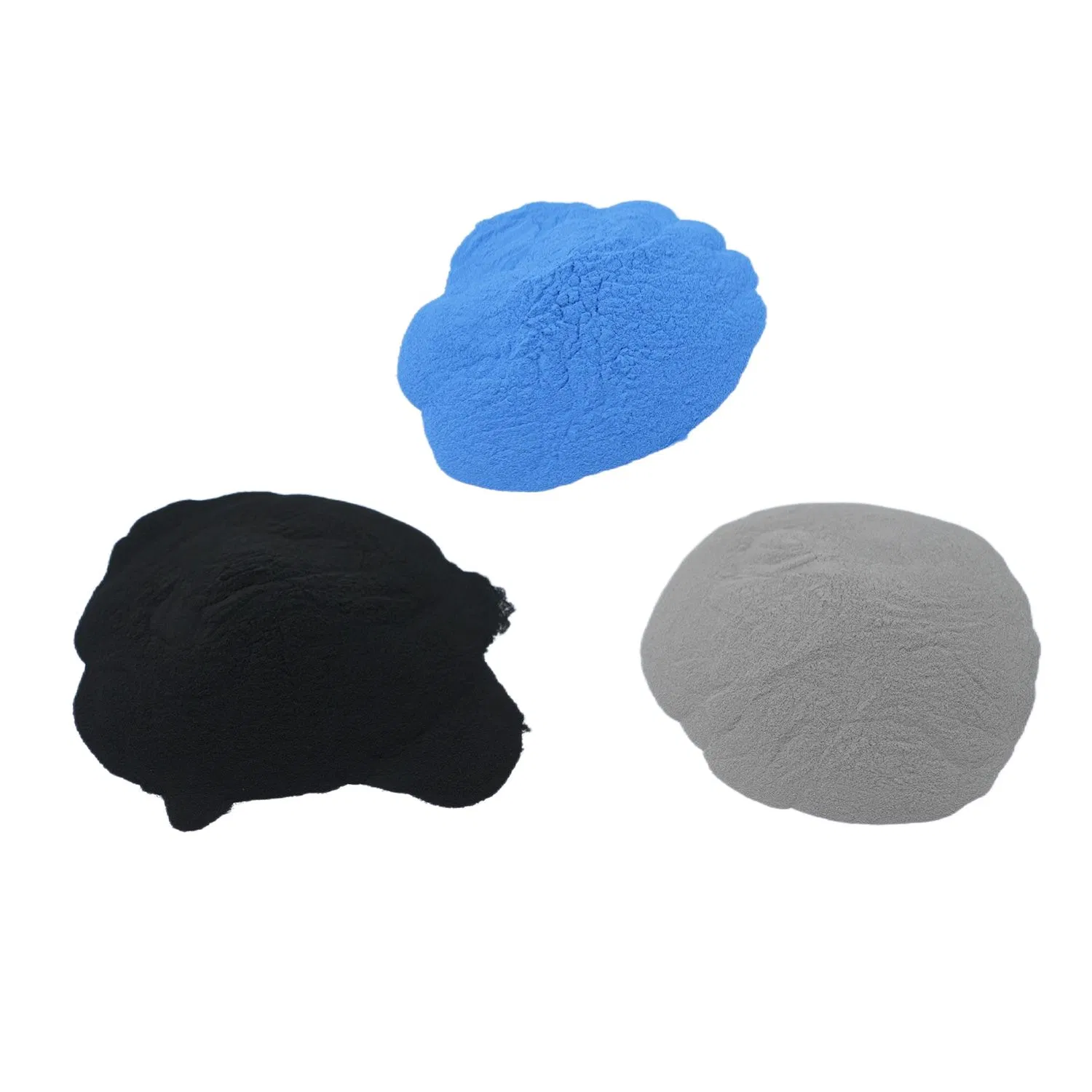

SRD PM is a distinguished series of powder coatings formulated from durable polyester, Primid hardener, and essential pigment fillers with specialized agents. These superior thermosetting powder coatings undergo an intricate melting, extrusion, and milling process, yielding unmatched physical, chemical, and decorative properties.
SRD PM can be customized with variable curing temperatures (150ºC~200ºC), unique patterns (smooth finish, texture, hammertone), and a spectrum of gloss levels (20%~95%).
| Item | Spec | Test Standard | Note |
| Surface | Visual close | Visual check | Normally with sun light |
| Gloss | 20%~95% | GB/T9754-88 | 60°angle |
| Impact | 50 kg*cm | GB/T1732-93 | Except low gloss |
| Adhesion | 0 | GB/T9286-88 | Grade 0 |
| Salt Spray | 500hr | GB1771-91 | No corrosion creep > 2mm |
Application: The SRD PM range is compatible with manual and automatic electrostatic spray equipment. Preheating is recommended for cast pieces to remove internal gases and prevent bubble formation.
Safety: Use PPE including masks and gloves. Ensure proper earthing during application. Avoid sparks and open flames in the workshop area.
