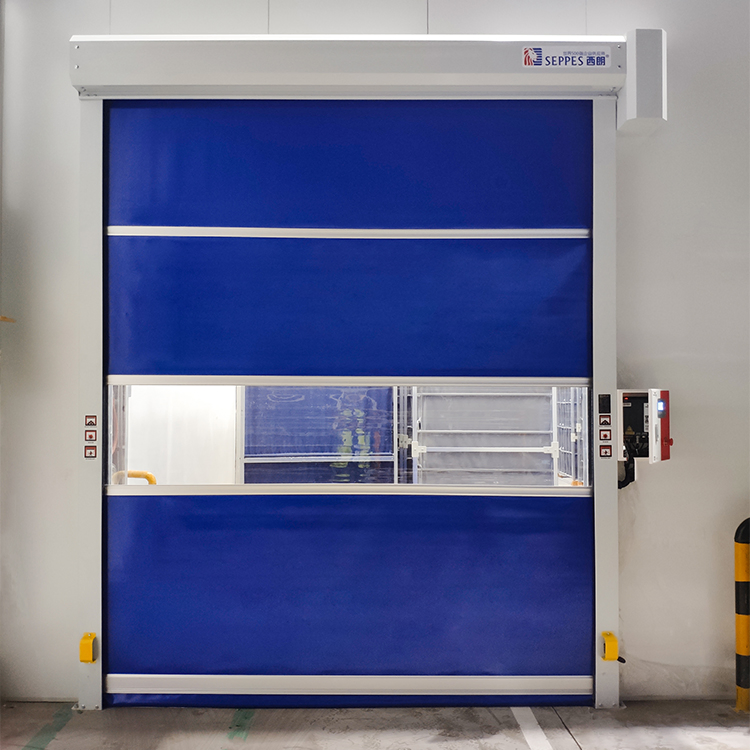

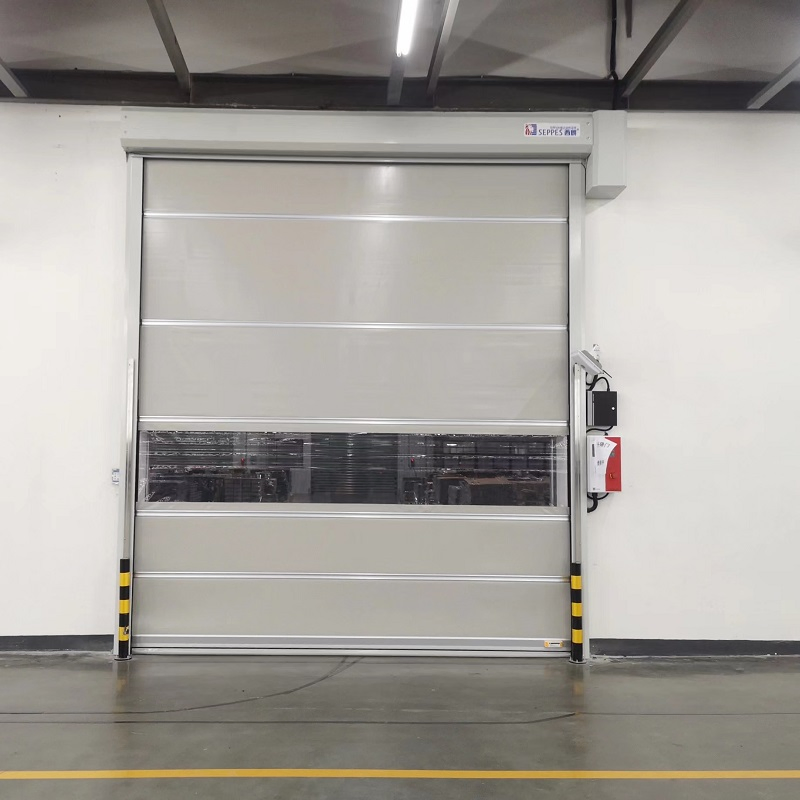

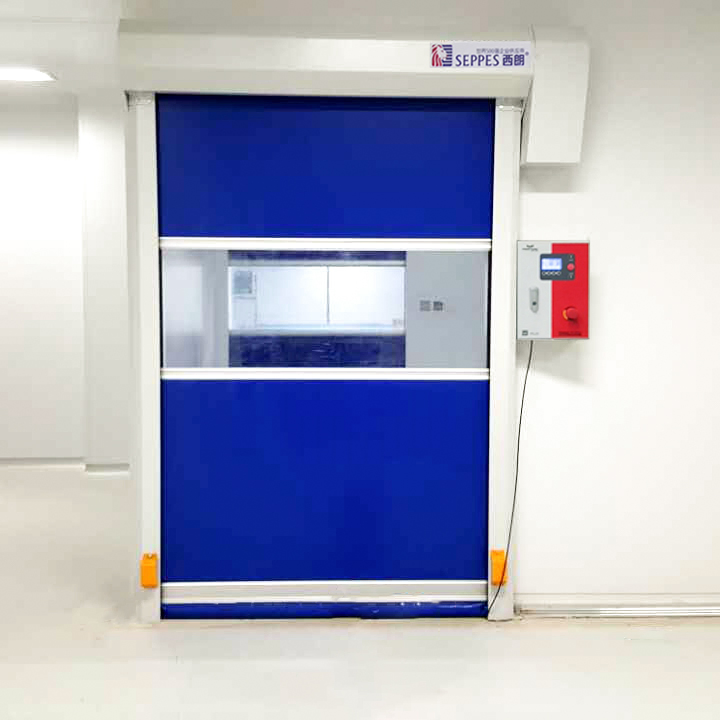

Customized Size Dust-Proof Fast Partition High Speed PVC Fabric Doors for Pharmaceutical Clean Room

Customization:	Available
After-sales Service:	Online Guide
Warranty:	1 Year

Basic Information

Model NO.HSD-180

MaterialPVC

TypeRolling

Open StyleRolling

Opening TypeInduced

Special FunctionSecurity

CertificationISO9001, CE

Max Size5000*5000mm

Opening SpeedMax 2.0m/S

Power Supply1-Phase 220V / 3-Phase 380V

Why Choose High Speed Industrial Doors?

Global Standards: Exported to over 50 countries with worldwide service.
Certified Quality: Holder of multiple authoritative certifications, including CE, SGS, UL.
Industry Trusted: Reliable supplier partner to leading global enterprises.
Advanced Technology: Equipped with intelligent servo control systems for professional industrial needs.

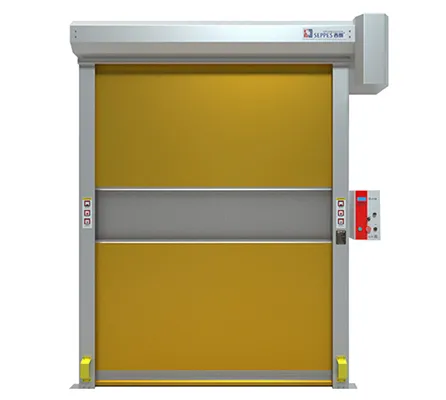

PVC High Speed Door System

This high speed door adopts an integrated intelligent control system and servo high-precision drive unit. Featuring patented safety protection technology, it delivers safe, stable, and efficient performance. The innovative visual man-machine interface allows real-time monitoring of running status and fault codes, combining industrial aesthetics with precision laser-cut components.

Installation Applications

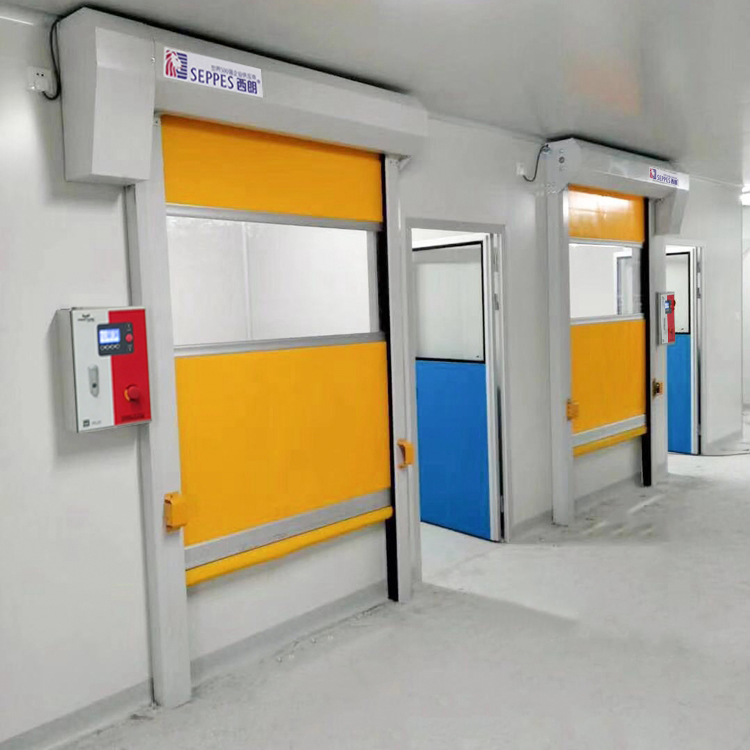

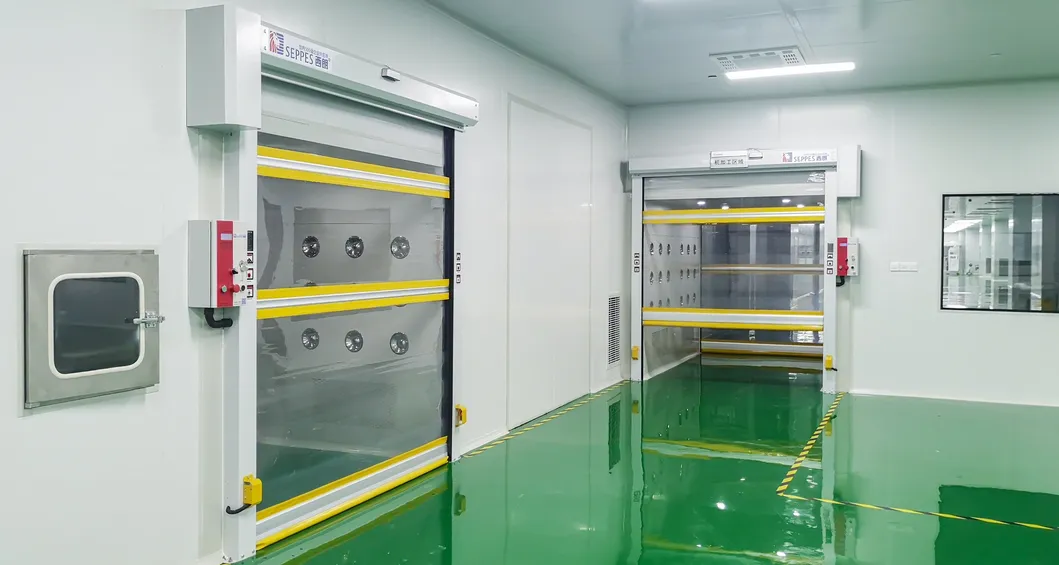

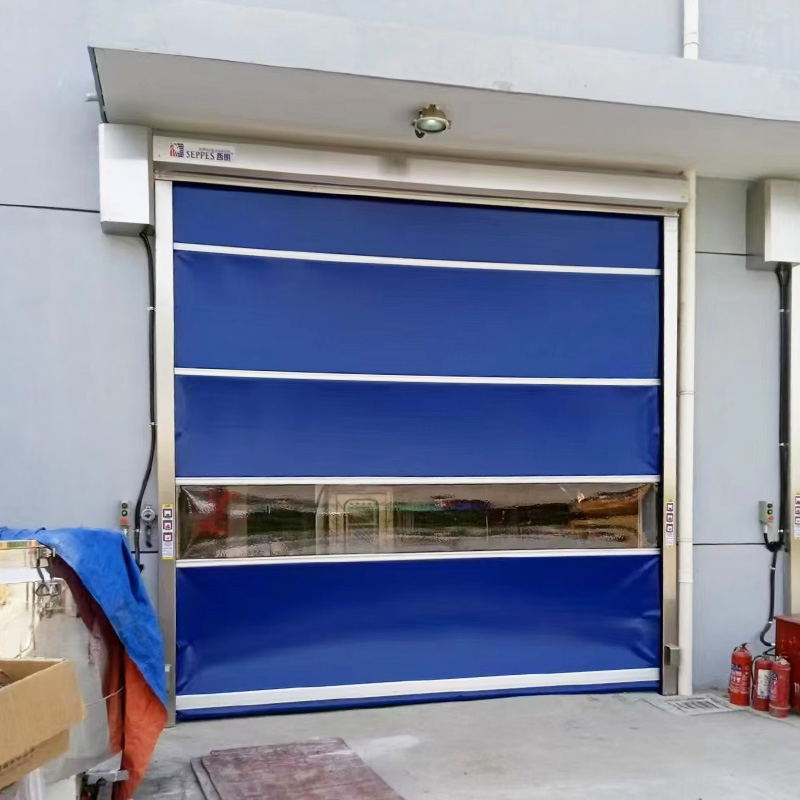

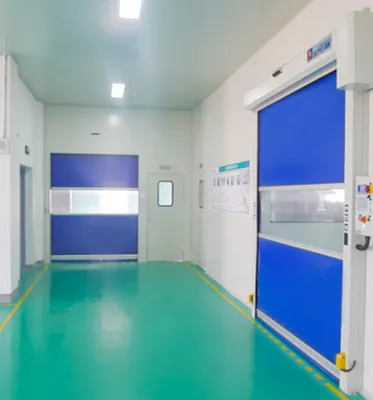

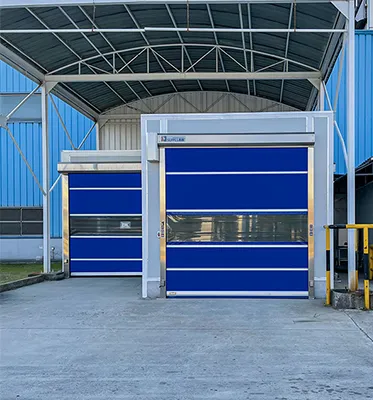

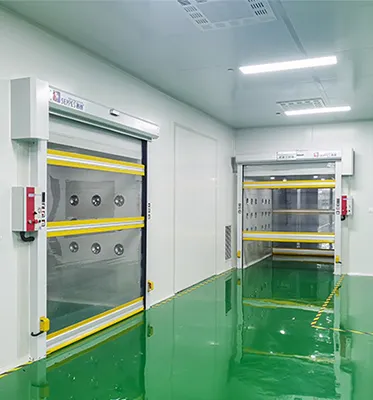

Applications: Pharmaceutical Workshop | Air Shower Room | Factory Exterior

Technical Specifications

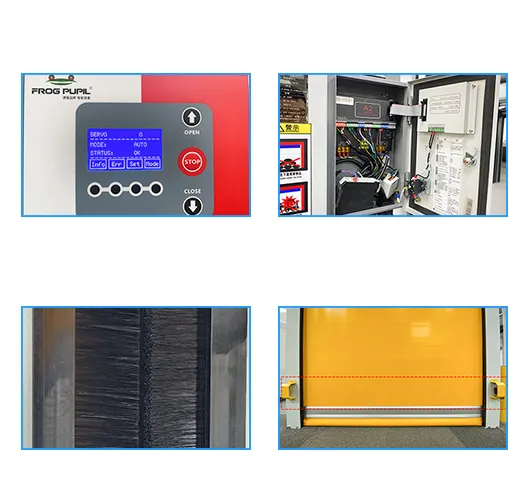

Human-Machine Interface: Visual operation with real-time status display and easy maintenance.
Intelligent Control: High-precision drive unit ensuring fast and stable operation.
Superior Sealing: Double-row sealing brushes forming a four-sided air-tight structure.
Safety Protection: Standard infrared anti-pinch sensors; optional airbag and light curtains.

Maximum Size	50005000mm(WH)
Wind Pressure	4-5 wind resistance
Opening Speed	1.0-2.0 m/s (Adjustable)
Operating Temp	-5 to 60°C
Base Fabric Thickness	0.8-1.2mm
Induction Mode	Radar, Geomagnetic, Photoelectric, Remote Control

Advanced Functions

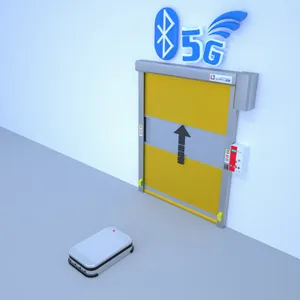

Remote Communication: Integrated ports for AGV linkage and external device control.

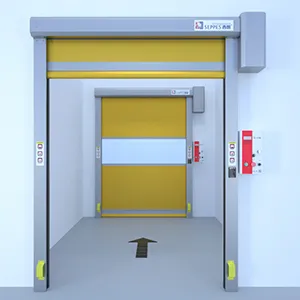

Door Interlock: Prevents two doors from opening simultaneously to maintain cleanroom integrity.

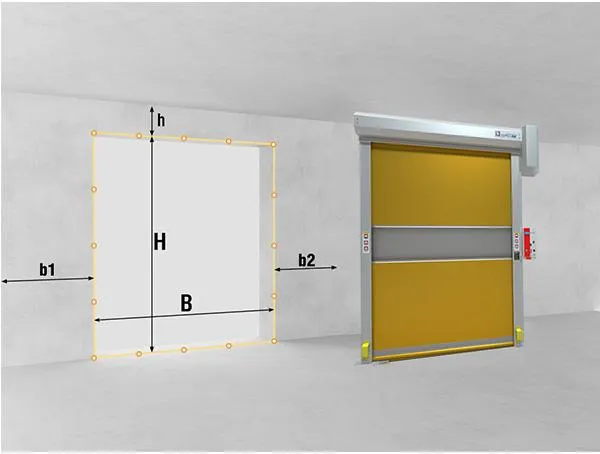

Measurement Guide

H: Doorway height (Ground to Top)

B: Doorway width (Left edge to Right edge)

h: Headroom (Top of doorway to ceiling, min 600mm reserved)

b1/b2: Lateral distance (Min 200mm, with 500mm on motor side)

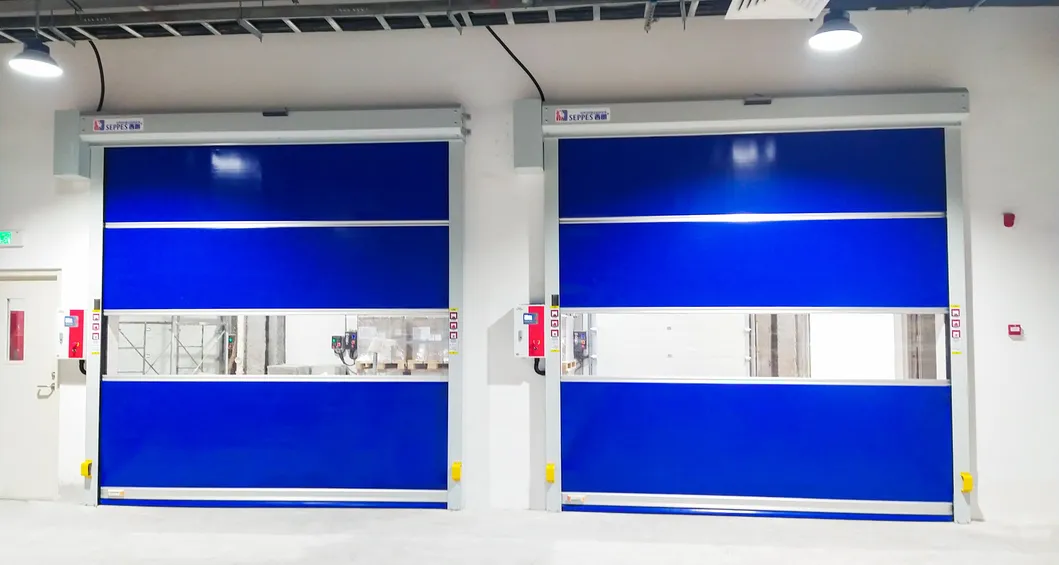

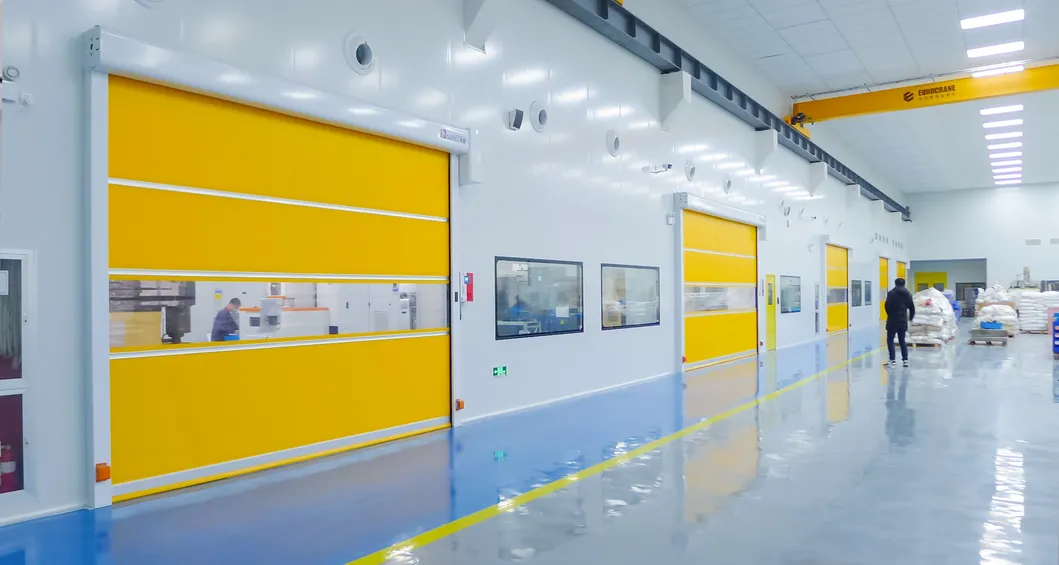

Real Projects

Frequently Asked Questions

What are high-speed doors?

High-speed doors are specialized industrial doors designed for fast opening and closing to ensure efficient traffic flow, enhance environmental control, and improve safety in warehouses and manufacturing facilities.

Can high-speed doors be customized?

Yes, high-speed doors can be customized in terms of dimensions, materials, colors, and features such as vision windows or specific activation sensors to meet your facility's requirements.

How do high-speed doors operate?

They operate using a motorized mechanism controlled by intelligent systems. They can be triggered by radar, geomagnetic loops, remote controls, or push-buttons.

Are these doors energy efficient?

Yes. Their rapid operation minimizes the time a doorway remains open, significantly reducing energy loss from heating or cooling in climate-controlled environments.

What safety features are included?

Standard features include infrared sensors to detect obstacles. Optional features like safety airbags and multi-point light curtains are also available to prevent accidents.

Are they suitable for cold storage?

Yes, specific high-speed door models are designed with insulated materials and specialized seals specifically for cold storage and freezer environments.
