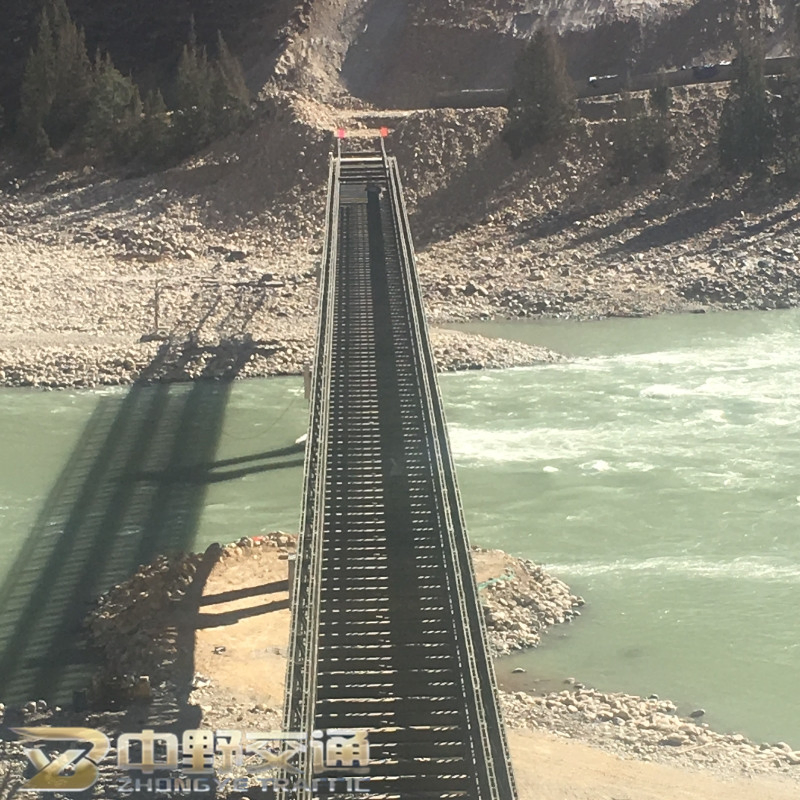

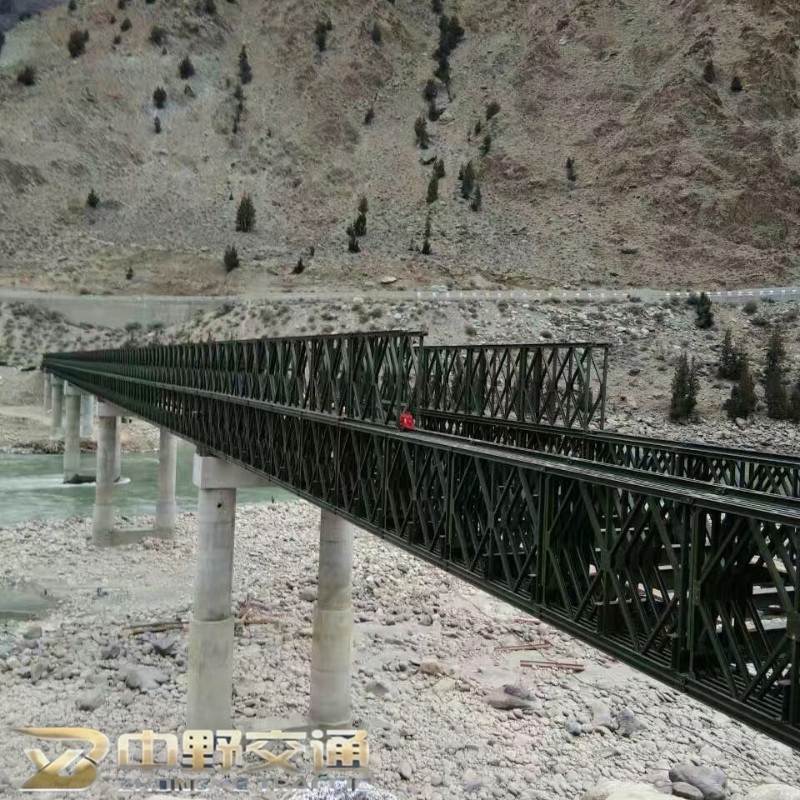

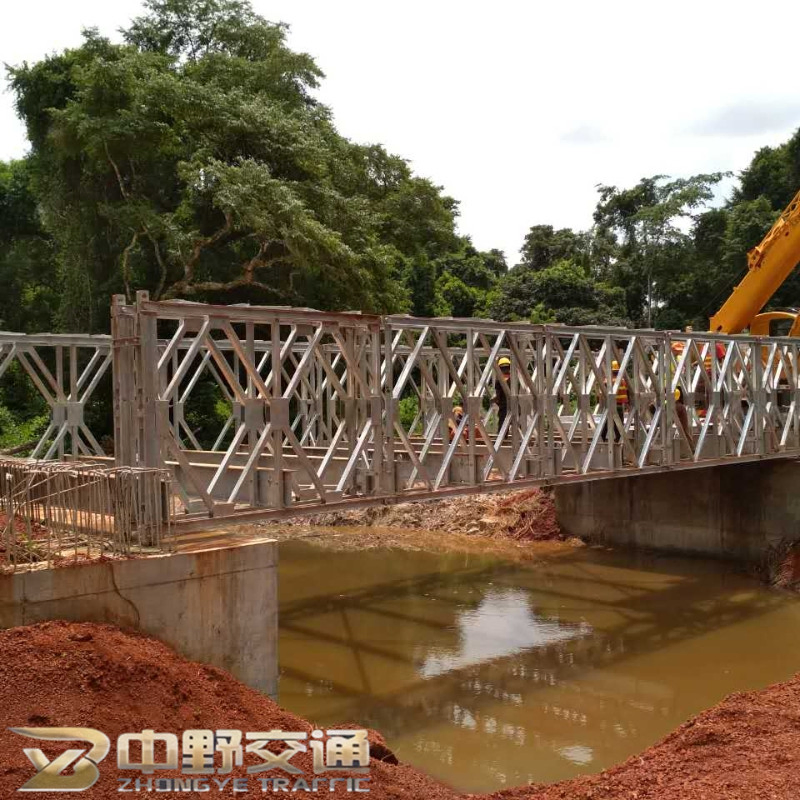

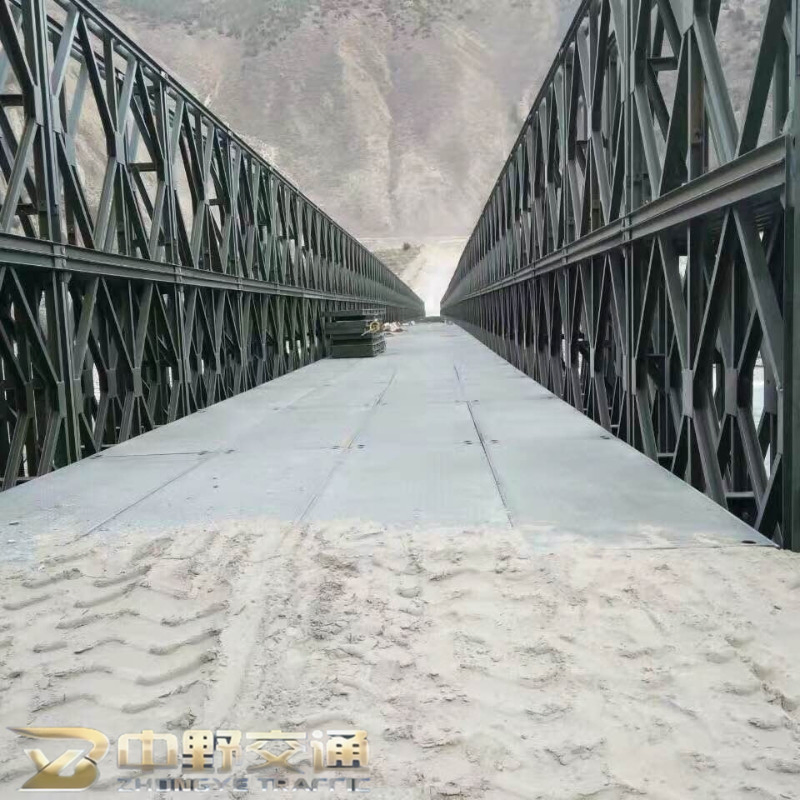

Cost-Effective Heavy Load Bailey Steel Structure Weather Resistant Prefabricated Bridge with Protective Coating for Durability River Crossing
Cost-Effective Heavy Load Bailey Steel Structure Weather Resistant Prefabricated Bridge with Protective Coating for Durability River Crossing
Cost-Effective Heavy Load Bailey Steel Structure Weather Resistant Prefabricated Bridge with Protective Coating for Durability River Crossing
Cost-Effective Heavy Load Bailey Steel Structure Weather Resistant Prefabricated Bridge with Protective Coating for Durability River Crossing
Cost-Effective Heavy Load Bailey Steel Structure Weather Resistant Prefabricated Bridge with Protective Coating for Durability River Crossing
1 / 5
Cost-Effective Heavy Load Bailey Steel Structure Weather Resistant Prefabricated Bridge with Protective Coating for Durability River Crossing
Cost-Effective Heavy Load Bailey Steel Structure Weather Resistant Prefabricated Bridge with Protective Coating for Durability River Crossing
Cost-Effective Heavy Load Bailey Steel Structure Weather Resistant Prefabricated Bridge with Protective Coating for Durability River Crossing
Cost-Effective Heavy Load Bailey Steel Structure Weather Resistant Prefabricated Bridge with Protective Coating for Durability River Crossing
Cost-Effective Heavy Load Bailey Steel Structure Weather Resistant Prefabricated Bridge with Protective Coating for Durability River Crossing

Cost-Effective Heavy Load Bailey Steel Structure Weather Resistant Prefabricated Bridge with Protective Coating for Durability River Crossing

Customization: Available
Scale: Middle Bridge
Usage: Footbridge, Highway Bridge, Over Water Bridge, Railway Bridge, Viaduct
Send Inquiry

Product Description

Overview & Basic Specifications
Structural Form Through-Type Steel Truss Structure
Standard Unit Dimensions 3048mm (L) × 2134mm (H)
Maximum Designed Clear Span 69 Meters
Surface Protection Galvanizing or Anti-Corrosion Paint
Production Capacity 100,000 tons
Origin China
Product Introduction
Bailey Steel Structure

The Model 200 bridge adopts a through-type steel truss structure, with the main truss units featuring a Warren (or "double-Warren"/"K-type") truss configuration. The top and bottom chords, vertical members, and diagonal members are all fabricated from channel steel, pre-welded in a factory setting, eliminating the need for on-site welding. The standard unit has external dimensions of 3048mm × 2134mm. Main trusses are categorized into high-shear and standard trusses, connected rapidly using Bailey pins.

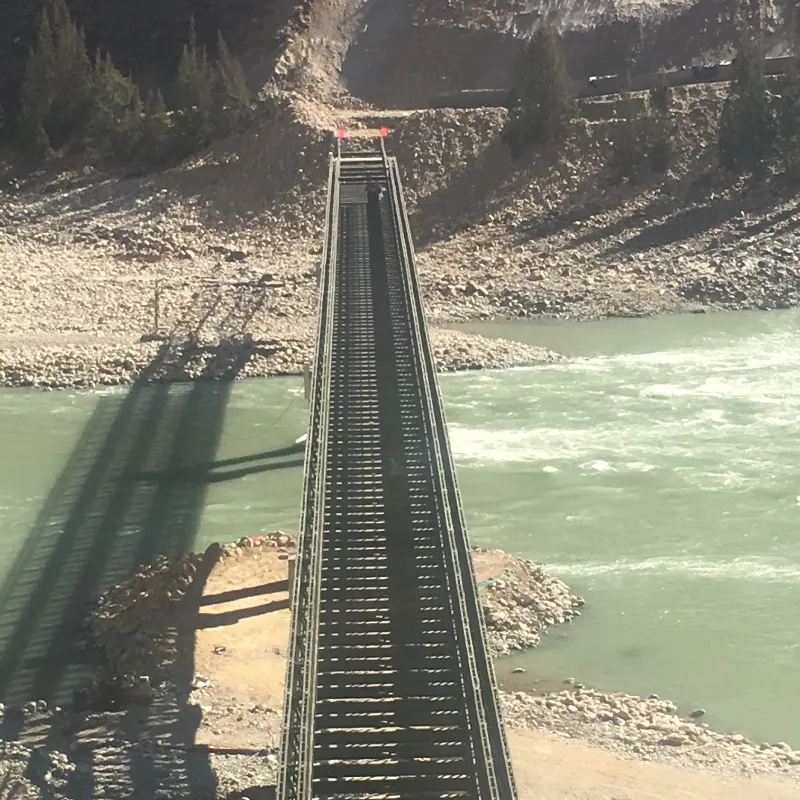

Component 1

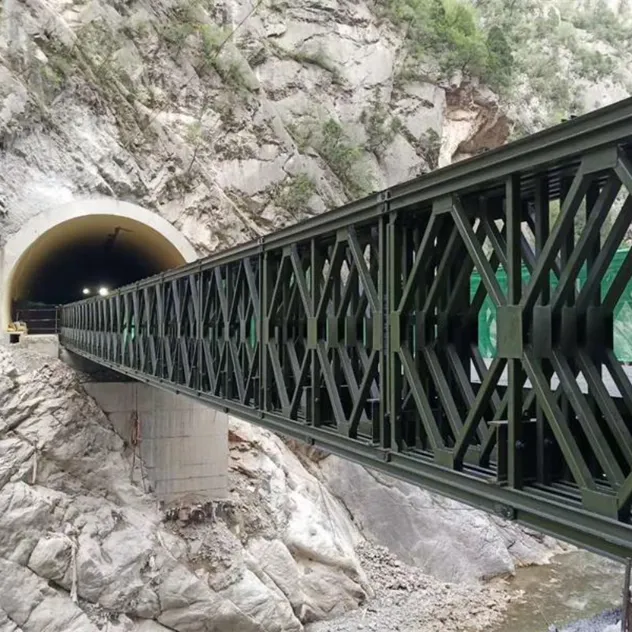

Component 2
Technical Parameters
Item Name Parameters and Instructions
Product Name200-type Prefabricated Highway Steel Bridge (Bailey Bridge)
AliasesHD200, CB200, ZB200 Steel Bridge
Truss Size3048mm × 2134mm × 176mm
Width of Carriageway4.2m (Single), 7.56m (Double), or Customized
Load GradesHL93, HS20, HS25-44, BS5400, Trailer-80, Tracked-50, etc.
Max Span60.96m (Single Lane), 45.72m (Double Lane)
Product Advantages
✓
Modular Design: Utilizes standardized prefabricated components for flexible expansion.
✓
Rapid Deployment: Quick response and setup for emergency scenarios.
✓
High-Efficiency: Significantly shortens construction cycles and enhances project efficiency.
✓
Relocatability: Entire structure can be disassembled, transported, and reused.
✓
High Strength: Manufactured from high-strength steel for exceptional load capacity.
Factory & Exhibition Showcase

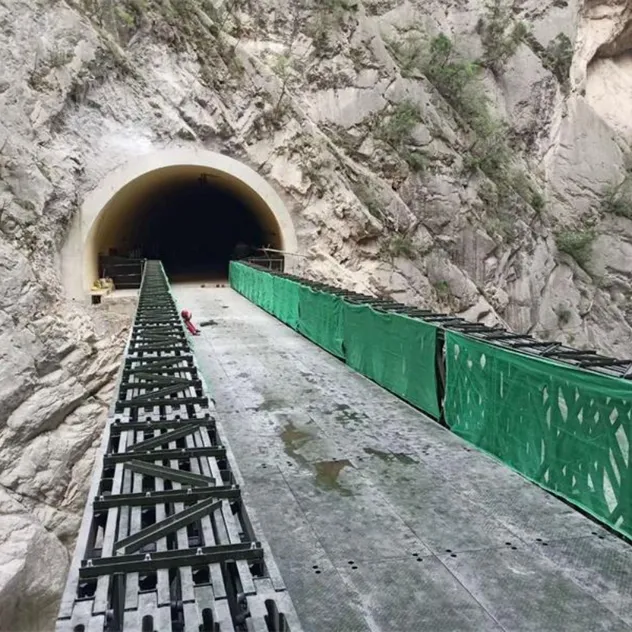

Bridge Image 1

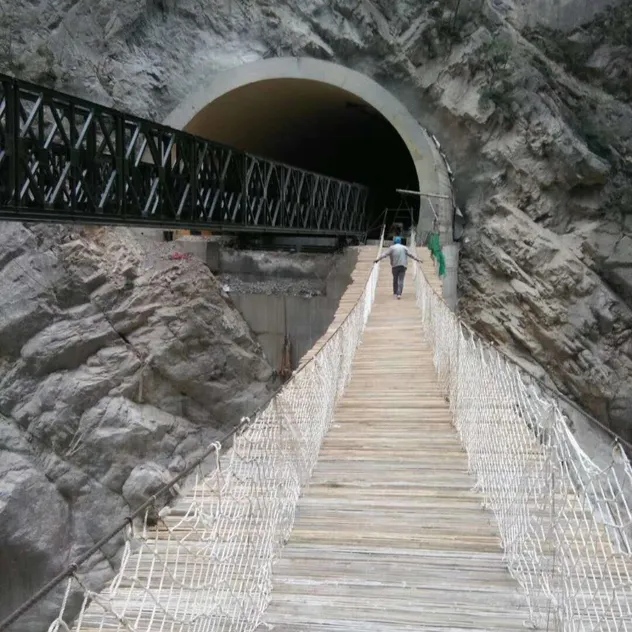

Bridge Image 2

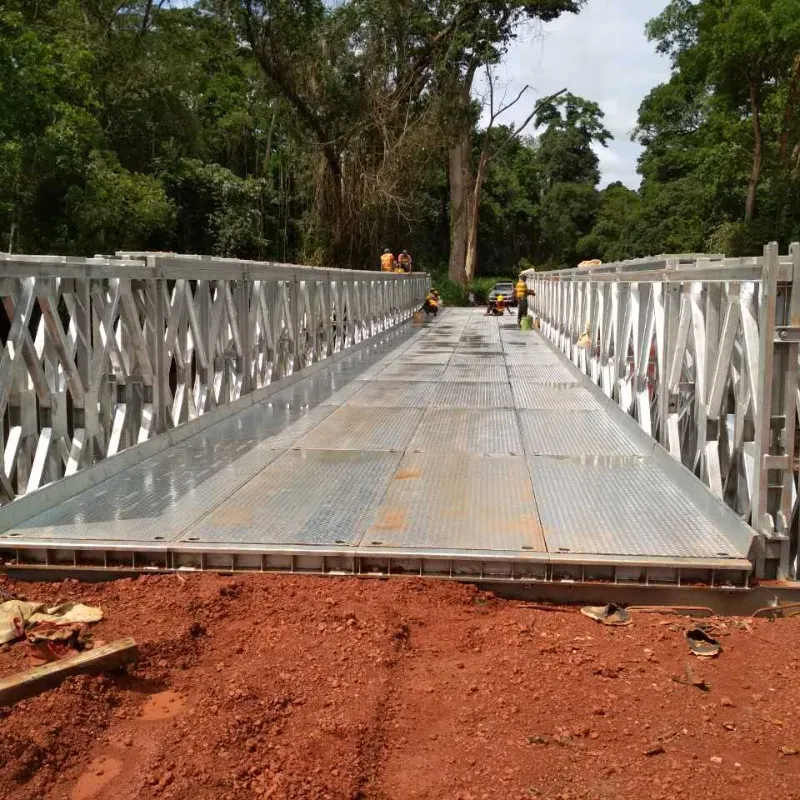

Bridge Image 3

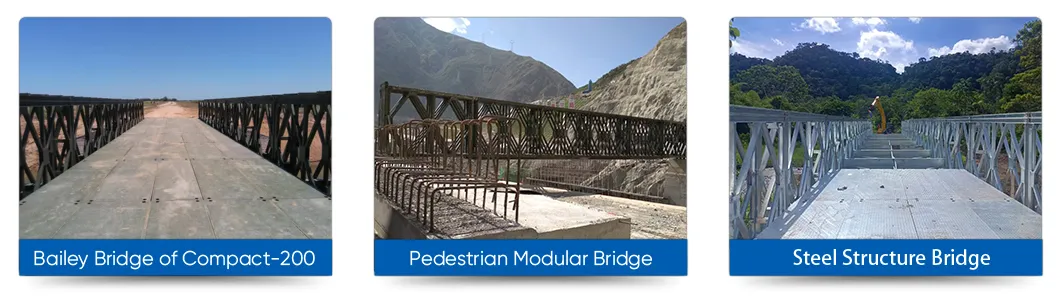

Main Product Line

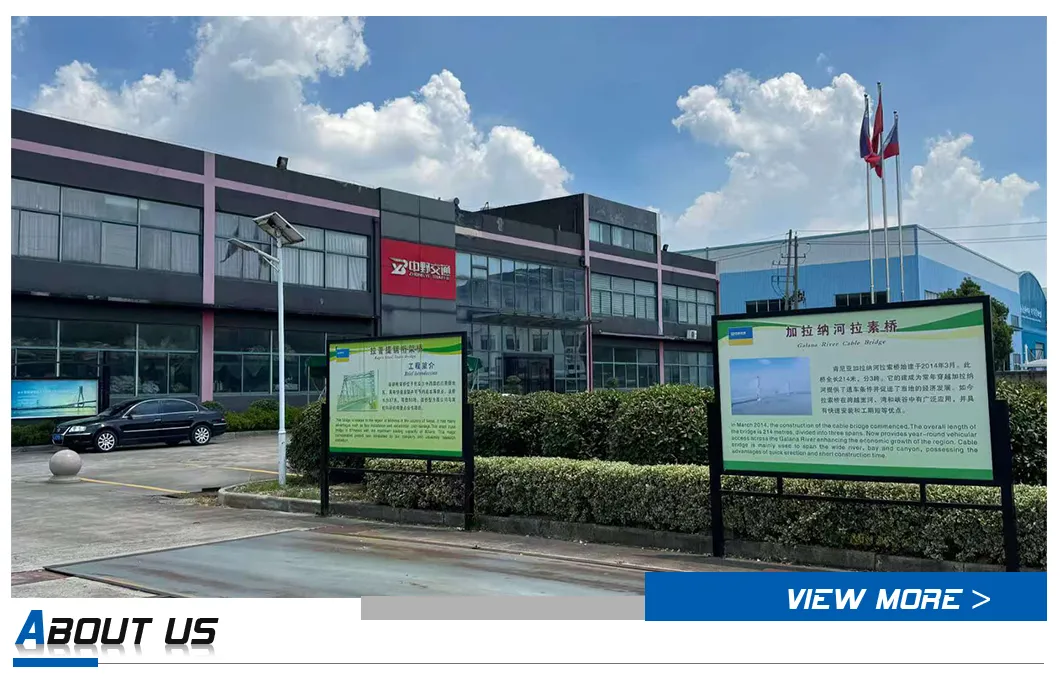

Factory View
Certificates
Exhibition

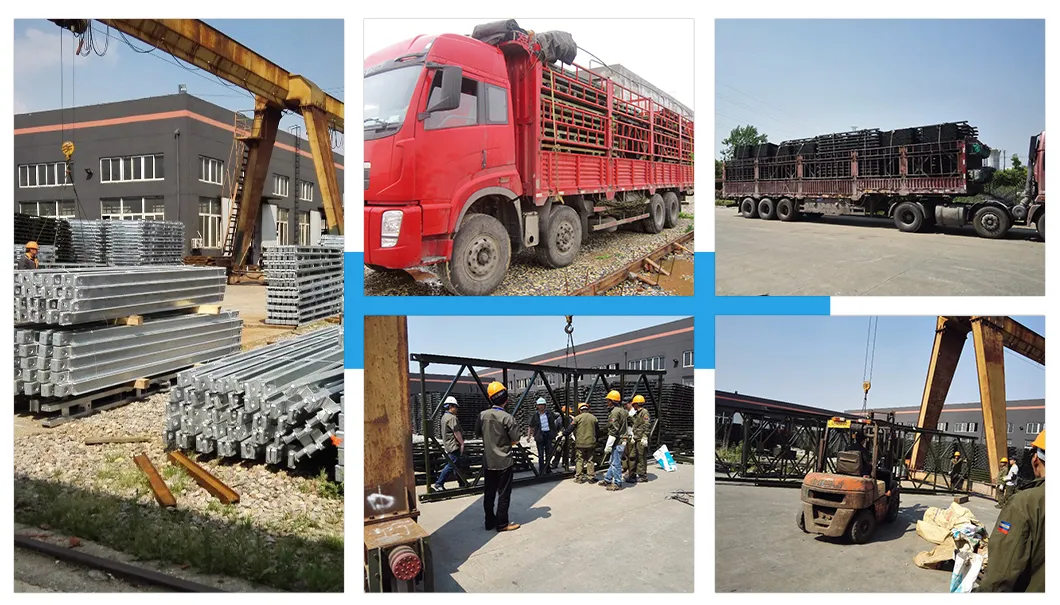

Packaging
Frequently Asked Questions
Q: Which countries do you export to?
A: Our products have been exported to over 30 countries, including Malaysia, Ecuador, Congo, Pakistan, and more.
Q: Are you a factory or a trading company?
A: We are a manufacturer with full import-export rights. Our self-owned production base represents a total investment of 150 million CNY, covering 40,000+ square meters with an annual capacity of nearly 40,000 tons.
Q: Do you accept custom processing?
A: Yes, we support non-standard customization and can produce Bailey bridges and steel structures with special spans, loads, and terrain adaptations.
Q: What is the minimum order quantity (MOQ)?
A: For standard products, the MOQ starts from 1 set. For custom projects, we quote based on specific engineering requirements without a mandatory threshold.
Q: How soon can I get a reply after an inquiry?
A: A preliminary proposal and quotation can be provided within 2 hours at the earliest, and you will definitely receive a response within 24 hours.
Q: Do you offer solutions for extreme load requirements?
A: Yes, our professional engineering team supports end-to-end customization for extreme load requirements, special spans, and complex terrain solutions like mountains or rivers.
