Basic Info.

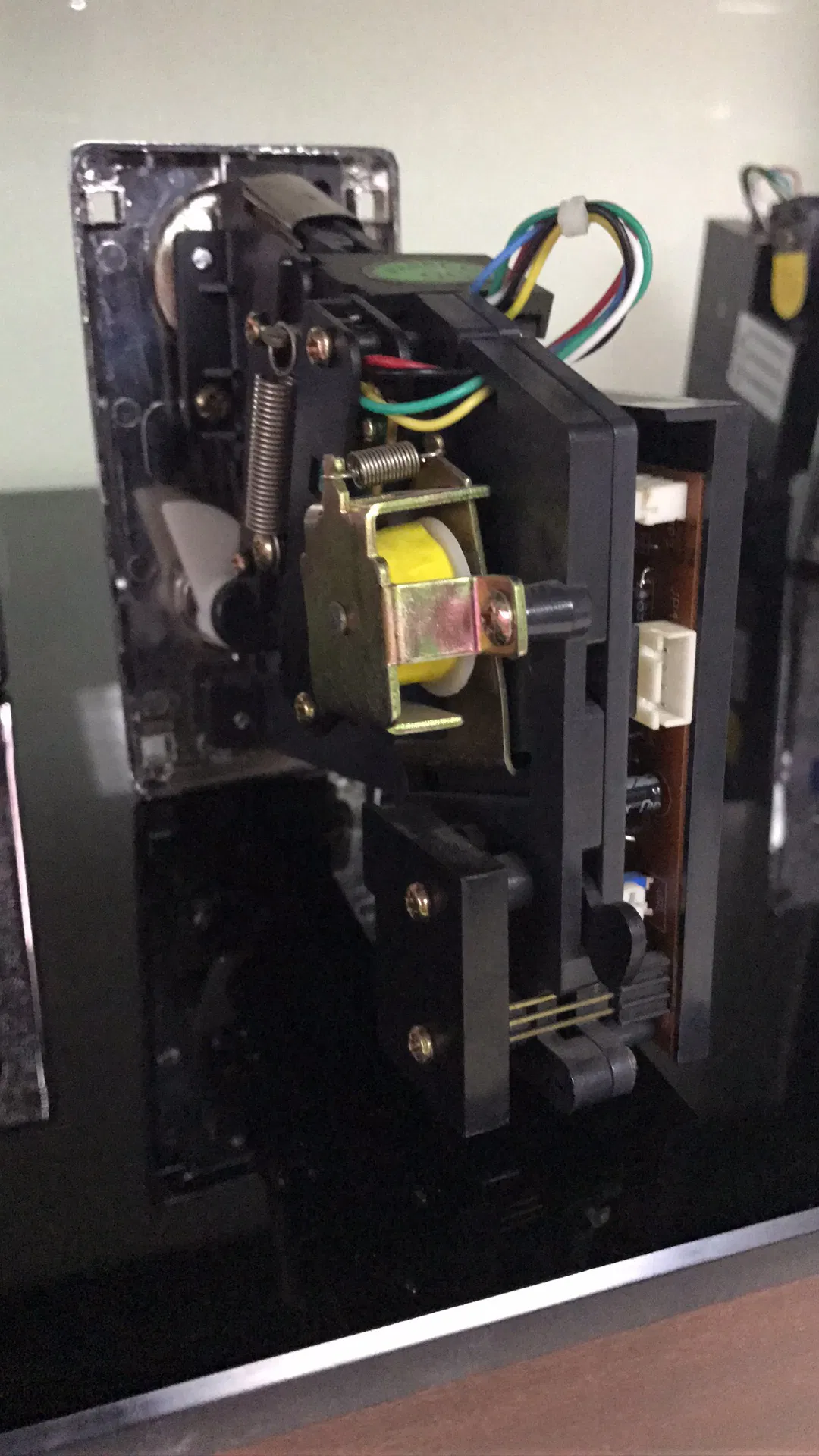

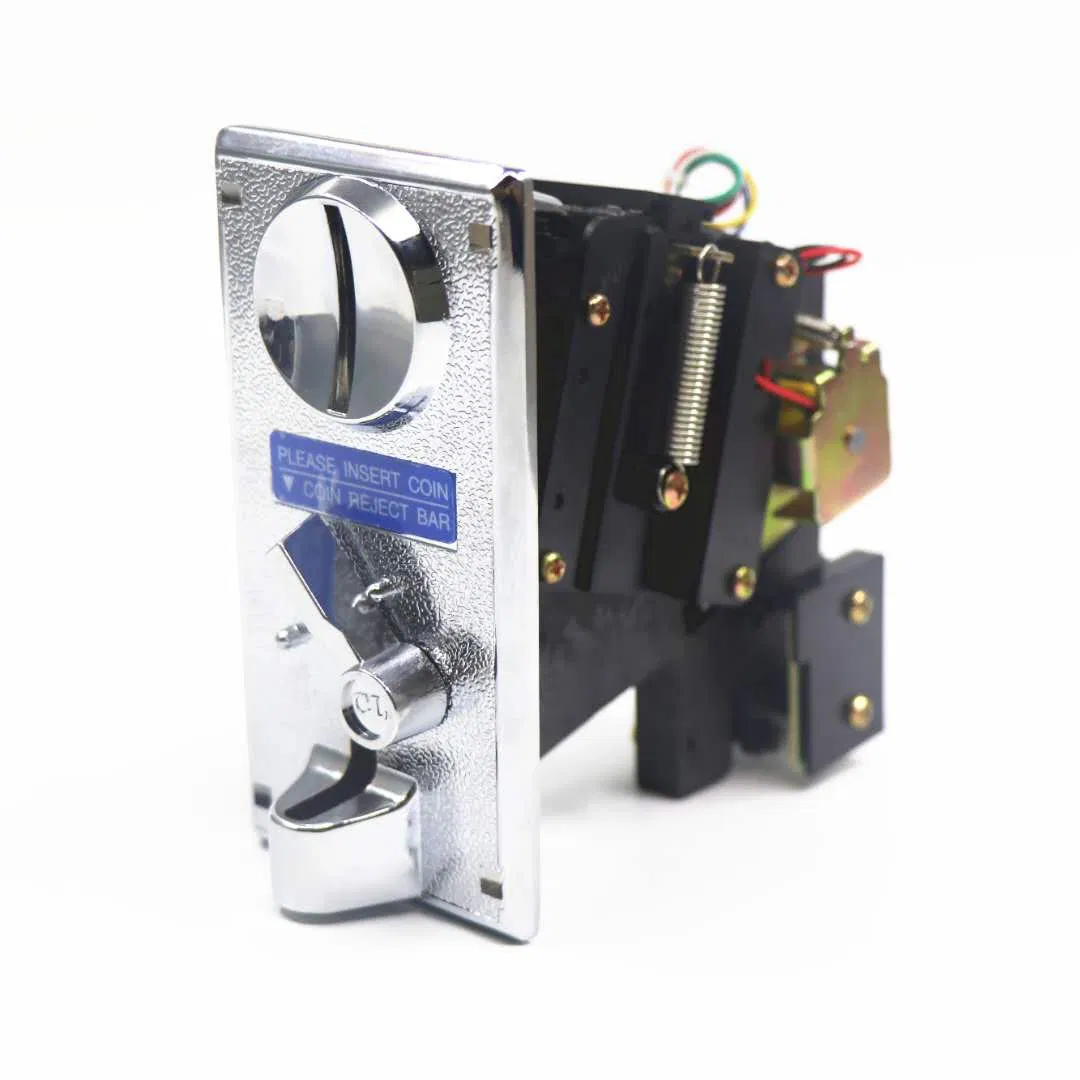

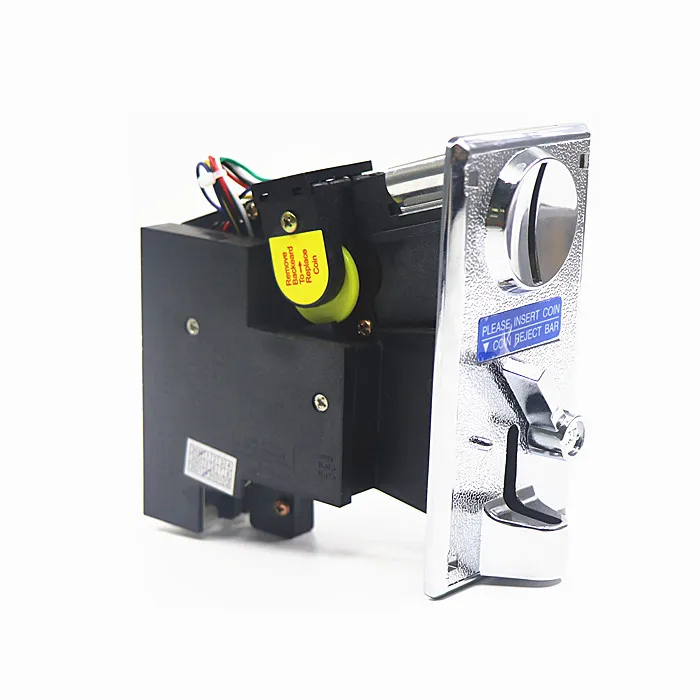

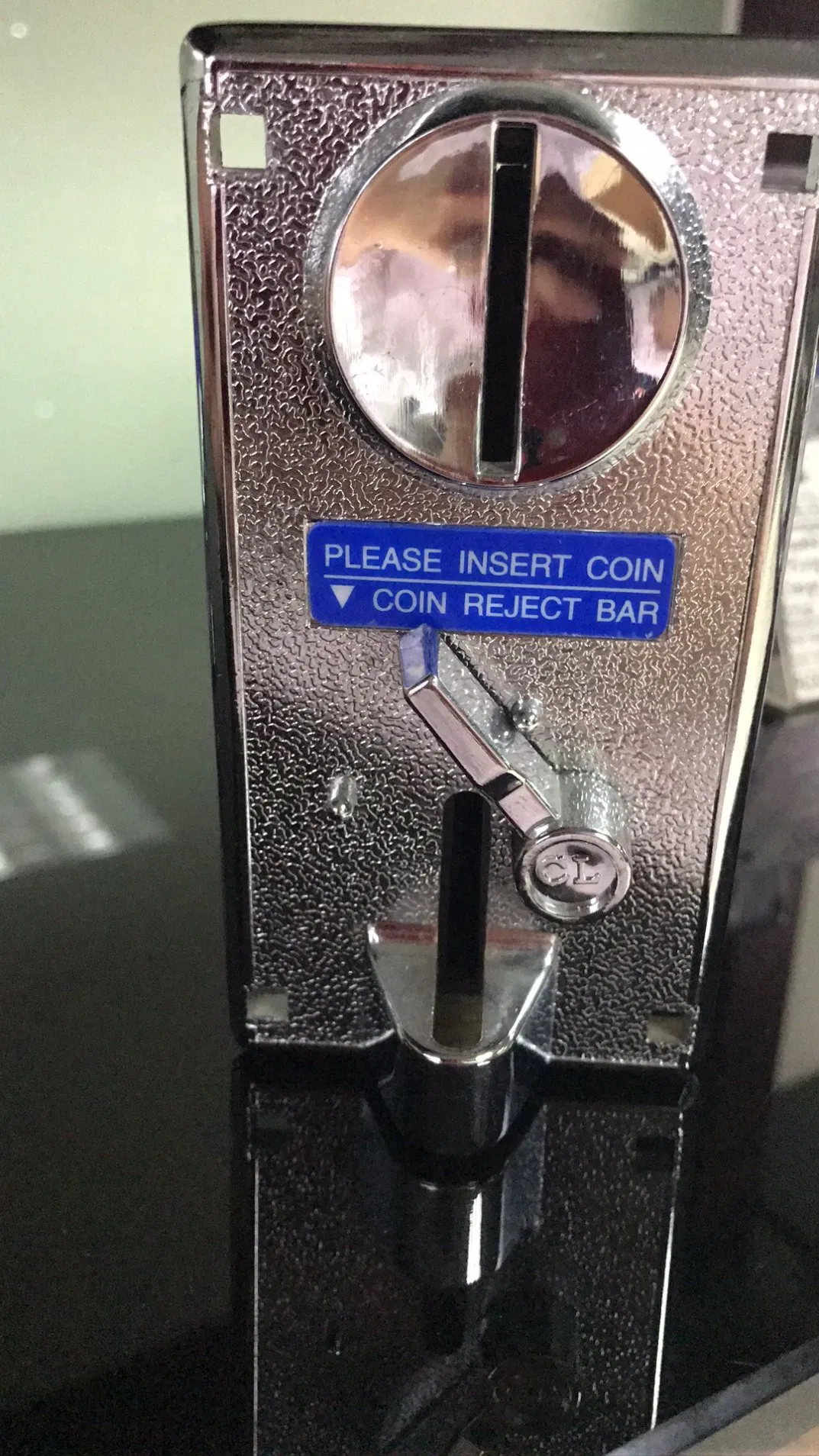

TR100 - Comparative Type Single-Coin Recognizer
⚙️
Working Mode: Selectable between N.O.(Normal Open) and N.C.(Normal Close) mode. Usually work under N.O. mode.
⚡
Pulse Length: FAST: 30ms short pulse; MEDIUM: 50ms medium pulse; SLOW: 100ms long pulse. Usually choose "MEDIUM" speed.
🔍
Sample Coin Installation: A sample coin must be posited into the holder. The acceptor compares deposited coins with the sample to accept or reject.
🎯
Sensitivity Adjustor: Controls the tolerance between SLACK and STRICT positions according to your needs.
📦
Packing: 1Pc/Box, 30Box/Ctn, Carton Size: 48cm*35cm*27.5cm.
Frequently Asked Questions
How does the TR100 recognize coins?
It uses a comparative method. You must place a sample coin in the holder, and the device compares incoming coins against that sample's size and material.
What pulse speeds are available?
The TR100 offers three selectable pulse speeds: Fast (30ms), Medium (50ms), and Slow (100ms) to ensure compatibility with different systems.
Can I adjust the accuracy of the coin validation?
Yes, there is a built-in Sensitivity Adjustor that allows you to set the tolerance between strict and slack recognition.
What are the power requirements?
The device operates on a standard DC+12V power supply.
What size coins are supported?
It supports coin diameters ranging from 22mm to 28mm and thicknesses between 1.8mm and 2.8mm.
Does it support external hardware?
Yes, the TR100 has an option to connect with an extra coin-counter or coin-meter for tracking purposes.
