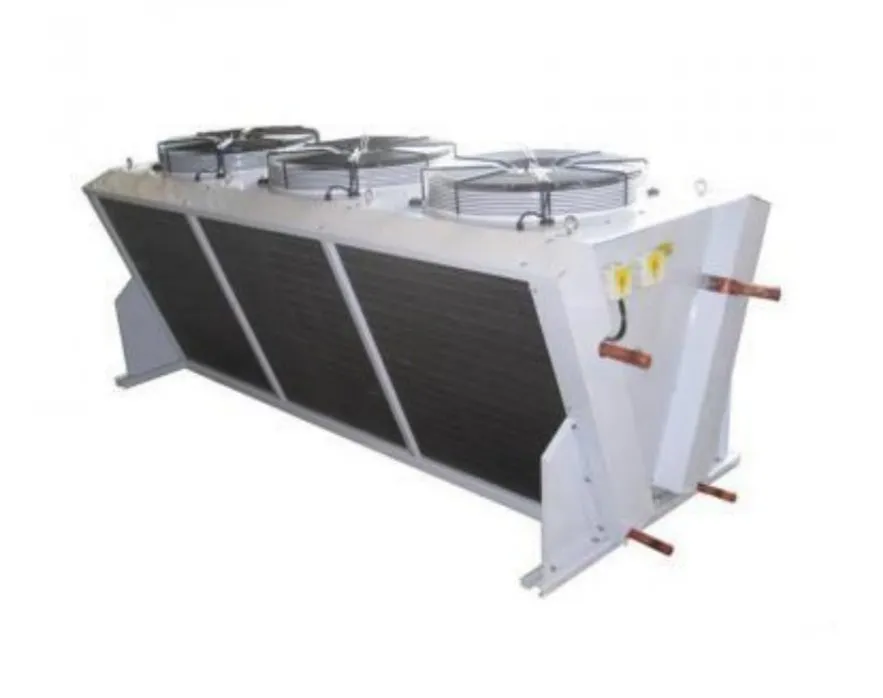

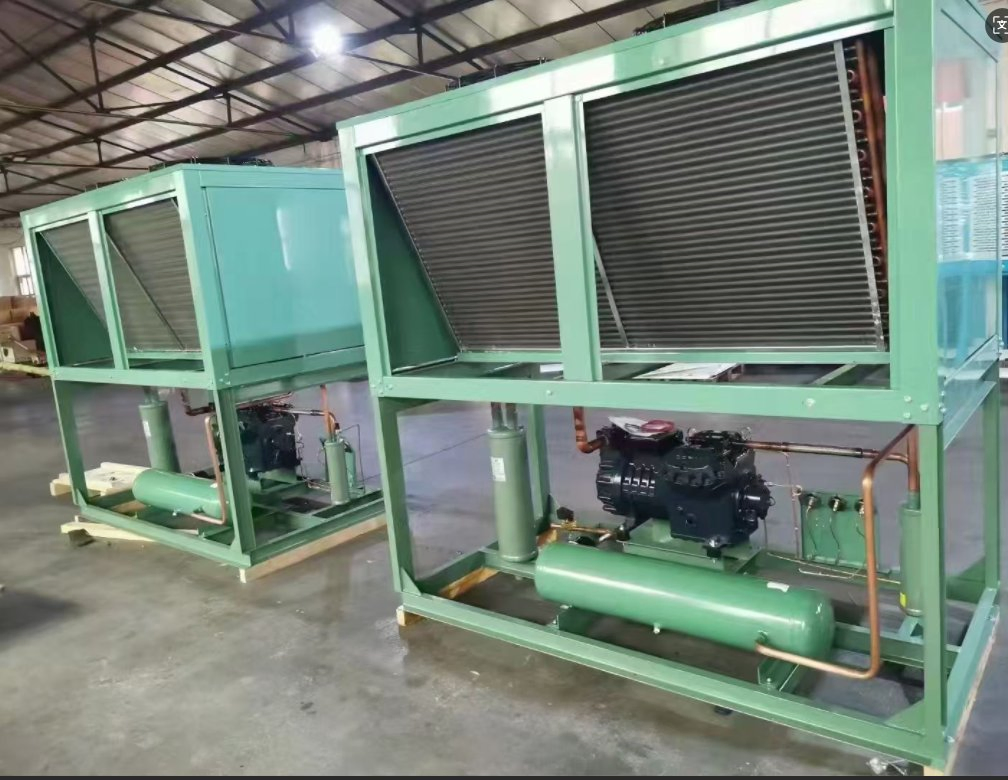

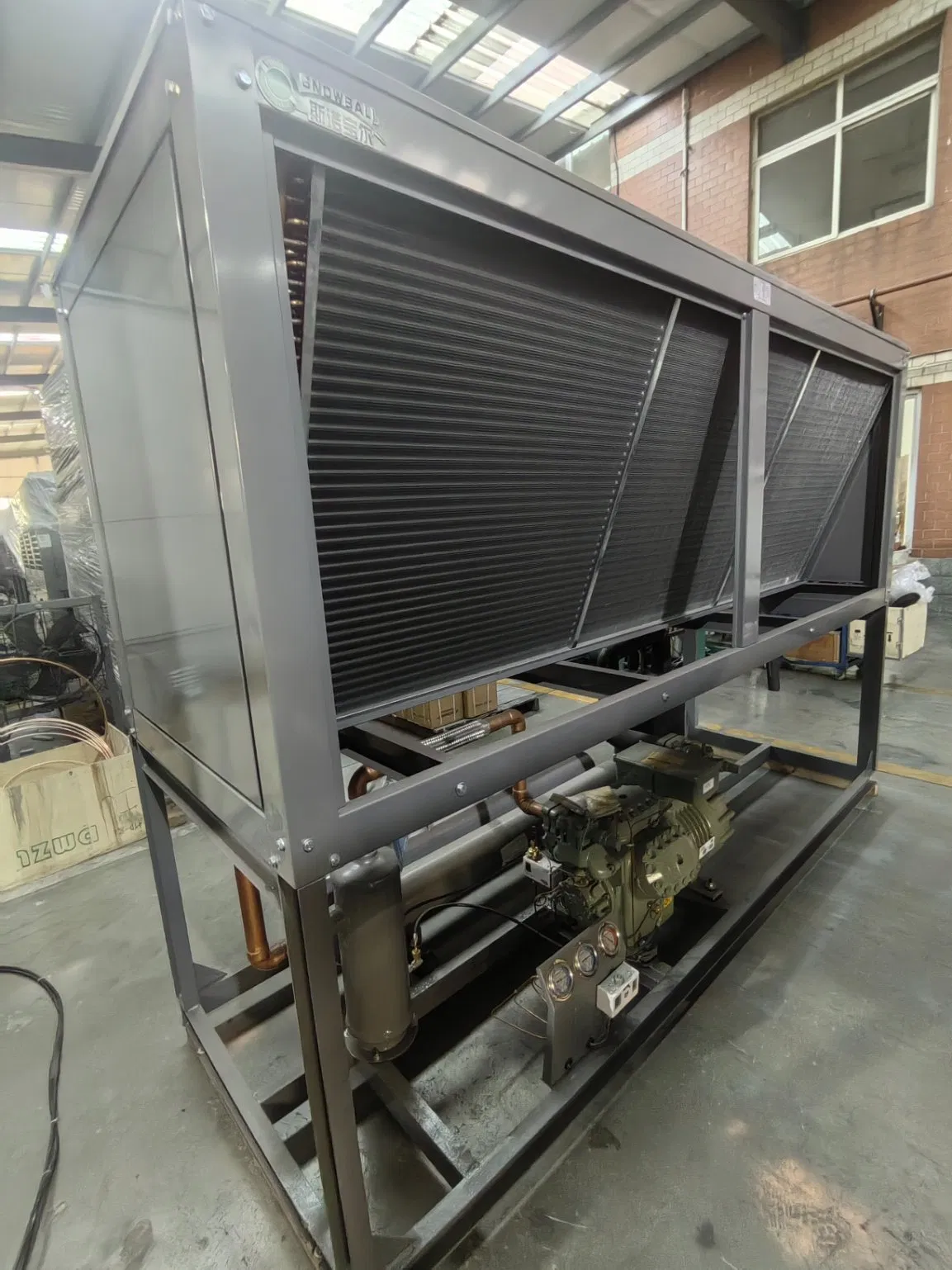

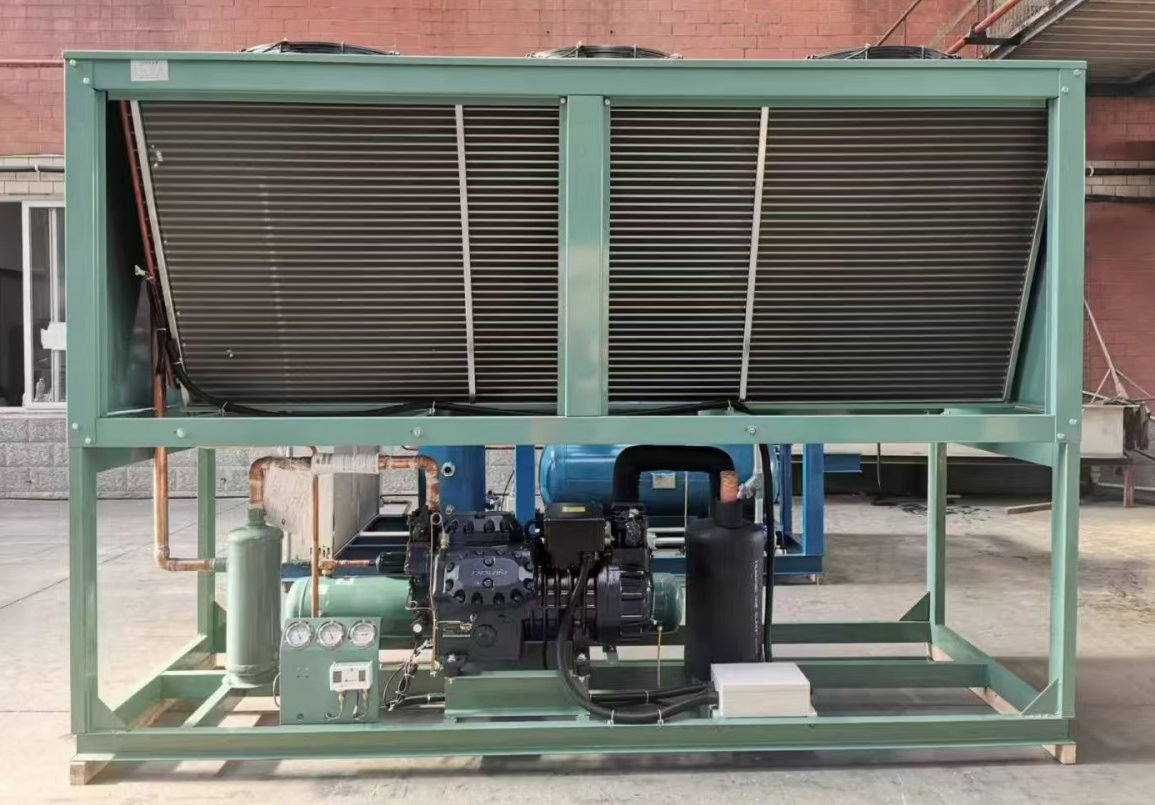

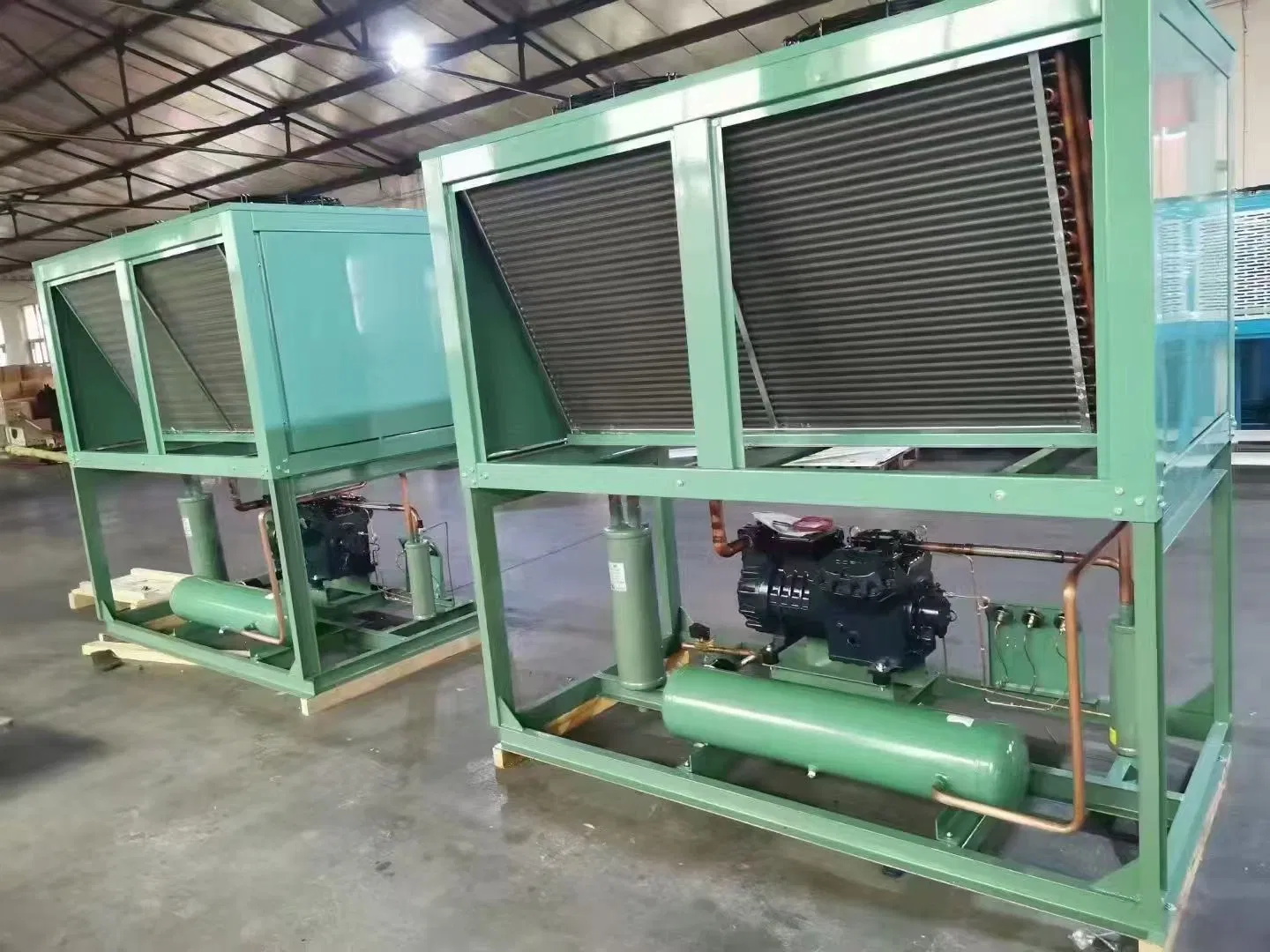

Fin-type condensers are high-efficiency heat dissipation units specifically designed for refrigeration compressor condensing units and parallel compressor units. They come in three structural forms: H-type, V-type, and U-type. With various combinations of width, length, and airflow direction, as well as side-discharge and top-discharge configurations, they ensure optimal adaptability.
| Model | Capacity (Kw) | Coil Rows | Heat Area | Fan Qty | Fan Blade | Air Flow |
|---|---|---|---|---|---|---|
| FNH-2 | 0.6 | 2×4 | 2 | 1 | φ200 | 500 |
| FNH-4.4 | 1.45 | 3×5 | 4.4 | 1 | φ250 | 750 |
| FNH-12.8 | 4.3 | 4×8 | 12.8 | 1 | φ350 | 2290 |
| FNH-28 | 9.2 | 6×9 | 28 | 1 | φ400 | 3400 |
| FNH2-34 | 11.1 | 4×10 | 34 | 2 | φ400 | 2×3400 |
We have established a standardized logistics system to ensure the safe and timely delivery of your refrigeration equipment. All devices are packaged in customized shock-proof materials with dual reinforcement for core components. Each unit undergoes rigorous static stability tests and packaging inspections before leaving the factory.
