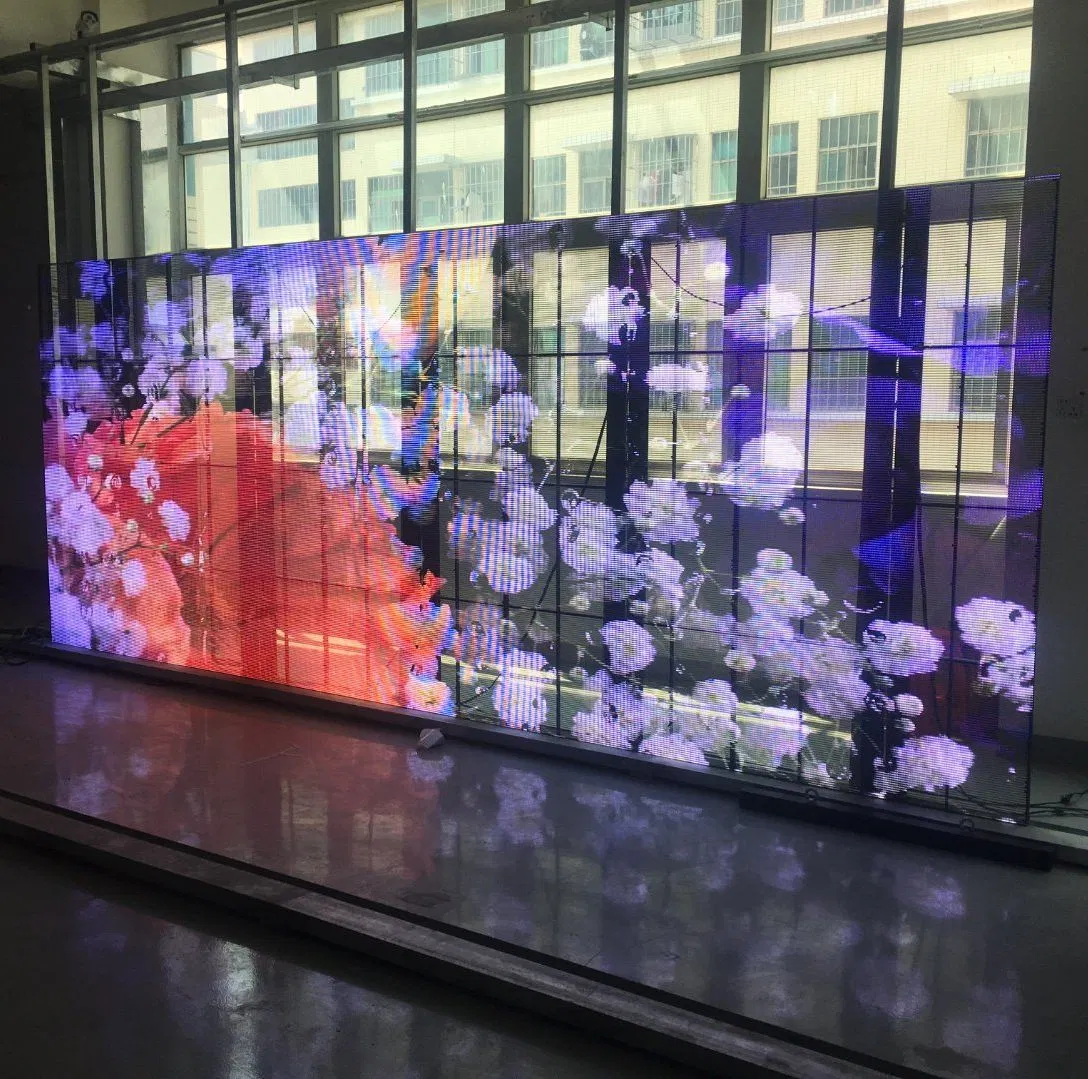

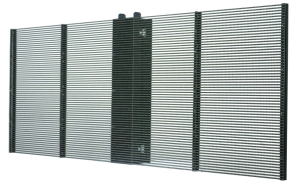

China Full Color HD Advertising Curtain Window Screen Panel P3.91-7.81 Transparent LED Display

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Specifications
Model NO.TS-3.96Pixel PitchH3.96/V7.81mm
Pixel Configuration1R,1G,1BPixel Density32256 DOT/M2
Scanning Mode1/7 ScanOperating PlatformWIN XP
Display TypeLED Video DisplayApplicationAdvertising
IP RatingIP30CertificationCE, FCC
Cabinet MaterialDie Cast AluminumModule Size500*125 mm
Brightness4000 CD/SqmLED TypeNationstar SMD1921
Power SupplyG-EnergyCabinet Weight6 KG
Product Description & Features
  • High Transmittance: The light transmittance reaches 70%, ensuring the image behind the screen is not hidden.

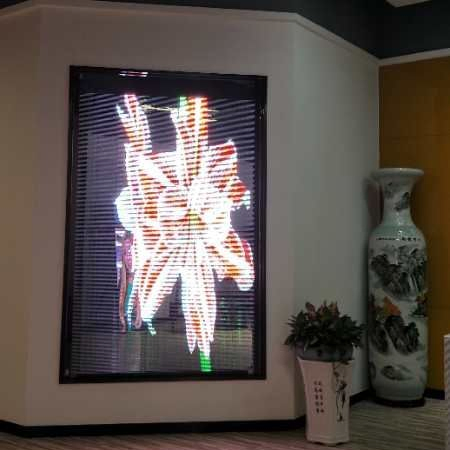

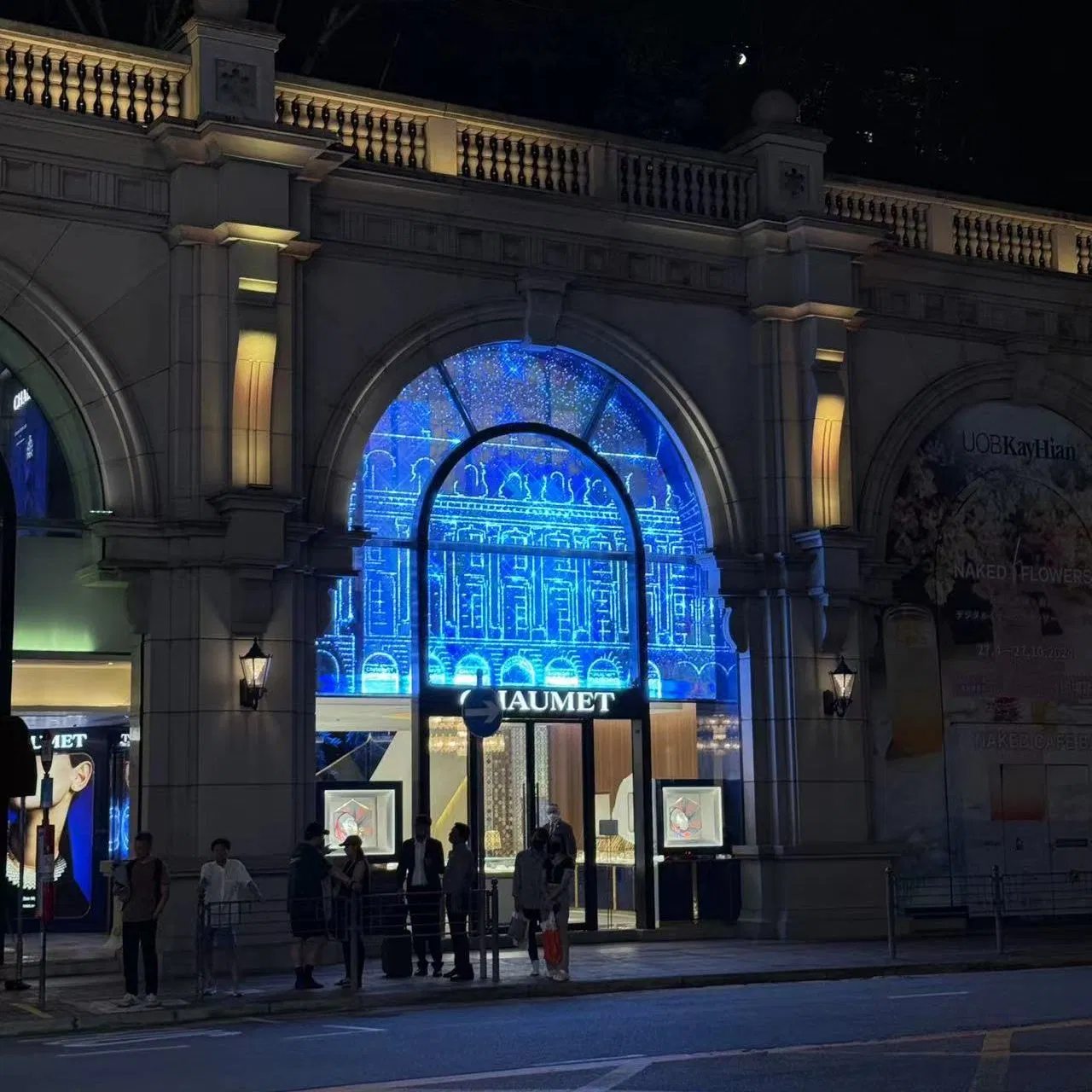

  • Optimized for Advertising: Ideal for window installations in stores near high-traffic streets.
  • High Brightness: Reaches 4000 nits, suitable for indoor environments with high ambient light.
  • Cabinet Flexibility: Supports cabinet sizes of 1000mm*500mm and 1000mm*1000mm.
  • Superior Material: Built with Die Cast Aluminum for durability and heat dissipation.
LED Parameter

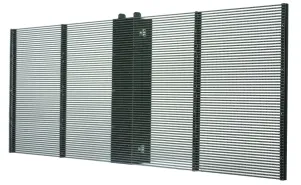

Module Parameter

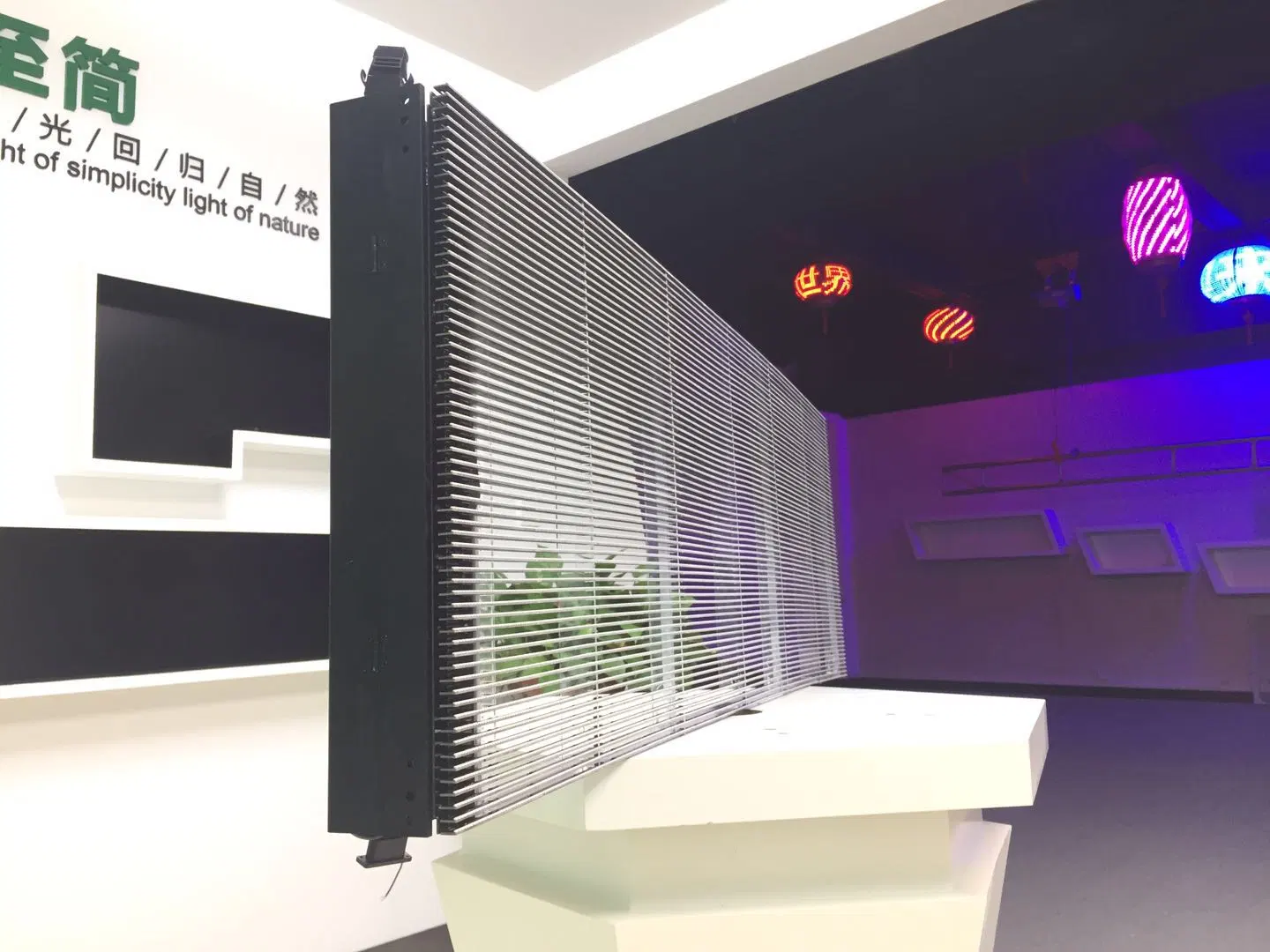

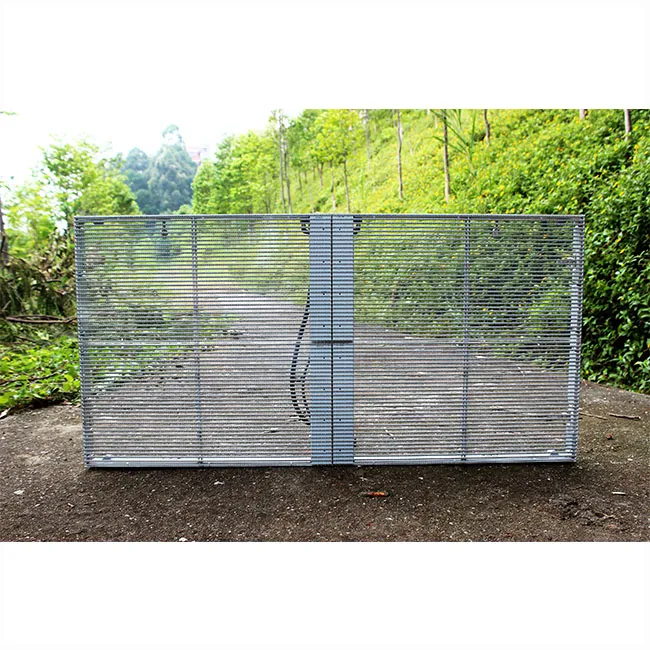

Cabinet View
Technical Parameters
Viewing AngleH 140°, V 140°Min. Viewing Distance≥4m
Refresh Rate>1920 HzGrey Scale16 bit
Max Power680 W/m²Average Power240W/m²
Life Span≥100,000 hoursInput VoltageAC 86-264V/60Hz

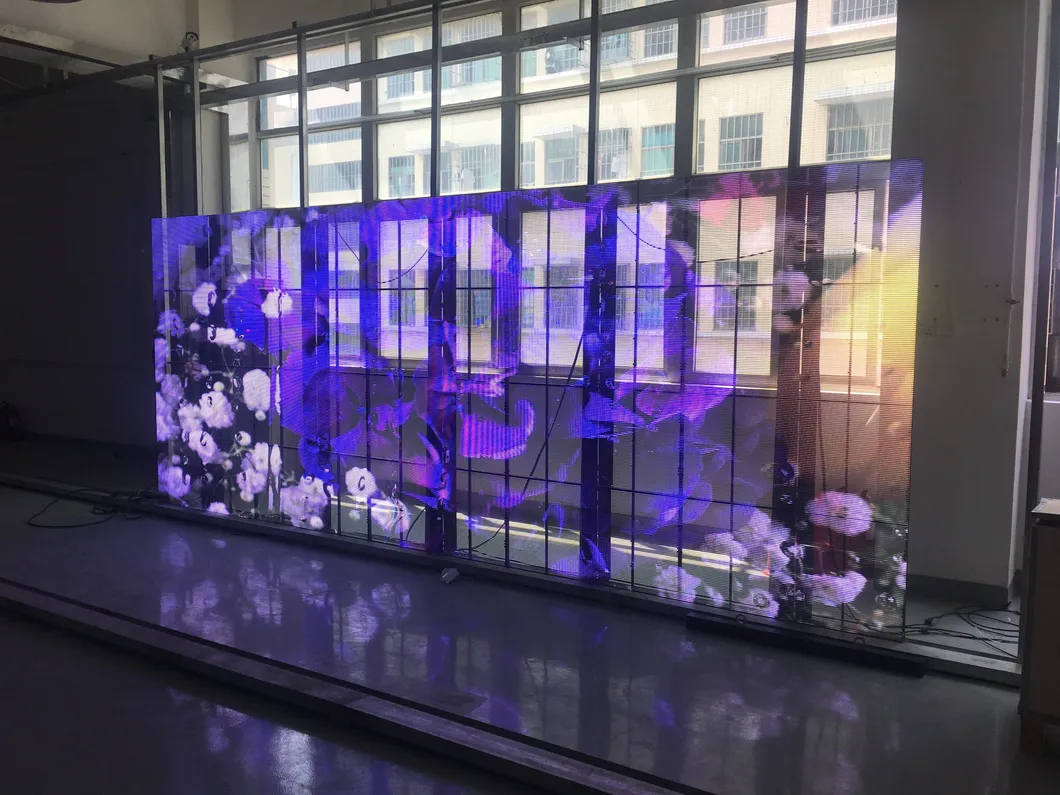

Screen Display
Packing & Logistics
Fixed Packing

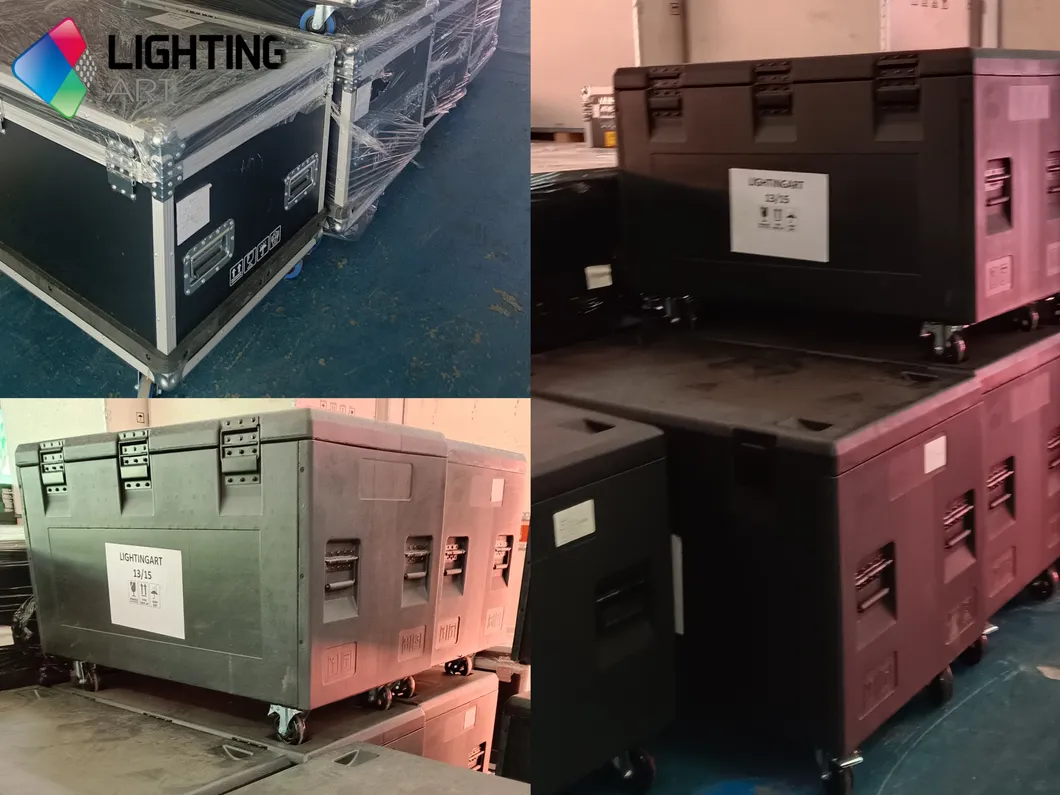

Rental Packing

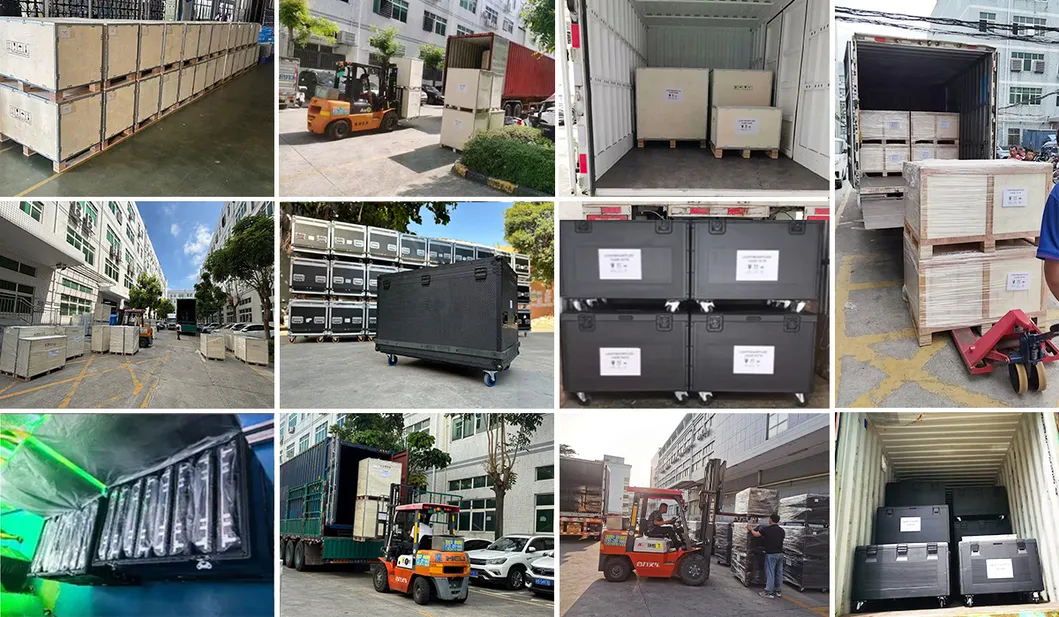

Delivery Case
  • Production Time: 25 days for 1-200 m² (including aging test).
  • Packaging Options: Plywood case or Professional Flight case.
  • Quality Control: Aging test + Grayscale test conducted for every module.
Manufacturing Quality

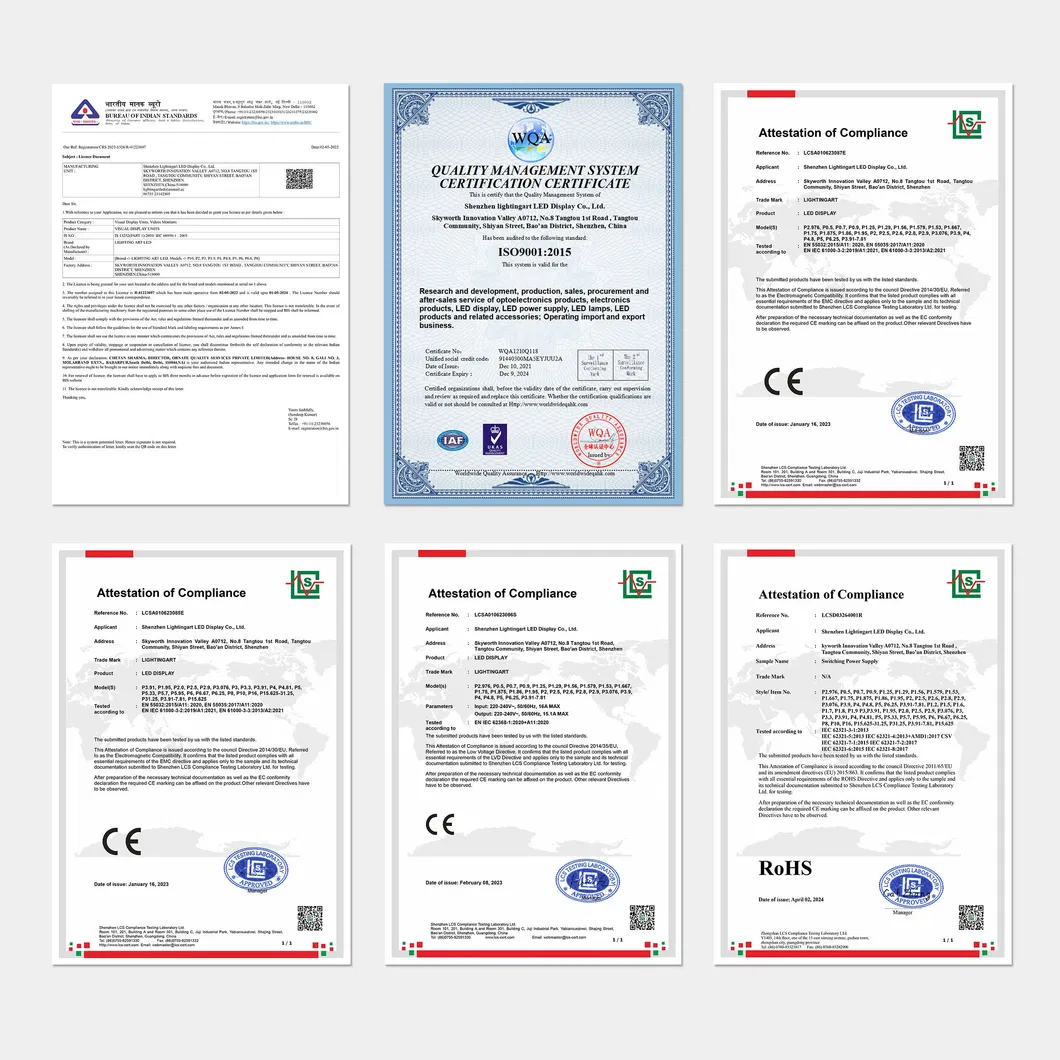

Production Line Certificates
Frequently Asked Questions
What is the transparency rate of this LED screen?
The screen offers a high transparency rate of over 70%, making it perfect for window displays without blocking natural light or visibility.
Can this display be used outdoors?
While it has a high brightness of 4000 nits, the IP30 rating indicates it is designed for indoor fixed installation, specifically behind glass windows.
What is the warranty period for the LED display?
We provide a two-year warranty along with 24-hour lifetime online technical support for free.
What control systems are compatible?
The system operates on Win XP and supports various input modes including AVI, JPEG, MOV, and DAT, synchronized with a computer monitor.
What is the typical lifespan of the screen?
The LED modules are built to last for more than 100,000 operating hours under normal conditions.
How is the product packaged for shipping?
Depending on your needs, we provide either high-durability plywood cases for fixed installs or flight cases for rental and movable applications.
