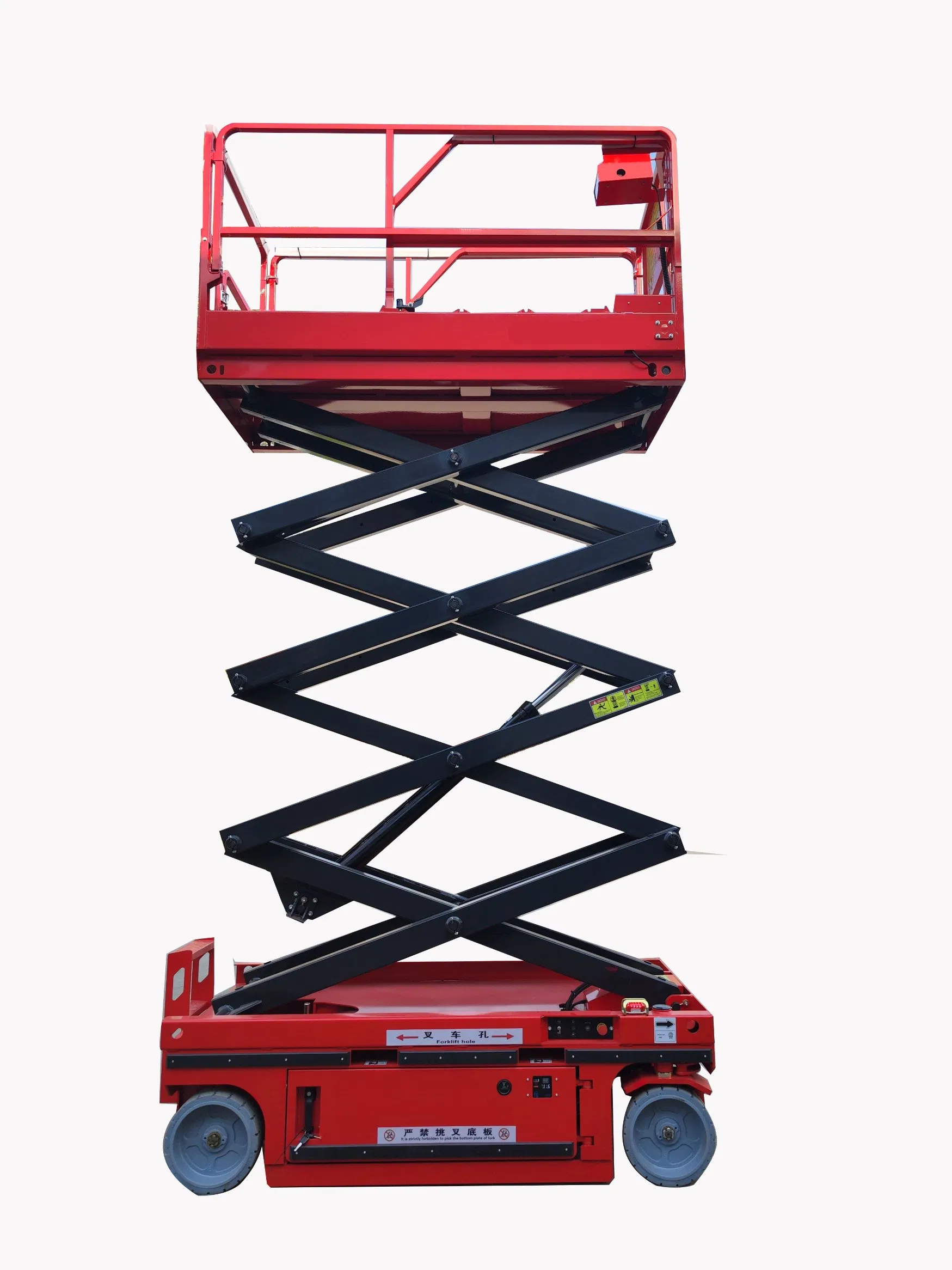

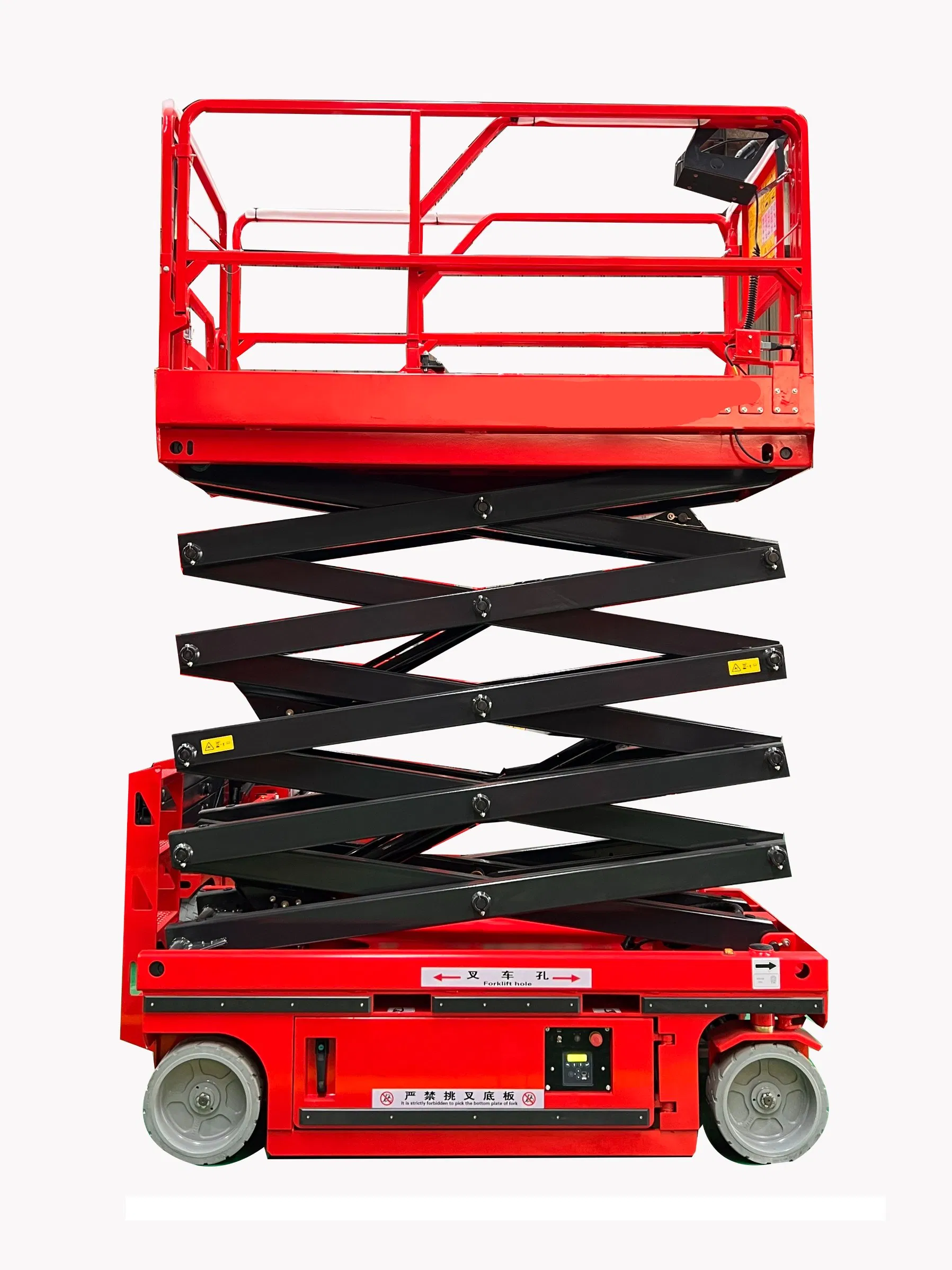

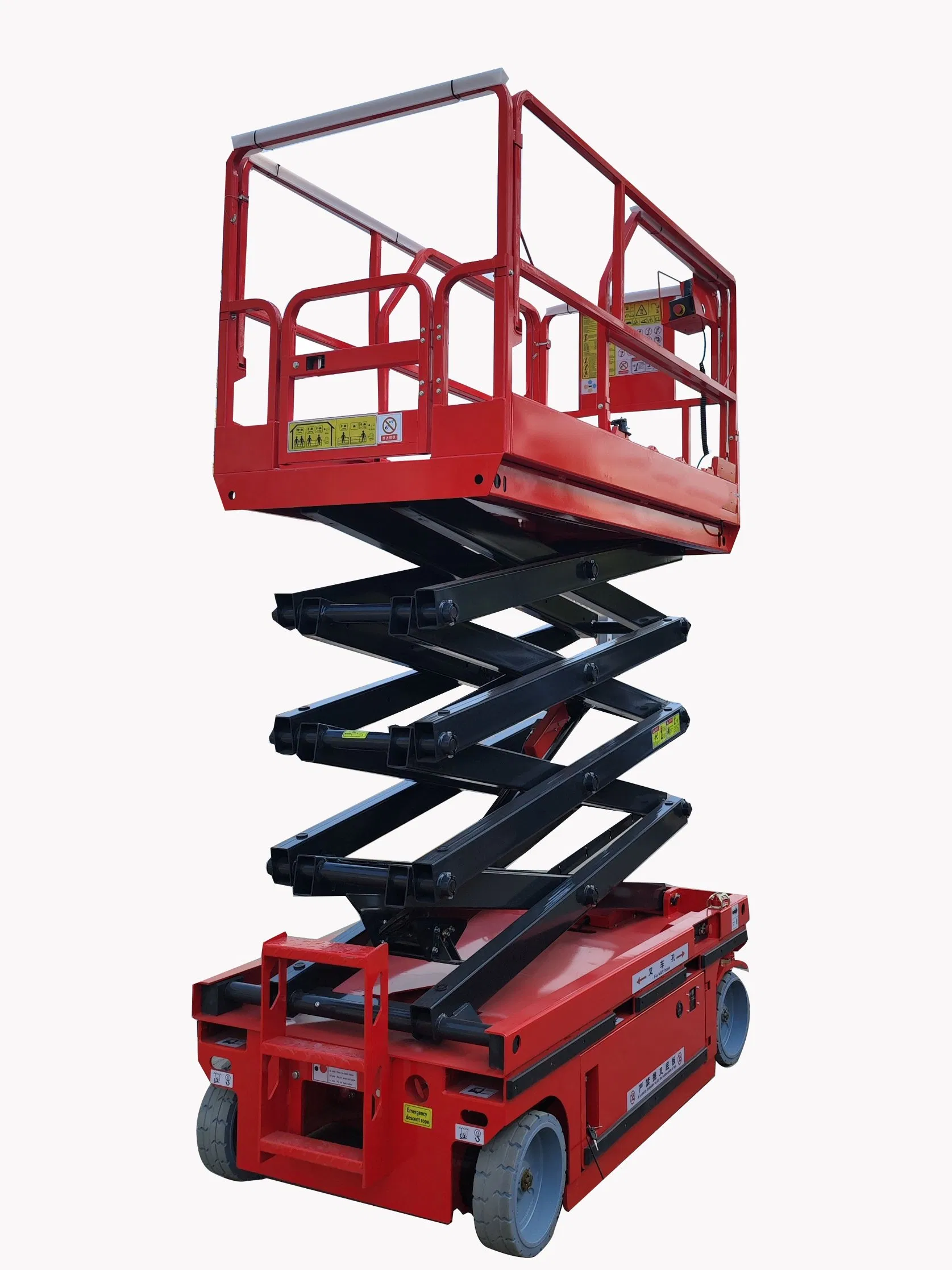

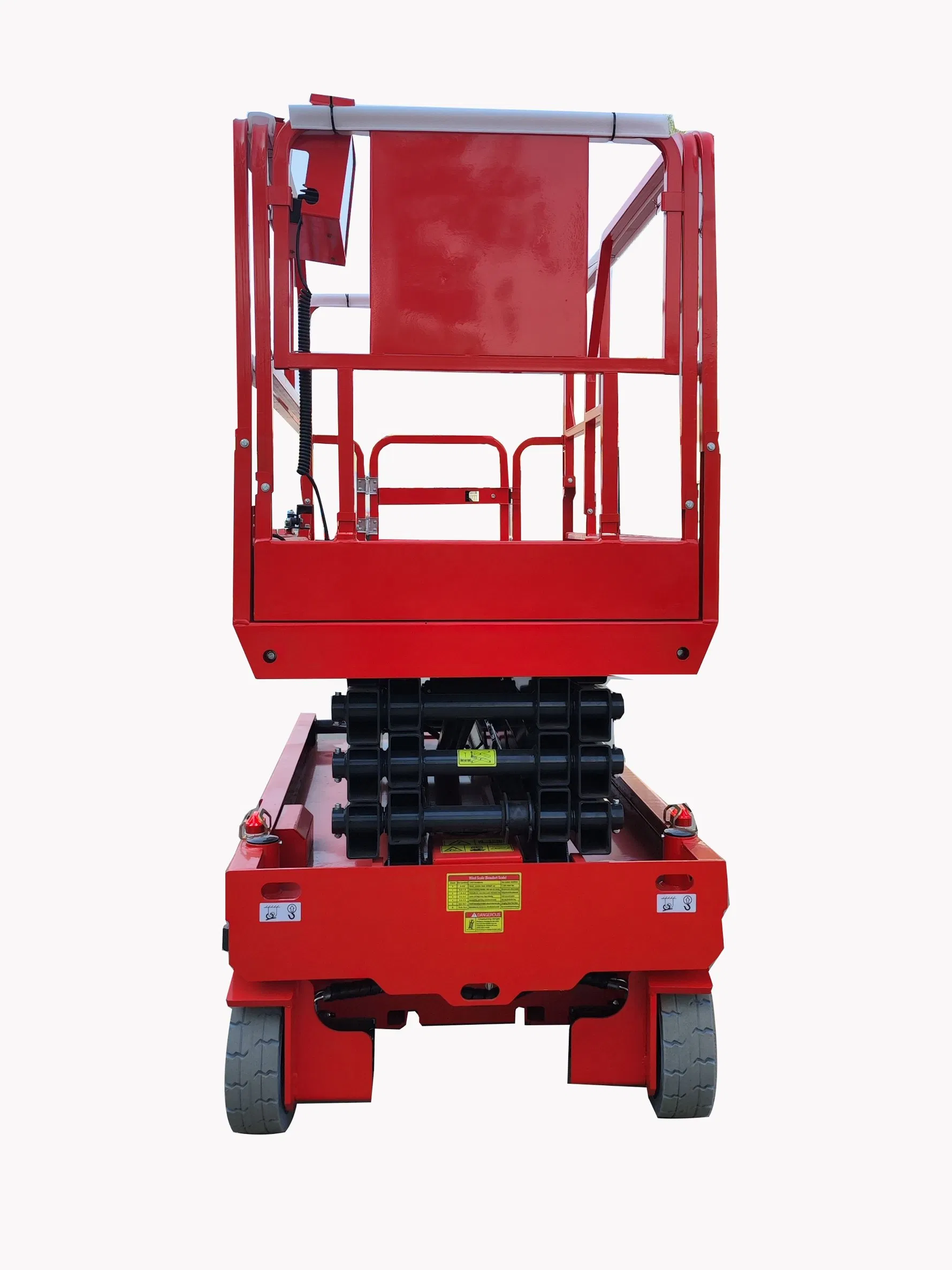

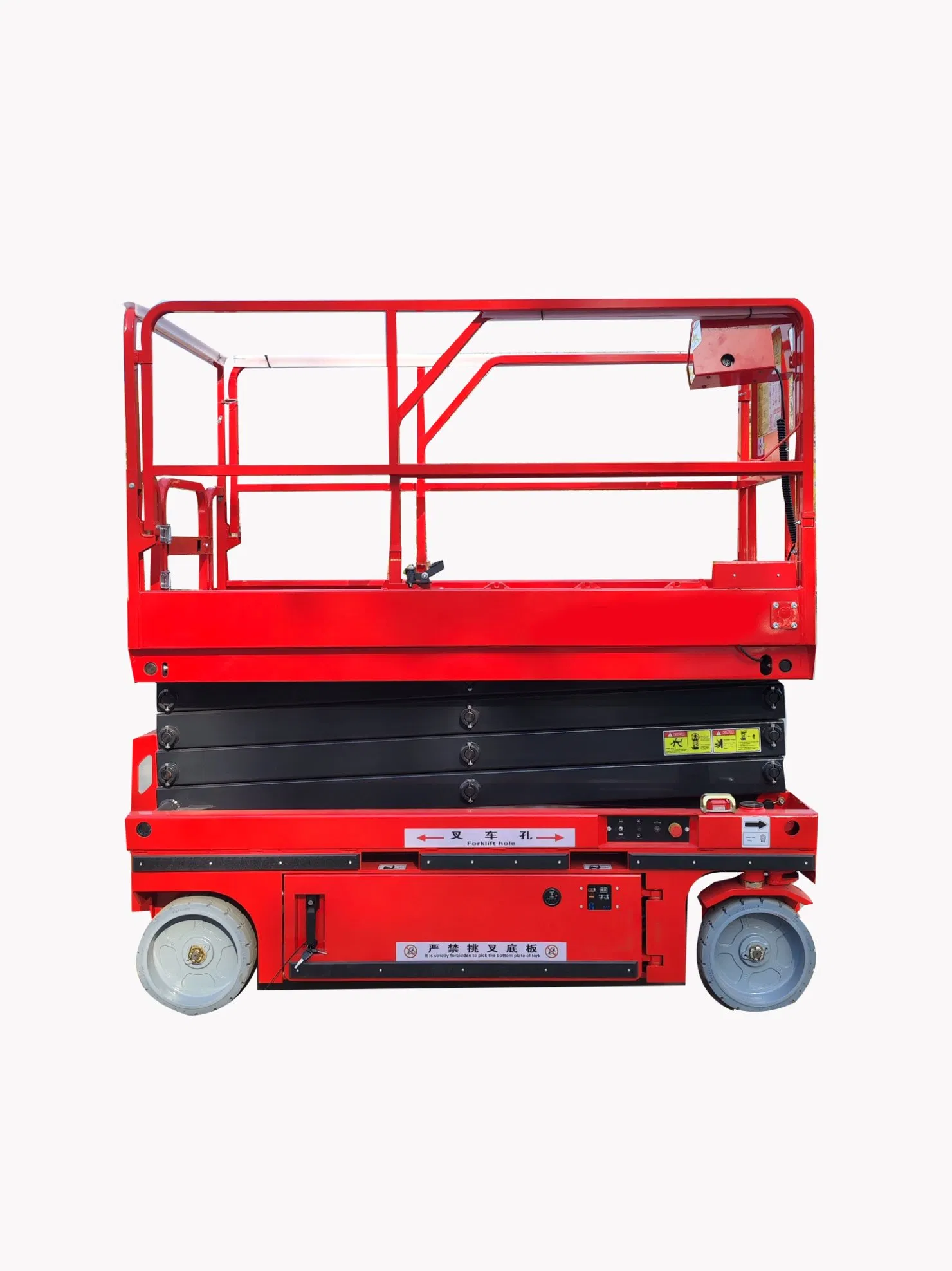

China Factory Compact Scissor Work Platform Self-Propelled Scissor Lift Platform with High Cost Performance
China Factory Compact Scissor Work Platform Self-Propelled Scissor Lift Platform with High Cost Performance
China Factory Compact Scissor Work Platform Self-Propelled Scissor Lift Platform with High Cost Performance
China Factory Compact Scissor Work Platform Self-Propelled Scissor Lift Platform with High Cost Performance
China Factory Compact Scissor Work Platform Self-Propelled Scissor Lift Platform with High Cost Performance
1 / 5
China Factory Compact Scissor Work Platform Self-Propelled Scissor Lift Platform with High Cost Performance
China Factory Compact Scissor Work Platform Self-Propelled Scissor Lift Platform with High Cost Performance
China Factory Compact Scissor Work Platform Self-Propelled Scissor Lift Platform with High Cost Performance
China Factory Compact Scissor Work Platform Self-Propelled Scissor Lift Platform with High Cost Performance
China Factory Compact Scissor Work Platform Self-Propelled Scissor Lift Platform with High Cost Performance

China Factory Compact Scissor Work Platform Self-Propelled Scissor Lift Platform with High Cost Performance

Customization: Available
After-sales Service: Technical Support and Spare Parts Supply
Warranty: 1 Year
Send Inquiry

Product Description

  • Overview
  • Product Description
  • Product Parameters
  • FAQ
1

Basic Info

Model NO.
FSJY-IV
Application
Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
Lift Mechanism
Scissor Lift
Carrying Capacity
Light Level
Moves
Self-propelled
Driven Type
AC/DC
Running Mode
Moving
Certification
GS, CE
Loading Capacity
230kg-450kgs
Max. Platform Height
4-13.8m
Platform Length
1.3-2.64m
Platform Width
0.68-1.13m
HS Code
8427900000
2

Product Description

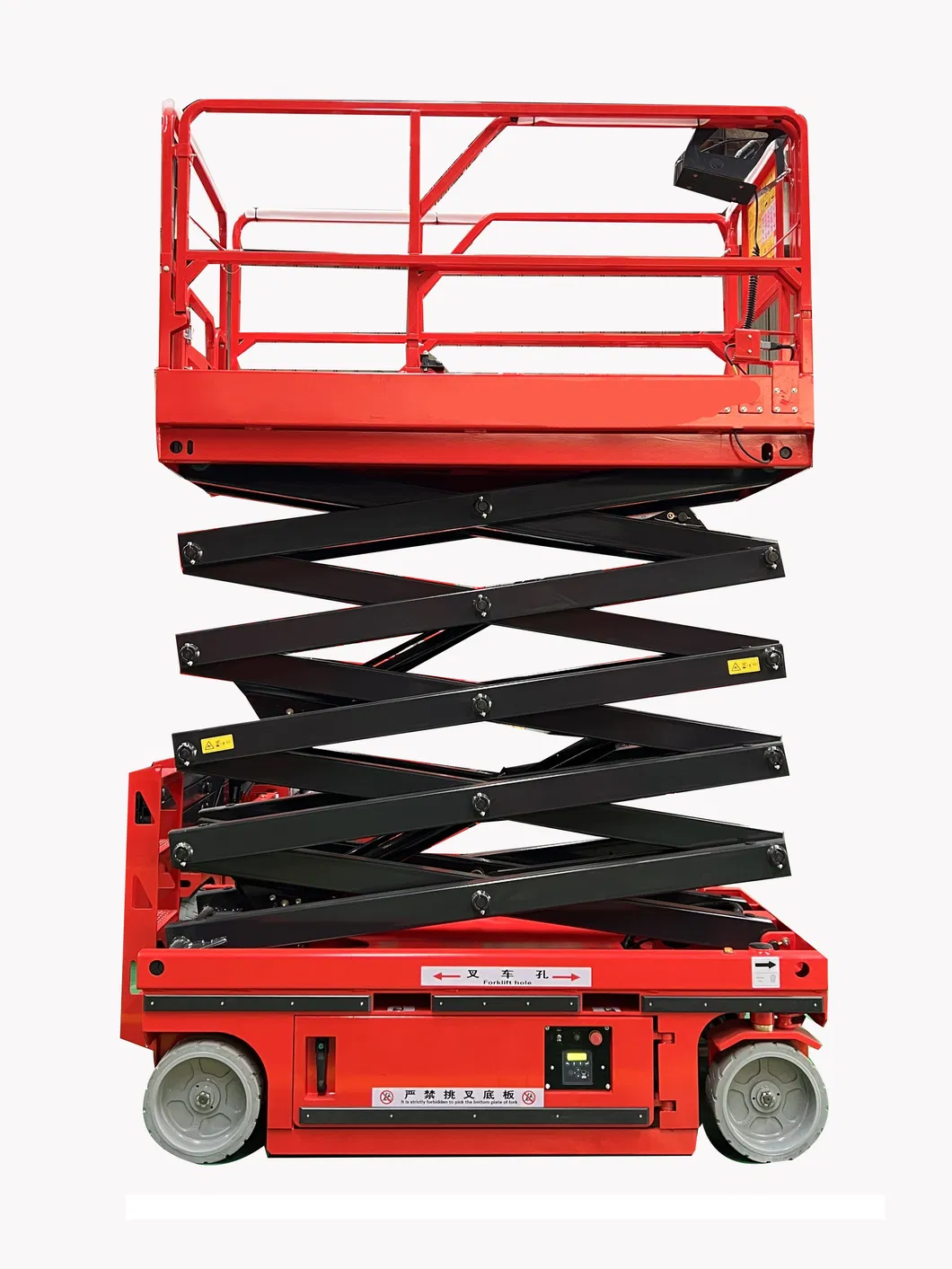

Scissor Work Platform
✓
Flexible Operation The steering wheel can make 90° turn in situ, can run in both high and low speeds, and can be used even in small spaces.
✓
Compact Structure Sizes lower than 6m are compact with a total width of 760mm. Foldable guardrails allow passage through small openings.
✓
Swing-out Tray Trays on both sides of the chassis can swing out, facilitating maintenance, inspection, and replacement.
✓
Larger Working Space The platform can extend on one side (electrical) or both sides (diesel) to enlarge the workspace.
✓
Foldable Guardrails Dismountable or foldable guardrails reduce the machine height for better passing ability and shipping.

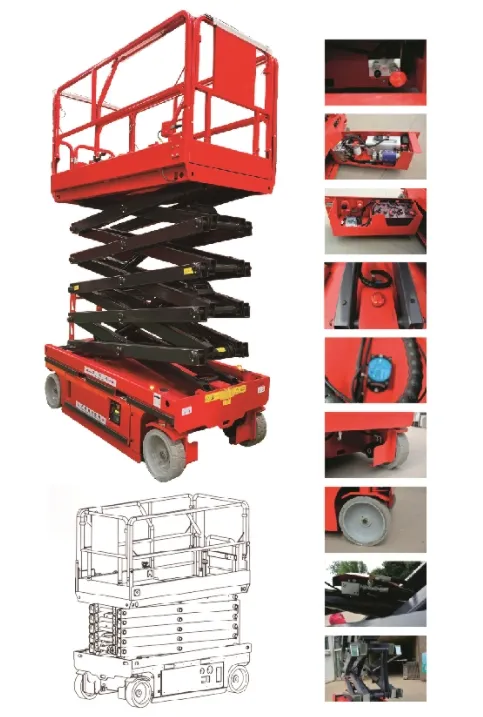

Product Detail View
Model Unit FSJY-04IVx FSJY-045IV FSJY-06IVx FSJY-06IVz FSJY-06IV FSJY-08IV FSJY-10IV FSJY-12IV FSJY-14IV
Max. platform height m 4 4.5 5.8 6 6 8 10 11.8 13.8
Platform length m 1.3 1.39 1.57 2.27 2.27 2.27 2.27 2.27 2.64
Platform width m 0.68 0.74 0.74 0.85 1.13 0.85 1.13 1.13 1.13
Overall length m 1.45 1.54 1.81 2.35 2.435 2.35 2.435 2.435 2.8
Capacity kg 230 230 230 320 450 230 320 320 230
3

Product Parameters & Diagrams

4

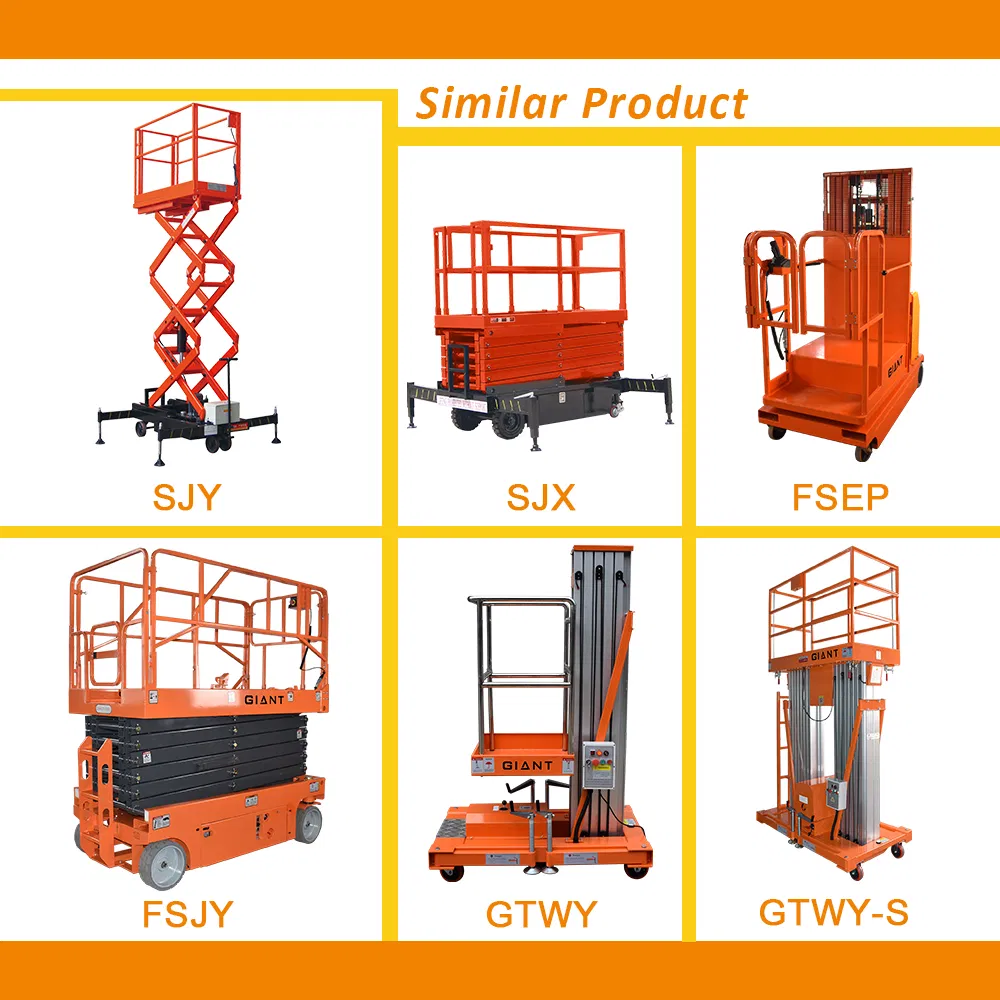

Similar Products

Frequently Asked Questions

? Q1: Are you a factory or a trading company?
We are a combination of both, focused on manufacturing material handling products such as lift tables, pallet trucks, and lifting platforms for over 35 years.
? Q2: Can you provide customized products?
Yes, we can provide customized products according to your requirements. Both OEM and ODM are acceptable.
? Q3: How do you control your quality?
We use high-quality steel, standardized production with traceable ID cards, 100% finished product testing before shipping, and ISO9001 certified management.
? Q4: How long is the warranty on your products?
We provide a 12-month warranty for all our products, excluding wear parts such as wheels, tires, or hydraulic oil.
? Q5: What is the lead time for production?
Usually around 10-15 days after payment is received, and approximately 30 days during peak holiday seasons.
? Q6: What payment terms do you accept?
We generally accept T/T or L/C. For other methods, please contact our sales team.
