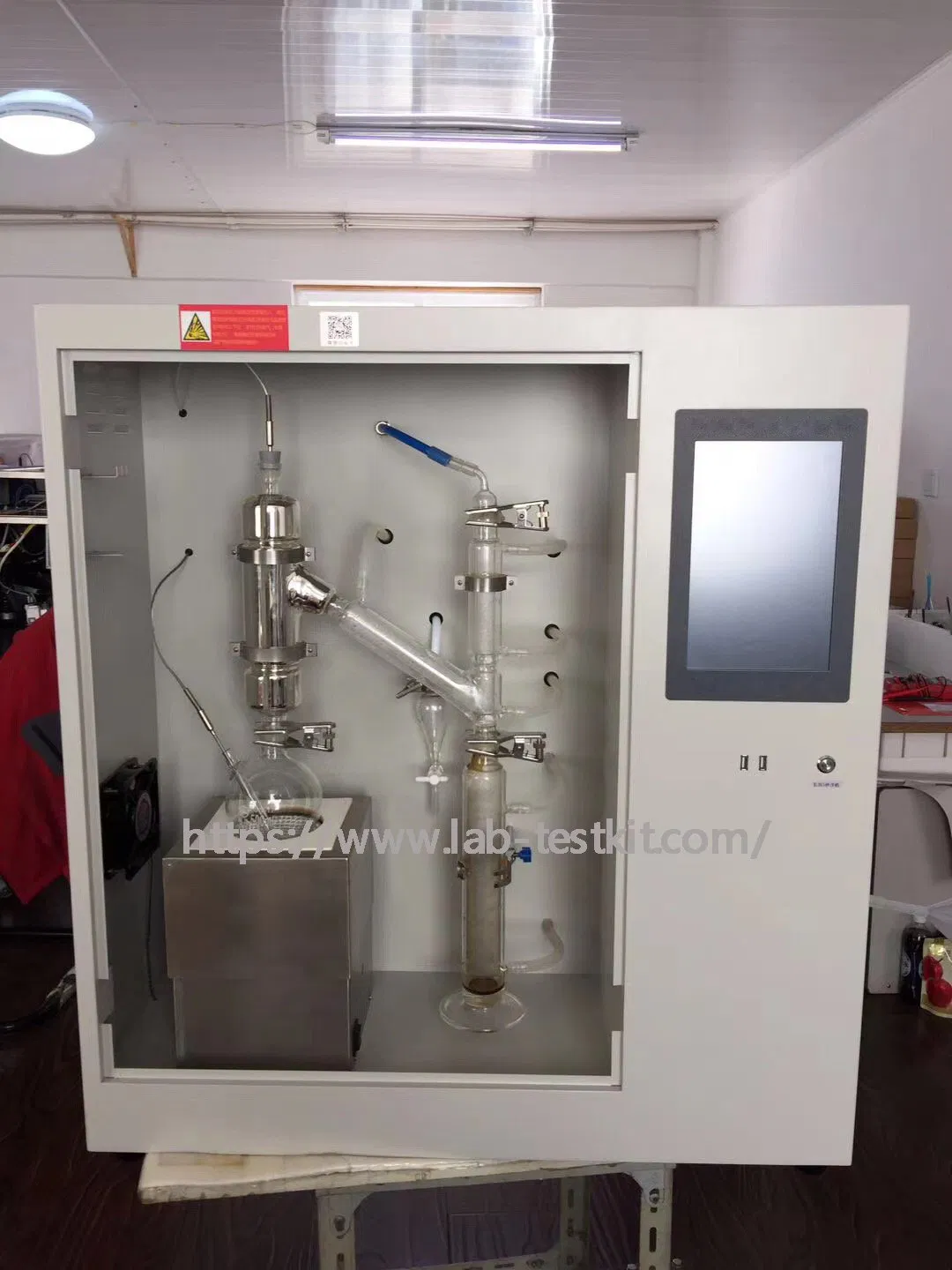

ASTM D1160 Touch Screen Vacuum Distillation of Petroleum Tester at Reduced Pressure
ASTM D1160 Touch Screen Vacuum Distillation of Petroleum Tester at Reduced Pressure
ASTM D1160 Touch Screen Vacuum Distillation of Petroleum Tester at Reduced Pressure
ASTM D1160 Touch Screen Vacuum Distillation of Petroleum Tester at Reduced Pressure
ASTM D1160 Touch Screen Vacuum Distillation of Petroleum Tester at Reduced Pressure
1 / 5
ASTM D1160 Touch Screen Vacuum Distillation of Petroleum Tester at Reduced Pressure
ASTM D1160 Touch Screen Vacuum Distillation of Petroleum Tester at Reduced Pressure
ASTM D1160 Touch Screen Vacuum Distillation of Petroleum Tester at Reduced Pressure
ASTM D1160 Touch Screen Vacuum Distillation of Petroleum Tester at Reduced Pressure
ASTM D1160 Touch Screen Vacuum Distillation of Petroleum Tester at Reduced Pressure

ASTM D1160 Touch Screen Vacuum Distillation of Petroleum Tester at Reduced Pressure

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Info.
Model NO.
GD-9168A
Max Diameter
700mm
Workpiece Mass
<900kg
Type
Vacuum Distillation Apparatus
Accuracy Grade
1
Control
Computer Control
Power Supply
AC(220±10%)V, 50Hz
Consumption
≤1800W
Pressure Range
(2.00~170.00) mmHg
Dimension
800mm*500mm*900mm
Net Weight
61kg
Product Description

ASTM D1160 Touch Screen Automatic Vacuum Distillation of Petroleum Tester

This test method is used for the determination of the distillation characteristics of petroleum products, biodiesel, and fractions that may decompose if distilled at atmospheric pressure. It covers the determination, at reduced pressures, of the range of boiling points that can be partially or completely vaporized at a maximum liquid temperature of 400 °C.

The boiling range is directly related to viscosity, vapor pressure, heating value, average molecular weight, and many other chemical and physical properties.

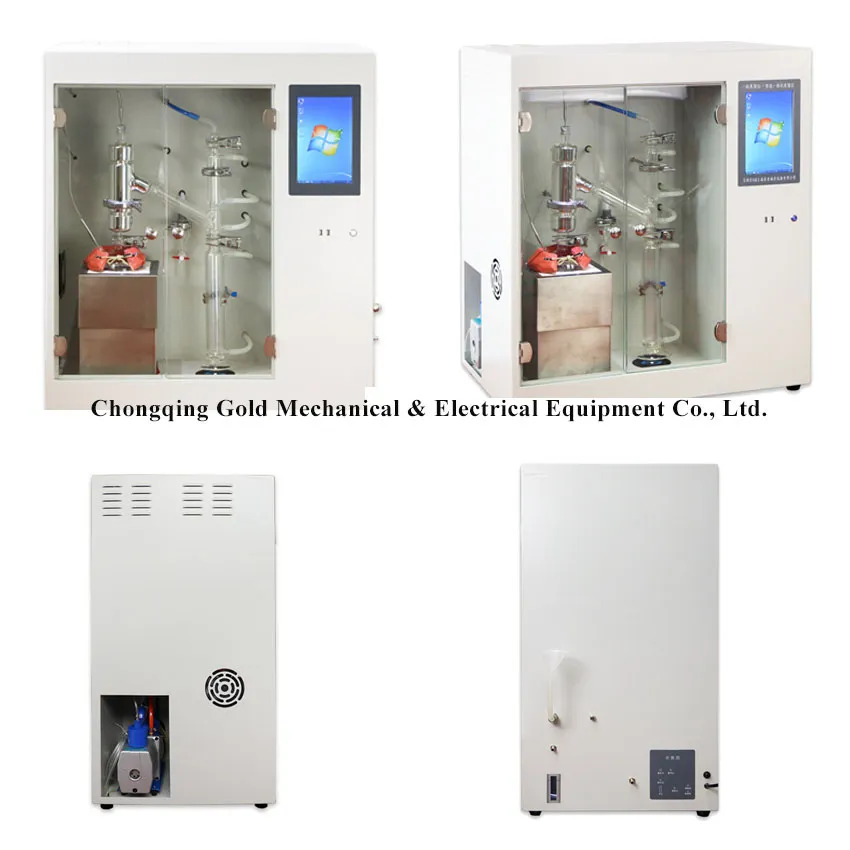

ASTM D1160 Tester
Product Parameters
Condensate Control
Room temp +5ºC ~ 80ºC±3ºC
Cold Trap Mode
Semiconductor refrigeration, ≤-40ºC
Pressure Settings
2, 5, 10, 20, 50 mmHg
Pressure Accuracy
<0.01kPa (under 1kPa)
Display
10.1 inch LCD color touch screen
Main Structure

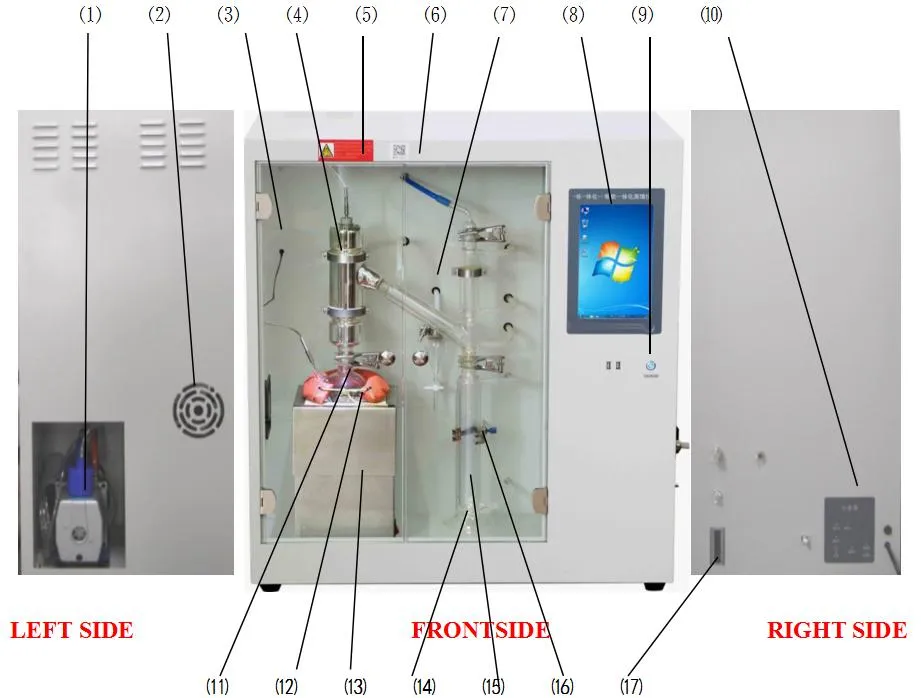

Structure Diagram
  • Vacuum pump: Built-in industrial grade vacuum pump.
  • Cooling fan: Automatically cools the heating furnace after testing.
  • Sensors: High-precision oil temperature and oil vapor temperature sensors.
  • Distillation column: Professional vacuum jacket distillation column assembly.
  • Cold trap: Built-in semiconductor-cooled hydrazine system.
  • Heating furnace: Electric furnace with 0.5% accuracy adjustment on screen.
  • Lifting platform: Automated control via touch screen with limit protection.
Detailed Photos
Detail 1

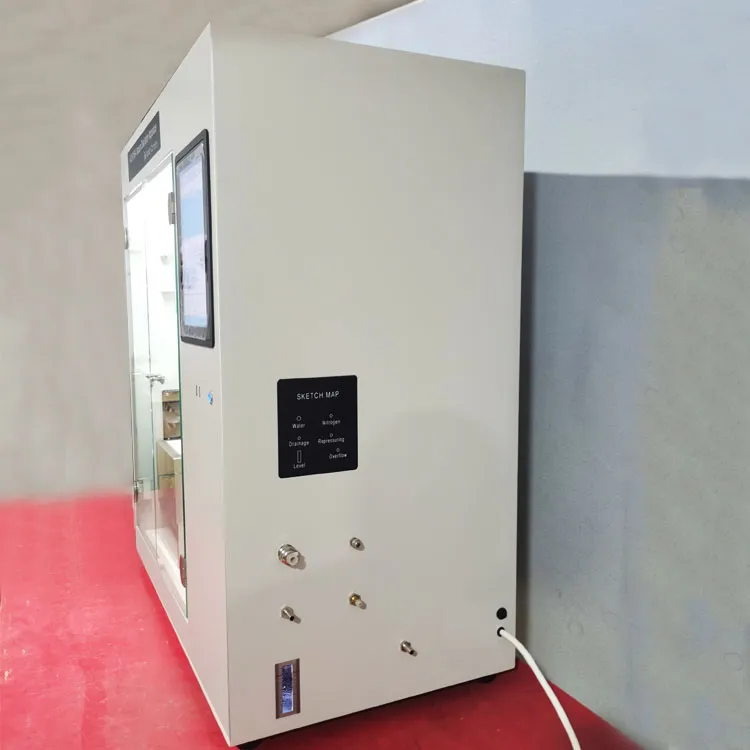

Detail 2

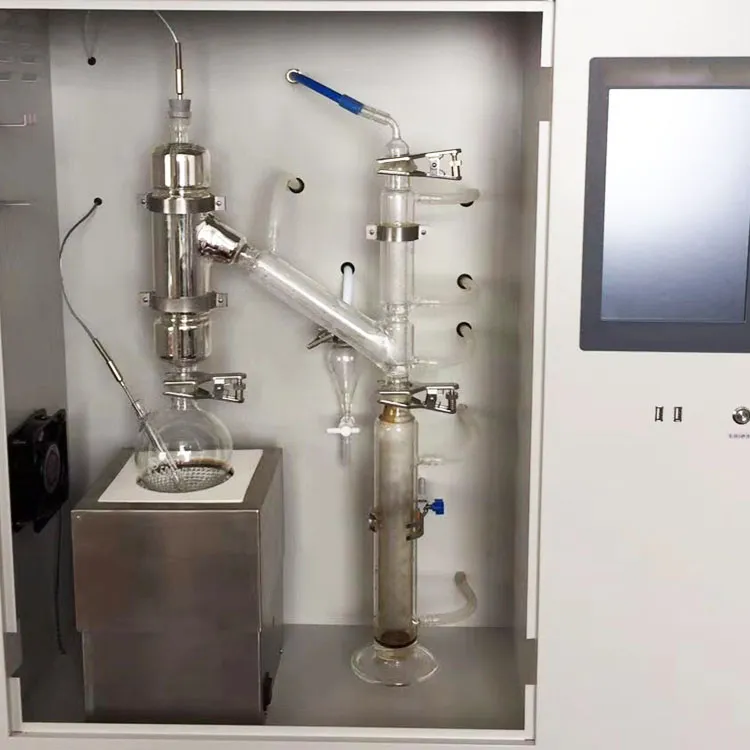

Detail 3
Detail 4
After Sales Service
Pre-sale Professional real-time inquiry response; Customized solutions based on customer needs; Technical manuals and evaluation reports provided.
After-sale One-year warranty for quality problems; Free repair/replacement within warranty; Lifetime technical support and maintenance.
Technical Support Expert advice and engineering training; On-site commissioning and training available upon request.
Service Certificate
Frequently Asked Questions (FAQ)
Q1: What standard does this vacuum distillation tester follow?
A: It strictly follows the ASTM D1160 Standard Test Method for distillation of petroleum products at reduced pressure.
Q2: What is the maximum heating temperature for the sample?
A: The tester is designed for petroleum products that can be vaporized at a maximum liquid temperature of 400 °C.
Q3: How is the vacuum pressure controlled?
A: The system features automatic constant pressure control with settings available at 2, 5, 10, 20, and 50 mmHg.
Q4: Does the equipment include a cooling system for the cold trap?
A: Yes, it uses a built-in semiconductor refrigeration system reaching temperatures as low as ≤-40ºC.
Q5: What is the capacity of the distillation flask and receptor?
A: It includes a 500ml heat-resistant distillation flask and a 200ml receptor for the distillate.
Q6: Is technical training provided for new users?
A: Yes, we provide free training for engineers at our facility and offer comprehensive operation manuals and technical support.
