Customization: Available
Application: Biotechnology Industry, Food & Beverage Factory, Food Safety, Pharmaceutical Industry, Pharmaceutical
Capacity: 200L/Hr - 5000L/Hr
Send Inquiry

Product Description

Product Overview
Model NO.
ME Series
Certification
CE, FDA, GMP, ISO
Control System
Fully Automatic
Treatment
Heating Process
Raw Material
Purified Water
Product Name
Multi-Effect Water Distiller
Product Description
Energy-saving Natural Circulation Multi-effect Water Distiller for Pharmaceutical Injections Production

A standard ME series natural circulation multi-stage distilled water machine can produce 1-6 tons of injection water per hour that meets global standards. The system utilizes industrial steam to heat incoming purified water. Through a 4-7 stage process, the heat of the secondary steam is fully utilized and condensed into water for injection (WFI) that meets USP, EP, and CP quality standards.

Key Applications
Suitable for pharmaceutical injections, cell culture, vaccines, and other high-purity water applications.

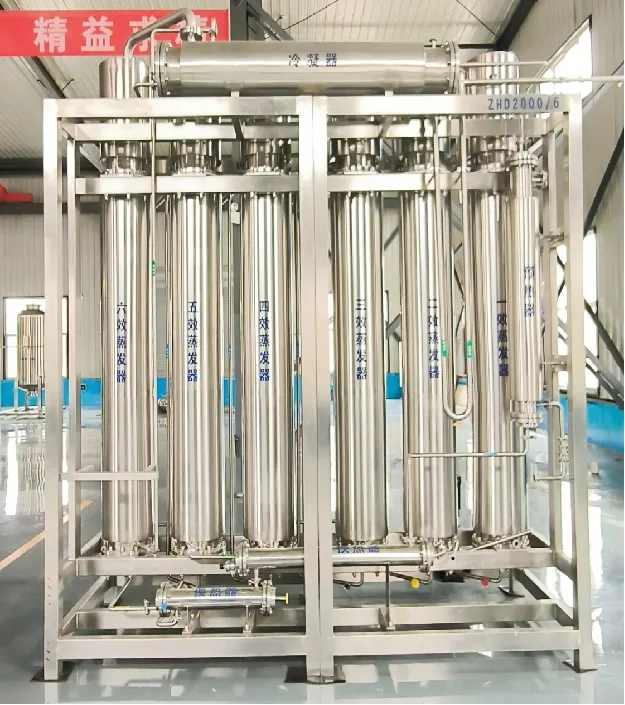

Multi-effect Water Distiller
Water Distiller Operation
Product Features & Advantages

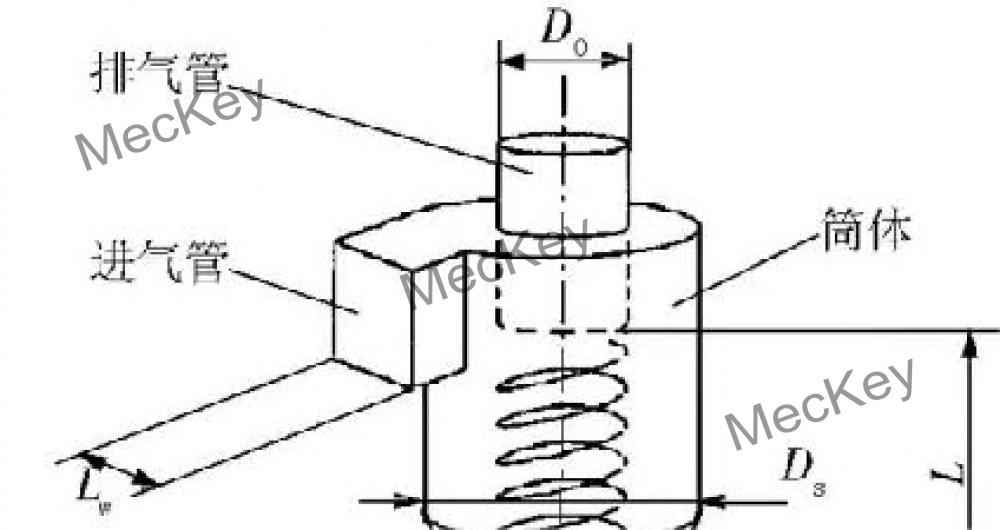

  • High-speed cyclone separation for superior water quality.
  • Sanitary grade design with no internal shielding components.
  • Detachable condenser tube bundle for easy inspection.
  • Electrochemical polishing inside the evaporator for corrosion resistance.
  • Energy-efficient: 20% higher heat exchange rate than standard models.
  • Compact footprint for flexible installation in limited spaces.
  • Stable, reliable, and extremely quiet operation.
  • Complete validation documentation provided.
Technical Parameters
Model Capacity (kg/h) Influent (kg/h) Steam (kg/h) Dimensions (mm) Weight (kg)
ME200200220451200*800*2300480
ME500500550901900*830*29001010
ME1000100011001802800*1030*33002410
ME2000200022003503500*1230*36002410
ME3000300033005603600*1260*38504973
ME5000500055007504740*1470*39007311

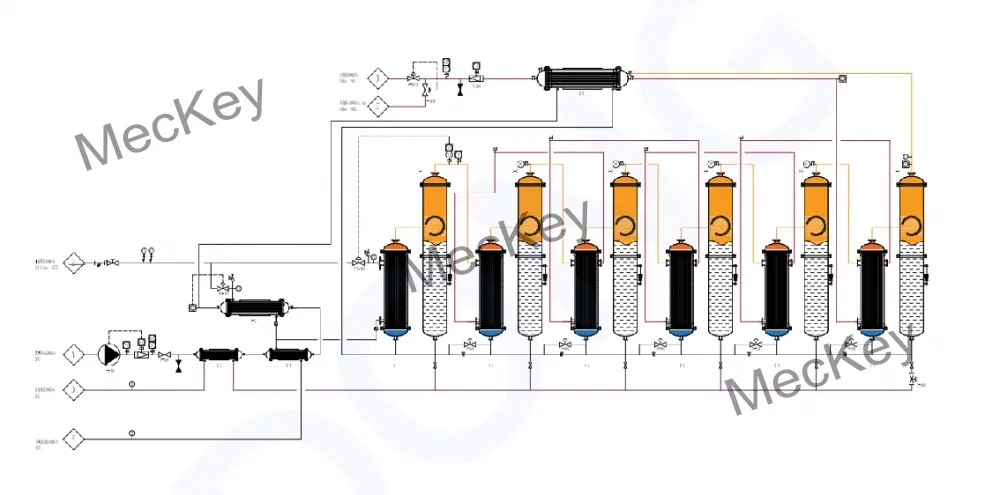

Distillation Stage Detail

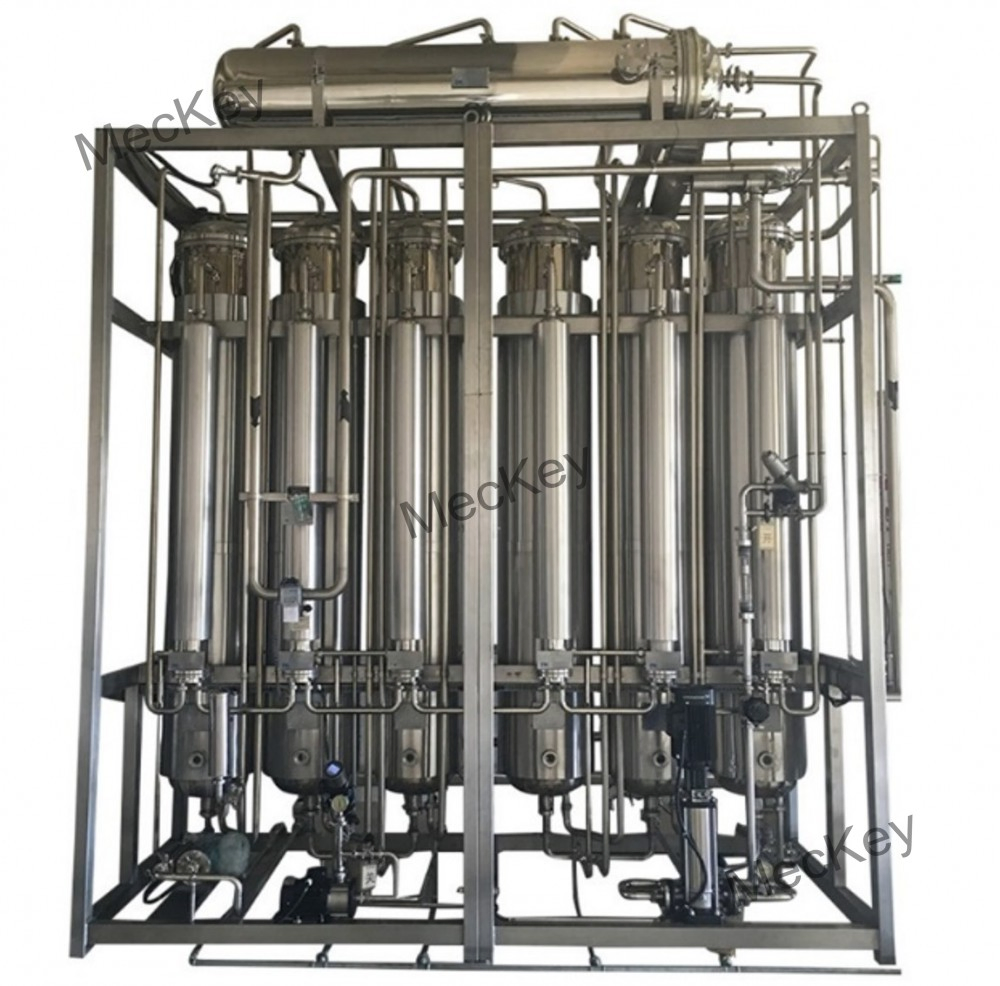

Water Distiller Equipment

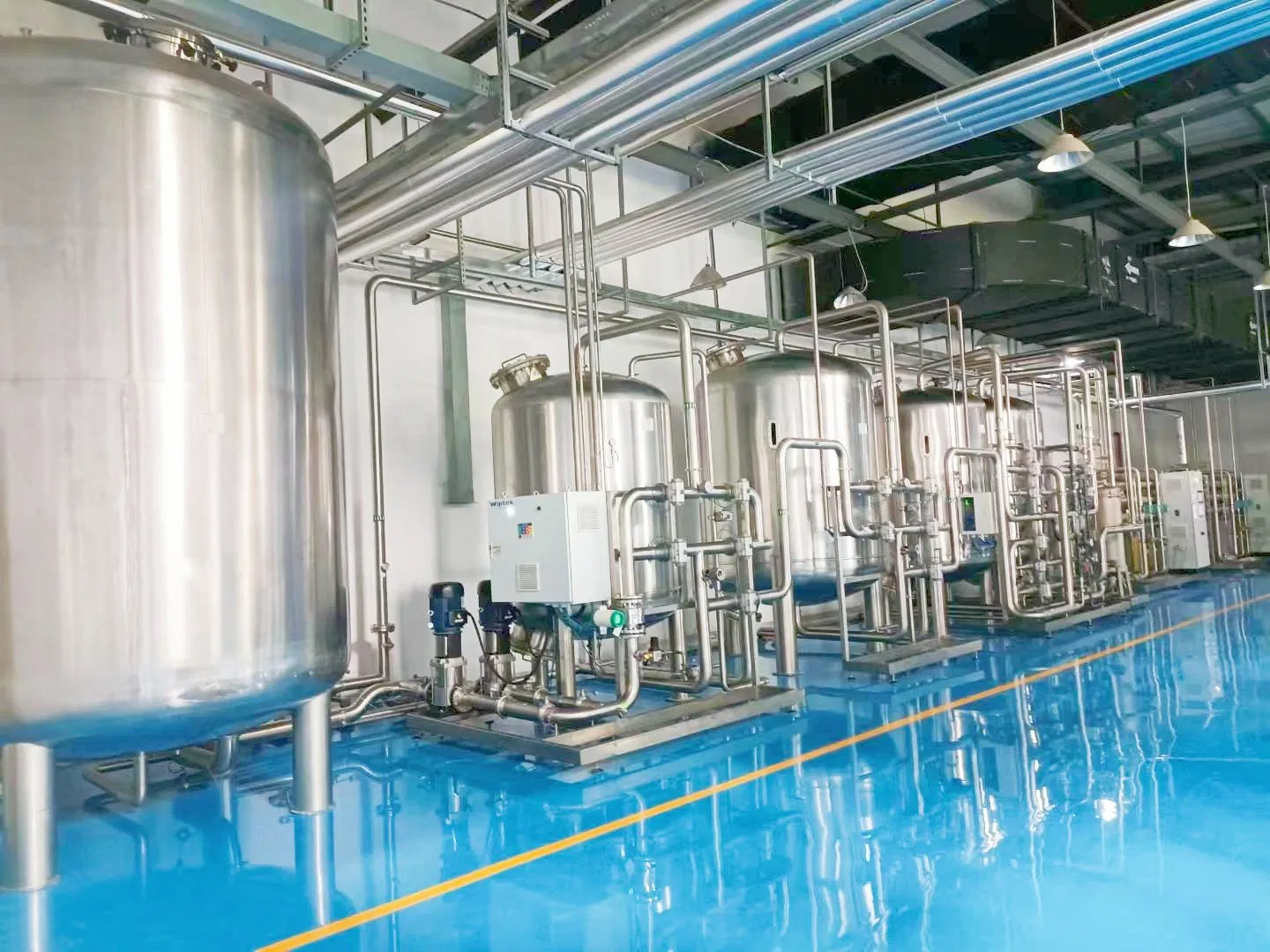

Factory Installation

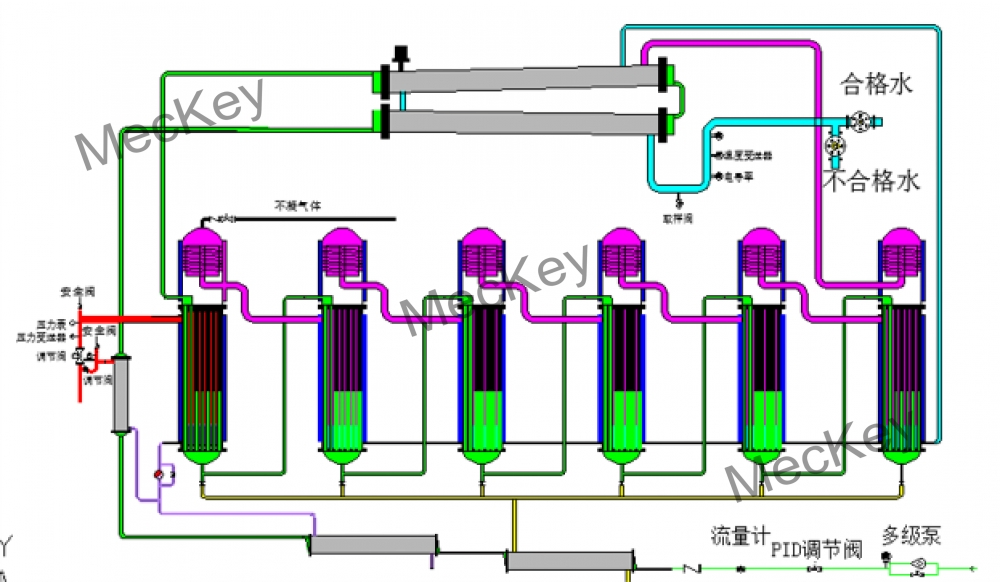

Technical Diagram
Our Service Standards

C-Credit: We fulfill our promises and maintain transparency with every project.

E-Efficient: Our qualified staff ensures streamlined working processes.

E-Exact: We provide precise solutions tailored to your specific requirements.

S-Standard: Standard systems guarantee compliance with international quality norms.

Global Service Network
Partner Collaboration
Project Offerings
Frequently Asked Questions
What standards does the distilled water meet?
The produced water for injection meets the rigorous quality standards of the United States Pharmacopoeia (USP), the European Pharmacopoeia (EP), and the Chinese Pharmacopoeia (CP).
How is energy saved during the distillation process?
Energy efficiency is achieved through the use of thin-wall heat exchange tubes, advanced material-water distributors, and by utilizing injection water produced at each stage as a heating source for the preheater.
Is cooling water required for all models?
The fifth-stage machine does not require cooling water in northern regions, while the sixth-stage machine is designed to operate without any cooling water requirements regardless of the region.
What are the main advantages of natural circulation?
Natural circulation systems are more stable, reliable, and quieter. The separation chamber is larger, ensuring complete removal of endotoxins and better overall water quality.
Can the equipment be inspected internally?
Yes, the condenser tube bundle is detachable, and the evaporator and separator are separated, making the equipment easy to inspect and maintain.
Does the system come with verification documents?
Yes, we provide complete verification documents and pressure vessel certificates to ensure compliance with pharmaceutical manufacturing regulations.
