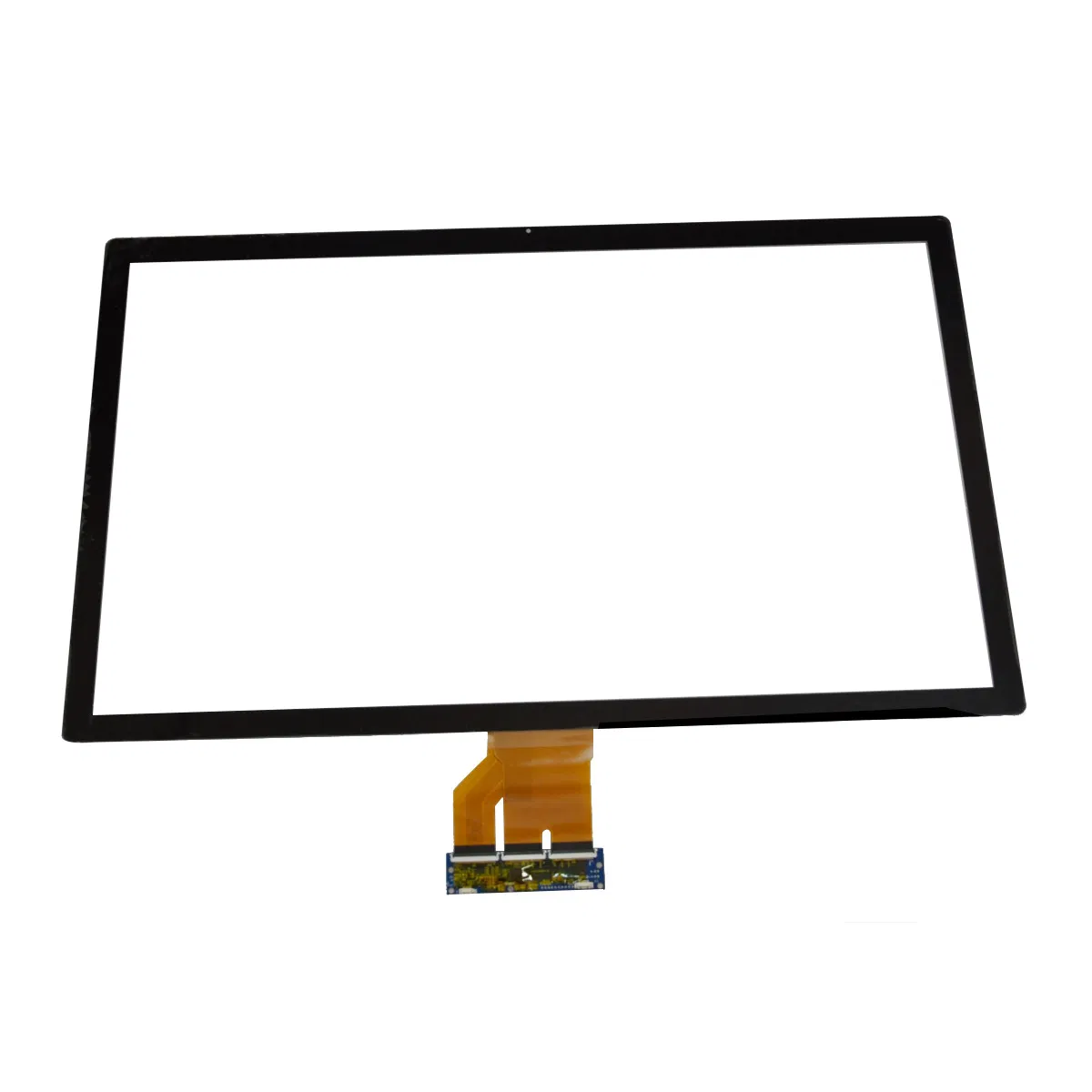

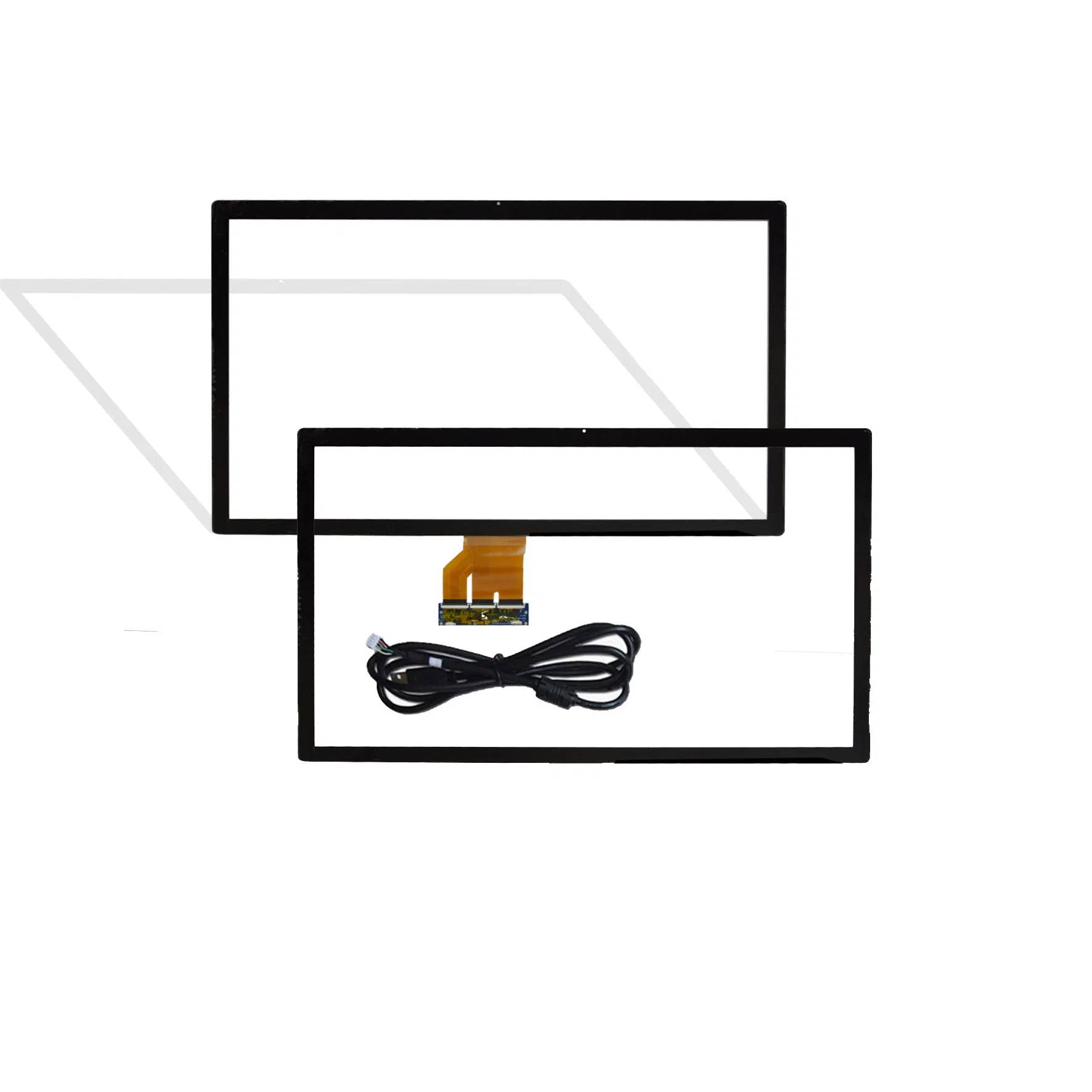

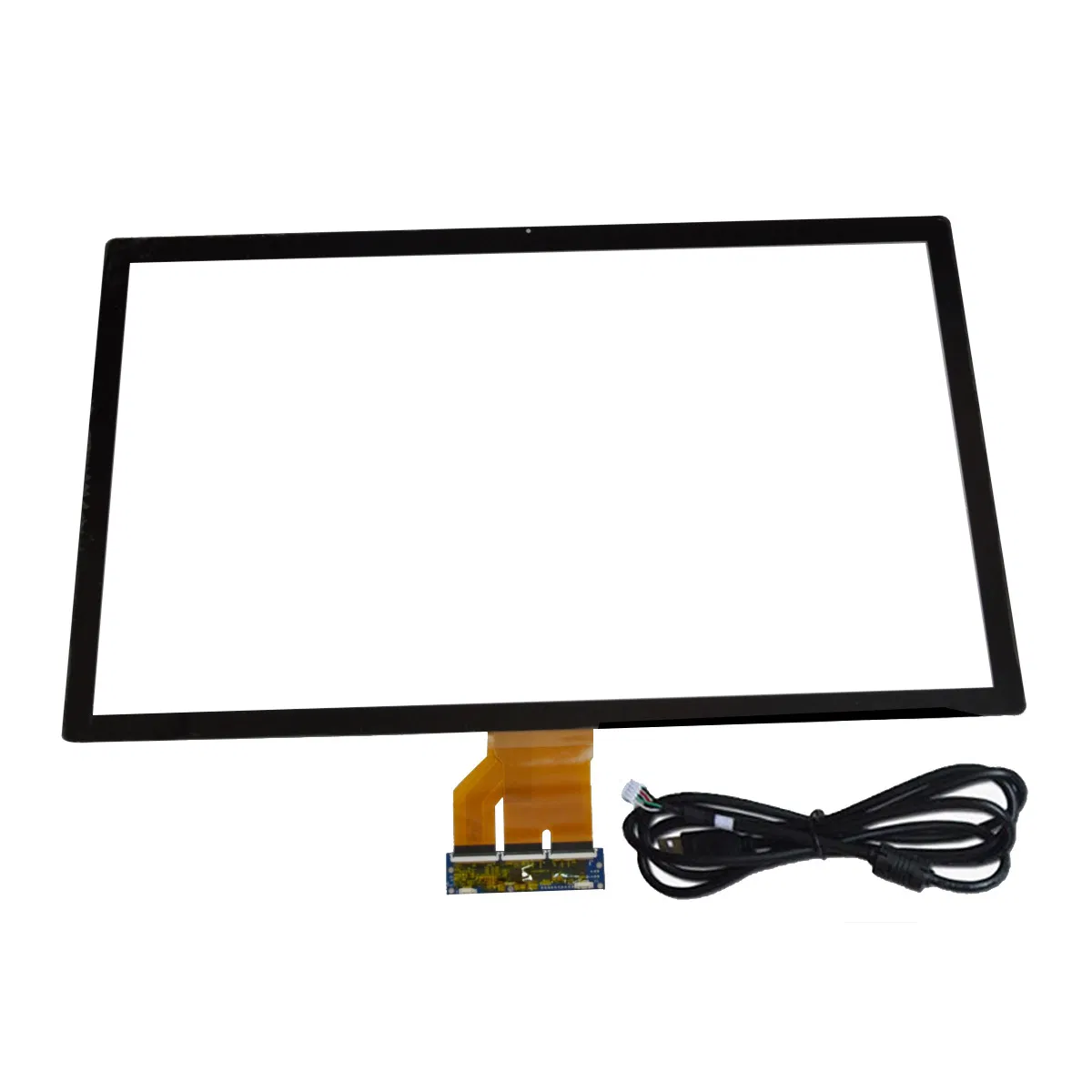

55 Inch Capacitive Touch Panel Pcap Touch Screen

1 / 5

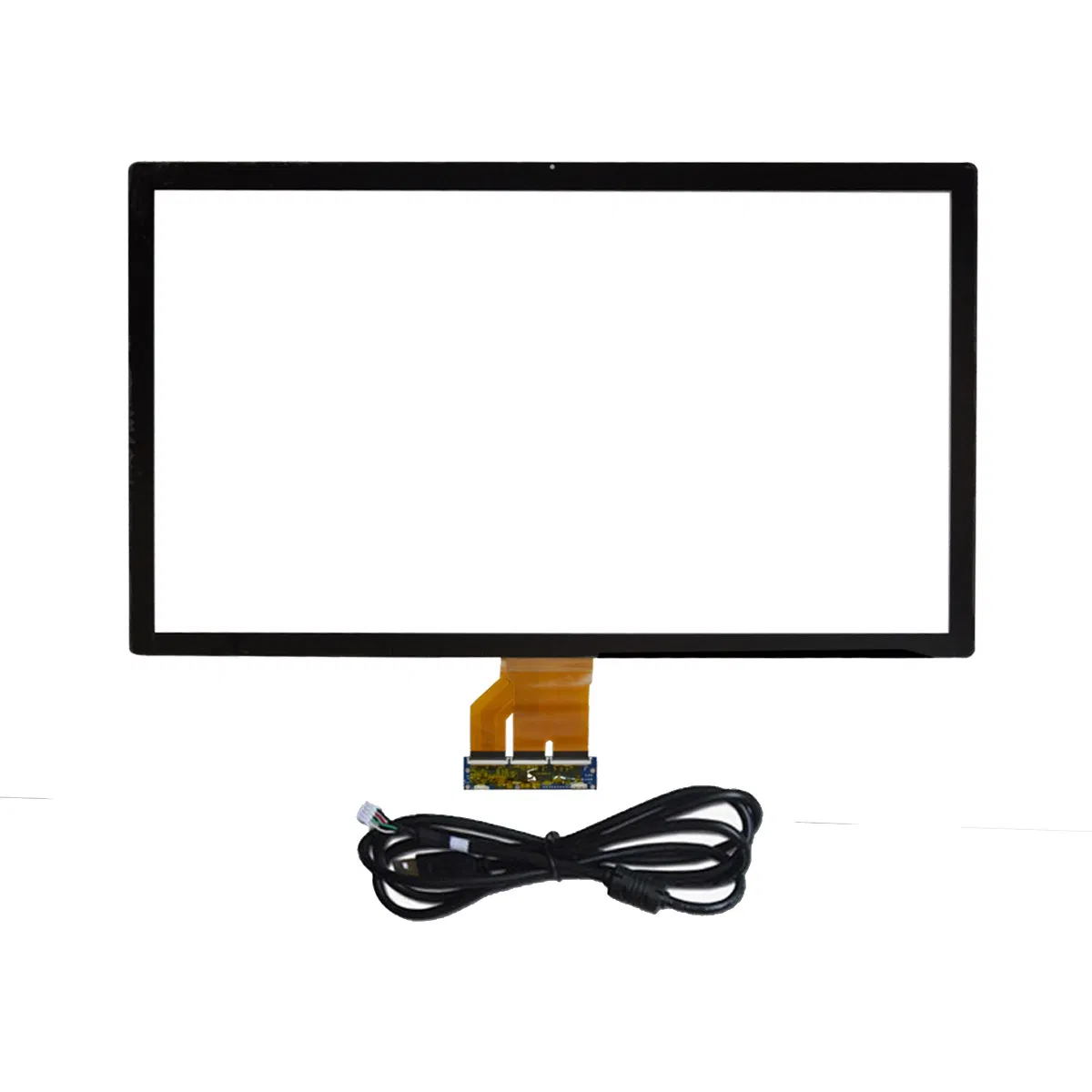

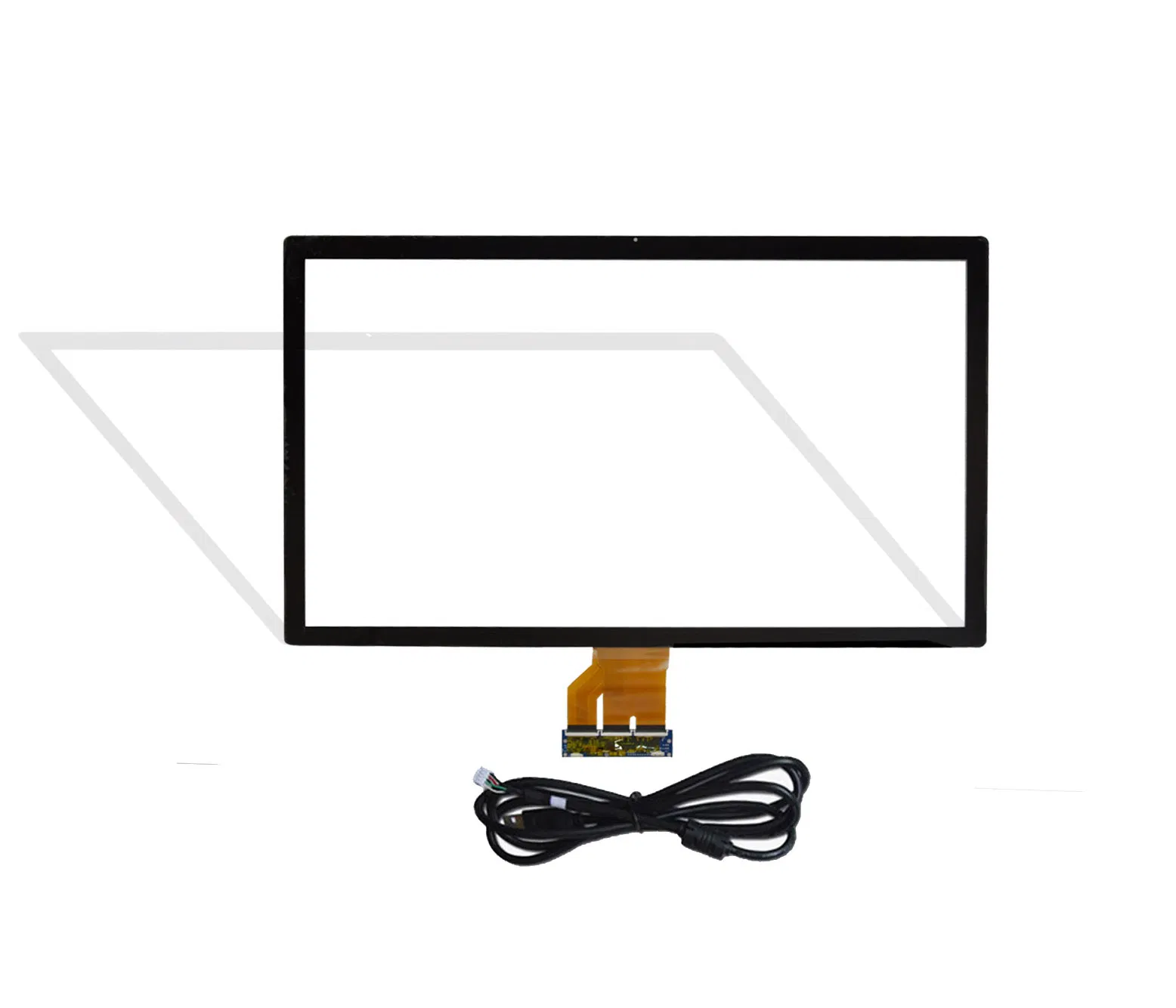

55 Inch Capacitive Touch Panel Pcap Touch Screen

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.	CPI550Y00-4K-C01
Application	Game Entertainment System
Screen Type	Capacitive
Technology	Pcap Touch Screen
Resolution	4096*4096
Material	Glass (Vandal-Proof, Anti-Glare Optional)
Multi-Touch	10 Touch Points
Production Capacity	500 Pieces/Day

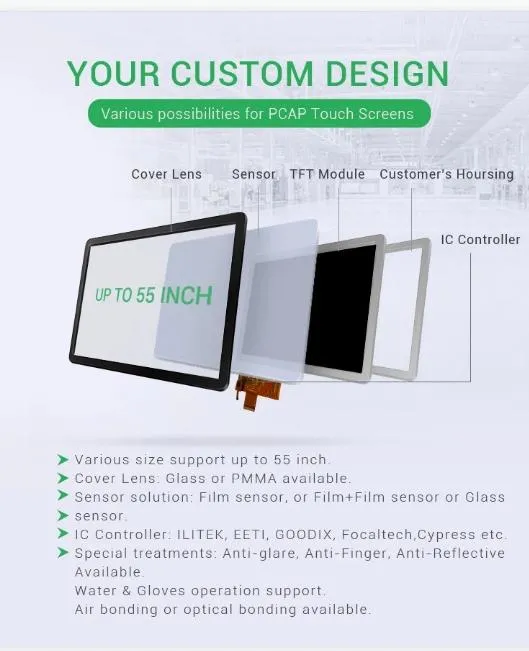

Product Description

PCAP touch screen detects the touch position through the change in capacitance between electrodes. When a finger or conductive stylus approaches the surface, it distorts the local electrostatic field, allowing the controller to pinpoint the exact position.

5" - 110" Custom Size Support
10 Points Multi-Touch - USB/RS232/IIC Interface
EETI/ILITEL/SIS Controller Boards
1.8/2/3/4/6/8mm Tempered Glass
Outdoor Industrial Waterproof & Vandalproof
Compatibility: Windows, Linux, Android, macOS, Raspberry Pi

Technical Specifications

Projected Touch Panel
Interface	USB
Input Voltage	5V
Transmittance	>90%
Surface Hardness	≥6H
Environment	-10~+60ºC Working Temp

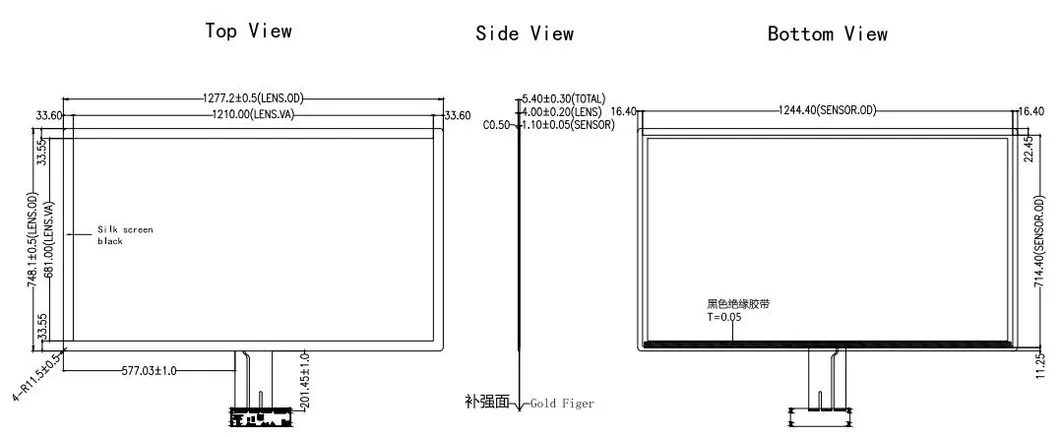

Technical Drawings

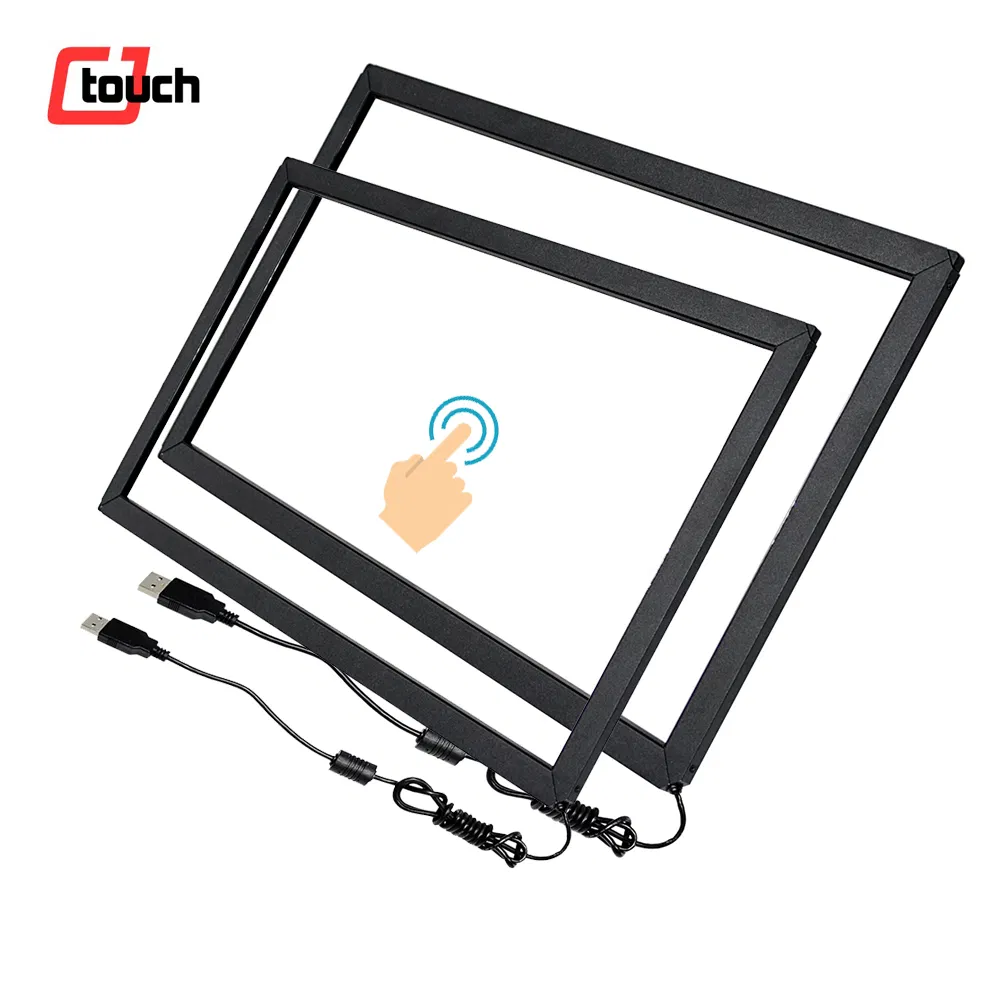

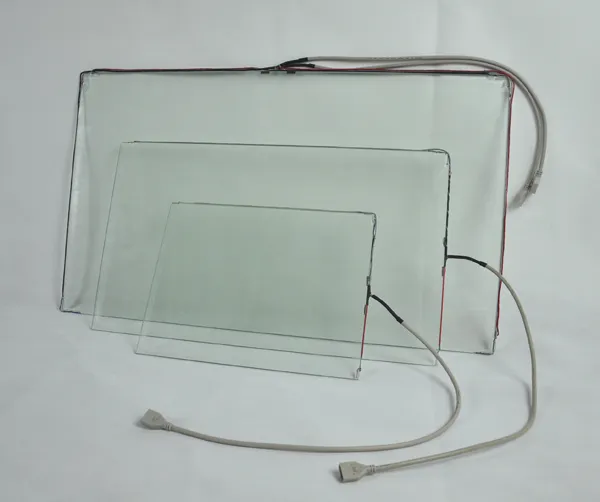

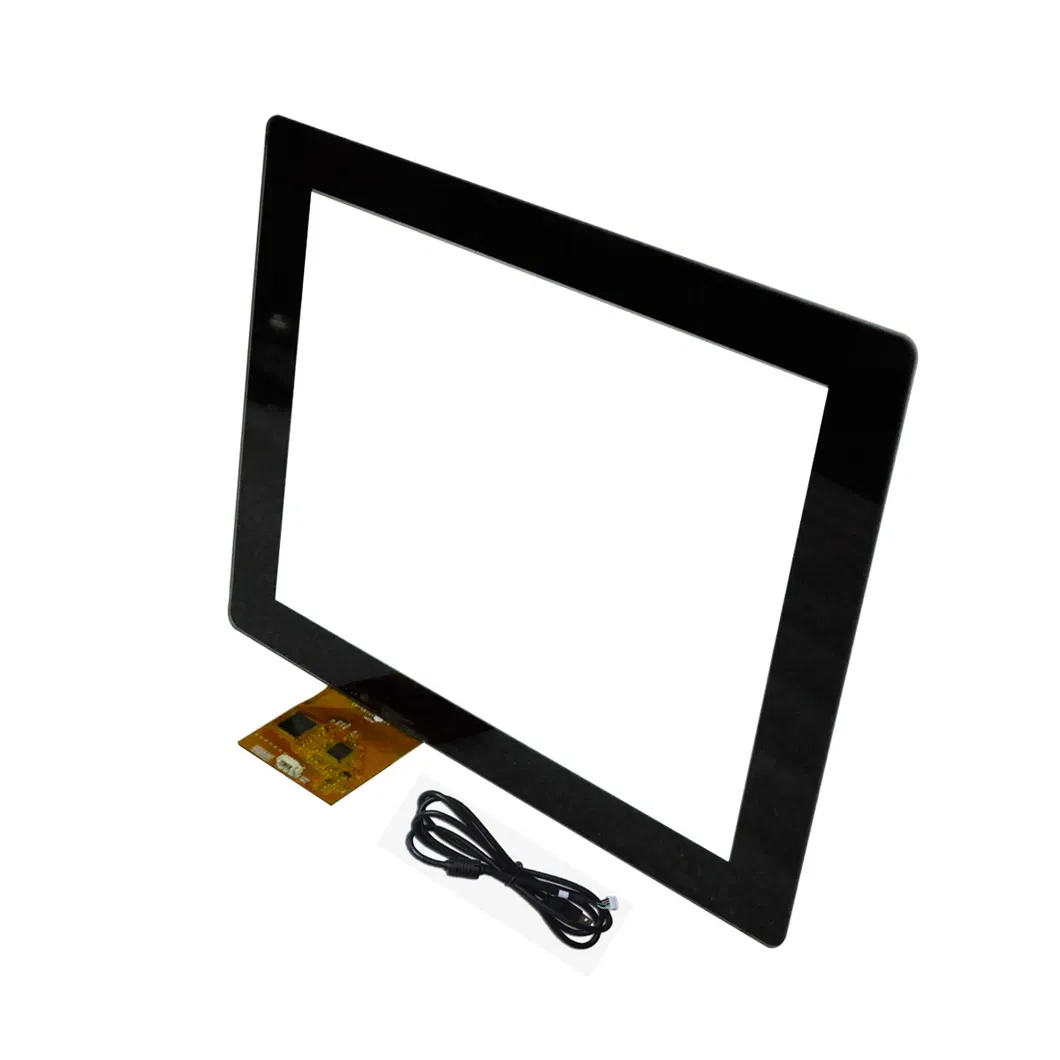

Related Touch Solutions

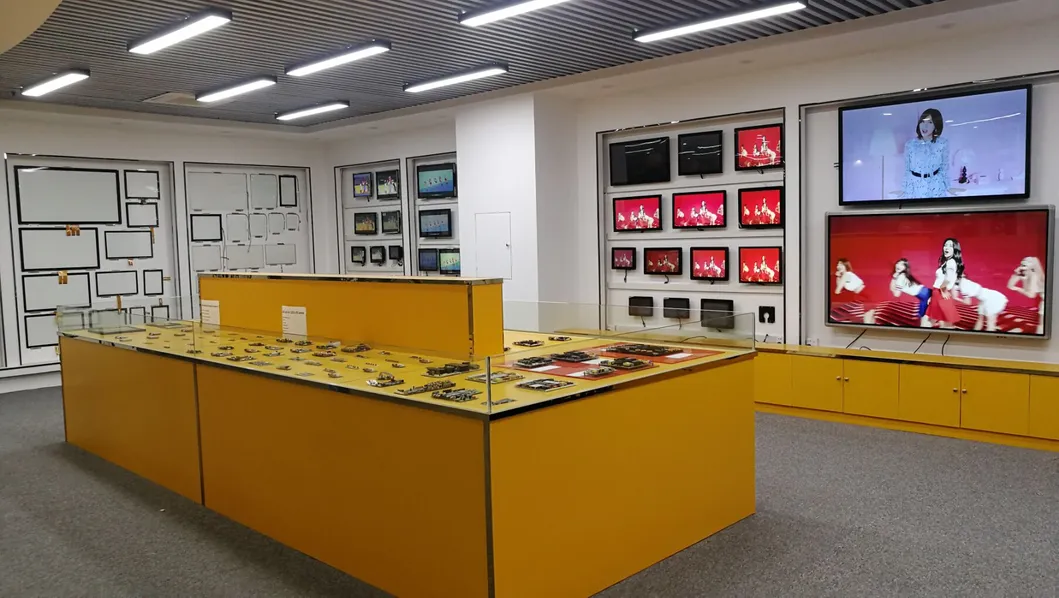

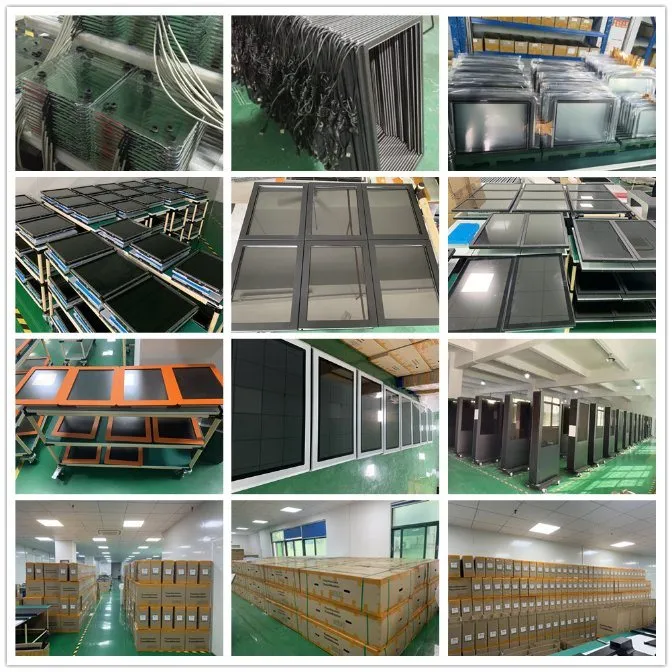

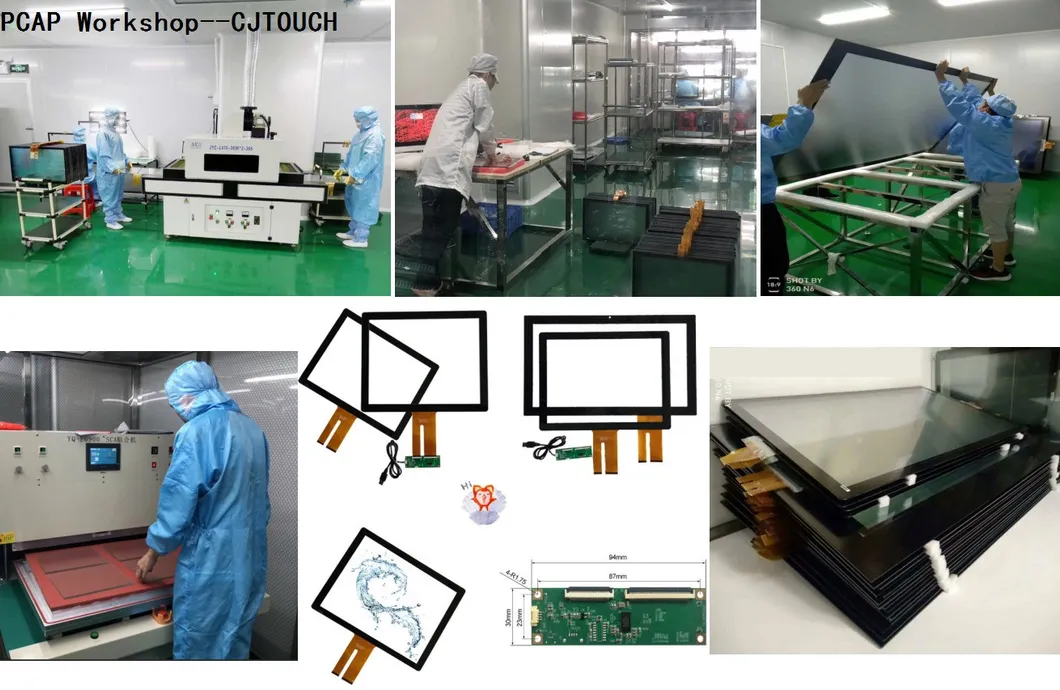

Manufacturing Excellence

High-tech enterprise specialized in SAW, IR, and PCAP solutions
Applications: Gaming, POS, Medical, Kiosk field
Production Capacity: 150 Thousand sets/year
ISO 9001, CE, UL, FCC, RoHS certified

Application Fields

Industrial Control, Public inquiry, Coffee Bar, Entertainment, Hospital, Advertising, Banking, and customized solutions.

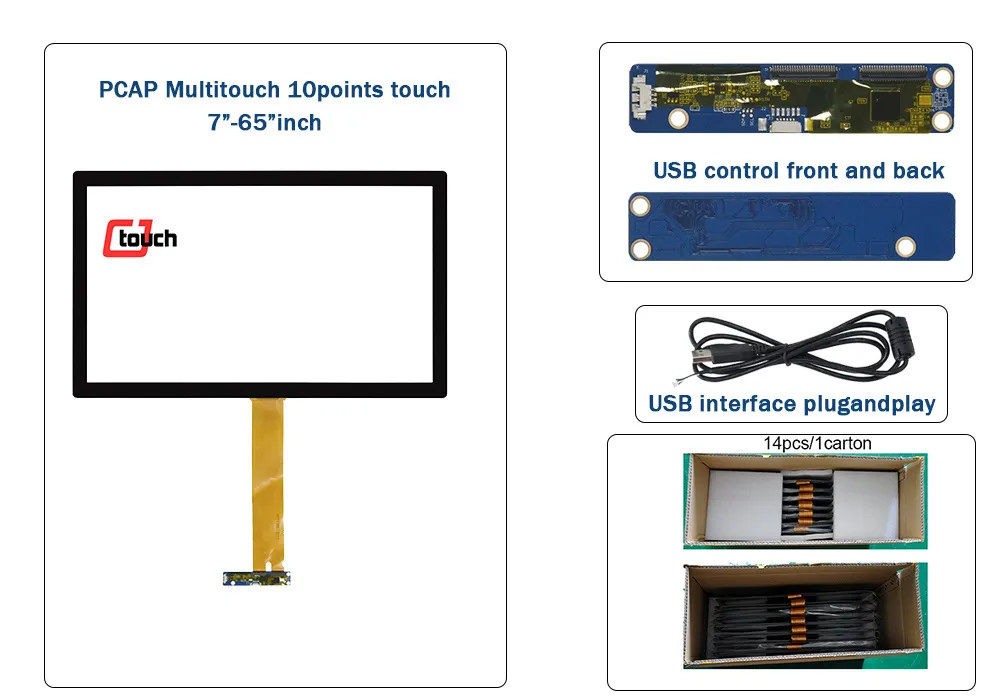

Packaging & Shipping

Frequently Asked Questions

Q1: What sizes are available for the PCAP touch screen? A1: We offer a standard range from 5" to 110", and support custom-made dimensions to fit your specific display requirements.

Q2: Which operating systems are compatible with your touch panels? A2: Our touch screens are fully compatible with Windows (7/8/10), Linux, Android, macOS, and Raspberry Pi.

Q3: Does the screen support multi-touch functionality? A3: Yes, our projected capacitive touch technology supports up to 10 points multi-touch for smooth and precise interaction.

Q4: Can I use the touch screen with gloves or outdoors? A4: Yes, we provide solutions that are industrial waterproof, vandalproof, and support touch even with gloves or under sunlight.

Q5: What certifications do your products have? A5: Our products are certified by ISO 9001, ISO 14001, CE, FCC, and RoHS to ensure international quality standards.

Q6: What is the lead time for standard touch screen orders? A6: For regular types in stock, the lead time is usually less than 2 days. For custom designs, the time varies based on complexity.
