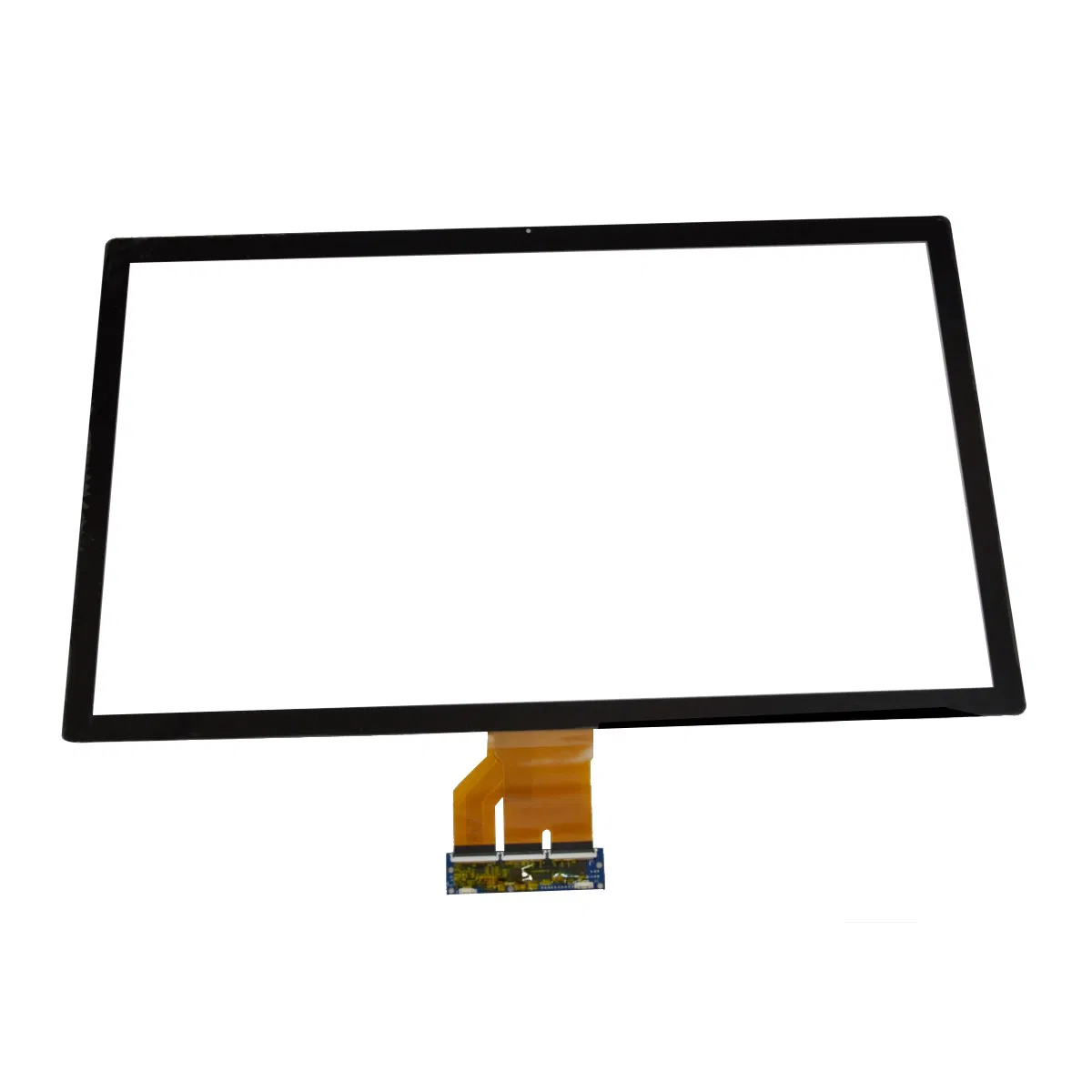

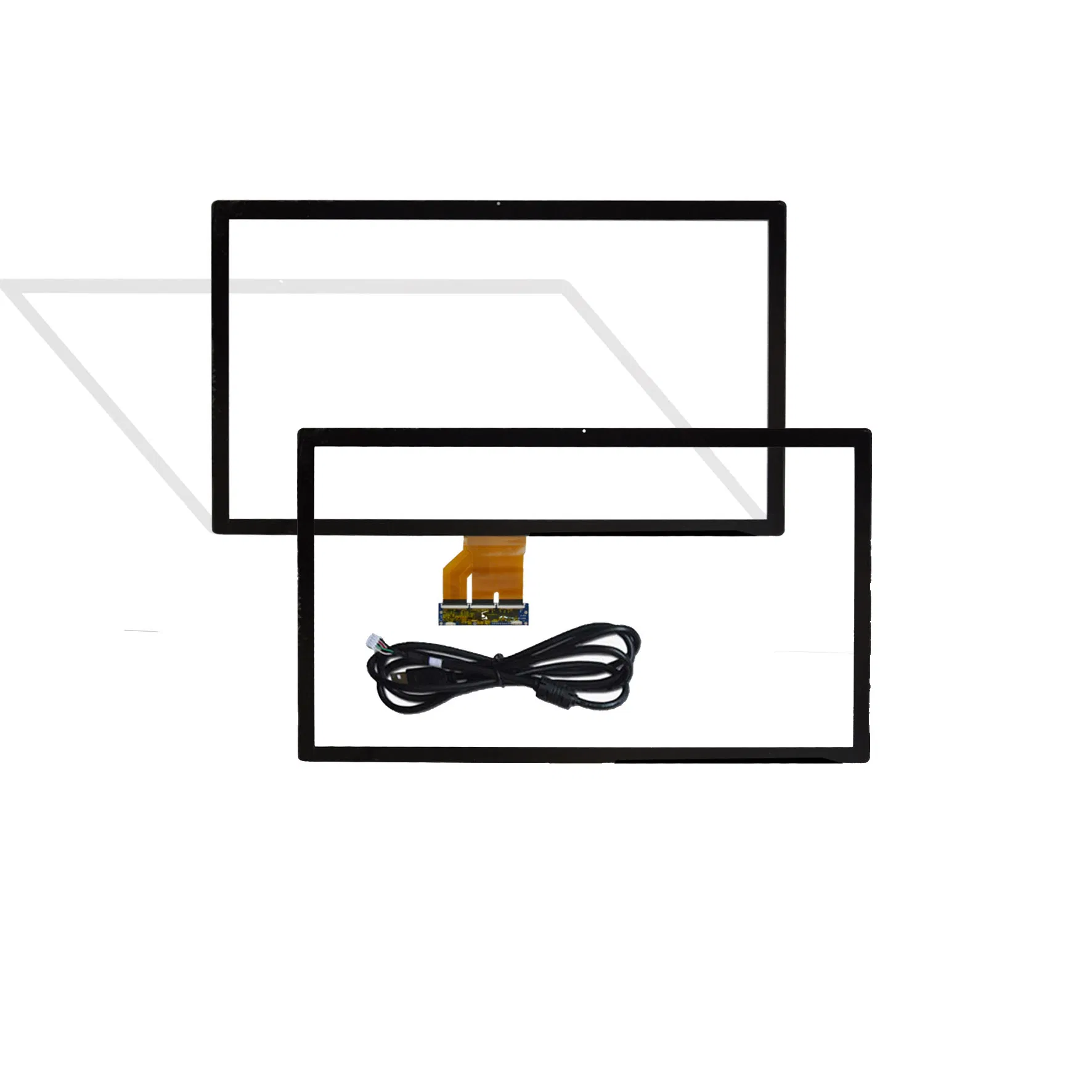

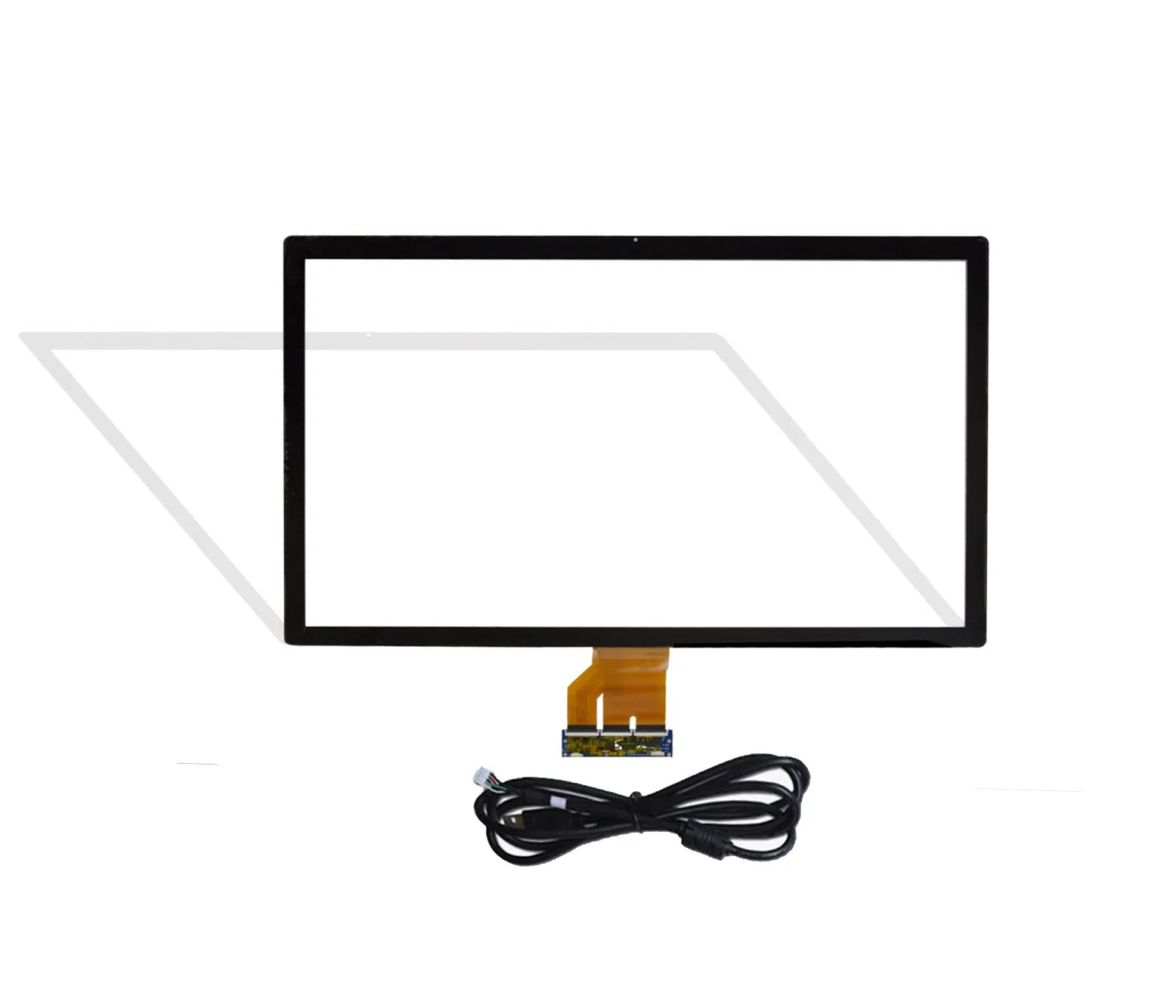

43 Inch Pcap Touch Screen USB Touch Interface

1 / 5

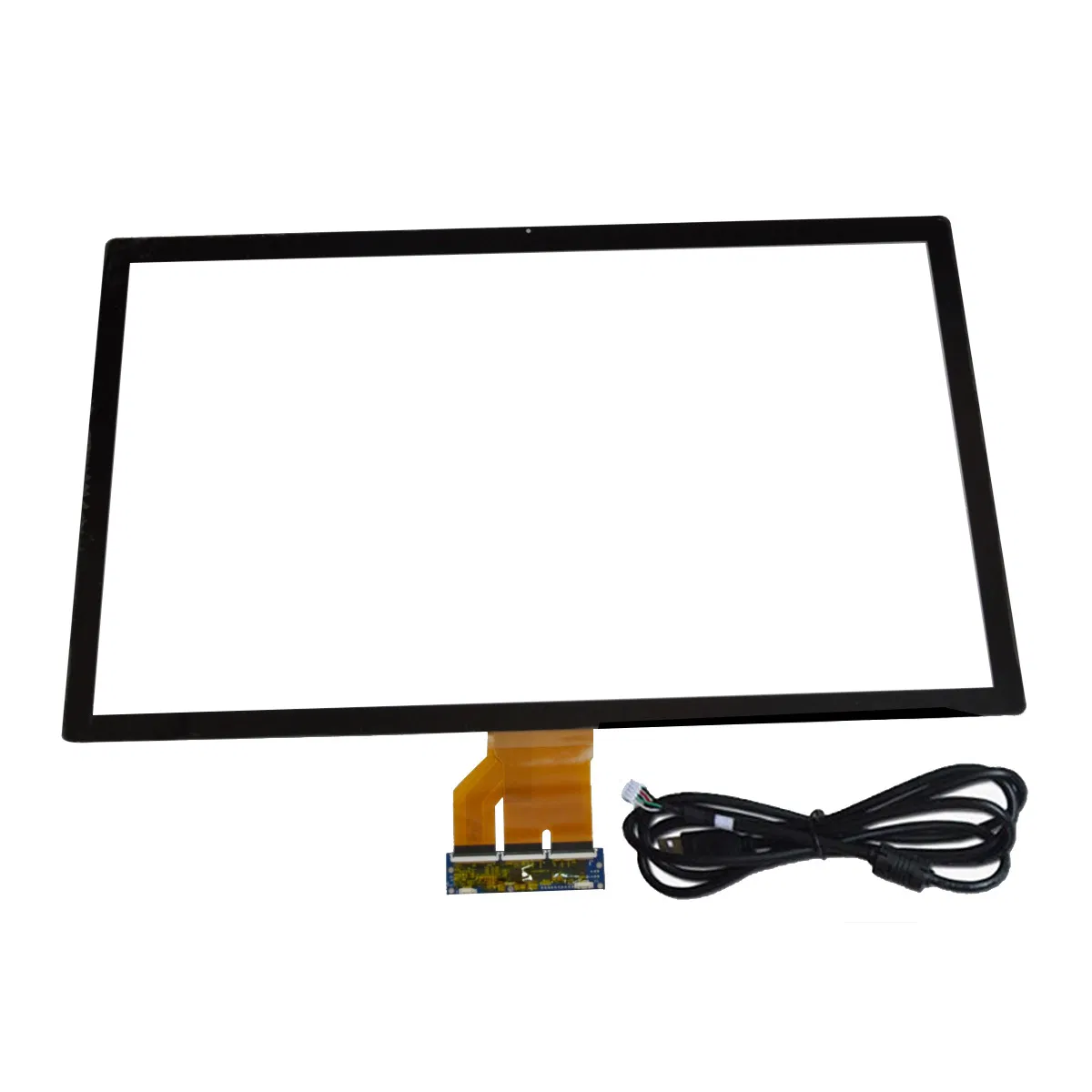

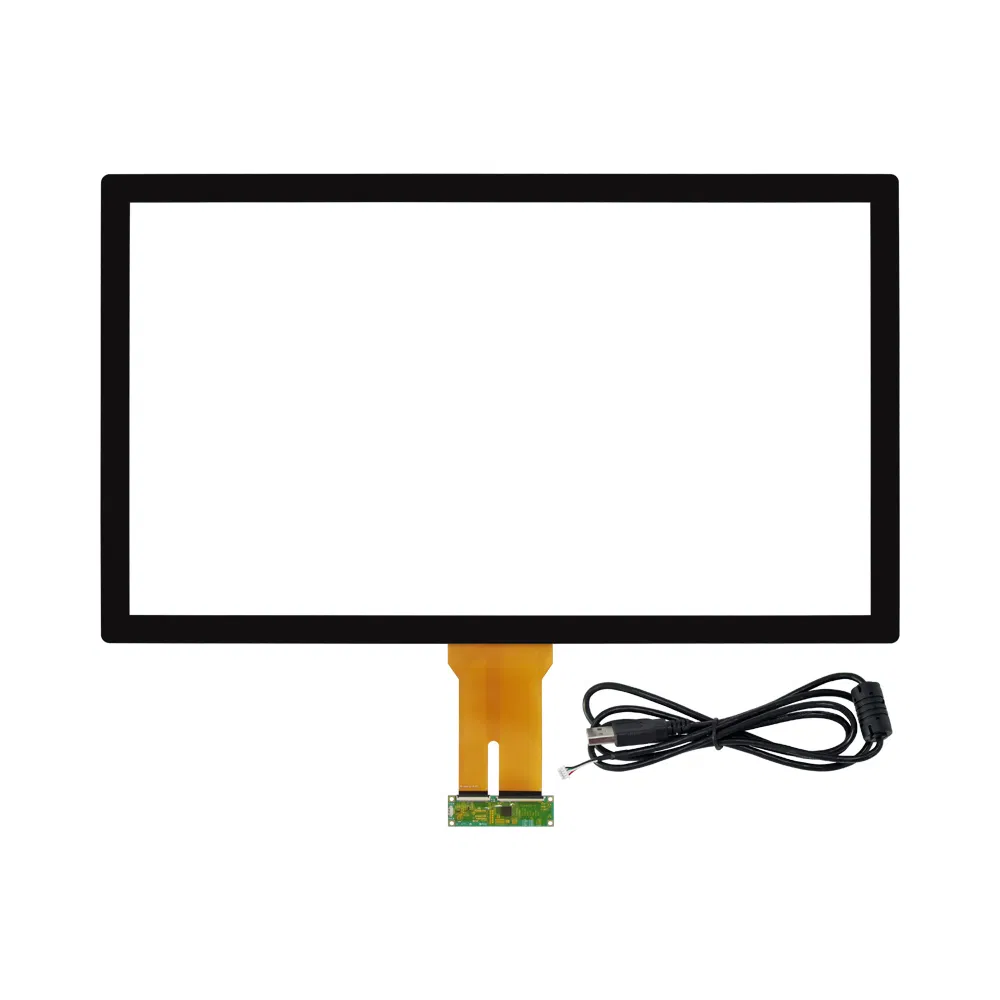

43 Inch Pcap Touch Screen USB Touch Interface

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.	CPI430Y00-4K-C01	Application	Game Entertainment System
Screen Type	Capacitive	Technology	Pcap Touch Screen
Resolution	4096*4096	Multi-Touch	10 Touch Points
Material	Glass (Vandal-Proof/Anti-Glare Optional)	Production Capacity	500 Pieces/Day

Product Description

Projected Capacitive (PCAP) Technology

Detects touch positions through changes in capacitance. When a finger or conductive stylus approaches, it distorts the local electrostatic field, pinpointing the location via controller and firmware combination.

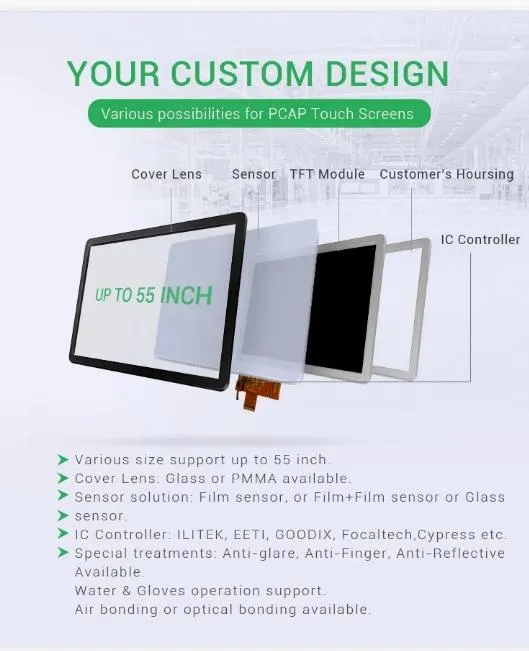

5" - 110" Support Custom made
10 Points Multi-touch - USB/RS232/IIC interface
EETI / ILITEK / SIS Controller Board
1.8mm to 8mm Tempered Vandal-proof Glass
Compatible with Windows, Linux, Android, Mac OS, Raspberry Pi

Technical Specifications

Technical Specification
Interface	USB
Touch Points	10 Points
Transmittance	>90%
Surface Hardness	≥6H
Operating Temp	-10°C to +60°C
Environment & Durability
Ball Drop Test	130g±2g, 35cm, No damage
Thermal Shock	-10°C to 60°C (50 cycles)

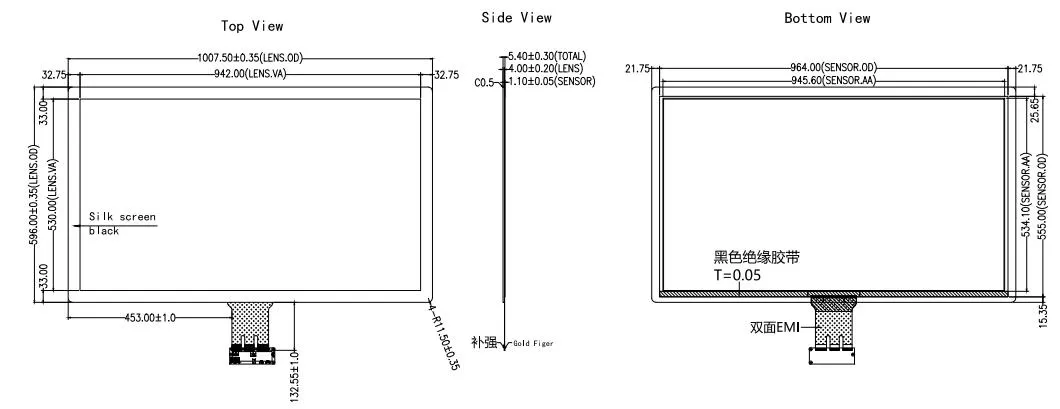

Product Drawings

Other Touch Solutions

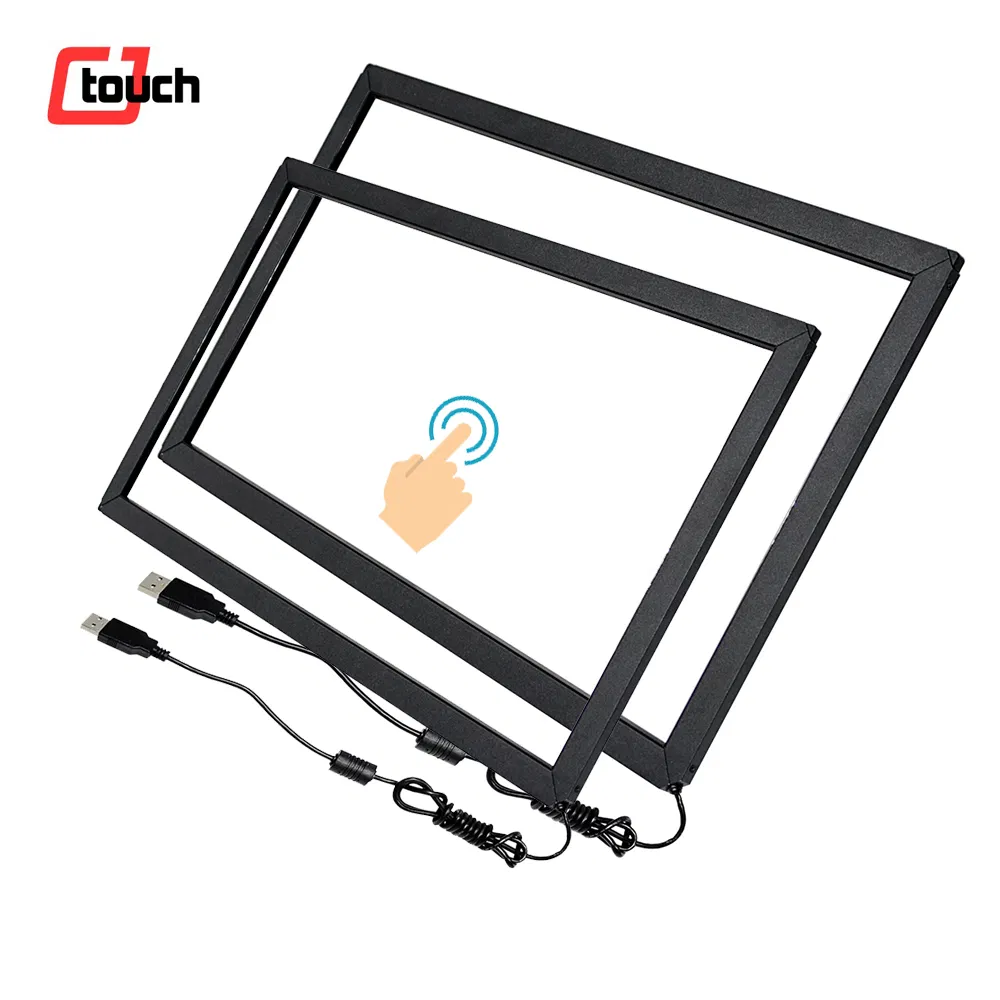

IR Touch Screen
10.4" - 300" Custom Sizes

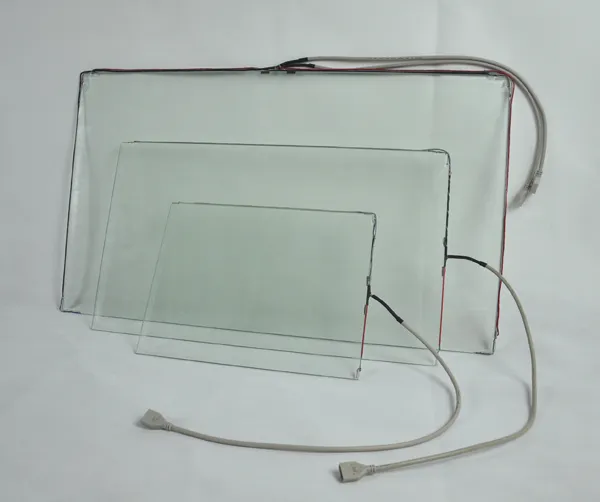

SAW Touch Screen
7" - 32" Anti-Glare Glass

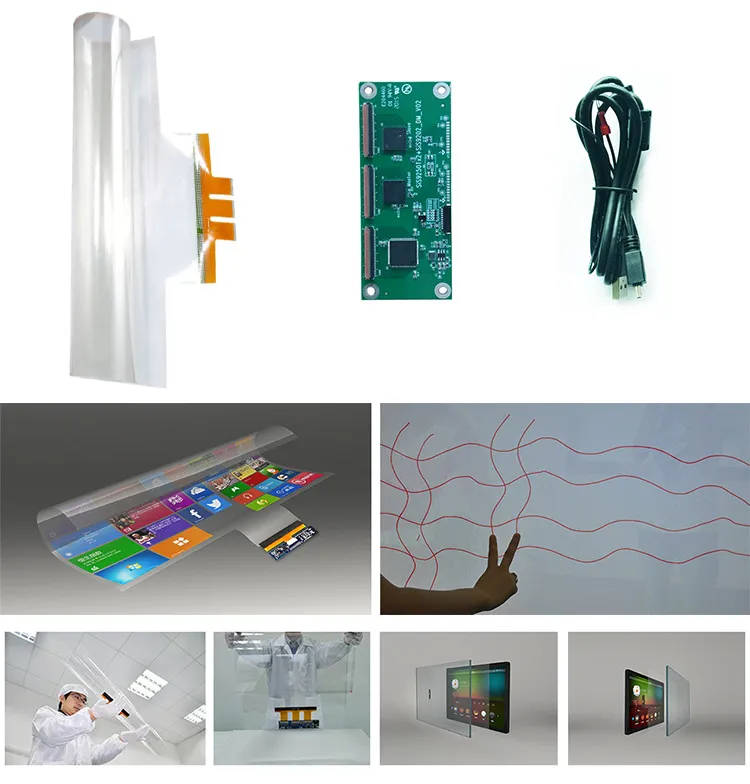

Nano Touch Foil
Flexible, Curve Surfaces

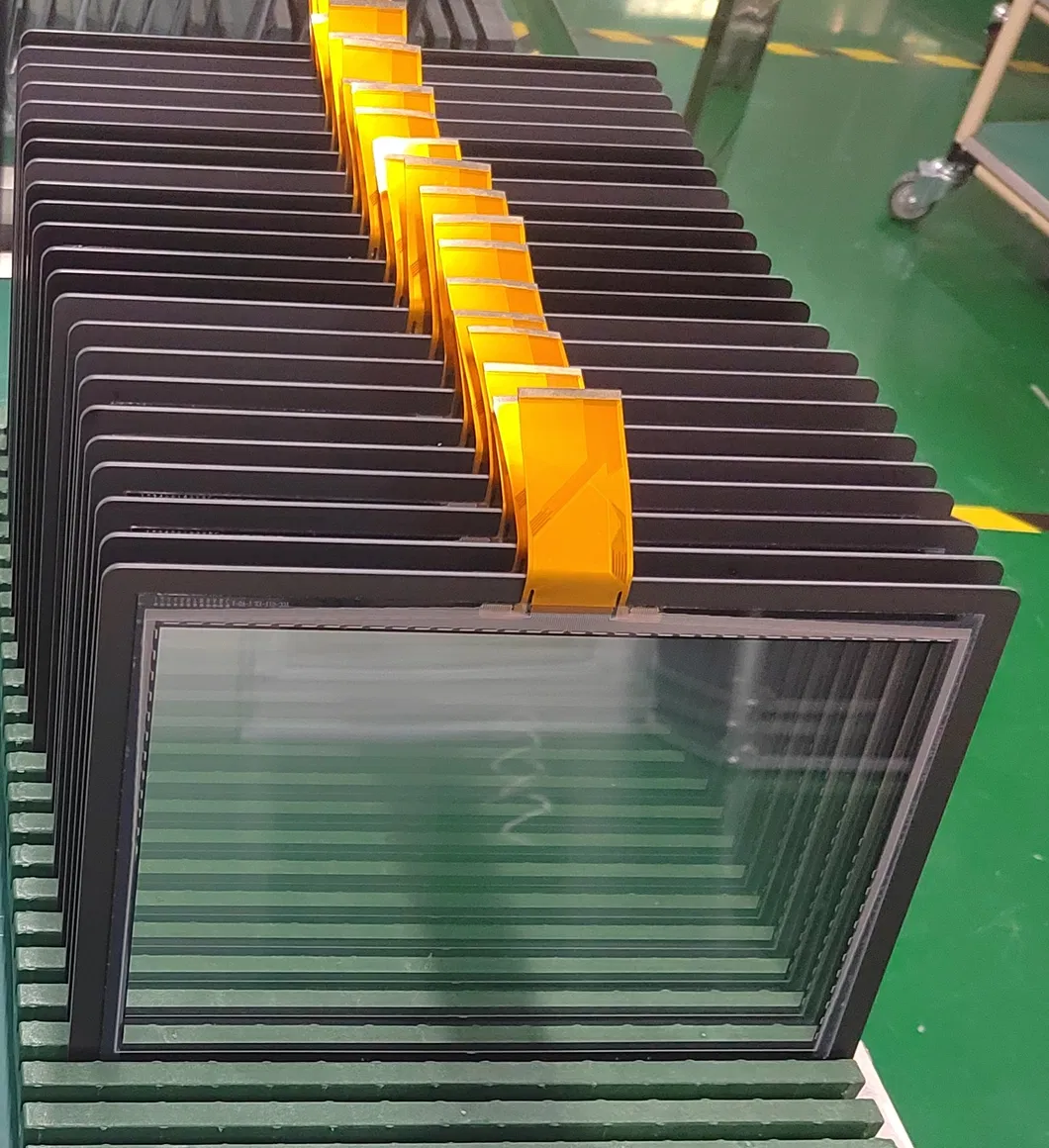

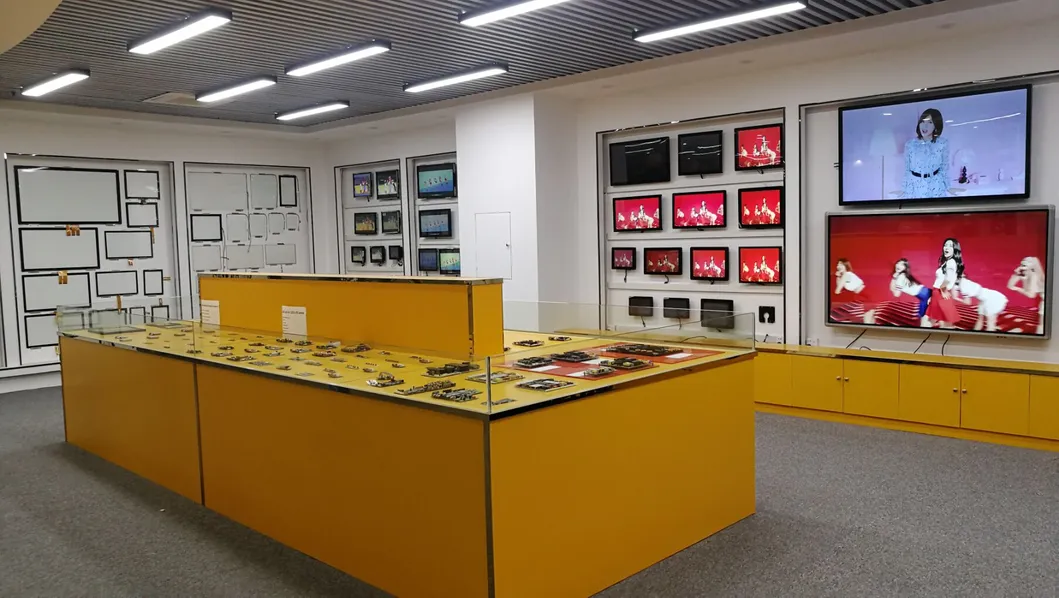

Manufacturing Excellence

10 Years Professional Chinese Factory Experience
ISO 9001, CE, FCC, RoHS Certified
Production Capacity: 150 Thousand sets / year
Strong Design Team for Custom Unique Solutions

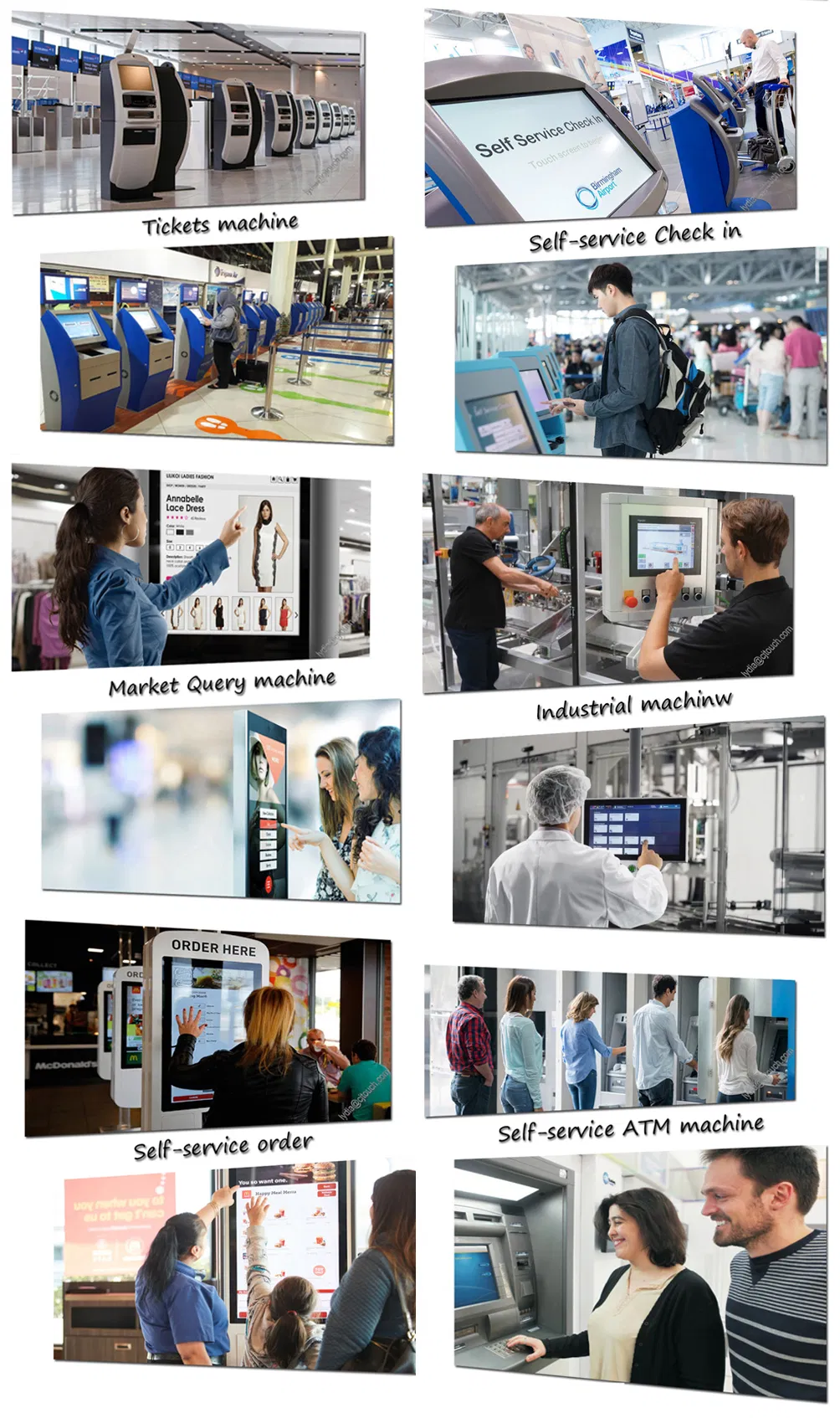

Application Fields

ATM / Kiosk / Banking
Industrial Control / Public Inquiry
Medical Equipment / Hospital
Gaming / Entertainment Systems
Interactive Signage / Smart Whiteboards

Frequently Asked Questions

Q: What is the maximum size available for PCAP touch screens?

A: We support a wide range of sizes from 5 inches up to 110 inches, including custom-made specifications.

Q: How many touch points does the 43-inch panel support?

A: Our standard 43-inch PCAP touch screen supports up to 10 multi-touch points for a smooth interactive experience.

Q: Which operating systems are compatible with your touch screens?

A: Our touch panels are "plug and play" compatible with Windows 7/8/10, Android, Linux, Mac OS, and Raspberry Pi.

Q: Can the glass be customized for outdoor use?

A: Yes, we offer optional Vandal-proof, Anti-Glare (AG), and waterproof treatments suitable for industrial and outdoor environments.

Q: What interface options are provided for the controller?

A: Most of our standard panels come with a USB interface, but RS232 and IIC interfaces are also available depending on the model.

Q: Is the touch screen durable enough for public kiosks?

A: Absolutely. With a surface hardness of ≥6H and tempered glass construction, it is designed to withstand high-traffic public use.
